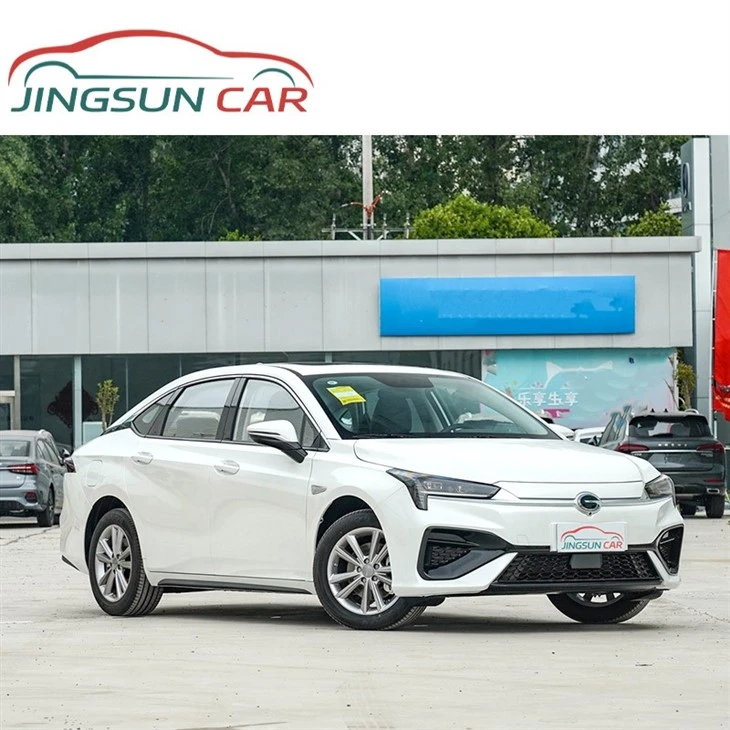

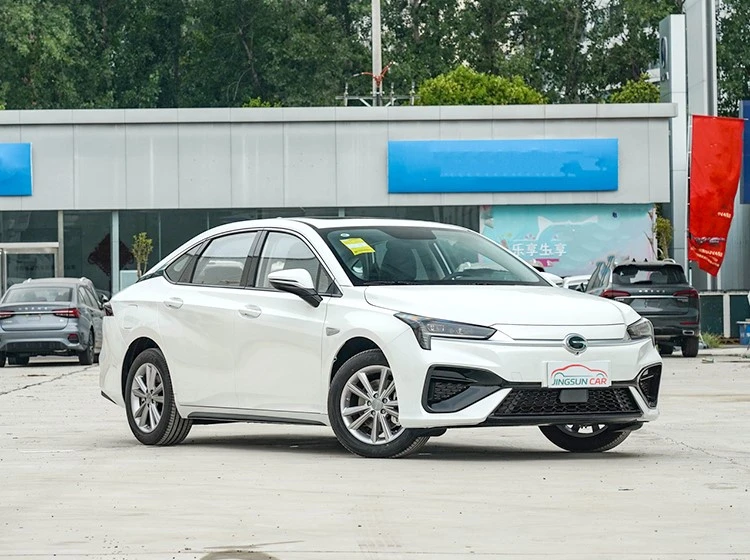

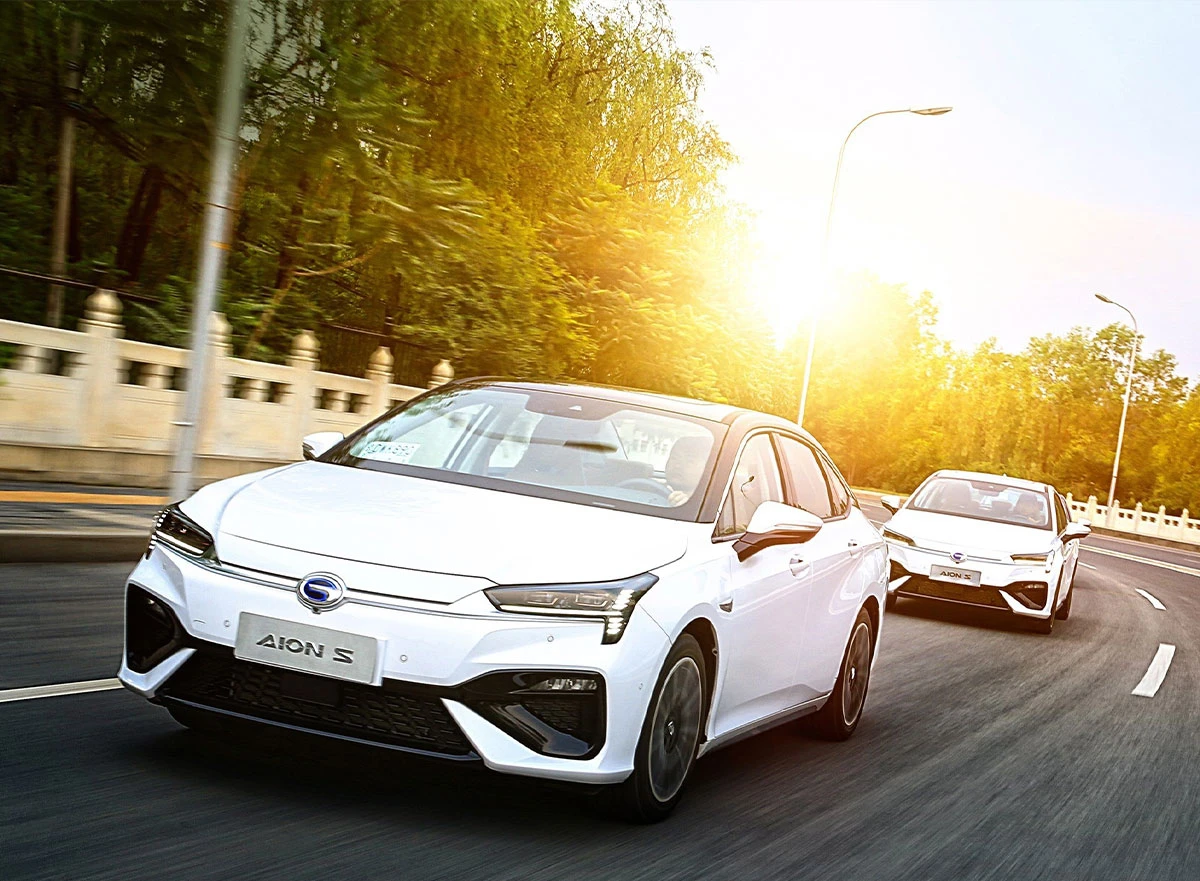

The exterior design of the AION S car is very distinctive. It has an online appearance and is highly recognizable. I believe that this design can please many young consumers.
The body aerodynamics of the Aion S also have outstanding performance. Wind tunnel experiments from the F1 engineering team optimized its drag coefficient to 0.245Cd.

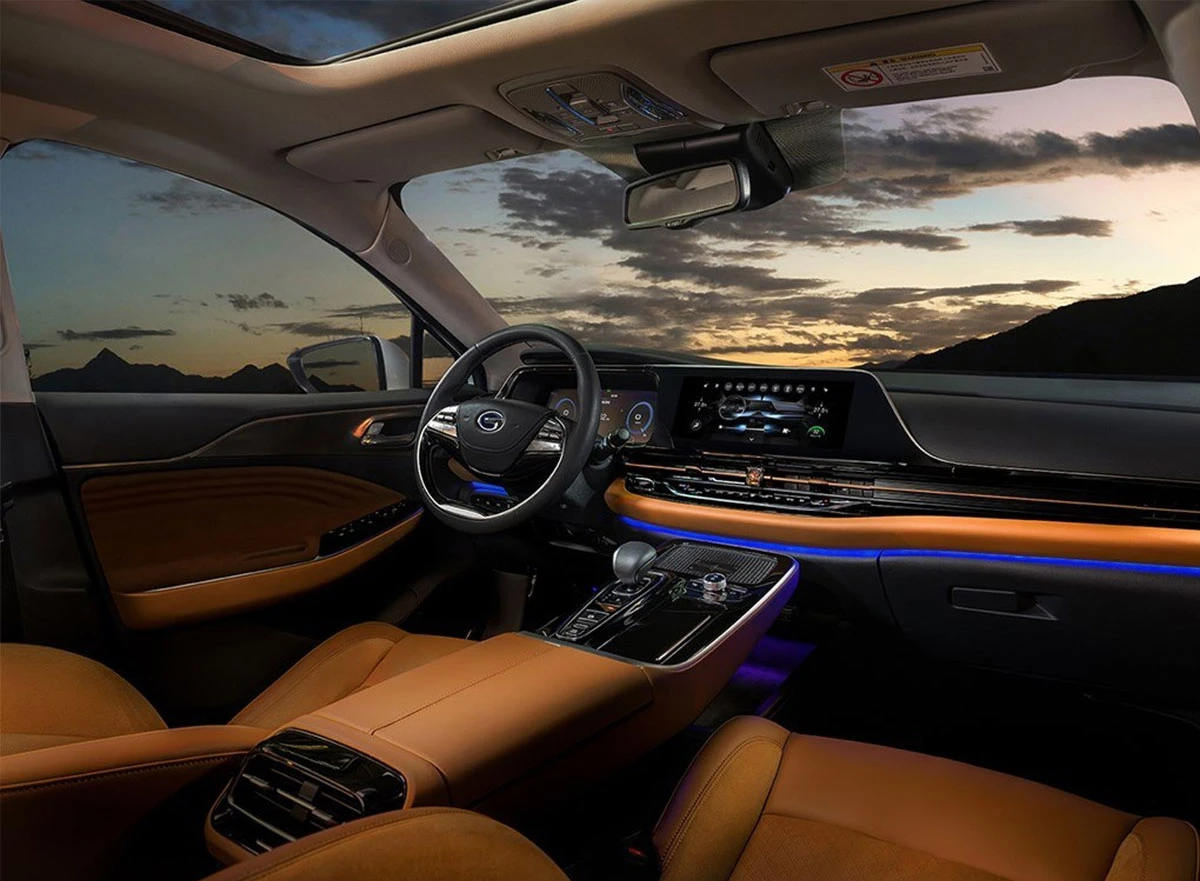

The interior of the Aion S car is very beautiful and has good texture. The design style has taken a route that focuses on elegance and class. I believe this design will be "suitable for all ages".

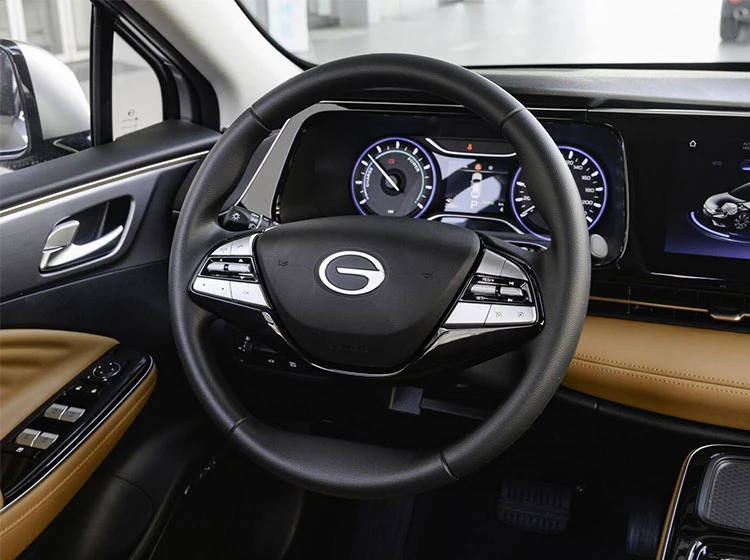

Functional Steering Wheel
The size of the two-spoke steering wheel is very suitable. The leather covered on the surface is soft and delicate, and the overall grip is excellent.

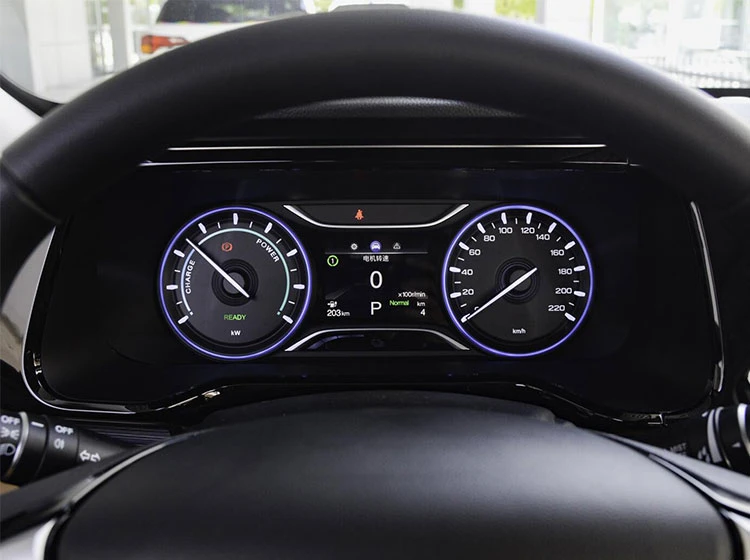

Instrument Screen
The 3.5-inch instrument panel in the Aion S is brightly colored and the display effect is quite good. Although it is not a full LCD screen, basic information is clear at a glance.

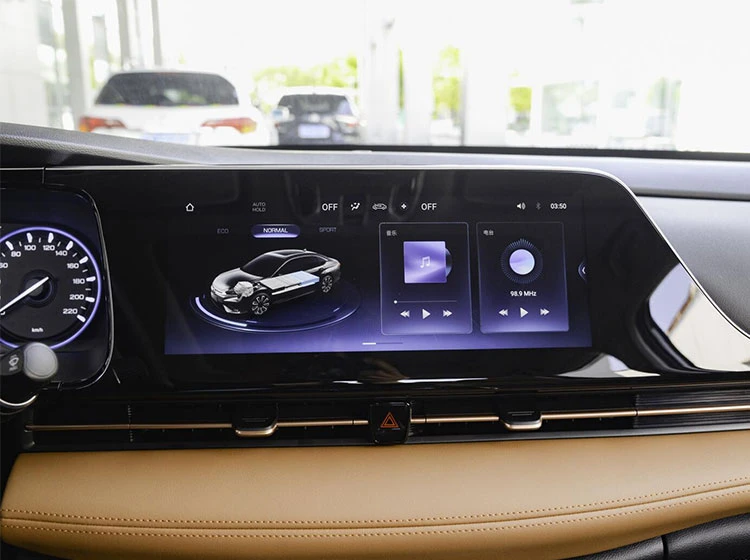

Central Control Screen
The in-car multimedia system is equipped with optional 12.3-inch and 8-inch LCD touch screens. It has many common functions such as Bluetooth calling, Bluetooth music, navigation, etc., and the operation is also very smooth.
Gear Shift Knob
The Aion S car uses an electric vehicle single-speed transmission. The gear knob is relatively delicate and feels excellent.

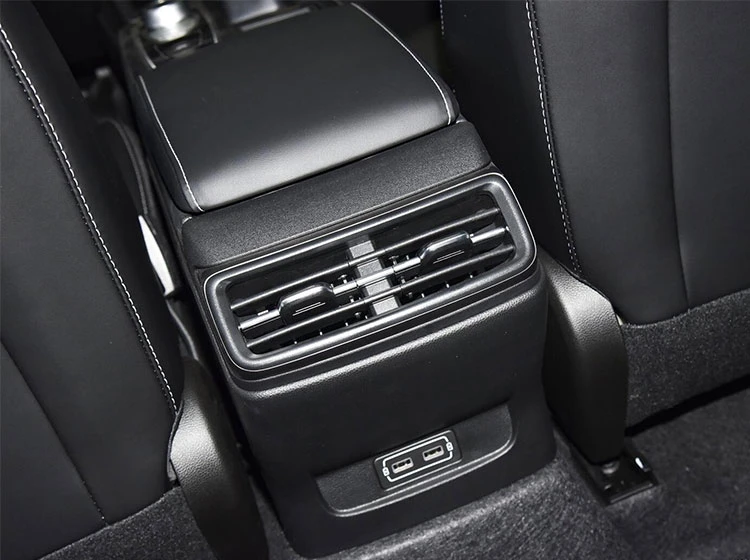

Rear Air Outlet
The Aion S car is equipped with two air outlets in the rear. Although the temperature cannot be adjusted, it is equipped with two USB power supplies.

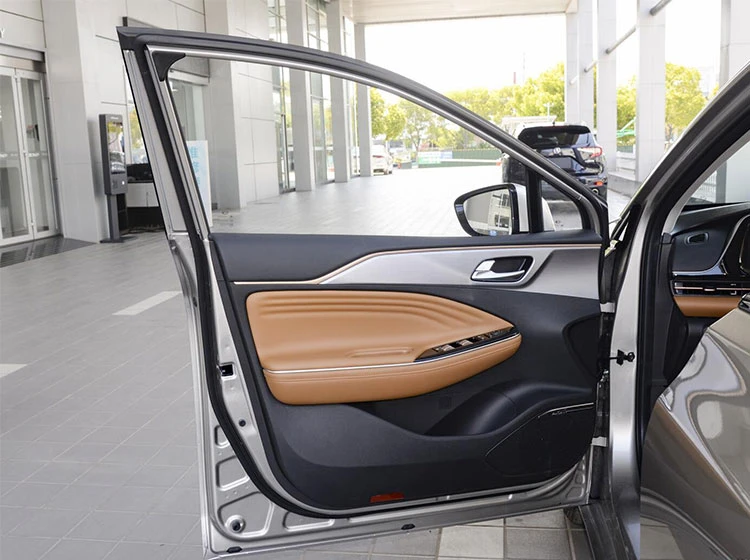

Door Inner Panel
The door lining uses two-color splicing, and leather materials are used in areas with a high touch rate by hands, which feels very good.

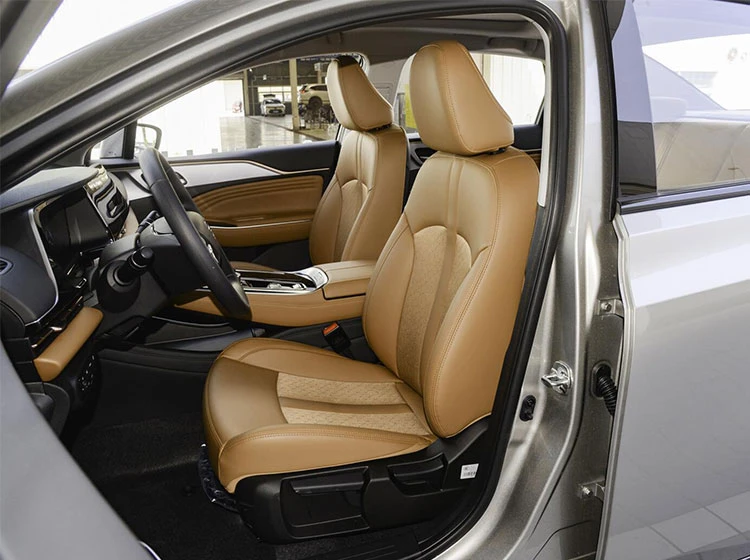

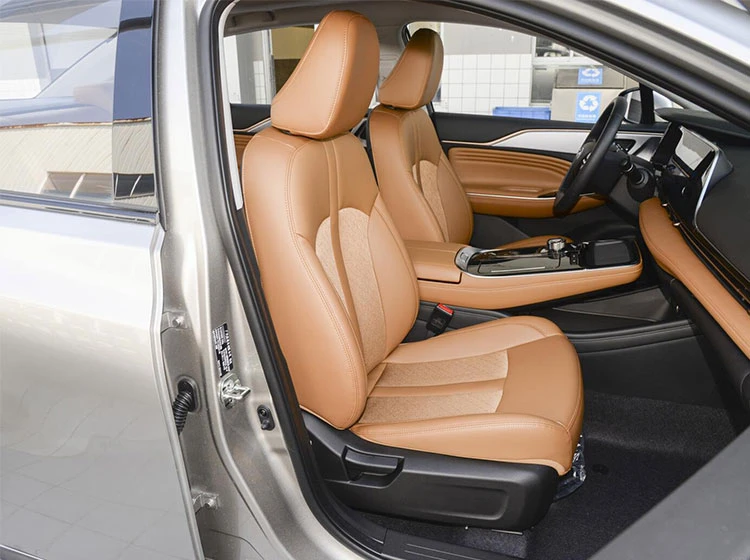

Front Seats
The style of the front seats is dynamic and beautiful, and they are made of leather materials that have a good touch. In terms of configuration, the seats are manually adjusted.

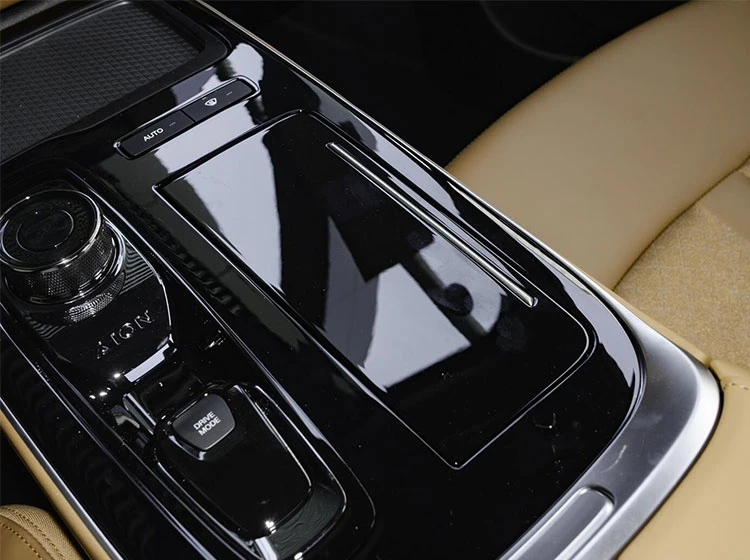

Center Armrest
The Aion S car "saddle position" adopts a double-layer structure, and the upper layer is a suspended design, which looks very special. It is worth mentioning that a large amount of leather materials or soft materials are used to wrap the surface, and the details of the materials and processing are quite in place.

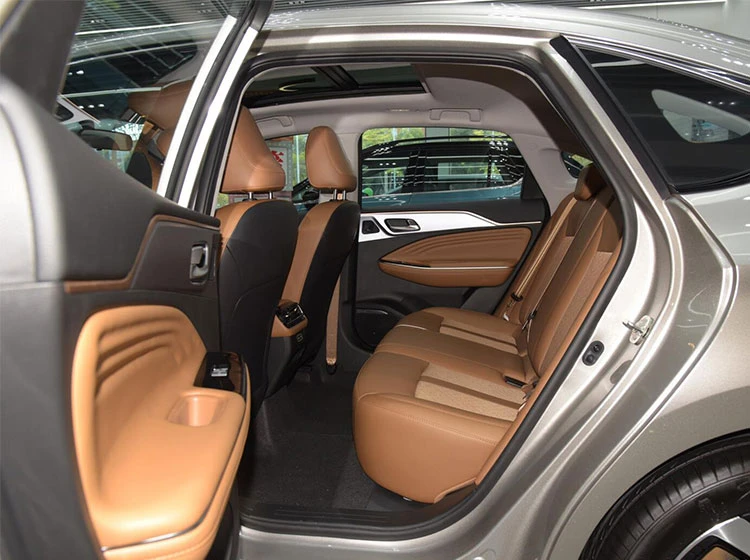

Rear Space
Aion S is derived from the pure electric exclusive platform GEP. The layout of the passenger compartment was considered at the beginning of the design. By rationally designing the shape and layout of the battery pack, you will not feel that the floor of the passenger compartment is higher when you sit in the Aion S car. The actual look and feel There is no obvious difference between the sense of space and traditional fuel vehicles.

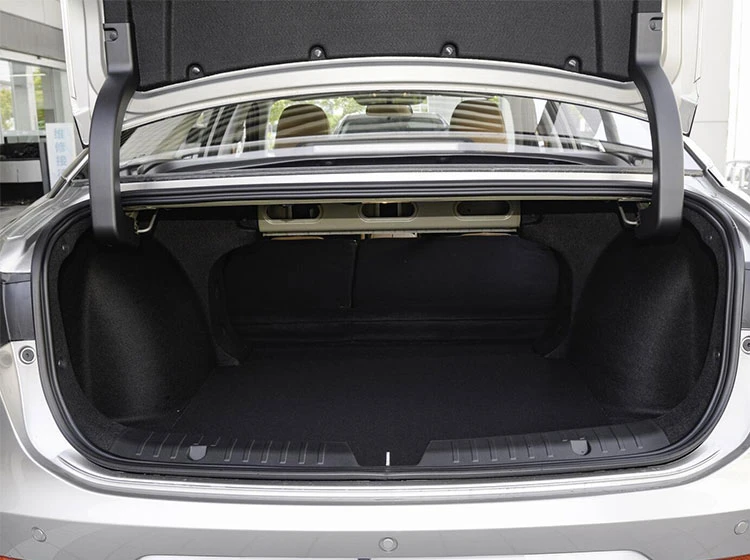

The Trunk
The trunk volume of Aion S is 453L, which is almost the same as that of fuel vehicles of the same level. In addition, its rear seats can be folded down for emergency use.

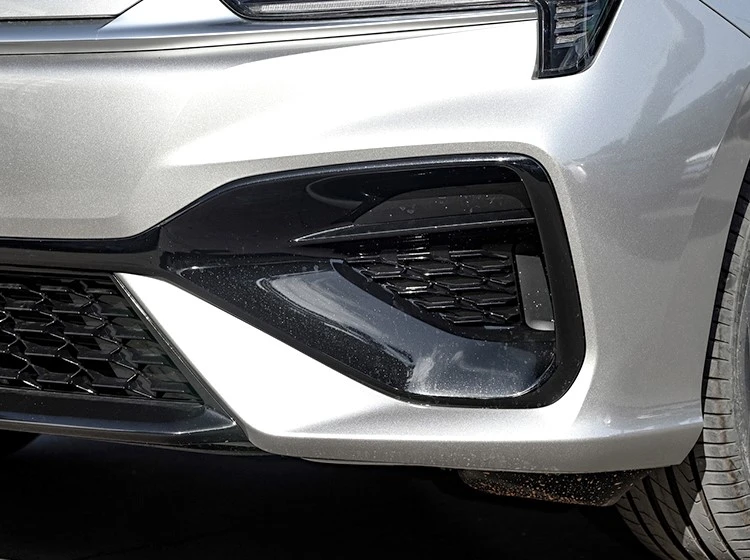

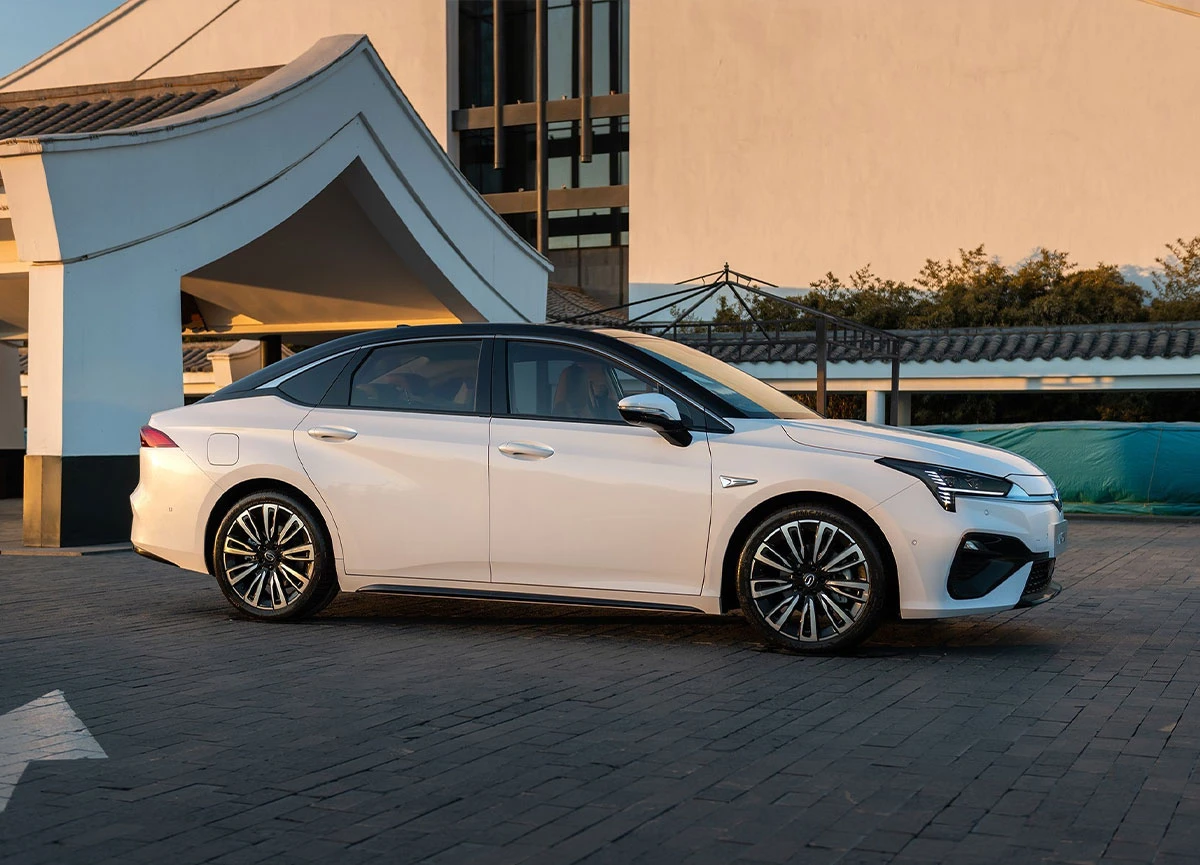

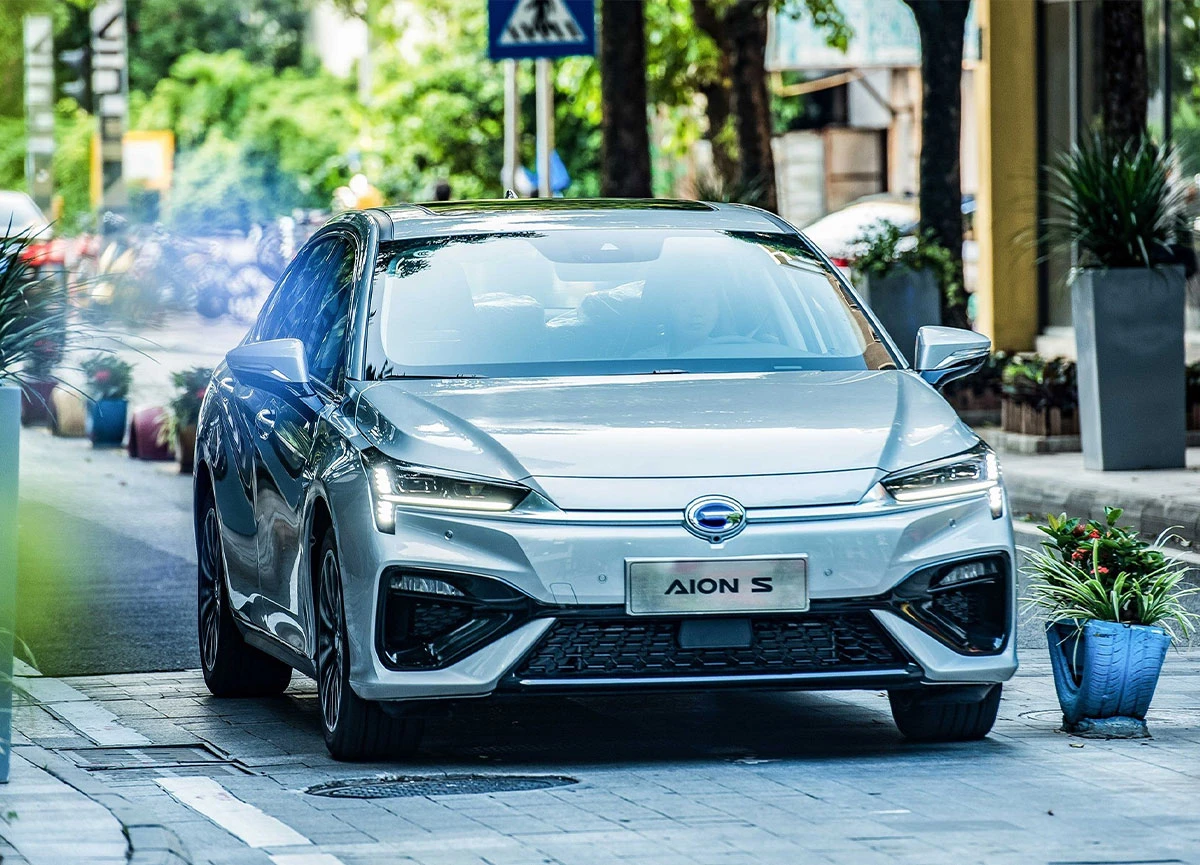

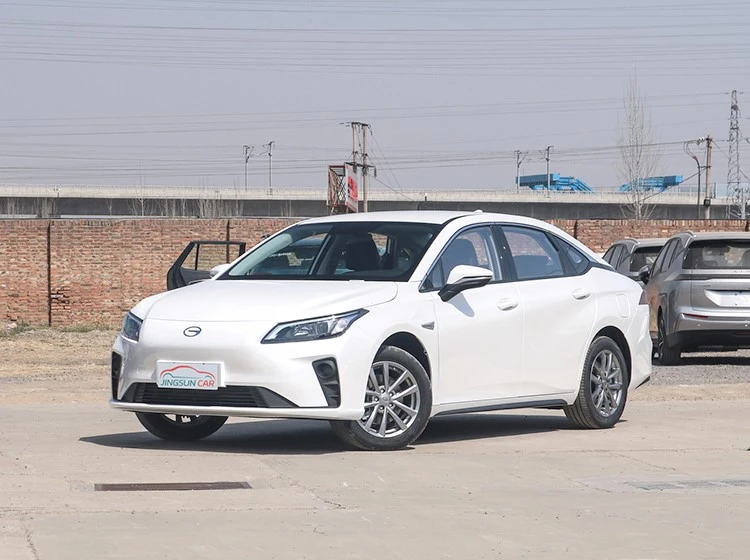

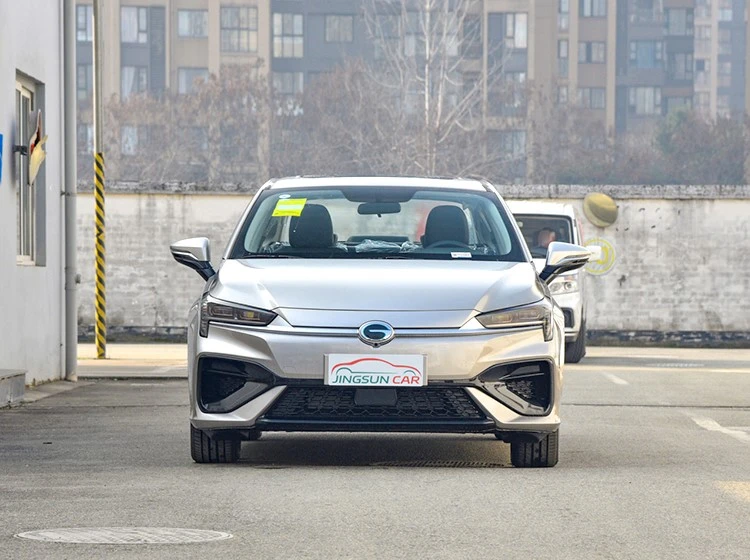

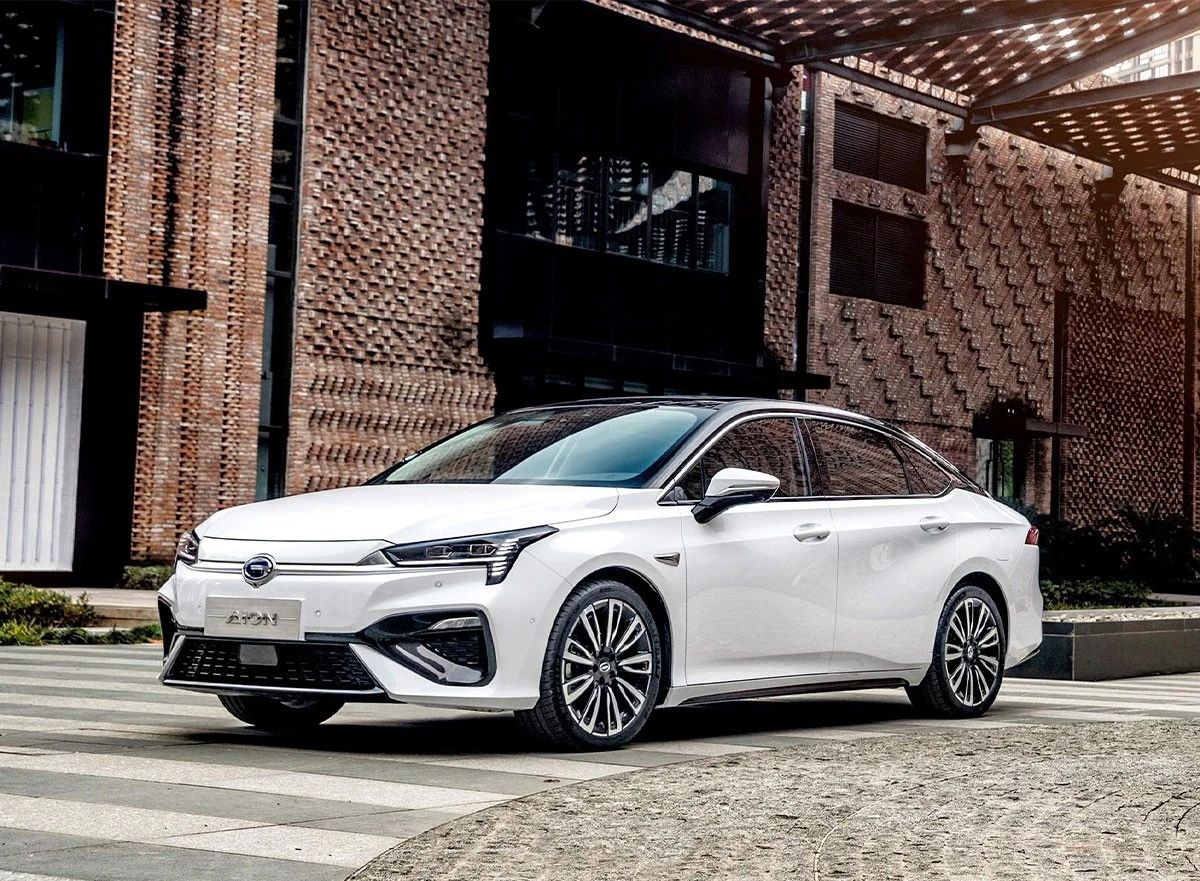

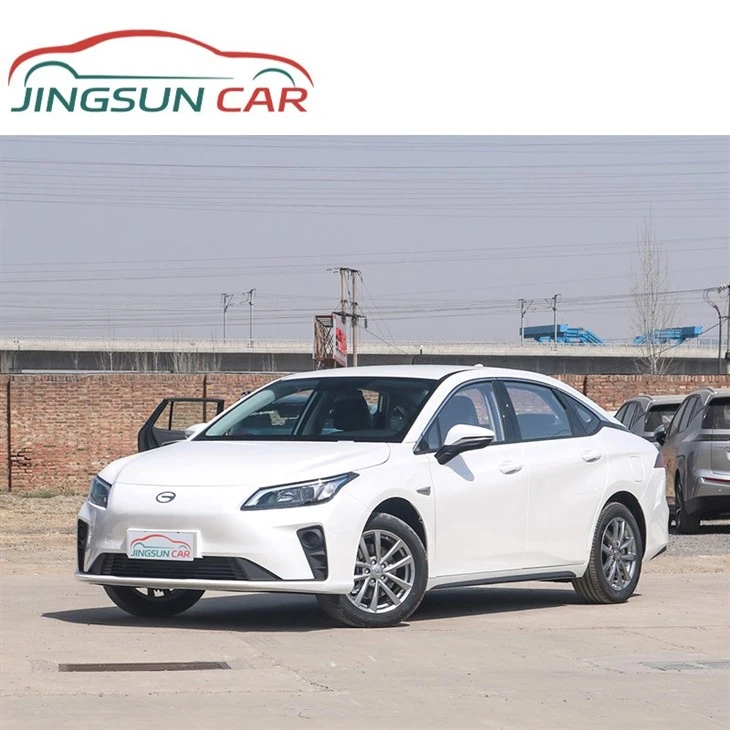

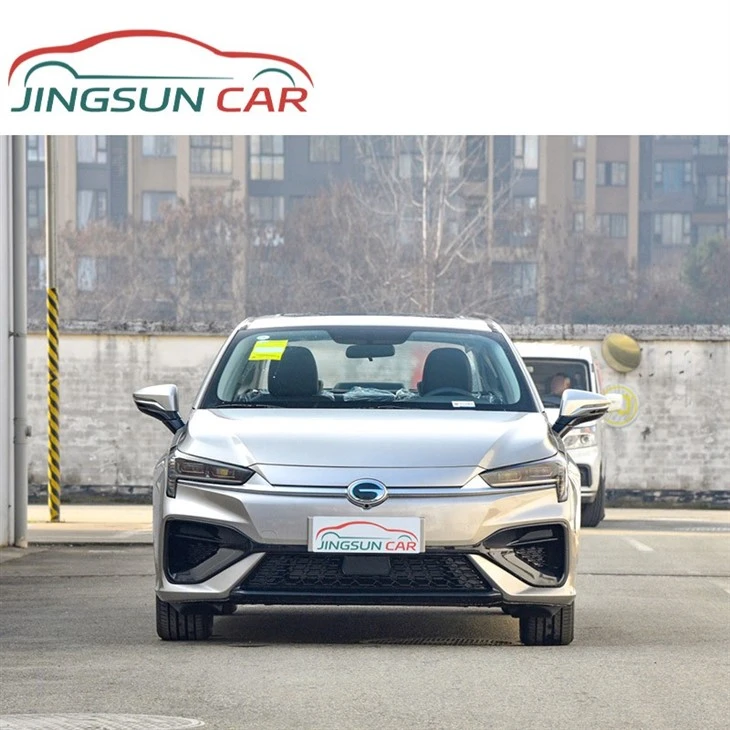

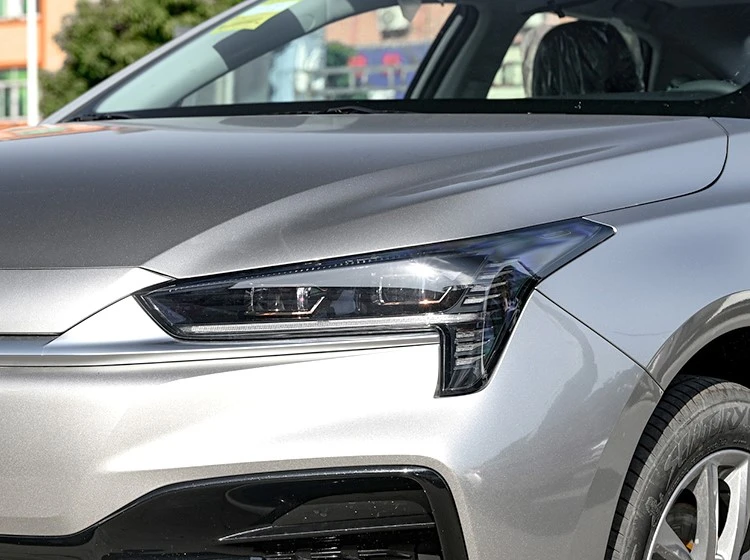

The exterior design of Aion S has sharp edges and corners, the headlight shape is highly recognizable, and the front bumper adopts a large area of contrasting color design to highlight the sporty feel.

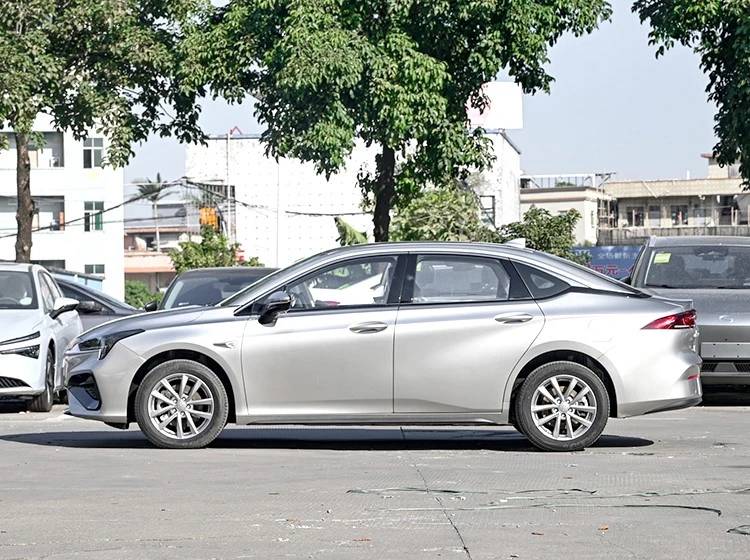

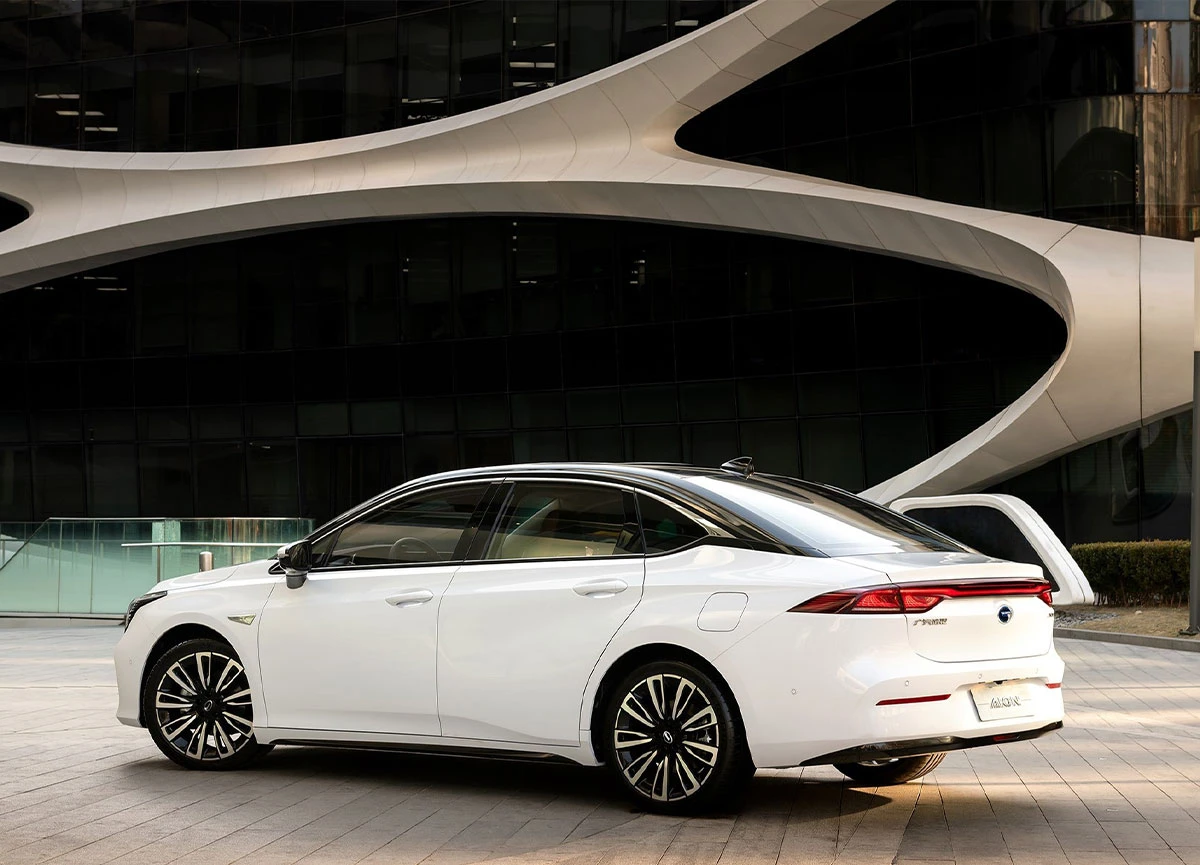

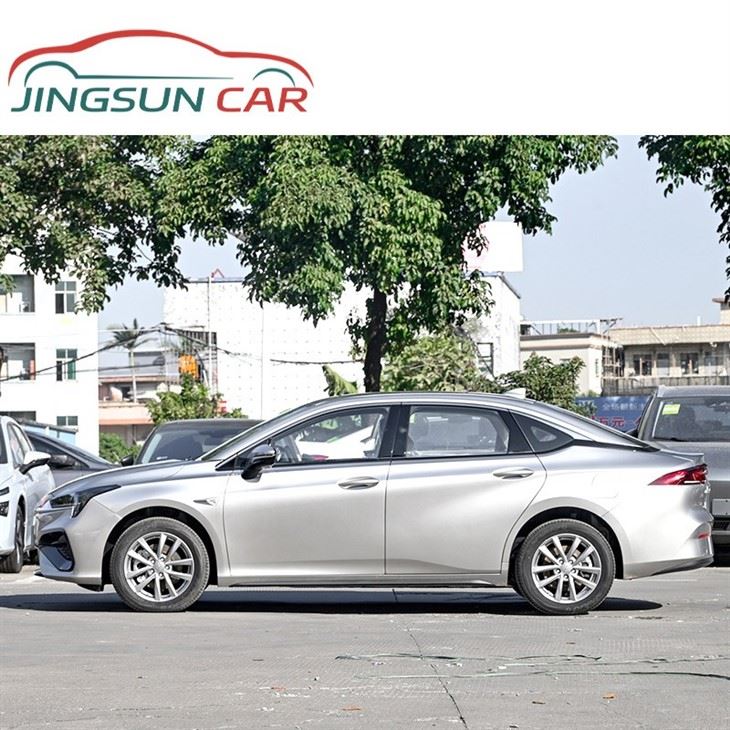

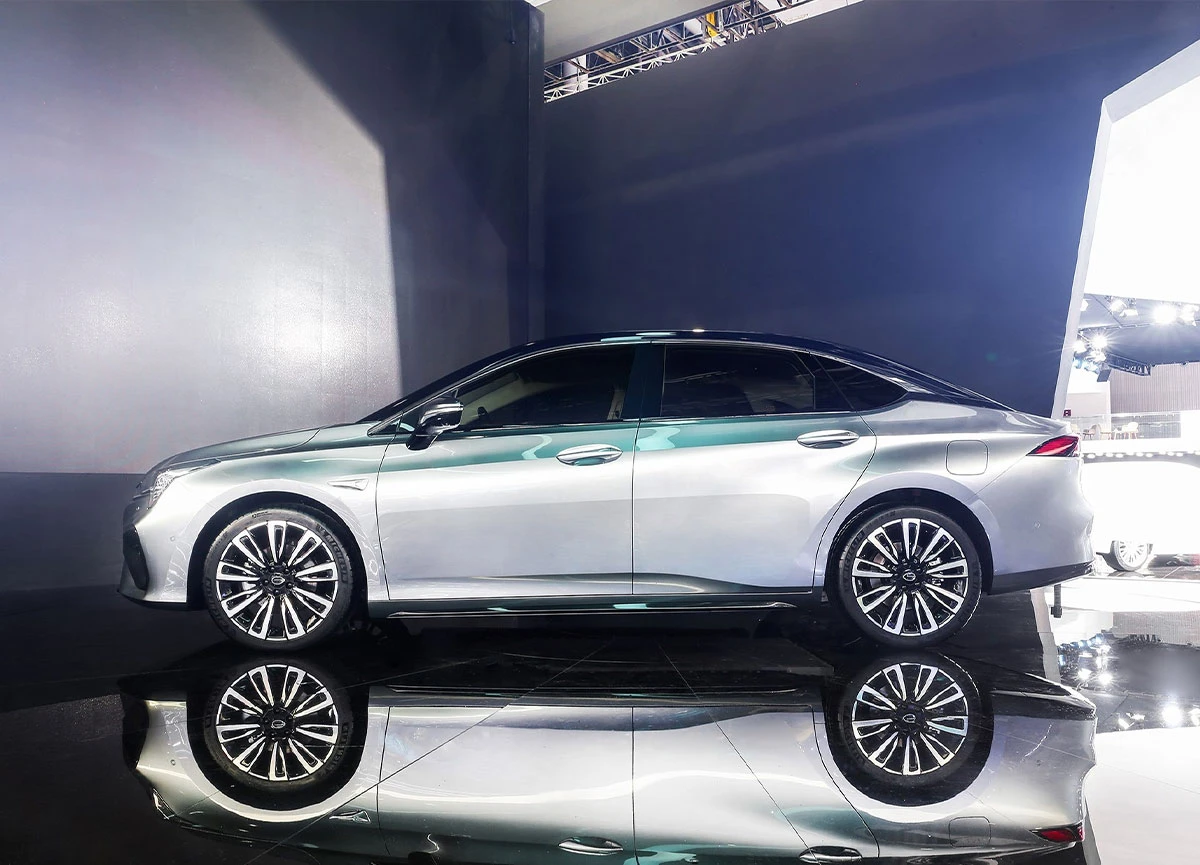

Compared with models of the same class, the body size of the Aion S has certain advantages, and the wheelbase length of 2750mm is the highlight. After all, the wheelbase length of most models in this class is only about 2700mm.

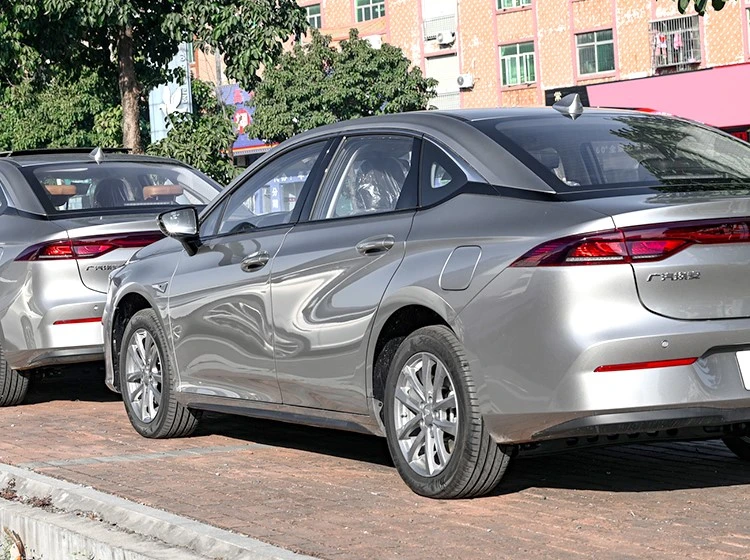

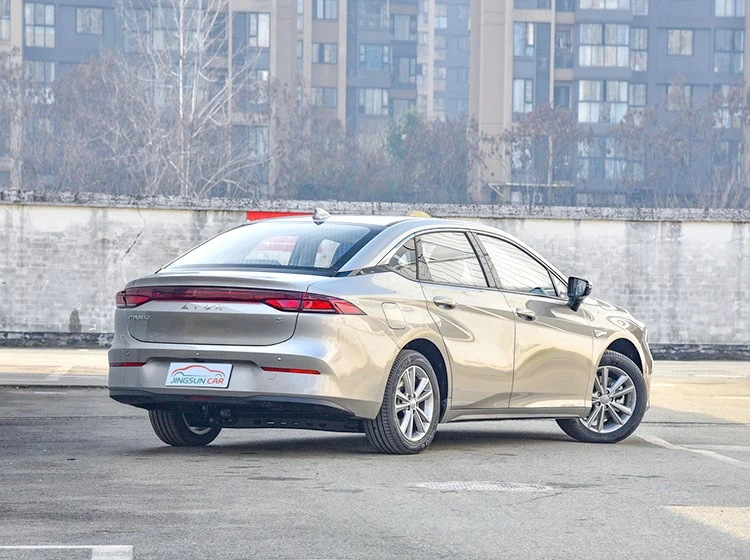

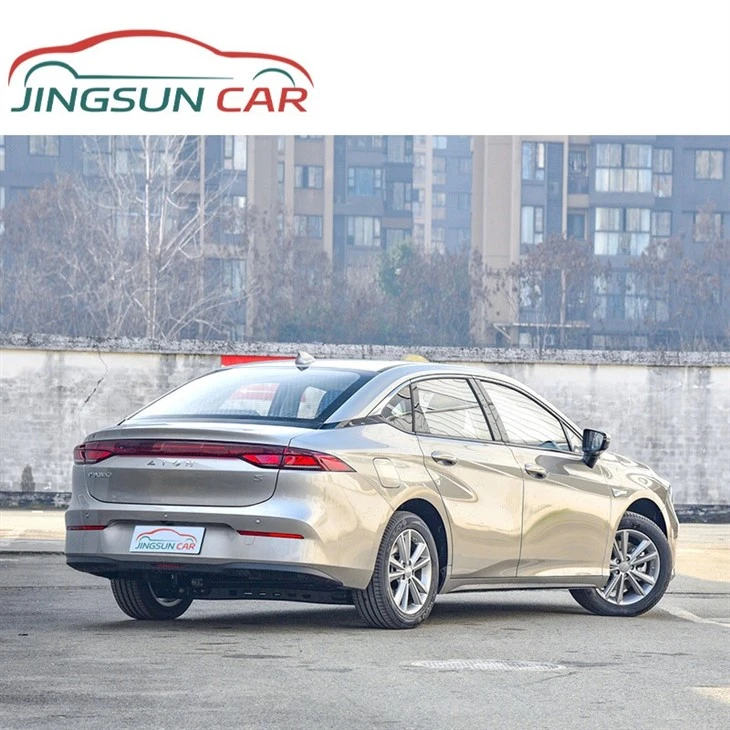

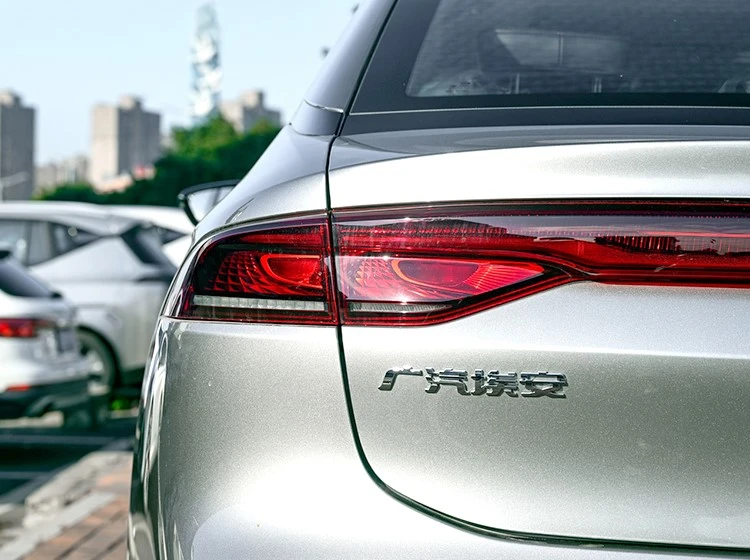

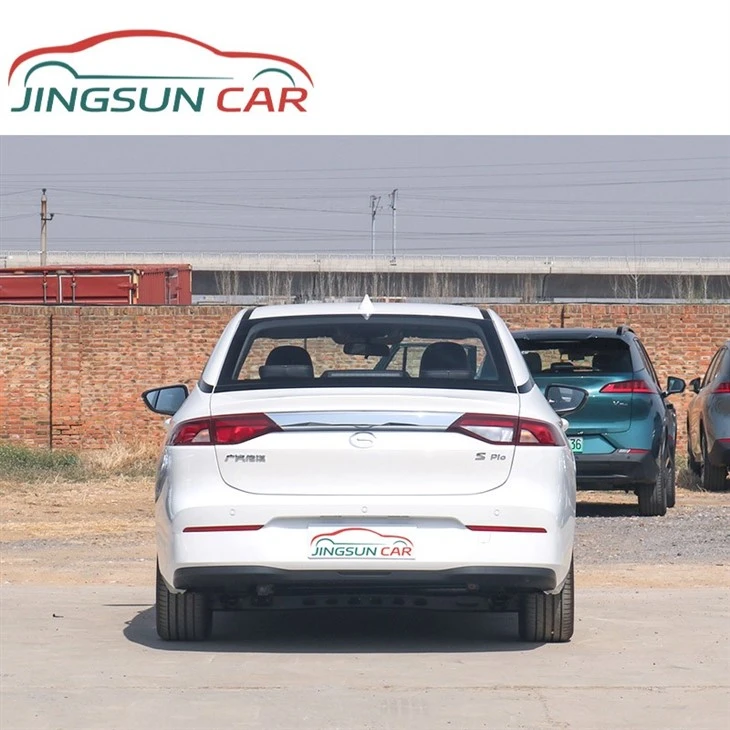

The Aion S car uses the currently popular through-type taillights. In contrast, the Geometry A car's rear is more restrained, with a chrome trim strip connecting the two taillights.
The budget is not very high, the Aion S car is very cost-effective and relatively balanced in all aspects. The most satisfying thing is the space, which is one of the best in its class, and the cost of using the car is very low.
Product Details
| ● Standard configuration ○ Optional -- None |
AION S 2023 Dazzle 580 55.5kWh lithium iron phosphate | AION S 2023 Phantom 580 Lithium Iron Phosphate | AION S 2022 Dazzle 580 60kWh | AION S 2020 Turbo 580 Travel Standard |
| Basic Parameters | ||||
| Manufacturer | AION | AION | AION | AION |
| Level | Compact Car | Compact Car | Compact Car | Compact Car |
| Energy type | Pure Electric | Pure Electric | Pure Electric | Pure Electric |
| Time to market | 2023.09 | 2023.09 | 2023.09 | 2023.09 |
| NEDC pure electric cruising range (km) | 460 | 460 | 460 | 460 |

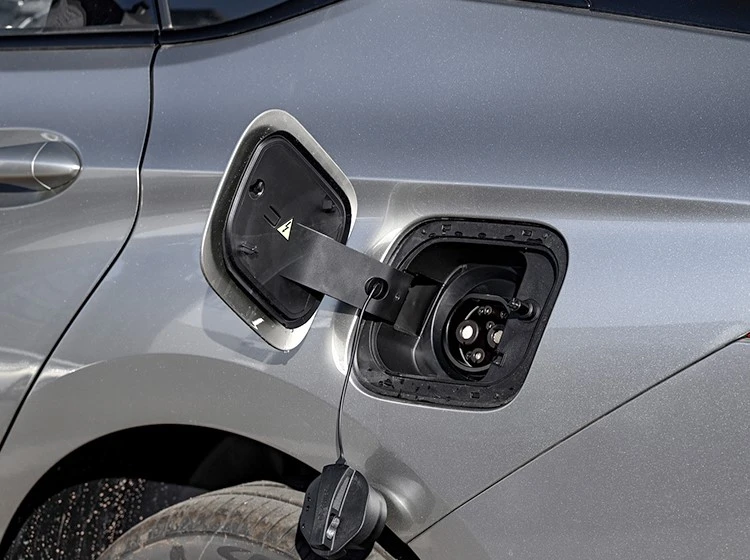

| Fast charging time (h) | 0.78 | 0.78 | 0.78 | 0.78 |
| Slow charging time (h) | 10 | 10 | 10 | 10 |
| Fast charging percentage | 80 | 80 | 80 | 80 |
| Maximum power(kw) | 100 | 100 | 100 | 100 |
| Maximum torque(N-m) | 225 | 225 | 225 | 225 |
| Motor(Ps) | 136 | 136 | 136 | 136 |
| Gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Length*Width*Height (mm) | 4805*1880*1545 | 4805*1880*1545 | 4805*1880*1545 | 4768*1880*1530 |
| Body structure | 4-door, 5-seat sedan | 4-door, 5-seat sedan | 4-door, 5-seat sedan | 4-door, 5-seat sedan |
| Maximum speed (km/h) | 130 | 130 | 130 | 130 |
| Official 0-100km/h acceleration (s) | -- | -- | -- | -- |
| Vehicle warranty | 4 years or 150,000 kilometers | 4 years or 150,000 kilometers | 4 years or 150,000 kilometers | 4 years or 150,000 kilometers |
| Car Body | ||||
| Wheelbase(mm) | 2750 | 2750 | 2750 | 2750 |
| Front wheelbase (mm) | 1600 | 1600 | 1600 | 1600 |
| Rear wheelbase (mm) | 1602 | 1602 | 1602 | 1602 |
| Body structure | Sedan | Sedan | Sedan | Sedan |
| Car door opening method | Swing door | Swing door | Swing door | Swing door |
| Trunk volume (L) | 453 | 453 | 453 | 453 |
| Curb weight (kg) | -- | 1630 | 1705 | 1610 |

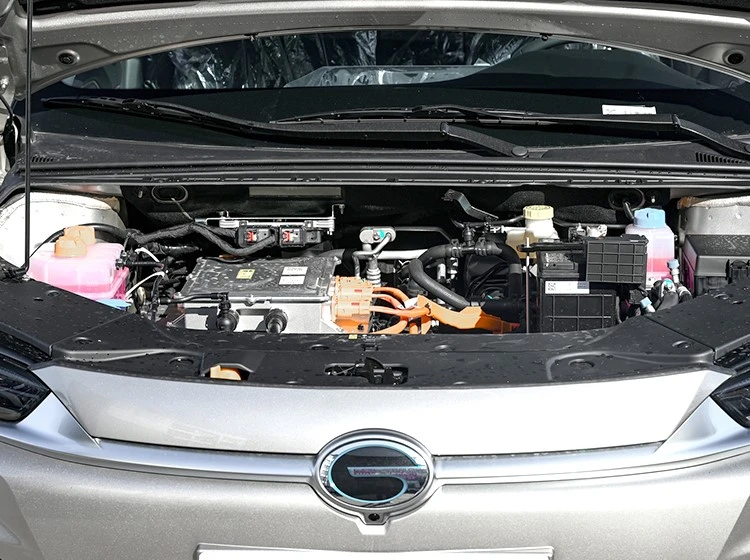

| Electric Motor | ||||
| Motor type | Permanent Magnet / Synchronous | Permanent Magnet / Synchronous | Permanent Magnet / Synchronous | Permanent Magnet / Synchronous |
| Total motor power (kW) | 100 | 100 | 100 | 100 |
| Motor Total power (Ps) | 225 | 225 | 225 | 225 |
| Total torque of motor (N·m) | 225 | 225 | 225 | 225 |
| System comprehensive power (kW) | -- | -- | -- | -- |
| System comprehensive power (Ps) | -- | -- | -- | -- |
| Number of drive motors | Single Motor | Single Motor | Single Motor | Single Motor |
| Motor layout | Front Mounted | Front Mounted | Front Mounted | Front Mounted |
| NEDC pure electric cruising range (km) | 480 | 480 | 480 | 480 |
| Electricity consumption per 100 kilometers (kWh/100km) | 12.5 | 12.5 | 12.9 | 12.9 |
| Chassis/Wheels | ||||
| Drive mode | Front-mounted front-wheel drive | Front-mounted front-wheel drive | Front-mounted front-wheel drive | Front-mounted front-wheel drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension |
| Parking brake type | Electronic Parking | Electronic Parking | Electronic Parking | Electronic Parking |

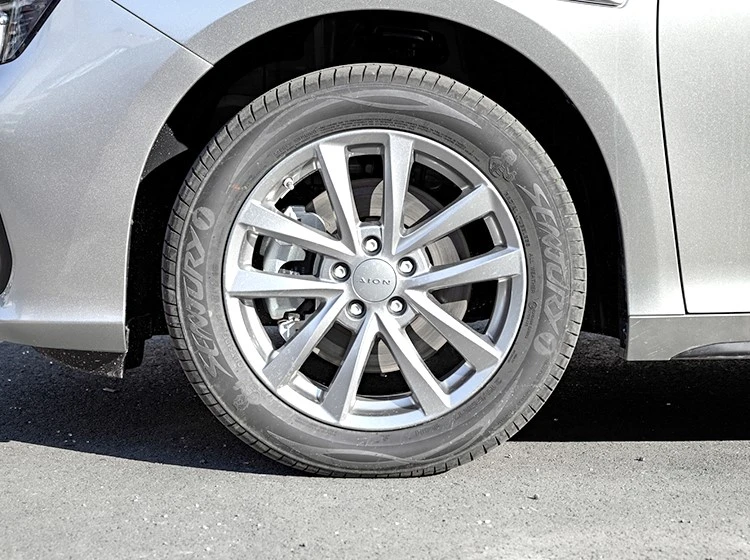

| Front tire specifications | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 |
| Rear tire specifications | 215/55 R17 | 215/55 R17 | 215/55 R17 | 215/55 R17 |
| Spare tire specifications | -- | -- | -- | Full-size |
| Active/Passive safety | ||||
| Main/passenger seat airbag | Primary ● / Secondary ● | Primary ● / Secondary ● | Primary ● / Secondary ● | Primary ● / Secondary ● |
| Front/rear side airbags | Front -- / Rear -- | Front -- / Rear -- | Front -- / Rear -- | Front -- / Rear -- |
| Front/rear head airbags (curtain airbags) | Front--/rear-- | Front--/rear-- | Front--/rear-- | Front--/rear-- |
| Tire pressure monitoring function | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display |
| Seat belt not fastened reminder | ●Front | ●Front | ●Front | ●Front |
| ABS anti-lock | ● | ● | ● | ● |
| Lane Departure Warning System | -- | -- | -- | -- |
| Lane centering | -- | -- | -- | -- |
| Road traffic sign recognition | -- | -- | -- | -- |
| Active braking/active safety system | -- | -- | -- | -- |
| Auxiliary/Control Configuration | ||||

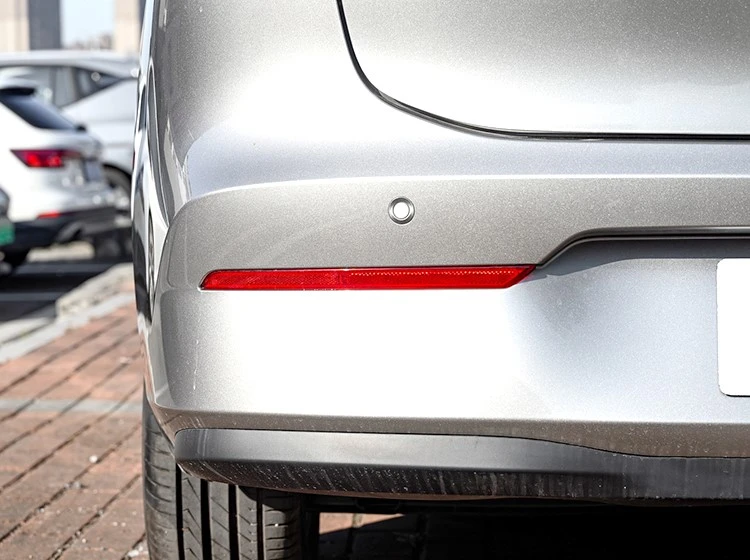

| Front/rear parking radar | Front--/Rear | Front--/Rear | Front--/Rear | Front--/Rear |
| Driving assistance images | ●Reverse camera | ●Reverse camera | ●Reverse camera | ●Reverse camera |
| cruise system | ●Cruise control | ●Cruise control | ●Cruise control | ●Cruise control |
| Driving mode switch | ●Economy | ●Sport ●Economy ●Standard/Comfort |
●Sport ●Economy ●Standard/Comfort |
●Sport ●Economy ●Standard/Comfort |
| Automatic parking | -- | -- | -- | -- |
| Appearance/Anti-Theft | ||||
| Rim material | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy |
| Electric trunk | -- | -- | -- | -- |
| Key type | ●Remote key | ●Remote key | ●Remote key | ●Remote key |
| Keyless start system | ● | ● | ● | ● |
| APP remote control | -- | ●Door control ●Light control ●Air conditioner control ●Vehicle condition inquiry/diagnosis ●Vehicle location/search ●Vehicle start |
●Vehicle monitoring ●Charging management ●Service reservation ●Door control ●Light control ●Air conditioner control ●Condition inquiry/diagnosis ●Vehicle location/search ●Vehicle start |
●Vehicle monitoring ●Charging management ●Service reservation ●Door control ●Light control ●Air conditioner control ●Condition inquiry/diagnosis ●Vehicle location/search ●Vehicle start |
| Internal Configuration | ||||
| Steering wheel material | ●Plastic | ●Plastic | ●Plastic | ●Plastic |
| Steering wheel position adjustment | ●Manual up/down adjustment | ●Manual up/down adjustment | ●Manual up/down adjustment | ●Manual up/down adjustment |
| Multifunction steering wheel | ● | ● | ● | ● |
| steering wheel gear shift | -- | -- | -- | -- |
| Steering wheel heating | -- | -- | -- | -- |
| steering wheel memory | -- | -- | -- | -- |
| Full LCD instrument panel | ●Color | ●Color | ●Color | ●Color |
| LCD instrument size | ●3.5 inches | ●3.5 inches | ●3.5 inches | ●3.5 inches |
| Seat Configuration | ||||
| Seat material | ● Imitation Leather | ● Leather/fabric mix | ● Imitation Leather | ● Imitation Leather |
| Main/passenger seat electric adjustment | ●High/low adjustment (2-way) ●Backrest adjustment ●Front and rear adjustment |
●High/low adjustment (2-way) ●Backrest adjustment ●Front and rear adjustment |
●High/low adjustment (2-way) ●Backrest adjustment ●Front and rear adjustment |
●High/low adjustment (2-way) ●Backrest adjustment ●Front and rear adjustment |
| Front seat functions | ●Backrest adjustment ●Front and rear adjustment |
●Backrest adjustment ●Front and rear adjustment |
●Backrest adjustment ●Front and rear adjustment |
●Backrest adjustment ●Front and rear adjustment |
| Power seat memory function | Main--/Deputy-- | Main--/Deputy-- | Main--/Deputy-- | Main--/Deputy-- |
| Second row seat adjustment | -- | -- | -- | -- |
| Front/rear center armrest | Before●/After-- | Before●/After-- | Before●/After-- | Before●/After-- |
| Multimedia Configuration | ||||
| Central control color screen | Touch LCD screen | Touch LCD screen | Touch LCD screen | Touch LCD screen |
| Central control screen size | 8 inches | 8 inches | 8 inches | 8 inches |
| GPS navigation system | -- | -- | -- | -- |
| Navigation traffic information display | -- | -- | -- | -- |
| roadside assistance call | -- | ● | -- | -- |
| Bluetooth/car phone | ● | ● | ● | ● |
| Mobile phone interconnection/mapping | ● Factory Connect/Mapping | ● Factory Connect/Mapping | ●Support CarPlay ●Support CarLife |
●Support CarPlay ●Support CarLife |
| Voice recognition control system | -- | -- | ●Multimedia system ●Telephone ●Air conditioning |
●Multimedia system ●Telephone ●Air conditioning |
| Multimedia/charging interface | ●USB | ●USB | ●USB | ●USB |
| Number of USB/Type-C interfaces | ●Front row 2/Rear row 2 | ●Front row 2/Rear row 2 | ●Front row 2/Rear row 2 | ●Front row 2/Rear row 2 |
| Speaker brand name | -- | -- | -- | -- |
| Lighting Configuration | ||||
| Low beam light source | ●Halogen | ●LED | ●Halogen | ●Halogen |
| high beam light source | ●Halogen | ●LED | ●Halogen | ●Halogen |
| Delayed turn off of headlights | ● | ● | ● | ● |
| Car interior ambient lighting | -- | -- | -- | -- |
| Glass/Rear View Mirror | ||||
| Front/rear electric windows | Front ● / Rear ● | Front ●/Rear ● | Front ● / Rear ● | Front ● / Rear ● |
| One-touch window lifting function | ●Driver seat | ●Front | ●Driver seat | ●Driver seat |
| Window anti-pinch function | ● | ● | ● | ● |

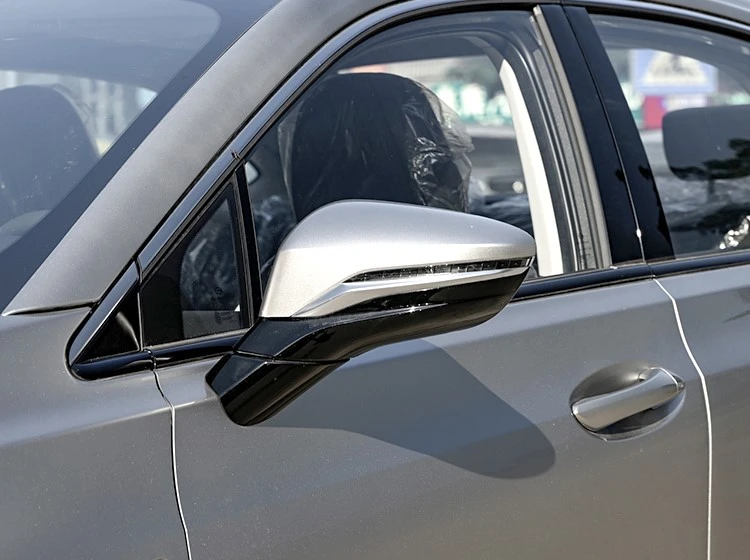

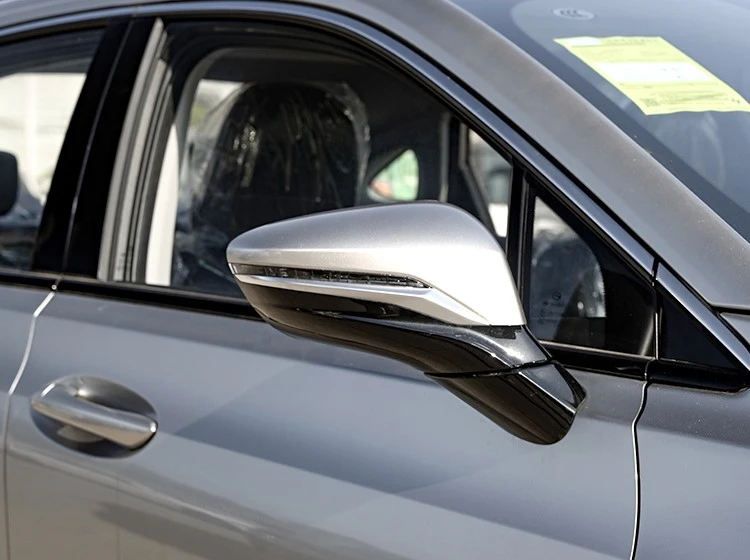

| Exterior rearview mirror function | ●Power adjustment | ●Heated mirrors ●Power adjustment |
●Power adjustment | ●Power adjustment |
