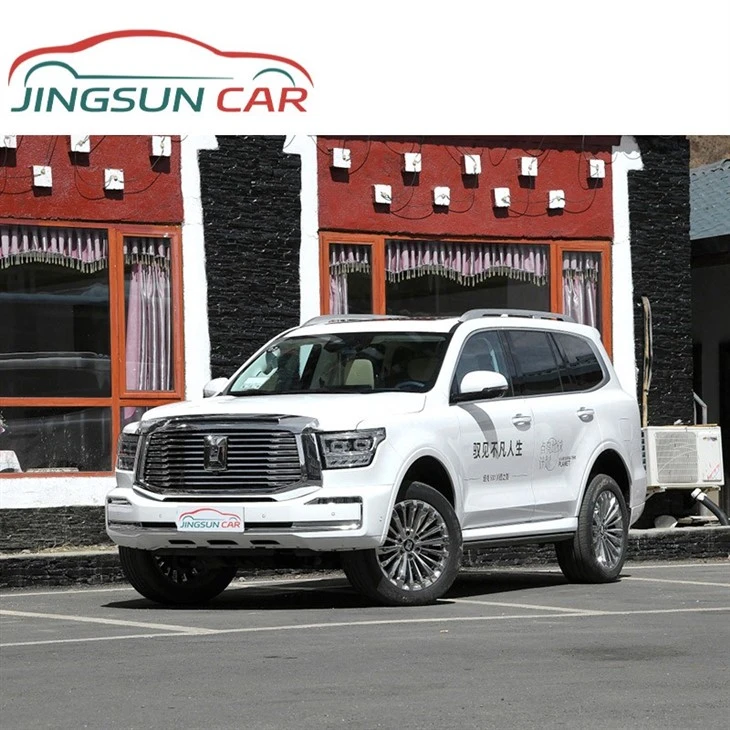

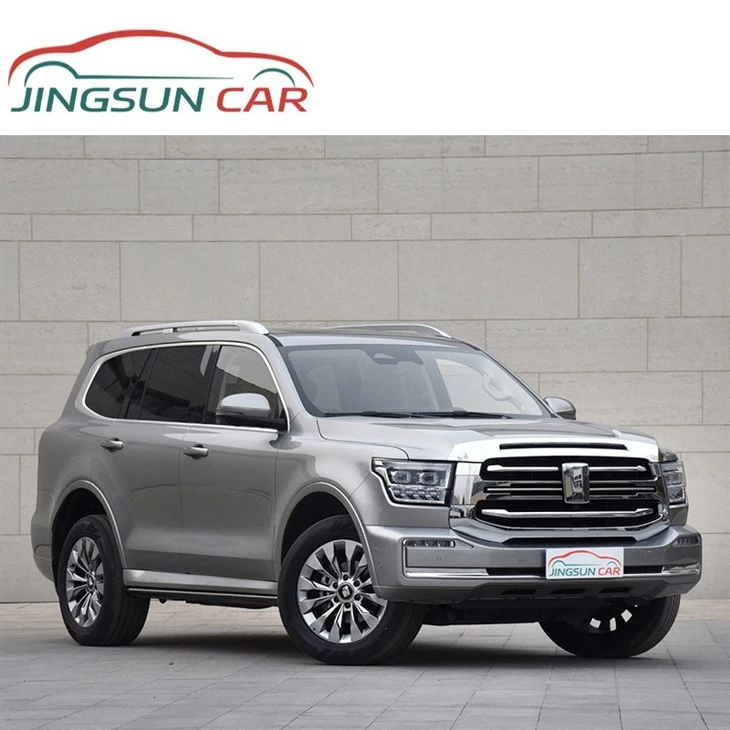

The front of the SUV TANK 500 has a very strong sense of momentum. Solid and thick are rarely used to describe the front of the car, but this sense of power that directly displays muscles is the charm of the Tank 500.
The 3.0T V6 engine has a maximum power of 360 horsepower and a peak torque of 500 Nm. China independently developed a 9AT longitudinal gearbox.
The interior design of the SUV TANK 500 is also grand and luxurious, with rich design elements but not cluttered. The pure black interior is more low-key than the orange interior, and the visual effect is more harmonious.

Three-Spoke Steering Wheel
The steering wheel isn't chunky and has just the right amount of grip, the leather feels fine and the buttons have a good texture. It takes 2.6 turns from the center to the sides, which is normal for a hardcore.
Instrument Screen
The SUV TANK 500 12.3-inch full LCD instrumentation has a fresh, detailed picture and a relatively rich display, and it would be nice if off-road related information could be displayed as well.


Center Control Screen
14.6-inch large size center control screen in the tank 500 car does not stand out, the screen quality is very high, clear picture, smooth operation with the hand.
Center Console
The interior of the luxury sense of creation is very well, wood grain, metal buttons, piping, even a healthy start are designed to cut the effect. Mechanical watch in the Tank 500 car is not at all obvious, but each other to achieve, and enhance the sense of luxury interior.


Crystal Shifter
It's my favorite crystal shifter so far, the luxury, technology, and design are all taken in the right places, and the design of the car as a whole feels well-coordinated.
Sound Isolation Configuration
The Tank 500 is very cost-effective in sound insulation, and the engine sound insulation cotton is very thick. Regardless of the sports version or the business version, the high-end configuration has double-layer soundproof glass at the front and rear.


Front Seats
The seats of the SUV TANK 500 are wide, thick, and the fillings are soft. At the same time, the seats have sufficient support for the body, and it is not easy to get tired after sitting for a long time. Both the main and passenger seats support ventilation, heating and massage functions. An experiencer who is 181cm tall sits in the front row and adjusts the seat to the lowest position to get a lot of headroom.
Rear Row Configuration
The rear row not only has privacy glass, but also is equipped with manual sunshades. However, the 7-seat model eliminates the LCD screen behind the center armrest and loses the multimedia control function.


Third Row Space
The backrests and cushions of the third-row seats are relatively thin, especially when the headrests are raised, leaving ridges on the backrests, which can be clearly felt on your back. After adjusting the second-row seats to one punch, the experiencer came to the third row and found three fingers of headroom and one finger of legroom. The overall curling up feeling was obvious. For the third row, the performance was average.
Back Space
When all three rows of seats of the SUV TANK 500 are opened, the minimum depth of the trunk is only 250mm, which can accommodate a backpack. However, compared with the 5-seater version, the 7-seater model can basically form a complete flat surface after folding down the two rows of seats. The overall storage space is quite regular.

The appearance of the vehicle is very "majestic and majestic", especially the shape of the front. The front is very thick and the hood is high, making it look particularly muscular. The large chrome-plated grille is the most eye-catching part of the front half. It is a bit like an American car, but with a bit more of the delicate design found only in Orientals.

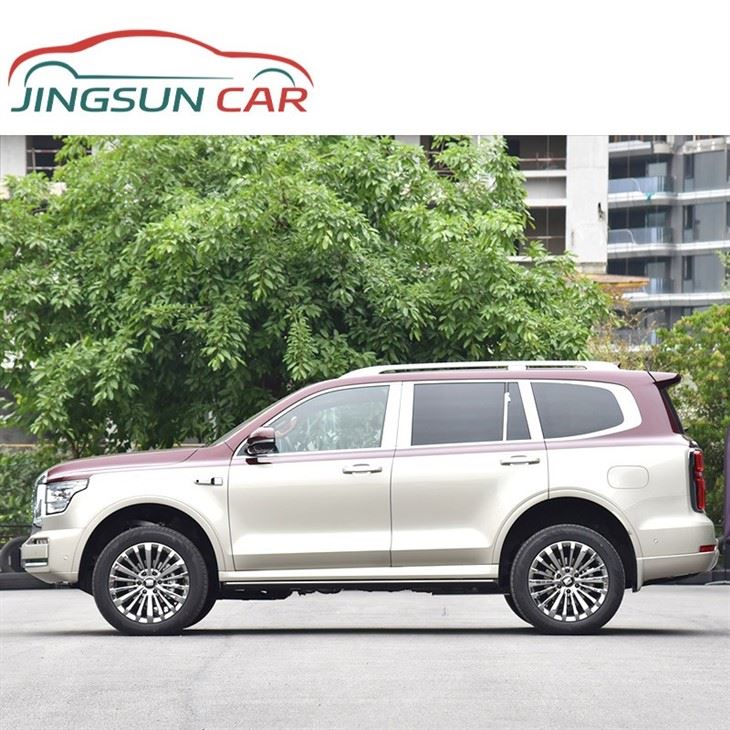

The body size of the business version is 4878×1934×1905mm, and the wheelbase is 2850mm (the length of the sports version is 5070mm because of the extra rear spare tire). The window frames and roof rack are finished in chrome.

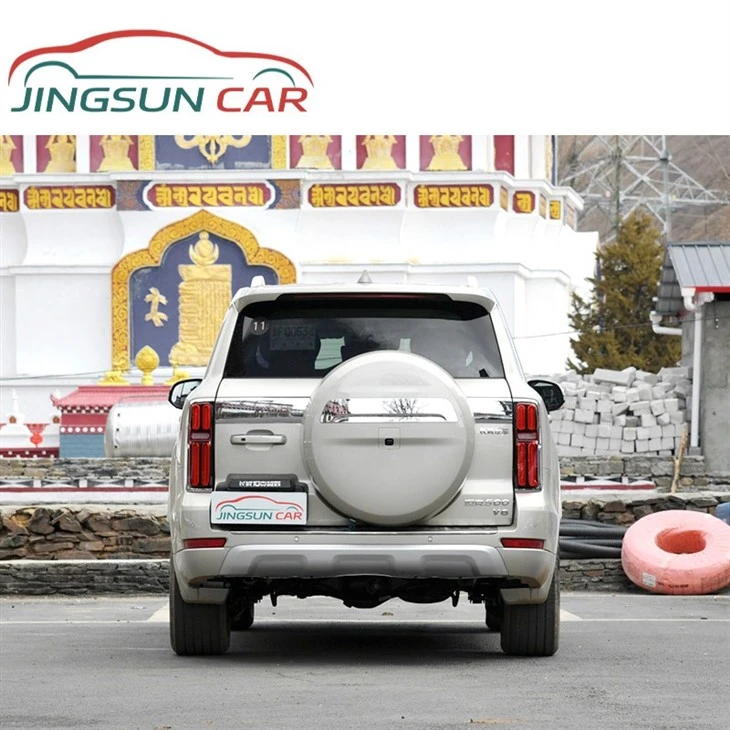

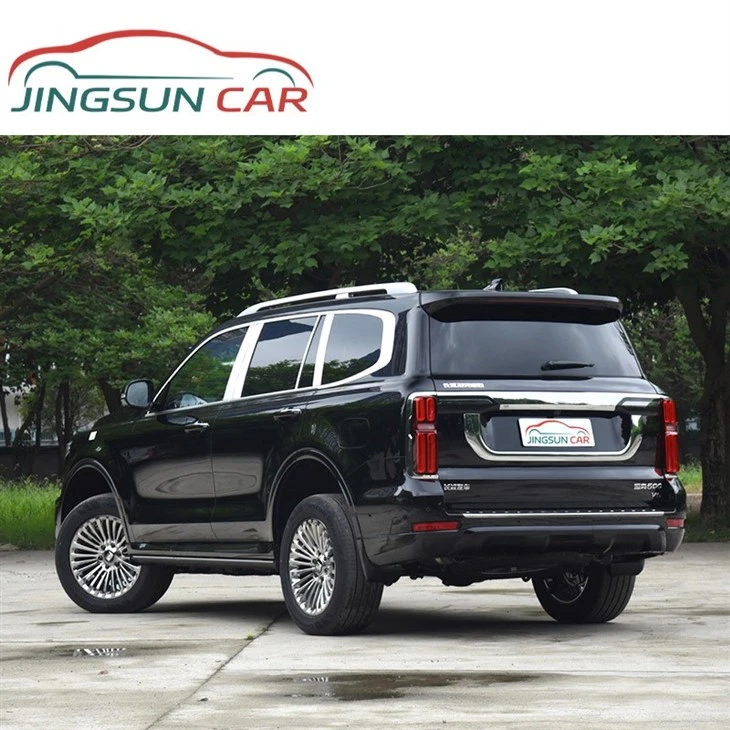

The square rear design reveals the identity of this car. The thick chrome trim strips connect the left and right taillights, creating a good sense of luxury.
In fact, the Tank 500 is not similar to the Patrol, but it has the same tough and majestic style. The sports version's maximum 19-inch wheels are really not too big on this car. In today's era of small displacement, the V63.0T engine makes it even more kingly. In addition to being "big", it is also very technological, with Miller cycle, dual VGT variable section dual supercharging, dual injection, and integrated water cooling. Of course, the popular 48V mild hybrid is also a standard configuration of this car.
Product Details




















● Standard configuration ○ Optional -- None |
Tank 500 2023 3.0T Sports Edition Peak Type 5 Seats | Tank 500 2023 3.0T Sports Edition Peak Type 7 Seats | Tank 500 2023 3.0T Business Edition Landscape Type 7 Seats | Tank 500 2022 3.0T Business Edition Landscape Type 5 Seats |
Basic Parameters | ||||
Manufacturer | Great Wall Motors | Great Wall Motors | Great Wall Motors | Great Wall Motors |
Level | Medium and large SUV | Medium and large SUV | Medium and large SUV | Medium and large SUV |
Energy type | Gasoline+48V light mixing system | Gasoline+48V light mixing system | Gasoline+48V light mixing system | Gasoline+48V light mixing system |
Environmental protection standards | National VI | National VI | National VI | National VI |
Time to market | 2023.03 | 2023.03 | 2023.03 | 2022.03 |
Maximum power(kw) | 265 | 265 | 265 | 265 |
Maximum torque(N-m) | 500 | 500 | 500 | 500 |
Engine | 3.0T 360 horsepower V6 | 3.0T 360 horsepower V6 | 3.0T 360 horsepower V6 | 3.0T 360 horsepower V6 |
Gearbox | 9 gears, hand-in-one | 9 gears, hand-in-one | 9 gears, hand-in-one | 9 gears, hand-in-one |
Length*Width*Height (mm) | 5070*1934*1905 | 5070*1934*1905 | 4878*1934*1905 | 4878*1934*1905 |
Body structure | 5-door 5-seater SUV | 5-door 7-seater SUV | 5-door 7-seater SUV | 5-door 5-seater SUV |
Maximum speed (km/h) | 180 | 180 | 180 | 180 |
WLTC comprehensive fuel consumption (L/100km) | 11.19 | 11.19 | 11.19 | 10.19 |
Vehicle warranty | Five years or 150,000 kilometers | Five years or 150,000 kilometers | Five years or 150,000 kilometers | Five years or 150,000 kilometers |
Car Body | ||||
Wheelbase(mm) | 2850 | 2850 | 2850 | 2850 |
Front wheelbase (mm) | 1635 | 1635 | 1635 | 1635 |
Rear wheelbase (mm) | 1635 | 1635 | 1635 | 1635 |
Body structure | SUV | SUV | SUV | SUV |
Car door opening method | Swing door | Swing door | Swing door | Swing door |
Fuel tank volume (L) | 80 | 80 | 80 | 80 |
Curb weight (kg) | 2475 | 2565 | 2565 | 2455 |
Engine | ||||
Engine model | E30Z | E30Z | E30Z | E30Z |
Displacement (mL) | 2993 | 2993 | 2993 | 2993 |
Displacement(L) | 3.0 | 3.0 | 3.0 | 3.0 |
Intake form | Twin turbo | Twin turbo | Twin turbo | Twin turbo |
Engine layout | Vertical | Vertical | Vertical | Vertical |
Cylinder arrangement | V | V | V | V |
Number of cylinders | 6 | 6 | 6 | 6 |
Air Supply | DOHC | DOHC | DOHC | DOHC |
Maximum horsepower (Ps) | 360 | 360 | 360 | 360 |
Maximum power(kW) | 265 | 265 | 265 | 265 |
Maximum torque(N-m) | 500 | 500 | 500 | 500 |
Maximum torque speed (rpm) | 1500-4500 | 1500-4500 | 1500-4500 | 1500-4500 |
Maximum net power (kW) | 260 | 260 | 260 | 260 |
Fuel grade | 95# | 95# | 95# | 95# |
Chassis/Wheels | ||||
Drive mode | Front four-wheel drive | Front four-wheel drive | Front four-wheel drive | Front four-wheel drive |
Four-wheel drive | Timely four-wheel drive | Timely four-wheel drive | Timely four-wheel drive | Timely four-wheel drive |
Front suspension type | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension |
Rear suspension type | Integral bridge non-independent suspension | Integral bridge non-independent suspension | Integral bridge non-independent suspension | Integral bridge non-independent suspension |
Parking brake type | Electronic parking | Electronic parking | Electronic parking | Electronic parking |
Front tire specifications | 265/60 R18 | 265/60 R18 | 265/55 R19 | 265/55 R19 |
Rear tire specifications | 265/60 R18 | 265/60 R18 | 265/55 R19 | 265/55 R19 |
Spare tire specifications | Full size | Full size | Full size | Full size |
Active/Passive safety | ||||
Main/passenger seat airbag | Main●/deputy● | Main●/deputy● | Main●/deputy● | Main●/deputy● |
Front/rear side airbags | Front●/rear-- | Front●/rear-- | Front●/rear-- | Front●/rear-- |
Front/rear head airbags (curtain airbags) | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
Tire pressure monitoring function | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display |
Seat belt not fastened reminder | ●Whole car | ●Second row ●Front row |
●Second row ●Front row |
●Whole car |
ABS anti-lock | ● | ● | ● | ● |
Lane Departure Warning System | ● | ● | ● | ● |
Lane centering | ● | ● | ||
Road traffic sign recognition | ● | ● | ● | ● |
Active braking/active safety system | ● | ● | ● | ● |
Auxiliary/Control Configuration | ||||
Front/rear parking radar | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
Driving assistance images | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image |
Reverse side warning system | ● | ● | ||
cruise system | ●Full speed adaptive cruise | ●Full speed adaptive cruise | ●Full speed adaptive cruise | ●Full speed adaptive cruise |
Driving mode switch | ●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow |
●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow |
●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow |
●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow |
Automatic parking | ● | ● | ||
Appearance/Anti-Theft | ||||
Rim material | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy |
Roof rack | ● | ● | ● | ● |
Engine electronic anti-theft | ● | ● | ● | ● |
Key type | ●Remote control key | ●Remote control key | ●Remote control key | ●Bluetooth key ●Remote control key |
Keyless start system | ● | ● | ● | ● |
Remote start function | ● | ● | ● | ● |
APP remote control | ● | ● | ● | ● |
Internal Configuration | ||||
Steering wheel material | ●Leather | ●Leather | ●Leather | ●Leather |
Steering wheel position adjustment | ●Manual up and down + front and rear adjustment | ●Manual up and down + front and rear adjustment | ●Manual up and down + front and rear adjustment | ●Manual up and down + front and rear adjustment |
Multifunction steering wheel | ● | ● | ● | ● |
steering wheel gear shift | ● | ● | ● | ● |
Steering wheel heating | ● | ● | ● | ● |
Full LCD instrument panel | ● | ● | ● | ● |
LCD instrument size | ●12.3 inches | ●12.3 inches | ●12.3 inches | ●12.3 inches |
Seat Configuration | ||||
Seat material | ●Imitation leather | ●Imitation leather | ●Genuine leather | ●Genuine leather |
Main/passenger seat electric adjustment | Main●/deputy● | Main●/deputy● | Main●/deputy● | Main●/deputy● |
Front seat functions | ●Heating | ●Heating | ●Massage ●Ventilation ●Heating |
●Massage ●Ventilation ●Heating |
Power seat memory function | ●Co-pilot position ●Driver's seat |
●Co-pilot position ●Driver's seat |
●Co-pilot position ●Driver's seat |
●Co-pilot position ●Driver's seat |
Second row seat adjustment | ●Backrest adjustment | ●Backrest adjustment ●Front and rear adjustment |
●Backrest adjustment ●Front and rear adjustment |
●Backrest adjustment |
Front/rear center armrest | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
Multimedia Configuration | ||||
Central control color screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen |
Central control screen size | ●14.6 inches | ●14.6 inches | ●14.6 inches | ●14.6 inches |
GPS navigation system | ● | ● | ● | ● |
Navigation traffic information display | ● | ● | ● | ● |
roadside assistance call | ● | ● | ● | ● |
Bluetooth/car phone | ● | ● | ● | ● |
Voice recognition control system | ●Multimedia system ●Navigation ●Phone ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Skylight ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Skylight ●Air conditioner |
Multimedia/charging interface | ●Type-C ●SD ●USB |
●Type-C ●SD ●USB |
●Type-C ●SD ●USB |
●Type-C ●SD ●USB |
Number of USB/Type-C interfaces | ●2 in the front row/2 in the rear row | ●2 in the front row/2 in the rear row | ●2 in the front row/2 in the rear row | ●2 in the front row/2 in the rear row |
Speaker brand name | ●Infinity | ●Infinity | ●Infinity | ●Infinity |
Lighting Configuration | ||||
Low beam light source | ●LED | ●LED | ●LED | ●LED |
high beam light source | ●LED | ●LED | ●LED | ●LED |
Delayed turn off of headlights | ● | ● | ● | ● |
Car interior ambient lighting | ●Multicolor | ●Multicolor | ●Multicolor | ●Multicolor |
Glass/Rear View Mirror | ||||
Front/rear electric windows | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
One-touch window lifting function | ●Whole car | ●Whole car | ●Whole car | ●Whole car |
Window anti-pinch function | ● | ● | ● | ● |
Exterior rearview mirror function | ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Electric adjustment |
●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Electric adjustment |
●Rearview mirror memory ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
●Rearview mirror memory ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
Car vanity mirror | ●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
