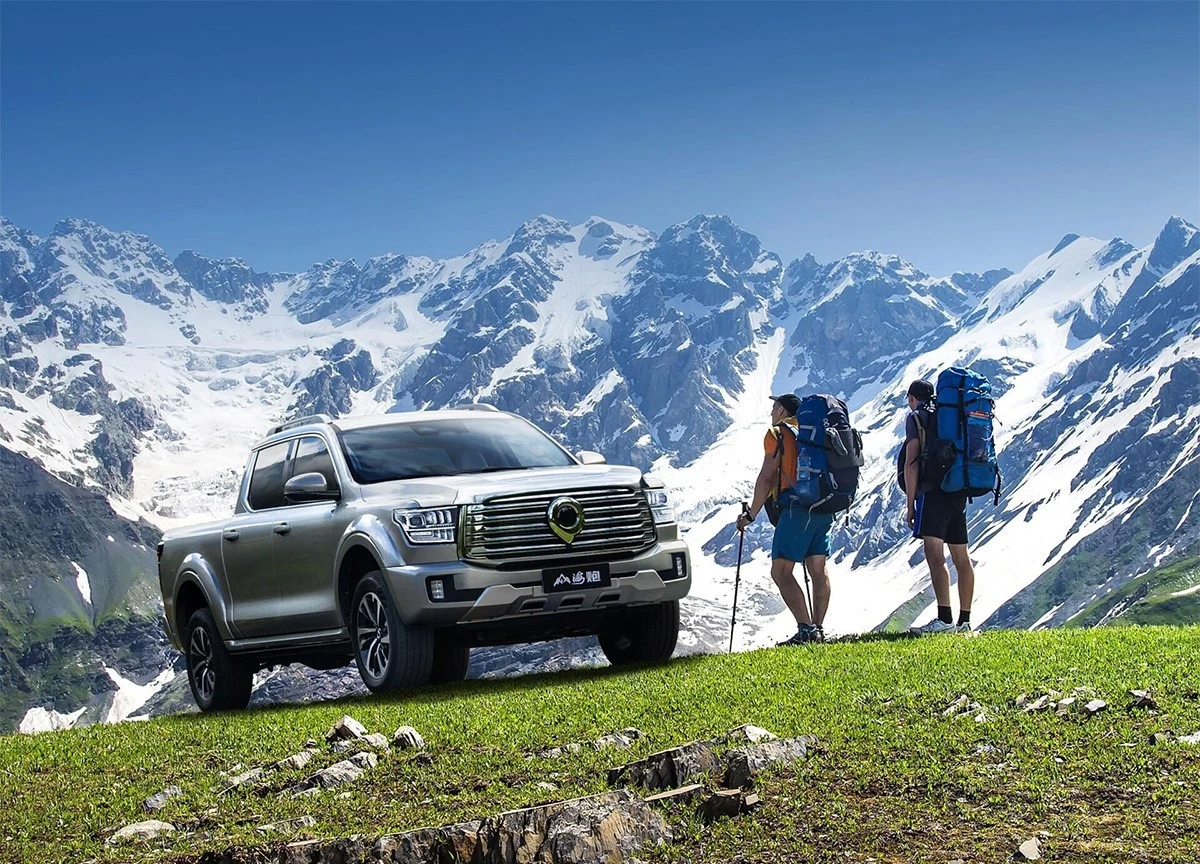

Shanhai Cannon's pickup truck has excellent handling and versatility. Whether it is urban roads or suburban mountain roads, it can handle it with ease. The suspension system is very comfortable and remains stable even in bad road conditions without making people feel bumpy or uncomfortable. The power performance of the 3.0T engine is very good, the acceleration response is quick, and the driving is quite smooth. The chassis height is suitable and the passability is strong, so even running on mountainous roads in the countryside is not a problem.

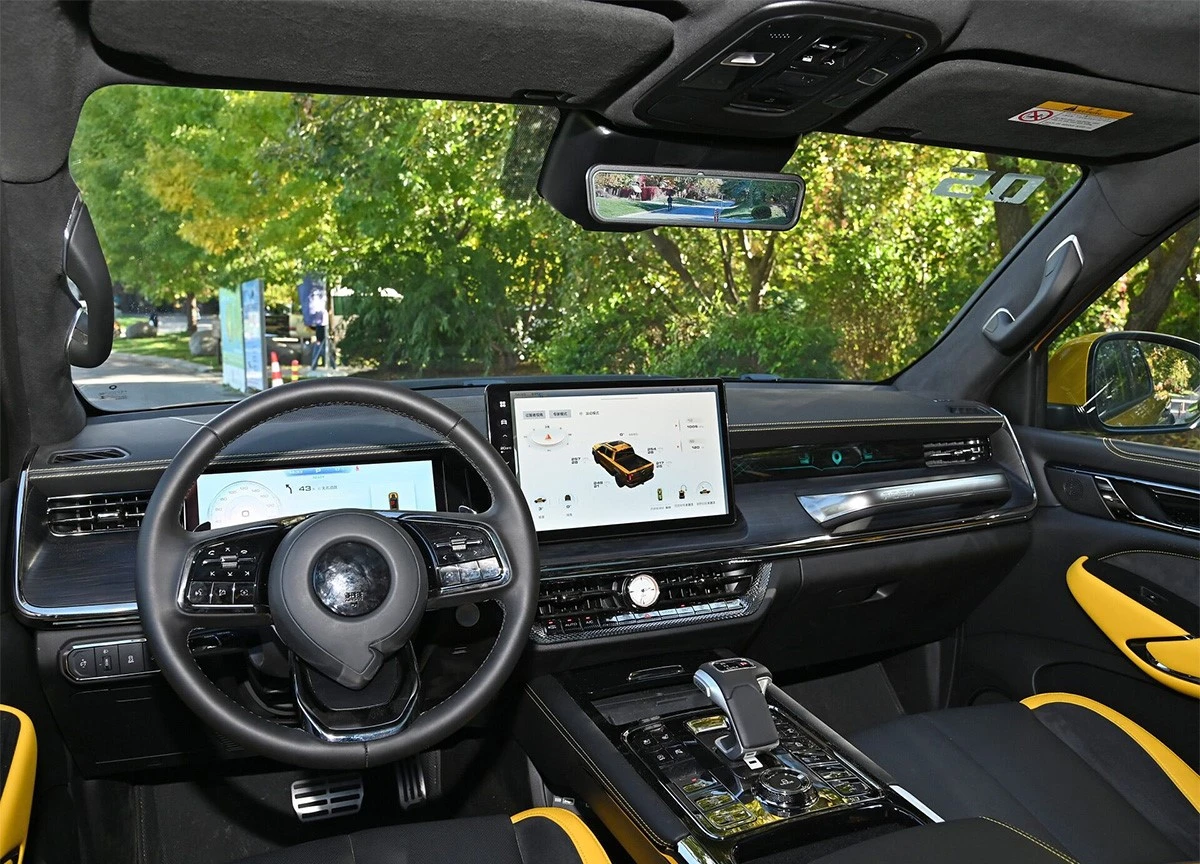

Shanhai Cannon is equipped with a large-size full LCD instrument + suspended central control screen and other functions, and supports 360-degree panoramic images and navigation. The fuel version is equipped with a 3.OT twin-turbocharged V6 engine + 48V light hybrid system, with a maximum horsepower of 360 horsepower, the maximum torque is 500 N·m, and both are matched with a 9AT gearbox. At the same time, all models are equipped with a center differential lock and a rear axle differential lock as standard, bringing more outstanding off-road capabilities.

In terms of interior, although Shanhai Cannon is a pickup truck, the cabin brings a strong sense of luxury. The central control layout has relatively straight lines. Through different materials and two-color combination design, the overall interior of the car is high-end. The atmosphere is ready to come out. And it is also equipped with large-size full LCD instrument + floating central control screen and other functions, supporting 360-degree panoramic images and navigation and other configurations, enriching consumers' daily travel experience.

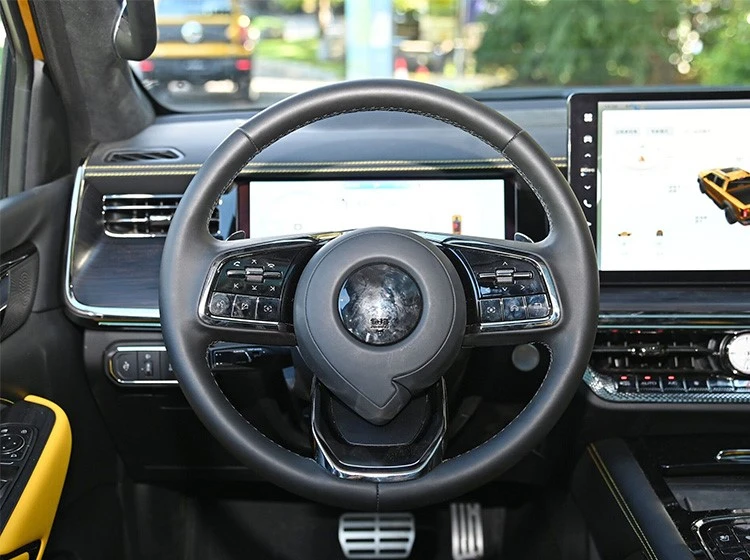

Three-Spoke Steering Wheel
Shanhai Cannon is equipped with a three-spoke steering wheel, with a suitable thickness ratio and a comfortable grip. Functional buttons are distributed on the left and right, and the layout is reasonable and the operation is very convenient.

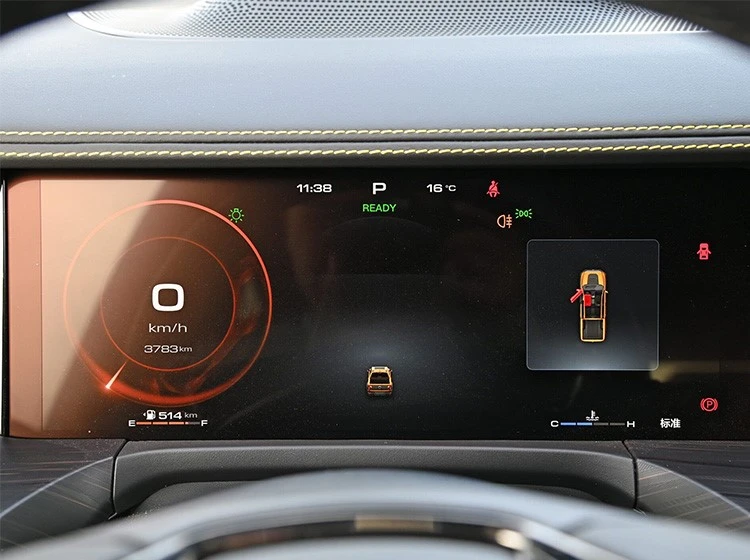

Instrument Screen
Shanhai Cannon is equipped with a 12.3-inch instrument screen with a simple structure and clear information display, which enhances the sense of class in the entire interior structure.

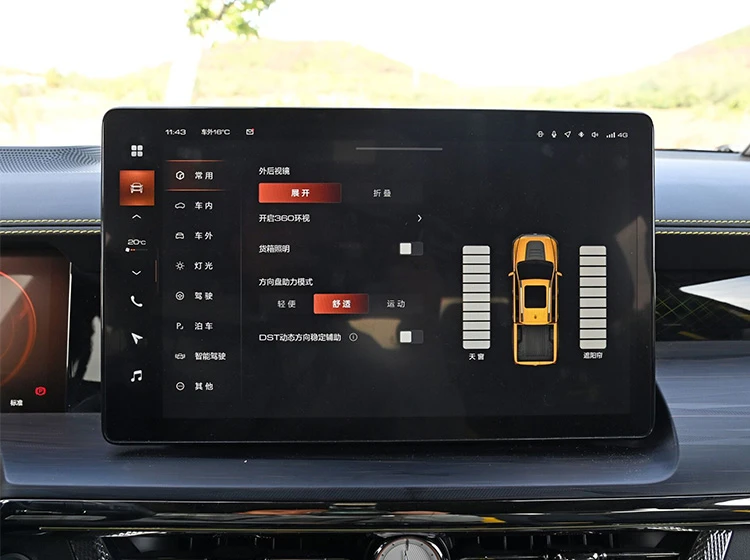

Central Control Screen
Shanhai Cannon's 16.4-inch super large central control screen adopts a suspended layout. The whole is full of intelligent technology atmosphere. It is rich in functions and easy to operate. You can feel the designer's attentiveness.

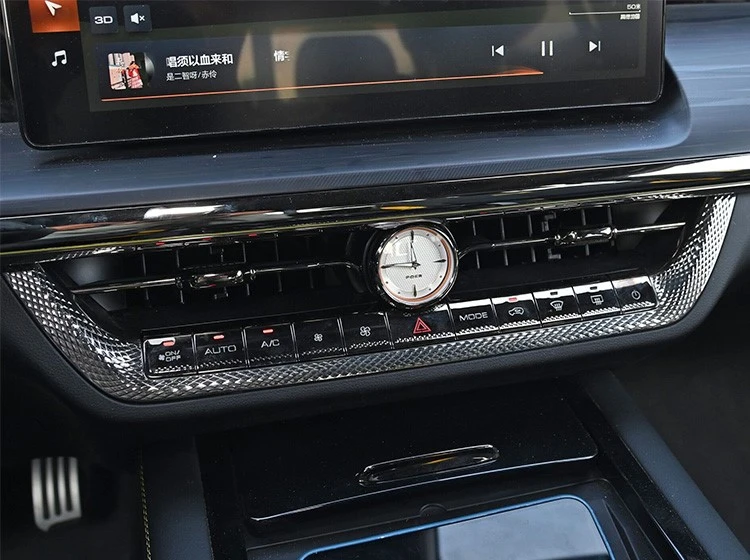

Central Control Button
Below the floating central control screen is a row of functional buttons with a clear layout and simple operation. The quartz clock in the middle adds a sense of high-end charm and is full of details.

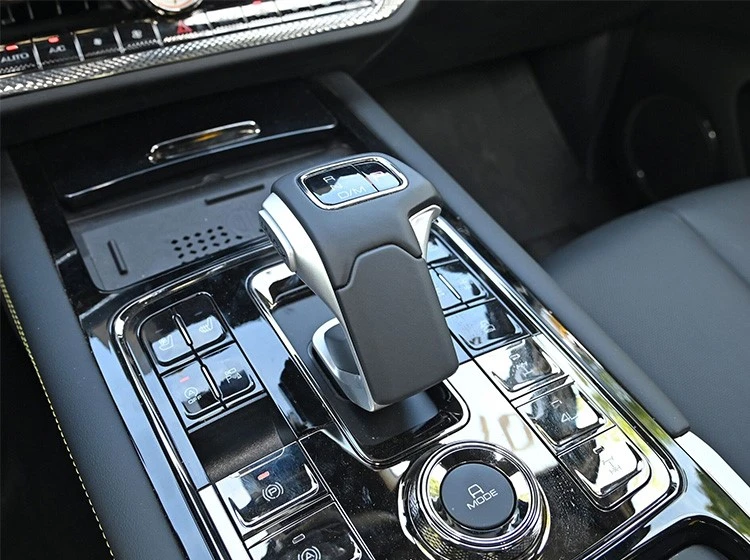

Gear Shift Lever
The Shanhai Cannon gear lever has a novel shape and a comfortable grip, which can enhance the driving experience. Function buttons such as seat ventilation and heating are distributed on the left and right, which is very practical.

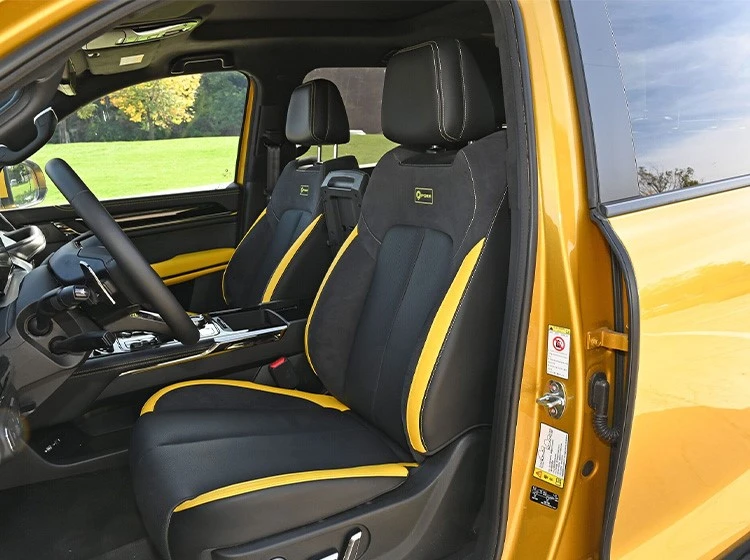

Front Seat
The Shanhai Cannon front row seats are a true highlight of this vehicle. Made of high-quality genuine leather, these seats exude a sense of luxury while remaining practical and comfortable. The seats are thickly cushioned, providing ample support for even the longest of drives. The strong wrap-around design of the seats ensures that passengers are securely seated and minimizes the effects of sudden turns and braking, providing a safe and enjoyable driving experience.

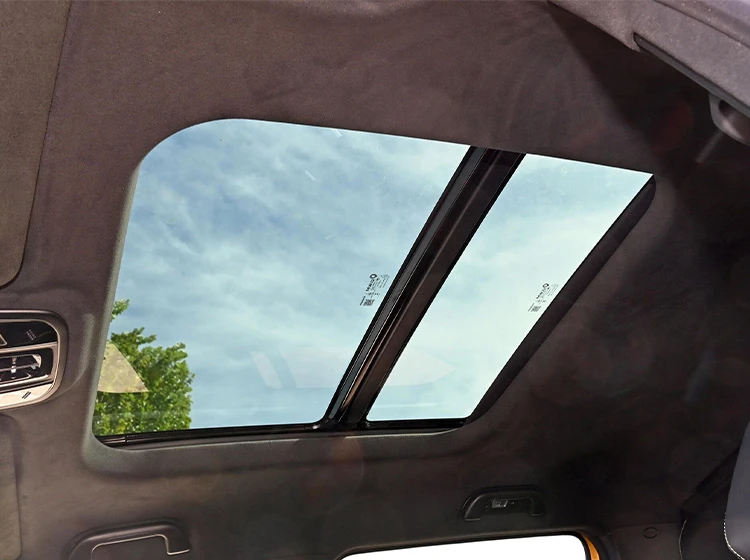

Panoramic Skylight
The panoramic sunroof on Shanhai Cannon provides a memorable experience for all occupants of the vehicle, and it's sure to make any trip more enjoyable. Whether you're taking your family on a road trip or just cruising around town, the panoramic sunroof on the Shanghai Cannontian is a standout feature that truly enhances the driving

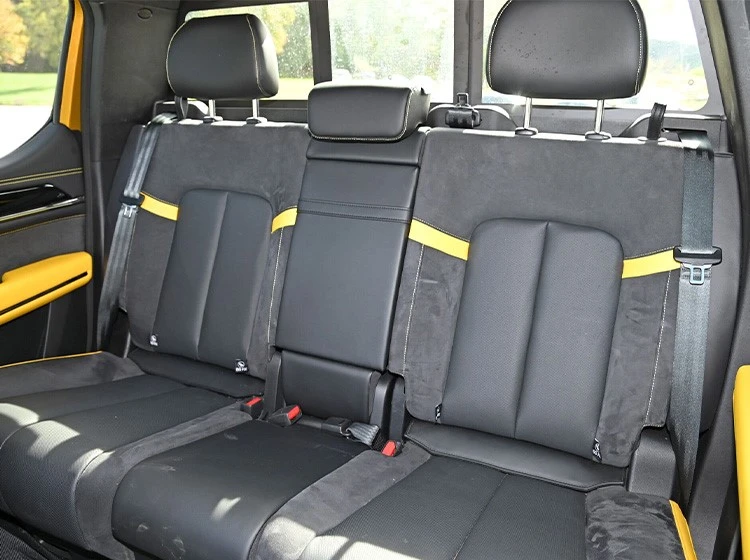

Rear Seats
The Shanhai Cannon's rear seats are nothing short of spectacular. The spacious design offers ample leg and headroom, ensuring maximum comfort for even the tallest passengers. The plush cushioning is expertly crafted to provide the perfect combination of support and softness, making long journeys a breeze.

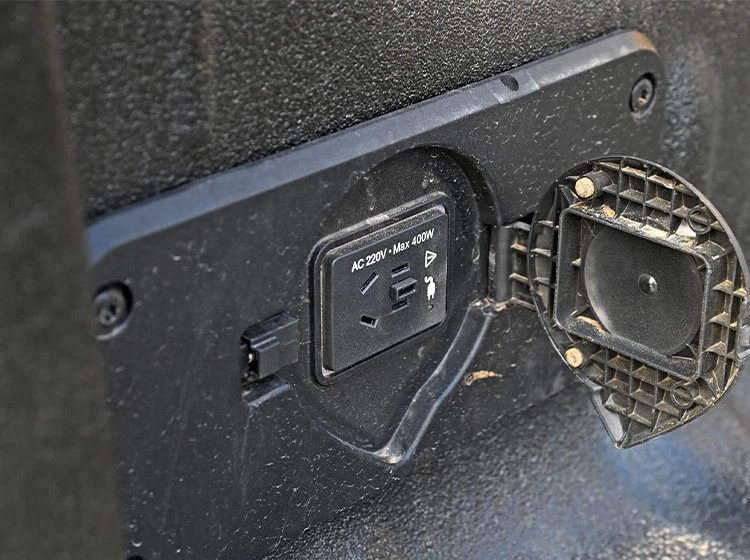

Backup Power
Shanhai Cannon's rear bucket is equipped with a 220V power supply, which can play a very important role in emergencies or when camping outdoors. The external waterproof device is very safe and convenient to use.
Trunk Compartment
The main function of the pickup truck's backup compartment is to transport large cargo or luggage. The Shanhai Cannon's rear compartment has a regular layout, a considerable capacity, and is easy to load and unload. The surface is coated with anti-wear and anti-corrosion materials, making it highly practical.

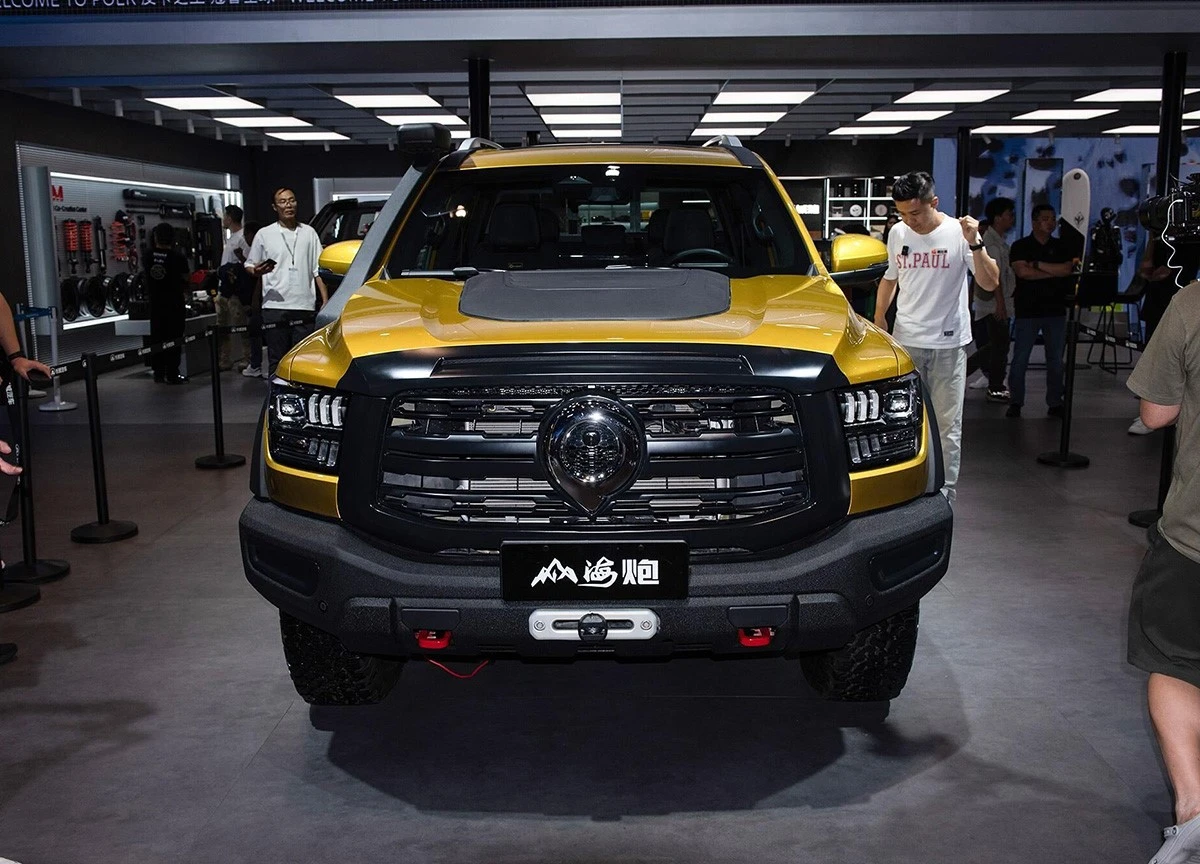

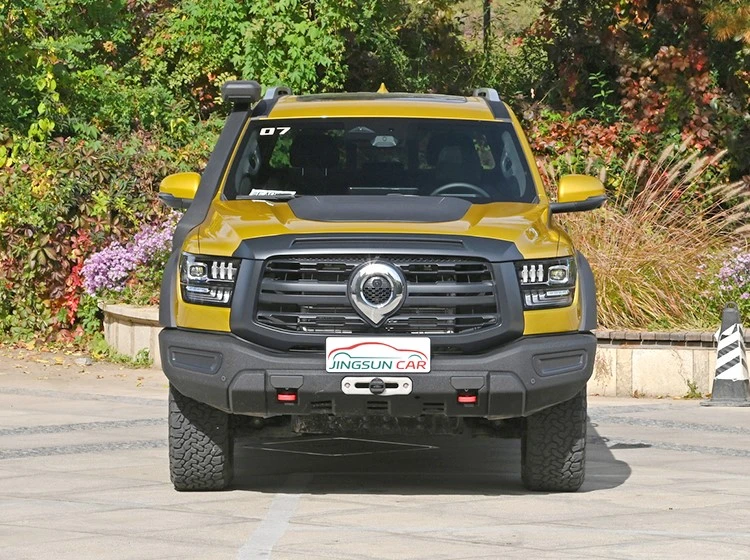

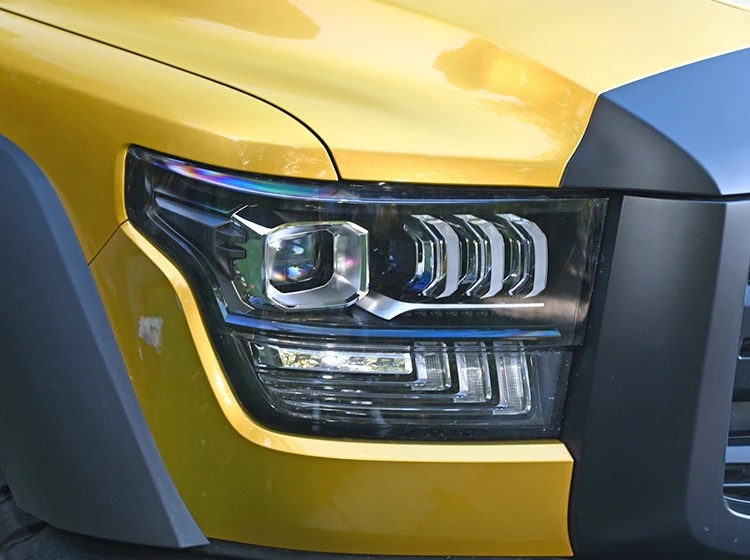

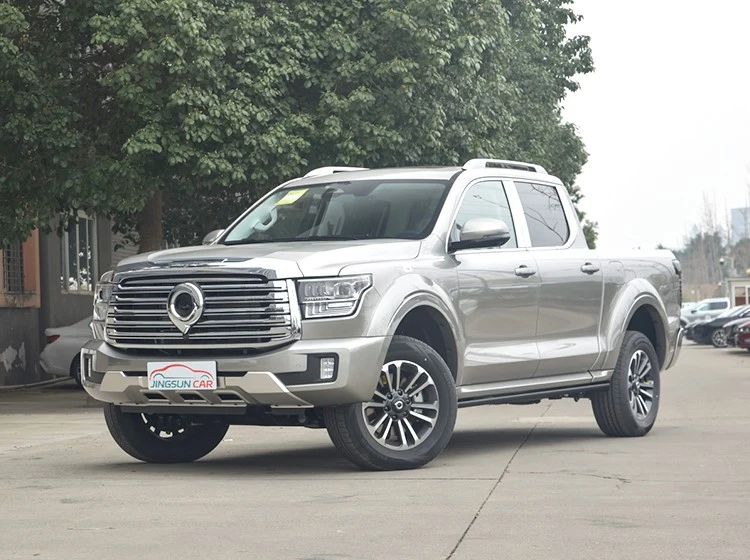

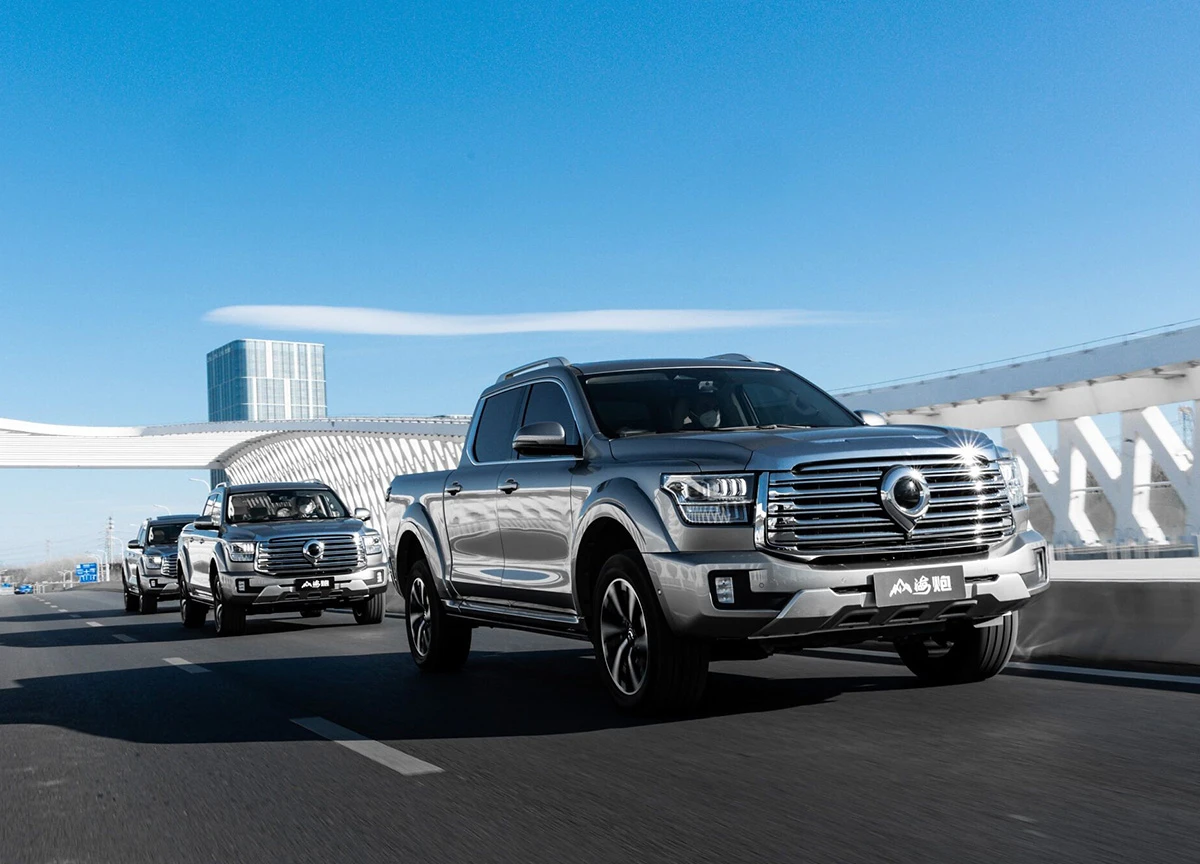

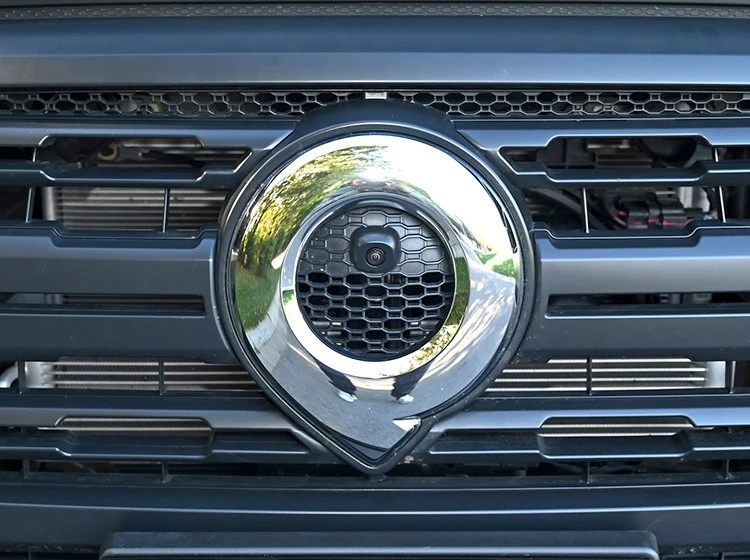

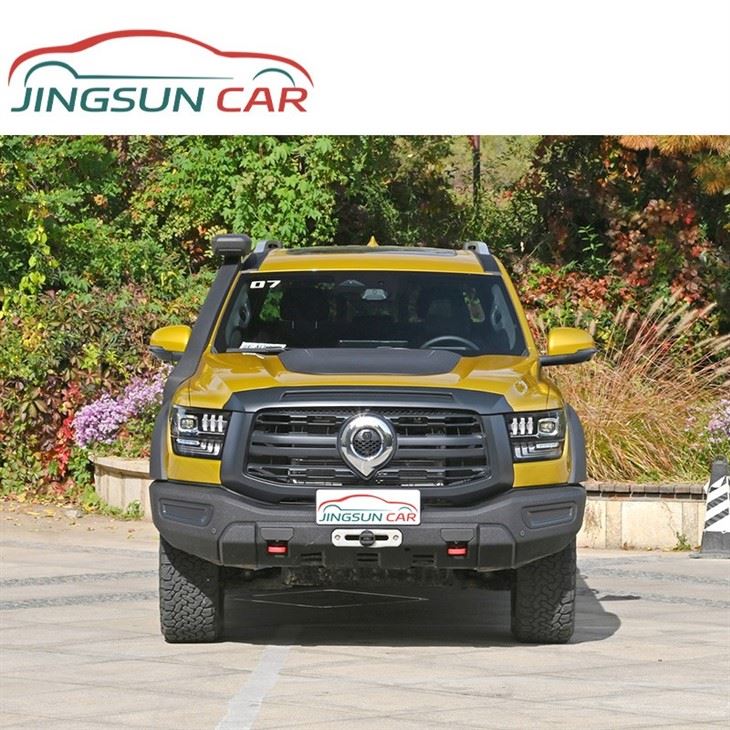

The front face design of Shanhai Cannon's car is really recognizable as a Great Wall car at a glance. The luxurious and domineering style is really right. The large area of chrome-plated decorative horizontal stripes on the grille looks very high-end, and it instantly adds aura. Driving it on the street can give you great confidence.

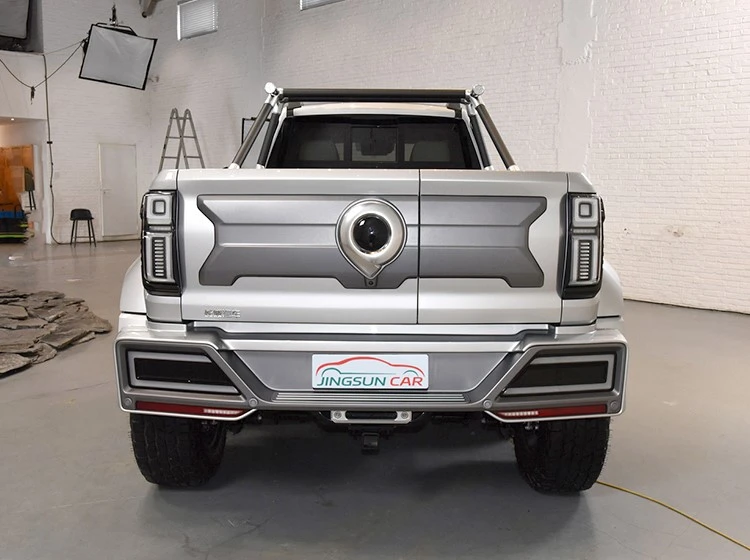

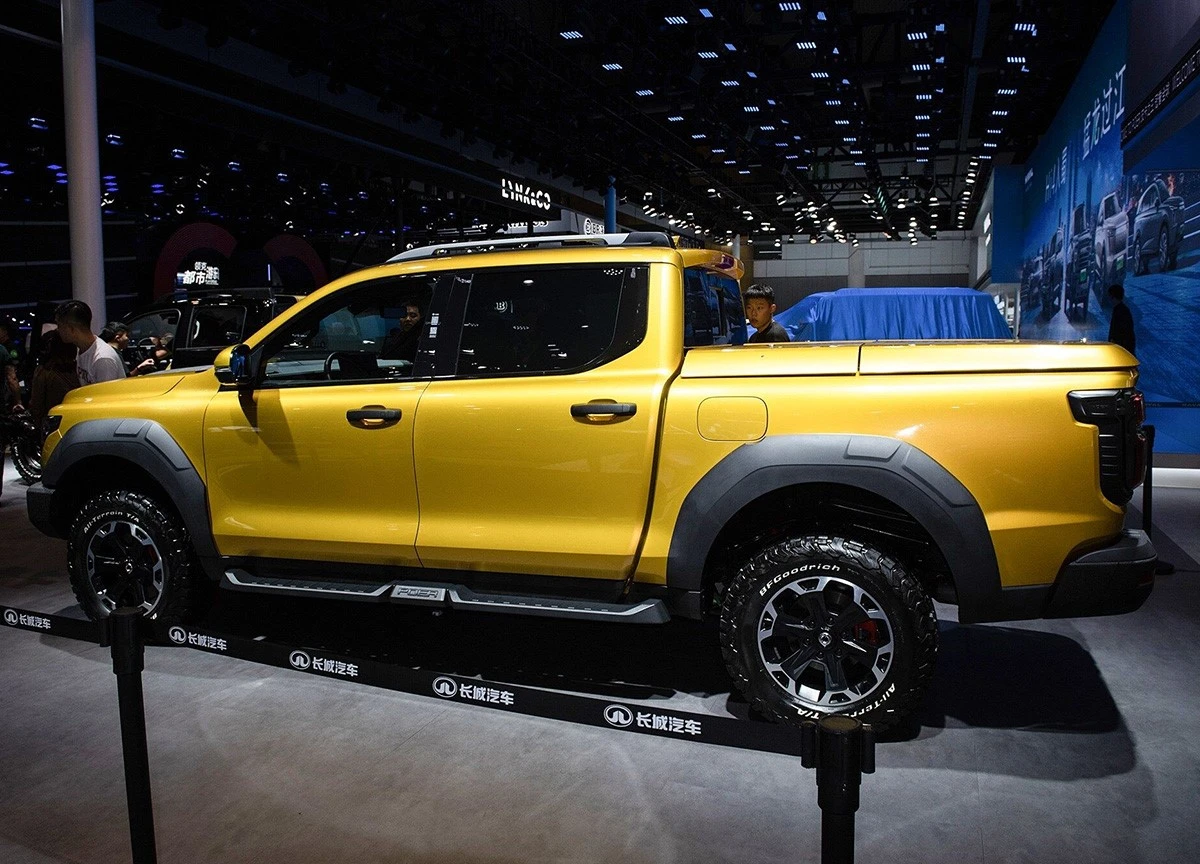

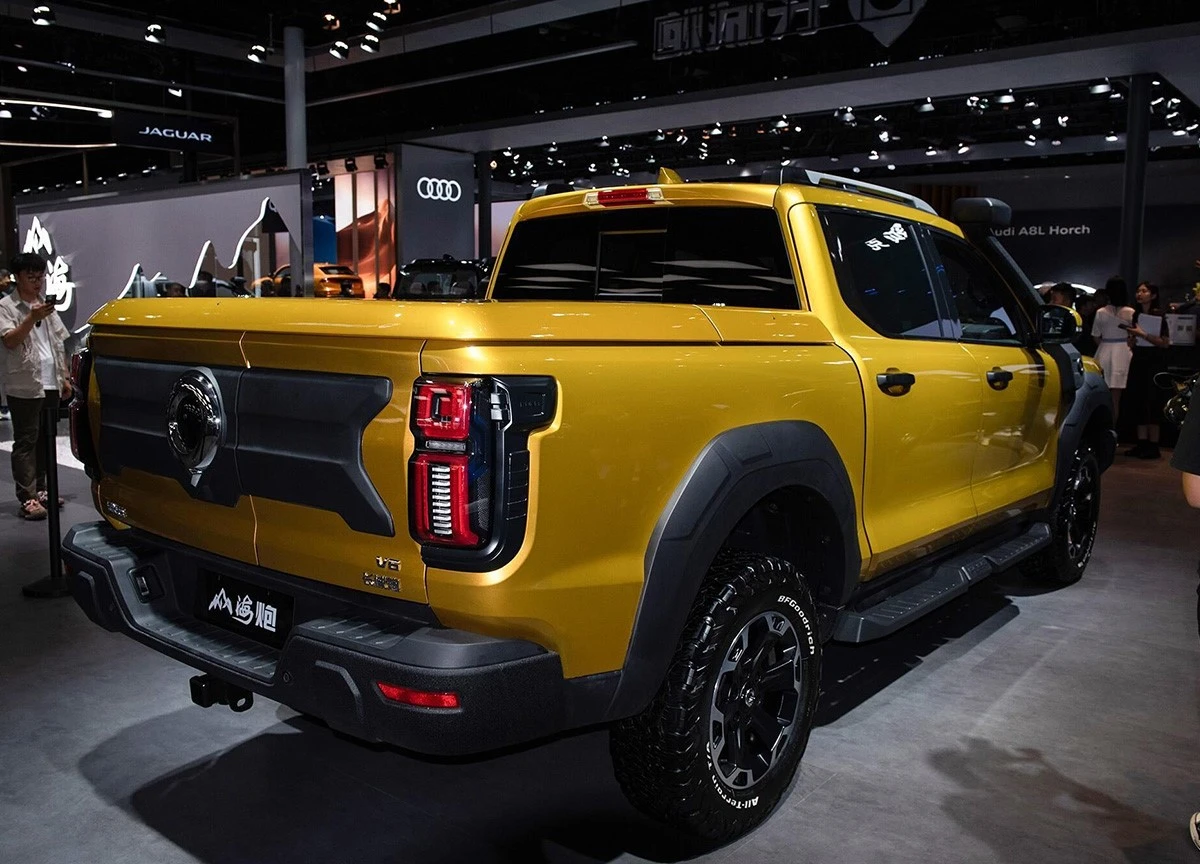

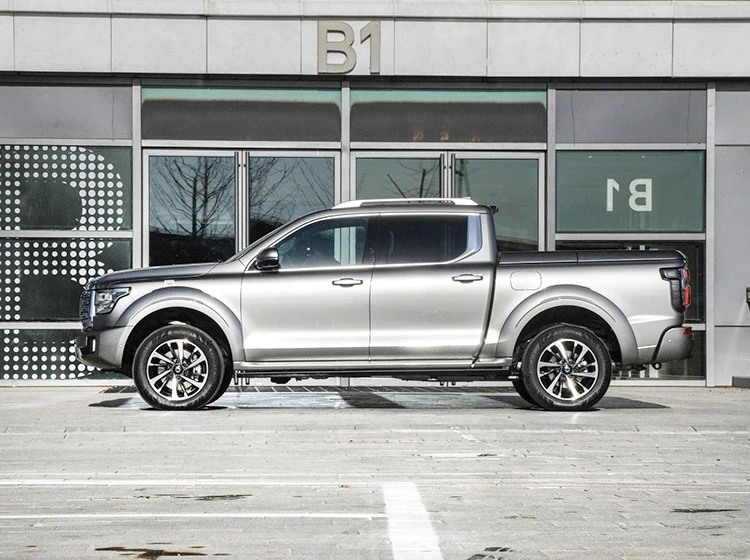

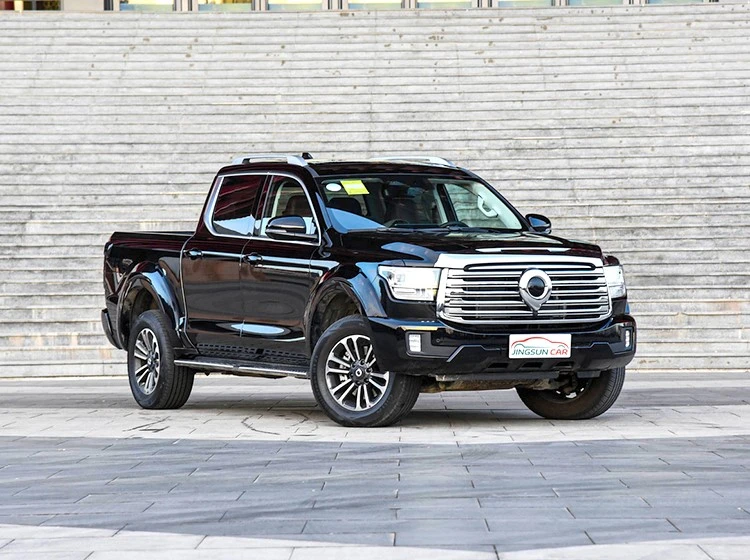

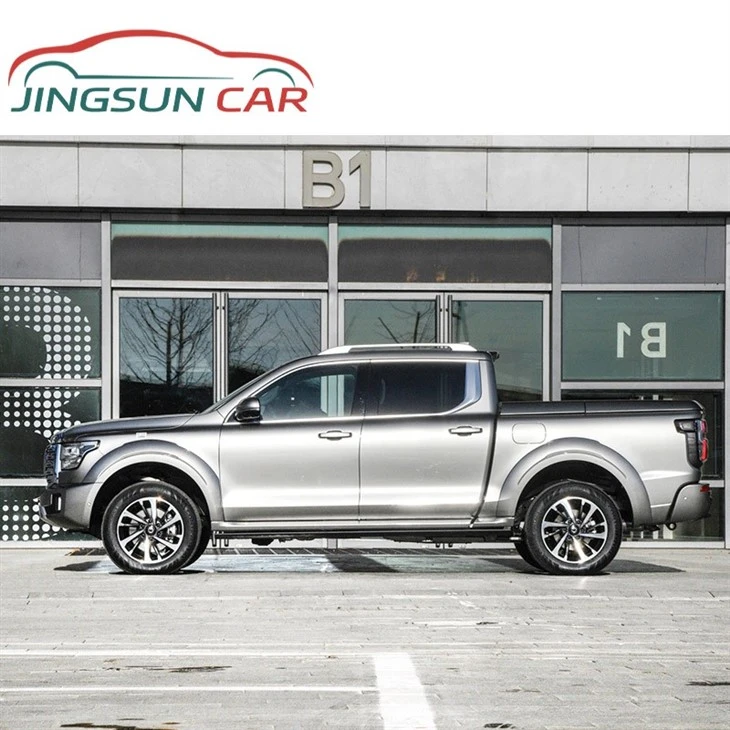

The shape of the body looks really tough. This design also makes the overall appearance look sporty. The large tires also make the entire body look tall and straight. The domineering appearance is completely in line with the aesthetics of most people.

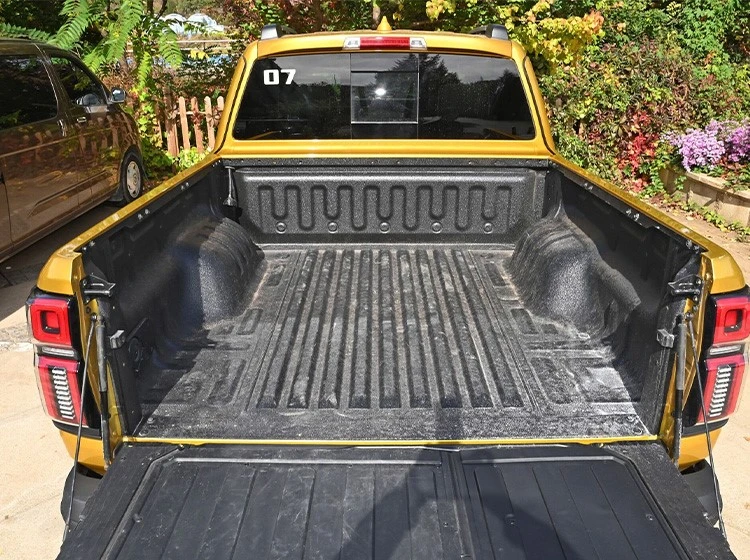

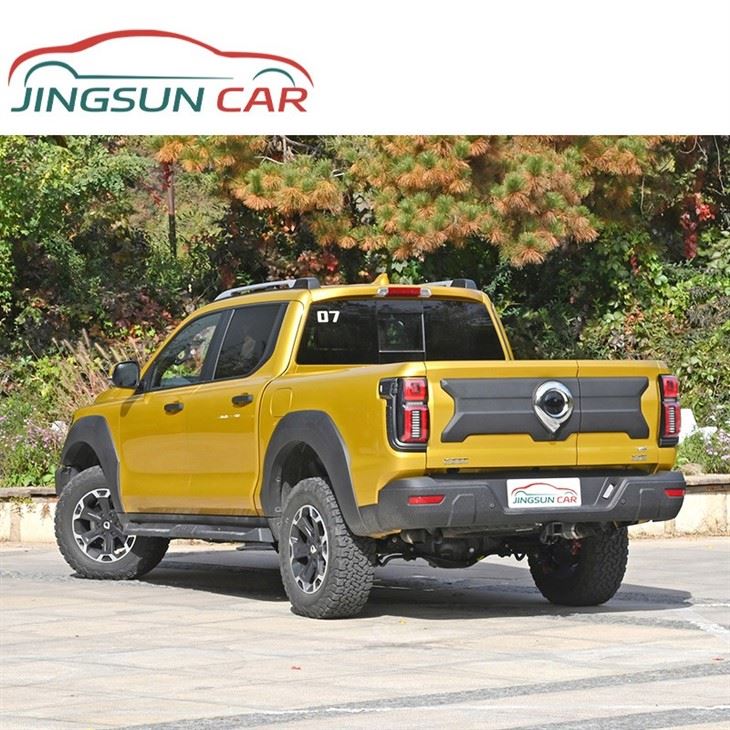

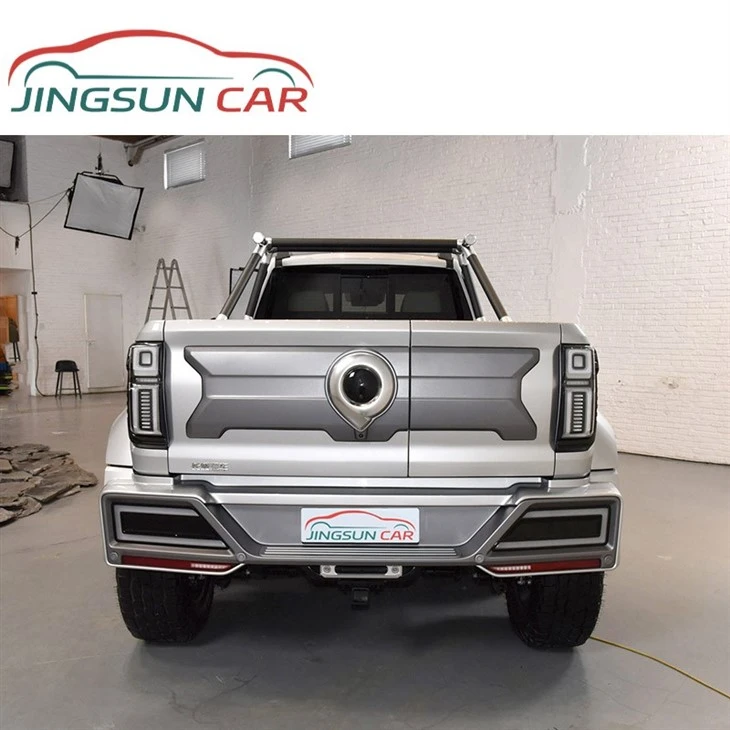

Shanhai Cannon's cargo box size is 1500X1520X500mm. It adopts a split + flat tailgate design, and a partition design that can be adjusted at will to further ensure practicality. In terms of body size, the length, width and height of the new car are 5440/1991/1924mm respectively, and the wheelbase is 3350mm.

Shanhai Cannon offer excellent performance, durability, and value for money. They are ideal for individuals, families, and business users who need a reliable vehicle that can handle any task with ease.If you're in the market for a reliable and affordable pickup truck, the Shanhai Cannon is a great choice.

Product Details




















| ● Standard configuration ○ Optional -- None |
Shanhai Cannon 2023 3.0T V6 gasoline performance version | Shanhai Cannon 2023 3.0T V6 Gasoline Extreme Edition | Shanhai Cannon 2023 2.4T diesel extreme traction version | Shanhai Cannon 2023 2.4T diesel extreme towing version |
| Basic Parameters | ||||
| Manufacturer | Great Wall Motors | Great Wall Motors | Great Wall Motors | Great Wall Motors |
| Level | Pickup | Pickup | Pickup | Pickup |
| Energy type | Gasoline+48V light mixing system | Gasoline+48V light mixing system | Gasoline | Gasoline |
| Environmental protection standards | National VI | National VI | National VI | National VI |
| Time to market | 2023.11 | 2022.12 | 2023.10 | 2023.1 |
| Maximum power(kw) | 265 | 260 | 137 | 137 |
| Maximum torque(N-m) | 500 | 500 | 480 | 480 |
| Engine | 3.0T 360 horsepower V6 | 3.0T 353 horsepower V6 | 2.4T 186 horsepower L4 | 2.4T 186 horsepower L4 |
| Gearbox | 9 gears, hand-in-one | 9 gears, hand-in-one | 9 gears, hand-in-one | 9 gears, hand-in-one |
| Length*Width*Height (mm) | 5462*1992*1960 | 5440*1991*1924 | 5440*1991*1924 | 5440*1991*1924 |
| Body structure | 4-door 5-seater pickup | 4-door 5-seater pickup | 4-door 5-seater pickup | 4-door 5-seater pickup |
| Maximum speed (km/h) | 180 | 180 | 155 | 155 |
| Vehicle warranty | Four years or 120,000 kilometers | Four years or 120,000 kilometers | Four years or 120,000 kilometers | Four years or 120,000 kilometers |
| Car Body | ||||
| Wheelbase(mm) | 3350 | 3350 | 3350 | 3350 |
| Front wheelbase (mm) | 1626 | 1635 | 1635 | 1635 |
| Rear wheelbase (mm) | 1635 | 1635 | 1635 | 1635 |
| Body structure | Pickup | Pickup | Pickup | Pickup |
| Fuel tank volume (L) | 80 | 80 | 80 | 80 |
| Curb weight (kg) | 2770 | 2634 | 2575 | 2575 |

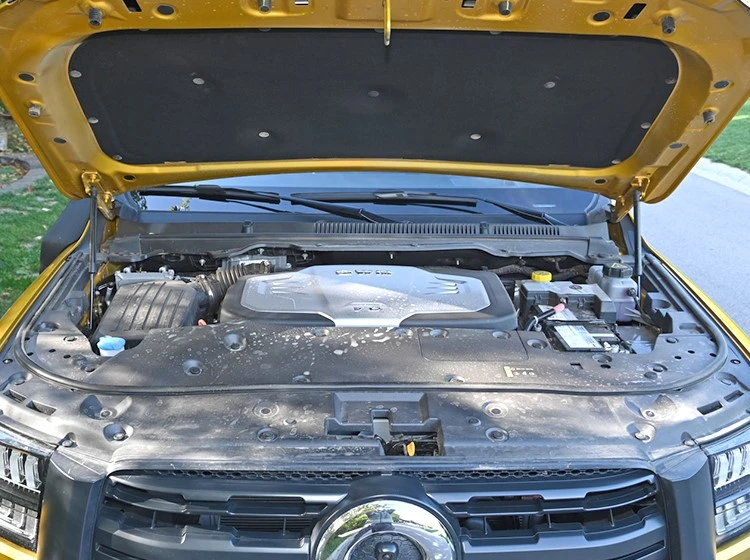

| Engine | ||||
| Engine model | GW6Z30 | GW6Z30 | GW4D24 | GW4D24 |
| Displacement (mL) | 2993 | 2993 | 2370 | 2370 |
| Displacement(L) | ||||
| Intake form | Twin turbo | Twin turbo | Turbocharged | Turbocharged |
| Cylinder arrangement | V | V | L | L |
| Number of cylinders | 6 | 6 | 4 | 4 |
| Air Supply | DOHC | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 360 | 353 | 186 | 186 |
| Maximum power(kW) | 265 | 260 | 137 | 137 |
| Maximum torque(N-m) | 500 | 500 | 480 | 480 |
| Maximum torque speed (rpm) | 1500-4500 | 1500-4500 | 1500-2500 | 1500-2500 |
| Fuel grade | 95# | 95# | 0# | 0# |
| Chassis/Wheels | ||||
| Drive mode | Front four-wheel drive | Front four-wheel drive | Front four-wheel drive | Front four-wheel drive |
| Four-wheel drive | -- | Timely four-wheel drive | -- | -- |
| Front suspension type | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension |
| Rear suspension type | Integral bridge non-independent suspension | Multi-link non-independent suspension | Integral bridge non-independent suspension | Integral bridge non-independent suspension |

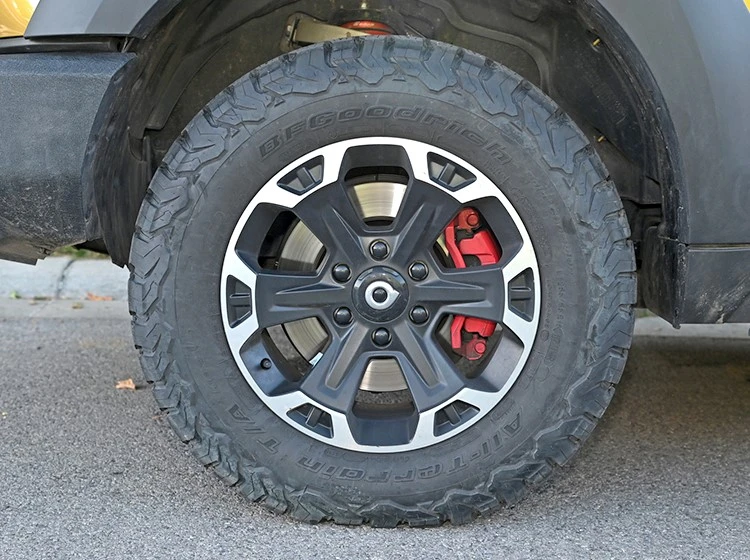

| Front tire specifications | 265/65 R18 | 265/55 R19 | 265/60 R18 | 265/60 R18 |
| Rear tire specifications | 265/65 R18 | 265/55 R19 | 265/60 R18 | 265/60 R18 |
| Active/Passive safety | ||||
| Main/passenger seat airbag | Main●/deputy● | Main●/deputy● | Main●/deputy● | Main●/deputy● |
| Front/rear side airbags | Front●/rear-- | Front●/rear-- | Front●/rear-- | Front●/rear-- |
| Front/rear head airbags (curtain airbags) | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| Tire pressure monitoring function | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display |
| Seat belt not fastened reminder | ●Whole car | ●Whole car | ●Front row | ●Whole car |
| ABS anti-lock | ● | ● | ● | ● |
| Lane Departure Warning System | ● | ● | ● | ● |
| Active braking/active safety system | ● | ● | ● | ● |
| Reverse side warning system | -- | ● | -- | ● |
| Control Configuration | ||||
| Driving mode switch | ●Sports ●Economy ●Standard/comfortable |
●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow |
●Sports ●Economy ●Standard/comfortable |
●Sports ●Economy ●Standard/comfortable |
| Shift pattern | ●Electronic gear shift | ●Electronic gear shift | ●Electronic gear shift | ●Electronic gear shift |
| automatic parking | ● | ● | ● | ● |
| Auxiliary/Intelligent Driving | ||||
| cruise system | ●Adaptive cruise | ●Adaptive cruise | ●Adaptive cruise | ●Adaptive cruise |
| Assisted driving level | ●L2 | ●L2 | ●L2 | ●L2 |
| Road traffic sign recognition | ● | ● | ● | ● |
| Driving assistance images | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image |
| Front/rear parking radar | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| Appearance Configuration | ||||
| Skylight type | ●Panoramic sunroof can be opened | ●Panoramic sunroof can be opened | ○Panoramic sunroof can be opened | ●Panoramic sunroof can be opened |

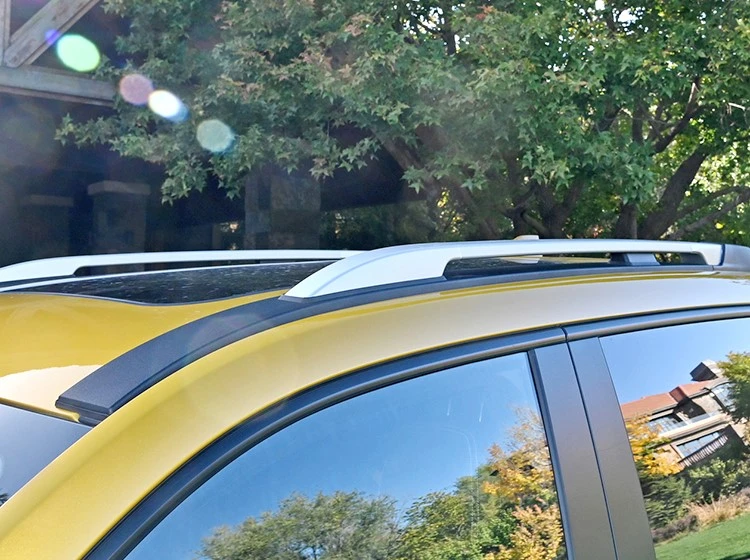

| Roof rack | ● | ● | ● | ● |
| Key type | ●Bluetooth key ●Remote control key |
●Bluetooth key ●Remote control key |
●Bluetooth key ●Remote control key |
●Bluetooth key ●Remote control key |
| Keyless start system | ● | ● | ● | ● |
| Electric trunk | ● | ● | ● | ● |
| Internal Configuration | ||||
| HUD heads up digital display | -- | ● | -- | ● |
| Full LCD instrument panel | ● | ● | ● | ● |
| LCD instrument size | ●12.3 inches | ●12.3 inches | ●12.3 inches | ●12.3 inches |
| Steering wheel material | ●Leather | ●Leather | ●Leather | ●Leather |
| Steering wheel position adjustment | ●Manual up and down + front and rear adjustment | ●Manual up and down + front and rear adjustment | ●Manual up and down + front and rear adjustment | ●Manual up and down + front and rear adjustment |
| Multifunction steering wheel | ● | ● | ● | ● |
| Steering wheel heating | ● | ● | -- | ● |
| Seat Configuration | ||||
| Seat material | ●Genuine leather | ●Genuine leather | ●Imitation leather | ●Genuine leather |
| Main/passenger seat electric adjustment | Main●/deputy● | Main●/deputy● | Main●/deputy● | Main●/deputy● |
| Front seat functions | ●Ventilation ●Heating |
●Massage ●Ventilation ●Heating |
-- | ●Ventilation ●Heating |
| Power seat memory function | ●Driver's seat | ●Driver's seat | -- | ●Driver's seat |
| Second row seat adjustment | ●Front and rear adjustment | ●Front and rear adjustment | ●Front and rear adjustment | ●Front and rear adjustment |
| Rear seats fold down | ●Proportional inverted | ●Proportional inverted | ●Proportional inverted | ●Proportional inverted |
| Front/rear center armrest | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| Lighting Configuration | ||||
| Low beam light source | ●LED | ●LED | ●LED | ●LED |
| high beam light source | ●LED | ●LED | ●LED | ●LED |
| Adaptive high and low beam | ● | ● | ● | ● |
| Headlight height adjustable | ● | ● | ● | ● |
| Delayed turn off of headlights | ● | ● | ● | ● |
| Car interior ambient lighting | ●Multicolor | ●Multicolor | ●Multicolor | ●Multicolor |
| Glass/Rear View Mirror | ||||

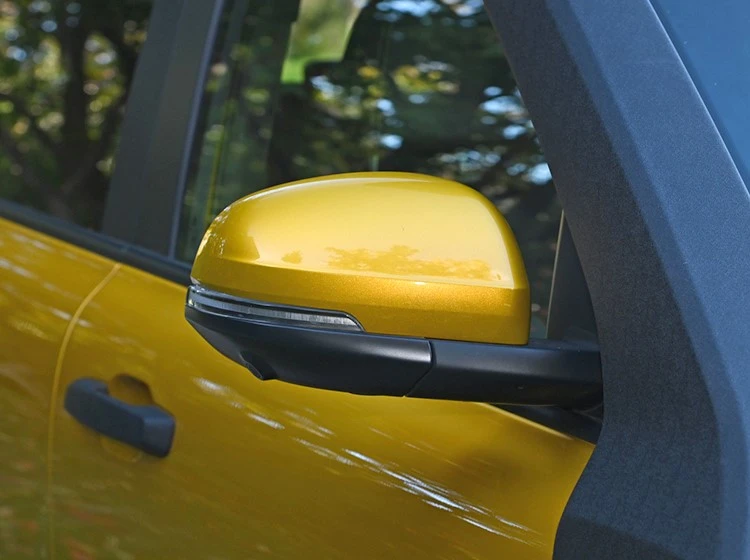

| Exterior rearview mirror function | ●Rearview mirror memory ●Lock the car and fold automatically ●Electric folding ●Reverse and automatically turn down ●Electric adjustment |
●Rearview mirror memory ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
●Electric adjustment | ●Rearview mirror memory ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
| Sensing wiper function | ●Rain sensor type | ●Rain sensor type | ●Rain sensor type | ●Rain sensor type |
| Front/rear electric windows | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| One-touch window lifting function | ●Whole car | ●Whole car | ●Whole car | ●Whole car |
| Window anti-pinch function | ● | ● | ● | ● |
| Multilayer soundproof glass | ●Back row ●Front row |
●Whole car | ●Back row ●Front row |
●Whole car |
| Car vanity mirror | ●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
| Interior rearview mirror function | ●Streaming rearview mirror ●Automatic anti-glare |
●Streaming rearview mirror ●Automatic anti-glare |
●Streaming rearview mirror ●Automatic anti-glare |
●Streaming rearview mirror ●Automatic anti-glare |
| Intelligent Internet | ||||
| Central control color LCD screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen |
| Central control screen size | ●14.6 inches | ●14.6 inches | ●14.6 inches | ●14.6 inches |
| Navigation traffic information display | ● | ● | ● | ● |
| roadside assistance call | ● | ● | ● | ● |
| Bluetooth/car phone | ● | ● | ● | ● |
| Mobile phone interconnection/mapping | ●Original interconnection/mapping | ●Original interconnection/mapping | ●Original interconnection/mapping | ●Original interconnection/mapping |
| Voice recognition control system | ● | ● | ● | ● |
| Media Entertainment | ||||
| Multimedia/charging interface | ●USB | ●USB | ●USB | ●USB |
| Number of USB/Type-C interfaces | ●2 in the front row/2 in the rear row | ●2 in the front row/2 in the rear row | ●2 in the front row/2 in the rear row | ●2 in the front row/2 in the rear row |
| Mobile phone wireless charging function | ●Front row | ●Front row | ●Front row | ●Front row |
| Speaker brand name | -- | ●Infinity | -- | ●Infinity |
| Number of speakers | ●6 speakers | ●10 speakers | ●6 speakers | ●10 speakers |
