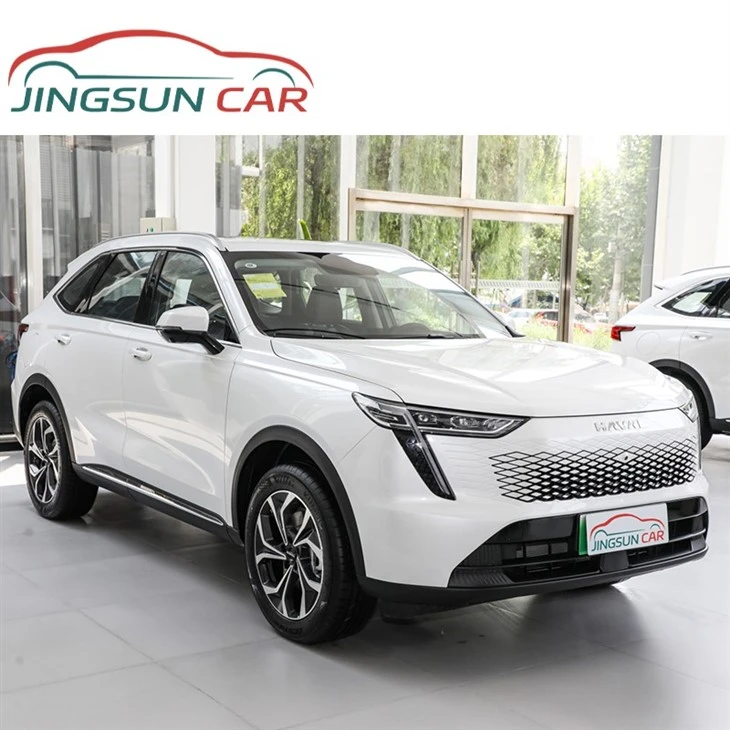

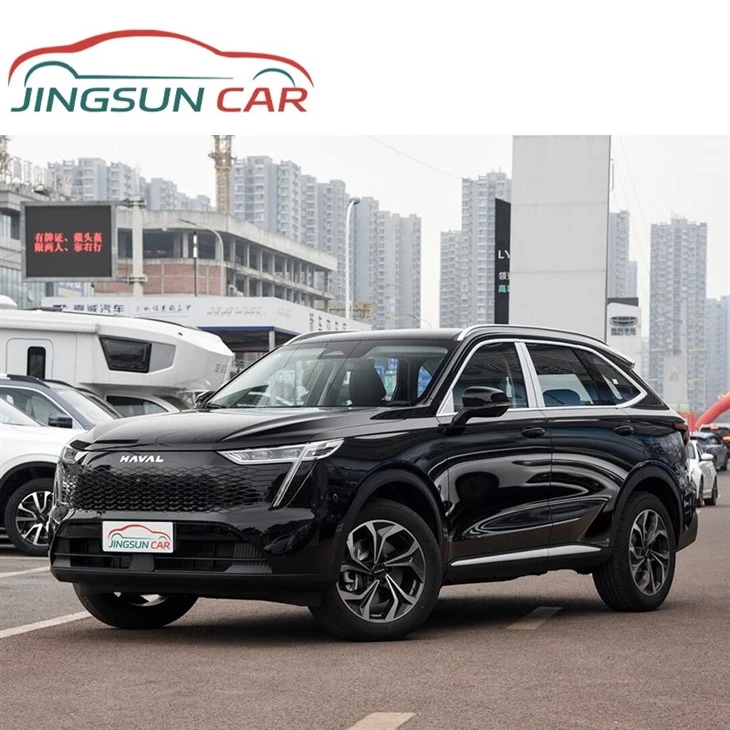

Haval Xiaolong MAX

Haval Xiaolong MAX

Power Type: Plug-in Hybrid
Model Level: Medium SUV
Charging Time: 0.43h
WLTC Combined Fuel Consumption: 1.78 L/100km
Send Inquiry
Description
Technical Parameters

Product Highlights

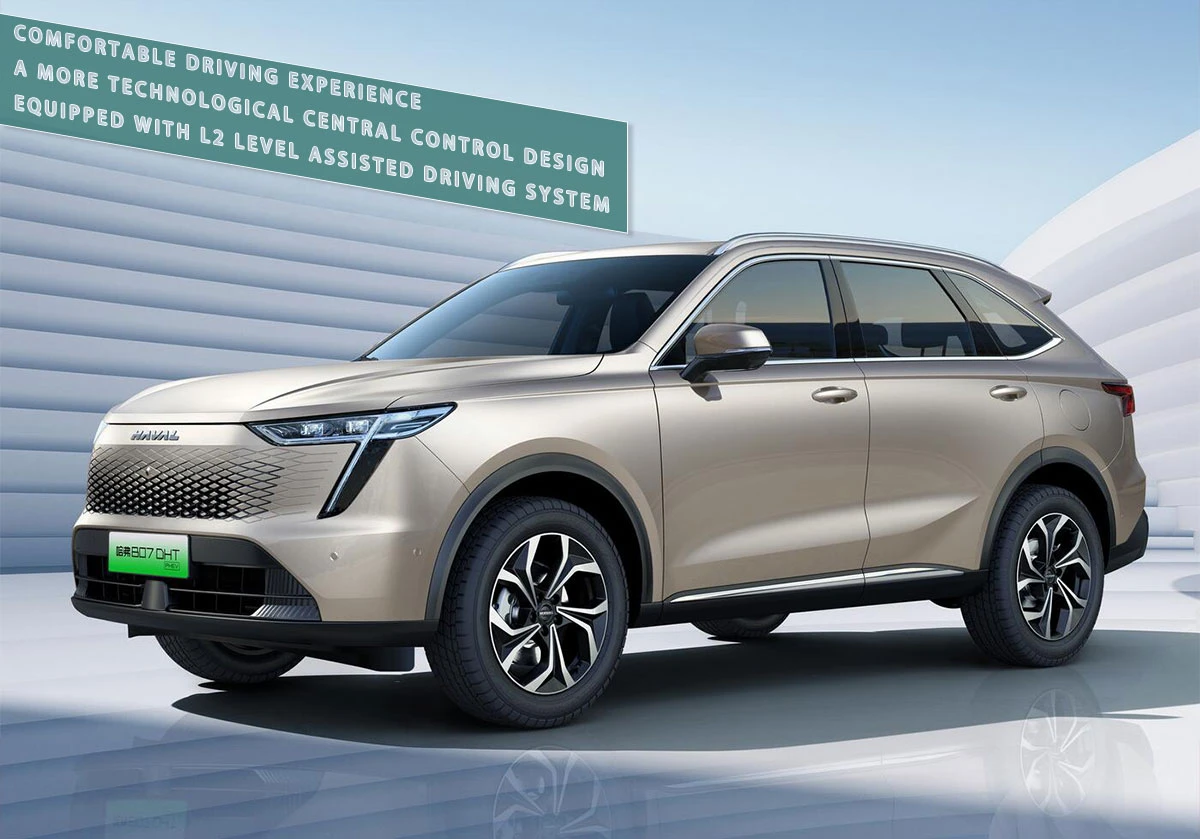

From its muscular body and high-performance engine, to its cutting-edge technology and luxurious interior, the Haval Xiaolong MAX delivers an experience like no other. So, whether you're hitting the open road or exploring off-road terrain, the Haval Xiaolong MAX is the ultimate vehicle to take on any adventure.

Haval-Xiaolong-MAX1

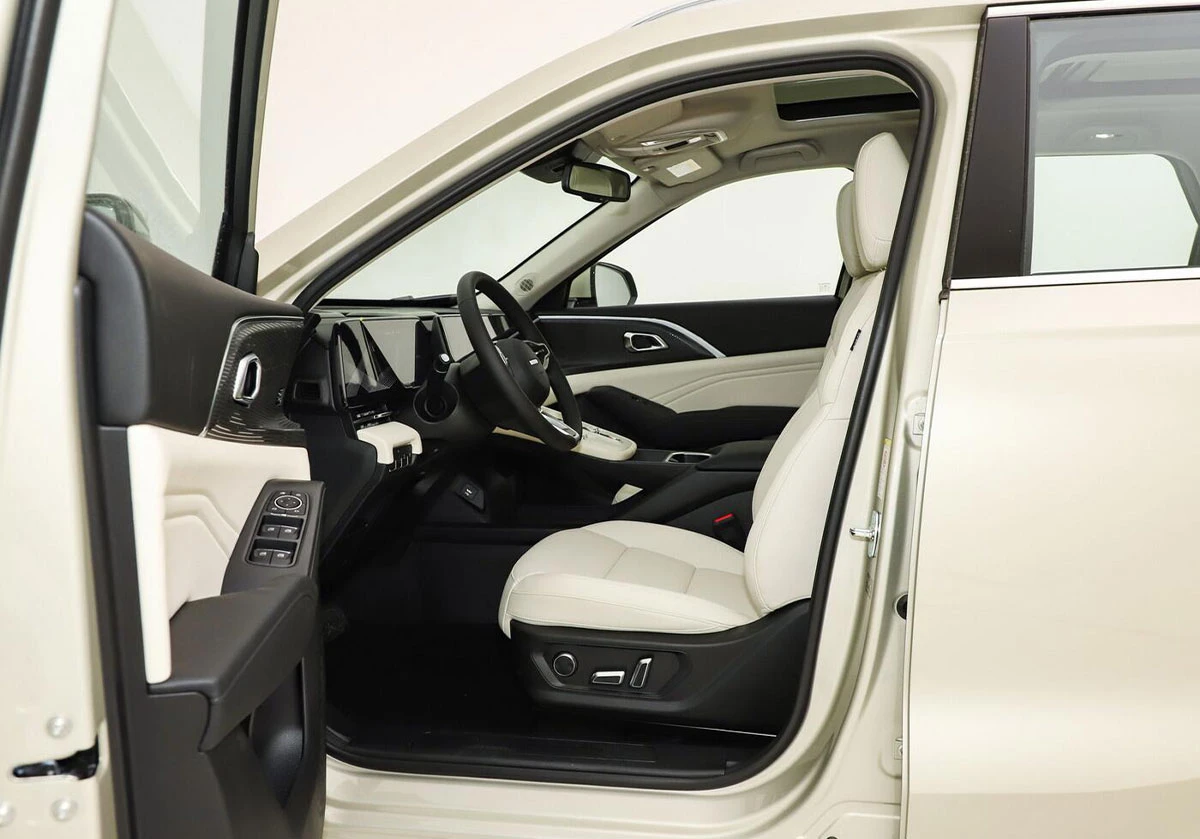

Front Seats




Except for the lowest model, only the main driver supports electric adjustment, the other models are equipped with electric adjustment for the main driver and passenger, and the top model also supports seat memory function. In addition, the entire series comes standard with front seat heating function, and ventilation function is optional on top models.

Haval-Xiaolong-MAX2

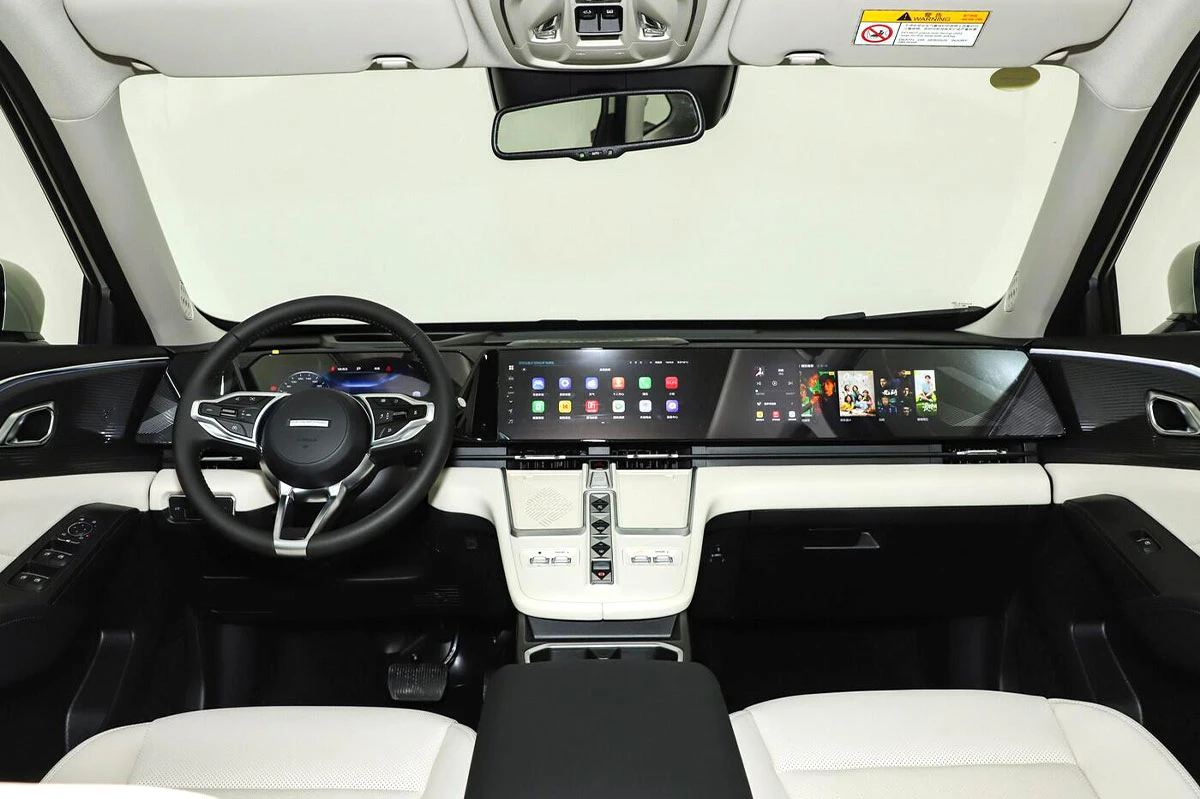

A More Technological Triple Screen




The center console of Haval Xiaolong MAX is equipped with three screens and a head-up display, and is equipped with the Coffee OS system, which is full of technology. Large area of leather wrapping, very textured.

Haval-Xiaolong-MAX3



5

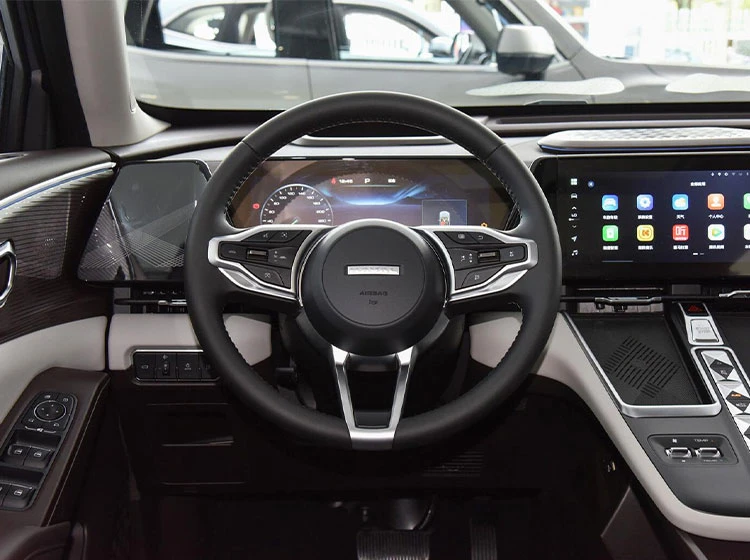

Three-Spoke Steering Wheel



The leather steering wheel with a three-spoke design and chrome trim looks very high-quality.

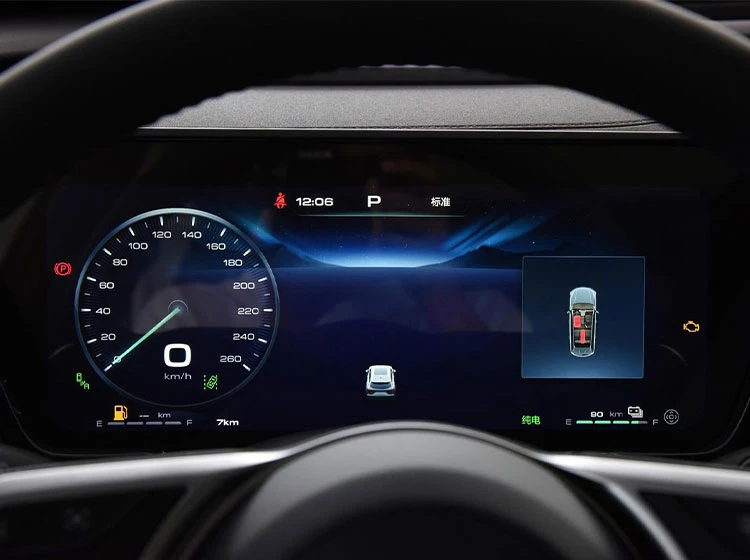

Dash Board



In front of the driver's seat is a 12.3-inch full LCD instrument, which displays clear and comprehensive information and supports the display of navigation interface.

6



7

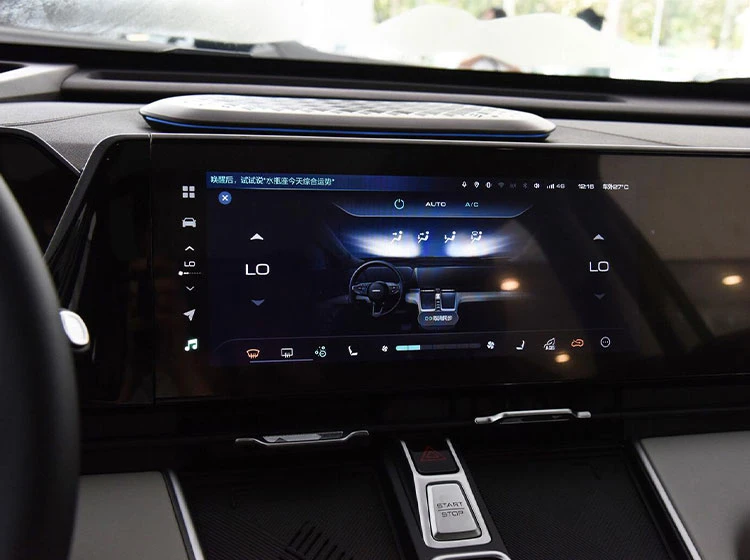

Central Control Screen



Haval Xiaolong MAX is equipped with a 12.3-inch central control screen that integrates rich entertainment functions and vehicle settings. The vehicle system is smooth and easy to operate.

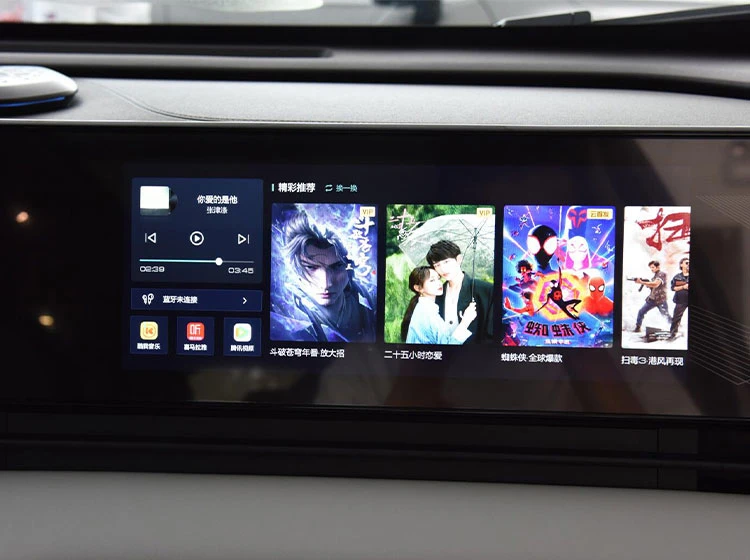

Passenger Screen



The co-pilot is equipped with a 12.3-inch display screen and an exclusive entertainment system, bringing more fun to the co-pilot passengers.

8

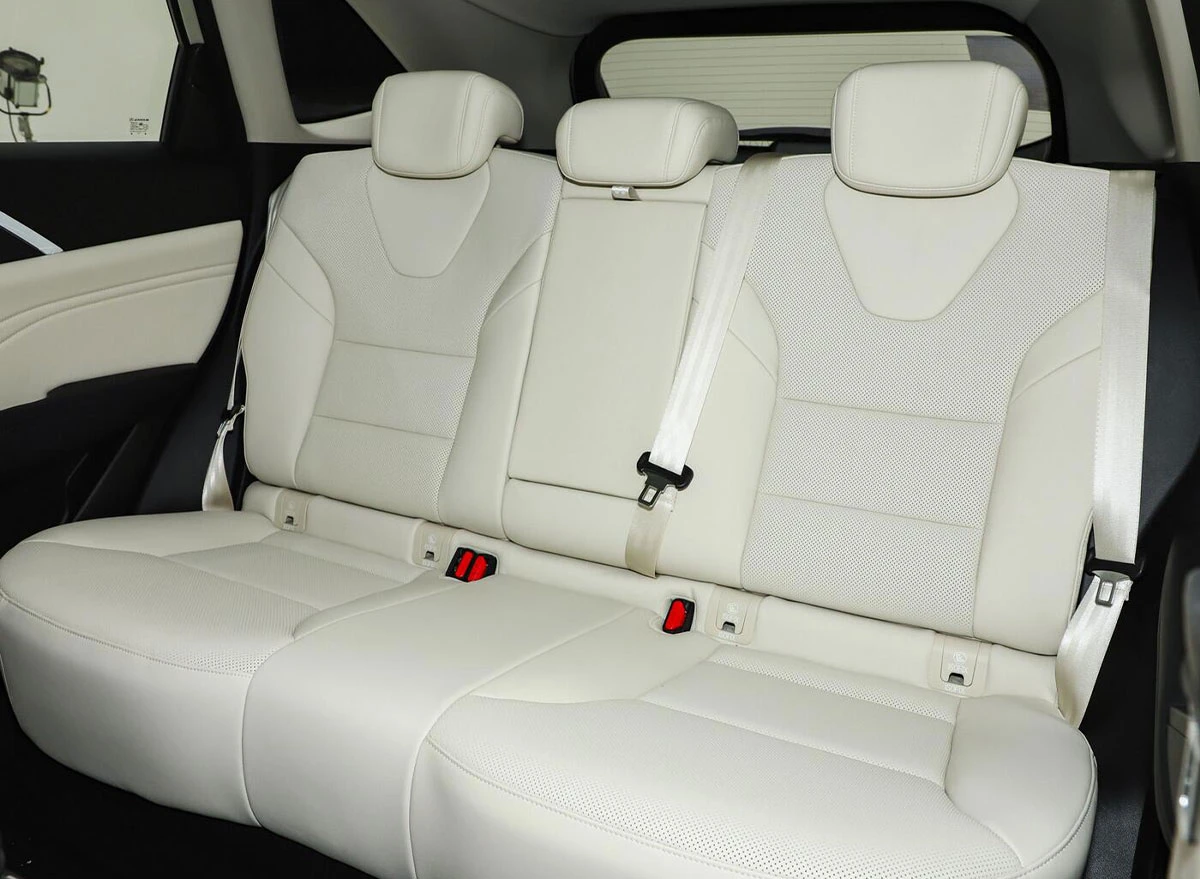

Comfortable ride experience




Haval Xiaolong MAX seats have a wide design, soft padding, and good riding comfort. The backrests of the rear seats are adjustable, and the middle position of the floor is slightly raised, which basically does not affect the passengers in the middle position.

Haval-Xiaolong-MAX-5



1

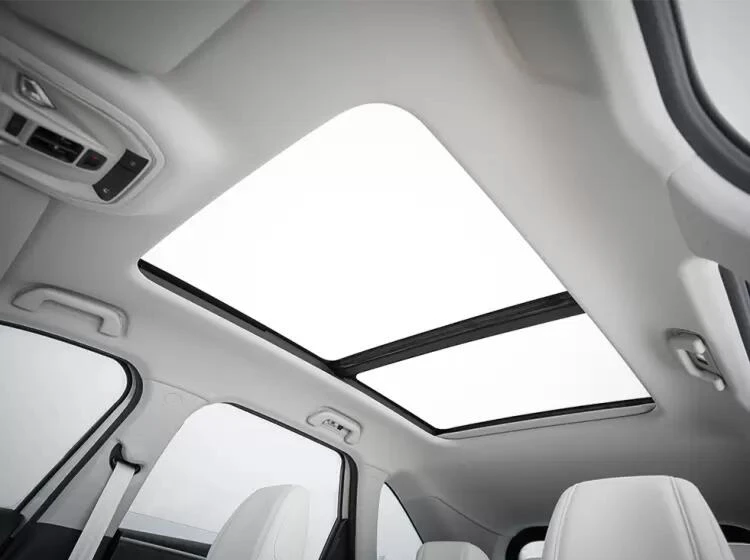

Panoramic Skylight



Haval Xiaolong MAX all models come standard with a large, openable panoramic sunroof.

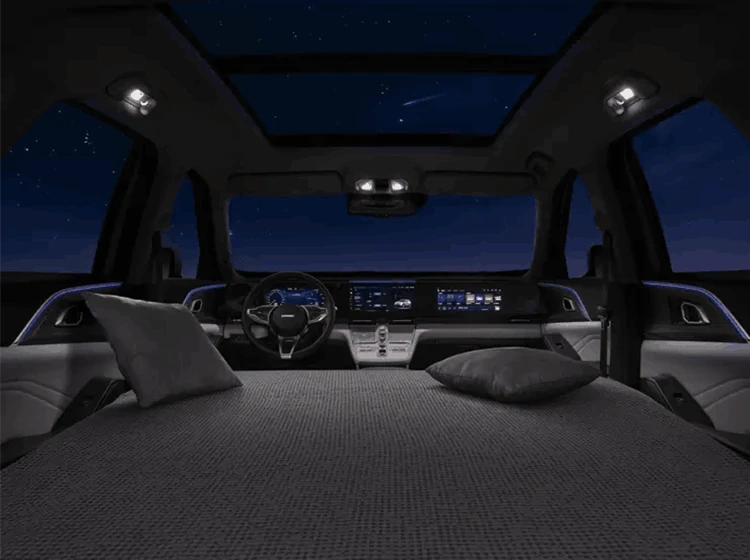

King Bed Mode



Fold down the front and rear seats to convert into a large bed, so you can rest in the car when going out.

2

3

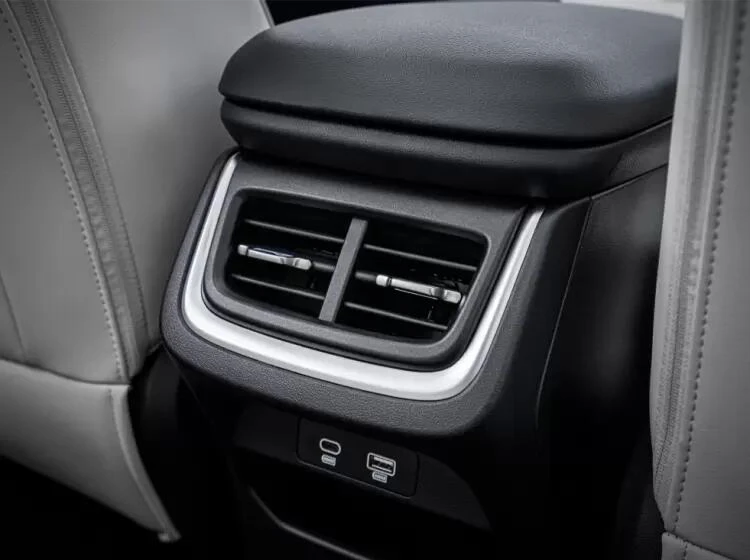

Rear Air Outlet



Haval Xiaolong MAX the rear row is equipped with two independent air outlets.

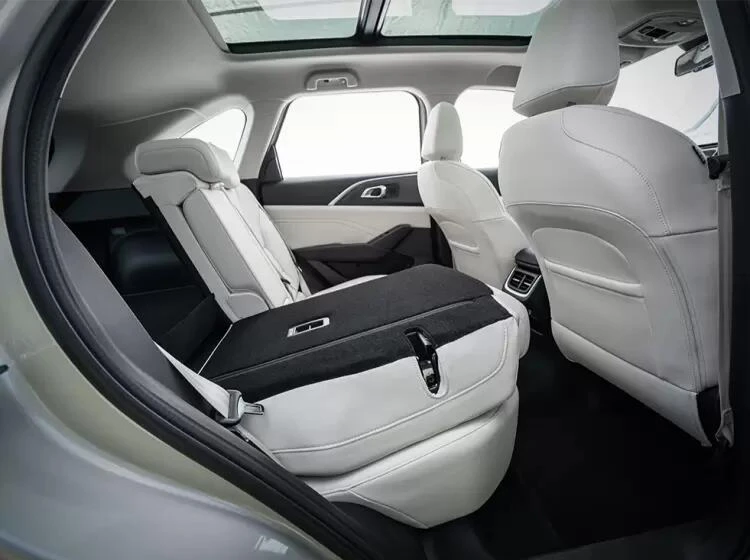

Tip Down In Proportion



The rear seats support folding down proportionally and can be combined as needed to increase loading capacity

4

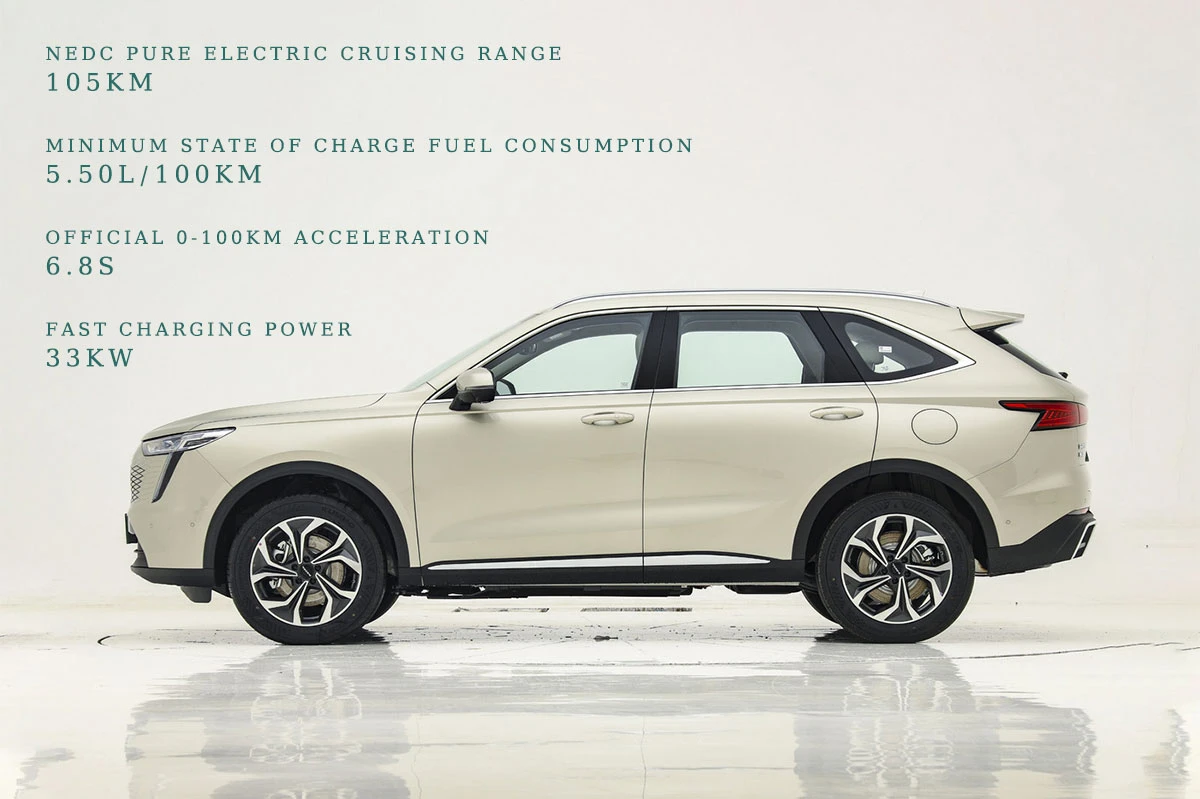

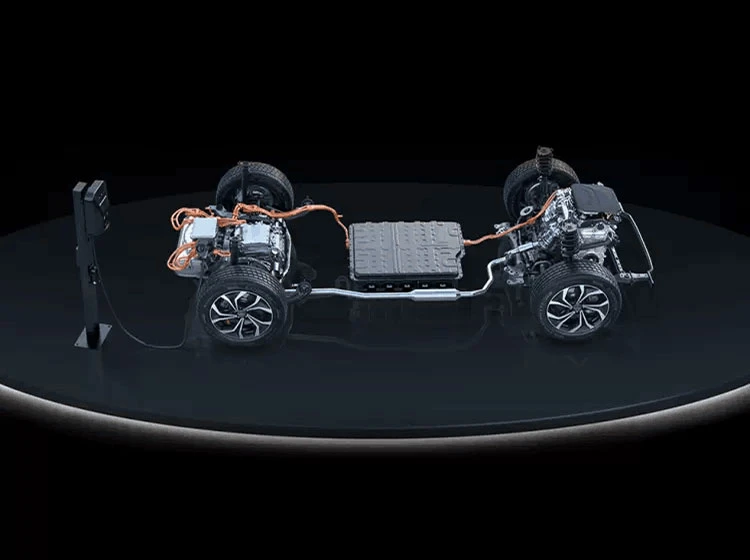

Hi4 Hybrid Architecture




Haval Xiaolong MAX is equipped with a plug-in hybrid system, which consists of a 1.5L 4-cylinder naturally aspirated engine and an electric motor. The system has a combined power of 205kW and is matched with a 2-speed DHT gearbox. In addition, the entire series is equipped with electric four-wheel drive as standard.

Haval-Xiaolong-MAX4



9

Electric Four-Wheel Drive



All Haval Xiaolong MAX series are equipped with electric four-wheel drive as standard, using a dual-motor layout at the front and rear, with a total motor torque of 450 N·m.

External Discharge



Haval Xiaolong MAX supports 3.3kW external discharge and can provide power when camping.

10




Product Details


1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

Hot Tags: haval xiaolong max, China haval xiaolong max suppliers, 2023 hyundai elantra, mercedes eqe sedan, suv wuling asta, BMW SUV, Pickup Truck, Dongfeng Voyah Dreamer

● Standard configuration
○ Optional
-- None		 Haval Xiaolong MAX 23 1.5L 105km 4WD Elite Edition Haval Xiaolong MAX 23 1.5L 105km 4WD Pilot Edition Haval Xiaolong MAX 23 1.5L 105km four-wheel drive intelligent flagship version
Basic information
Manufacturers Great Wall Motor & New Energy Great Wall Motor & New Energy Great Wall Motor & New Energy
level Mid-size SUV Mid-size SUV Mid-size SUV
Type of energy Plug-in hybrid Plug-in hybrid Plug-in hybrid
Environmental standards National VI National VI National VI
Time to market 2023/5/15 2023/5/15 2023/5/15
WLTC pure battery life[km] 83 83 83
NEDC pure electric range [km] 105 105 105
Fast charging time[h] 0.43 0.43 0.43
Slow charging time[h] 3 3 3
Motor 1.5L 116 hp L4 1.5L 116 hp L4 1.5L 116 hp L4
Maximum power / maximum torque 85kW/140N·m 85kW/140N·m 85kW/140N·m
Electric Motor[Ps] 299 299 299
Gearbox 2-speed Hybrid Exclusive (DHT). 2-speed Hybrid Exclusive (DHT). 2-speed Hybrid Exclusive (DHT).
Length*width*height[mm] 4758*1895*1725 4758*1895*1725 4758*1895*1725
Body structure 5-door, 5-seat SUV 5-door, 5-seat SUV 5-door, 5-seat SUV
Maximum speed[km/h] 180 180 180
Official 0-100km/h acceleration[s] 6.8 6.8 6.8
WLTC combined fuel consumption[L/100km] 1.78 1.78 1.78
Fuel consumption in power loss state[L/100km] 5.5 5.5 5.5
Vehicle warranty 6 years or 150,000 km 6 years or 150,000 km 6 years or 150,000 km
Body
Length[mm] 4758 4758 4758
Width[mm] 1895 1895 1895
Height[mm] 1725 1725 1725
Wheelbase[mm] 2800 2800 2800
Front track[mm] 1626 1626 1626
Rear track[mm] 1630 1630 1630
How the door opens Swing doors Swing doors Swing doors
Number of doors 5 5 5
Number of seats 5 5 5
Approach angle[°] 20 20 20
Departure angle[°] 25 25 25
Fuel tank capacity[L] 55 55 55
Official trunk volume[L] 551-1377 551-1377 551-1377
Curb weight[kg] 1980 1980 1980
Full load mass [kg] 2405 2405 2405

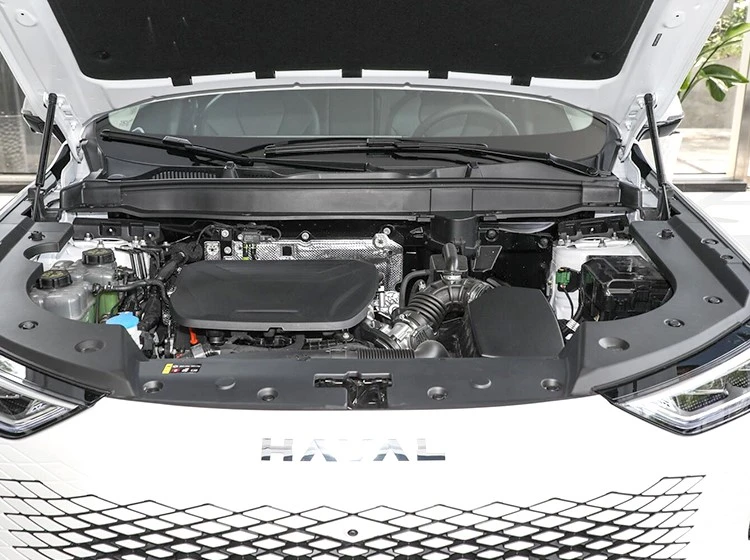

Engine
Engine model GW4B15H GW4B15H GW4B15H
Displacement[mL] 1498 1498 1498
Displacement[L] 1.5 1.5 1.5
Intake form Inhale naturally Inhale naturally Inhale naturally
Engine layout Horizontal Horizontal Horizontal
Cylinder arrangement L L L
Number of cylinders[pcs] 4 4 4
Number of valves per cylinder [pcs] 4 4 4
Gas distribution mechanism DOHC DOHC DOHC
Maximum power [kW] 85 85 85
Max horsepower [Ps] 116 116 116
Maximum torque[N·m] 140 140 140
Maximum net power [kW] 80 80 80
Fuel designation Number 92 Number 92 Number 92
Oil supply method Direct injection Direct injection Direct injection
Cylinder head material Aluminum alloy Aluminum alloy Aluminum alloy
Cylinder material Aluminum alloy Aluminum alloy Aluminum alloy
Environmental standards National Six National Six National Six
Electric motors
Number of drive motors Dual motors Dual motors Dual motors
Motor layout Front + rear Front + rear Front + rear
Motor type Permanent magnet synchronization Permanent magnet synchronization Permanent magnet synchronization
Total motor power [kW] 220 220 220
Total horsepower of electric motor [Ps] 299 299 299
Total torque of electric motor[N·m] 450 450 450
Maximum power of front motor [kW] 70 70 70
Maximum torque of front motor[N·m] 100 100 100
Maximum power of rear motor [kW] 150 150 150
Maximum torque of rear motor[N·m] 350 350 350
System overall power [kW] 205 205 205
System combined horsepower [Ps] 279 279 279
System integrated torque[N·m] 585 585 585
Battery/Replenishment
Battery type Ternary lithium battery Ternary lithium battery Ternary lithium battery
Cell brand Guoxuan Hi-Tech/Hive Energy Guoxuan Hi-Tech/Hive Energy Guoxuan Hi-Tech/Hive Energy
Battery temperature management ● Low temperature heating ● Low temperature heating ● Low temperature heating
● Liquid cooling ● Liquid cooling ● Liquid cooling
WLTC pure battery life[km] 83 83 83
NEDC pure electric range [km] 105 105 105
Battery level [kWh] 19.27 19.27 19.27
Battery energy density[Wh/kg] 120 120 120
Power consumption per 100km[kWh/100km] 16.4 16.4 16.4

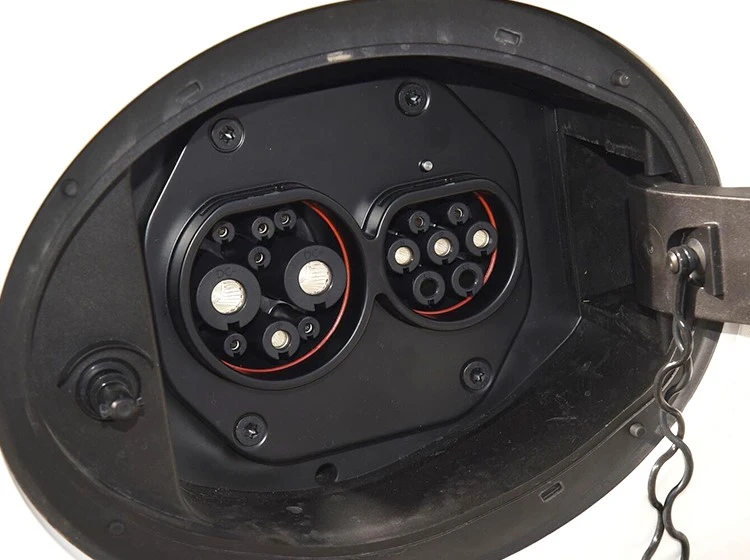

Vehicle charging port ● Slow filling ● Slow filling ● Slow filling
● Fast charging port ● Fast charging port ● Fast charging port
Slow filling port position ● Right rear side of the car ● Right rear side of the car ● Right rear side of the car
Quick charging port location ● Right rear side of the car ● Right rear side of the car ● Right rear side of the car
Fast charging power [kW] 33 33 33
Fast charging time[min] 26 26 26
Fast charging time[h] 0.43 0.43 0.43
Slow charging time[h] 3 3 3
Vehicle power exchange - - -
Home charging piles ● ● ●
External discharge function ● ● ●
External discharge power ● 3.3kW ● 3.3kW ● 3.3kW
Battery pack warranty 8 years or 150,000 km 8 years or 150,000 km 8 years or 150,000 km
First owner battery pack warranty Unlimited years/unlimited miles (liability exclusion terms are subject to official conditions). Unlimited years/unlimited miles (liability exclusion terms are subject to official conditions). Unlimited years/unlimited miles (liability exclusion terms are subject to official conditions).
Gearbox
Gearbox description 2-speed DHT 2-speed DHT 2-speed DHT
Gearbox type Hybrid Special Use (DHT). Hybrid Special Use (DHT). Hybrid Special Use (DHT).
Number of gear bits 2 2 2
Chassis steering
Drive form Front-mounted four-wheel drive Front-mounted four-wheel drive Front-mounted four-wheel drive
Four-wheel drive form Electric four-wheel drive Electric four-wheel drive Electric four-wheel drive
Center differential structure - - -
Front suspension type MacPherson independent suspension MacPherson independent suspension MacPherson independent suspension
Rear suspension type Multi-link independent suspension Multi-link independent suspension Multi-link independent suspension
Assist type Electric assist Electric assist Electric assist
Adjustable suspension function - - -
Adjustable suspension type - - -
Body structure Load-bearing type Load-bearing type Load-bearing type
Limited-slip differential - - -
Differential lock - - -
Wheel brakes
Front brake type ● Ventilated disc type ● Ventilated disc type ● Ventilated disc type
Rear brake type ● Ventilated disc type ● Ventilated disc type ● Ventilated disc type
Parking brake type Electronic parking Electronic parking Electronic parking

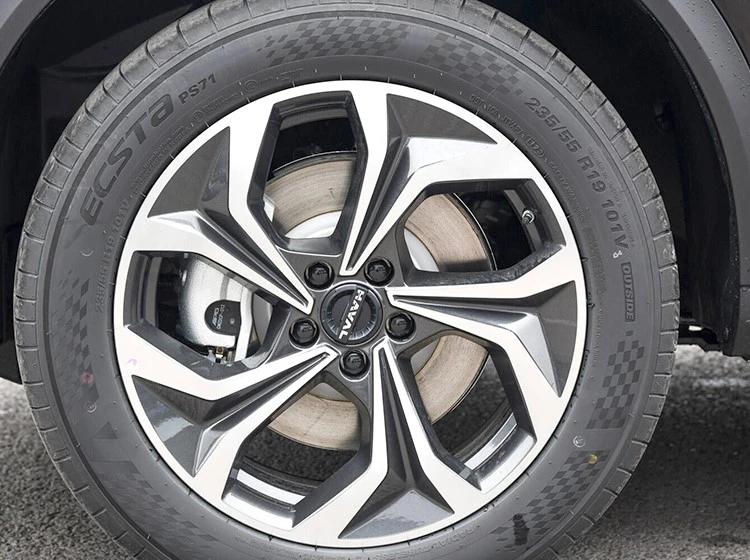

Front tire specifications ● 235/55 R19 ● 235/55 R19 ● 235/55 R19
Rear tire specifications ● 235/55 R19 ● 235/55 R19 ● 235/55 R19
spare wheel ● Tire repair tools only ● Tire repair tools only ● Tire repair tools only
How the spare wheel is placed - - -
Proactive security
ABS anti-lock braking ● ● ●
Braking force distribution (EBD/CBC, etc.) ● ● ●
Brake assist (BA/EBA/BAS, etc.) ● ● ●
Traction control (ASR/TCS/TRC, etc.) ● ● ●
Body stability control (ESP/DSC/VSC, etc.) ● ● ●
Seat belt not fastened reminder ● Full vehicle ● Full vehicle ● Full vehicle
Tire pressure monitoring ● Tire pressure display ● Tire pressure display ● Tire pressure display
In-vehicle biomonitoring - - -
Passive safety
Main driver airbags ● ● ●
Co-pilot airbag ● ● ●
First row of side airbags ● ● ●
Second row side airbags - - -
Side air curtains ● ● ●
Knee airbags - - -
Co-pilot's saddled airbag - - -
Rear seatbelt airbags - - -
Anti-slip airbags in the rear seats - - -
Central airbag - - -
Second row of positive airbags - - -
Child seat interface ● ● ●
Passive pedestrian protection - - -
Run-flat tires - - -
Auxiliary/manipulative configuration
Front parking radar - - ●
Rear parking radar ● ● ●
Reversing side warning system - ● ●
Open door collision warning - ● ●
Driver assistance images ● 360-degree panoramic image ● 360-degree panoramic image ● 360-degree panoramic image
Chassis perspective ● ● ●
Cruise system ● Cruise control ● Full-speed adaptive cruise ● Full-speed adaptive cruise
Driving mode selection ● Exercise ● Exercise ● Exercise
● Economy ● Economy ● Economy
● Standard / Comfortable ● Standard / Comfortable ● Standard / Comfortable
● Off-road ● Off-road ● Off-road
● Snow ● Snow ● Snow
Fatigue reminder ● ● ●
Automatic parking - - ●
Remote parking - - ●
Remote summoning - - -
Engine start-stop - - -
Automatic parking ● ● ●
Uphill assist ● ● ●
Steep slopes descend ● ● ●
Night vision system - - -
Variable steering ratio - - -
Integral active steering system - - -
Wading sensing system - - -
Assisted driving functions
Parallel Assist (BSM/BSD) - ● ●
Lane Departure Warning (LDWS) - ● ●
Lane keeping (LKAS) - ● ●
The lane is kept centered - ● ●
Road traffic sign recognition - ● ●
Forward collision warning - ● ●
Rear collision warning - ● ●
Active braking - ● ●
Automatic lane change assist - - ●
Reversing the track - - ●
Automated driving assistance - - ● High-speed section
Assisted driving hardware
Level of driving assistance - ● L2 ● L2
Assisted driving systems - ● Coffee smart driving ● Coffee smart driving
Millimeter wave radar - ● 2 ● 5
Ultrasonic radar ● The last 4 ● The last 4 ● Front 6 / Back 6
Forward perception camera type - ● Monocular ● Monocular

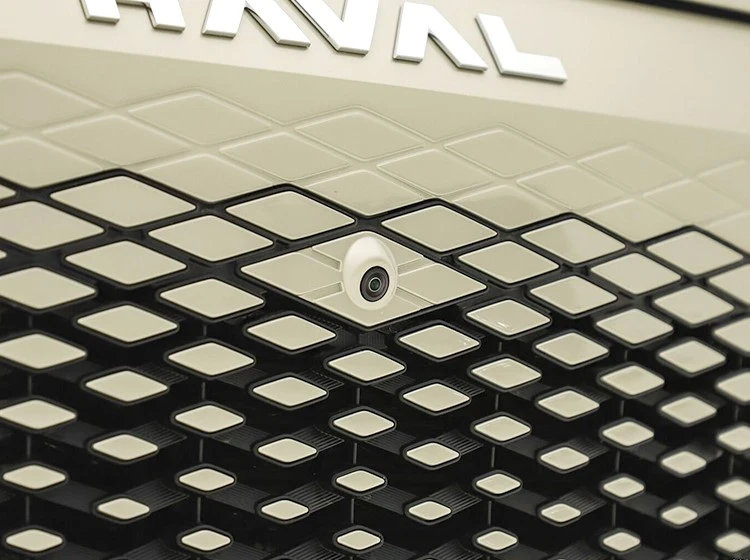

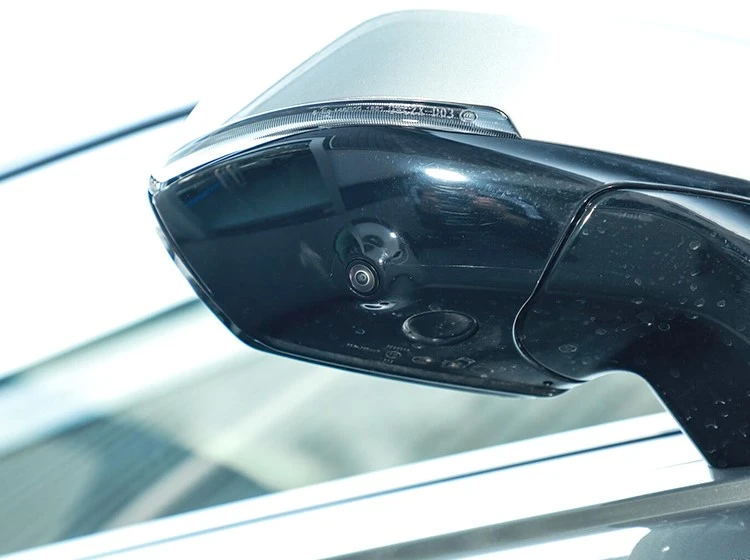

Look around at the camera ● 4 pcs ● 4 pcs ● 4 pcs
In-car camera - - -
○ 1 pc
External configuration
Sunroof type ● The panoramic sunroof can be opened ● The panoramic sunroof can be opened ● The panoramic sunroof can be opened
Light-sensitive canopy - - -
Sporty look kit - - -
Electric spoiler - - -
Rim material ● Aluminum alloy ● Aluminum alloy ● Aluminum alloy
Electric suction door - - -
Automatic opening and closing of doors - - -
Frameless doors - - -
Side sliding doors - - -
Roof racks ● ● ●
Key type ● Key fob key ● Key fob key ● Key fob key
● Bluetooth key ● Bluetooth key
Keyless start ● ● ●
Keyless entry ● First row ● First row ● First row
Hide electric door handles - - -
Actively closed grille - - -

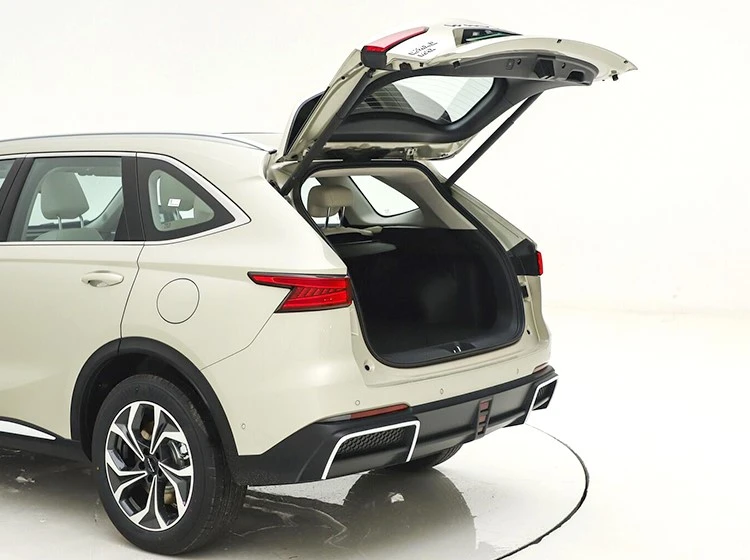

Power tailgate - ● ●
Tailgate position memory - ● ●
Induction tailgate - - ●
The tailgate glass opens independently - - -
Side footrest - - -
Low-speed driving warning sound ● ● ●
Internal configuration
Steering wheel material ● Cortex ● Cortex ● Cortex
Steering wheel adjustment ● Manual up and down + front and rear adjustment ● Manual up and down + front and rear adjustment ● Manual up and down + front and rear adjustment
Shift form Electronic pocket gear shifting Electronic pocket gear shifting Electronic pocket gear shifting
Multifunction steering wheel ● ● ●
Steering wheel shifting - - -
The steering wheel is heated - - -
Trip computer display ● Color ● Color ● Color
Full LCD instrument cluster ● ● ●
Gauge screen size [inch] ● 12.3 ● 12.3 ● 12.3
HUD heads-up display - - ●
Built-in dashcam - - ○
Wireless charging of mobile phones - - ● First row
ETC device ○Optional  ○Optional  ○Optional
Active noise cancellation - - -
Electrically adjustable pedals - - -
Single pedal mode ● ● ●
Seat configuration
Seat material ● Imitation leather ● Imitation leather ● Imitation leather
Sport-style seats - - -
The main driver's seat is electrically adjusted ● Electric adjustment ● Electric adjustment ● With memory electric adjustment
The passenger seat is electrically adjustable - ● Electric adjustment ● Electric adjustment
Main driver seat adjustment ● Front and rear adjustment ● Front and rear adjustment ● Front and rear adjustment
● Backrest adjustment ● Backrest adjustment ● Backrest adjustment
● High and low adjustment (2 directions). ● High and low adjustment (2 directions). ● High and low adjustment (2 directions).
    ● Waist adjustment (2-way).
    ○ High and low adjustment (4 directions).
Co-pilot seat adjustment ● Front and rear adjustment ● Front and rear adjustment ● Front and rear adjustment
● Backrest adjustment ● Backrest adjustment ● Backrest adjustment
First row seat function ● Heating ● Heating ● Heating
○ Ventilation
Boss key - - -
The second row seats are electrically adjustable - - -
Second row seat adjustment ● Backrest adjustment ● Backrest adjustment ● Backrest adjustment
Second row seat function - - -
Central armrest ● First row ● First row ● First row
● Second row ● Second row ● Second row
Seat layout ● 2+3 ● 2+3 ● 2+3
How the rear seats are reclined ● Proportional down ● Proportional down ● Proportional down
The rear seats are reclined electrically - - -
Rear cup holders ● Second row ● Second row ● Second row
Heating/cooling cup holders - - -
Rear folding table - - -
Vehicle/Connected
Central color screen ● Touch LCD screen ● Touch LCD screen ● Touch LCD screen
Center screen size [inch] ● 12.3 ● 12.3 ● 12.3
Co-pilot screen ● Touch LCD screen ● Touch LCD screen ● Touch LCD screen
Co-pilot screen size [inch] ● 12.3 ● 12.3 ● 12.3
Vehicle system Coffee OS Coffee OS Coffee OS
Vehicle system memory (GB) ● 12 ● 12 ● 12
Vehicle-machine network ● 4G ● 4G ● 4G
OTA upgrades ● Vehicle OTA ● Vehicle OTA ● Vehicle OTA
Car WiFi function ● WiFi connection ● WiFi connection ● WiFi connection
● WiFi hotspot ● WiFi hotspot ● WiFi hotspot
Car navigation map ● Gaode ● Gaode ● Gaode
V2X communication - - -
Roadside assistance calls ● ● ●
Bluetooth/car phone ● ● ●
Phone interconnection/mapping - - -
Voice assistant wake words ● Hello , Harvard ● Hello , Harvard ● Hello , Harvard
Voice partition wake-up ● First row ● First row ● First row
Voice wake-free ● ● ●
Speech continuous recognition ● ● ●
Voice recognition control function ● Multimedia system ● Multimedia system ● Multimedia system
● Navigation ● Navigation ● Navigation
● Phone ● Phone ● Phone
● Air conditioning ● Air conditioning ● Air conditioning
● Sunroof ● Vehicle windows ● Vehicle windows
  ● Sunroof ● Sunroof
Gesture control - - -
Facial recognition - - ○
Remote control function ● Door control ● Door control ● Door control
● Headlight control ● Headlight control ● Headlight control
● Vehicle starting ● Vehicle starting ● Vehicle starting
● Air conditioning control ● Air conditioning control ● Air conditioning control
● Charging management ● Charging management ● Charging management
● Vehicle condition inquiry/diagnosis ● Vehicle condition inquiry/diagnosis ● Vehicle condition inquiry/diagnosis
● Vehicle positioning/vehicle finding ● Vehicle positioning/vehicle finding ● Vehicle positioning/vehicle finding
Audio-visual entertainment
In-vehicle APP application market - - -
Car CD/DVD - - -
Multimedia/charging interface ● USB ● USB ● USB
● Type-C ● Type-C ● Type-C
Number of USB/Type-C interfaces ● 2 in the front / 2 in the back ● 2 in the front / 2 in the back ● 2 in the front / 2 in the back
Rear control multimedia - - -
Cockpit 220V/230V power supply - - -
Power connector for luggage compartment ● 12V ● 12V ● 12V
Audio brand - - -
Number of speakers ● 6 ● 8 ● 8
Light function

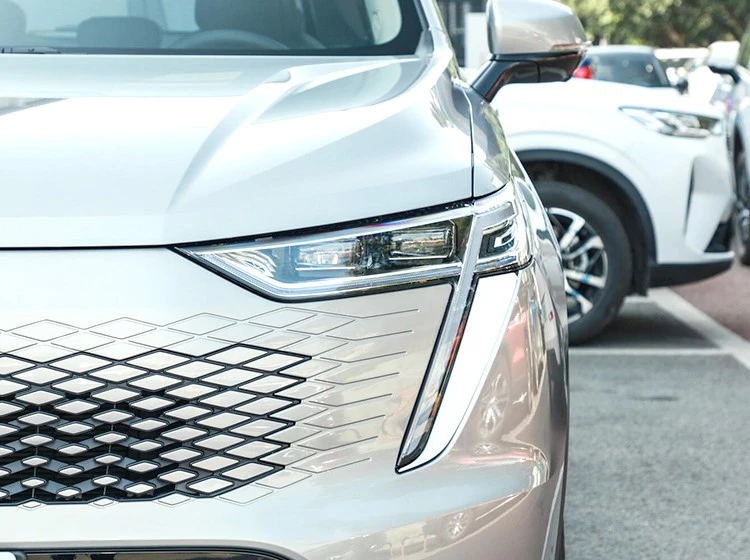

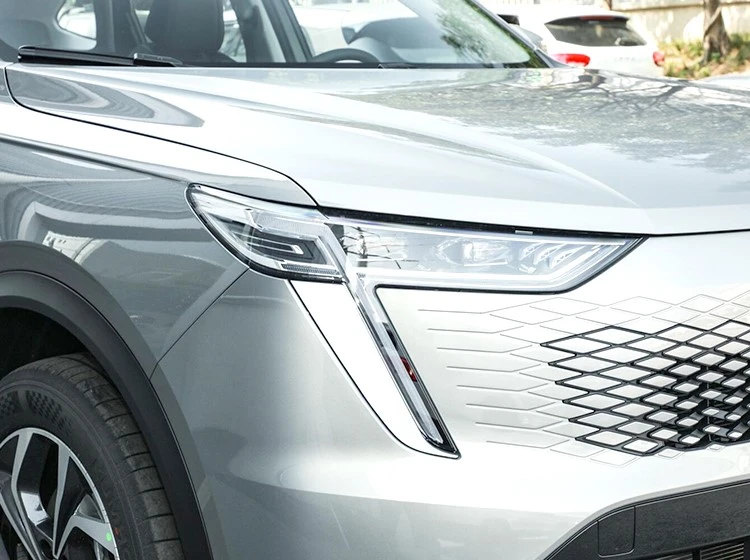

Low beam light source ● LED ● LED ● LED
High beam light source ● LED ● LED ● LED
Lighting features - - -
LED daytime running lights ● ● ●
Headlight function ● Height adjustment ● Height adjustment ● Height adjustment
● Automatic opening and closing ● Automatic opening and closing ● Automatic opening and closing
● Delayed closing ● Adaptive near and far light ● Adaptive near and far light
  ● Delayed closing ● Delayed closing
Turn assist lights - - -
Front fog lights - - -
Headlight cleaning device - - -
Interior mood lights - ● 64 colors ● 64 colors
Glass/mirrors
First row of power windows ● ● ●
Second row of power windows ● ● ●
The window is raised and lowered at the touch of a button ● Driver's seat ● Full vehicle ● Full vehicle
Window anti-pinch function ● Driver's seat ● Full vehicle ● Full vehicle
Multi-layer acoustic glass ● First row ● First row ● First row

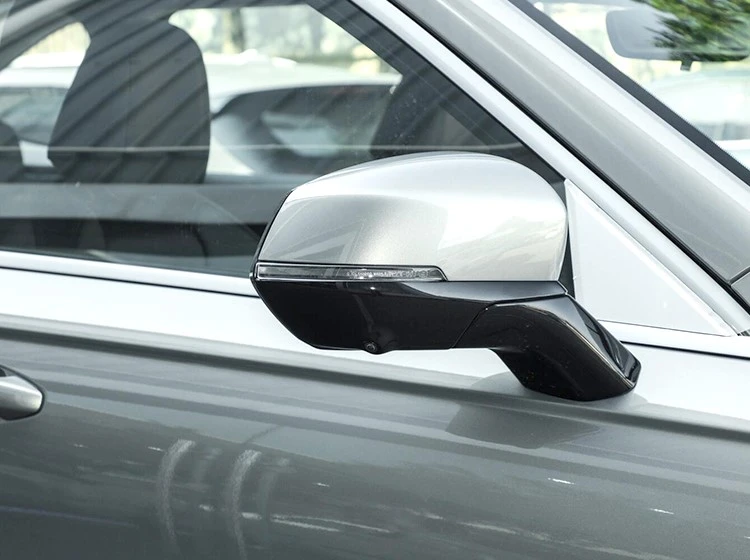

Exterior mirror function ● Electric adjustment ● Electric adjustment ● Electric adjustment
● Heated mirrors ● Heated mirrors
● Electric folding ● Electric folding
● Automatic folding of the lock car ● Rearview mirror memory
  ● Automatic roll-down when reversing
  ● Automatic folding of the lock car
Interior mirror function ● Manual anti-glare ● Manual anti-glare ● Automatic anti-glare
Rear side privacy glass - - -
Rear side sunshades - - -
Rear windshield sunshade - - -
In-car vanity mirror ● Main driver ● Main driver ● Main driver + lighting
● Co-pilot ● Co-pilot ● Co-pilot + lighting
Sensor wiper function ● Rain-sensing type ● Rain-sensing type ● Rain-sensing type
Rear wipers ● ● ●
Heatable spout - - -
Air conditioning/cooling
First row air conditioning ● Automatic air conditioning in single temperature zone ● Automatic air conditioning in dual-temperature zone ● Automatic air conditioning in dual-temperature zone
Second row air conditioning ● Air outlet ● Air outlet ● Air outlet
Third row air conditioning - - -
Air quality monitoring - - ●
PM2.5 filter device in the car ● ● ●
Car air purifier - - ●
Negative ion generator - - ●
Fragrance system - - -
Car refrigerator - - -
