Vehicle Performance
Tank 500 New Energy adopts plug-in hybrid power, equipped with 2.0T engine and 120kW electric motor, adopts non-load-bearing body structure, equipped with timely four-wheel drive, standard rear axle differential lock, and fuel tank capacity of 70L.
System comprehensive power: 408Ps
System comprehensive torque: 750N·m
WLTC comprehensive endurance: 790km
WLTC pure electric endurance: 110km

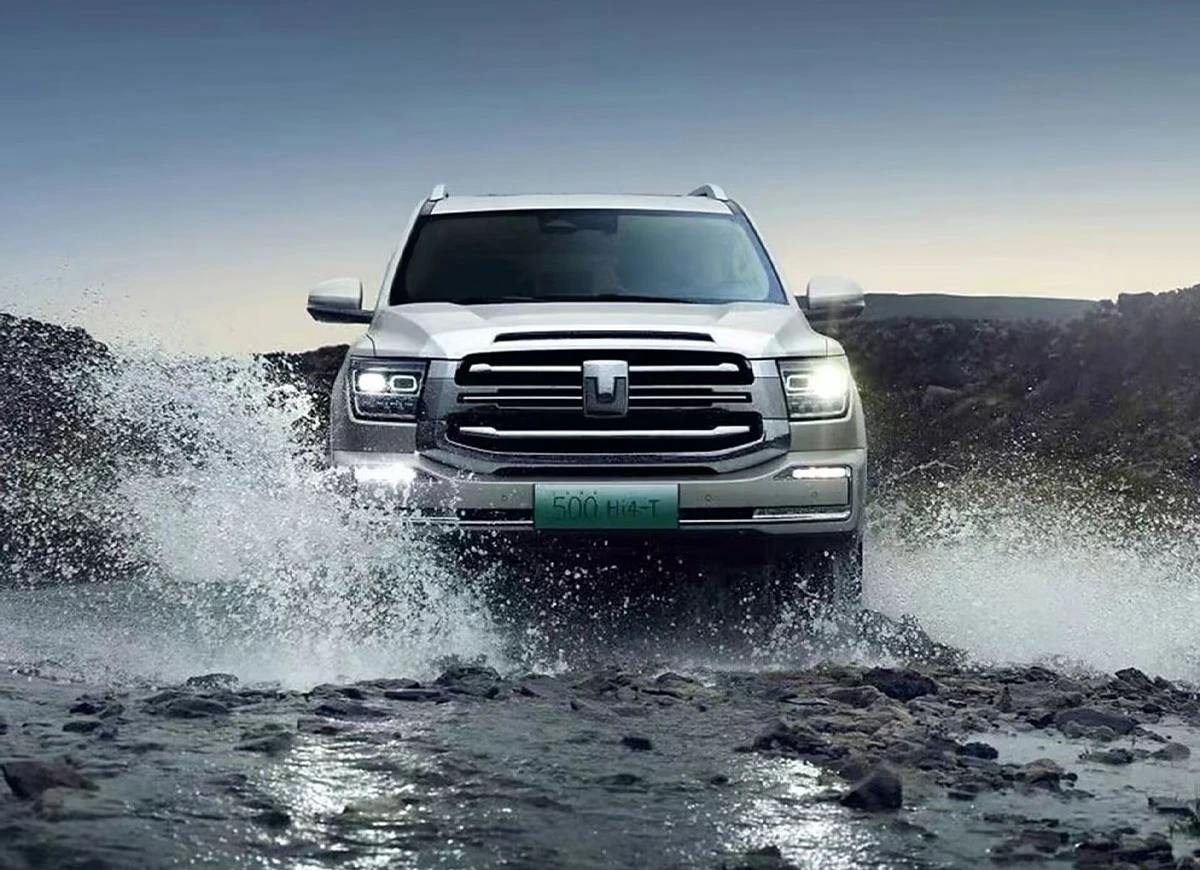

Off-road Performance
TANK 500 Hi4-t adopts a non-load-bearing body structure, with a double wishbone independent front suspension and an integral bridge non-independent rear suspension. It is equipped with timely four-wheel drive, a rear axle differential lock as standard, and an optional front axle differential lock at an additional cost. It has a creep mode and tank turning function.

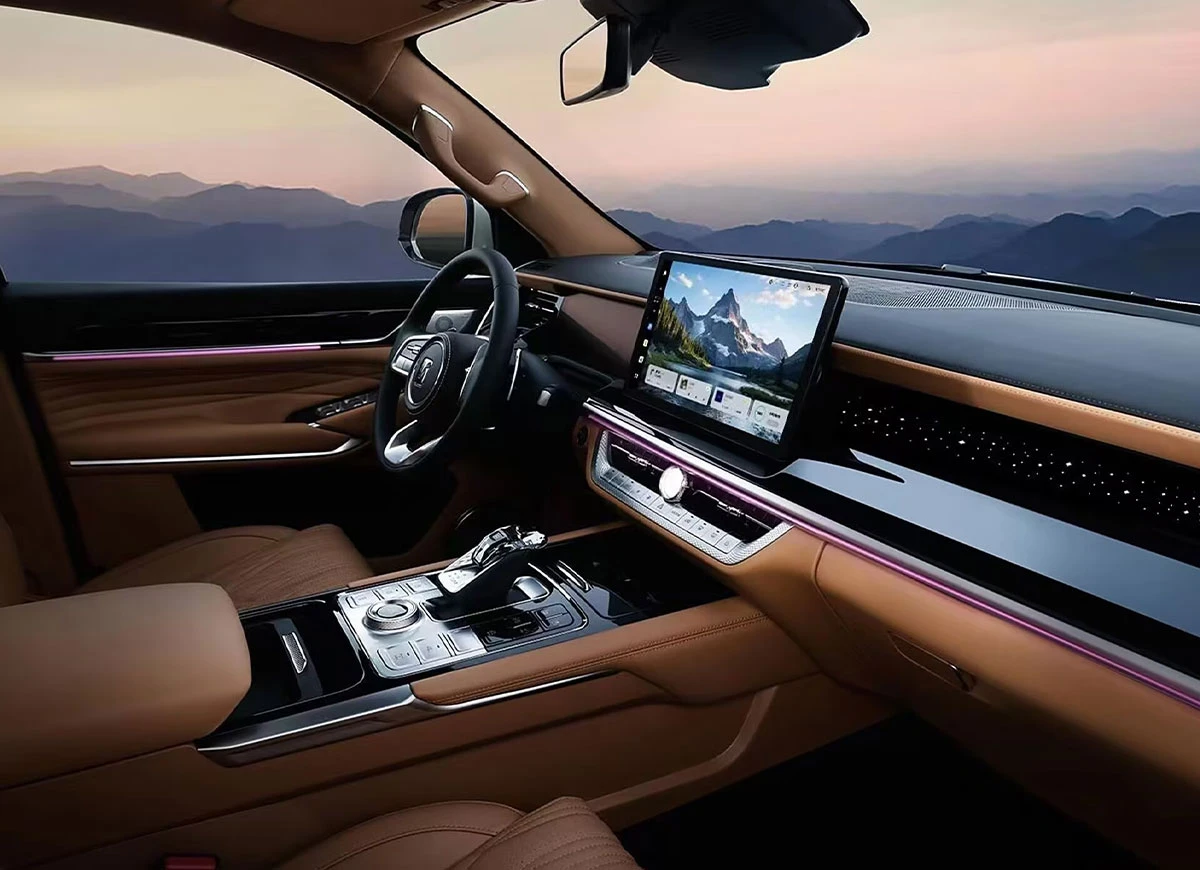

Smart Cockpit
TANK 500 Hi4-t's center console adopts a symmetrical design, with soft material on the top and a through-type wood grain panel in the middle, equipped with a 14.6-inch center control screen.

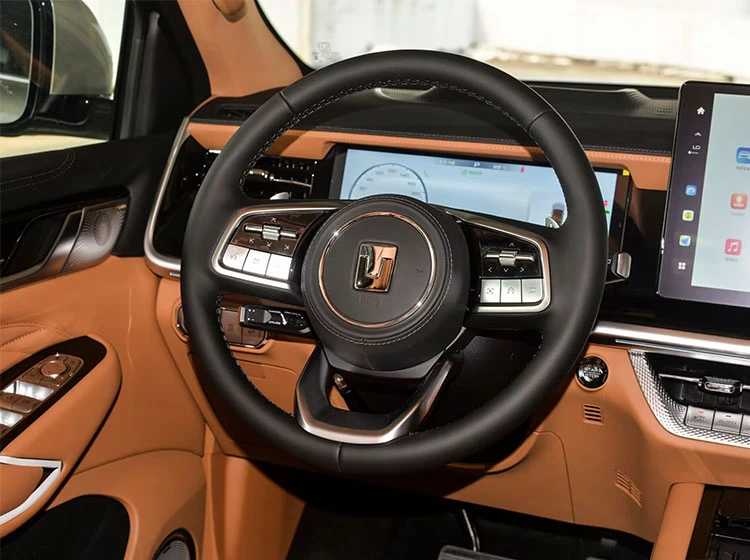

Leather Steering Wheel
TANK 500 Hi4-t is equipped with a three-spoke steering wheel, wrapped in leather, supports electric adjustment, and has steering wheel heating and memory. It is of appropriate thickness and feels comfortable.

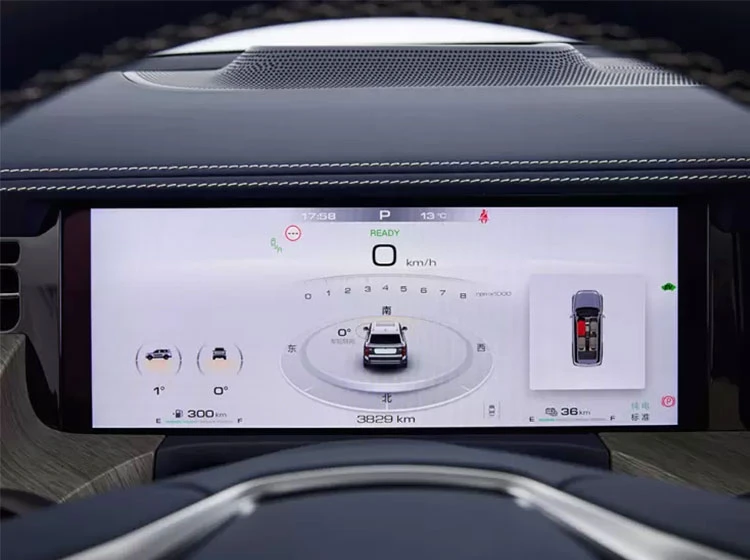

Dashboard
In front of the driver is a 12.3-inch full LCD dashboard. In the current mode, the left side shows the vehicle's attitude, the middle shows the speed, and the right side can switch to show vehicle information.

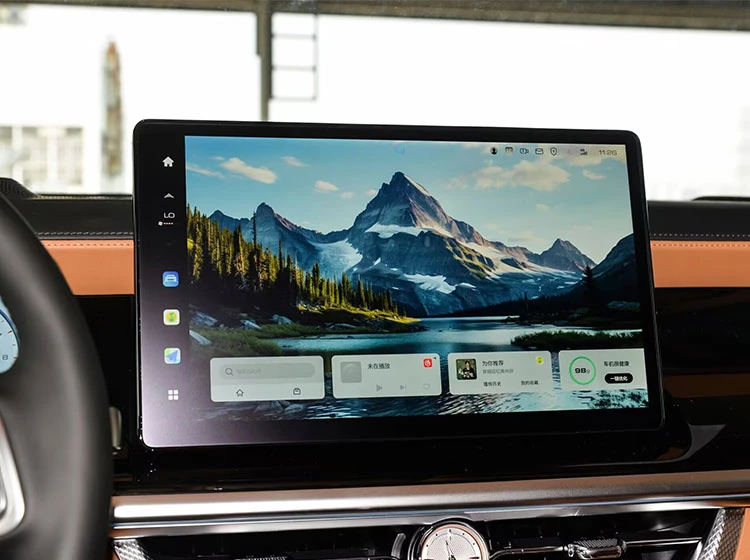

Central Control Screen
In the middle of the center console is a 14.6-inch screen that supports 4G network and OTA upgrades, integrates vehicle settings and off-road function pages, and has an app store that supports downloading apps.

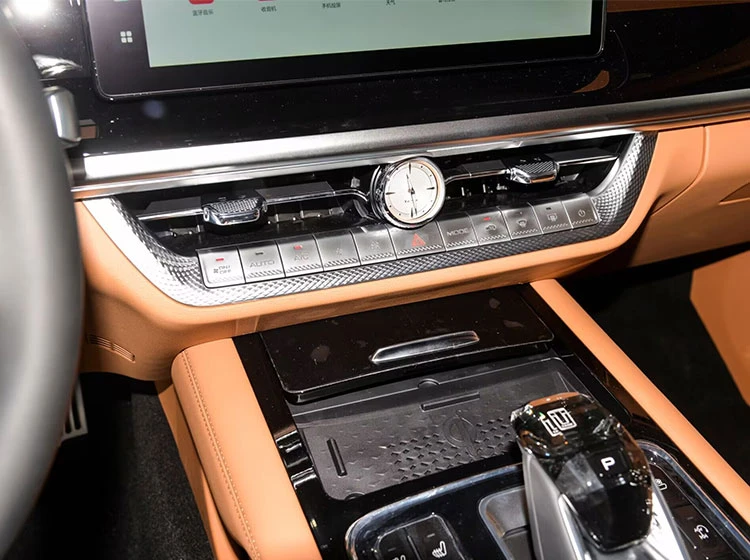

Center Console Buttons
TANK 500 Hi4-t has a row of air conditioning control buttons below the center console screen and a clock above. It has a very high-end feel and gives people a very refined feeling.

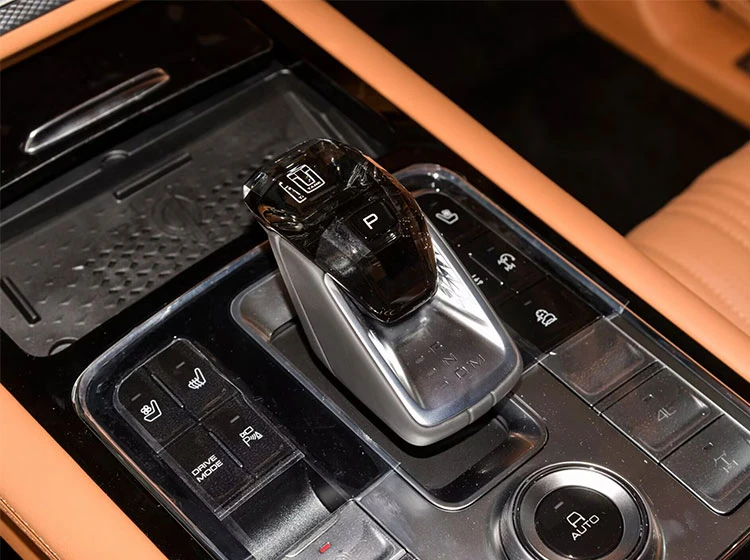

Electronic Gear Lever
TANK 500 Hi4-t uses a 9-speed manual transmission. The car is equipped with an electronic gear lever, which is located on the central control console. The top is made of crystal material, and the P gear button is located on the top of the gear lever. The central control console is equipped with a differential lock button and a low-speed four-wheel drive button.

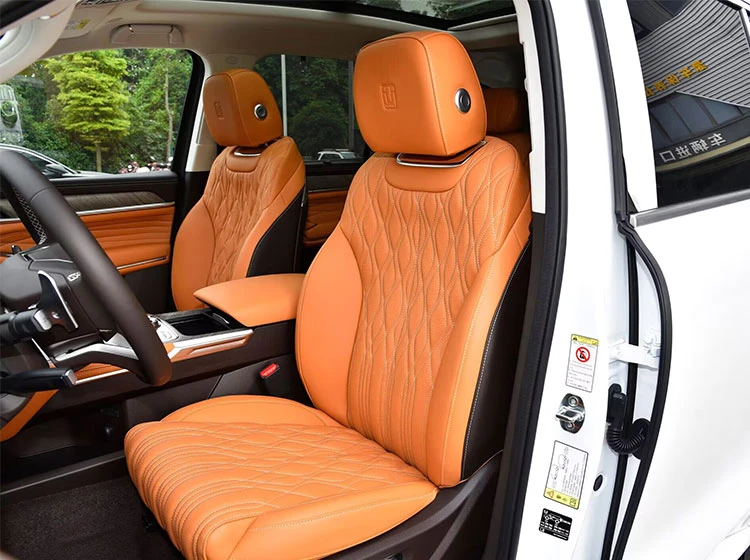

Front Seats
TANK 500 Hi4-t is equipped with leather seats, with the tank logo decoration on the headrest and diamond stitching on the back. The front seats are equipped with seat heating and ventilation, and the driver's seat has massage and seat memory.
Rear Independent Air Conditioning
TANK 500 Hi4-t is equipped with a rear independent air conditioning, located behind the front center armrest, with a digital display that can control seat functions, air conditioning temperature, air volume, mode, etc.

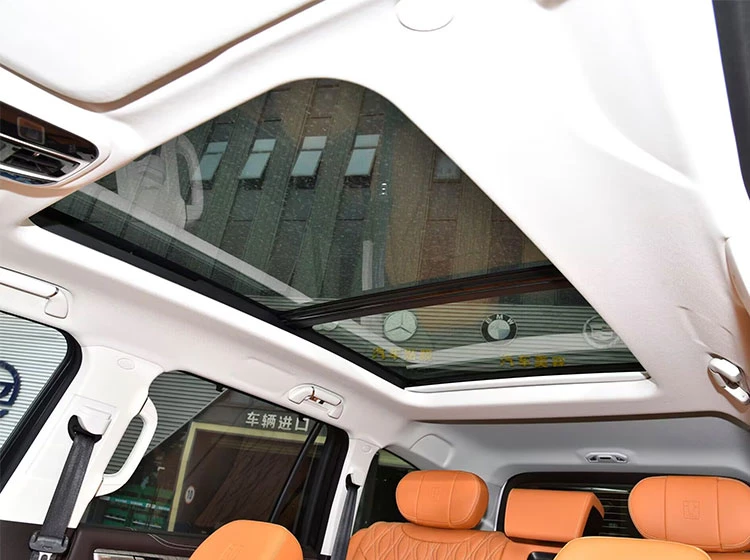

Panoramic Sunroof

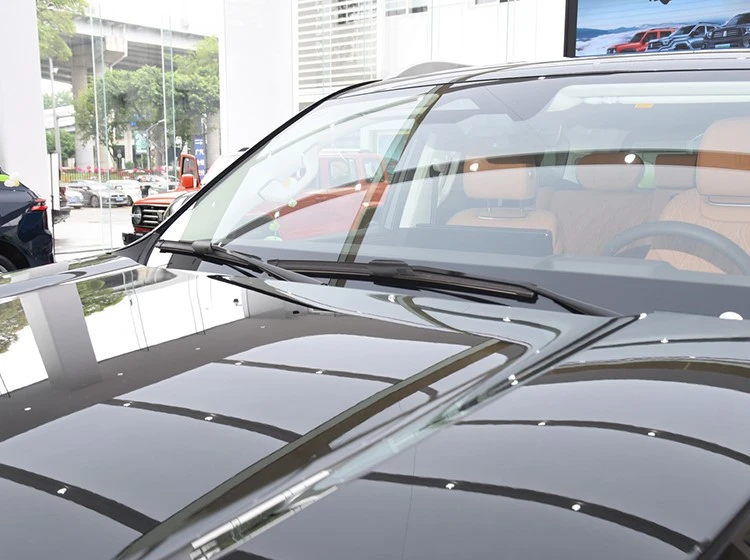

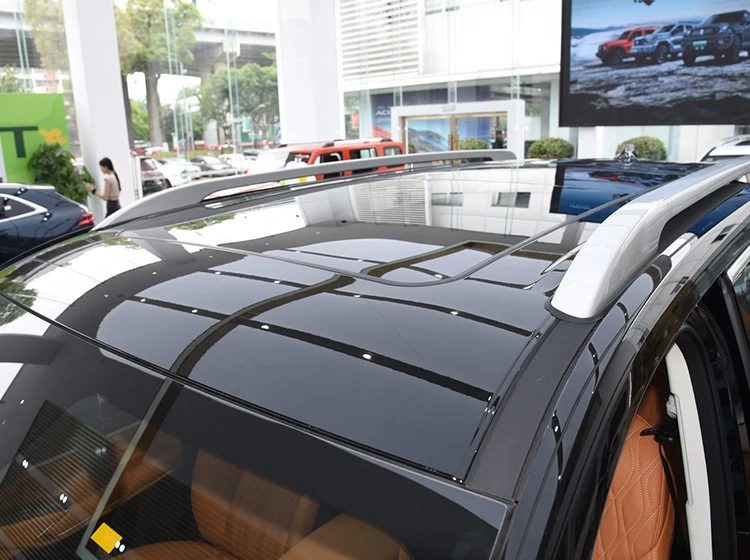

TANK 500 Hi4-t is equipped with an openable panoramic window with electric sunshade, a manual sunshade for the rear window, and soundproof glass for the front and rear seats.

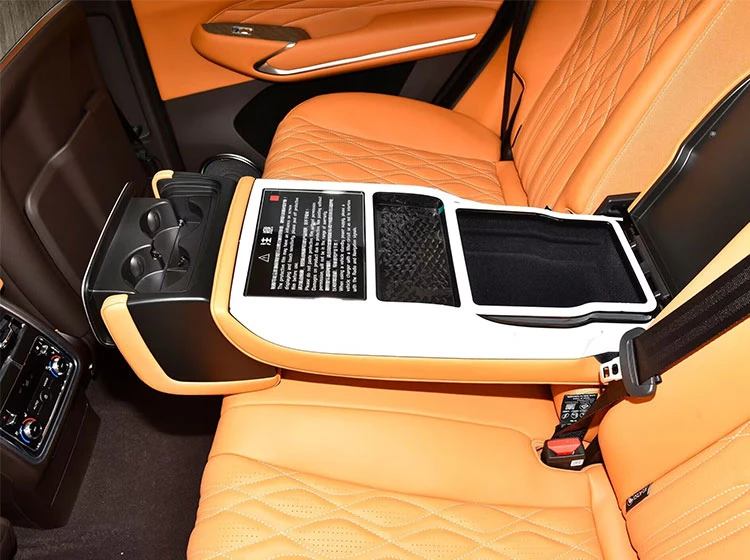

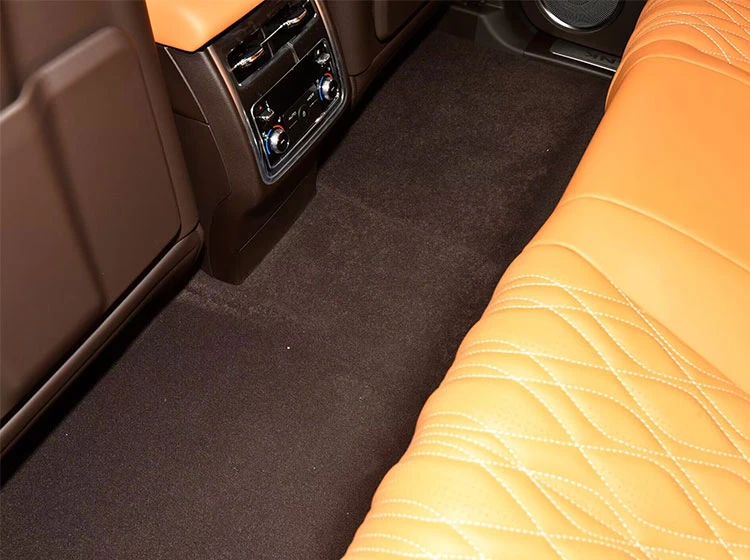

Rear Space
TANK 500 Hi4-t has a flat rear floor, thicker cushions, and rear seats that support backrest angle adjustment. They are equipped with heating and ventilation functions, and massage functions can be added at an additional cost. The rear center armrest is equipped with a control screen that can control seat functions, air conditioning, ambient lighting, and music.

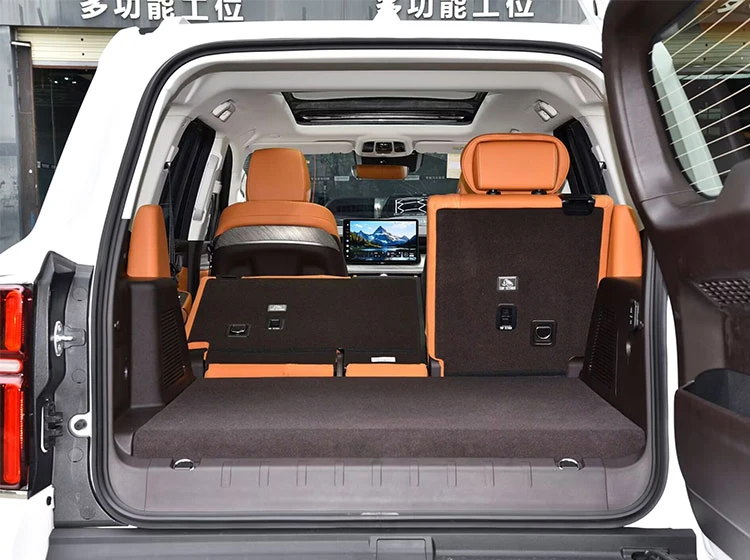

Trunk
TANK 500 Hi4-t has a flat door design on the rear door, with a storage compartment inside the door. The trunk is very flat, and the rear seats can be folded down in proportion to increase storage space.

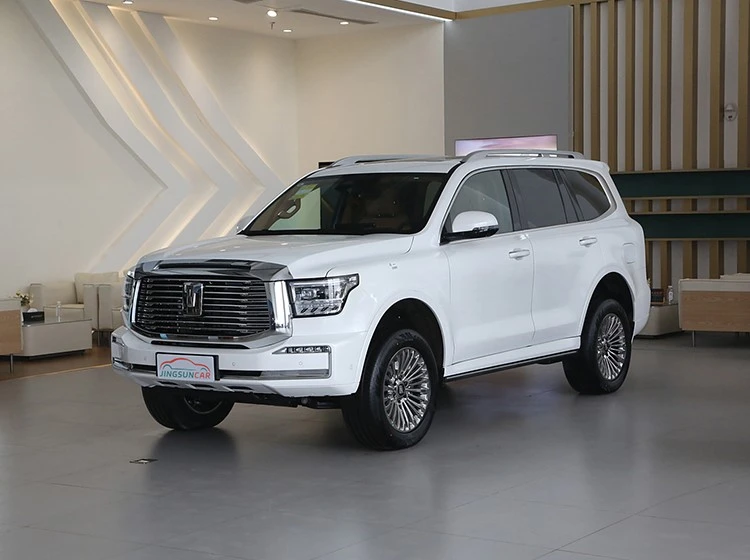

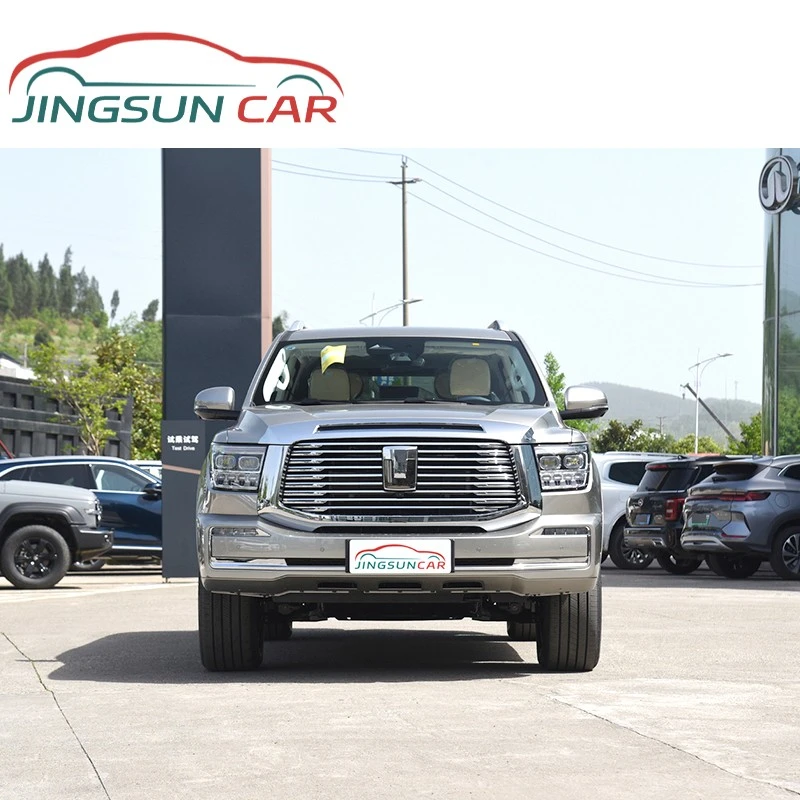

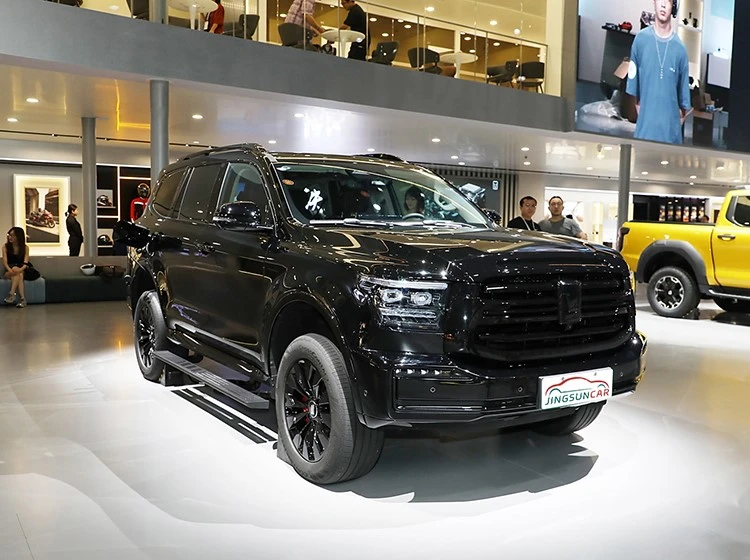

Appearance Design

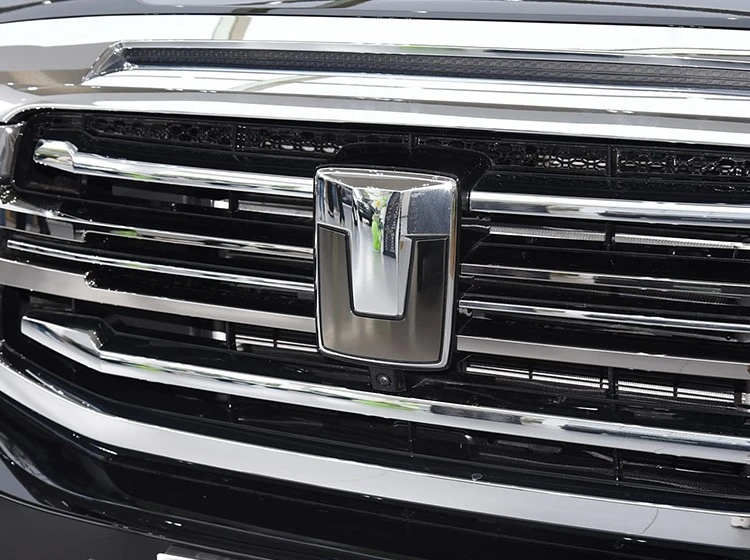

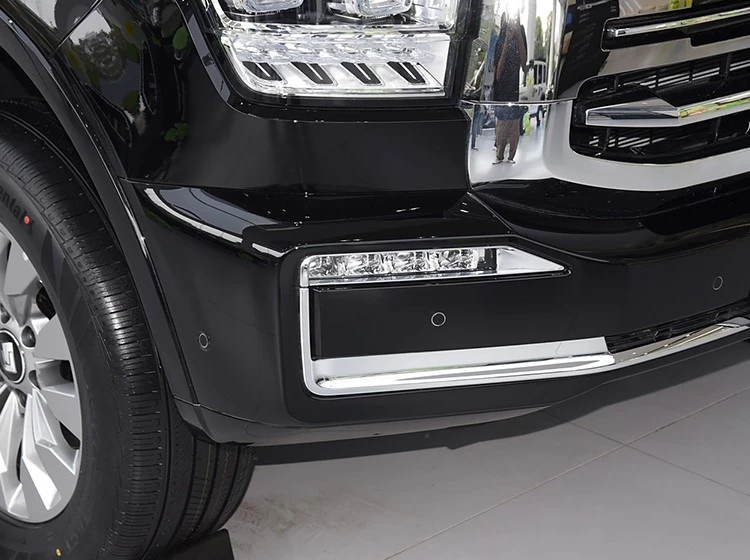

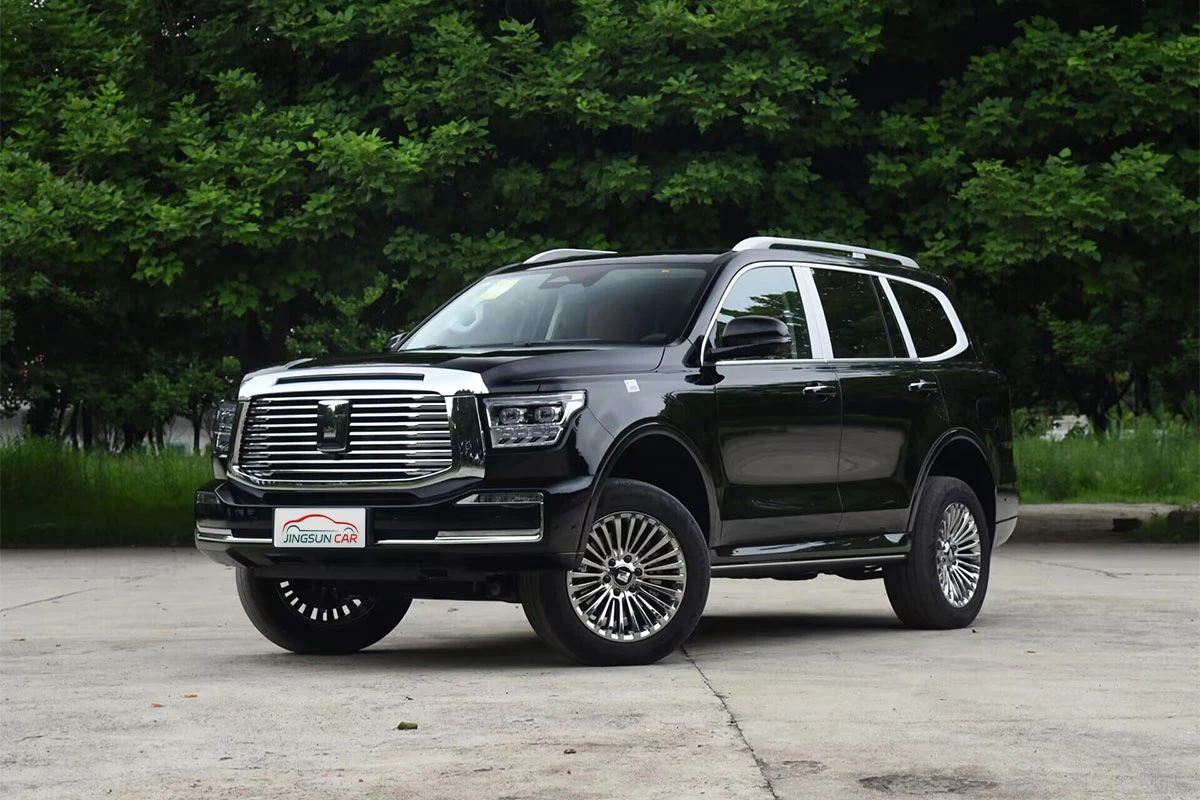

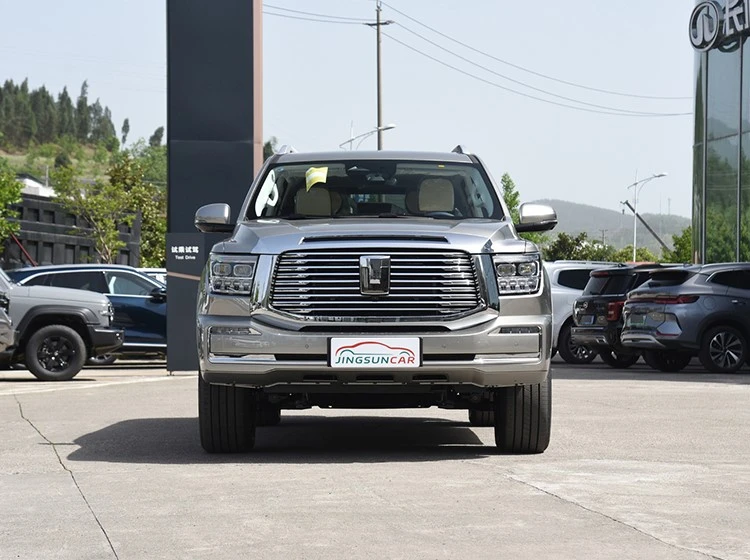

TANK 500 Hi4-t continues the design style of the fuel version, with a sturdy overall shape, a heavy and imposing front face, and a large-size chrome grille.

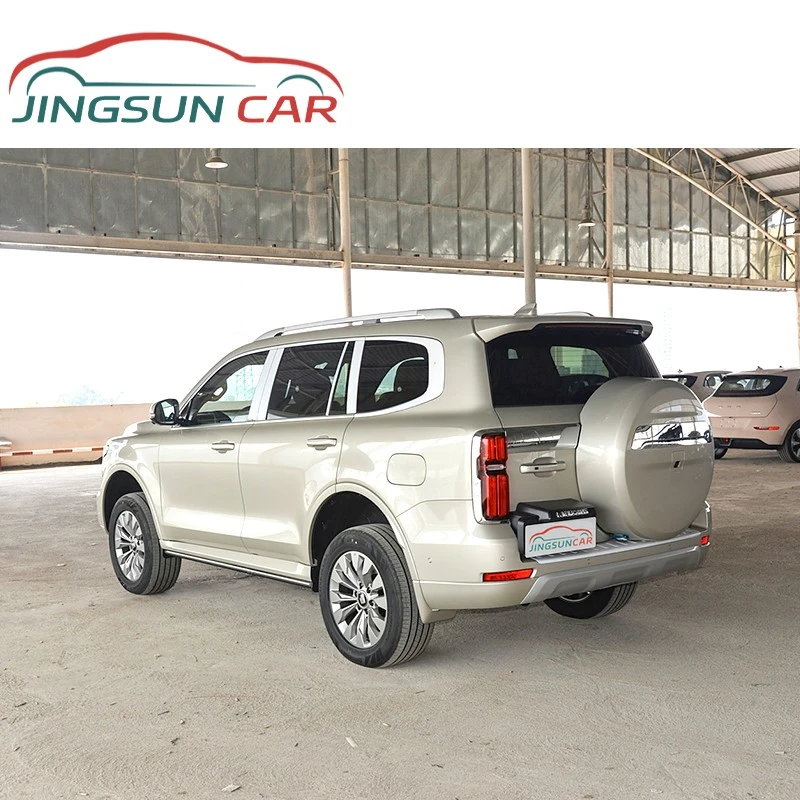

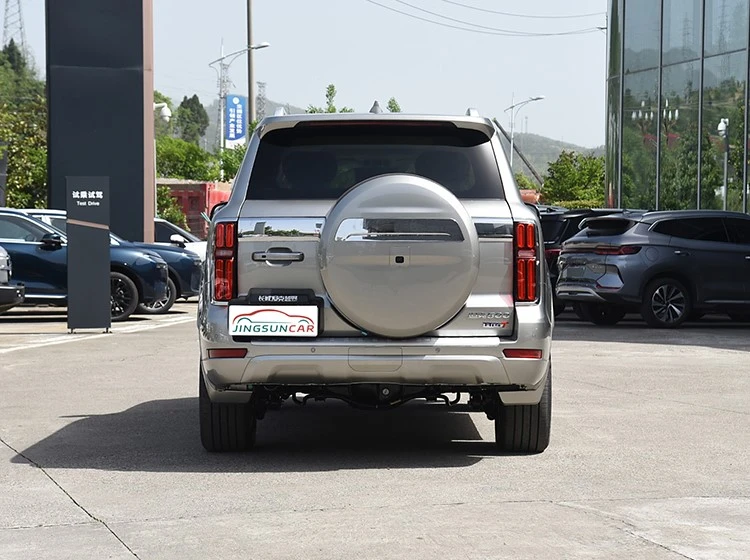

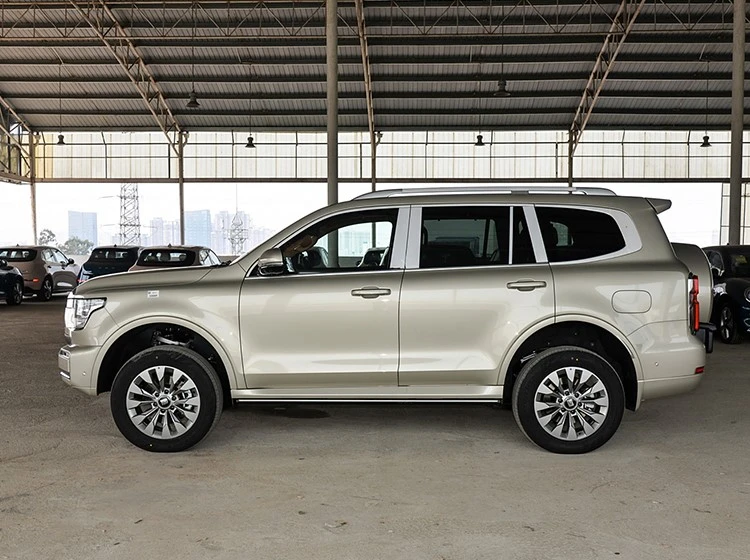

Body Design

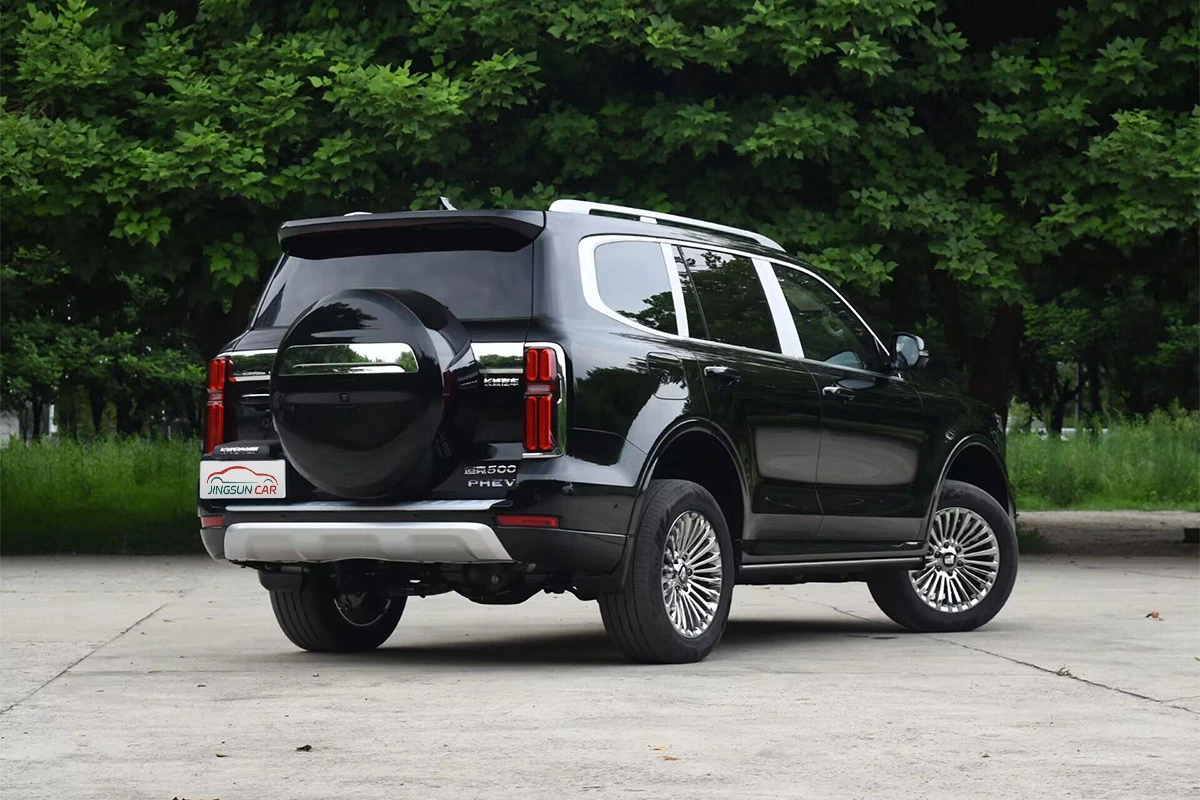

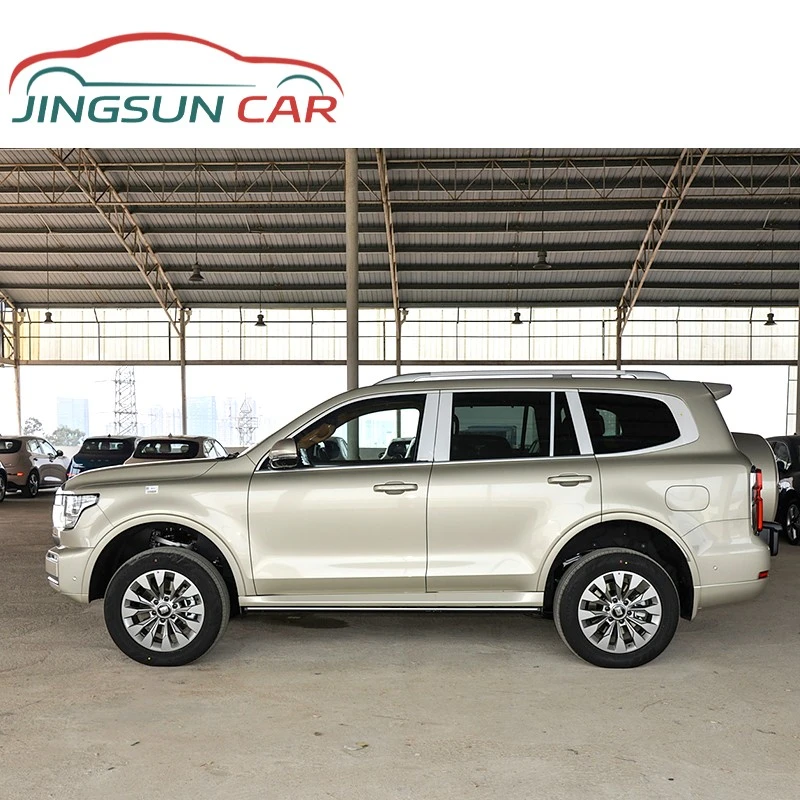

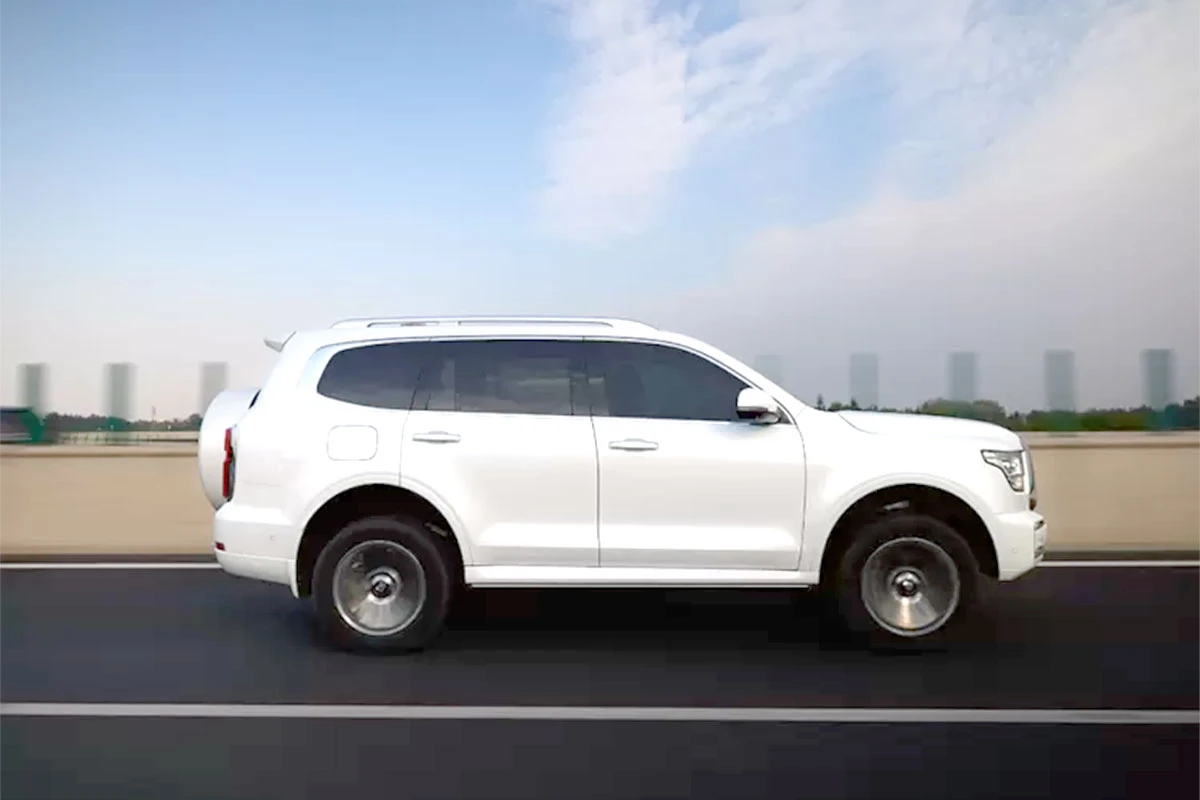

TANK 500 Hi4-t is positioned as a medium-to-large SUV, with a body size of 5078/1934/1905mm, simple side lines, full rear shape, approach angle of 29.5°, departure angle of 24°, and minimum ground clearance of 213mm when fully loaded.
Assisted Driving

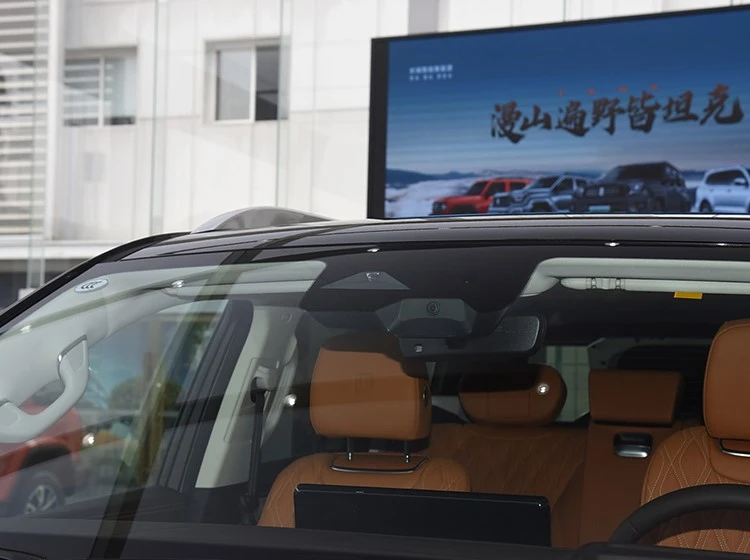

TANK 500 Hi4-t is equipped with L2 assisted driving, with 20 sensing hardware in total, supports full-speed adaptive cruise control, and has a transparent chassis function. It has lane change assistance, lane centering, and supports automatic parking and tracking reverse. It is equipped with 5 cameras, 12 ultrasonic radars and 3 millimeter-wave radars.
Product Details
| ● Standard configuration ○ Optional -- None |
Tank 500 New Energy 2024 Hi4-T Black Warrior Edition | Tank 500 New Energy 2023 Model Facelift Hi4-T |
| Basic Parameters | ||
| Manufacturer | Great Wall Motors | Great Wall Motors |
| Level | Medium and large SUV | Medium and large SUV |
| Energy type | Plug-in hybrid | Plug-in hybrid |
| Environmental protection standards | Country VI | Country VI |
| Time to market | 2024.10 | 2024.03 |
| Fast charging time (h) | 0.4 | 0.4 |
| Slow charging time (h) | 6.5 | 6.5 |
| Maximum power(kw) | 300 | 300 |
| Maximum torque(N-m) | 750 | 750 |
| Engine | 2.0T 252 horsepower L4 | 2.0T 252 horsepower L4 |
| Motor(Ps) | 163 | 163 |
| Gearbox | 9 gears, hand-in-one | 9 gears, hand-in-one |
| Length*Width*Height (mm) | 5078*1934*1905 | 5078*1934*1905 |
| Body structure | 5-door 5-seater SUV | 5-door 5-seater SUV |
| Maximum speed (km/h) | 180 | 180 |
| Official 0-100km/h acceleration (s) | 6.9 | 6.9 |
| WLTC comprehensive fuel consumption (L/100km) | 2.06 | 2.06 |
| Minimum state of charge fuel consumption (L/100km) | 8.8 | 8.8 |
| Vehicle warranty | Five years or 150,000 kilometers | Five years or 150,000 kilometers |
| Car Body | ||
| Wheelbase(mm) | 2850 | 2850 |
| Front wheelbase (mm) | 1635 | 1635 |
| Rear wheelbase (mm) | 1635 | 1635 |
| Body structure | SUV | SUV |
| Car door opening method | Swing door | Swing door |
| Fuel tank volume (L) | 70 | 70 |
| Curb weight (kg) | 2830 | 2830 |

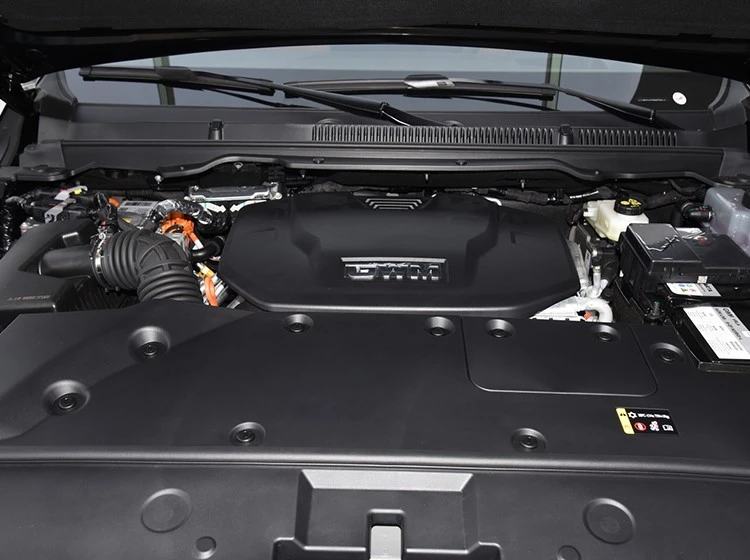

| Engine | ||
| Engine model | E20NB | E20NB |
| Displacement (mL) | 1998 | 1998 |
| Displacement(L) | 2.0 | 2.0 |
| Intake form | Turbocharged | Turbocharged |
| Engine layout | Vertical | Vertical |
| Cylinder arrangement | L | L |
| Number of cylinders | 4 | 4 |
| Air Supply | DOHC | DOHC |
| Maximum horsepower (Ps) | 252 | 252 |
| Maximum power(kW) | 185 | 185 |
| Maximum torque(N-m) | 380 | 380 |
| Maximum torque speed (rpm) | 1700-4000 | 1700-4000 |
| Maximum net power (kW) | 180 | 180 |
| Electric Motor | ||
| Motor type | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 120 | 120 |
| Total torque of motor (N·m) | 400 | 400 |
| System comprehensive power (kW) | 300 | 300 |
| System comprehensive torque (N·m) | 750 | 750 |
| Battery Type | Ternary lithium battery | Ternary lithium battery |
| Battery brand | Honeycomb Energy | Honeycomb Energy |
| Battery cooling method | Liquid cooling | Liquid cooling |
| NEDC pure electric cruising range (km) | 120 | 120 |
| WLTC pure electric cruising range (km) | 110 | 110 |
| Battery energy (kWh) | 37.1 | 37.1 |
| Chassis/Wheels | ||
| Drive mode | Front four-wheel drive | Front four-wheel drive |
| Four-wheel drive | Timely four-wheel drive | Timely four-wheel drive |
| Front suspension type | Double wishbone independent suspension | Double wishbone independent suspension |
| Rear suspension type | Integral bridge type non-independent suspension | Integral bridge type non-independent suspension |
| Parking brake type | Electronic parking | Electronic parking |
| Rim material | ●Aluminum alloy | ●Aluminum alloy |

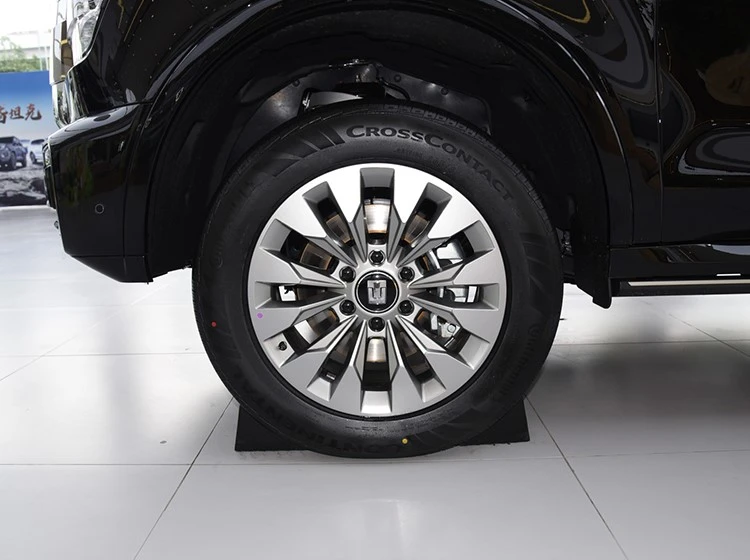

| Front tire specifications | 265/55 R19 | 265/55 R19 |
| Rear tire specifications | 265/55 R19 | 265/55 R19 |
| Spare tire specifications | Full size | Full size |
| Active/Passive safety | ||
| Main/passenger seat airbag | Main●/deputy● | Main●/deputy● |
| Front/rear side airbags | Front●/rear-- | Front●/rear-- |
| Front/rear head airbags (curtain airbags) | Front●/rear● | Front●/rear● |
| Tire pressure monitoring function | ●Tire pressure display | ●Tire pressure display |
| Seat belt not fastened reminder | ●Whole car | ●Whole car |
| ABS anti-lock | ● | ● |
| Lane Departure Warning System | ● | ● |
| Active braking/active safety system | ● | ● |
| Reverse side warning system | ● | ● |
| Control Configuration | ||
| Driving mode switch | ●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow |
●Sports ●Economy ●Standard/comfortable ●Off-road ●Snow |
| Shift pattern | ●Electronic gear shift | ●Electronic gear shift |
| automatic parking | ● | ● |
| Auxiliary/Intelligent Driving | ||
| cruise system | ●Full speed adaptive cruise | ●Full speed adaptive cruise |
| Assisted driving level | ●L2 | ●L2 |
| Lane centering | ● | ● |
| Road traffic sign recognition | ● | ● |
| Automatic parking | ● | ● |
| Driving assistance images | ●360-degree panoramic image | ●360-degree panoramic image |
| Front/rear parking radar | Front●/rear● | Front●/rear● |
| Ultrasonic radar quantity | ●12 pcs | ●12 pcs |
| Appearance Configuration | ||
| Skylight type | ●Panoramic sunroof can be opened | ●Panoramic sunroof can be opened |

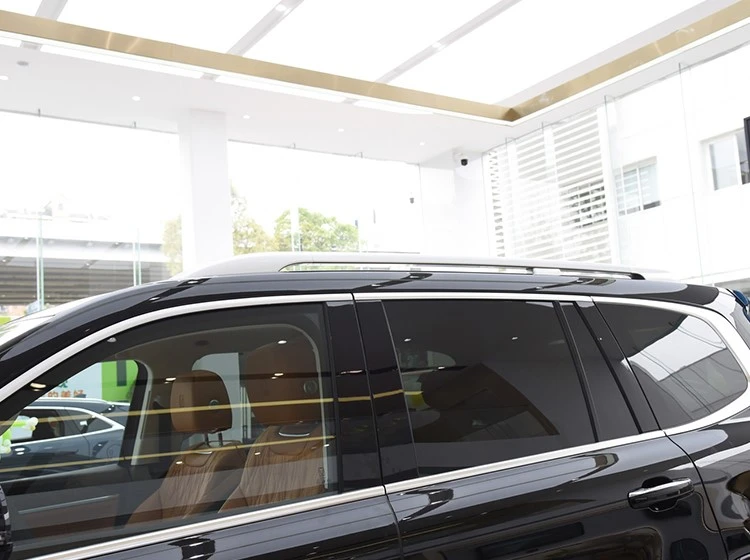

| Roof rack | ● | ● |
| Key type | ●Remote control key | ●Remote control key |
| Keyless start system | ● | ● |
| Electric suction door | ●Tailgate | ●Tailgate |
| Internal Configuration | ||
| HUD heads up digital display | ● | ● |
| Full LCD instrument panel | ● | ● |
| LCD instrument size | ●12.3 inches | ●12.3 inches |
| Steering wheel material | ●Leather | ●Leather |
| Steering wheel position adjustment | ●Electric up and down + front and rear adjustment | ●Electric up and down + front and rear adjustment |
| Multifunction steering wheel | ● | ● |
| steering wheel gear shift | ● | ● |
| Steering wheel heating | ● | ● |
| steering wheel memory | ● | ● |
| Seat Configuration | ||
| Seat material | ●Genuine leather | ●Genuine leather |
| Main/passenger seat electric adjustment | Main●/deputy● | Main●/deputy● |
| Front seat functions | ○Massage (co-pilot seat only) ●Massage (driver's seat only) ●Ventilation ●Heating |
○Massage (co-pilot seat only) ●Massage (driver's seat only) ●Ventilation ●Heating |
| Power seat memory function | ●Driver's seat | ●Driver's seat |
| Second row seat adjustment | ●Backrest adjustment | ●Backrest adjustment |
| Rear seats fold down | ●Proportional inverted | ●Proportional inverted |
| Front/rear center armrest | Front●/rear● | Front●/rear● |

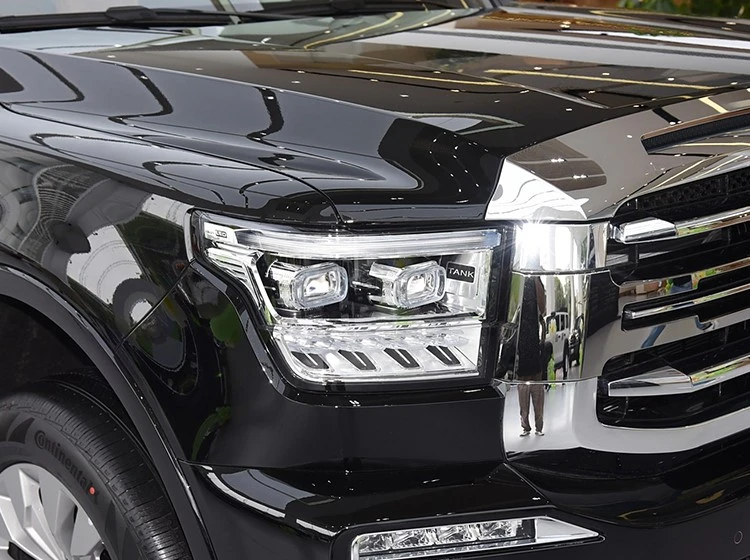

| Lighting Configuration | ||
| Low beam light source | ●LED | ●LED |
| high beam light source | ●LED | ●LED |
| Adaptive high and low beam | ● | ● |
| Headlight height adjustable | ● | ● |
| Delayed turn off of headlights | ● | ● |
| Car interior ambient lighting | ●Multicolor | ●Multicolor |
| Glass/Rear View Mirror | ||

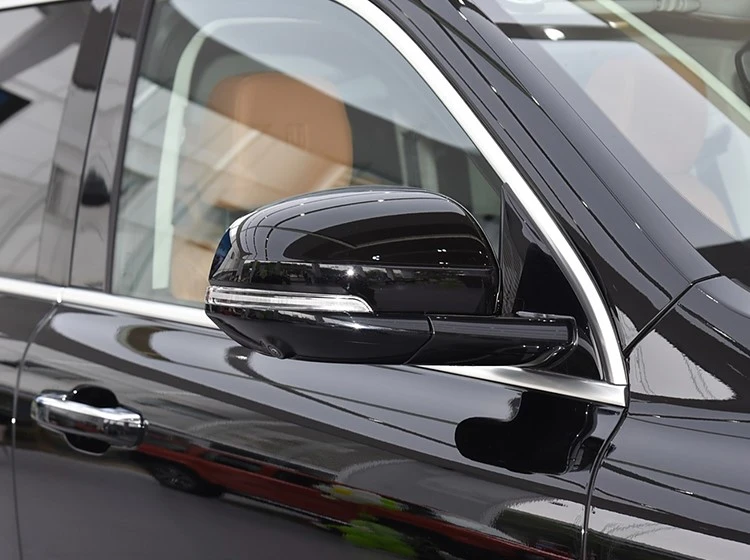

| Exterior rearview mirror function | ●Rearview mirror memory ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
●Rearview mirror memory ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
| Sensing wiper function | ●Rain sensor type | ●Rain sensor type |
| Front/rear electric windows | Front●/rear● | Front●/rear● |
| One-touch window lifting function | ●Whole car | ●Whole car |
| Window anti-pinch function | ● | ● |
| Car vanity mirror | ●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
| Interior rearview mirror function | ●Automatic anti-glare | ●Automatic anti-glare |
| Intelligent Internet | ||
| Central control color LCD screen | ●Touch LCD screen | ●Touch LCD screen |
| Central control screen size | ●14.6 inches | ●14.6 inches |
| Voice assistant wake word | ●Tank tank | ●Tank tank |
| Navigation traffic information display | ● | ● |
| GPS navigation system | ● | ● |
| roadside assistance call | ● | ● |
| Bluetooth/car phone | ● | ● |
| Mobile phone interconnection/mapping | ●Support HUAWEI HiCar | ●Support HUAWEI HiCar |
| Voice recognition control system | ●Multimedia system ●Navigation ●Phone ●Skylight ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Skylight ●Air conditioner |
| APP Remote Control | ● | ● |
| Media Entertainment | ||
| Multimedia/charging interface | ●Type-C ●SD ●USB |
●Type-C ●SD ●USB |
| Number of USB/Type-C interfaces | ●2 in the front row/2 in the rear row | ●2 in the front row/2 in the rear row |
| Mobile phone wireless charging function | ●Front row | ●Front row |
| Speaker brand name | ●Infinity | ●Infinity |
| Number of speakers | ●12 speakers | ●12 speakers |
| Luggage compartment 12V power interface | ● | ● |
