Product Highlights
Simple and avant-garde design style
Comfortable ride experience
Equipped with a new generation of Thor electric hybrid system
Raytheon Electric Hybrid System
The entire Galaxy L7 series adopts the new generation Thor electric hybrid system and is equipped with a 1.5T four-cylinder hybrid engine. There are two versions with pure electric range of 55km and 115km to choose from. In addition, the entire series supports fast charging, with a fast charging time of 0.5 hours.
Power System
Galaxy L7 is equipped with a 1.5T four-cylinder engine with a maximum power of 163Ps and a maximum torque of 255N·m. It is also equipped with an electric motor with a total power of 107kW. Matched with the power system is a 3-speed DHT gearbox.
Driving Mode
Galaxy L7 is equipped with four driving modes: pure electric, extended range, smart, and performance.
Intelligent Navigation System
The vehicle can be controlled to keep driving in the middle of the lane line according to the set speed or following distance, and the vehicle's cruise control + lane centering control can be controlled in real time.
Automatic Emergency Braking
When it is detected that driving behavior may cause a collision with an obstacle ahead, alarms and emergency braking are adopted to assist in avoiding or mitigating the collision.
Lane Departure Warning
When the vehicle deviates from the lane, real-time alarm and correction are provided to keep the vehicle centered.
Lane Keeping
Monitor the relative position of the vehicle and the lane line in real time to keep the vehicle in the lane.
Road Sign Reminder
Intelligent capture of speed limit signs.
Central Control Full Of Technology
The Galaxy L7 central control has a simple design. The upper part is made of soft materials, and the white part in the middle is wrapped in leather. Equipped with three screens, the large central control screen is tilted towards the driver's side.
16.2-Inch Passenger Screen
The passenger seat is equipped with a 16.2-inch screen, which mainly provides entertainment functions. You can listen to music and watch movies. In addition, you can adjust the passenger seat mode and ambient lighting.
13.2-Inch Central Control Screen
Galaxy L7 is equipped with a 13.2-inch central control screen, equipped with Qualcomm 8155 chip and Geely Galaxy N OS system, with smooth operation, built-in app store and rich functions.
10.25-Inch Instrument Panel
All Galaxy L7 series come standard with a 10.25-inch full LCD instrument panel, which can display music, navigation and other information on the right side.
Leather Steering Wheel
Galaxy L7 is equipped with a four-spoke leather steering wheel with a flat bottom, black and white color matching design, and the leather is relatively delicate.
Wireless Charging
Galaxy L7 low-end and sub-top models are equipped with a wireless charging pad in the front row that supports up to 50W fast charging.
Gear Shifting
Galaxy L7 adopts a baffle design to release more floor space.
Sporty Design, Comfortable Ride
The front seats of the Galaxy L7 adopt an integrated design, which is full of sportiness. The top model supports ventilation, heating and massage, making the ride more comfortable.
Pet Copilot
Galaxy L7 is equipped with "pet co-driver". The co-driver seat supports 4-way electric leg rest adjustment, supports one-button lying flat, and has the functions of seat heating, ventilation and massage.
Infinity Sound
Galaxy L7 top version is equipped with Infinity audio, with 11 speakers in total, and other configurations are equipped with 8 ordinary speakers.
Rear Row Space
Galaxy L7 rear seat has long cushions on both sides, good leg support, soft seat padding and good ride comfort. The middle projection of the rear floor is not high, which has little influence on the foot space.
Panoramic Sunroof
The panoramic sunroof of the Galaxy L7 sets it apart, providing an unparalleled, wide-angle view of the sky that enhances your driving experience and creates a bright and airy atmosphere inside the vehicle.
Simple Modern Design Style
Galaxy L7 adopts the design language of "Light of the Galaxy", with simple overall design, full front design, strong three-dimensional sense and full sense of technology in detail elements.
Car Side
The Galaxy L7 top model adopts two-color body design, with the side window line rising and the roof line slipping down, which makes it look sporty and youthful.

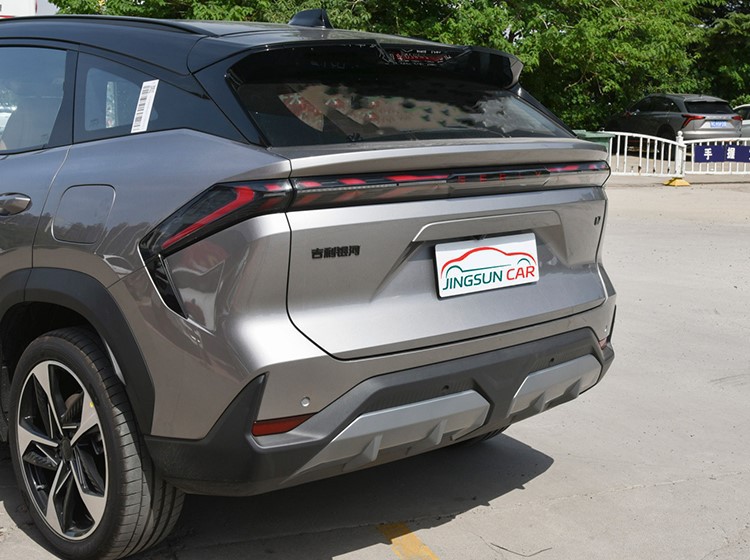

Rear Of a Vehicle
Galaxy L7' s rear design is layered, and the two silver fenders below enhance the sense of movement. The hidden exhaust is more in line with its new energy attributes.
Product Details
|
● Standard configuration ○ Optional -- None |
Galaxy L7 2023 model 1.5T 115km MAX | Galaxy L7 2023 1.5T 115km Starship | Galaxy L7 2023 model 1.5T 115km PLUS | Galaxy L7 2023 model 1.5T 55km PRO |
| Basic Parameters | ||||
| Manufacturer | Geely Automobile | Geely Automobile | Geely Automobile | Geely Automobile |
| Level | Compact SUV | Compact SUV | Compact SUV | Compact SUV |
| Energy type | Plug-in hybrid | Plug-in hybrid | Plug-in hybrid | Plug-in hybrid |
| Environmental protection standards | National VI | National VI | National VI | National VI |
| Time to market | 2023.05 | 2023.05 | 2023.05 | 2023.05 |
| WLTC pure electric cruising range (km) | 90 | 90 | 90 | 43 |
| Fast charging time (h) | 0.5 | 0.5 | 0.5 | 0.5 |
| Slow charging time (h) | 3 | 3 | 3 | 1.7 |
| Fast charging percentage | 30-80 | 30-80 | 30-80 | 30-80 |
| Ma--imum power(kw) | 287 | 287 | 287 | -- |
| Ma--imum torque(N-m) | 535 | 535 | 535 | 535 |
| Engine | 1.5T 163 horsepower L4 | 1.5T 163 horsepower L4 | 1.5T 163 horsepower L4 | 1.5T 163 horsepower L4 |
| Motor(Ps) | 146 | 146 | 146 | 146 |
| Gearbo-- | 3-speed hybrid dedicated | 3-speed hybrid dedicated | 3-speed hybrid dedicated | 3-speed hybrid dedicated |
| Length*Width*Height (mm) | 4700*1905*1685 | 4700*1905*1685 | 4700*1905*1685 | 4700*1905*1685 |
| Body structure | 5-door 5-seater SUV | 5-door 5-seater SUV | 5-door 5-seater SUV | 5-door 5-seater SUV |
| Ma--imum speed (km/h) | 200 | 200 | 200 | 200 |
| Official 0-100km/h acceleration (s) | 6.9 | 6.9 | 6.9 | -- |
| WLTC comprehensive fuel consumption (L/100km) | 1.3 | 1.3 | 1.3 | 2.35 |
| Minimum state of charge fuel consumption (L/100km) | 5.23 | 5.23 | 5.23 | 5.23 |
| Vehicle warranty | Four years or 100,000 kilometers | Four years or 100,000 kilometers | Four years or 100,000 kilometers | Four years or 100,000 kilometers |
| Car Body | ||||
| Wheelbase(mm) | 2785 | 2785 | 2785 | 2785 |
| Front wheelbase (mm) | 1630 | 1630 | 1630 | 1630 |
| Rear wheelbase (mm) | 1630 | 1630 | 1630 | 1630 |
| Body structure | SUV | SUV | SUV | SUV |
| Car door opening method | Swing door | Swing door | Swing door | Swing door |
| Fuel tank volume (L) | 60 | 60 | 60 | 60 |
| Trunk volume (L) | 650-1790 | 650-1790 | 650-1790 | 650-1790 |
| Curb weight (kg) | 1890 | 1890 | 1860 | 1800 |
| Ma--imum full cutting quality (kg) | 2330 | 2330 | 2330 | 2245 |
| Engine | ||||
| Engine model | BHE15-BFZ | BHE15-BFZ | BHE15-BFZ | BHE15-BFZ |
| Displacement (mL) | 1499 | 1499 | 1499 | 1499 |
| Displacement(L) | 1.5 | 1.5 | 1.5 | 1.5 |
| Intake form | Turbocharged | Turbocharged | Turbocharged | Turbocharged |
| Engine layout | Horizontal | Horizontal | Horizontal | Horizontal |
| Cylinder arrangement | L | L | L | L |
| Number of cylinders | 4 | 4 | 4 | 4 |
| Air Supply | DOHC | DOHC | DOHC | DOHC |
| Ma--imum horsepower (Ps) | 163 | 163 | 163 | 163 |
| Ma--imum power(kW) | 120 | 120 | 120 | 120 |
| Ma--imum torque(N-m) | 255 | 255 | 255 | 255 |
| Ma--imum net power (kW) | 115 | 115 | 115 | 115 |
| Fuel grade | 92# | 92# | 92# | 92# |
| Electric Motor | ||||
| Motor type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 107 | 107 | 107 | 107 |
| Motor.Total power (Ps) | 146 | 146 | 146 | 146 |
| Total torque of motor (N·m) | 338 | 338 | 338 | 338 |
| System comprehensive power (kW) | 287 | 287 | 287 | -- |
| System comprehensive power (Ps) | 390 | 390 | 390 | -- |
| System comprehensive torque (N·m) | 535 | 535 | 535 | 535 |
| Number of drive motors | Single motor | Single motor | Single motor | Single motor |
| Motor layout | Front | Front | Front | Front |
| Battery Type | Lithium iron phosphate battery | Lithium iron phosphate battery | Lithium iron phosphate battery | Lithium iron phosphate battery |
| Battery brand | CATL/Honeycomb Energy | CATL/Honeycomb Energy | CATL/Honeycomb Energy | Honeycomb Energy |
| Battery cooling method | Liquid cooling | Liquid cooling | Liquid cooling | Liquid cooling |
| WLTC pure electric cruising range (km) | 90 | 90 | 90 | 43 |
| Battery energy (kWh) | 18.7 | 18.7 | 18.7 | 9.11 |
| Chassis/Wheels | ||||
| Drive mode | Front front drive | Front front drive | Front front drive | Front front drive |
| Front suspension type | Macpherson independent suspension | Macpherson independent suspension | Macpherson independent suspension | Macpherson independent suspension |
| Rear suspension type | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
| Parking brake type | Electronic parking | Electronic parking | Electronic parking | Electronic parking |
| Front tire specifications | 235/50 R19 | 235/50 R19 | 235/50 R19 | 235/55 R18 |
| Rear tire specifications | 235/50 R19 | 235/50 R19 | 235/50 R19 | 235/55 R18 |
| Passive Safety | ||||
| Main/passenger seat airbag | Main●/Deputy● | Main●/Deputy● | Main●/Deputy● | Main●/Deputy● |
| Front/rear side airbags | Front ● / rear -- | Front ● / rear -- | Front ● / rear -- | Front ● / rear -- |
| Front/rear head airbags (curtain airbags) | Front ● / rear ● | Front ● / rear ● | Front ● / rear ● | Front ● / rear ● |
| Tire pressure monitoring function | -- | -- | -- | -- |
| Seat belt not fastened reminder | -- | -- | -- | -- |
| ABS anti-lock | -- | -- | -- | -- |
| Front/rear parking radar | Front ● / rear ● | Front ● / rear ● | Front ● / rear ● | Front ● / rear ● |
| Driving assistance images | 360 degree panoramic image | 360 degree panoramic image | 360 degree panoramic image | 360 degree panoramic image |
| Transparent chassis/540 degree image | ● | ● | ● | -- |
| Driving Function | ||||
| Cruise system | Adaptive cruise at full speed | Adaptive cruise at full speed | Cruise at fi--ed speed | Cruise at fi--ed speed |
| Satellite navigation system | ● | ● | ● | ● |
| Navigation traffic information display | ● | ● | ● | ● |
| Lane centering | ● | ● | -- | -- |
| Road traffic sign recognition | ● | ● | -- | -- |
| Appearance/Anti-Theft | ||||
| Rim material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Electric trunk | ● | ● | ||
| Roof rack | ● | ● | ● | ● |
| Engine electronic anti-theft | ● | ● | ● | ● |
| Key type | Remote control key | Bluetooth key Remote control key | Remote control key | Remote control key |
| Keyless start system | ● | ● | ● | ● |
| Remote start function | ● | ● | ● | ● |
| Battery preheating | ● | ● | ● | ● |
| E--ternal discharge | ● | ● | ● | ● |
| Screen/System | ||||
| Central control color screen | Touch LCD screen | Touch LCD screen | Touch LCD screen | Touch LCD screen |
| Central control screen size | 13.2 inches | 13.2 inches | 13.2 inches | 13.2 inches |
| Passenger entertainment screen | 16.2 inches | 16.2 inches | 16.2 inches | |
| Bluetooth/car phone | ● | ● | ● | ● |
| Mobile phone interconnection/mapping | Original interconnection/mapping | Original interconnection/mapping | Original interconnection/mapping | Original interconnection/mapping |
| Voice recognition control system | ● | ● | ● | ● |
| Steering Wheel | ||||
| Steering wheel material | cortex | cortex | cortex | cortex |
| Multifunction steering wheel | Manual up and down + front and rear adjustment | Manual up and down + front and rear adjustment | Manual up and down + front and rear adjustment | Manual up and down + front and rear adjustment |
| Trip computer display screen | color | color | color | color |
| Full LCD instrument panel | ● | ● | ● | ● |
| LCD instrument size | 10.25 inches | 10.25 inches | 10.25 inches | 10.25 inches |
| Charging In Car | ||||
| Multimedia/charging interface | Type-C USB | Type-C USB | Type-C USB | Type-C USB |
| Number of USB/Type-C interfaces | 2 in the front row/2 in the rear row | 2 in the front row/2 in the rear row | 2 in the front row/2 in the rear row | 2 in the front row/2 in the rear row |
| Mobile phone wireless charging function | ● | ● | ||
| Seat Configuration | ||||
| Seat material | Imitation leather | Imitation leather | Imitation leather | Imitation leather |
| Main/passenger seat electric adjustment | Main ● / Deputy ● | Main ● / Deputy ● | Main ● / deputy ○ | Main-- / Deputy-- |
| Front seat functions | ○ Massage (co-pilot seat only) ○ Ventilation (co-pilot seat only) ● Heating |
●massage ●Heating |
○ Massage (co-pilot seat only) ○ Heating (co-pilot seat only) ○ Ventilation (co-pilot seat only) |
-- |
| Power seat memory function | -- | Co-pilot position Driver's seat | -- | -- |
| Second row seat adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment |
| Front/rear center armrest | Front ● / rear ● | Front ● / rear ● | Front ● / rear ● | Front ● / rear ● |
