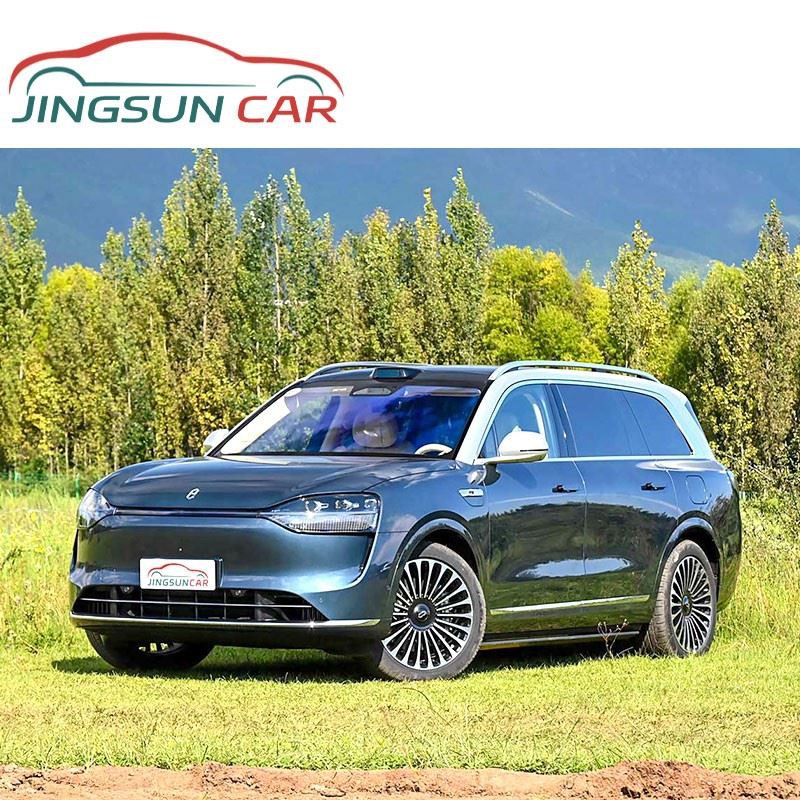

Appearance Design
The front face design of AITO M9 is inspired by "Kunpeng Spreading Wings", with a rounded and full shape, a closed center grille, an air intake channel under the light group, and a laser radar protruding in the middle of the roof.Equipped with smart headlights, the daytime running lights run through the front face, dividing the light groups on both sides into two parts, the upper headlights use LED light sources, and the lower ones are ISD smart interactive lights.
Side design
The side of the AITO M9 adopts a "light plastic curved surface" design, a two-tone body, soft lines, straight lines on the roof and side windows, and silver trim on the windows. The body size is 5230/1999/1800mm.Equipped with 22-inch wheels with low wind resistance design, tire size is 265/40 R22, and equipped with red brake calipers.
Rear Design
The rear design of the Wenjie M9 is wide and full, equipped with through-type taillights. A large number of horizontal design lines are used to increase the visual width of the rear of the car, and the rear wiper adopts a hidden design. Equipped with through-type taillights, the interior of the light group adopts a dot-shaped design, which echoes the shape of the headlights and also has a multi-scene light language function.
Luxury Interior
The interior design of AITO M9 adopts a minimalist design style, and there are almost no physical buttons. In terms of color matching, the new car has three color combinations to choose from. There is no need to worry about the materials used in this level of car. Most areas of the new car are covered with leather, and the wood trim is a whole piece of natural white beech.
Three-spoke Steering Wheel
The AITO M9 is equipped with a three-spoke steering wheel, which is wrapped in leather and has a heating function. There are roller buttons on the left and right sides, and a voice wake-up button on the right.
Dashboard
In front of the driver is a 12.3-inch full LCD dashboard with a simple interface design. The left side shows vehicle information, the right side can display music playback information, and the middle shows the vehicle status in real time.
Central Control Screen
In the center of the center console is a 15.6-inch central control screen, running the HarmonyOS system, with a built-in Huawei App Store, which can download a wealth of resources.
Co-pilot Entertainment Screen
In front of the co-pilot is a 16-inch screen, which is mainly used for entertainment. You can download music and video software through the Huawei App Store, and you can also adjust the air conditioning.
Wireless Charging
The AITO M9 is equipped with two wireless charging pads at the front, located at the front of the console, with heat dissipation vents, and supports up to 50W wireless charging.
HUAWEI SOUND
AITO M9 is equipped with HUAWEI SOUND premium series audio system, which adopts 7.1.4 audio layout and has 26 speakers in the whole car, including 2 headrest speakers and 1 external speaker.
Front Seats
AITO M9 front seats come standard with seat memory function, support seat ventilation, heating, massage, the driver's seat is 12-way electric adjustment, the passenger seat has footrest and legrest, and supports 14-way electric adjustment.
Rear Control Screen
The AITO M9 is equipped with a control screen behind the front center armrest, which can adjust the air conditioning, open the car refrigerator and open the rear projection screen. The car refrigerator is located below the rear control screen and pops up after unlocking through the button on the control screen.
In-car Projection
AITO M9 is equipped with an in-car projector and an electric screen. The screen is raised and lowered by the rear control screen. The projector is located above the third row of seats.
Rear Seats
The AITO M9 second-row seat has three chrome-plated buttons on the inner armrest to control seat ventilation, heating, and massage, each with three adjustable levels.
Three-row Seats
The third row of AITO M9 is equipped with two seats, which support electric adjustment of front and rear and angle. The adjustment buttons are located on both sides of the seats. In addition, it is equipped with a seat heating function with three adjustable levels.
Segmented Sunroof
AITO M9 comes standard with a segmented sunroof, which provides a wide field of vision and is equipped with an electric sunshade.
Assisted Driving
AITO M9 is equipped with HUAWEI ADS advanced assisted driving system, which supports pilot assisted driving on highways and urban roads, and can automatically change lanes, enter and exit ramps, etc.
Parking Assistance
AITO M9 comes standard with automatic parking function, and also supports remote parking, tracking reverse and remote summoning functions. Valet parking function can be purchased through APP later. The whole car is equipped with 27 sensing hardware, including 1 laser radar, 11 cameras, 12 ultrasonic radars and 3 millimeter wave radars.
Product Details
| ● Standard configuration ○ Optional -- None |
AITO M9 2024 Pure Electric Max Edition 100kWh 6-seater Edition | AITO M9 2024 Pure Electric Ultra Edition 100kWh 5-seater Edition | AITO M9 2024 Extended Range Max 42kWh 5-seater | AITO M9 2024 Extended Range Max 52kWh 6-seater |
| Basic Parameters | ||||
| Manufacturer | AITO | AITO | AITO | AITO |
| Level | UPPSUV | UPPSUV | UPPSUV | UPPSUV |
| Energy type | Pure Electric | Pure Electric | Add program | Add program |
| Environmental protection standards | -- | -- | National VI | National VI |
| Time to market | 2023.12 | 2024.09 | 2024.09 | 2023.12 |
| Fast charging time (h) | 0.25 | 0.25 | 0.5 | 0.5 |
| Slow charging time (h) | 11.7 | 11.7 | 5 | 5 |
| Maximum power(kw) | 390 | 390 | 365 | 365 |
| Maximum torque(N-m) | 673 | 673 | 675 | 675 |
| Engine | -- | -- | 1.5T 152 horsepower L4 | 1.5T 152 horsepower L4 |
| Motor(Ps) | 530 | 530 | 496 | 496 |
| Gearbox | Electric vehicle single-speed gearbox | Electric vehicle single-speed gearbox | Electric vehicle single-speed gearbox | Electric vehicle single-speed gearbox |
| Length*Width*Height (mm) | 5230*1999*1800 | 5230*1999*1800 | 5230*1999*1800 | 5230*1999*1800 |
| Body structure | 5-door 6-seater SUV | 5-door 5-seater SUV | 5-door 5-seater SUV | 5-door 6-seater SUV |
| Maximum speed (km/h) | 200 | 200 | 200 | 200 |
| Official 0-100km/h acceleration (s) | 4.3 | 4.3 | 4.9 | 4.9 |
| Vehicle warranty | Four years or 100,000 kilometers | Four years or 100,000 kilometers | Four years or 100,000 kilometers | Four years or 100,000 kilometers |
| Car Body | ||||
| Wheelbase(mm) | 3110 | 3110 | 3110 | 3110 |
| Front wheelbase (mm) | 1707 | 1707 | 1707 | 1707 |
| Rear wheelbase (mm) | 1713 | 1713 | 1713 | 1713 |
| Body structure | SUV | SUV | SUV | SUV |
| Car door opening method | Swing door | Swing door | Swing door | Swing door |
| Fuel tank volume (L) | -- | -- | 65 | 65 |
| Trunk volume (L) | 206-716 | 1043-2486 | 1043-2486 | 206-716 |
| Curb weight (kg) | 2560 | 2560 | 2630 | -- |
| Engine | ||||
| Engine model | -- | -- | H15RT | H15RT |
| Displacement (mL) | -- | -- | 1499 | 1499 |
| Displacement(L) | -- | -- | 1.5 | 1.5 |
| Intake form | -- | -- | Turbocharged | Turbocharged |
| Engine layout | -- | -- | Horizontal | Horizontal |
| Cylinder arrangement | -- | -- | L | L |
| Number of cylinders | -- | -- | 4 | 4 |
| Air Supply | -- | -- | DOHC | DOHC |
| Maximum horsepower (Ps) | -- | -- | 152 | 152 |
| Maximum power(kW) | -- | -- | 112 | 112 |
| Maximum torque(N-m) | -- | -- | 205 | 205 |
| Maximum net power (kW) | -- | -- | 110 | 110 |
| Electric Motor | ||||
| Motor type | -- | -- | Front AC/asynchronous rear permanent magnet/synchronous | Front AC/asynchronous rear permanent magnet/synchronous |
| Total motor power (kW) | 390 | 390 | 365 | 365 |
| Total torque of motor (N·m) | 673 | 673 | 675 | 675 |
| Number of drive motors | Dual motor | Dual motor | Dual motor | Dual motor |
| Motor layout | Front + rear | Front + rear | Front + rear | Front + rear |
| Battery Type | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery brand | Jiangsu Times | Jiangsu Times | Ningde Era | Ningde Era |
| Battery cooling method | Liquid cooling | Liquid cooling | Liquid cooling | Liquid cooling |
| WLTC pure electric cruising range (km) | -- | -- | 190 | 233 |
| Battery energy (kWh) | 100 | 100 | 42 | 42 |
| Electricity consumption per 100 kilometers (kWh/100km) | 17.4 | 17.4 | -- | -- |
| Chassis/Wheels | ||||
| Drive mode | Dual motor four-wheel drive | Dual motor four-wheel drive | Dual motor four-wheel drive | Dual motor four-wheel drive |
| Four-wheel drive | Electric four-wheel drive | Electric four-wheel drive | Electric four-wheel drive | Electric four-wheel drive |
| Front suspension type | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension |
| Rear suspension type | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
| Parking brake type | Electronic parking | Electronic parking | Electronic parking | Electronic parking |
| Rim material | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy |
| Front tire specifications | 265/45 R21 | 265/45 R21 | 265/45 R21 | 265/45 R21 |
| Rear tire specifications | 265/45 R21 | 265/45 R21 | 265/45 R21 | 265/45 R21 |
| Active/Passive safety | ||||
| Main/passenger seat airbag | Main●/deputy● | Main●/deputy● | Main●/deputy● | Main●/deputy● |
| Front/rear side airbags | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| Front/rear head airbags (curtain airbags) | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| Tire pressure monitoring function | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display |
| Seat belt not fastened reminder | ●Whole car | ●Whole car | ●Whole car | ●Whole car |
| ABS anti-lock | ● | ● | ● | ● |
| Lane Departure Warning System | ● | ● | ● | ● |
| Active braking/active safety system | ● | ● | ● | ● |
| Reverse side warning system | ● | ● | ● | ● |
| Control Configuration | ||||
| Driving mode switch | ●Sports ●Economy ●Standard/comfortable ●Customize/personalize |
●Sports ●Economy ●Standard/comfortable ●Customize/personalize |
●Sports ●Economy ●Standard/comfortable ●Customize/personalize |
●Sports ●Economy ●Standard/comfortable ●Customize/personalize |
| Shift pattern | ●Electronic gear shift | ●Electronic gear shift | ●Electronic gear shift | ●Electronic gear shift |
| automatic parking | ● | ● | ● | ● |
| Variable suspension function | ●Suspension soft and hard adjustment ●Suspension height adjustment |
●Suspension soft and hard adjustment ●Suspension height adjustment |
●Suspension soft and hard adjustment ●Suspension height adjustment |
●Suspension soft and hard adjustment ●Suspension height adjustment |
| Auxiliary/Intelligent Driving | ||||
| cruise system | ●Full speed adaptive cruise | ●Full speed adaptive cruise | ●Full speed adaptive cruise | ●Full speed adaptive cruise |
| Assisted driving level | ● L2 |
● L2 |
● L2 |
● L2 |
| Lane centering | ● | ● | ● | ● |
| Road traffic sign recognition | ● | ● | ● | ● |
| Automatic parking | ● | ● | ● | ● |
| Driving assistance images | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image |
| Front/rear parking radar | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| Ultrasonic radar quantity | ●12 pcs | ●12 pcs | ●12 pcs | ●12 pcs |
| Appearance Configuration | ||||
| Skylight type | ●Segmented non-open skylight | ●Segmented non-open skylight | ●Segmented non-open skylight | ●Segmented non-open skylight |
| Roof rack | ● | ● | ● | ● |
| Hidden electric door handle | ● | ● | ● | ● |
| Key type | ●UWB digital key ●Bluetooth key ●NFC/RFID key ●Remote control key |
●UWB digital key ●Bluetooth key ●NFC/RFID key ●Remote control key |
●UWB digital key ●Bluetooth key ●NFC/RFID key ●Remote control key |
●UWB digital key ●Bluetooth key ●NFC/RFID key ●Remote control key |
| Keyless start system | ● | ● | ● | ● |
| Electric trunk | ● | ● | ● | ● |
| Internal Configuration | ||||
| Full LCD instrument panel | ● | ● | ● | ● |
| LCD instrument size | ●12.3 inches | ●12.3 inches | ●12.3 inches | ●12.3 inches |
| Steering wheel material | ●Genuine leather | ●Genuine leather | ●Genuine leather | ●Genuine leather |
| Steering wheel position adjustment | ●Electric up and down + front and rear adjustment | ●Electric up and down + front and rear adjustment | ●Electric up and down + front and rear adjustment | ●Electric up and down + front and rear adjustment |
| Multifunction steering wheel | ● | ● | ● | ● |
| Steering wheel heating | ● | ● | ● | ● |
| steering wheel memory | ● | ● | ● | ● |
| Seat Configuration | ||||
| Seat material | ●Genuine leather | ●Genuine leather | ●Genuine leather | ●Genuine leather |
| Main/passenger seat electric adjustment | Main●/deputy● | Main●/deputy● | Main●/deputy● | Main●/deputy● |
| Front seat functions | ●Headrest speaker ●Massage ●Ventilation ●Heating |
●Headrest speaker ●Massage ●Ventilation ●Heating |
●Headrest speaker ●Massage ●Ventilation ●Heating |
●Headrest speaker ●Massage ●Ventilation ●Heating |
| Power seat memory function | ●Co-pilot position ●Driver's seat |
●Co-pilot position ●Driver's seat |
●Co-pilot position ●Driver's seat |
●Co-pilot position ●Driver's seat |
| Second row seat adjustment | ○Leg rest adjustment ●Waist adjustment ●Backrest adjustment ●Front and rear adjustment |
●Leg rest adjustment ●Backrest adjustment |
●Leg rest adjustment ●Backrest adjustment |
○Leg rest adjustment ●Waist adjustment ●Backrest adjustment ●Front and rear adjustment |
| Rear seats fold down | ●Proportional inverted | ●Proportional inverted | ●Proportional inverted | ●Proportional inverted |
| Front/rear center armrest | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| Lighting Configuration | ||||
| Low beam light source | ●LED | ●LED | ●LED | ●LED |
| high beam light source | ●LED | ●LED | ●LED | ●LED |
| Adaptive high and low beam | ● | ● | ● | ● |
| Headlight height adjustable | ● | ● | ● | ● |
| Delayed turn off of headlights | ● | ● | ● | ● |
| Car interior ambient lighting | ●16.8 million colors | ●16.8 million colors | ●16.8 million colors | ●16.8 million colors |
| Glass/Rear View Mirror | ||||
| Exterior rearview mirror function | ●Rearview mirror memory ●Automatic anti-glare ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
●Rearview mirror memory ●Automatic anti-glare ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
●Rearview mirror memory ●Automatic anti-glare ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
●Rearview mirror memory ●Automatic anti-glare ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
| Sensing wiper function | ●Rain sensor type | ●Rain sensor type | ●Rain sensor type | ●Rain sensor type |
| Front/rear electric windows | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| One-touch window lifting function | ●Whole car | ●Whole car | ●Whole car | ●Whole car |
| Window anti-pinch function | ● | ● | ● | ● |
| Car vanity mirror | ●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
| Interior rearview mirror function | ●Automatic anti-glare | ●Automatic anti-glare | ●Automatic anti-glare | ●Automatic anti-glare |
| Intelligent Internet | ||||
| Central control color LCD screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen |
| Central control screen size | ●15.6 inches | ●15.6 inches | ●15.6 inches | ●15.6 inches |
| Passenger entertainment screen | ●16 inches | ●16 inches | ●16 inches | ●16 inches |
| Vehicle intelligent system | ●HarmonyOS | ●HarmonyOS | ●HarmonyOS | ●HarmonyOS |
| Voice assistant wake word | ●Xiaoyi Xiaoyi | ●Xiaoyi Xiaoyi | ●Xiaoyi Xiaoyi | ●Xiaoyi Xiaoyi |
| Navigation traffic information display | ● | ● | ● | ● |
| GPS navigation system | ● | ● | ● | ● |
| roadside assistance call | ● | ● | ● | ● |
| Bluetooth/car phone | ● | ● | ● | ● |
| Mobile phone interconnection/mapping | ●Support HUAWEI HiCar | ●Support HUAWEI HiCar | ●Support HUAWEI HiCar | ●Support HUAWEI HiCar |
| Voice recognition control system | ●Seat heating ●Car window ●Seat ventilation ●Seat massage ●Multimedia system ●Navigation ●Phone ●Air conditioner |
●Seat heating ●Car window ●Seat ventilation ●Seat massage ●Multimedia system ●Navigation ●Phone ●Air conditioner |
●Seat heating ●Car window ●Seat ventilation ●Seat massage ●Multimedia system ●Navigation ●Phone ●Air conditioner |
●Seat heating ●Car window ●Seat ventilation ●Seat massage ●Multimedia system ●Navigation ●Phone ●Air conditioner |
| APP Remote Control | ●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Window control ●Vehicle start ●Car owner service (find charging piles, gas stations, parking lots, etc.) ●Charging management |
●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Window control ●Vehicle start ●Car owner service (find charging piles, gas stations, parking lots, etc.) ●Charging management |
●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Window control ●Vehicle start ●Car owner service (find charging piles, gas stations, parking lots, etc.) ●Charging management |
●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Window control ●Vehicle start ●Car owner service (find charging piles, gas stations, parking lots, etc.) ●Charging management |
| Media Entertainment | ||||
| Multimedia/charging interface | ●Type-C ●SD ●USB |
●Type-C ●SD ●USB |
●Type-C ●SD ●USB |
●Type-C ●SD ●USB |
| Number of USB/Type-C interfaces | ●3 in the front row/4 in the rear row | ●3 in the front row/1 in the rear row | ●3 in the front row/1 in the rear row | ●3 in the front row/1 in the rear row |
| Mobile phone wireless charging function | ●Front row | ●Back row ●Front row |
●Back row ●Front row |
●Front row |
| Speaker brand name | ●HUAWEI SOUND | ●HUAWEI SOUND | ●HUAWEI SOUND | ●HUAWEI SOUND |
| Number of speakers | ●25 speakers | ●25 speakers | ●25 speakers | ●25 speakers |
| Luggage compartment 12V power interface | ● | ● | ● | ● |
