Products Description

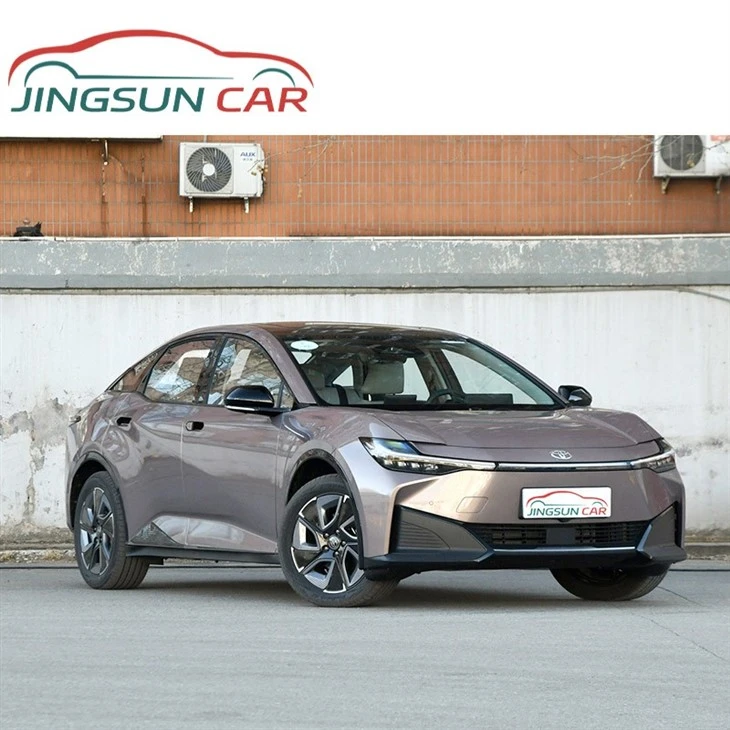

FAW Toyota bZ3 is a pure electric mid-size sedan. This car was developed by a joint venture between Toyota and BYD (BTET). BYD provided technical support for the three-electric system, while Toyota was responsible for design, adjustment, and acceptance.

Toyota bZ3 has standard range and long range versions, both of which are front-wheel drive, equipped with 135kW and 180kW electric motors respectively. The CLTC pure electric range is 517km and 616km respectively.

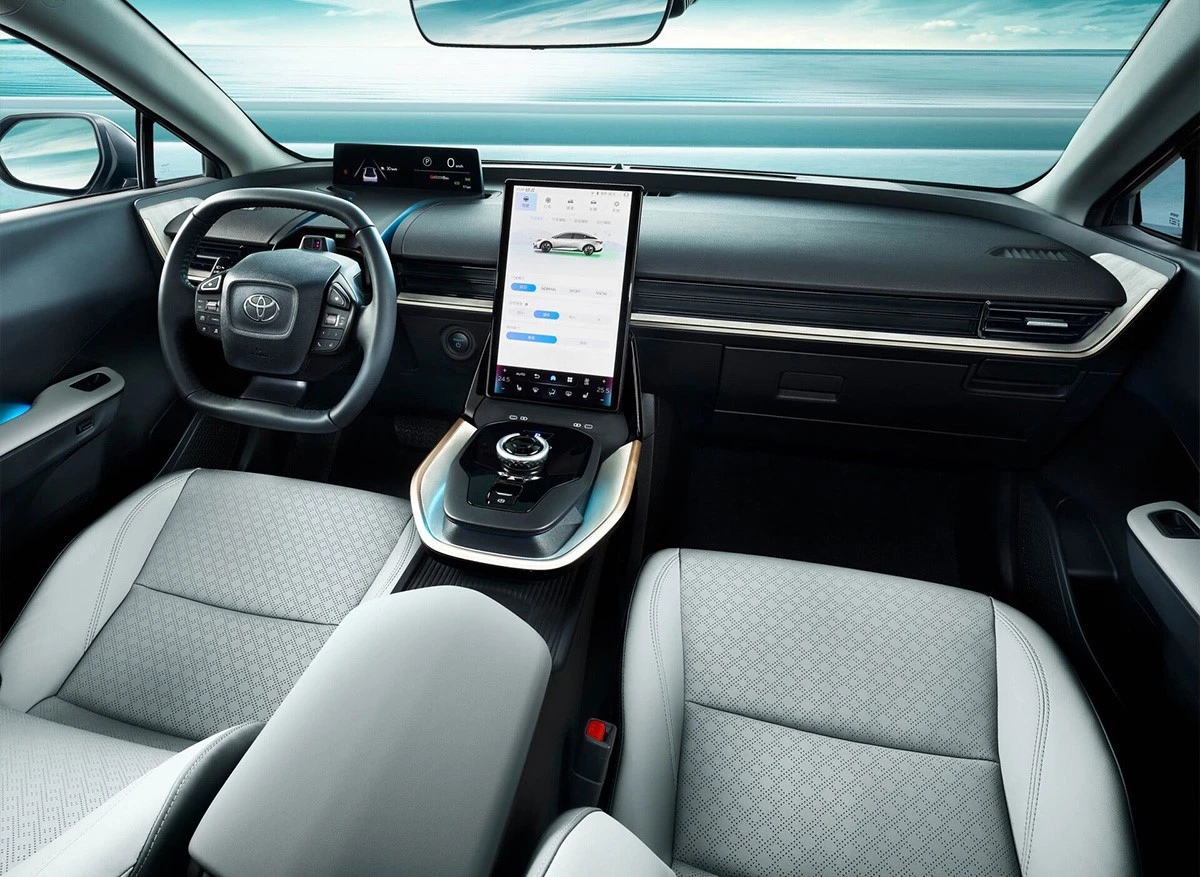

The overall design of the Toyota bZ3 center console is relatively simple. The upper part is wrapped in soft materials and equipped with gold decorative lines. The instrument panel adopts a suspended design, which is far away from the steering wheel. There is a 12.8-inch vertical screen in the middle.


Three-Spoke Steering Wheel

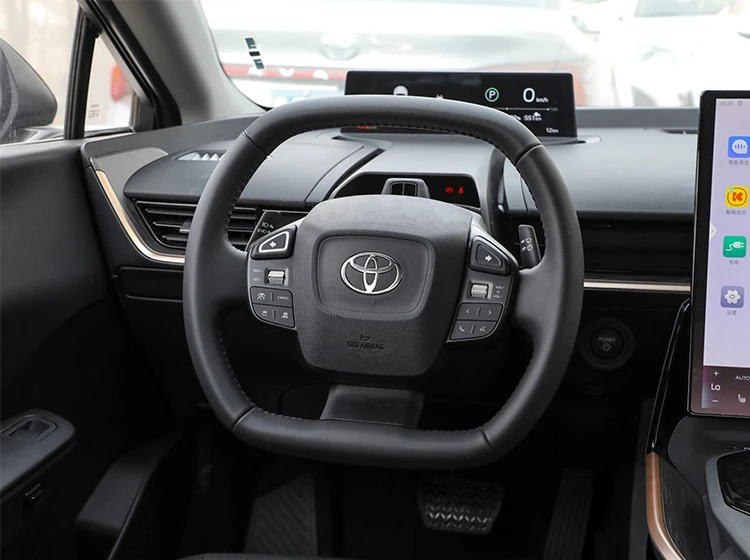

The top model of the Toyota bZ3 comes standard with a leather steering wheel, while other models are made of plastic. The rear paddle is cancelled, and buttons are used to control the turn signals. There are two paddles at the rear to control the lights and wipers respectively.
Instrument Screen

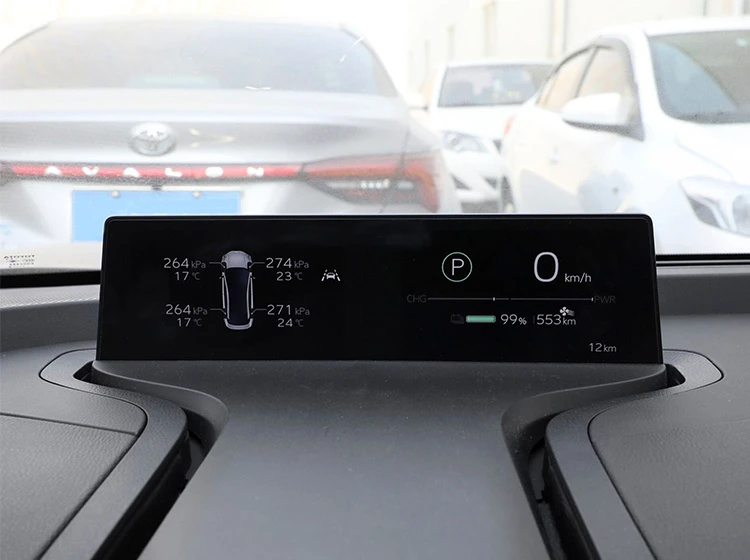

In front of the Toyota bZ3 driver is a trapezoidal instrument panel with a simple interface design. The left side displays tire pressure, and the right side displays speed, battery life, gear, etc.

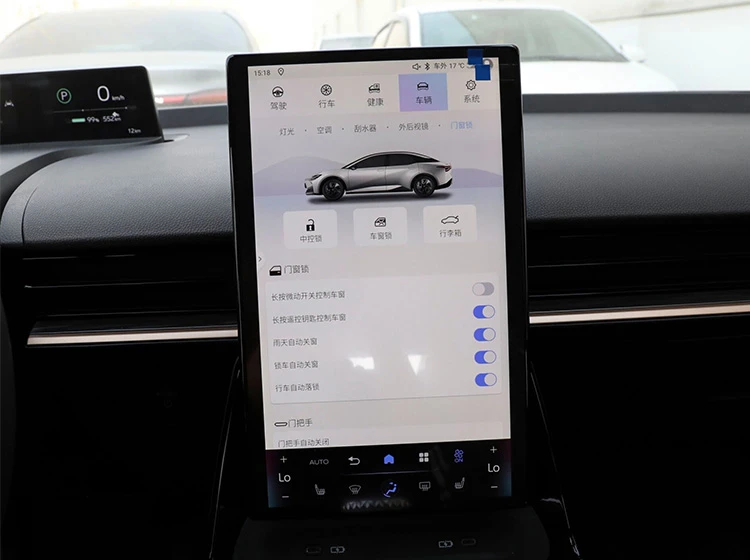

Central Control Screen
In the center of the center console is a 12.8-inch central control screen, which supports 4G network and OTA upgrades, integrates vehicle settings, and has a built-in app store where various entertainment apps can be downloaded and used. The car-machine system is developed by BTET. The interface is very smooth, the application opening speed is very fast and there are many function settings. The overall logic is very clear.

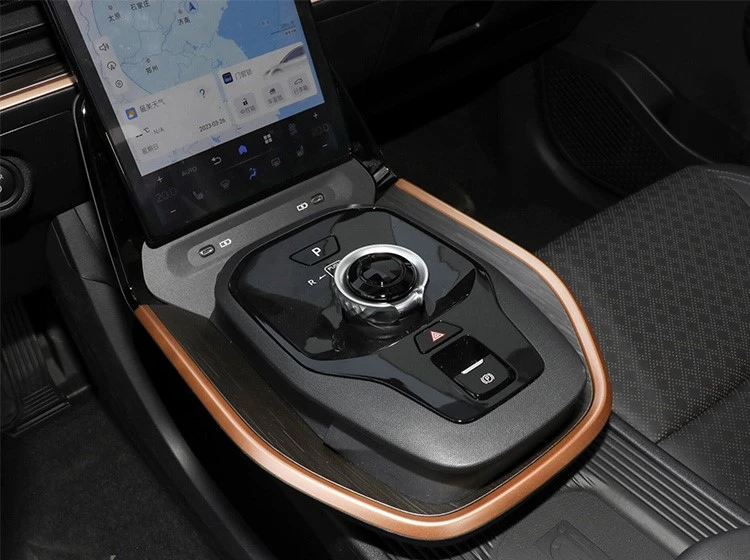

Knob Shift
Toyota bZ3 is equipped with an electronic gear lever, which adopts a knob-type design and is located on the center console. The edge of the knob is a silver chrome decorative strip, and underneath is a black high-gloss trim panel.


Top Configuration

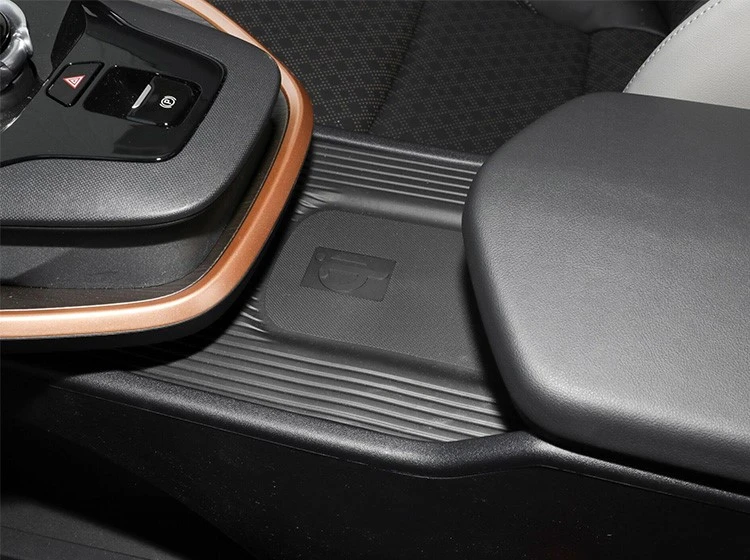

The top model of Toyota bZ3 is equipped with wireless charging in the front row, which is located behind the gear handle and has anti-slip treatment on the surface. The top model comes standard with 31-color ambient lights. The light strips are located on the door panels and console. Other models can be optionally installed at an additional cost.

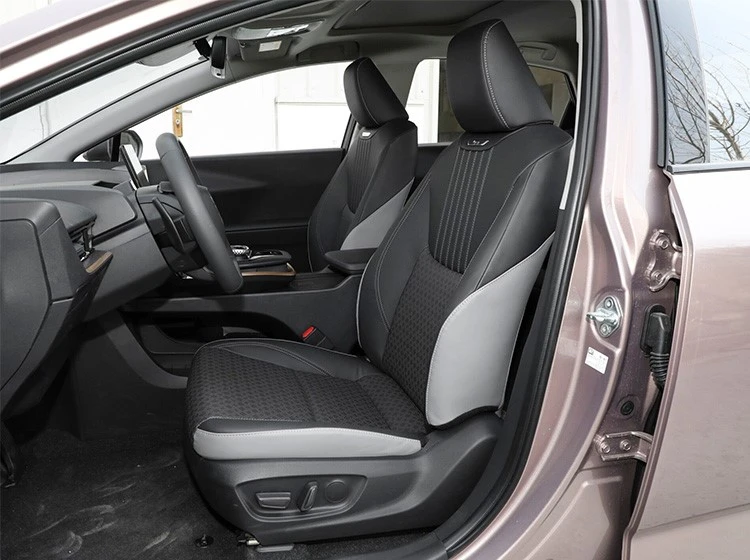

Front Seats
The Toyota bZ3 comes standard with imitation leather seats, and the top model comes standard with electric adjustment and seat heating for the front seats. Other models are only equipped with electric adjustment for the main driver, and optional electric adjustment for the front passenger seat and heated front seats.


One Piece Window Control
There is only one window control button on the main driving door panel of bZ3, which is more radical than the Volkswagen ID series. If you want to control the windows, you need to select the window through the buttons on the side, toggle up and down to select the rear window, and switch to control the entire car window.

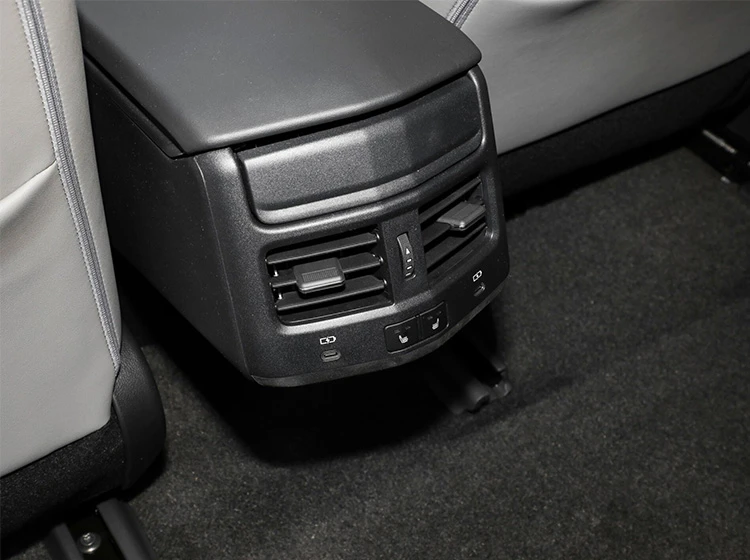

Rear Air Outlet
Toyota bZ3 is equipped with a rear air outlet located behind the front center armrest. It is also equipped with a seat heating control button, which is adjustable in two levels; the lower part has been hollowed out to increase the foot space in the middle of the rear row.

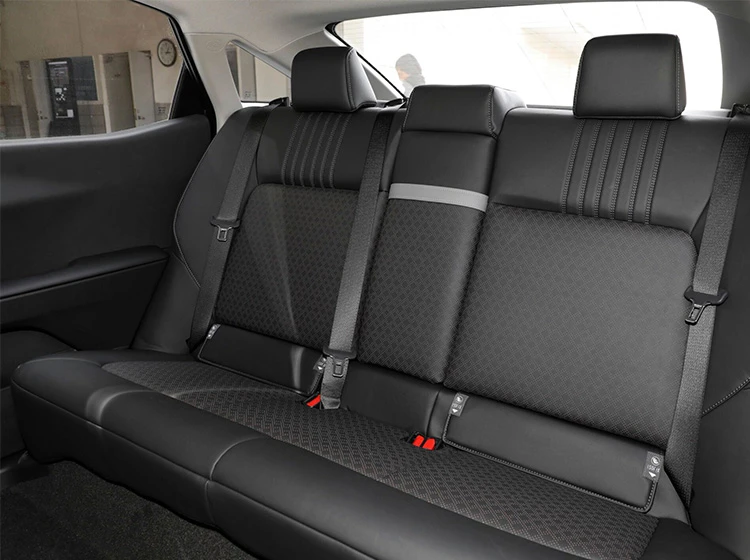

Rear Seats
The Toyota bZ3 has short rear seat cushions and a flat floor. The top model comes standard with a rear center armrest and seat heating, and other models can be optionally purchased at an additional cost.

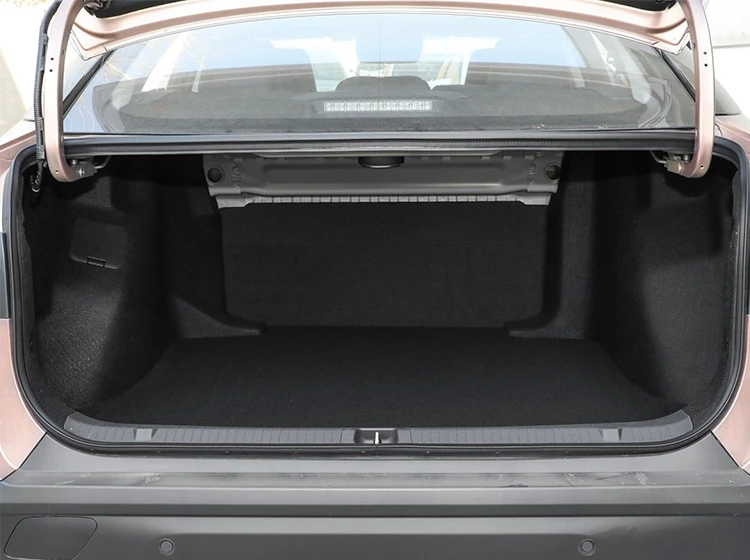

The Trunk
It would be better if a hatchback tailgate is used. The bZ3's trunk opening is relatively upright, which is also due to the fastback shape. In addition, the rear seats cannot be folded down and there is no electric tailgate.

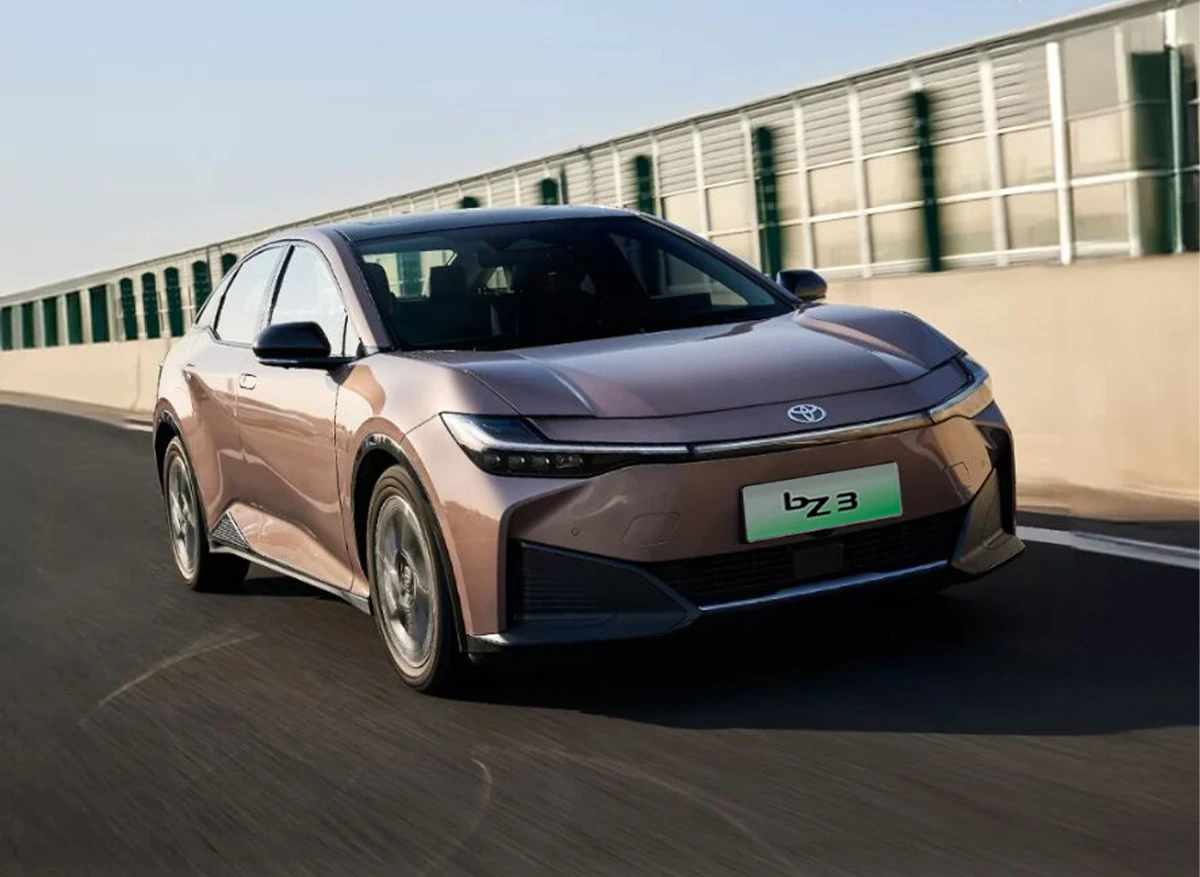

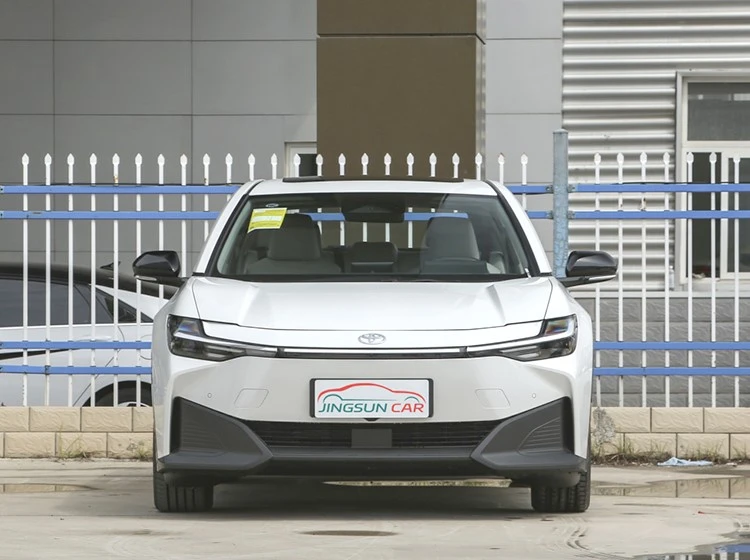

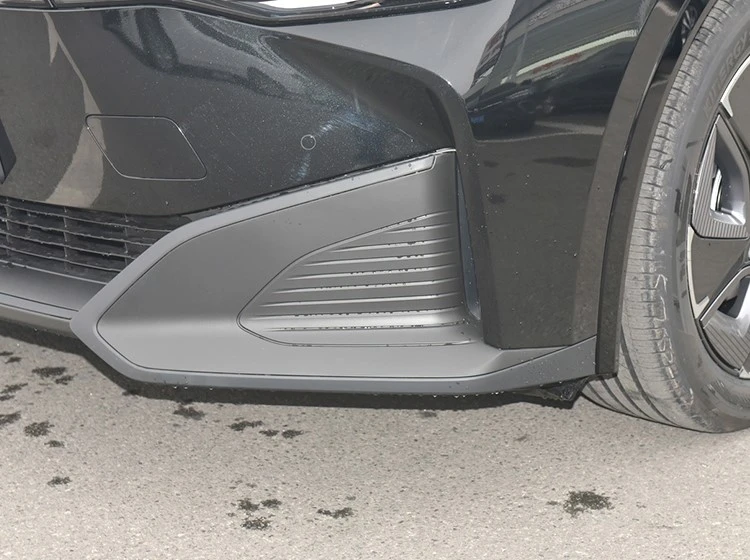

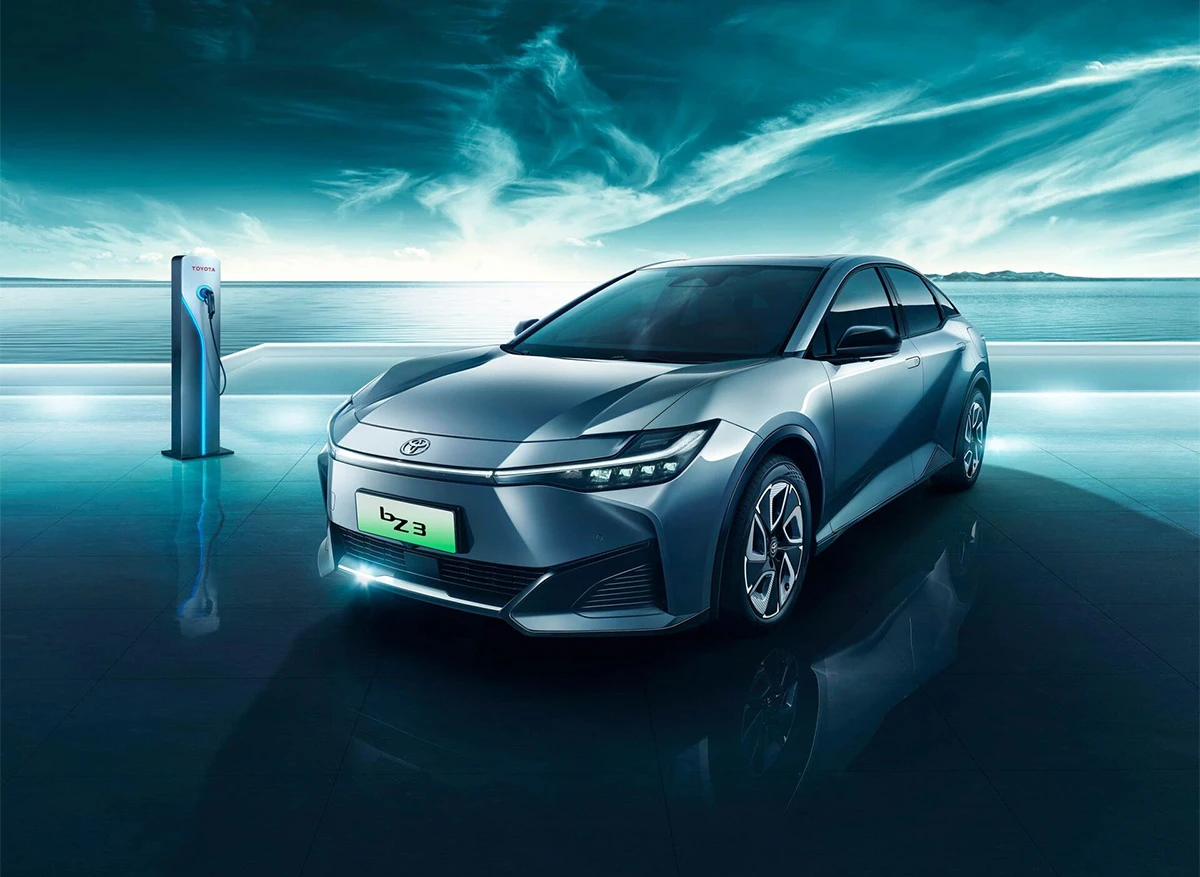

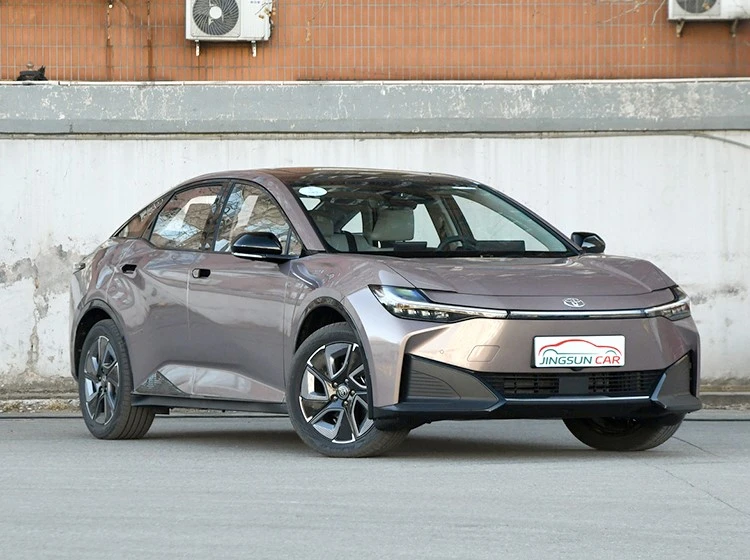

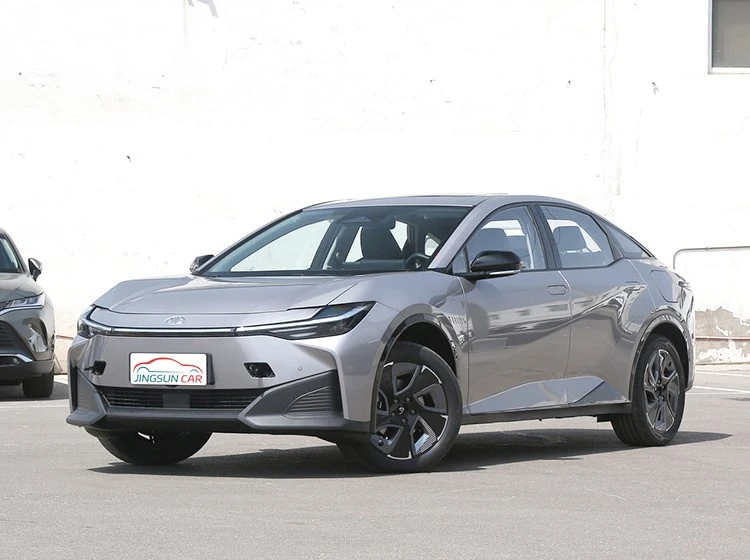

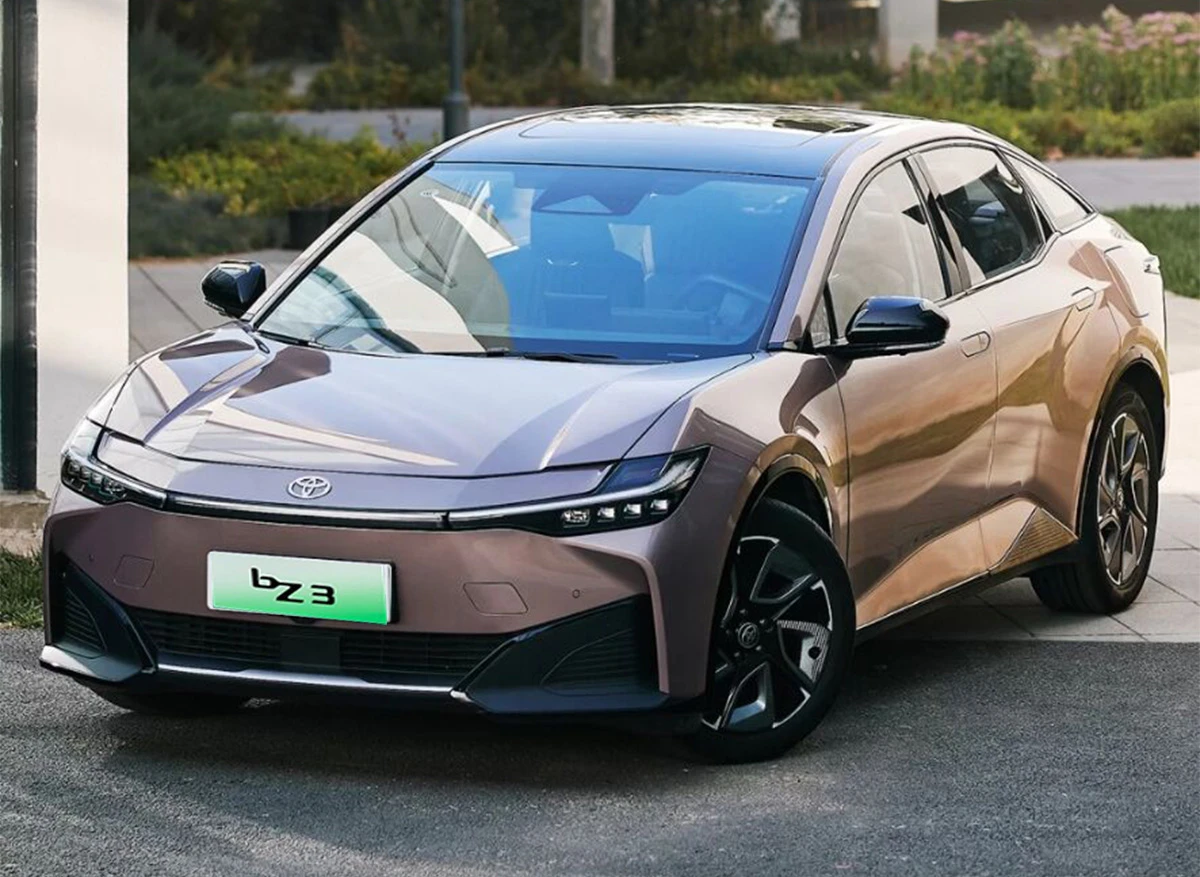

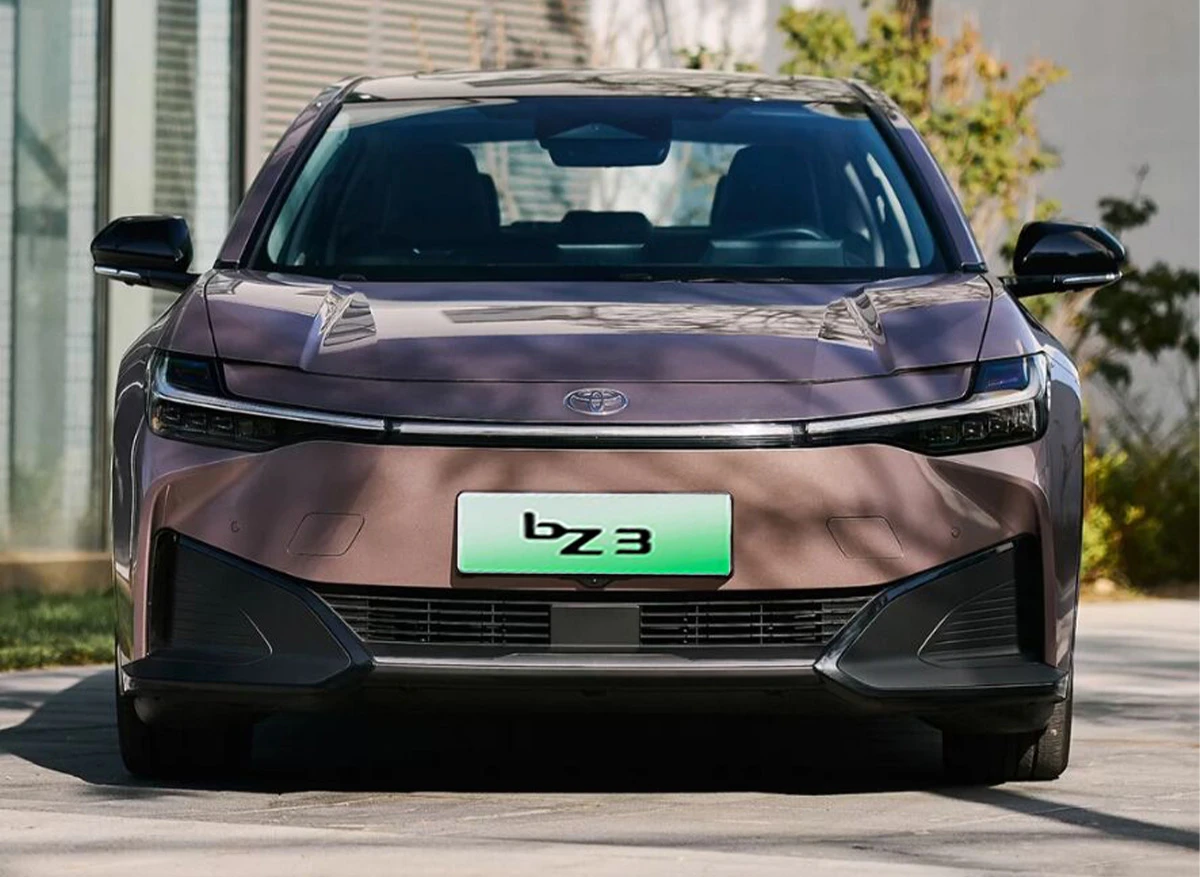

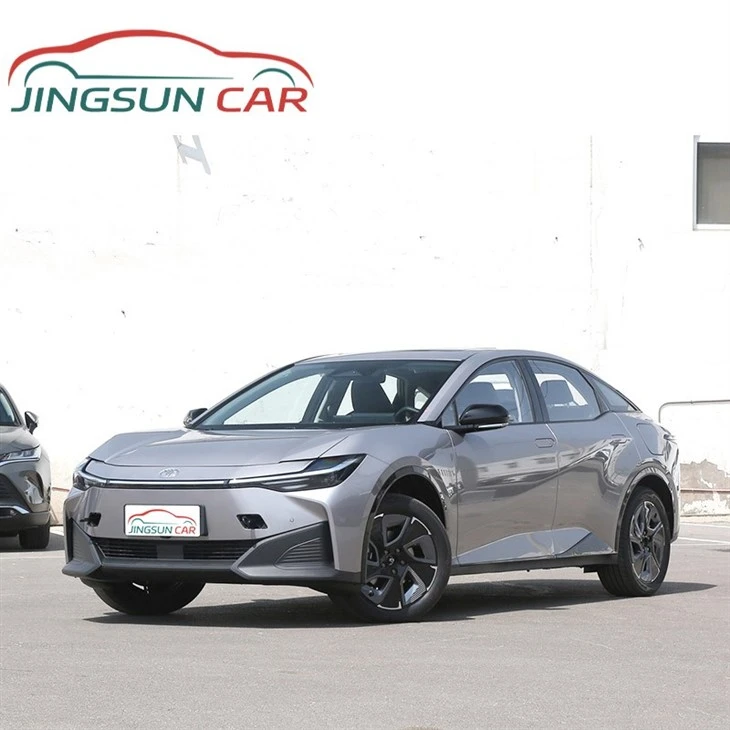

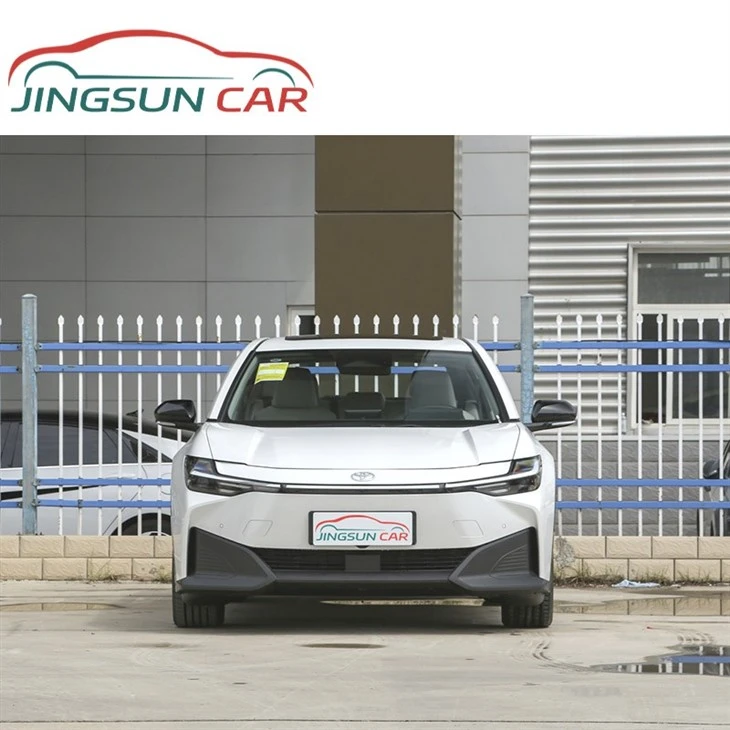

The appearance of Toyota bZ3 continues the design style of the bZ series. The front face adopts a "hammerhead shark" design with three-dimensional lines, a closed middle grille, and an active closed air intake grille below.

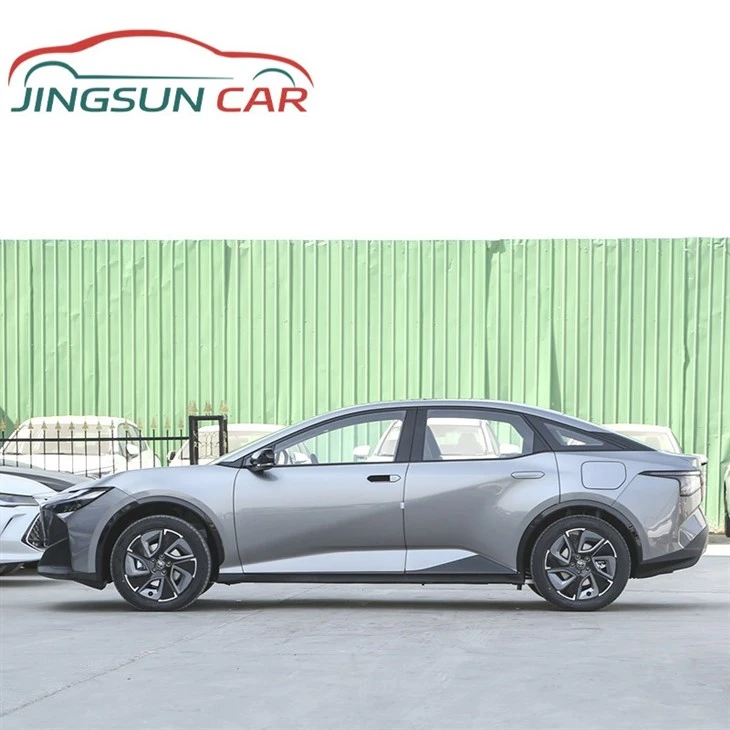

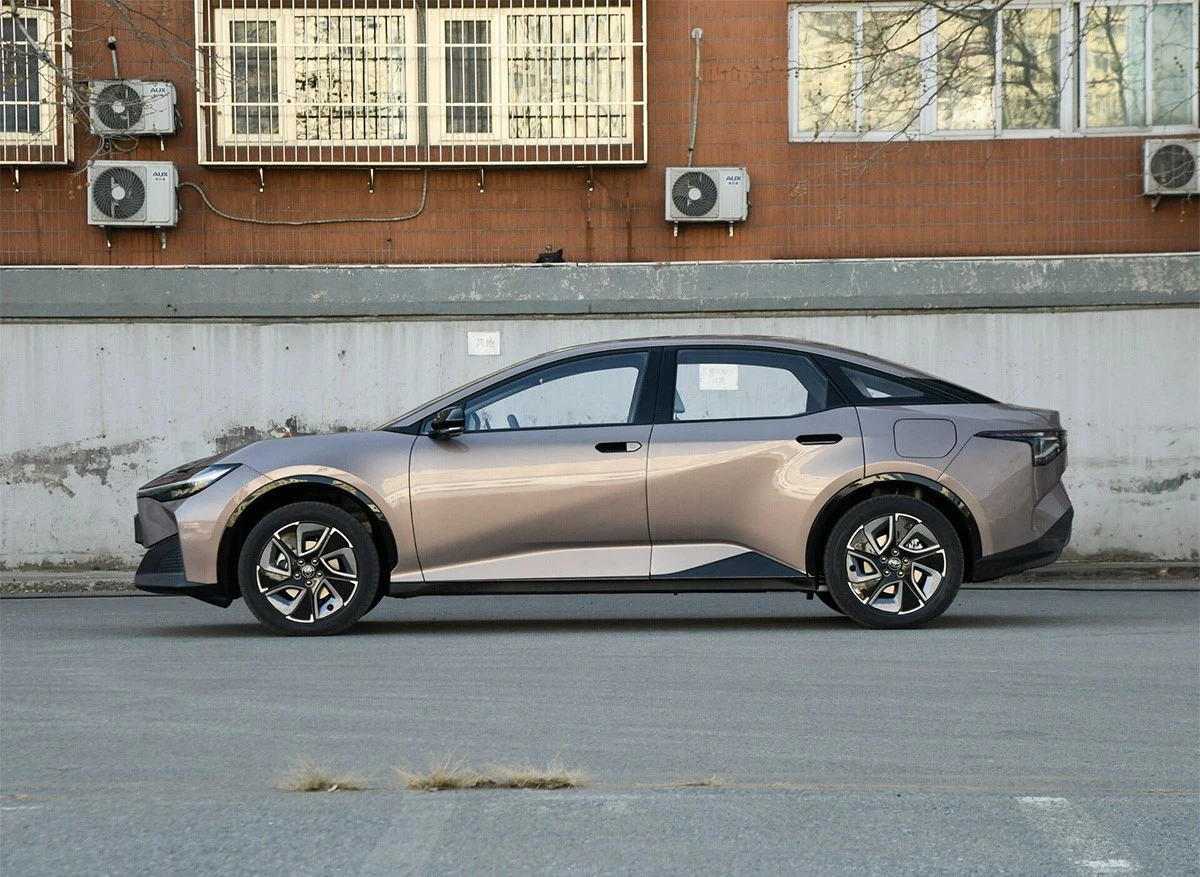

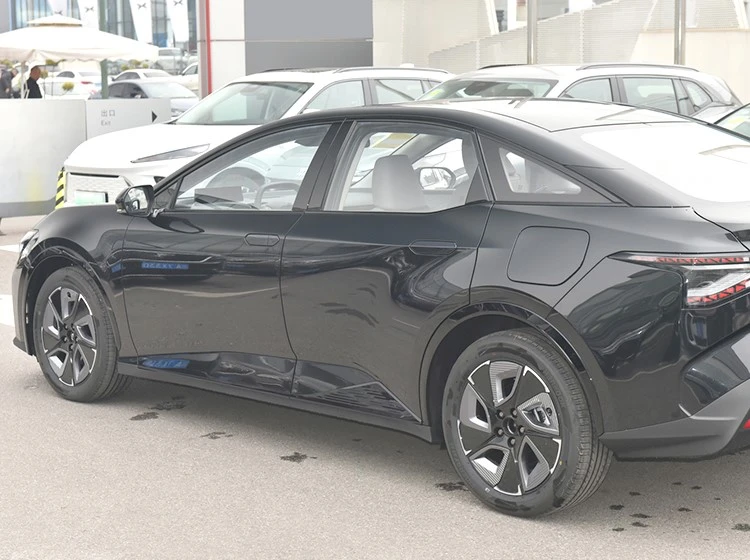

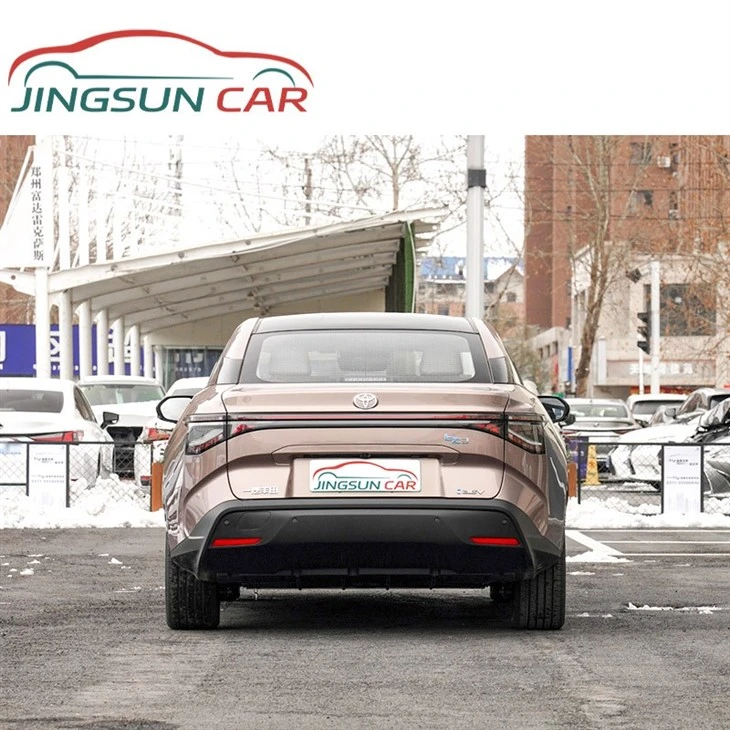

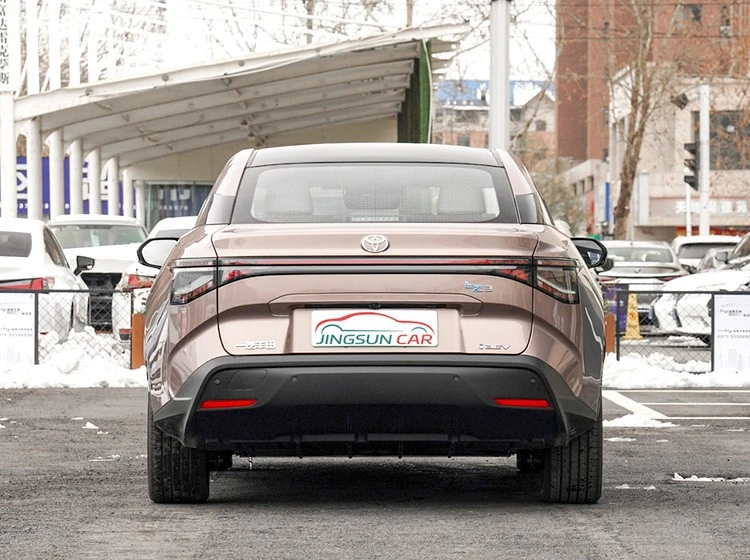

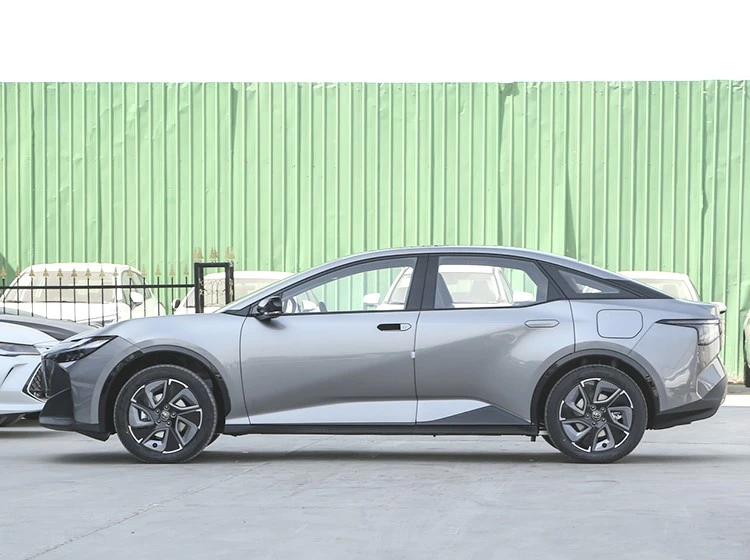

The body size of the Toyota bZ3 is 4725/1835/1475mm, the height of the low-end model is 1480mm, the side lines of the car are sporty, and the B and C pillars adopt a hidden design; the rear of the car has a fastback design and is equipped with through-type taillights.

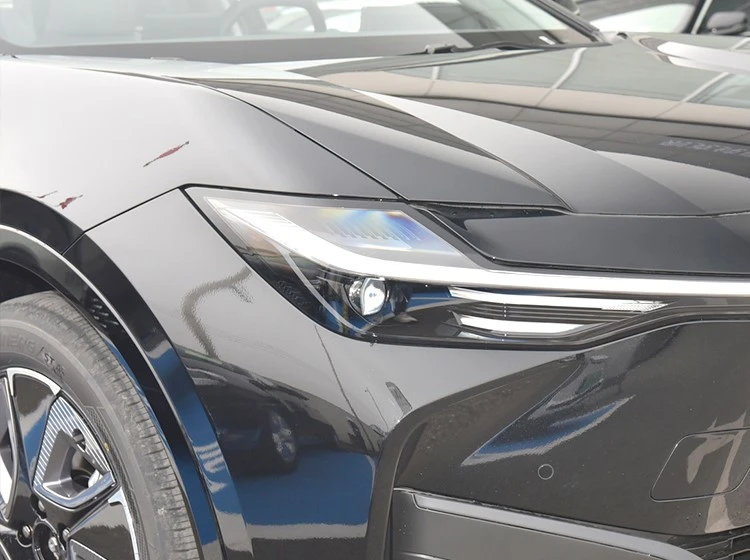

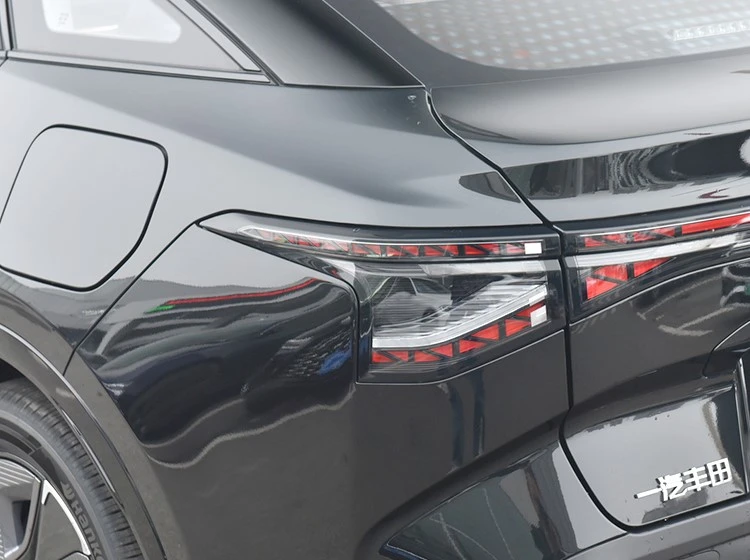

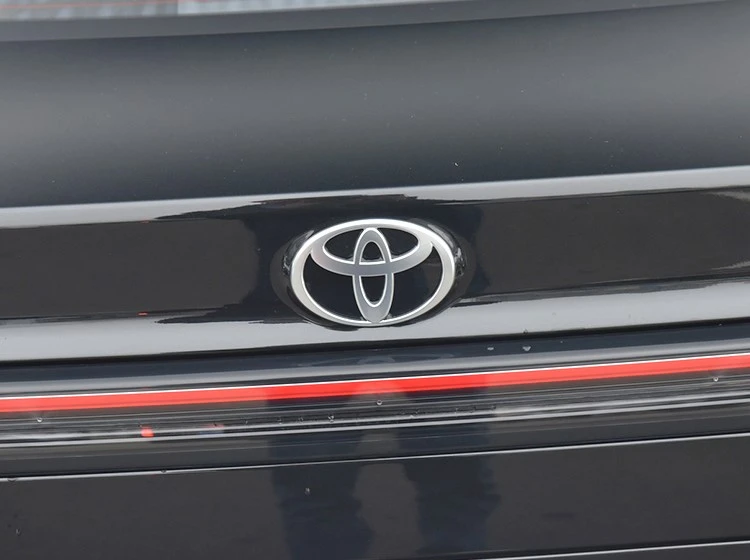

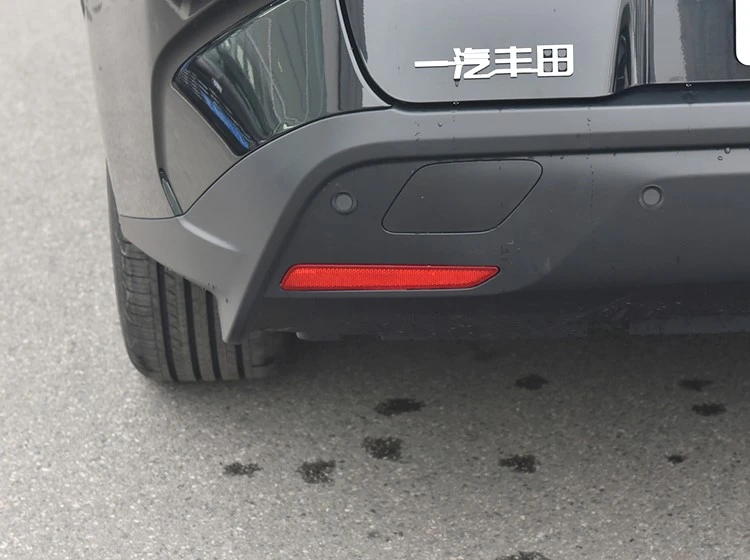

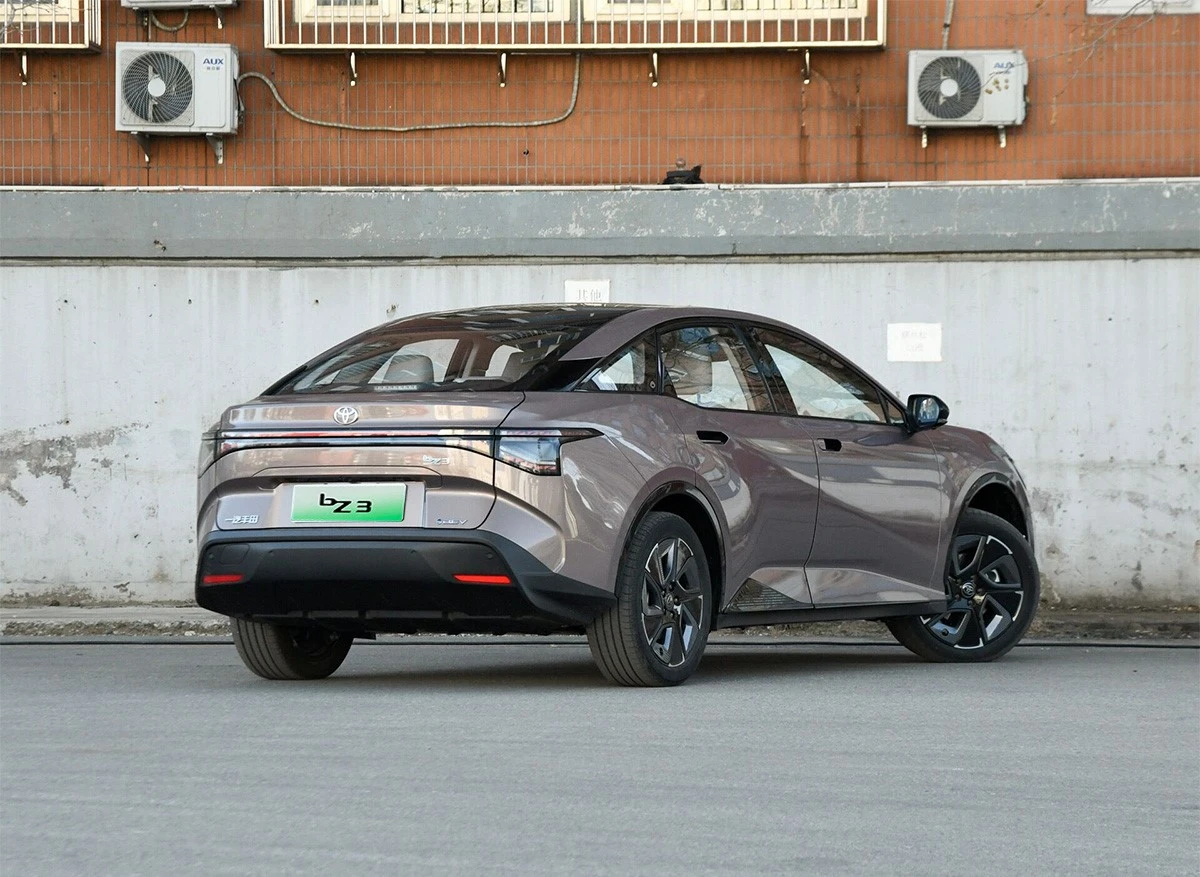

The front and rear lights of Toyota bZ3 are both through-type designs. The front daytime running lights are divided into three sections. The two sides of the rear lights are "Y" shaped designs. They use LED light sources and come standard with adaptive high and low beams. The through-type taillights cooperate with the lines above the license plate holder to form a unified pace, which also gives the tail a more downward sense of weight.

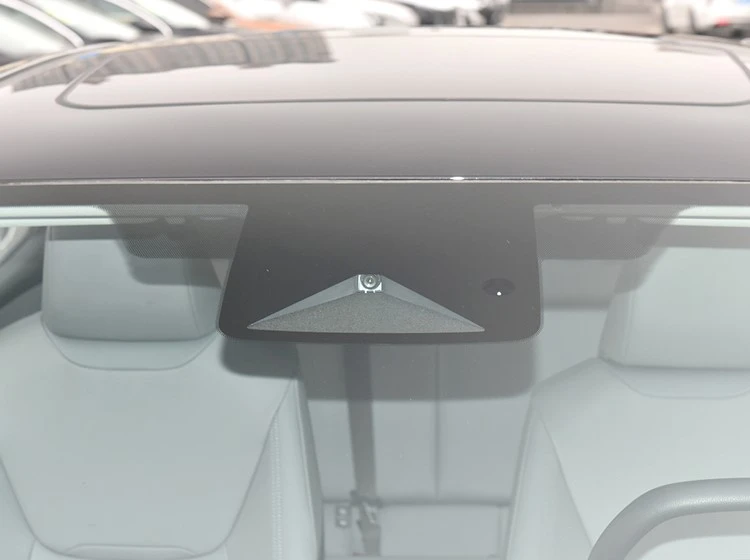

All Toyota bZ3 series come standard with lane centering and road traffic sign recognition. Top models come standard with 360-degree panoramic imaging, reversing side warning and lane merging assist. Other models can be optionally equipped at an additional cost.

Product Details




















| ● Standard configuration ○ Optional -- None |
FAW Toyota bZ3 2024 616km long range PRO | FAW Toyota bZ3 2024 model 616km long range Premium | FAW Toyota bZ3 2024 517km Elite PRO |
| Basic Parameters | |||
| Manufacturer | FAW Toyota | FAW Toyota | FAW Toyota |
| Level | Medium-sized vehicle | Medium-sized vehicle | Medium-sized vehicle |
| Energy type | Pure electric | Pure electric | Pure electric |
| Time to market | 2024.01 | 2024.01 | 2024.01 |
| Fast charging percentage | 80 | 80 | 80 |
| Maximum power(kw) | 180 | 180 | 135 |
| Maximum torque(N-m) | 303 | 303 | 303 |
| Motor(Ps) | 245 | 245 | 184 |
| Gearbox | Electric vehicle single-speed gearbox | Electric vehicle single-speed gearbox | Electric vehicle single-speed gearbox |
| Length*Width*Height (mm) | 4725*1835*1475 | 4725*1835*1475 | 4725*1835*1480 |
| Body structure | 4-door 5-seater sedan | 4-door 5-seater sedan | 4-door 5-seater sedan |
| Maximum speed (km/h) | 160 | 160 | 160 |
| Official 0-50km/h acceleration (s) | 3.4 | 3.4 | 3.2 |
| Car Body | |||
| Wheelbase(mm) | 2880 | 2880 | 2880 |
| Front wheelbase (mm) | 1580 | 1580 | 1580 |
| Rear wheelbase (mm) | 1580 | 1580 | 1580 |
| Body structure | Sedan | Sedan | Sedan |
| Car door opening method | Swing door | Swing door | Swing door |
| Trunk volume (L) | 439 | 439 | 439 |
| Curb weight (kg) | 1835 | 1840 | 1710 |
| Electric Motor | |||
| Motor type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 180 | 180 | 135 |
| Total torque of motor (N·m) | 303 | 303 | 303 |
| Number of drive motors | Single motor | Single motor | Single motor |
| Motor layout | Front | Front | Front |
| Electricity consumption per 100 kilometers (kWh/100km) | 12 | 12 | 11 |
| Chassis/Wheels | |||
| Drive mode | Front front drive | Front front drive | Front front drive |
| Front suspension type | Macpherson independent suspension | Macpherson independent suspension | Macpherson independent suspension |
| Rear suspension type | Double connecting rod independent suspension | Double connecting rod independent suspension | Double connecting rod independent suspension |
| Parking brake type | Electronic parking | Electronic parking | Electronic parking |
| Front tire specifications | 225/50 R18 | 225/50 R18 | 225/50 R18 |
| Rear tire specifications | 225/50 R18 | 225/50 R18 | 225/50 R18 |
| Spare tire specifications | Tire repair tool | Tire repair tool | Tire repair tool |
| Active/Passive safety | |||
| Main/passenger seat airbag | Main●/deputy● | Main●/deputy● | Main●/deputy● |
| Front/rear side airbags | Front●/rear-- | Front●/rear-- | Front●/rear-- |
| Front/rear head airbags (curtain airbags) | Front●/rear● | Front●/rear● | Front●/rear● |
| Tire pressure monitoring function | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display |
| Seat belt not fastened reminder | ● | ● | ● |
| ABS anti-lock | ● | ● | ● |
| Lane Departure Warning System | ● | ● | ● |
| Lane centering | ● | ● | ● |
| Road traffic sign recognition | ● | ● | ● |
| Active braking/active safety system | ● | ● | ● |
| Auxiliary/Control Configuration | |||
| Front/rear parking radar | Front●/rear● | Front●/rear● | Front●/rear● |
| Driving assistance images | ○360-degree panoramic image ●Reversing image |
●360-degree panoramic image | ○360-degree panoramic image ●Reversing image |
| Reverse side warning system | ○ | ● | ○ |
| cruise system | ●Full speed adaptive cruise | ●Full speed adaptive cruise | ●Full speed adaptive cruise |
| Driving mode switch | ●Sports ●Economy ●Standard/comfortable ●Snow |
●Sports ●Economy ●Standard/comfortable ●Snow |
●Sports ●Economy ●Standard/comfortable ●Snow |
| Appearance/Anti-Theft | |||

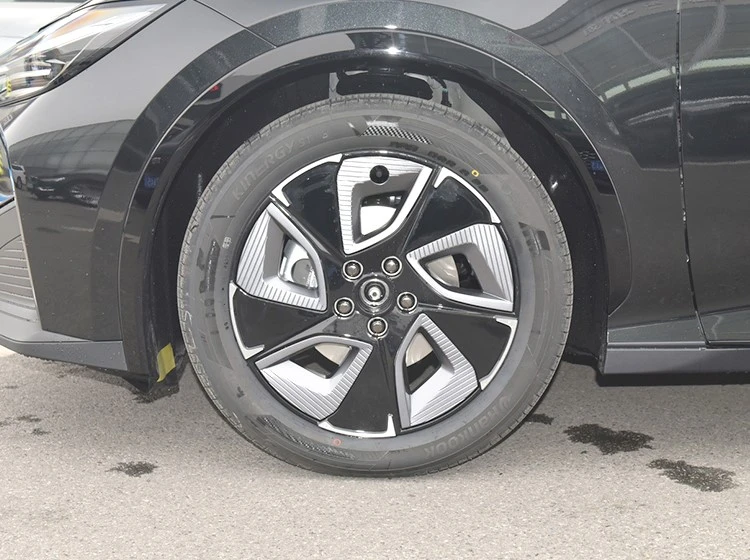

| Rim material | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy |
| Key type | ●Bluetooth key ●Remote control key |
●Bluetooth key ●Remote control key |
●Bluetooth key ●Remote control key |
| Keyless start system | ● | ● | ● |
| APP remote control | ●Charging management ●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search |
●Charging management ●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search |
●Charging management ●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search |
| Internal Configuration | |||
| Steering wheel material | ○Genuine leather ●Plastic |
●Plastic | ○Genuine leather ●Plastic |
| Steering wheel position adjustment | ●Manual up and down + front and rear adjustment | ●Manual up and down + front and rear adjustment | ●Manual up and down + front and rear adjustment |
| Multifunction steering wheel | ● | ● | ● |
| Steering wheel heating | ○ | ● | ○ |
| Full LCD instrument panel | ● | ● | ● |
| Seat Configuration | |||
| Seat material | ●Imitation leather | ●Imitation leather | ●Imitation leather |
| Main/passenger seat electric adjustment | Main●/Deputy○ | Main●/deputy● | Main●/deputy○ |
| Front seat functions | ○Heating | ●Heating | ○Heating |
| Front/rear center armrest | Front●/rear-- | Front●/rear● | Front●/rear-- |
| Multimedia Configuration | |||
| Central control color screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen |
| Central control screen size | ●12.8 inches | ●12.8 inches | ●12.8 inches |
| GPS navigation system | ● | ● | ● |
| Navigation traffic information display | ● | ● | ● |
| roadside assistance call | ● | ● | ● |
| Bluetooth/car phone | ● | ● | ● |
| Voice recognition control system | ●Multimedia system ●Navigation ●Phone ●Skylight ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Skylight ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Skylight ●Air conditioner |
| Multimedia/charging interface | ●Type-C ●USB |
●Type-C ●USB |
●Type-C ●USB |
| Number of USB/Type-C interfaces | ●3 front rows/2 rear rows | ●3 front rows/2 rear rows | ●3 front rows/2 rear rows |
| Lighting Configuration | |||
| Low beam light source | ●LED | ●LED | ●LED |
| high beam light source | ●LED | ●LED | ●LED |
| Delayed turn off of headlights | ● | ● | ● |
| Car interior ambient lighting | ○31 colors | ●31 colors | ○31 colors |
| Glass/Rear View Mirror | |||
| Front/rear electric windows | Front●/rear● | Front●/rear● | Front●/rear● |
| One-touch window lifting function | ●Whole car | ●Whole car | ●Whole car |
| Window anti-pinch function | ● | ● | ● |

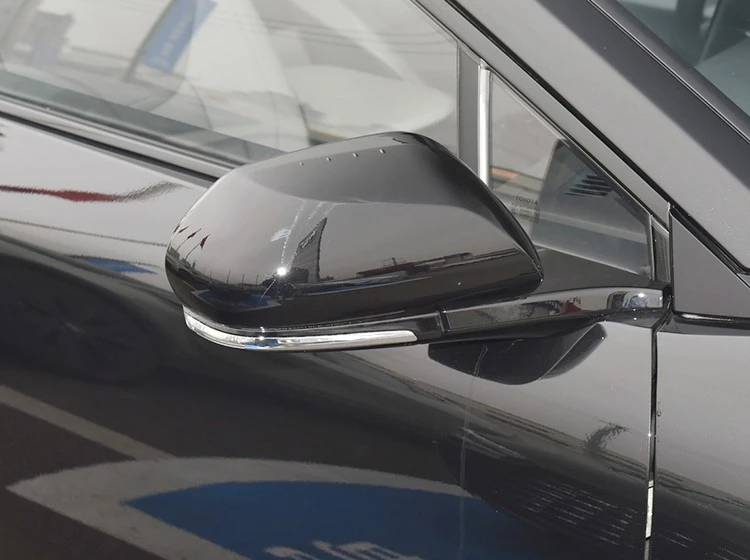

| Exterior rearview mirror function | ●Electric folding ●Rearview mirror heating ●Electric adjustment |
●Electric folding ●Rearview mirror heating ●Electric adjustment |
●Electric folding ●Rearview mirror heating ●Electric adjustment |
| Car vanity mirror | ●Main driver ●Co-pilot |
●Main driver ●Co-pilot |
●Main driver ●Co-pilot |
