Haval H5 is equipped with a 2.0T gasoline engine. The nameplate shows that the engine has a maximum power of 160kW (224Ps) and the gearbox is 8AT. In addition, there will be a 2.0T diesel engine version with a maximum power of 122kW (166PS).

As a hardcore SUV, the new Haval H5 is equipped with an electronically controlled part-time four-wheel drive system, and the drive mode can be switched by pressing a button. In addition, an Eaton differential lock on the rear axle will also be provided, possibly as an option. The fuel tank has a capacity of 80L, which is sufficient.

If the Haval H5 is regarded as the standard of a tool truck, the interior is very exquisite, equipped with LCD instruments and a large central control screen, and the center console also uses a variety of materials with different textures. The overall configuration is complete and the price/performance ratio is very high.


Three-Spoke Steering Wheel
The steering wheel is wrapped in leather, and the leather feels delicate to the touch, but the steering wheel is still an old problem to hold. The 3 and 9 o'clock positions are too wide, and the shape is not enough for the hand.
Instrument Screen
The LCD instrument panel looks very high-end at first glance, but if you look a little closer, you can find that only the middle is a color display screen, and the rest has a display texture similar to that of an electronic watch.


Central Control Screen
The initial experience of the Haval H5 central control screen has been good. It is fully functional and has panoramic image and virtual image functions, which will be very useful for narrow parking and off-roading. However, the electronic handbrake and automatic parking are integrated into the screen, which is not as convenient as physical buttons.
Air Conditioning Control Buttons
Below the central control screen are physical buttons for manual air conditioning and four-wheel drive control. The buttons are large in size, have long key travel, and have clear feedback, making them easy to operate with gloves.


Gear Shift Lever
The shift lever that controls the 8AT gearbox has a stylish and modern shape, which enhances the overall fashion sense of the car. In addition to its visual appearance, the functionality of the gear lever is top-notch, providing smooth gear changes for a comfortable and enjoyable driving experience.
Front Seats
The actual photos of the new Haval H5 seats are wrapped in fine leather and stitched. The seats are wide and the padding is very soft. There is a clear sinking feeling when you sit on them, and the riding comfort is good.


Rear Space
Naturally, there is no need to worry about legroom due to the long wheelbase. Keep the front seats still. A 190cm experiencer has more than 2 punches on the legs in the back seat, but only 3 fingers on the head. In addition, the rear seat cushion is long enough and provides sufficient thigh support.
Hidden Storage
Open the rear seat cushion of Haval H5, and a triangle and tool bag are placed underneath. Space can be made available for storage compartments under the trunk floor. By the way, the rear seat belt buckle can be hidden, so that it does not touch the buttocks of the person next to you, which is very user-friendly.


Panoramic Skylight
With such a large body size, it must be equipped with a sunroof. The opening length is 350mm, the width is 705mm, and the light transmission length is 1140mm. The light transmission area is quite large and it is very practical.
Oversized Trunk
Thanks to the square shape and large body size, the trunk is neat inside and has a strong loading capacity, but there are only a few anchor points inside and no power supply.

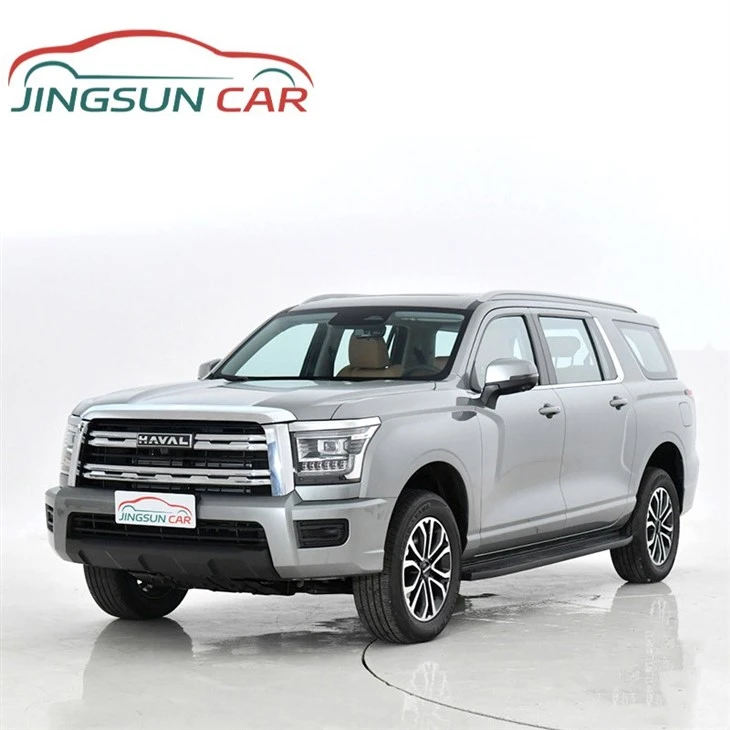

The front face design has a very strong American pickup truck flavor, which is rough and tough, reminding me of the Ford F-150 or Toyota Tundra. The width of the car is only about 1.9 meters. For such a large car, it feels a bit narrow when looking at the actual car.

The Haval H5 has suddenly transformed from a hard-core compact SUV back then into this big guy in front of you, with a length of 5190mm and a wheelbase of 3140mm. The luggage rack is also long and straight, with an actual measured length of 2.48 meters. There is a lot of room for use. How you want to use it depends entirely on the needs of the car owner. The material is metal.

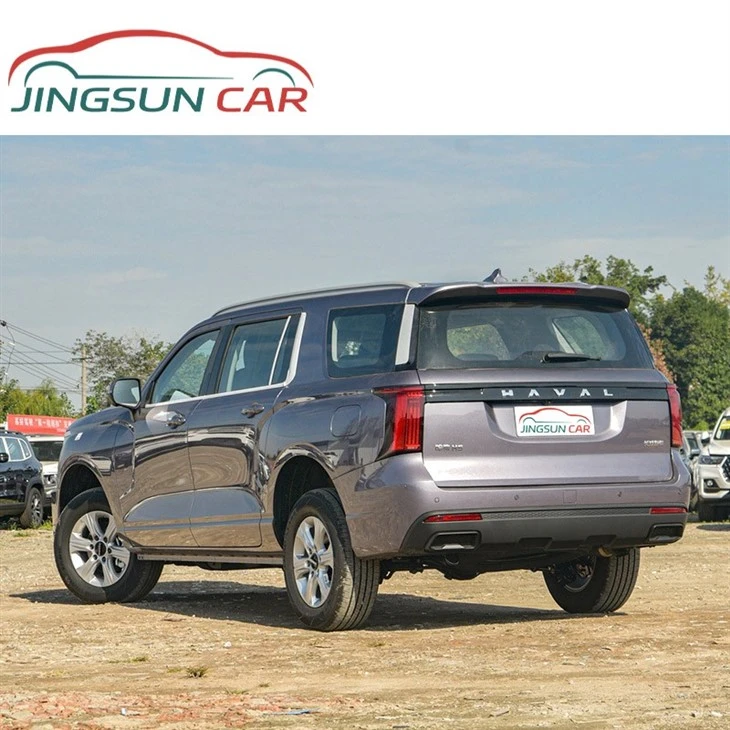

The rear shape of the car is very square, and there is no sign of slipping back. Moreover, the new Haval H5 will most likely only be available in a five-seat version. The trunk loading capacity must be super strong, which we will talk about later.

After the new Haval H5 was launched, the price was set at less than US$22,000. With its powerful off-road configuration, large size and reputation as a hard-core SUV made by Great Wall, it has become a hot-selling vehicle in this price range.

Product Details




















| ● Standard configuration ○ Optional -- None |
Haval H5 2023 2.0T automatic four-wheel drive LinkedIn gasoline | Haval H5 2023 2.0T automatic two-wheel drive pioneer gasoline | Haval H5 2023 2.0T automatic four-wheel drive pioneer diesel | Haval H5 2023 2.0T manual four-wheel drive returns customized version diesel |
| Basic Parameters | ||||
| Manufacturer | Great Wall Motors | Great Wall Motors | Great Wall Motors | Great Wall Motors |
| Level | Large SUV | Large SUV | Large SUV | Large SUV |
| Energy type | Gasoline | Gasoline | Diesel | Diesel |
| Environmental protection standards | National VI | National VI | National VI | National VI |
| Time to market | 2023.08 | 2023.08 | 2023.08 | 2023.08 |
| Maximum power(kw) | 165 | 165 | 122 | 122 |
| Maximum torque(N-m) | 380 | 385 | 400 | 360 |
| Engine | 2.0T 224 horsepower L4 | 2.0T 224 horsepower L4 | 2.0T 166 horsepower L4 | 2.0T 166 horsepower L4 |
| Gearbox | 8 gears, hand-in-one | 8 gears, hand-in-one | 8 gears, hand-in-one | 6-speed manual |
| Length*Width*Height (mm) | 5190*1905*1835 | 5190*1905*1835 | 5190*1905*1835 | 5190*1905*1835 |
| Body structure | 5-door, 5-seater SUV | 5-door, 5-seater SUV | 5-door, 5-seater SUV | 5-door, 5-seater SUV |
| Maximum speed (km/h) | 170 | 170 | 165 | 165 |
| WLTC comprehensive fuel consumption (L/100km) | 10.3 | 9.6 | 9 | 8.8 |
| Vehicle warranty | Three years or 100,000 kilometers | Three years or 100,000 kilometers | Three years or 100,000 kilometers | Three years or 100,000 kilometers |
| Car Body | ||||
| Wheelbase(mm) | 3140 | 3140 | 3140 | 3140 |
| Front wheelbase (mm) | 1596 | 1574 | 1574 | 1574 |
| Rear wheelbase (mm) | 1596 | 1574 | 1574 | 1574 |
| Body structure | SUV | SUV | SUV | SUV |
| Car door opening method | Swing door | Swing door | Swing door | Swing door |
| Fuel tank volume (L) | 80 | 80 | 78 | 78 |
| Curb weight (kg) | 2120 | 2020 | 2155 | 2145 |
| Engine | ||||
| Engine model | GW4C20B | GW4C20B | GW4D20M | GW4D20M |
| Displacement (mL) | 1967 | 1967 | 1996 | 1996 |
| Displacement(L) | 2.0 | 2.0 | 2.0 | 2.0 |
| Intake form | Turbocharged | Turbocharged | Turbocharged | Turbocharged |
| Engine layout | Vertical | Vertical | Vertical | Vertical |
| Cylinder arrangement | L | L | L | L |
| Number of cylinders | 4 | 4 | 4 | 4 |
| Air Supply | DOHC | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 224 | 224 | 166 | 166 |
| Maximum power(kW) | 165 | 165 | 122 | 122 |
| Maximum torque(N-m) | 380 | 385 | 400 | 360 |
| Maximum torque speed (rpm) | 1800-3600 | 1800-3600 | 1400-2600 | 1400-3000 |
| Maximum net power (kW) | 160 | 160 | 120 | 120 |
| Fuel grade | 92# | 92# | 92# | 92# |
| Chassis/Wheels | ||||
| Drive mode | Front four-wheel drive | Front four-wheel drive | Front four-wheel drive | Front four-wheel drive |
| Four-wheel drive | Time-sharing four-wheel drive | -- | Time-sharing four-wheel drive | Time-sharing four-wheel drive |
| Front suspension type | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension |
| Rear suspension type | Five-link integral bridge type non-independent suspension | Five-link integral bridge type non-independent suspension | Five-link integral bridge type non-independent suspension | Five-link integral bridge type non-independent suspension |
| Parking brake type | Electronic parking | Electronic parking | Electronic parking | Electronic parking |
| Front tire specifications | 245/60 R18 | 245/65 R17 | 245/65 R17 | 245/65 R17 |
| Rear tire specifications | 245/60 R18 | 245/65 R17 | 245/65 R17 | 245/65 R17 |
| Spare tire specifications | Not full size | Not full size | Not full size | Not full size |
| Active/Passive safety | ||||
| Main/passenger seat airbag | Main●/deputy● | Main●/deputy● | Main●/deputy● | Main●/deputy● |
| Front/rear side airbags | Front●/rear-- | Front--/rear-- | Front○/rear-- | Front--/rear-- |
| Tire pressure monitoring function | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display |
| Seat belt not fastened reminder | ●Front row | ●Front row | ●Front row | ●Front row |
| ABS anti-lock | ● | ● | ● | ● |
| Lane Departure Warning System | ○ | -- | ○ | -- |
| Lane centering | -- | -- | ○ | -- |
| Road traffic sign recognition | ○ | -- | ○ | -- |
| Active braking/active safety system | ○ | -- | ○ | -- |
| Auxiliary/Control Configuration | ||||
| Front/rear parking radar | Front--/rear● | Front--/rear● | Front--/rear● | Front--/rear● |
| Driving assistance images | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image |
| Reverse side warning system | ○ | ○ | ||
| cruise system | ○Adaptive cruise ●Fixed speed cruise |
●Fixed speed cruise | ○Adaptive cruise ●Fixed speed cruise |
●Fixed speed cruise |
| Appearance/Anti-Theft | ||||
| Rim material | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy |
| Roof rack | ● | ● | ● | ● |
| Engine electronic anti-theft | ● | ● | ● | ● |
| Key type | ●Remote control key ●Mechanical key |
●Remote control key ●Mechanical key |
●Remote control key ●Mechanical key |
●Remote control key ●Mechanical key |
| Keyless start system | ● | -- | ○ | -- |
| APP remote control | ●Door control ●Vehicle positioning/car search ●Vehicle start |
-- | ○Door control ○Vehicle positioning/car search ○Vehicle start |
-- |
| Internal Configuration | ||||
| Steering wheel material | ●Leather | ●Leather | ●Leather | ●Leather |
| Steering wheel position adjustment | ●Manual up and down adjustment | ●Manual up and down adjustment | ●Manual up and down adjustment | ●Manual up and down adjustment |
| Multifunction steering wheel | ● | ● | ● | ● |
| steering wheel gear shift | ● | ● | ● | ● |
| LCD instrument size | ●3.5 inches | ●3.5 inches | ●3.5 inches | ●3.5 inches |
| Seat Configuration | ||||
| Seat material | ●Imitation leather | ●Imitation leather | ●Imitation leather | ●Imitation leather |
| Main/passenger seat electric adjustment | Main●/deputy-- | Main--/deputy-- | Main○/deputy-- | Main--/deputy-- |
| Front seat functions | ○Heating | -- | ○Heating | -- |
| Second row seat adjustment | ●Backrest adjustment | ●Backrest adjustment | ●Backrest adjustment | ●Backrest adjustment |
| Multimedia Configuration | ||||
| Central control color screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen |
| Central control screen size | ●12.3 inches | ●12.3 inches | ●12.3 inches | ●12.3 inches |
| GPS navigation system | ● | ● | ● | ● |
| Navigation traffic information display | ● | ● | ● | ● |
| Bluetooth/car phone | ● | ● | ● | ● |
| Mobile phone interconnection/mapping | ● | ● | ● | ● |
| Voice recognition control system | ●Multimedia system ●Navigation ●Phone ○Skylight ○Seat heating ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Air conditioner |
●Multimedia system ●Navigation ●Phone ○Skylight ○Seat heating ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Air conditioner |
| Multimedia/charging interface | ●USB | ●USB | ●USB | ●USB |
| Number of USB/Type-C interfaces | ●2 front rows/1 rear row | ●2 front rows/1 rear row | ●2 front rows/1 rear row | ●2 front rows/1 rear row |
| Lighting Configuration | ||||
| Low beam light source | ●LED | ●LED | ●LED | ●LED |
| high beam light source | ●LED | ●LED | ●LED | ●LED |
| Delayed turn off of headlights | ● | ● | ● | ● |
| Glass/Rear View Mirror | ||||
| Front/rear electric windows | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| One-touch window lifting function | ●Driver's seat | -- | ○Driver's seat | -- |
| Window anti-pinch function | ● | -- | ○ | -- |
| Exterior rearview mirror function | ●Electric adjustment | ●Electric adjustment | ●Electric adjustment | ●Electric adjustment |
| Car vanity mirror | ●Co-pilot | -- | -- | -- |
