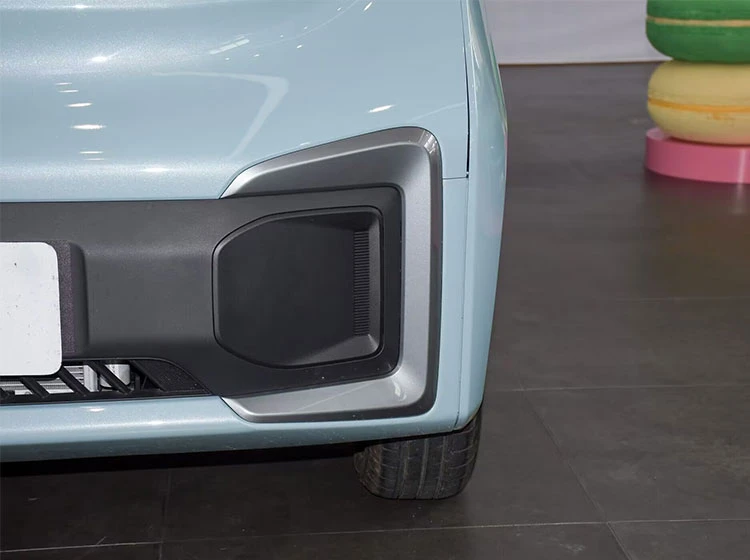

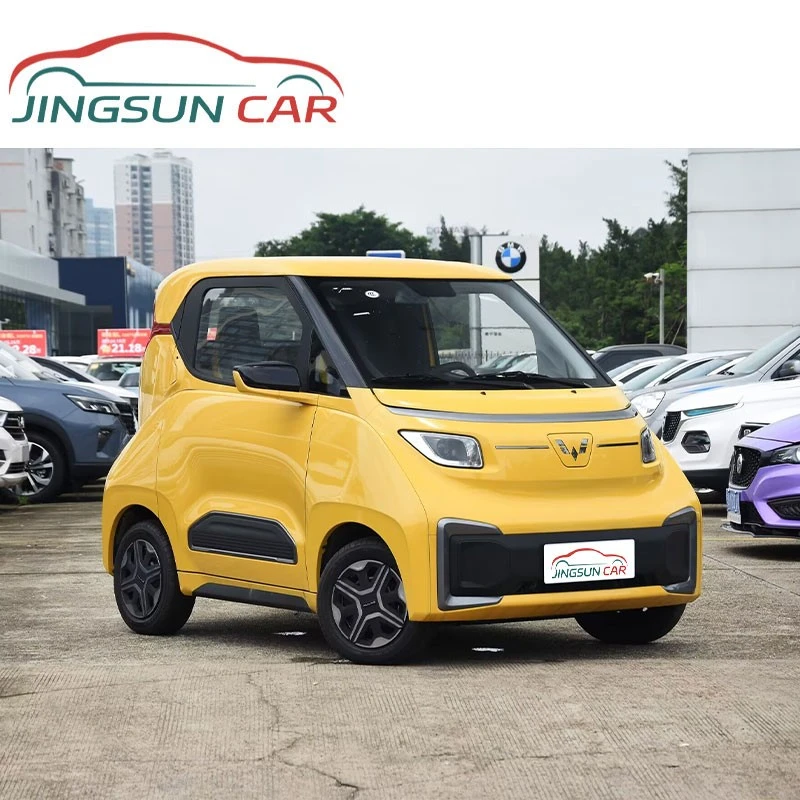

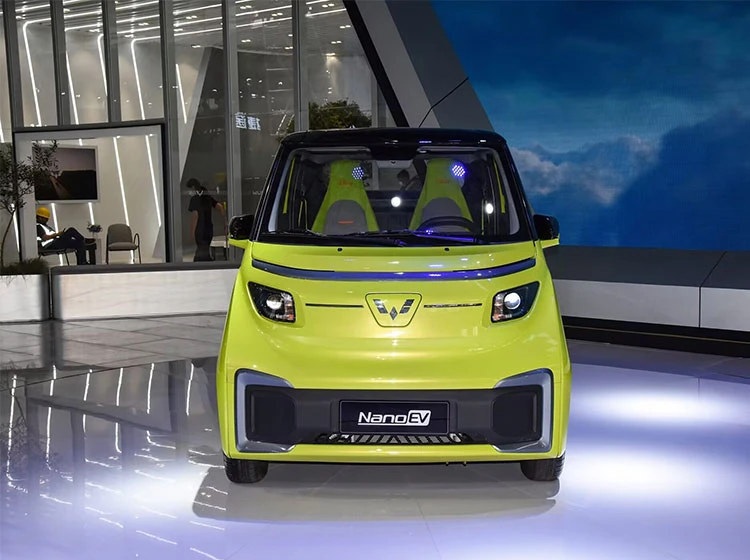

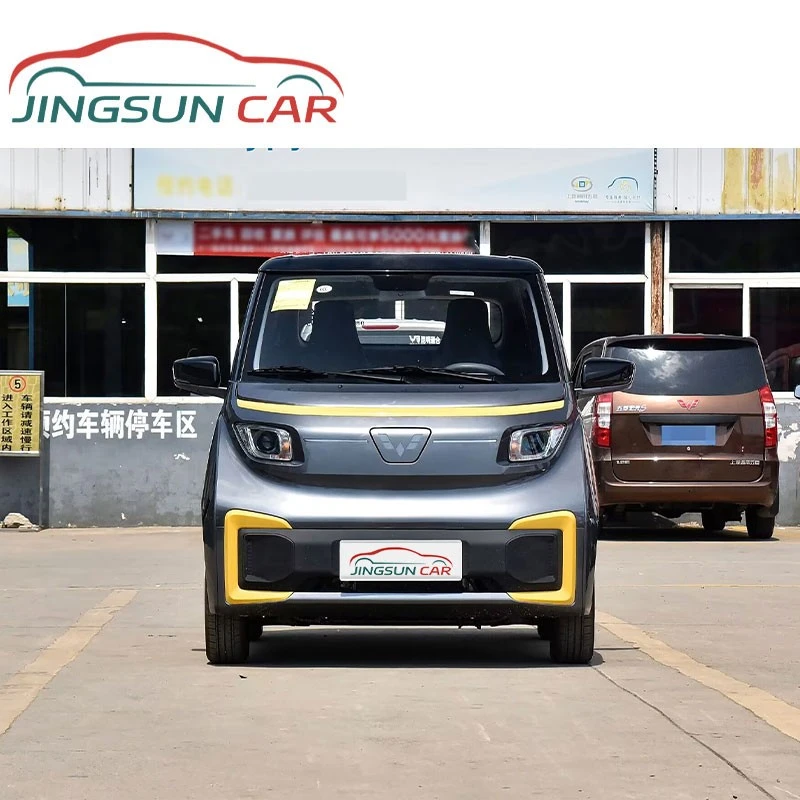

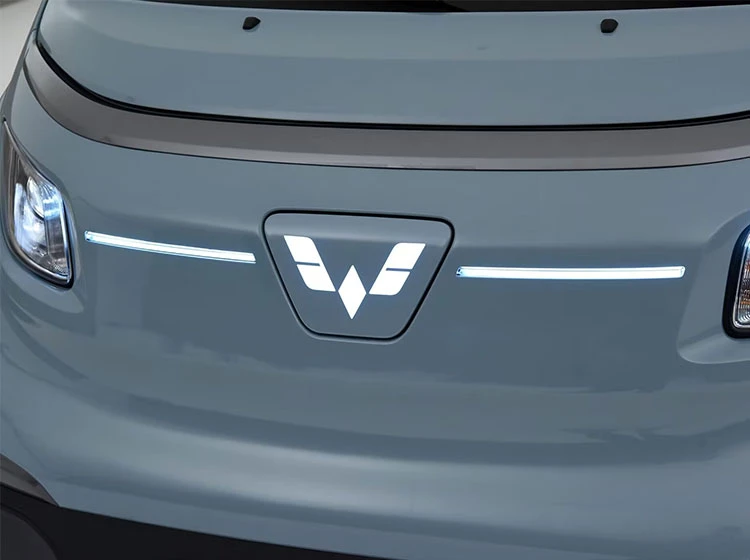

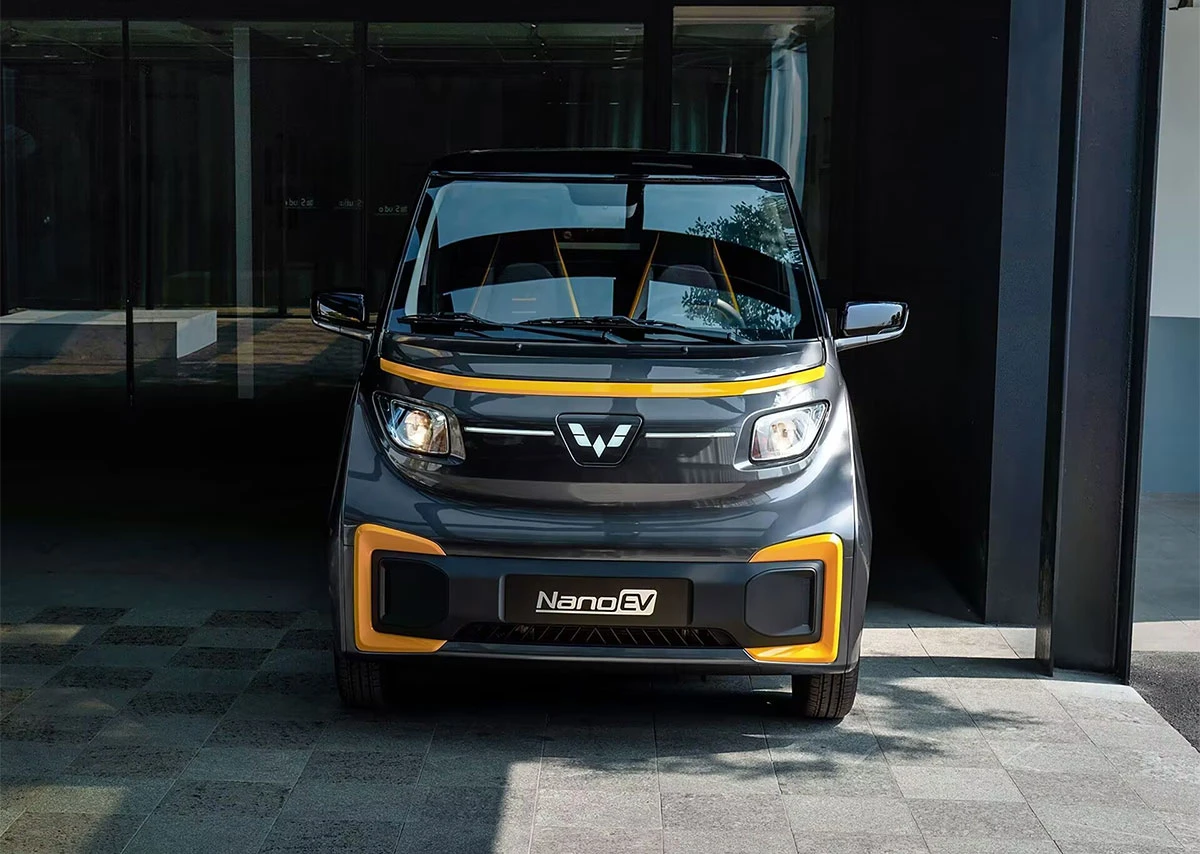

Front Design
The front of the Wuling Nano EV looks very cute. In addition to a few yellow trims, there is also a black through-type trim at the bottom, which is quite large. Combined with its small size, it will definitely attract a lot of attention when walking on the street.

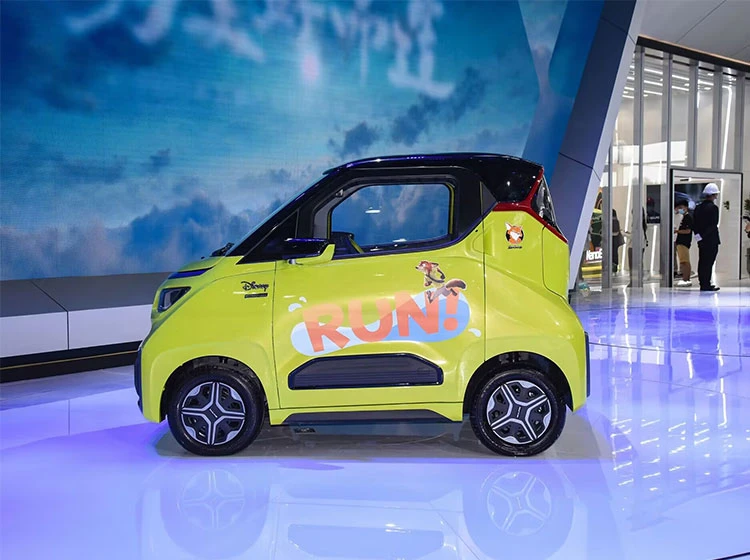

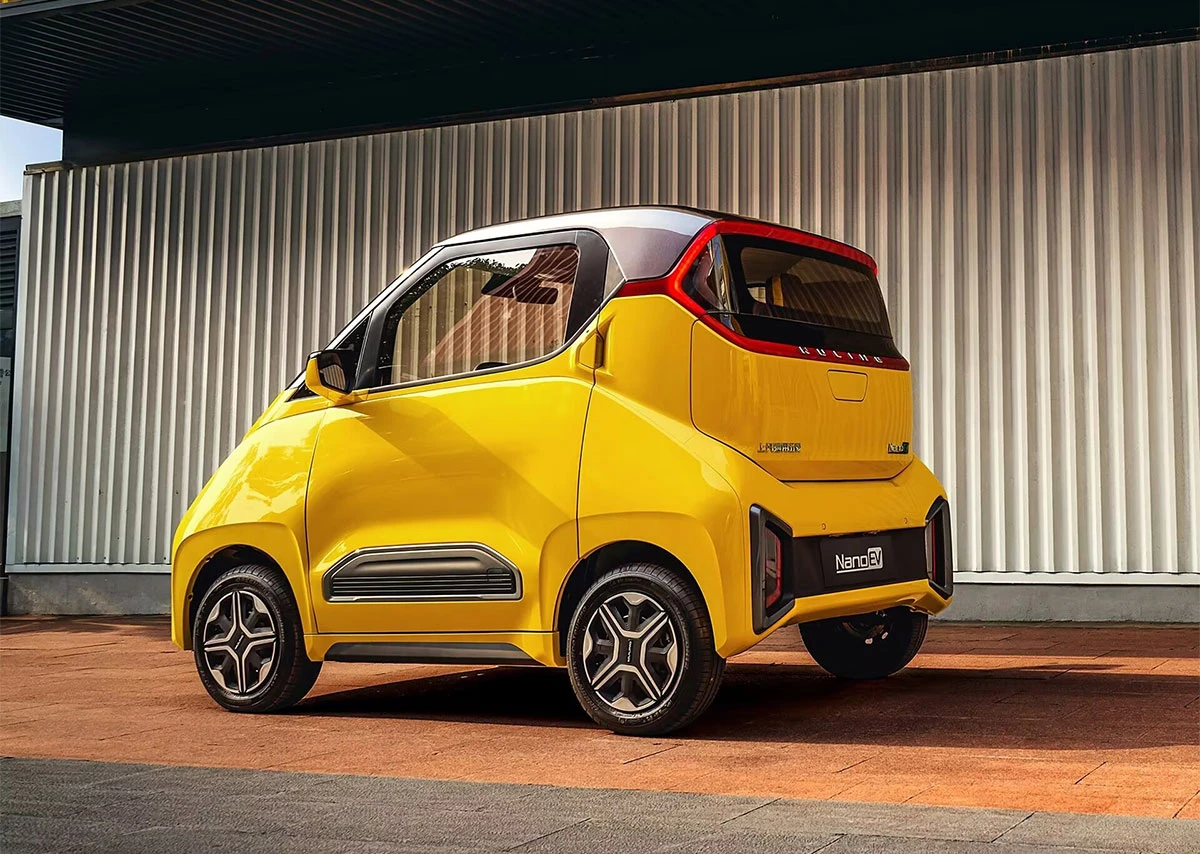

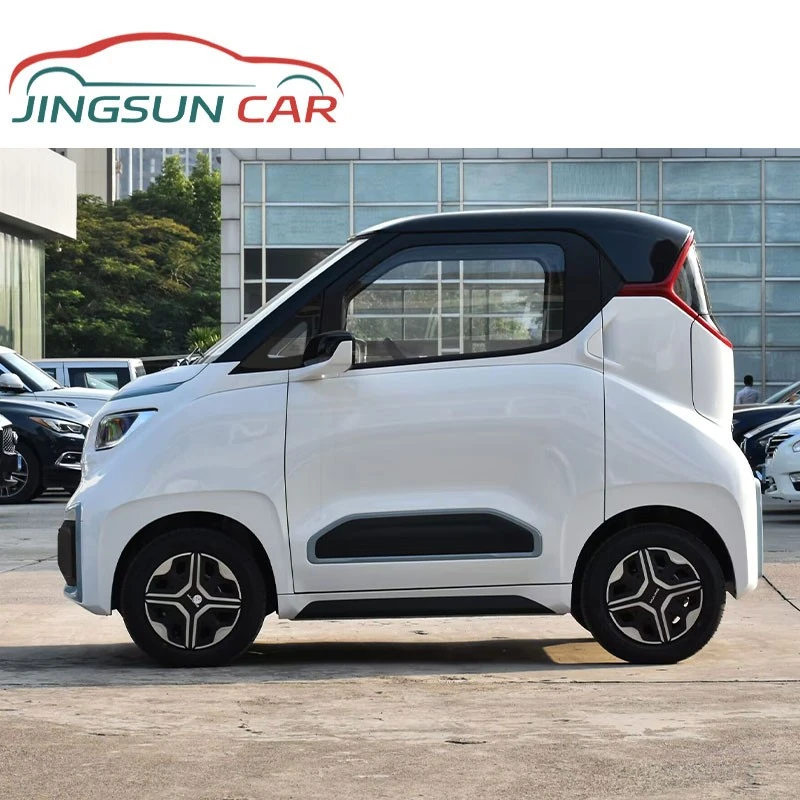

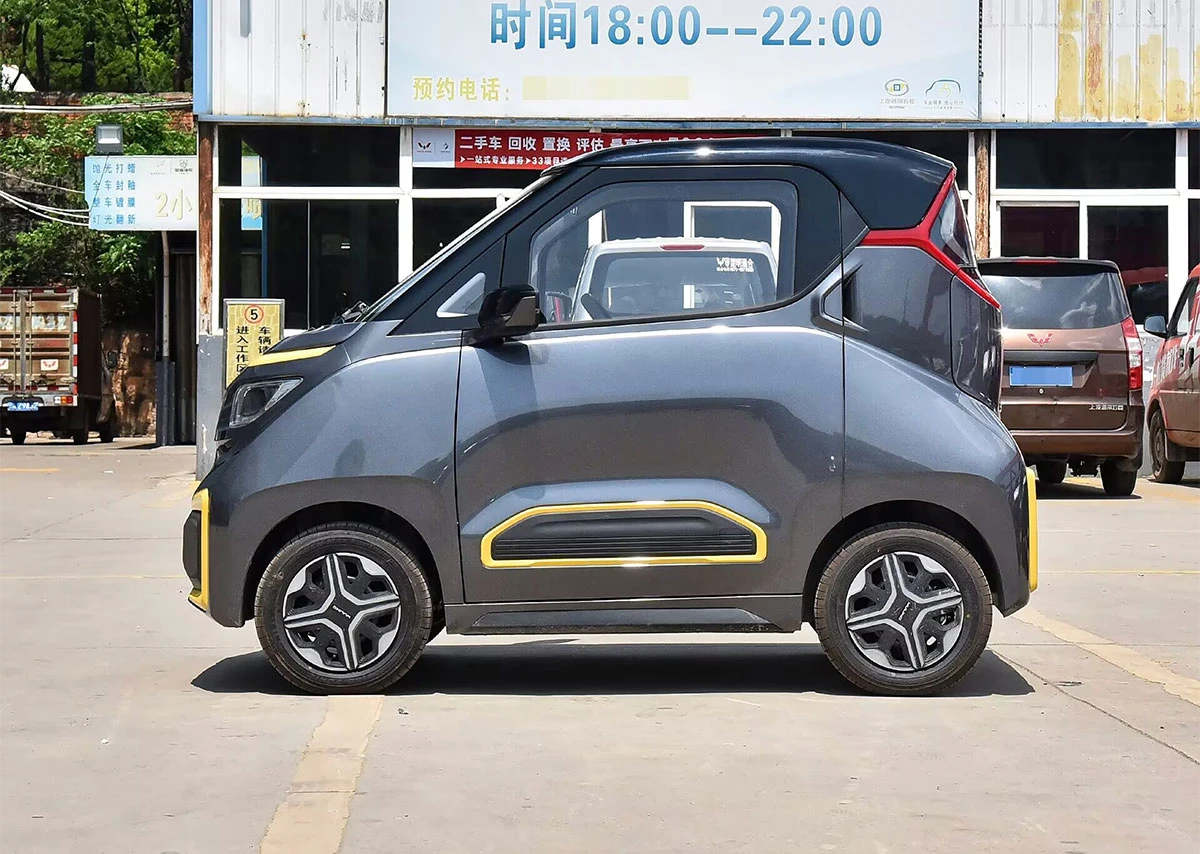

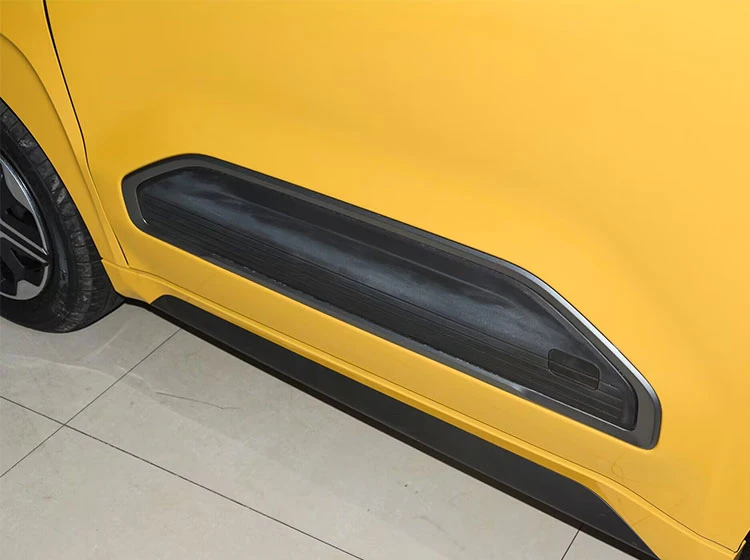

Side Of The Car
Although it is small, there are many details on the side, and the bottom has the same two-tone trim as the front. Because it is a two-seater car, the size of Wuling Nano EV is very small, and the length is even several dozen centimeters smaller than Hongguang MINIEV. It really looks like a big toy.

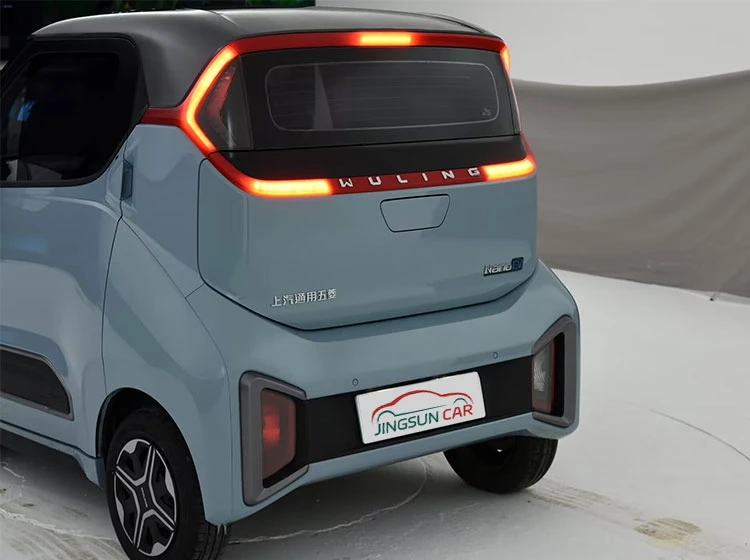

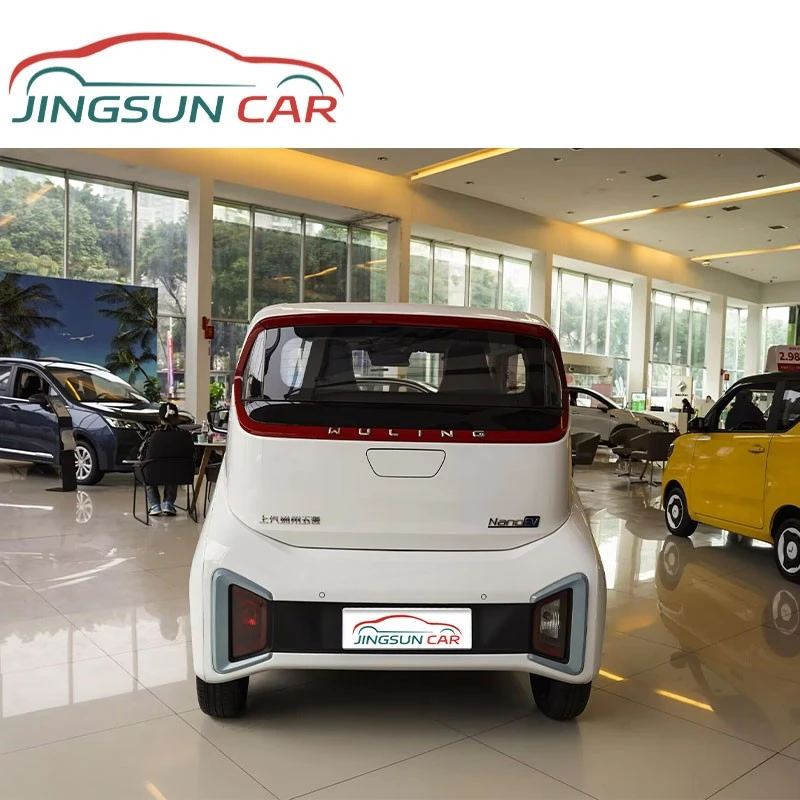

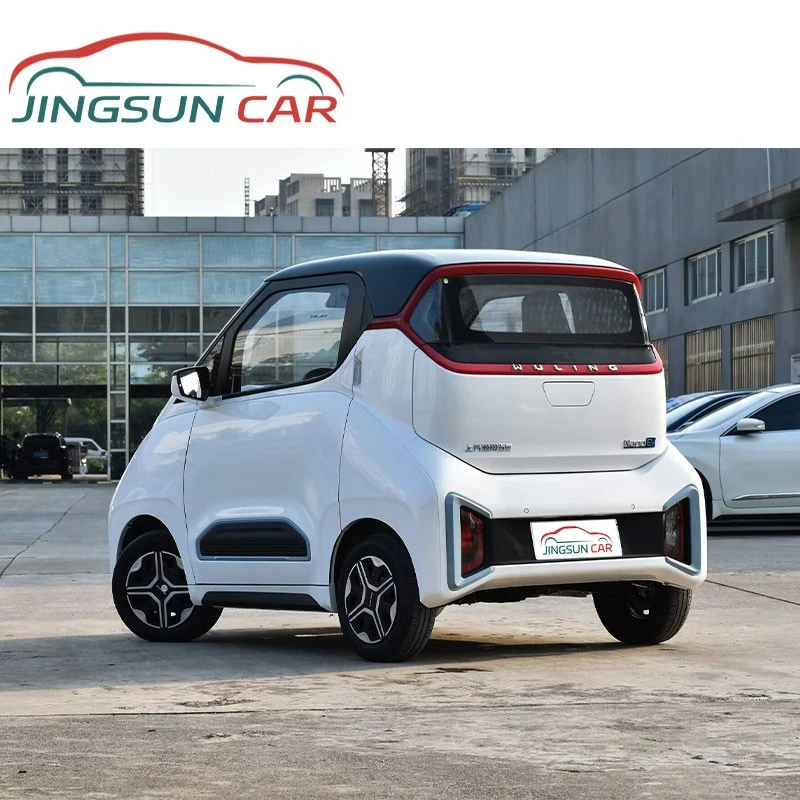

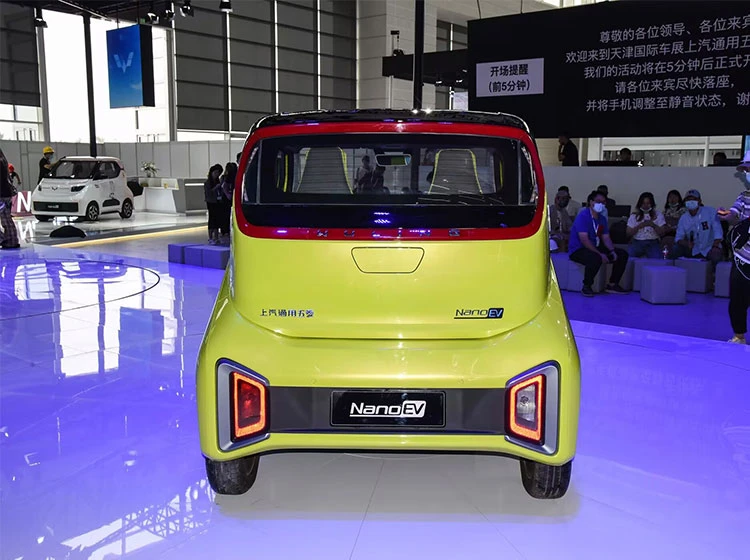

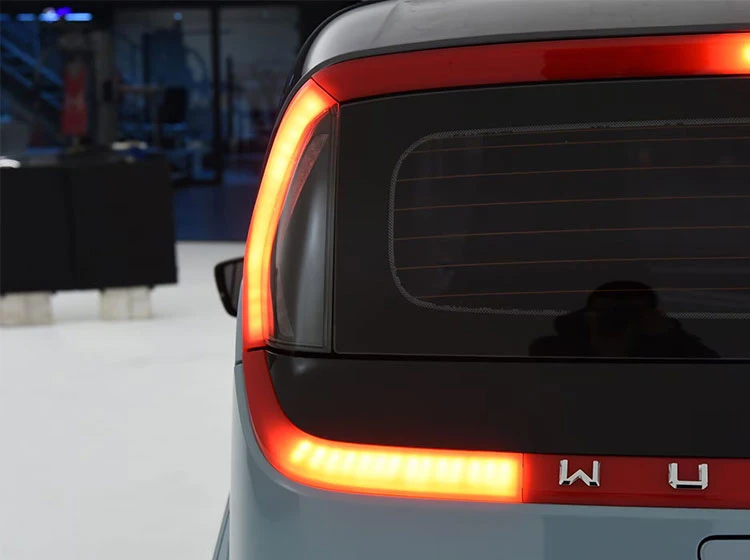

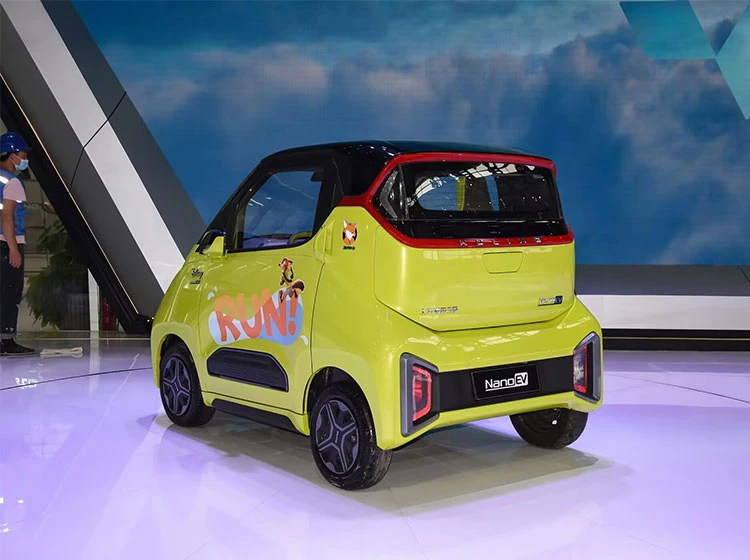

Tail Design
The taillights are placed on the rear surround, with a bold shape. The middle position is equipped with a two-point reversing radar, which is sufficient for this small car.

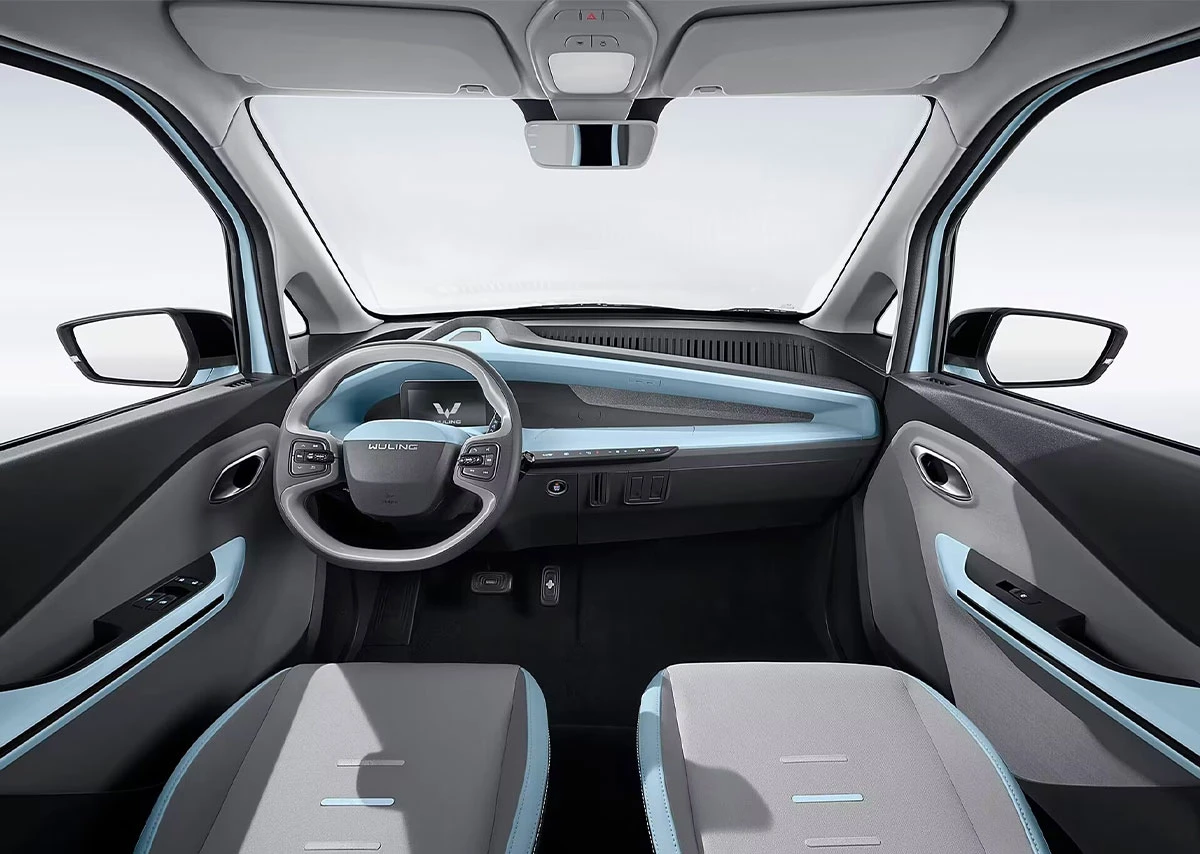

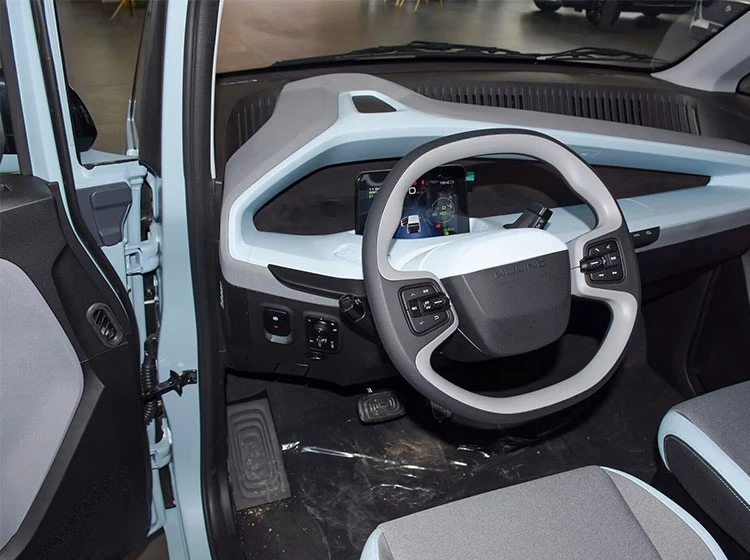

Simple Interior
The interior of Wuling NanoEV is very simple, with only a full LCD instrument panel at the main driving position, and no central control screen in the middle.
Functional Steering Wheel
The steering wheel is made of plastic and supports two-way adjustment, with multi-function buttons on both sides, which can switch driving modes and make and receive calls. However, in order to save costs, the brand logo in the middle is not equipped with chrome material.

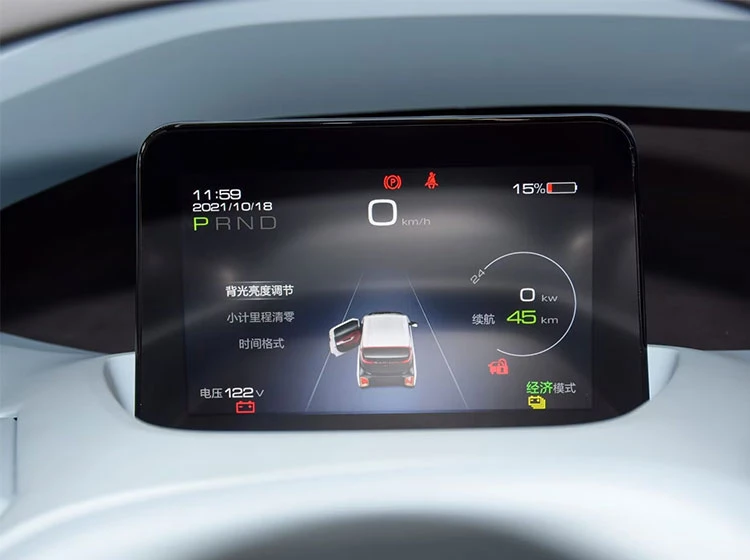

Instrument Panel
Although Wuling NanoEV is equipped with a full LCD instrument panel, it has relatively few functions and the display is not clear enough.

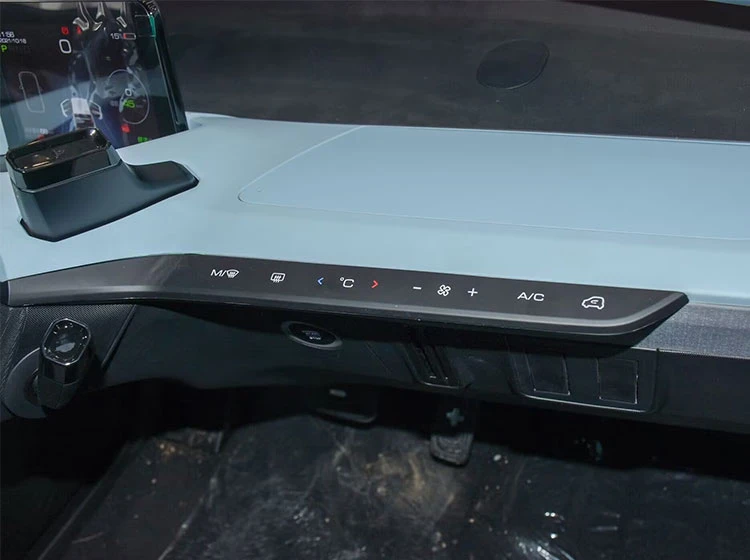

Air Conditioning Control
The touch-sensitive air conditioning buttons are placed on the edge of the center console, which is clear, easy to understand and operate.

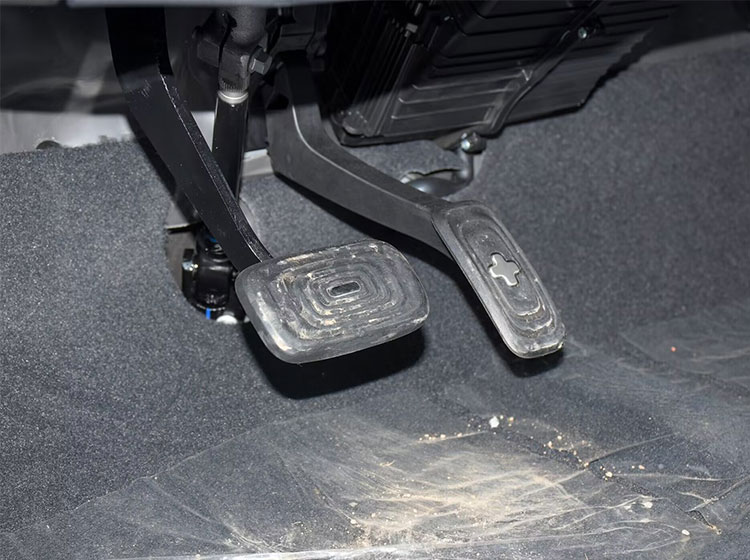

Pedals
The accelerator/brake pedals adopt the plus and minus sign design commonly used in electric vehicles, which is quite interesting.

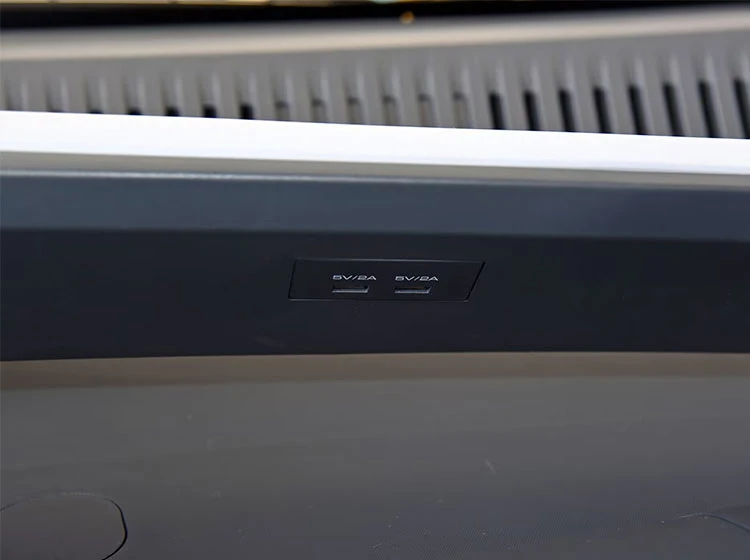

USB Power Supply
Even the lowest-end model is equipped with two 5V/2A USB power supplies to meet daily use needs.

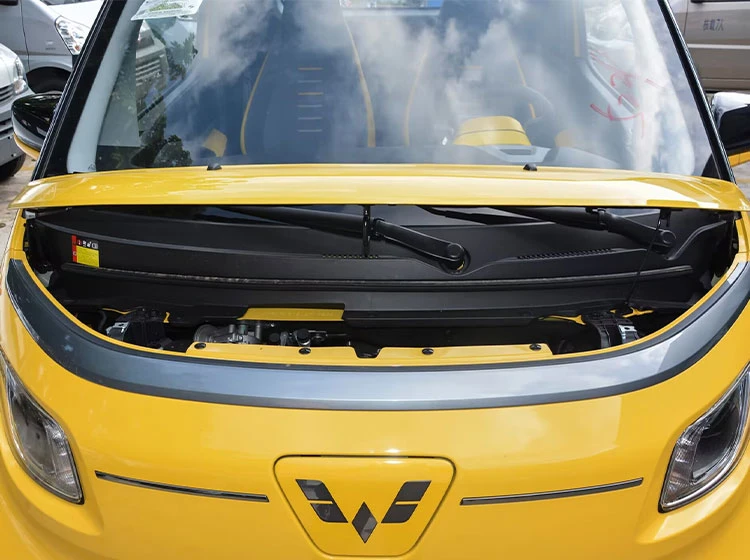

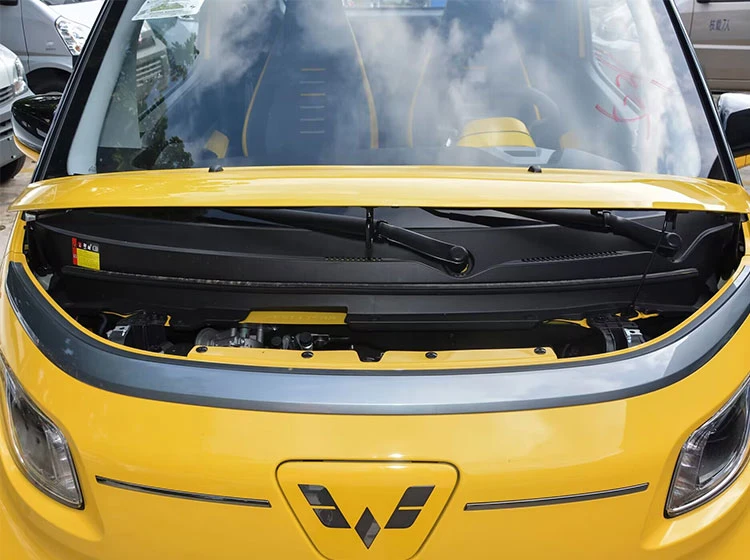

Drive Motor
Wuling Nano EV is equipped with a permanent magnet synchronous drive motor with a maximum power of 24 kilowatts, a maximum torque of 85N·m, and a comprehensive operating range of 305km.

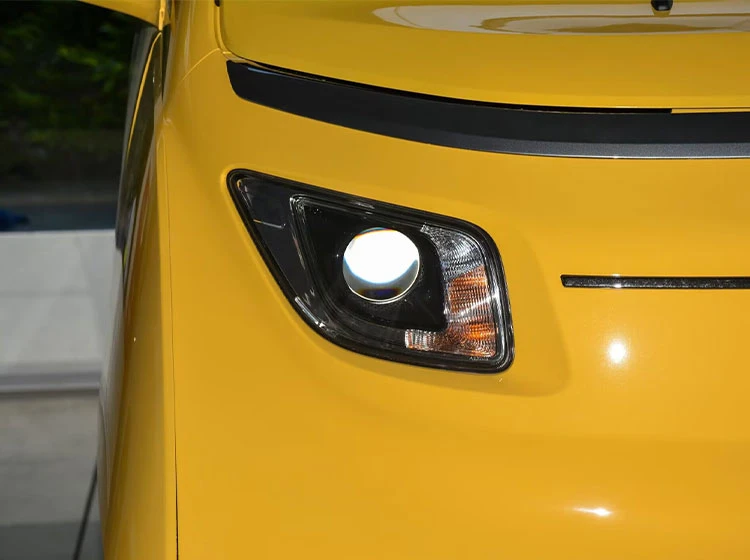

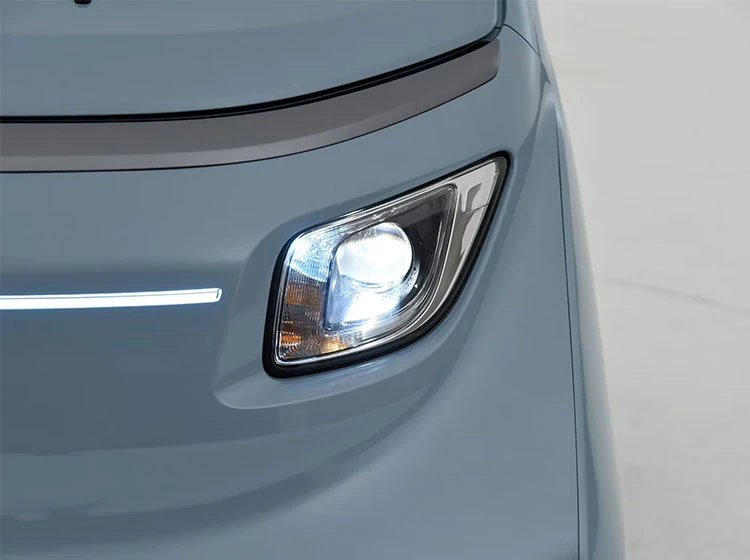

Headlights
Wuling Nano EV comes standard with halogen headlights, which support height adjustment and delayed shutdown functions, but LED daytime running lights are not available.

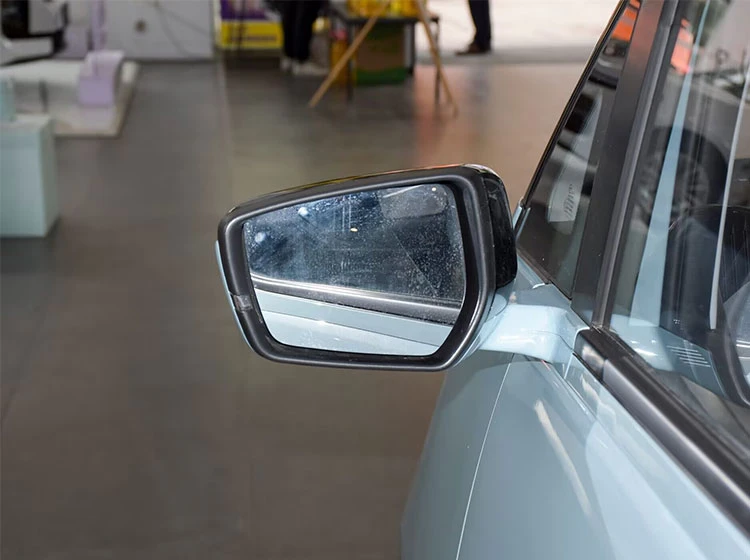

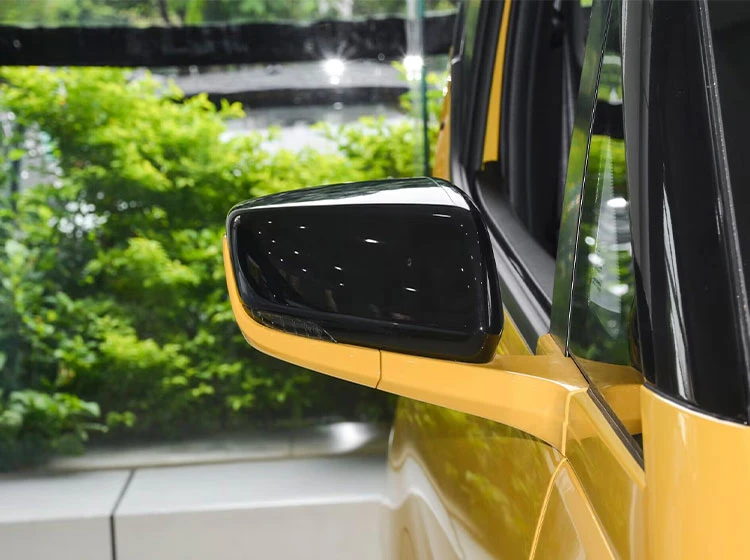

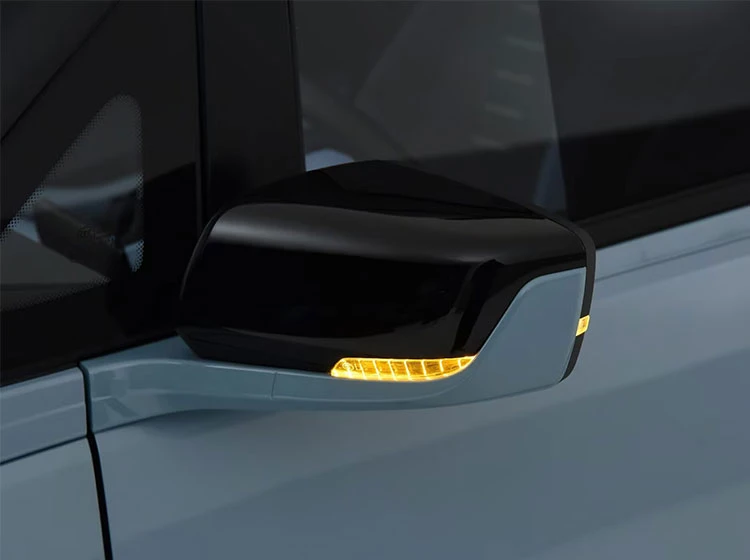

Exterior Rearview Mirrors
The exterior rearview mirrors are also very sharp in shape, using a two-tone treatment. The lowest-end model has no functions, but the Aiqing model is equipped with electric adjustment, folding and automatic folding when the car is locked.

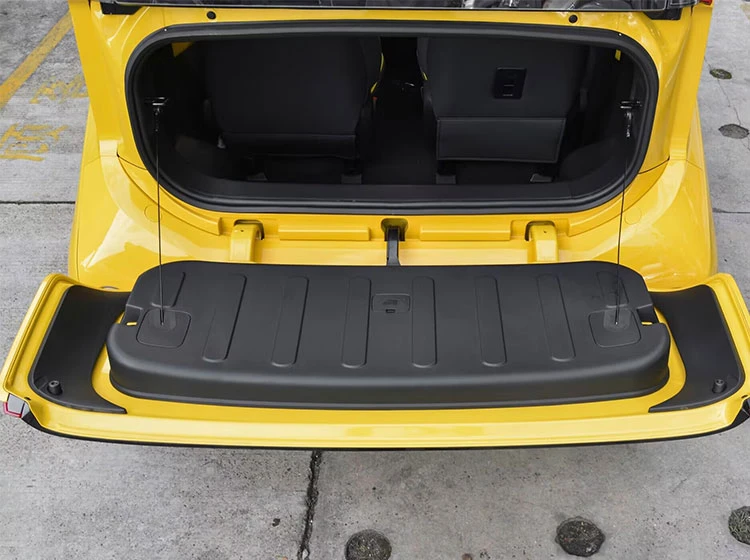

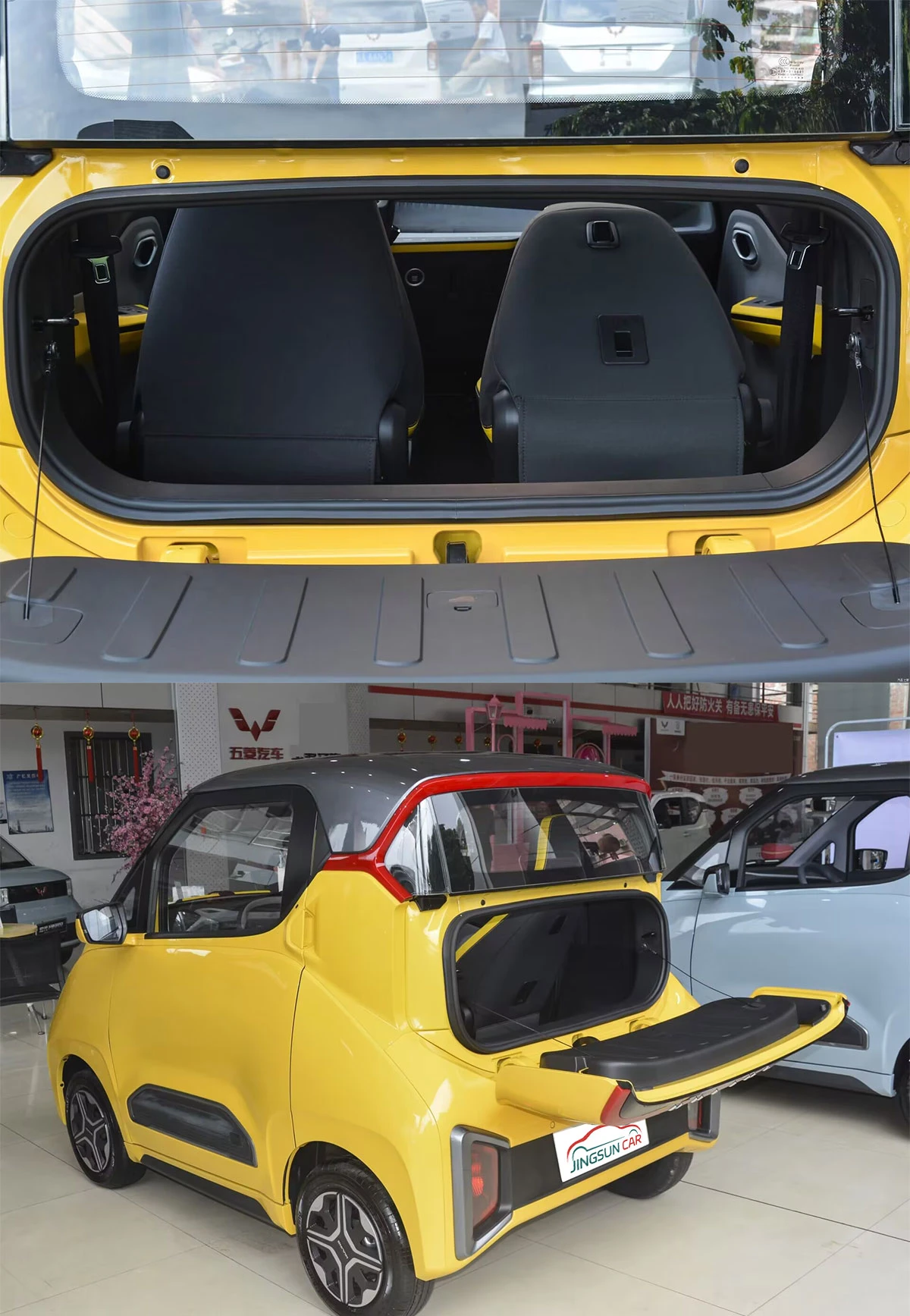

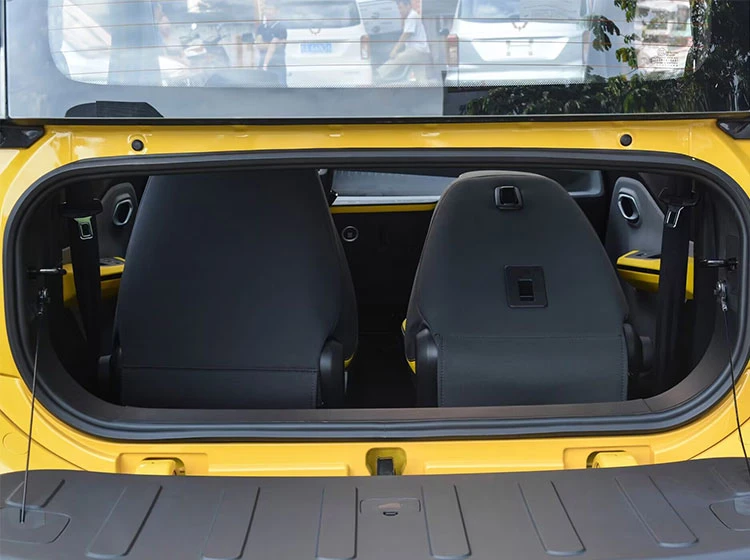

Trunk
The trunk is opened by flipping down, and the internal space is relatively small, so it can only hold 2-3 backpacks on a daily basis.
Product Details
| ● Standard configuration ○ Optional -- None |
Wuling Nano EV 2022 Lexiang Edition | Wuling Nano EV 2021 Passion Edition | Wuling Nano EV 2021 Model Disney Zootopia Nick Model | Wuling Nano EV 2021 Model Disney Zootopia Judy Model |
| Basic Parameters | ||||
| Manufacturer | SAIC-GM-Wuling | SAIC-GM-Wuling | SAIC-GM-Wuling | SAIC-GM-Wuling |
| Level | Mini car | Mini car | Mini car | Mini car |
| Energy type | Pure electric | Pure electric | Pure electric | Pure electric |
| Time to market | 2022.10 | 2021.11 | 2021.09 | 2021.09 |
| Fast charging time (h) | 4.5 | 4.5 | 4.5 | 4.5 |
| Slow charging time (h) | 13.5 | 13.5 | 13.5 | 13.5 |
| Maximum power(kw) | 24 | 24 | 24 | 24 |
| Maximum torque(N-m) | 85 | 85 | 85 | 85 |
| Motor(Ps) | 33 | 33 | 33 | 33 |
| Gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Length*Width*Height (mm) | 2497*1526*1616 | 2497*1526*1616 | 2497*1526*1616 | 2497*1526*1616 |
| Body structure | 3-door 2-seater hatchback | 3-door 2-seater hatchback | 3-door 2-seater hatchback | 3-door 2-seater hatchback |
| Maximum speed (km/h) | 100 | 100 | 100 | 100 |
| Official 0-100km/h acceleration (s) | -- | -- | -- | -- |
| Vehicle warranty | 3 years or 100,000 km | 3 years or 100,000 km | 3 years or 100,000 km | 3 years or 100,000 km |
| Car Body | ||||
| Wheelbase(mm) | 1600 | 1600 | 1600 | 1600 |
| Front wheelbase (mm) | 1310 | 1310 | 1310 | 1310 |
| Rear wheelbase (mm) | 1320 | 1320 | 1320 | 1320 |
| Body structure | Hatchback | Hatchback | Hatchback | Hatchback |
| Car door opening method | Swing door | Swing door | Swing door | Swing door |
| Trunk volume (L) | -- | -- | -- | -- |
| Curb weight (kg) | 860 | 860 | 860 | 860 |
| Electric Motor | ||||
| Motor type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 24 | 24 | 24 | 24 |
| Total torque of motor (N·m) | 85 | 85 | 85 | 85 |
| Number of drive motors | Single motor | Single motor | Single motor | Single motor |
| Motor layout | Front | Front | Front | Front |
| Battery Type | Lithium iron phosphate battery | Lithium iron phosphate battery | Lithium iron phosphate battery | Lithium iron phosphate battery |
| Battery brand | Suzhou Keyi | Suzhou Keyi | Suzhou Keyi | Suzhou Keyi |
| Battery cooling method | -- | -- | -- | -- |
| NEDC pure electric cruising range (km) | 305 | 305 | 305 | 305 |
| Battery energy (kWh) | 28 | 28 | 28 | 28 |
| Chassis/Wheels | ||||
| Drive mode | Front front drive | Front front drive | Front front drive | Front front drive |
| Four-wheel drive | -- | -- | -- | -- |
| Front suspension type | McPherson independent suspension | McPherson independent suspension | McPherson independent suspension | McPherson independent suspension |
| Rear suspension type | Single trailing arm independent suspension | Single trailing arm independent suspension | Single trailing arm independent suspension | Single trailing arm independent suspension |
| Parking brake type | Footbrake | Electronic parking | Electronic parking | Electronic parking |
| Rim material | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy |

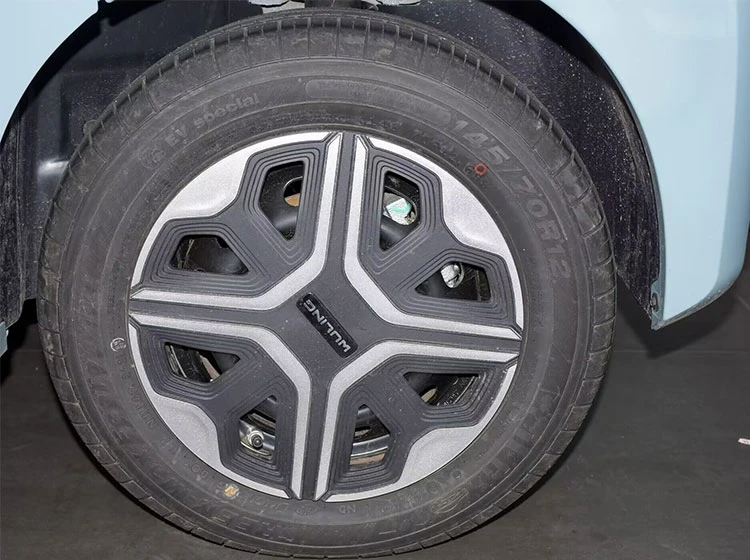

| Front tire specifications | 145/70 R12 | 145/70 R12 | 145/70 R12 | 145/70 R12 |
| Rear tire specifications | 145/70 R12 | 145/70 R12 | 145/70 R12 | 145/70 R12 |
| Spare tire specifications | Not full size | Not full size | Not full size | Not full size |
| Active/Passive safety | ||||
| Main/passenger seat airbag | Main●/deputy-- | Main●/deputy-- | Main●/deputy-- | Main●/deputy-- |
| Front/rear side airbags | Front--/rear-- | Front--/rear-- | Front--/rear-- | Front--/rear-- |
| Front/rear head airbags (curtain airbags) | Front--/rear-- | Front--/rear-- | Front--/rear-- | Front--/rear-- |
| Tire pressure monitoring function | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display |
| Seat belt not fastened reminder | -- | -- | -- | -- |
| ABS anti-lock | -- | -- | -- | -- |
| Lane Departure Warning System | -- | -- | -- | -- |
| Active braking/active safety system | -- | -- | -- | -- |
| Reverse side warning system | -- | -- | -- | -- |
| Control Configuration | ||||
| Driving mode switch | ●Sports ●Economy ●Standard/Comfortable |
●Sports ●Economy ●Standard/Comfortable |
●Sports ●Economy ●Standard/Comfortable |
●Sports ●Economy ●Standard/Comfortable |
| Shift pattern | ●Electronic hand-held gear shift | ●Electronic hand-held gear shift | ●Electronic hand-held gear shift | ●Electronic hand-held gear shift |
| automatic parking | -- | -- | -- | -- |
| Variable suspension function | -- | -- | -- | -- |
| Auxiliary/Intelligent Driving | ||||
| cruise system | -- | -- | -- | -- |
| Assisted driving level | -- | -- | -- | -- |
| Lane centering | -- | -- | -- | -- |
| Road traffic sign recognition | -- | -- | -- | -- |
| Automatic parking | -- | -- | -- | -- |
| Driving assistance images | ●Reversing image | ●Reversing image | ●Reversing image | ●Reversing image |
| Front/rear parking radar | Front--/rear● | Front--/rear● | Front--/rear● | Front--/rear● |
| Ultrasonic radar quantity | ●2 | ●2 | ●2 | ●2 |
| Appearance Configuration | ||||
| Skylight type | -- | -- | -- | -- |
| Roof rack | -- | -- | -- | -- |
| Electric spoiler | -- | -- | -- | -- |
| Hidden electric door handle | -- | -- | -- | -- |
| Key type | ●Remote key | ●Remote key | ●Remote key | ●Remote key |
| Keyless start system | ● | ● | ● | ● |
| Electric suction door | -- | -- | -- | -- |
| Electric trunk | -- | -- | -- | -- |
| Induction trunk | -- | -- | -- | -- |
| Internal Configuration | ||||
| HUD heads up digital display | -- | -- | -- | -- |
| Full LCD instrument panel | ● | ● | ● | ● |
| LCD instrument size | ●7 inches | ●7 inches | ●7 inches | ●7 inches |
| Steering wheel material | ●Plastic | ●Plastic | ●Plastic | ●Plastic |
| Steering wheel position adjustment | ●Manual up and down adjustment | ●Manual up and down adjustment | ●Manual up and down adjustment | ●Manual up and down adjustment |
| Multifunction steering wheel | ● | ● | ● | ● |
| steering wheel gear shift | -- | -- | -- | -- |
| Steering wheel heating | -- | -- | -- | -- |
| steering wheel memory | -- | -- | -- | -- |
| Seat Configuration | ||||
| Seat material | ●Fabric | ●Fabric | ●Fabric | ●Fabric |
| Main/passenger seat electric adjustment | Main--/deputy-- | Main--/deputy-- | Main--/deputy-- | Main--/deputy-- |
| Front seat functions | -- | -- | -- | -- |
| Power seat memory function | -- | -- | -- | -- |
| Second row seat adjustment | -- | -- | -- | -- |
| Rear seats fold down | -- | -- | -- | -- |
| Front/rear center armrest | Front--/rear-- | Front--/rear-- | Front--/rear-- | Front--/rear-- |
| Lighting Configuration | ||||
| Low beam light source | ●Halogen | ●Halogen | ●Halogen | ●Halogen |
| high beam light source | ●Halogen | ●Halogen | ●Halogen | ●Halogen |
| Adaptive high and low beam | -- | -- | -- | -- |
| Headlight height adjustable | ● | ● | ● | ● |
| Delayed turn off of headlights | ● | ● | ● | ● |
| Car interior ambient lighting | -- | -- | -- | -- |
| Glass/Rear View Mirror | ||||
| Exterior rearview mirror function | ● | ● | ● | ● |
| Sensing wiper function | ● | ● | ● | ● |
| Front/rear electric windows | Front●/rear-- | Front●/rear-- | Front●/rear-- | Front●/rear-- |
| One-touch window lifting function | -- | -- | -- | -- |
| Window anti-pinch function | -- | -- | -- | -- |
| Multilayer soundproof glass | -- | -- | -- | -- |
| Car vanity mirror | ●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
| Interior rearview mirror function | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare |
| Intelligent Internet | ||||
| Central control color LCD screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen |
| Central control screen size | -- | -- | -- | -- |
| Passenger entertainment screen | -- | -- | -- | -- |
| Vehicle intelligent system | -- | -- | -- | -- |
| Voice assistant wake word | -- | -- | -- | -- |
| Navigation traffic information display | -- | -- | -- | -- |
| GPS navigation system | -- | -- | -- | -- |
| roadside assistance call | -- | -- | -- | -- |
| Bluetooth/car phone | ● | ● | ● | ● |
| Mobile phone interconnection/mapping | -- | -- | -- | -- |
| Voice recognition control system | ●Multimedia system ●Telephone |
●Multimedia system ●Telephone |
●Multimedia system ●Telephone |
●Multimedia system ●Telephone |
| APP Remote Control | ● Vehicle condition inquiry/diagnosis ● Vehicle location/car search ● Owner services (find charging piles, gas stations, parking lots, etc.) ● Charging management |
● Vehicle condition inquiry/diagnosis ● Vehicle location/car search ● Owner services (find charging piles, gas stations, parking lots, etc.) ● Charging management |
● Vehicle condition inquiry/diagnosis ● Vehicle location/car search ● Owner services (find charging piles, gas stations, parking lots, etc.) ● Charging management |
● Vehicle condition inquiry/diagnosis ● Vehicle location/car search ● Owner services (find charging piles, gas stations, parking lots, etc.) ● Charging management |
| Media Entertainment | ||||
| Multimedia/charging interface | ●USB | ●USB | ●USB | ●USB |
| Number of USB/Type-C interfaces | ●Front row 2 | ●Front row 2 | ●Front row 2 | ●Front row 2 |
| Mobile phone wireless charging function | -- | -- | -- | -- |
| Speaker brand name | -- | -- | -- | -- |
| Number of speakers | ●1 | ●1 | ●1 | ●1 |
| Luggage compartment 12V power interface | -- | -- | -- | -- |
