Products Description

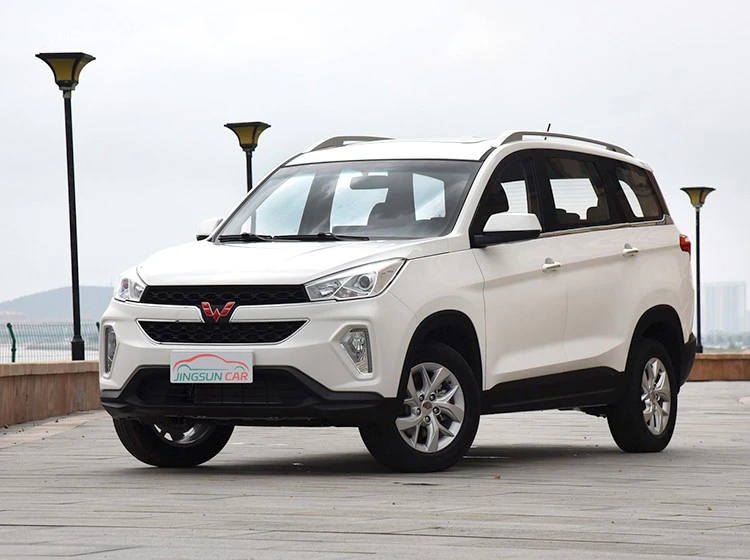

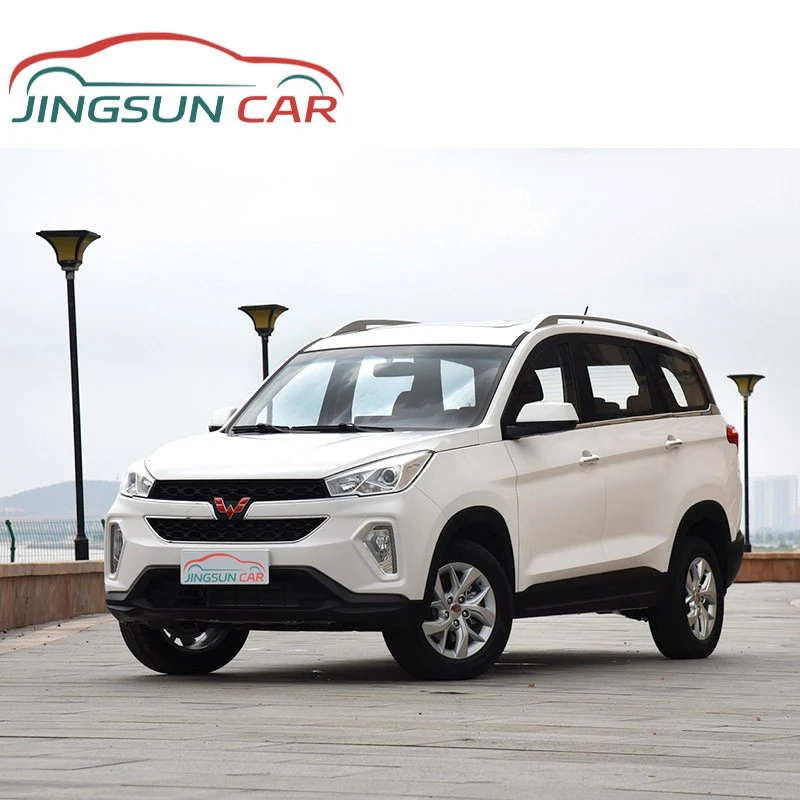

Wuling Hongguang S3 is the first SUV launched by Wuling. For Wuling, which mainly produces minivan products, launching an SUV is undoubtedly an attempt to enter a broader market.

Size Positioning
From the perspective of size, Wuling Hongguang S3 is positioned as a medium-sized SUV, which is also a very popular level in the market. Another point worth mentioning is that it is a 7-seater SUV, which has a competitive advantage from this perspective.
Length: 4655mm
Width: 1735mm
Height: 1780mm (1790mm for high configuration)
Wheelbase: 2800mm

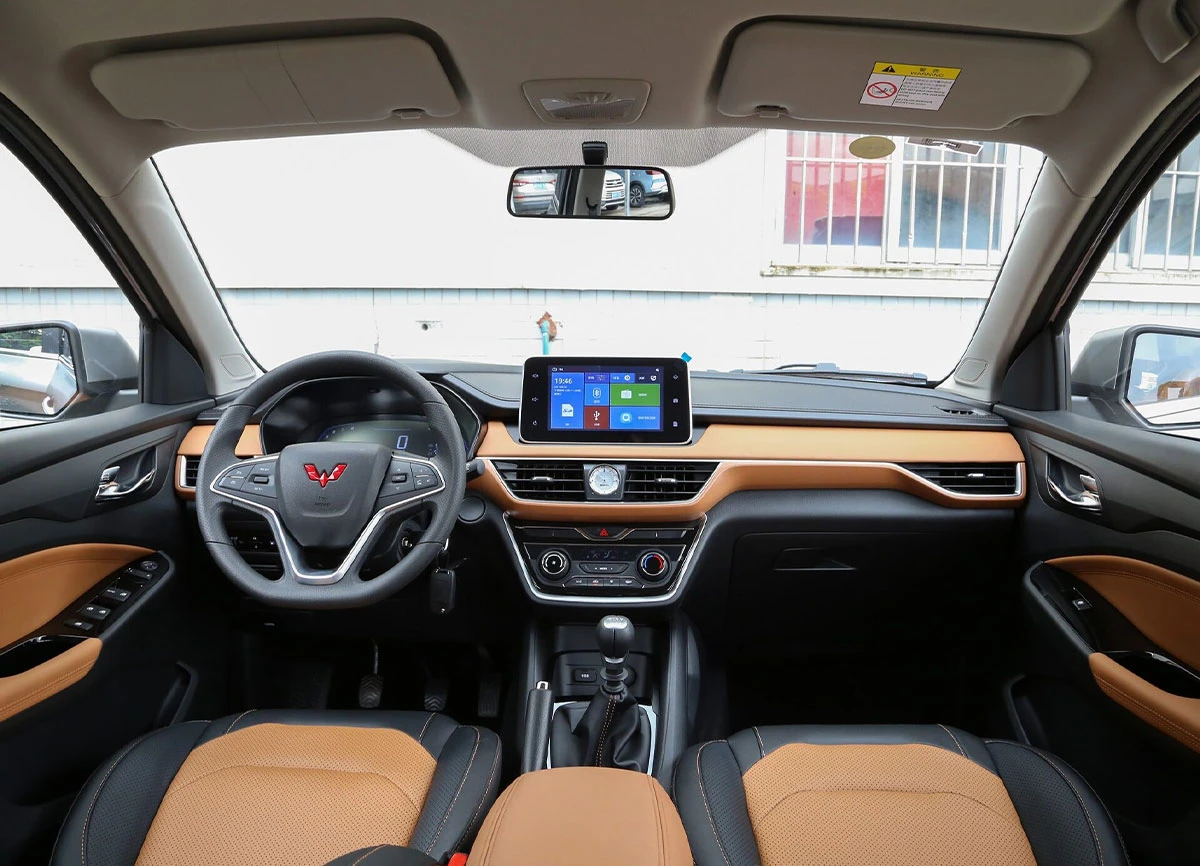

Simple Interior Design
The interior design is simple and clear, and the combination of black and brown enhances the sense of class in the car. The quartz clock below the central control screen is also a good embellishment.

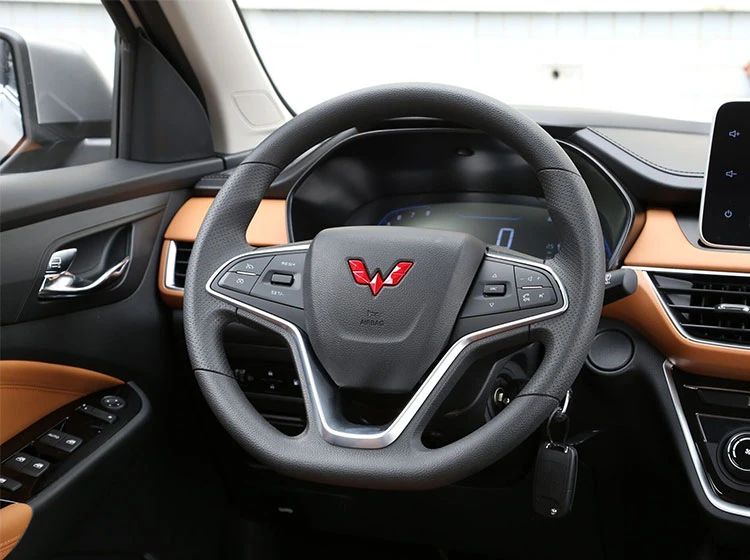

Three-Spoke Steering Wheel
The three-spoke steering wheel adopts a flat-bottom design and is wrapped in soft material. As a top-of-the-line model, it does not use leather material and has average configuration. There are cruise control and multimedia control keys on both sides of the steering wheel, which are convenient to use.

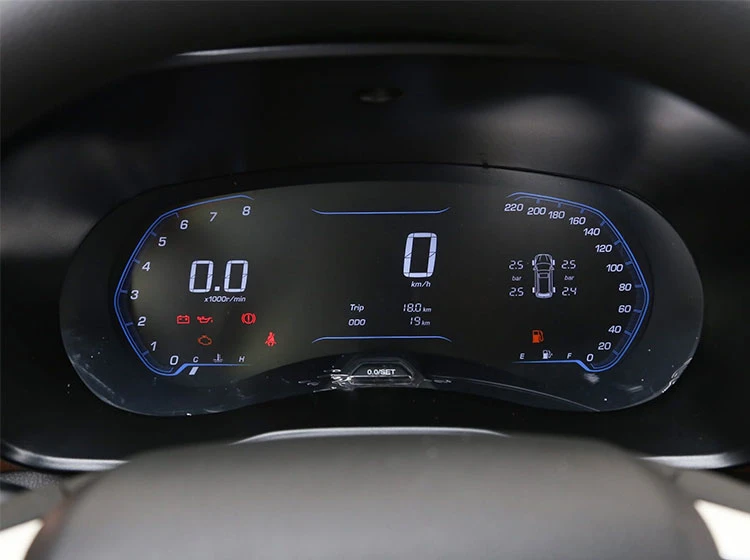

Instrument Screen
The 11-inch electronic instrument panel is a highlight of Wuling Hongguang S3, which enhances the vehicle's sense of technology and makes its style design more youthful. The instrument panel has tire pressure monitoring, which is a very practical safety configuration.

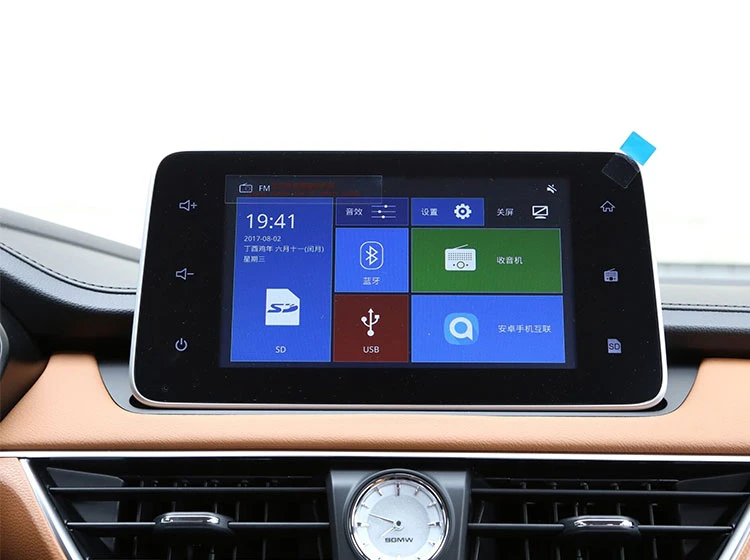

Central Control Screen
More and more new cars now use floating screen designs, and it is not surprising that Hongguang S3 adopts such a design. The central control area is equipped with an 8-inch floating touch screen with common functions such as radio, navigation, mobile phone interconnection (Android system), Bluetooth phone, etc. The operation sensitivity is acceptable and it is relatively convenient to use.

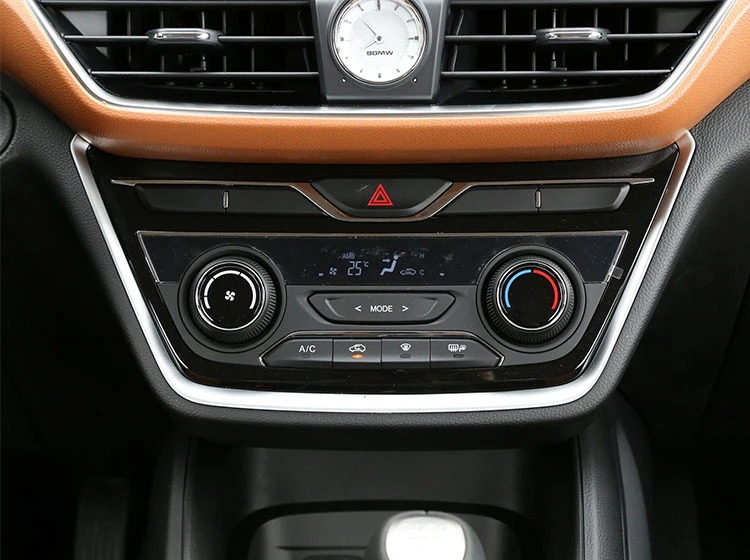

Air Conditioning Control
The air conditioning is controlled by a knob and physical buttons. The knob has light damping, and the gear positions are clear and easy to use. The top-of-the-line model is equipped with a body stability control system to help improve driving safety.

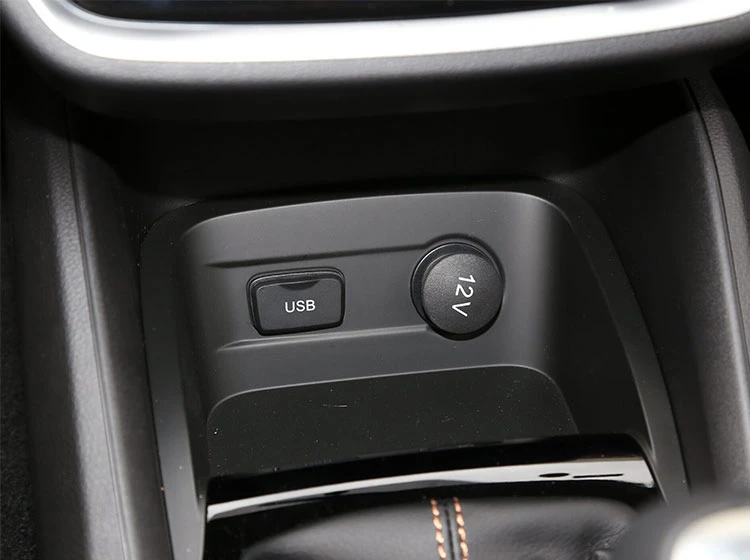

Front Power Supply
The storage slot in front of the gear lever is a bit small, and the phone cannot be placed horizontally in it, so the usage is slightly unchanged. However, it is worth affirming that each row of the vehicle is equipped with a USB port, which is in line with the usage habits of modern people.

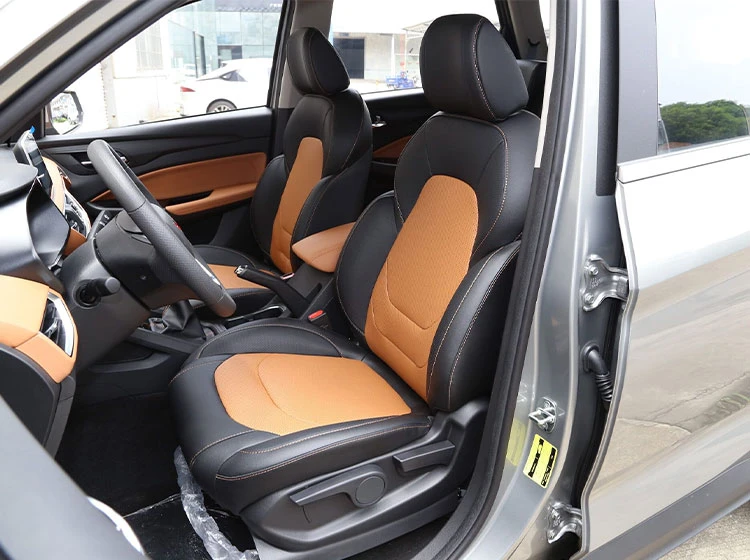

Front Seats
The seats are wrapped in leather and the internal sponge is relatively soft; the main driver's seat supports six-way manual adjustment, and the seats have slight support on both sides, making the sitting feel relatively comfortable.


Seat Layout
The vehicle adopts a 2+2+3 7-seat layout, which is rare in SUVs of the same level. Which layout is more suitable for you depends on your needs. It is relatively convenient to enter and exit the third row of the vehicle, and there is an aisle with a width of about 200mm in the middle.

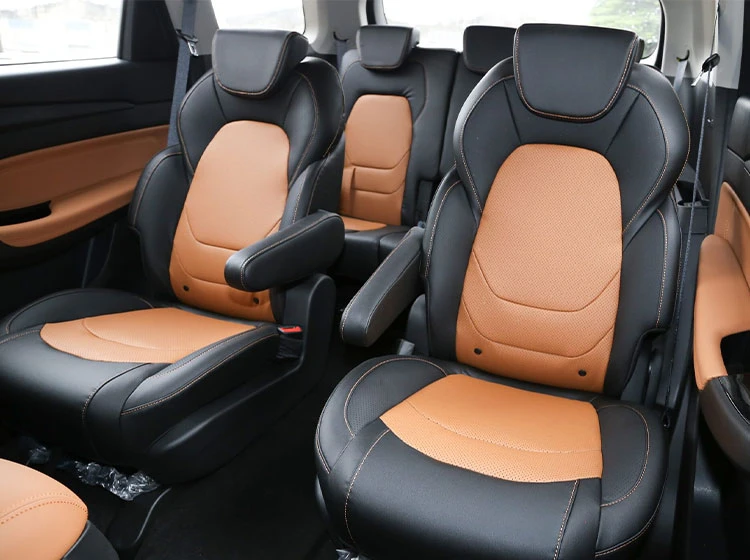

Rear Seats
The second row consists of two independent seats with folding armrests inside to improve riding comfort. The second row seats can slide forward and backward, which makes it easier for rear passengers to allocate riding space more reasonably.

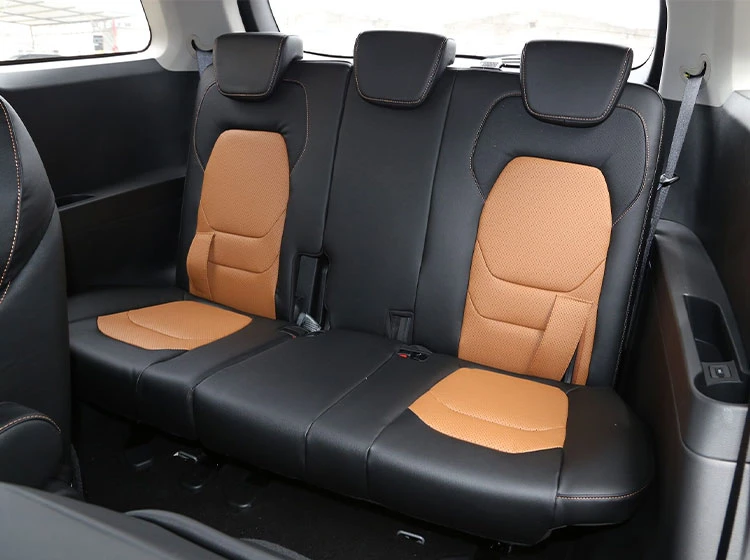

The third row of seats is fully equipped with three-point safety belts and movable headrests, which is worthy of recognition.

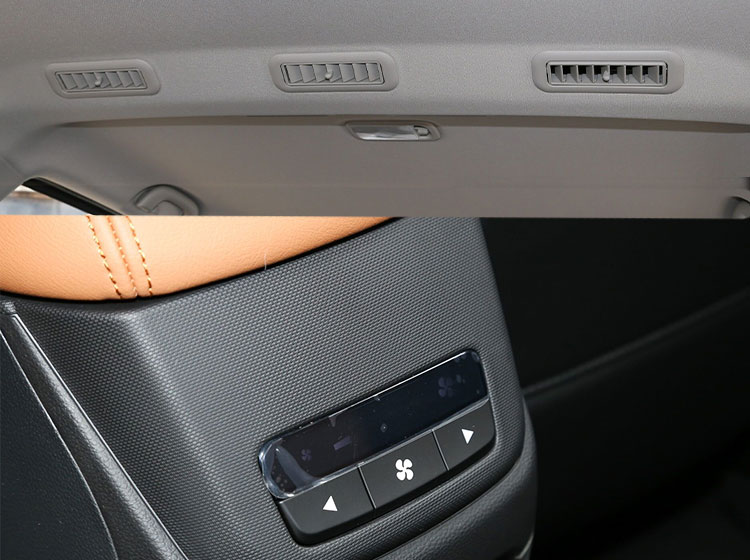

Rear Air Outlet
The rear row of the vehicle has enough air-conditioning outlets to take care of every passenger. The air volume can be adjusted independently, and the comfort level is good.

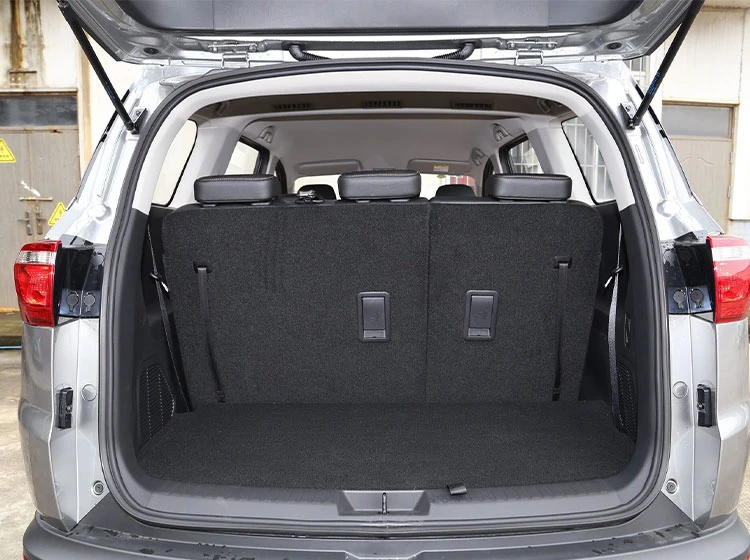

The Trunk
The Hongguang S3's trunk depth is 470mm in normal conditions, which has certain advantages compared to competing models (Fengguang 580 is 390mm, Changan CX70 is 380mm). It is equipped with a folding hook on the right side of the interior, which is more convenient for hanging some items that are easy to spill.

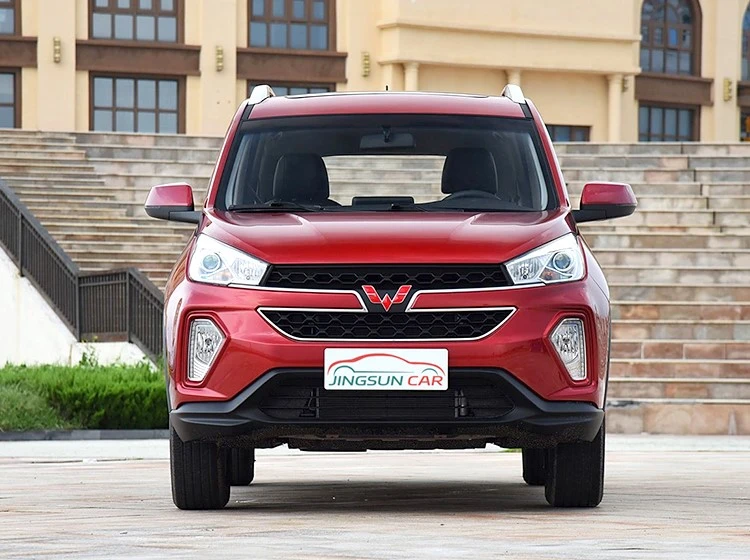

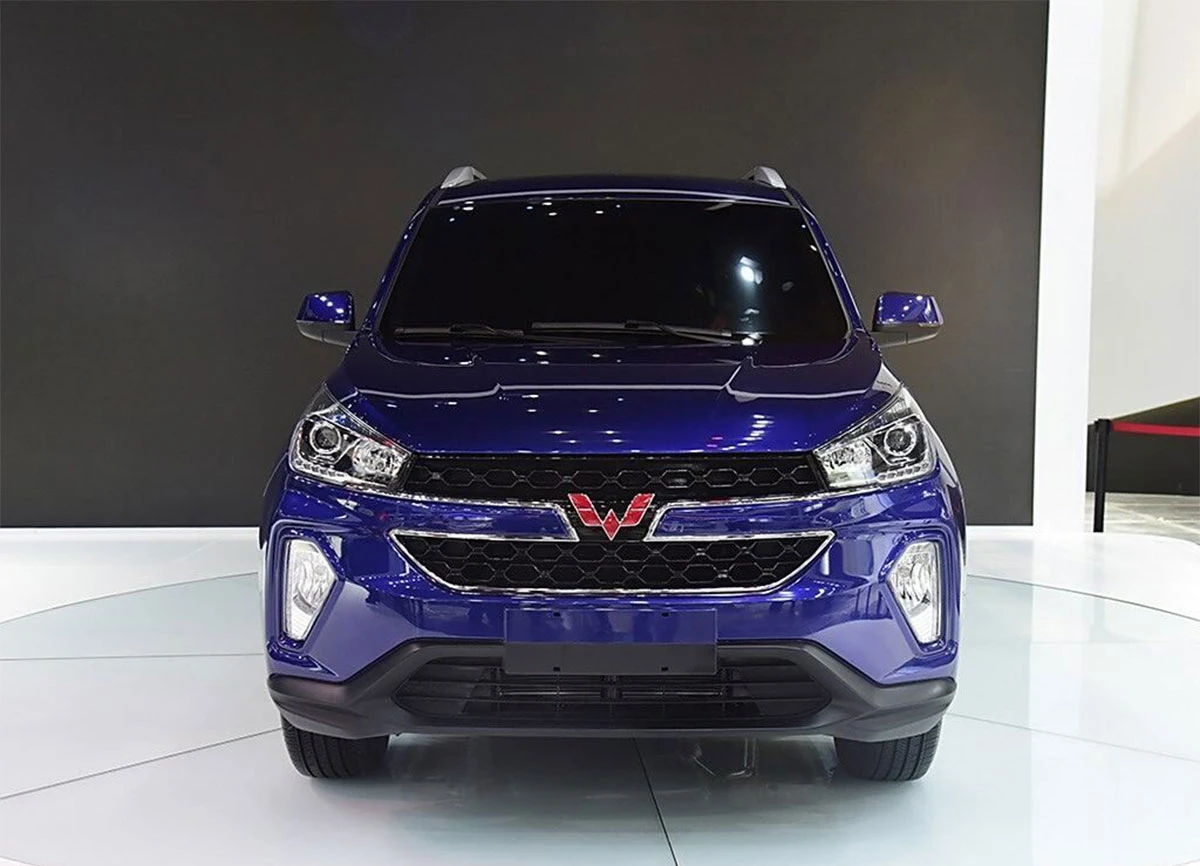

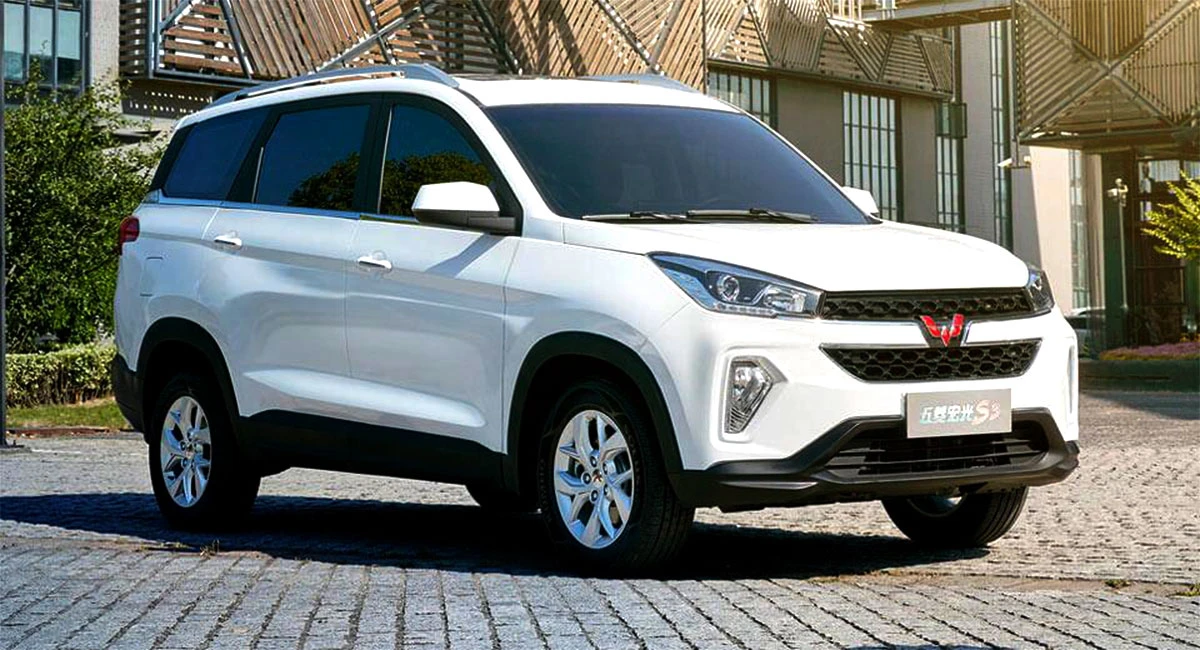

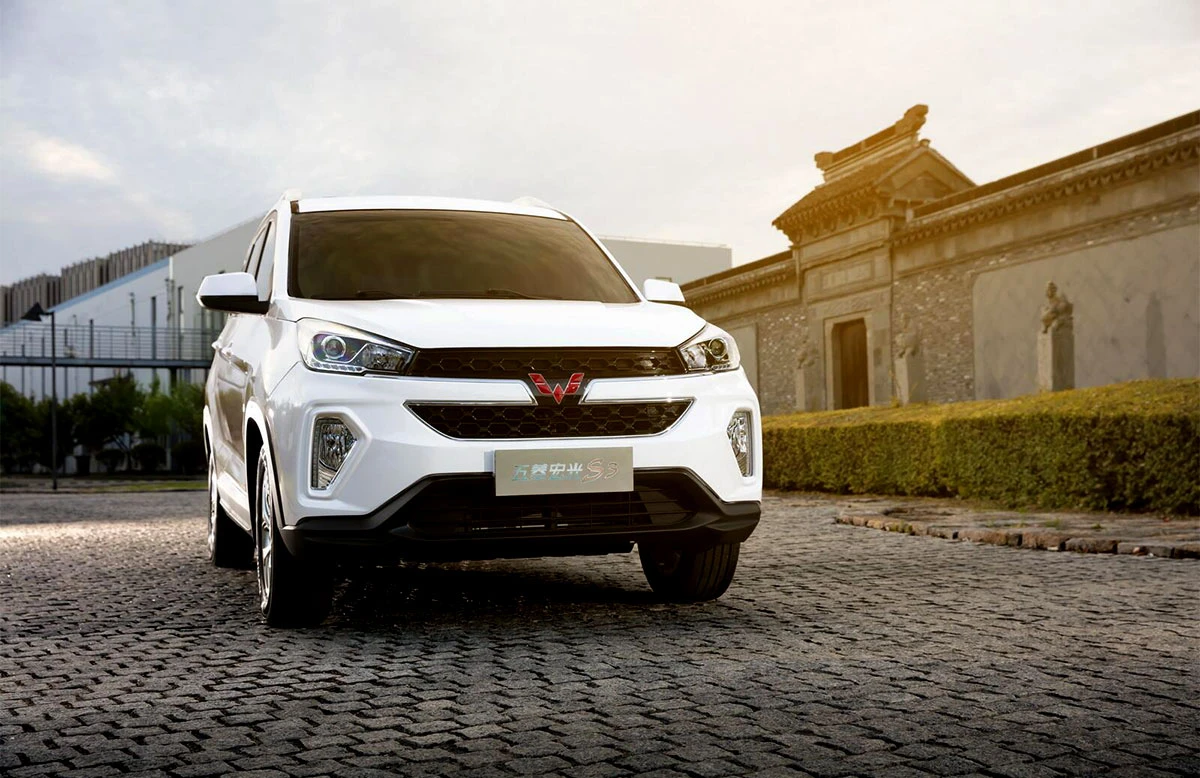

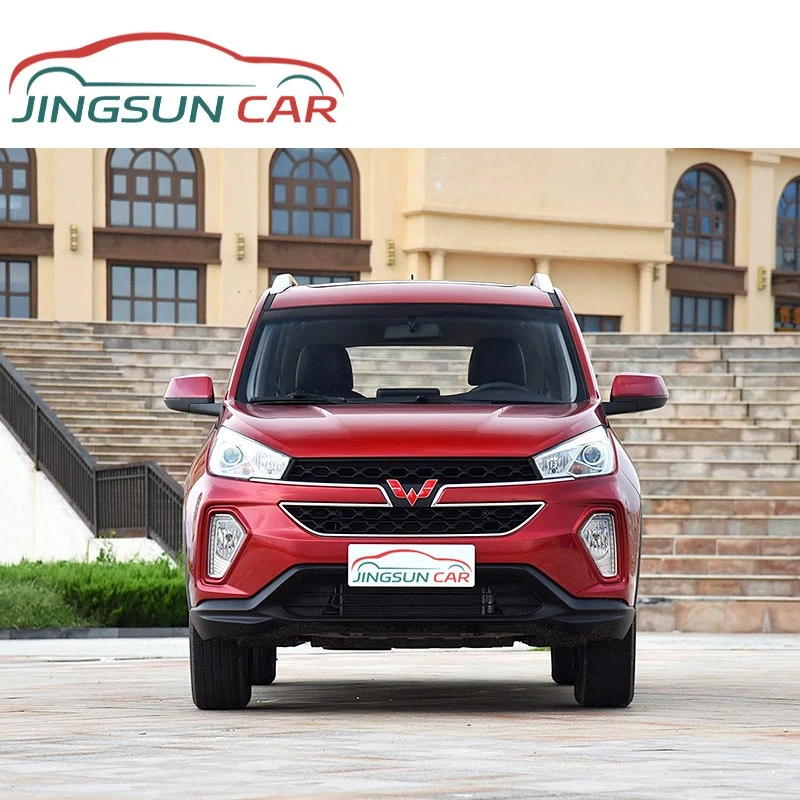

Front Face Design

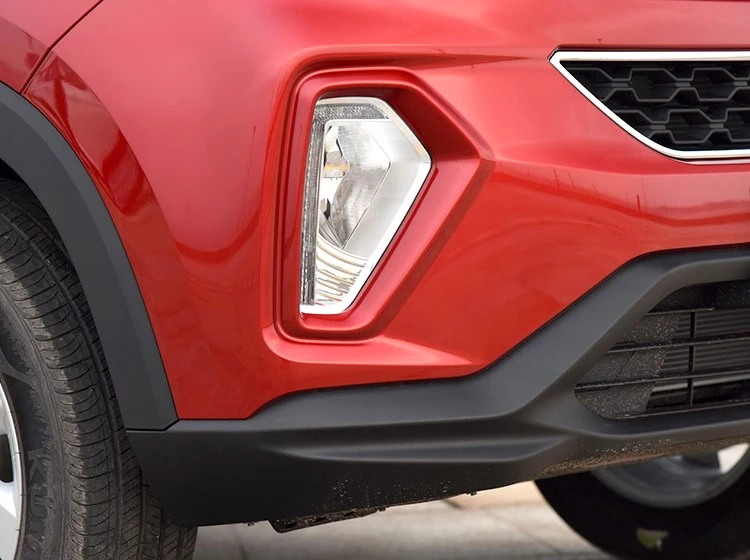

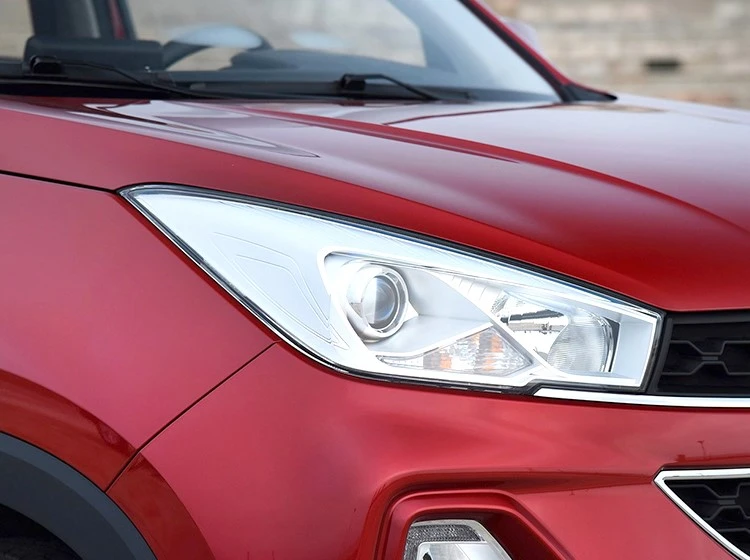

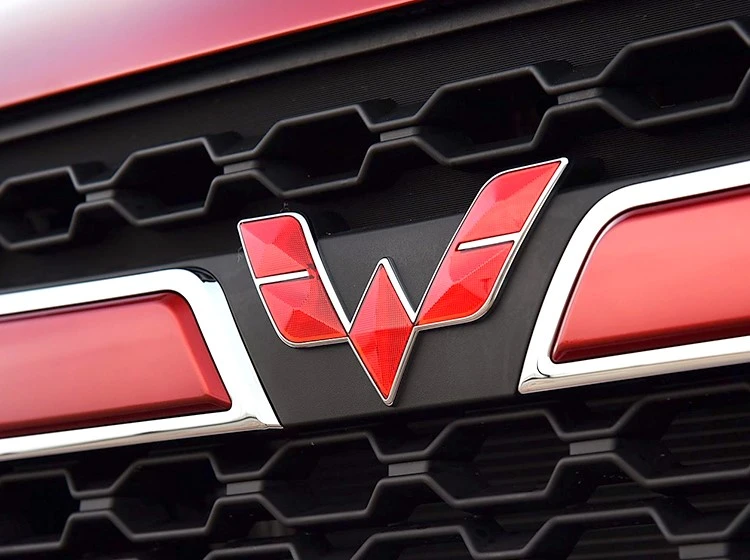

The I-shaped front grille of the Wuling Hongguang S3 is larger and more three-dimensional than that of the Hongguang model, and the polygonal front fog lights on both sides are highly recognizable.

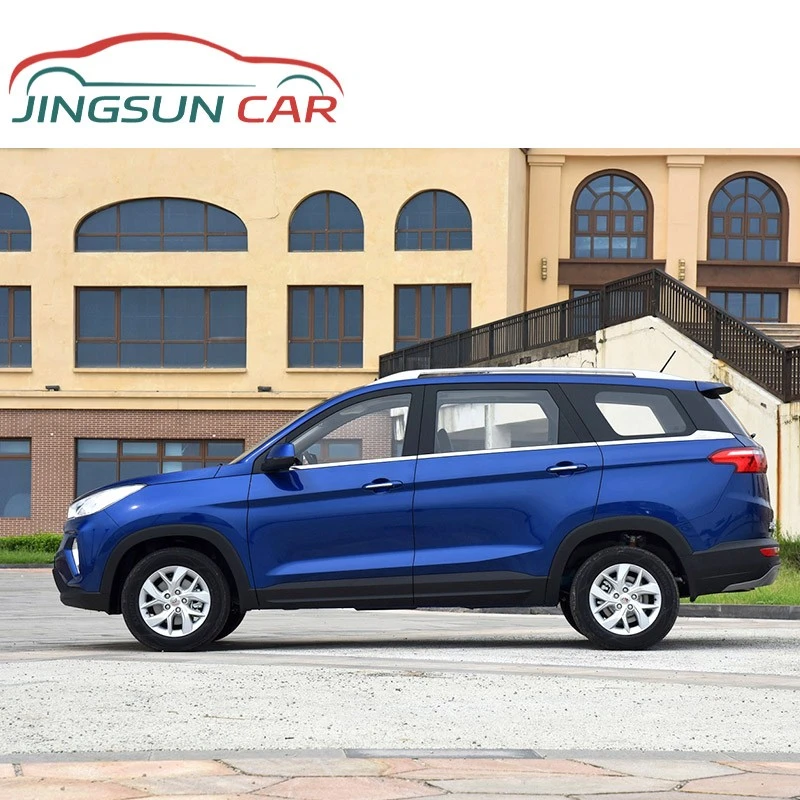

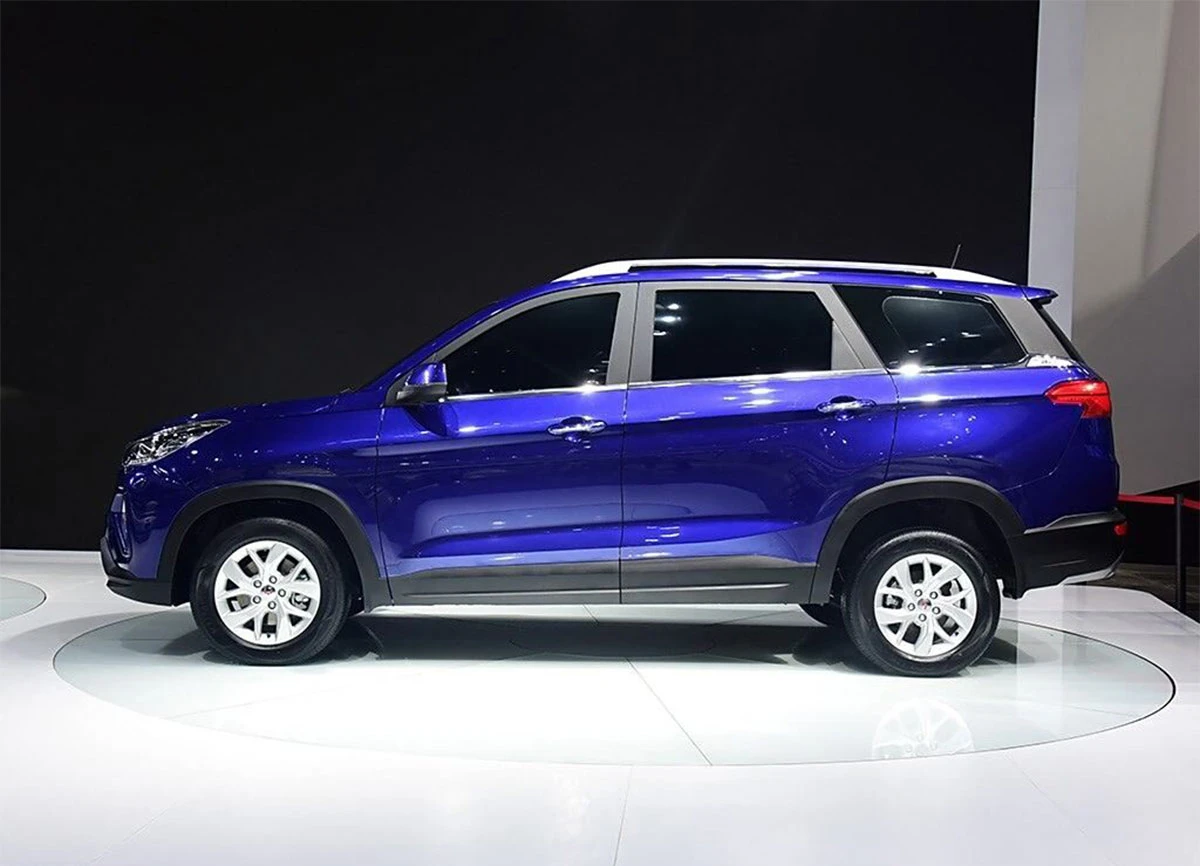

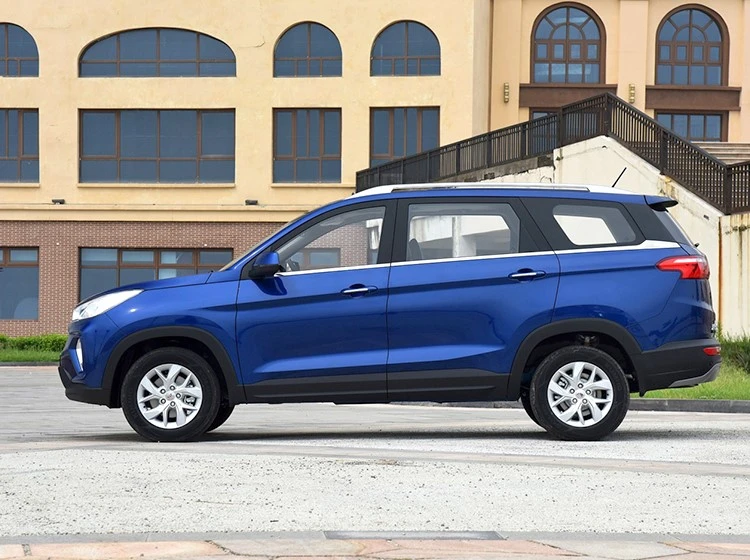

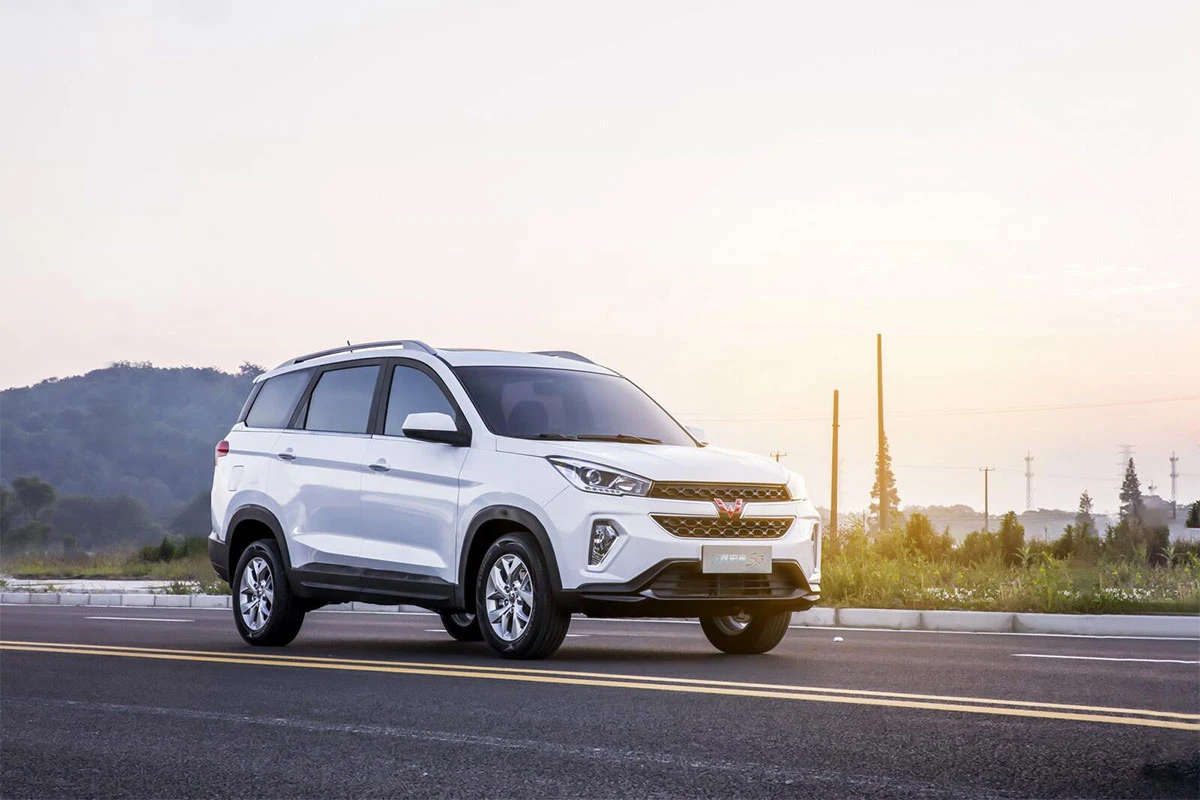

Body Side
The sideways swooping waistline enhances the vehicle's sporty feel. The minimum ground clearance of Hongguang S3 is 208mm, which meets the standard of SUVs in the same class.

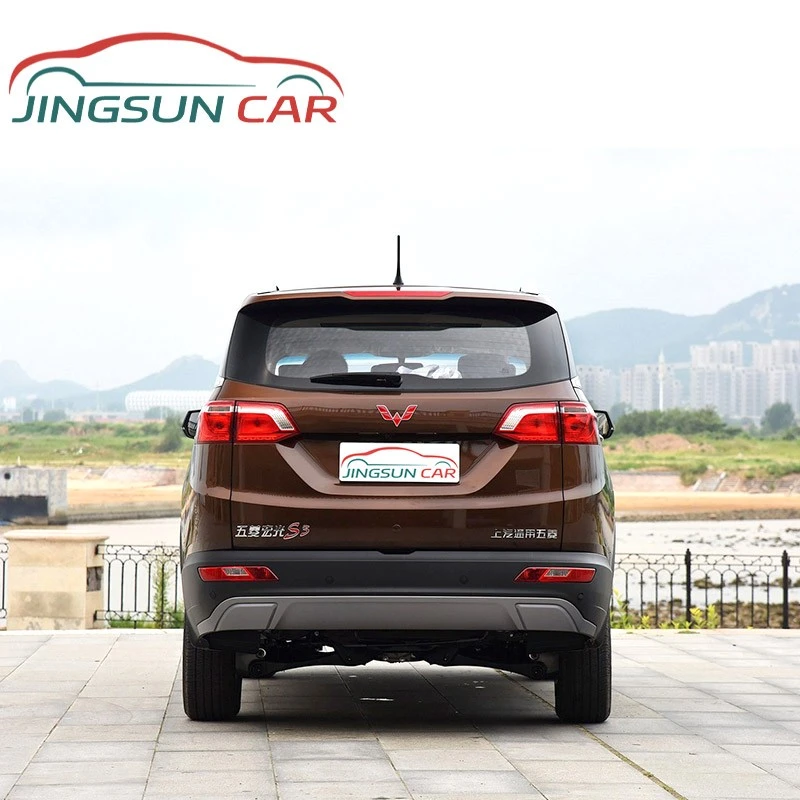

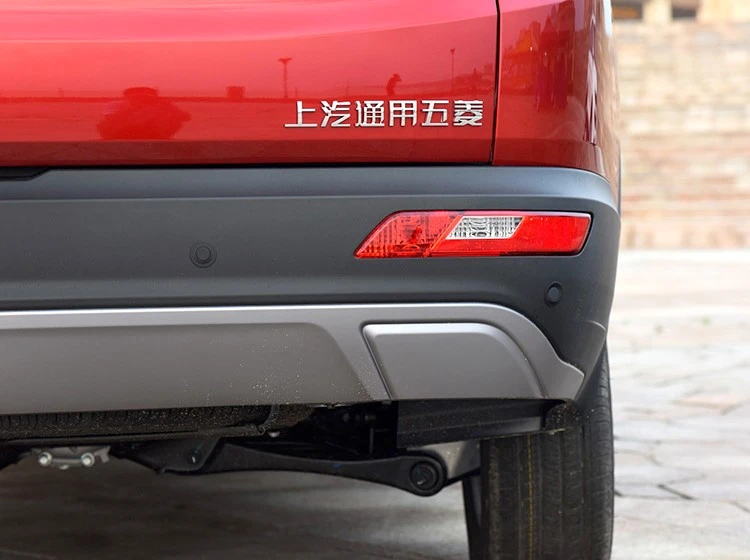

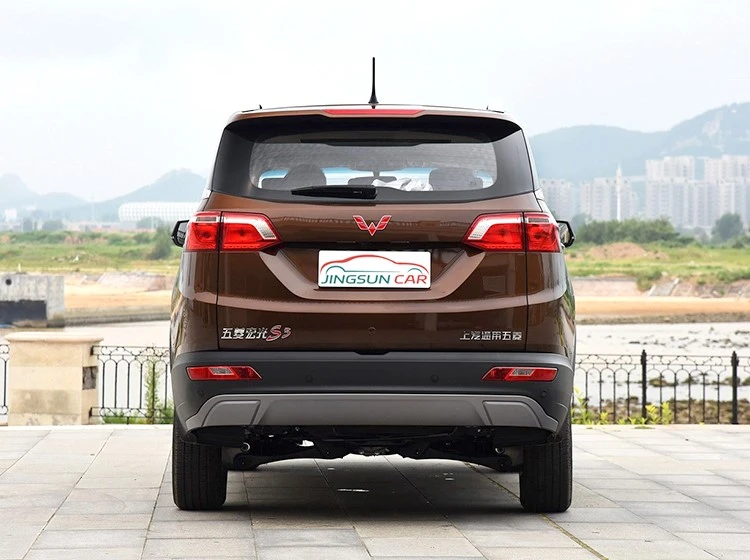

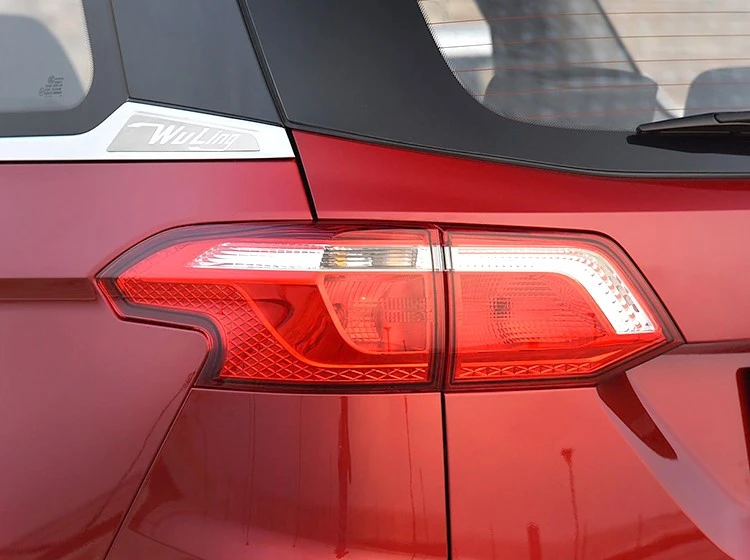

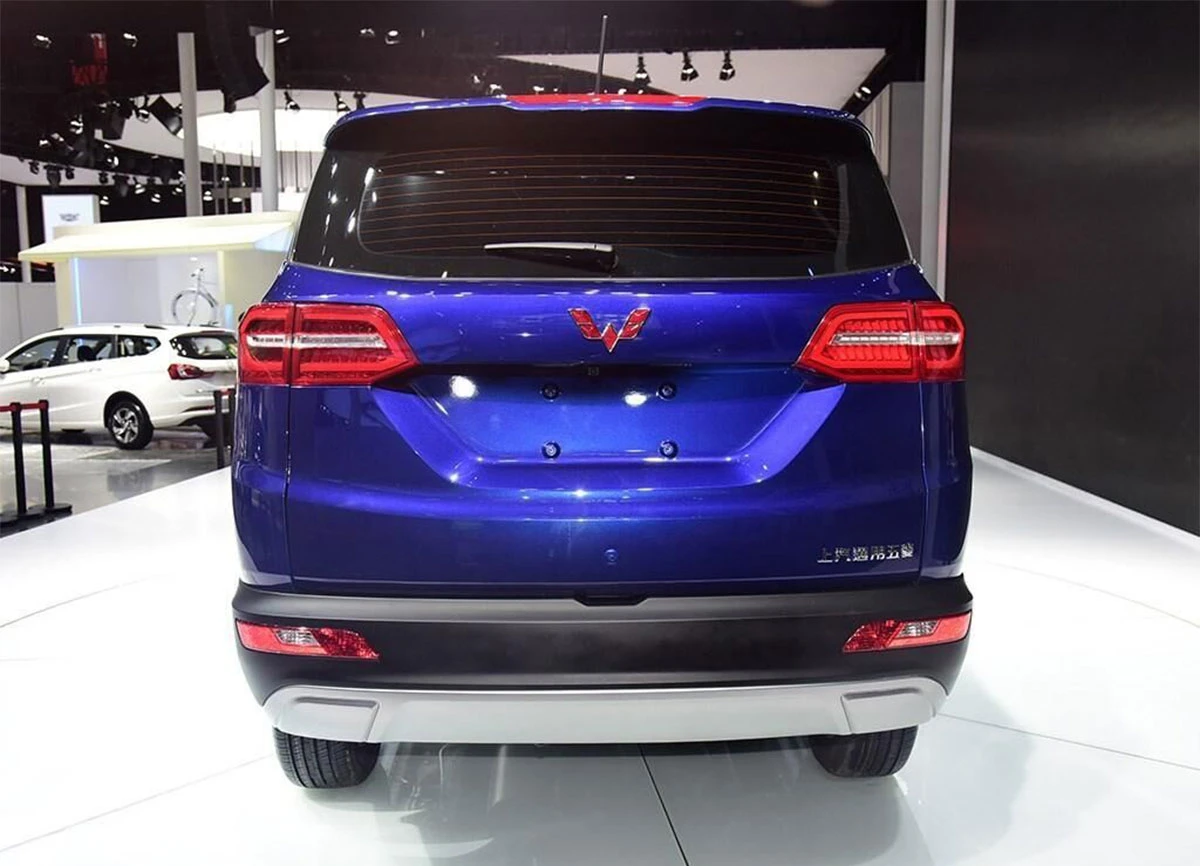

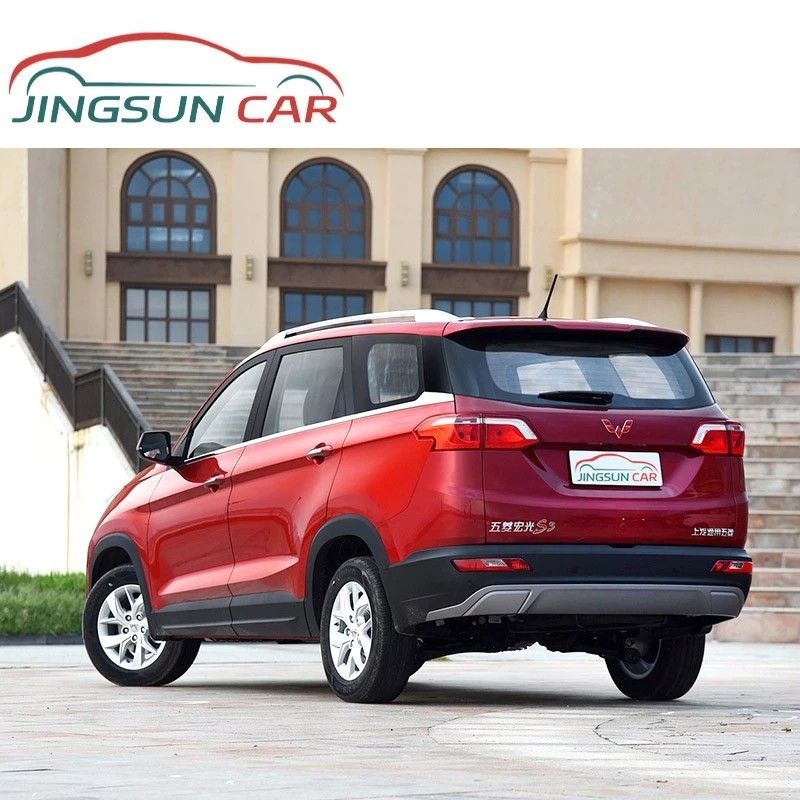

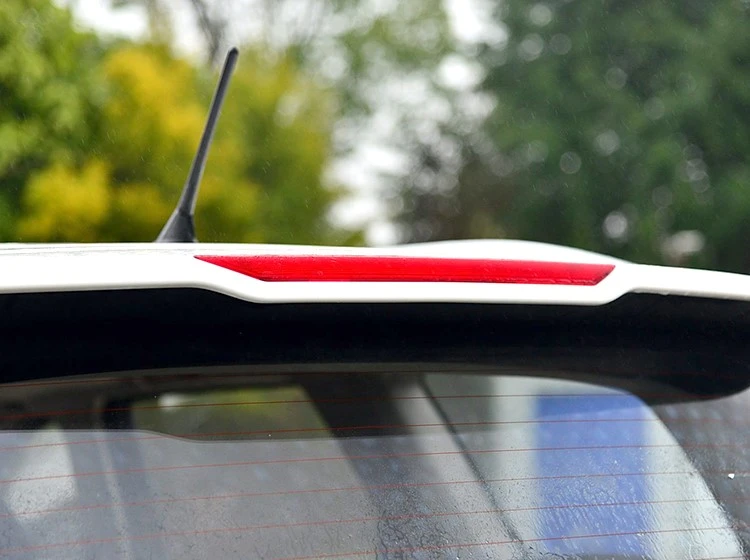

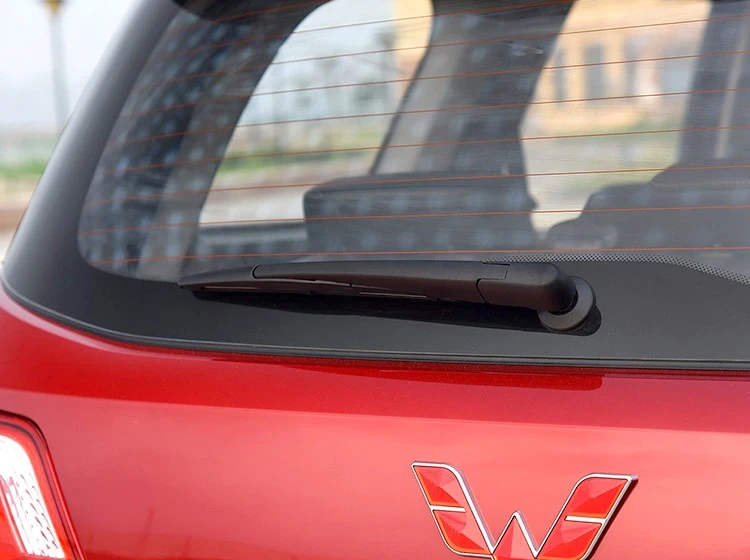

Tail Design

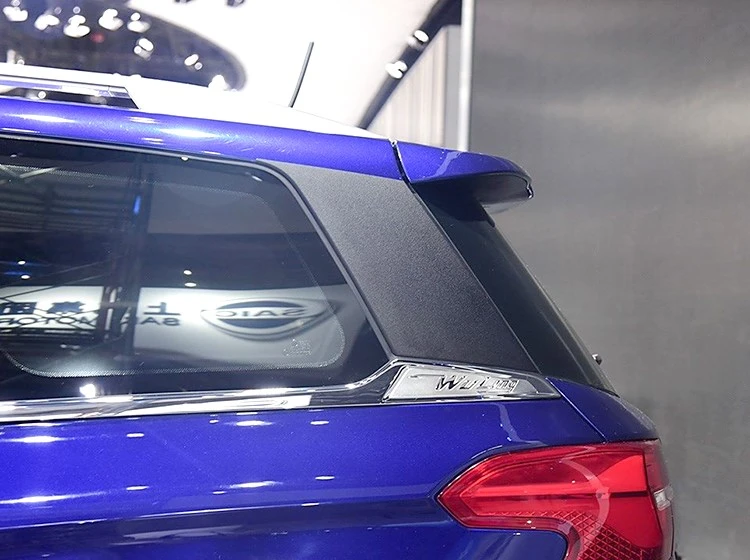

The rear of the car is full and rounded, and the high position of the taillights also improves the visual center of gravity of the rear of the car. The floating roof is one of the popular design elements at present. It is equipped with LED high-mounted brake lights, rear wipers, 4-probe reversing radar and reversing image cameras, and the configuration standards are relatively complete.

Market Positioning
Wuling's products have a considerable market share in the field of commercial vehicles, and then they are expanding to commercial and home use and passenger vehicles step by step.
Although the Wuling Hongguang S3 is positioned as a mid-size SUV, its rear-wheel drive form and flat and large trunk space still have considerable cargo capacity, showing its practicality.
The 2+2+3 7-seat layout, front-rear drive form, and rear multi-link independent suspension structure are currently not available in the same class. It can be said that the Wuling Hongguang S3, which has taken a different approach, has formed differentiated competition with competing models in many aspects.

Product Details




















| ● Standard configuration ○ Optional -- None |
Wuling Hongguang S3 2019 1.5L Manual Standard Edition National VI | Wuling Hongguang S3 2019 1.5L Manual Comfort Edition National VI | Wuling Hongguang S3 2019 1.5T Manual Standard Edition National VI | Wuling Hongguang S3 2019 1.5T Manual Comfort Edition National VI |
| Basic Parameters | ||||
| Manufacturer | SAIC GM Wuling | SAIC GM Wuling | SAIC GM Wuling | SAIC GM Wuling |
| Level | Medium SUV | Medium SUV | Medium SUV | Medium SUV |
| Energy type | Gasoline | Gasoline | Gasoline | Gasoline |
| Environmental protection standards | National VI | National VI | National VI | National VI |
| Time to market | 2019.07 | 2019.07 | 2019.07 | 2019.07 |
| Maximum power(kw) | 73 | 73 | 108 | 108 |
| Maximum torque(N-m) | 140 | 140 | 250 | 250 |
| Engine | 1.5L 99 horsepower L4 | 1.5L 99 horsepower L4 | 1.5L 147 horsepower L4 | 1.5L 147 horsepower L4 |
| Gearbox | 6-speed manual | 6-speed manual | 6-speed manual | 6-speed manual |
| Length*Width*Height (mm) | 4655*1735*1790 | 4655*1735*1790 | 4655*1735*1790 | 4655*1735*1790 |
| Body structure | 5-door 7-seater SUV | 5-door 7-seater SUV | 5-door 7-seater SUV | 5-door 7-seater SUV |
| Maximum speed (km/h) | 150 | 150 | 175 | 175 |
| WLTC comprehensive fuel consumption (L/100km) | 7.59 | 7.59 | 7.72 | 7.72 |
| Vehicle warranty | Three years or 60,000 kilometers | Three years or 60,000 kilometers | Three years or 60,000 kilometers | Three years or 60,000 kilometers |
| Car Body | ||||
| Wheelbase(mm) | 2800 | 2800 | 2800 | 2800 |
| Front wheelbase (mm) | 1450 | 1450 | 1450 | 1450 |
| Rear wheelbase (mm) | 1465 | 1465 | 1465 | 1465 |
| Body structure | SUV | SUV | SUV | SUV |
| Car door opening method | Swing door | Swing door | Swing door | Swing door |
| Fuel tank volume (L) | 49 | 49 | 49 | 49 |
| Curb weight (kg) | 1380 | 1420 | 1440 | 1470 |
| Engine | ||||

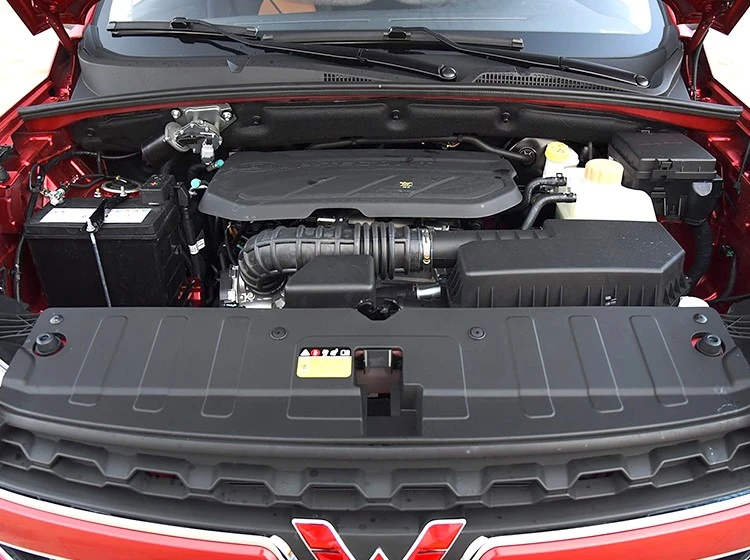

| Engine model | LAR | LAR | LJO | LJO |
| Displacement (mL) | 1485 | 1485 | 1451 | 1451 |
| Displacement(L) | 1.5 | 1.5 | 1.5 | 1.5 |
| Intake form | Inhale naturally | Inhale naturally | Inhale naturally | Inhale naturally |
| Engine layout | Vertical | Vertical | Vertical | Vertical |
| Cylinder arrangement | L | L | L | L |
| Number of cylinders | 4 | 4 | 4 | 4 |
| Air Supply | DOHC | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 99 | 99 | 147 | 147 |
| Maximum power(kW) | 73 | 73 | 108 | 108 |
| Maximum torque(N-m) | 140 | 140 | 250 | 250 |
| Maximum torque speed (rpm) | 3400-4400 | 3400-4400 | 2200-3400 | 2200-3400 |
| Maximum net power (kW) | 70 | 70 | 104 | 104 |
| Fuel grade | 92# | 92# | 92# | 92# |
| Chassis/Wheels | ||||
| Drive mode | Front and rear drive | Front and rear drive | Front and rear drive | Front and rear drive |
| Front suspension type | Macpherson independent suspension | Macpherson independent suspension | Macpherson independent suspension | Macpherson independent suspension |
| Rear suspension type | Coil spring type non-independent suspension | Coil spring type non-independent suspension | Coil spring type non-independent suspension | Coil spring type non-independent suspension |
| Parking brake type | Handbrake | Handbrake | Handbrake | Handbrake |

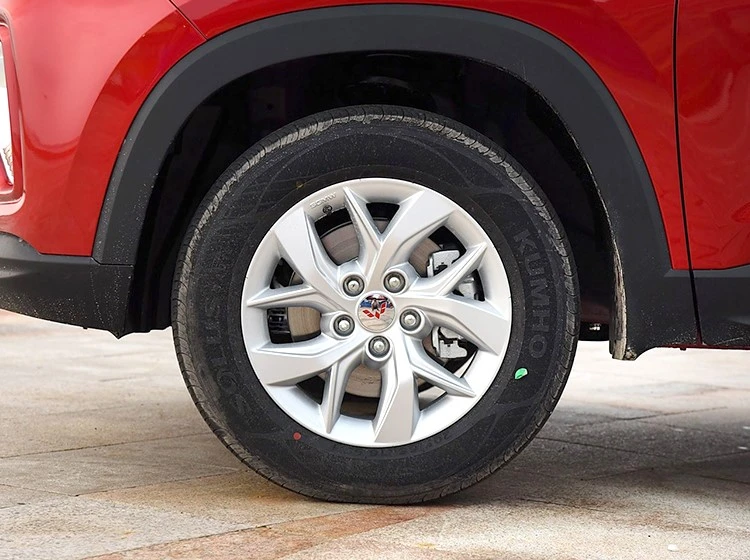

| Front tire specifications | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 |
| Rear tire specifications | 205/65 R16 | 205/65 R16 | 205/65 R16 | 205/65 R16 |
| Spare tire specifications | full size | full size | full size | full size |
| Active/Passive safety | ||||
| Main/passenger seat airbag | --Main --deputy |
●Main --deputy |
--Main --deputy |
●Main --deputy |
| Front/rear side airbags | --Front --rear |
--Front --rear |
--Front --rear |
--Front --rear |
| Front/rear head airbags (curtain airbags) | --Front --rear |
--Front --rear |
--Front --rear |
--Front --rear |
| Tire pressure monitoring function | ○Tire pressure display | ○Tire pressure display | ○Tire pressure display | ○Tire pressure display |
| Seat belt not fastened reminder | ●Main driver's seat | ●Main driver's seat | ●Main driver's seat | ●Main driver's seat |
| ABS anti-lock | ● | ● | ● | ● |
| Control Configuration | ||||
| Shift pattern | ●Mechanical gear shift | ●Mechanical gear shift | ●Mechanical gear shift | ●Mechanical gear shift |
| Auxiliary/Intelligent Driving | ||||
| Driving assistance images | -- | ●Reversing image | -- | ●Reversing image |
| Front/rear parking radar | ●Front ●rear |
●Front ●rear |
●Front ●rear |
●Front ●rear |
| Appearance Configuration | ||||

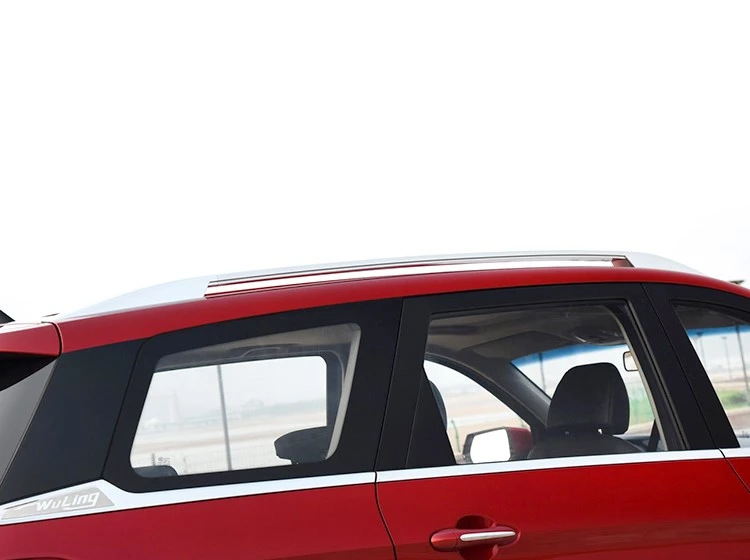

| Roof rack | ● | ● | ● | ● |
| Key type | ●Remote control key | ●Remote control key | ●Remote control key | ●Remote control key |
| Internal Configuration | ||||
| Steering wheel material | ●Plastic | ●Plastic | ●Plastic | ●Plastic |
| Seat Configuration | ||||
| Seat material | ●Fabric | ●Fabric | ●Fabric | ●Imitation leather |
| Second row seat adjustment | ●Backrest adjustment ●Front and rear adjustment |
●Backrest adjustment ●Front and rear adjustment |
●Backrest adjustment ●Front and rear adjustment |
●Backrest adjustment ●Front and rear adjustment |
| Rear seats fold down | ●Put it down as a whole | ●Put it down as a whole | ●Put it down as a whole | ●Put it down as a whole |
| Front/rear center armrest | ●Front ●rear |
●Front ●rear |
●Front ●rear |
●Front ●rear |
| Lighting Configuration | ||||
| Low beam light source | ●Halogen | ●Halogen | ●Halogen | ●Halogen |
| high beam light source | ●Halogen | ●Halogen | ●Halogen | ●Halogen |
| Headlight height adjustable | ● | ● | ● | ● |
| Glass/Rear View Mirror | ||||

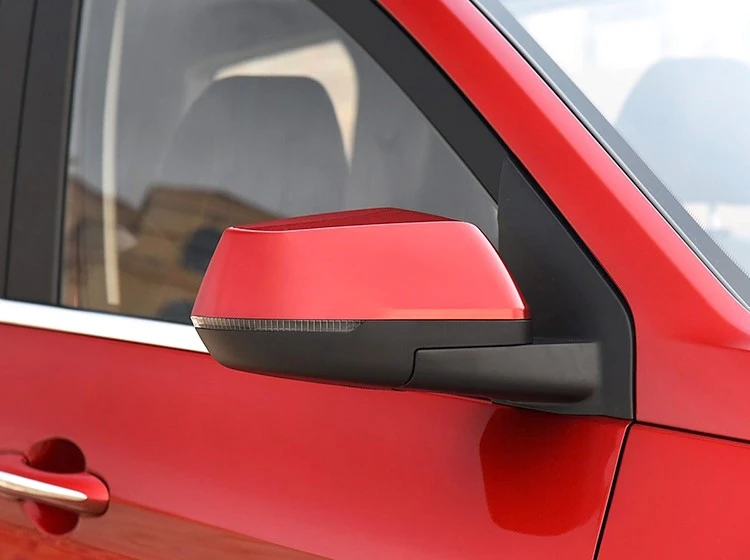

| Exterior rearview mirror function | -- | ●Electric adjustment | -- | ●Electric adjustment |

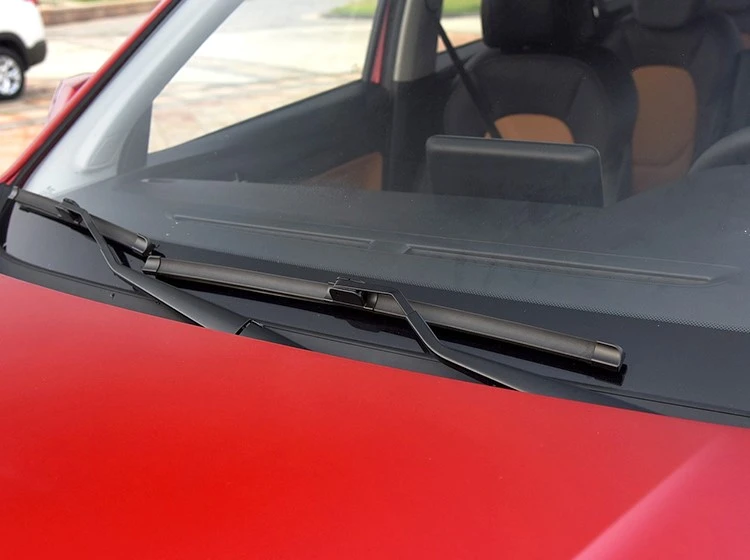

| Sensing wiper function | ● | ● | ● | ● |
| Front/rear electric windows | ●Front ●rear |
●Front ●rear |
●Front ●rear |
●Front ●rear |
| Car vanity mirror | ●Main driver ●Co-pilot |
●Main driver ●Co-pilot |
●Main driver ●Co-pilot |
●Main driver ●Co-pilot |
| Intelligent Internet | ||||
| Central control color LCD screen | -- | ●Touch LCD screen | -- | ●Touch LCD screen |
| Central control screen size | -- | ●8 inches | -- | ●8 inches |
| Bluetooth/car phone | -- | ● | -- | ● |
| Mobile phone interconnection/mapping | -- | ●Original interconnection/mapping | -- | ●Original interconnection/mapping |
| Media Entertainment | ||||
| Multimedia/charging interface | ●USB | ●USB | ●USB | ●USB |
| Number of USB/Type-C interfaces | ●1 front row | ●1 front row/2 rear row | ●1 front row | ●1 front row/2 rear row |
| Number of speakers | ●2 speakers | ●2 speakers | ●2 speakers | ●2 speakers |
