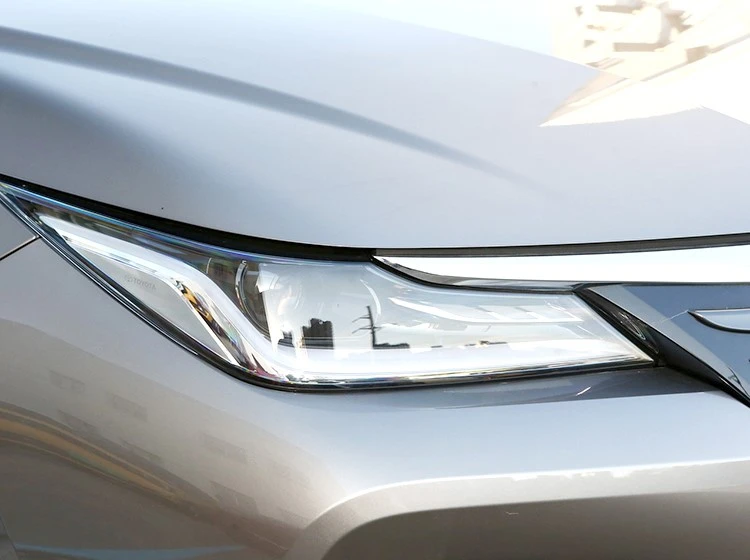

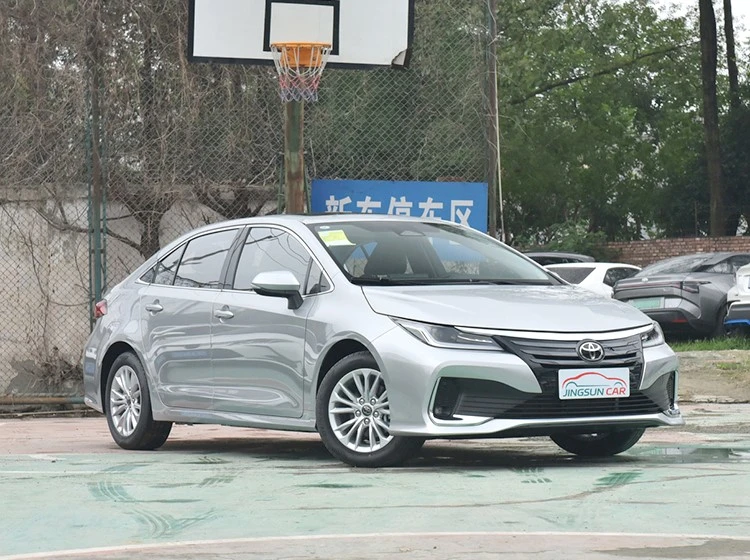

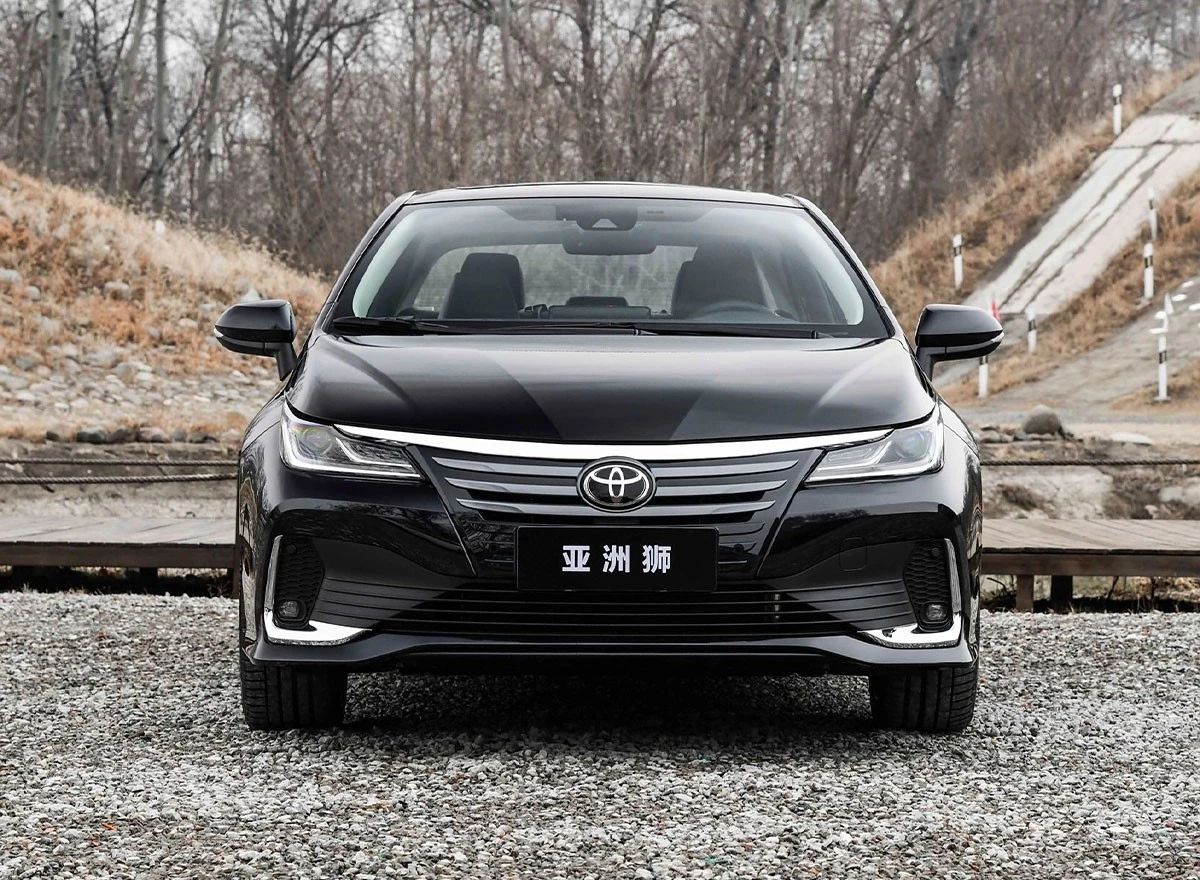

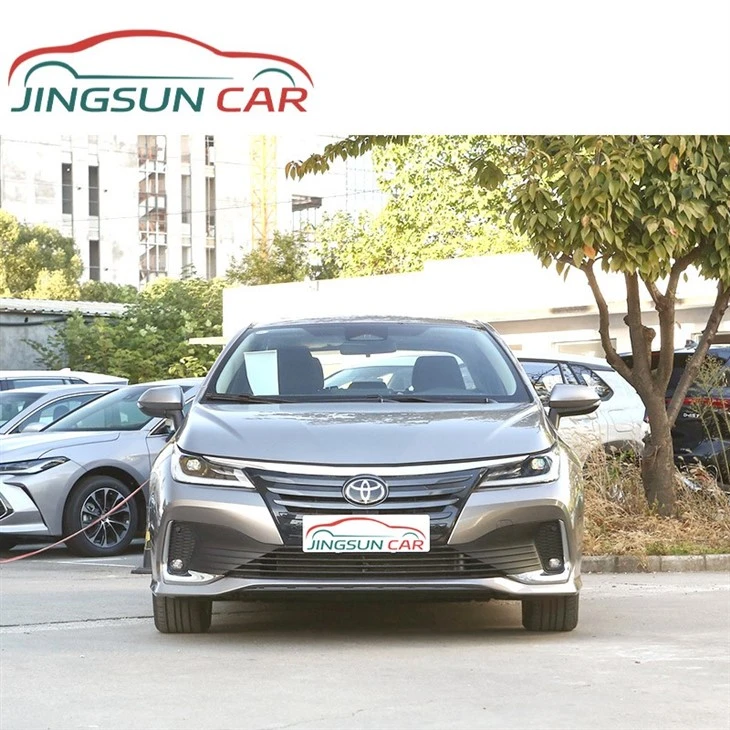

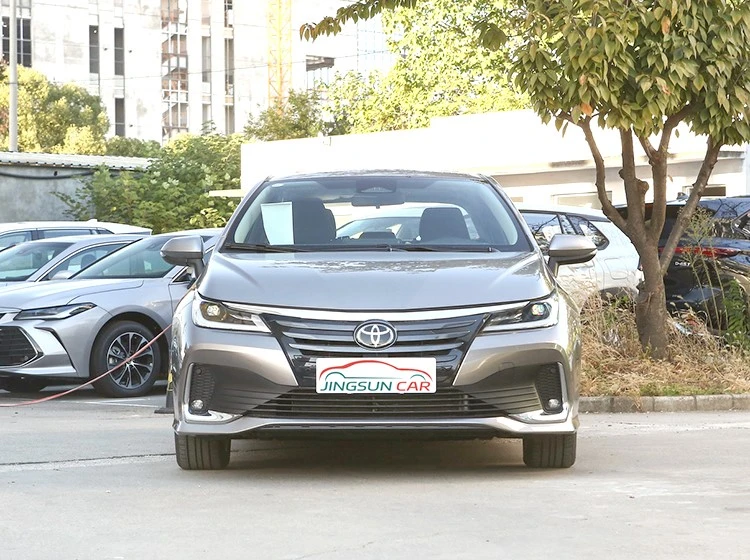

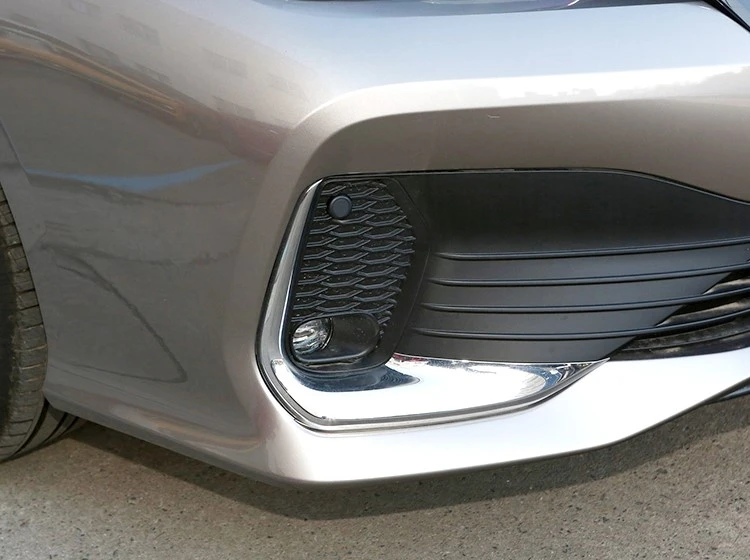

Front Face Design
It is obvious that the all-new Toyota Allion inherits Toyota's latest family design elements. The front design focuses on horizontal extension, showing a certain tension while also giving people a sense of stability.

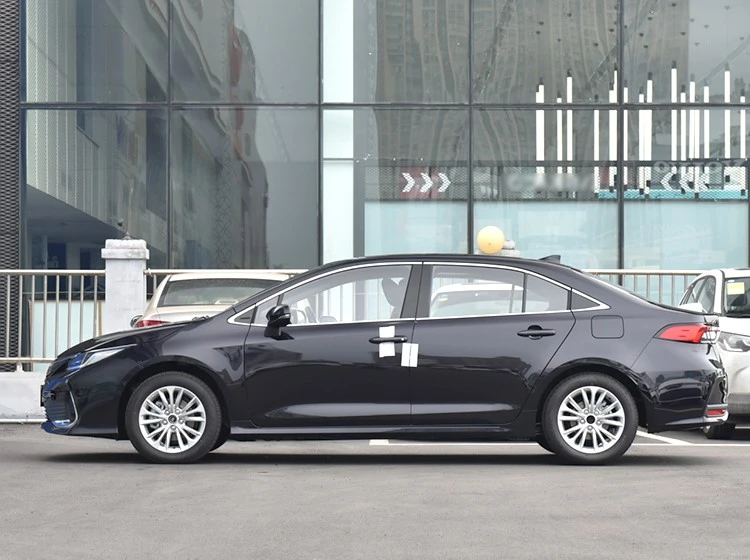

Body Size
|
Unit: mm |
Length |
Width |
Height |
Wheelbase |
|
Allion |
4720 |
1780 |
1435 |
2750 |
|
Sagitar |
4753/4757 |
1800 |
1462 |
2731 |
|
Corolla |
4635 |
1780 |
1435/1455 |
2700 |
From the comparison data of body size, it is not difficult to see that the Asia Lion is larger than the Corolla in body length and wheelbase, and is close to the Volkswagen Sagitar.

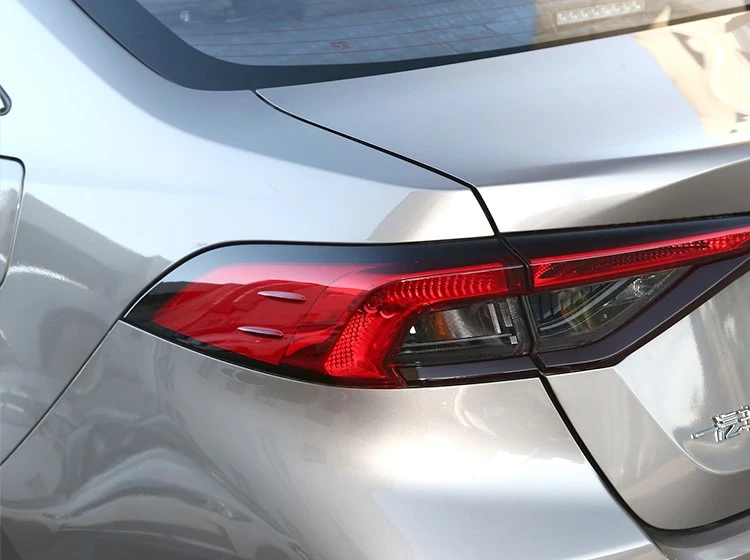

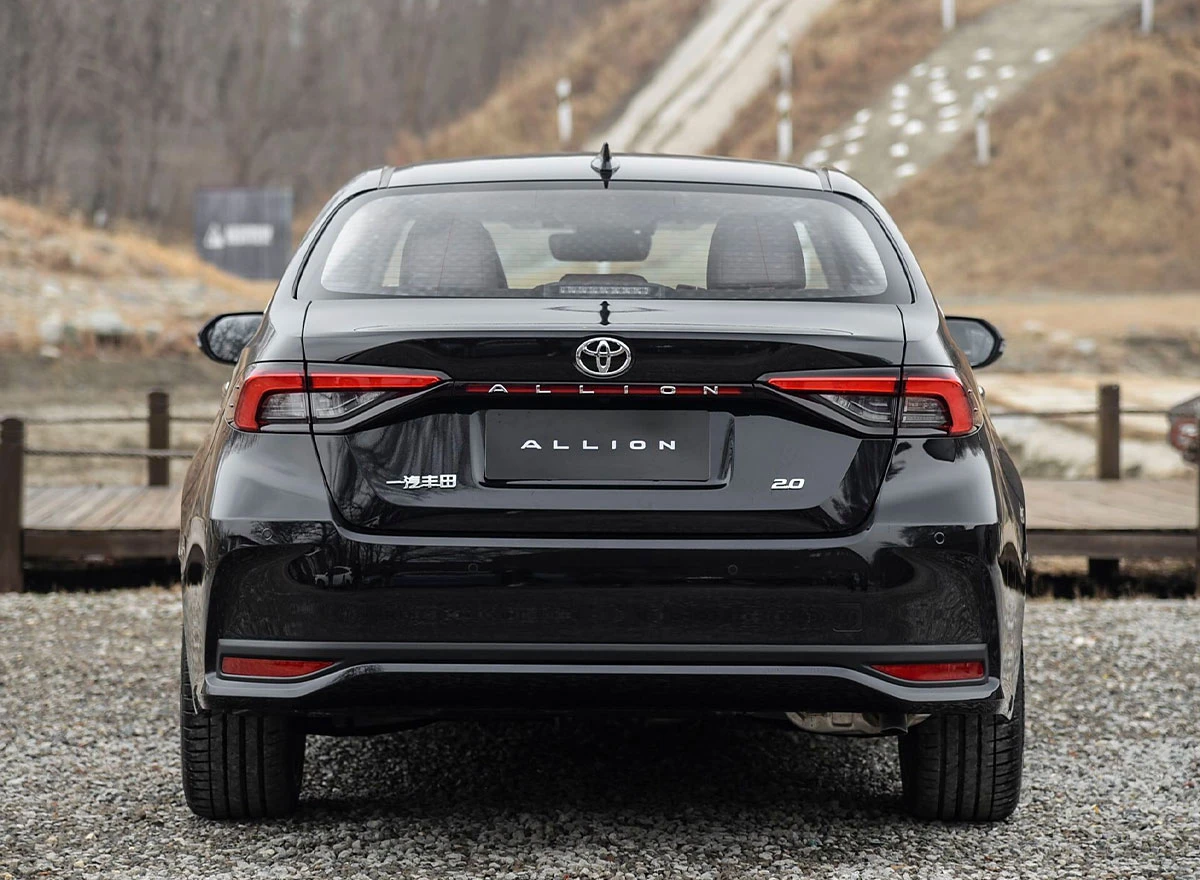

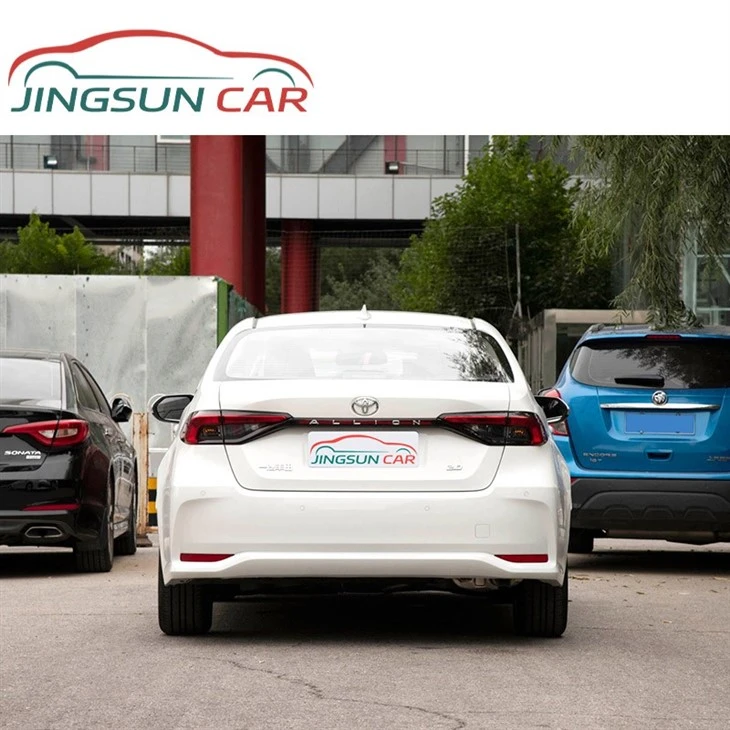

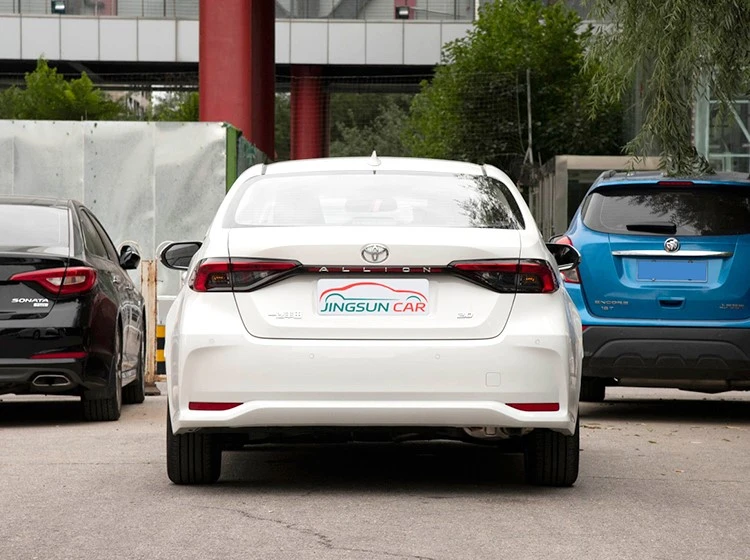

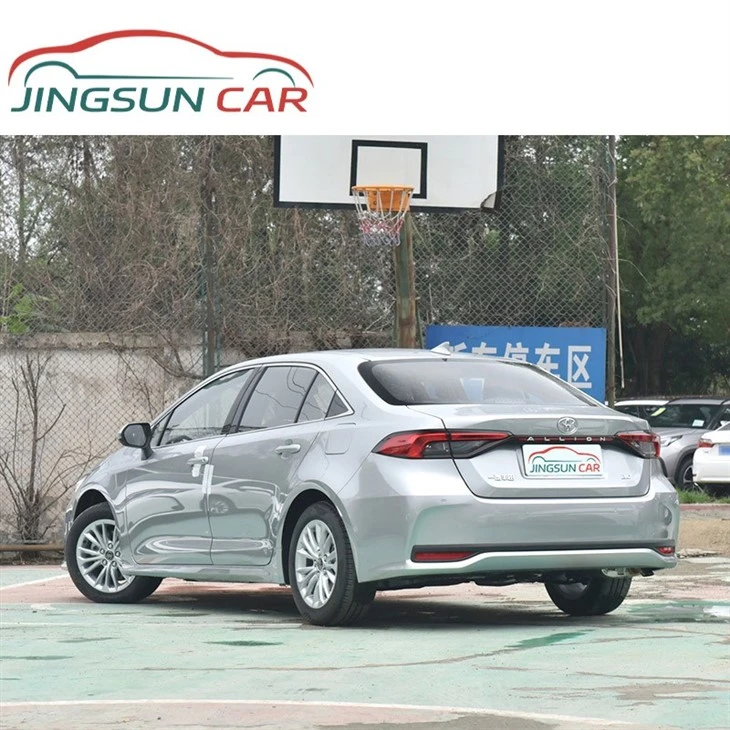

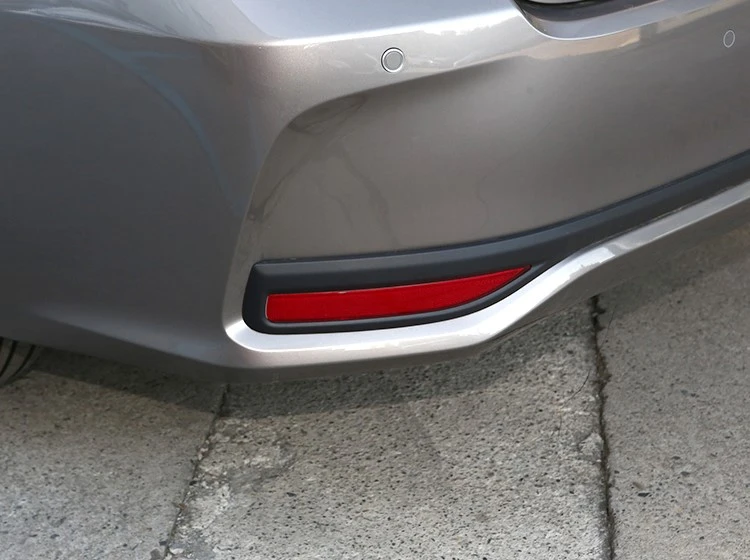

Tail Styling
The tail styling of the all new toyota allion also has strong family design elements, which reminds people of Abaron and Corolla. The designer pays attention to the horizontal visual width to make the tail very stretched.

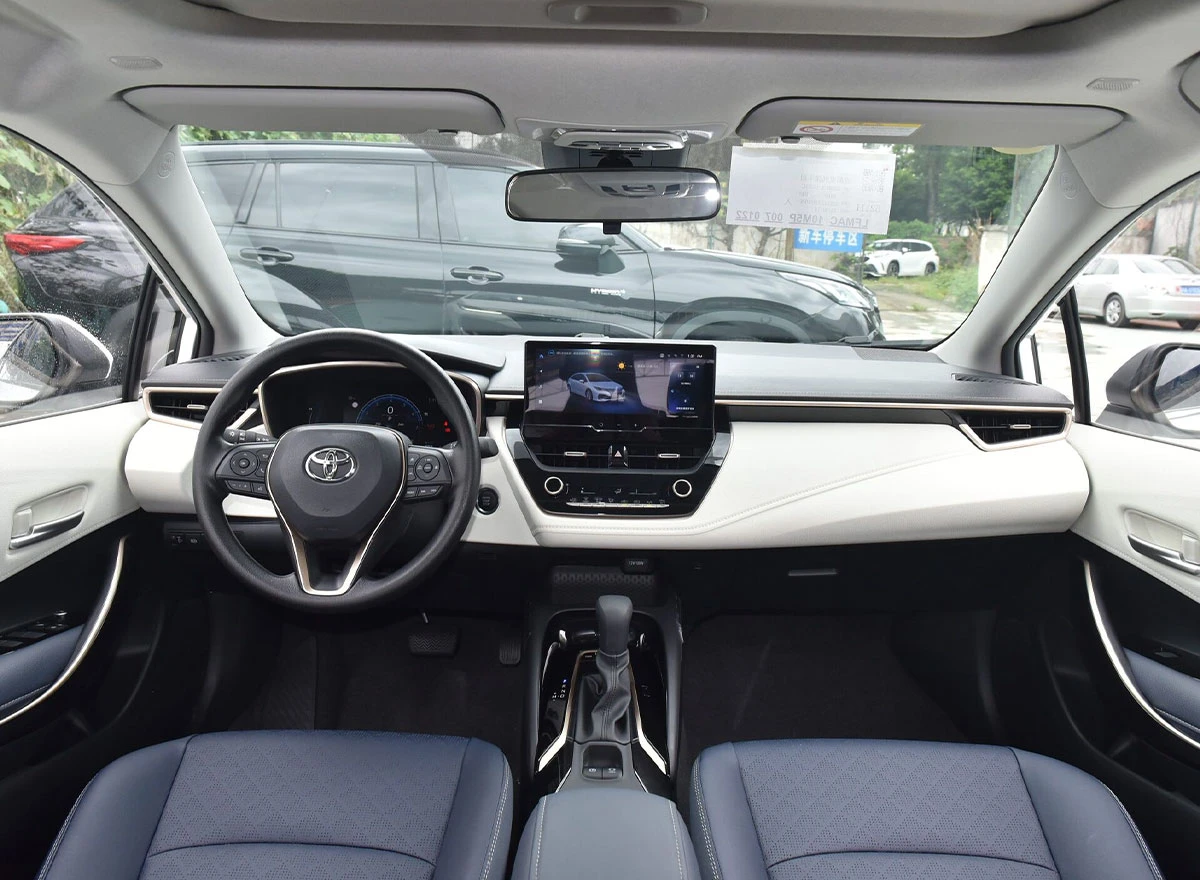

Simple Interior
The interior layout of the all-new Toyota Allion is similar to that of the Corolla, with clear functional areas. The high-end model uses a 9-inch central control screen with a 12.3-inch full LCD instrument panel.

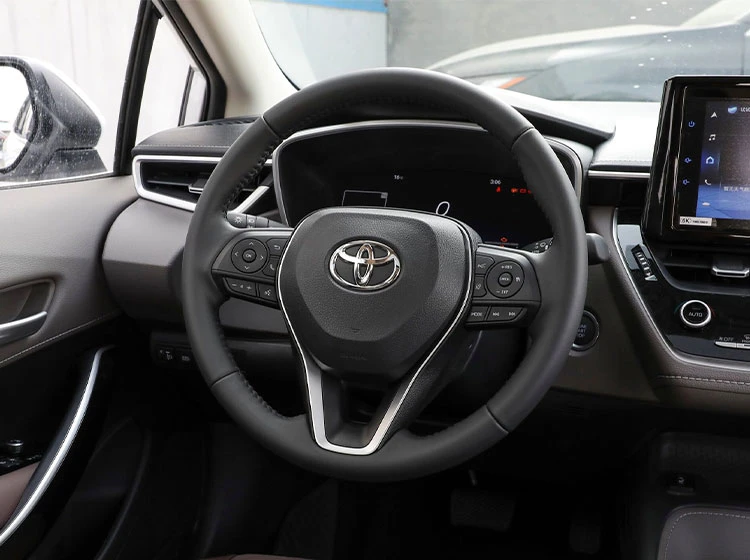

Multi-function Steering Wheel
The Toyota Allion steering wheel is of moderate thickness and feels fuller to the touch. The leather is well made, with fine texture and a good feel to the touch.

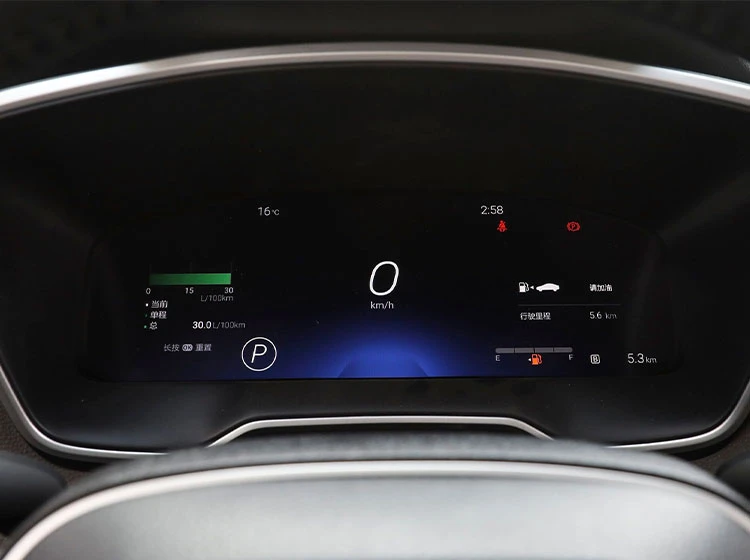

Instrument Panel
The all-new Toyota Allion adopts a full LCD instrument panel design with exquisite display effect, which is a significant improvement over the Avalon and Corolla. In terms of functions, it can display information such as driving mode, multimedia, and driving assistance system.

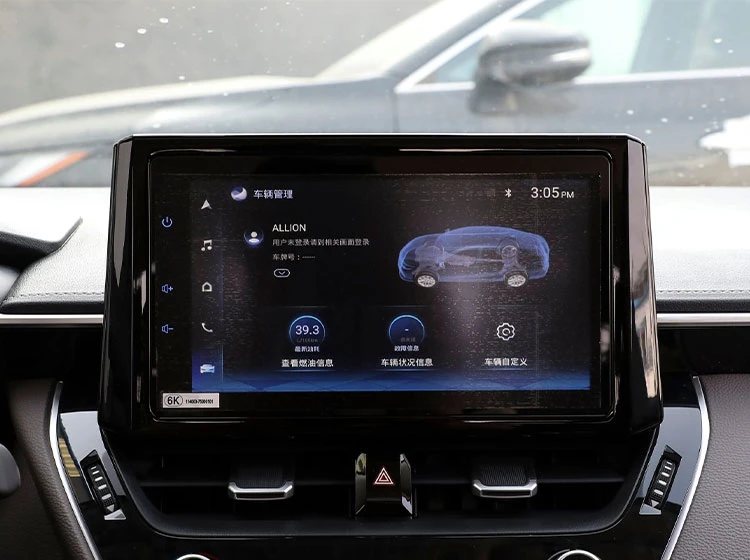

Central Control Screen
The central control screen of the all-new Toyota Allion is more comfortable to look at than the large screen of the Corolla, but the system fluency and display effect are still average, and there are some lags when sliding; in comparison, the central control screen of the Sagitar has a more delicate display and smoother operation.

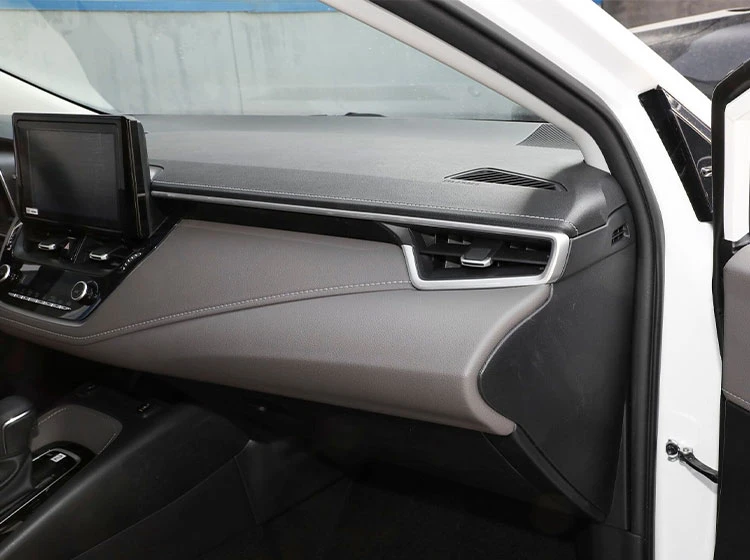

Center Console Materials
In terms of the center console, Toyota Allion's craftsmanship and materials are excellent. The upper and lower parts are wrapped in soft materials, and the details are also well handled, with metal panels or chrome trim strips used for embellishment.

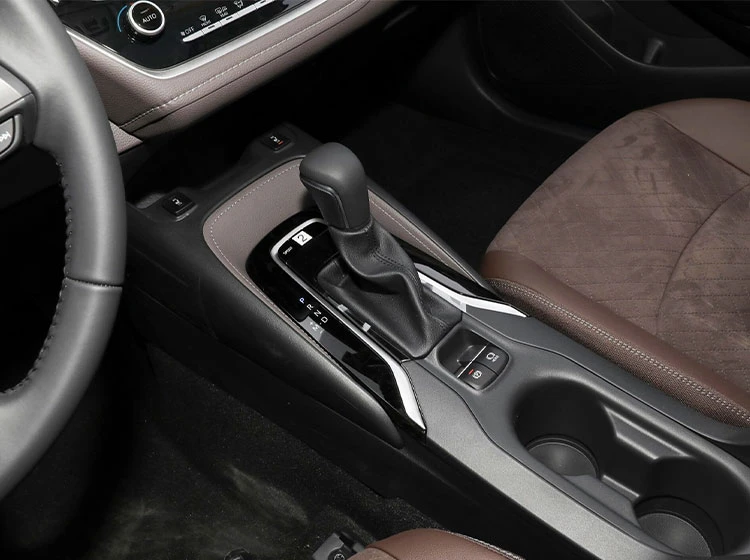

Driving Functions
Electronic handbrake, AUTOHOLD, driving mode selection and other functions are also available on the all new toyota allion.

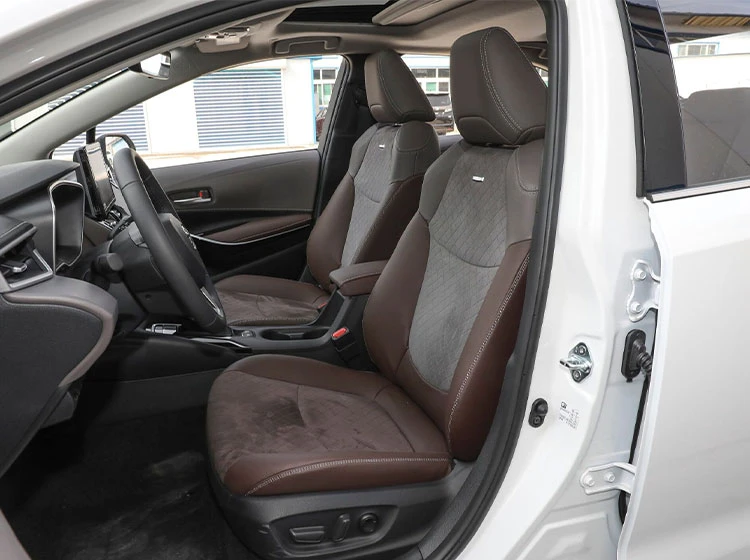

Front Seats
The front seats of the all new toyota allion are quite comfortable, with a certain sinking feeling when sitting, and the wrapping and support feeling are also very good. The material is a mix of leather/suede or fabric.

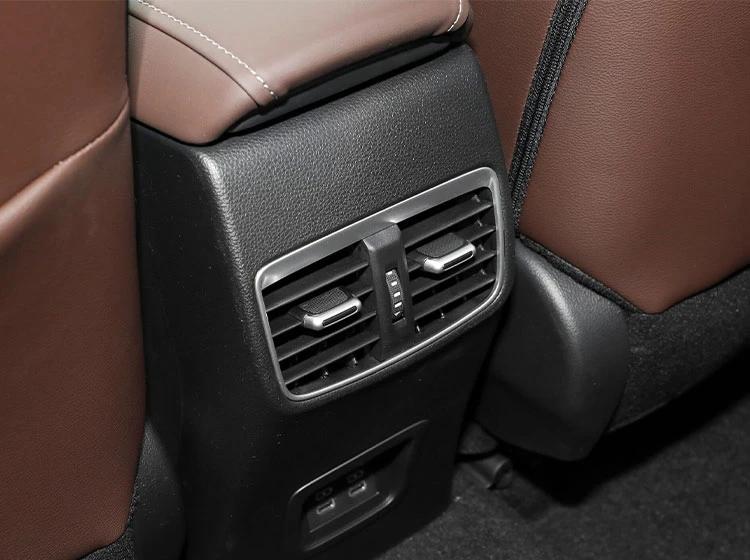

Rear Air Vents
Toyota Allion is equipped with air vents in the rear row, and two power supplies are sufficient to meet daily use needs.

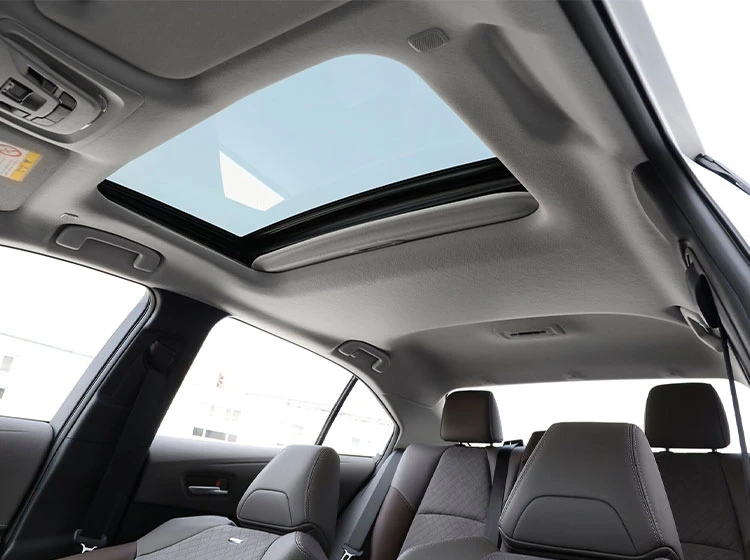

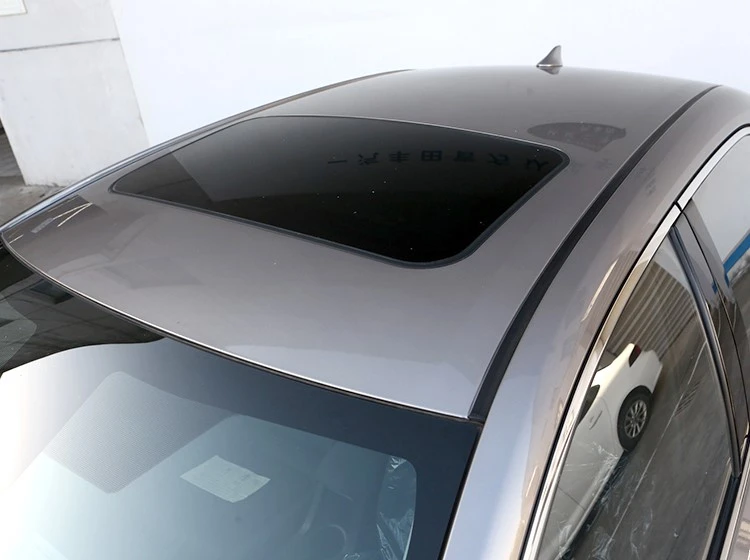

Standard Sunroof
Toyota Allion is equipped with a normal-sized sunroof, which is fine for daily ventilation; the lighting area advantage is not great.
Opening area: 0.25㎡
Lighting area: 0.24㎡

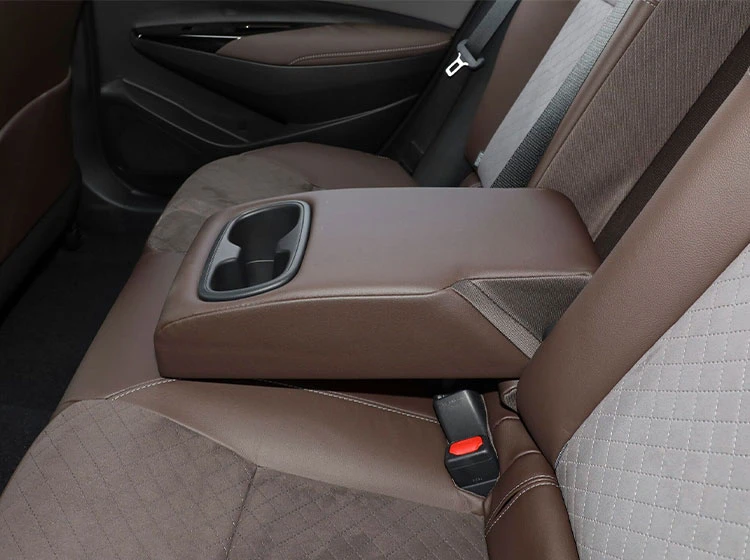

Rear Seats
Toyota Allion's rear seats are softer and more comfortable; the cushions are of suitable length and provide adequate support for the legs. The middle floor is not raised high, which will not affect the middle passenger's riding too much, and there is a central armrest in the middle.

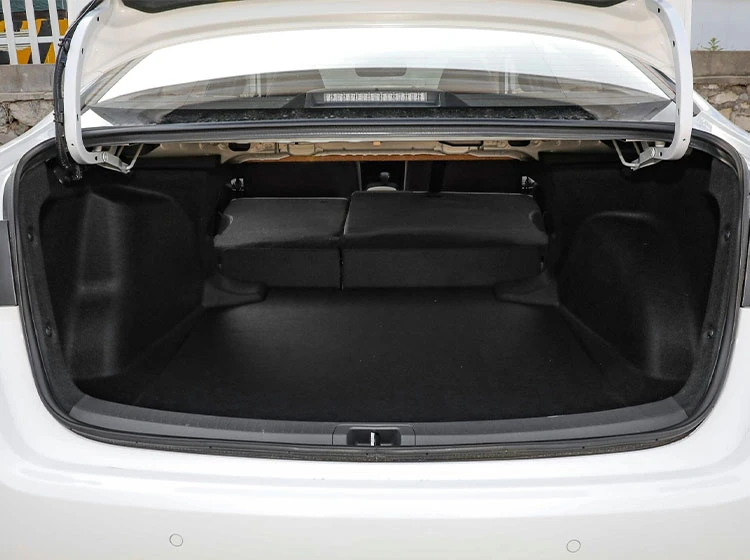

The Trunk
Toyota Allion's trunk space size is,
Length: 1066-2010mm, width: 1130-1380mm, height: 515mm. The rear seats all support 4/6 split ratio, but they cannot be completely flat, and the trunk is not neat enough.

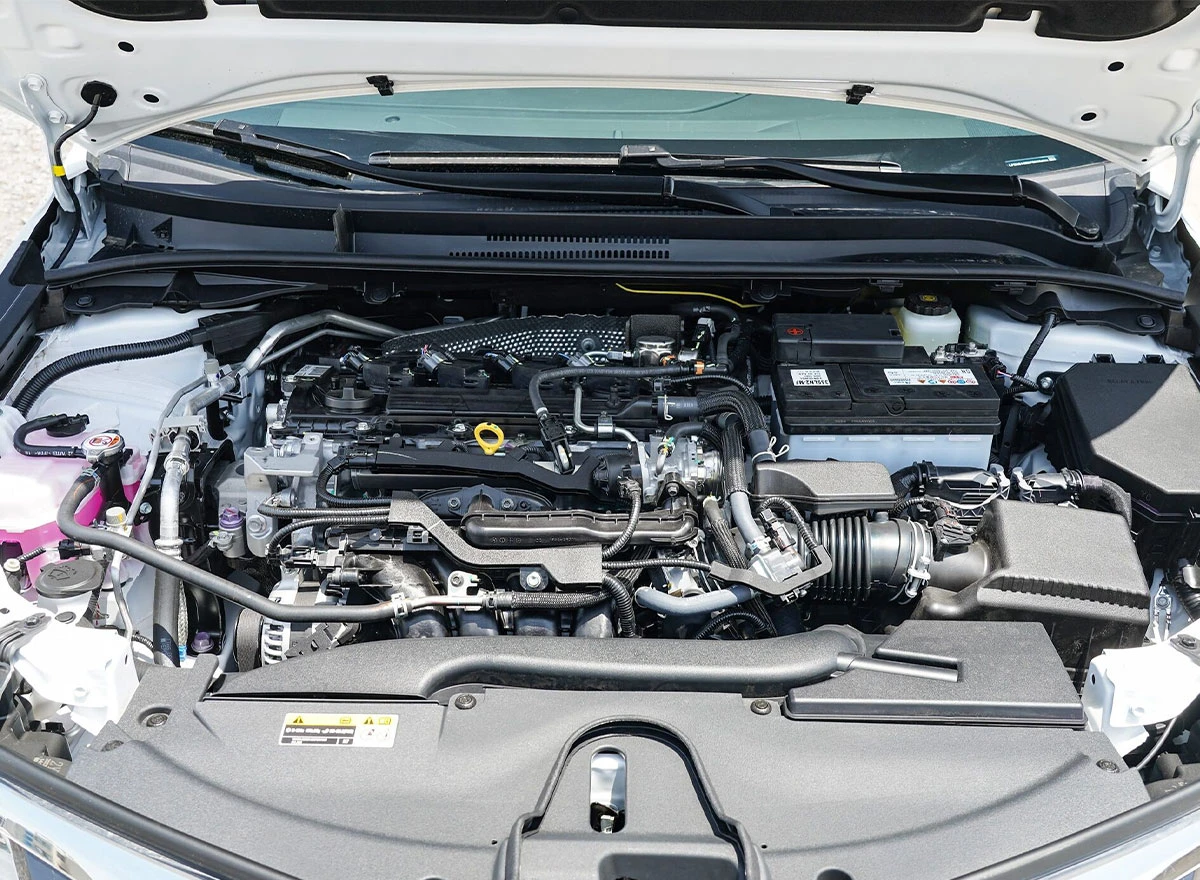

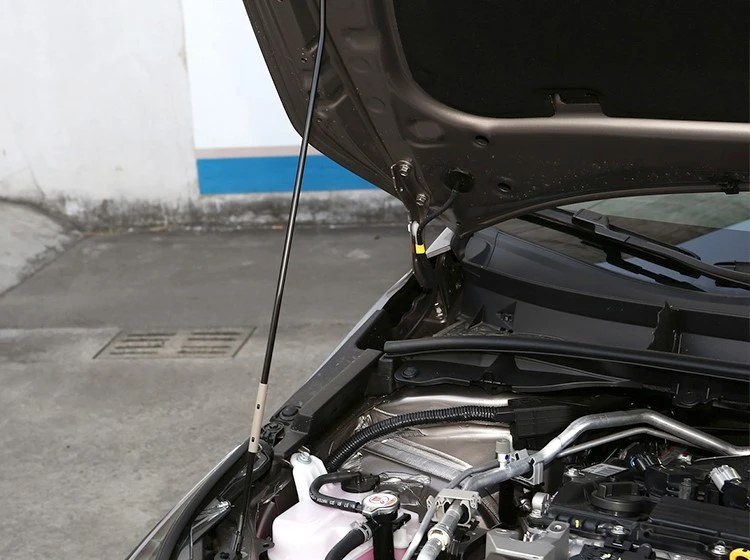

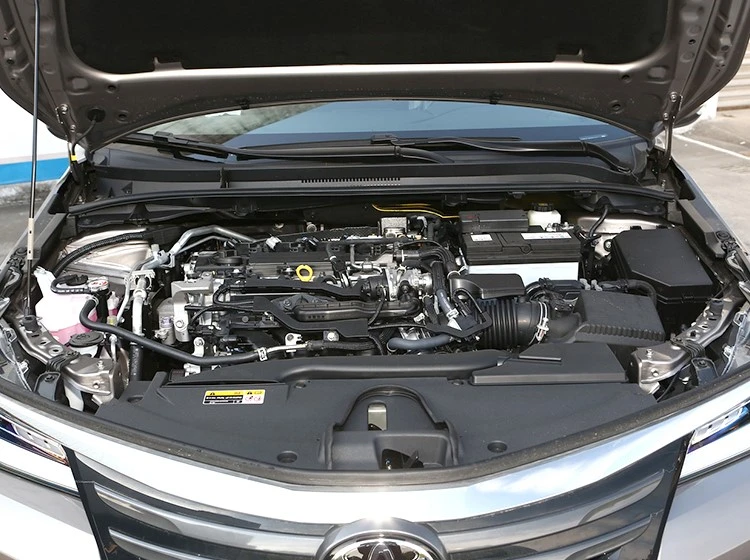

Power Configuration
Toyota Allion only offers 2.0L naturally aspirated engine, with a maximum power of 171 hp/6600rpm and a maximum torque of 205 Nm/4600-5000rpm. It adopts mixed injection, is filled with 92-grade gasoline, and meets the National VI emission standards.

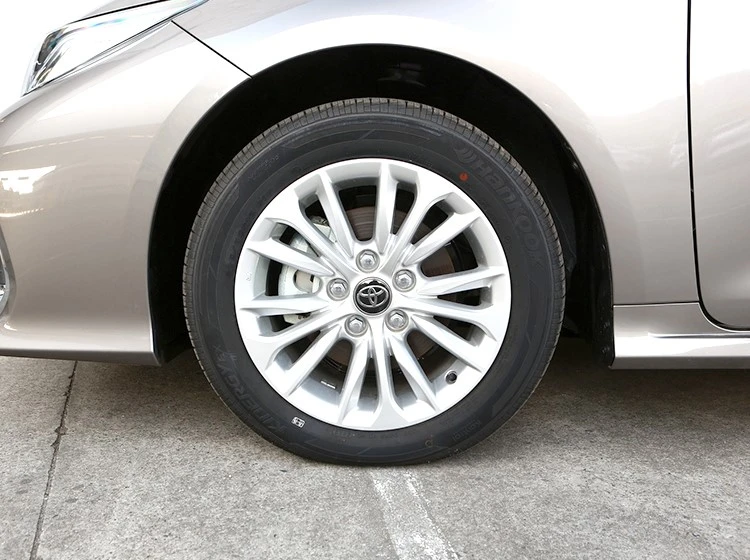

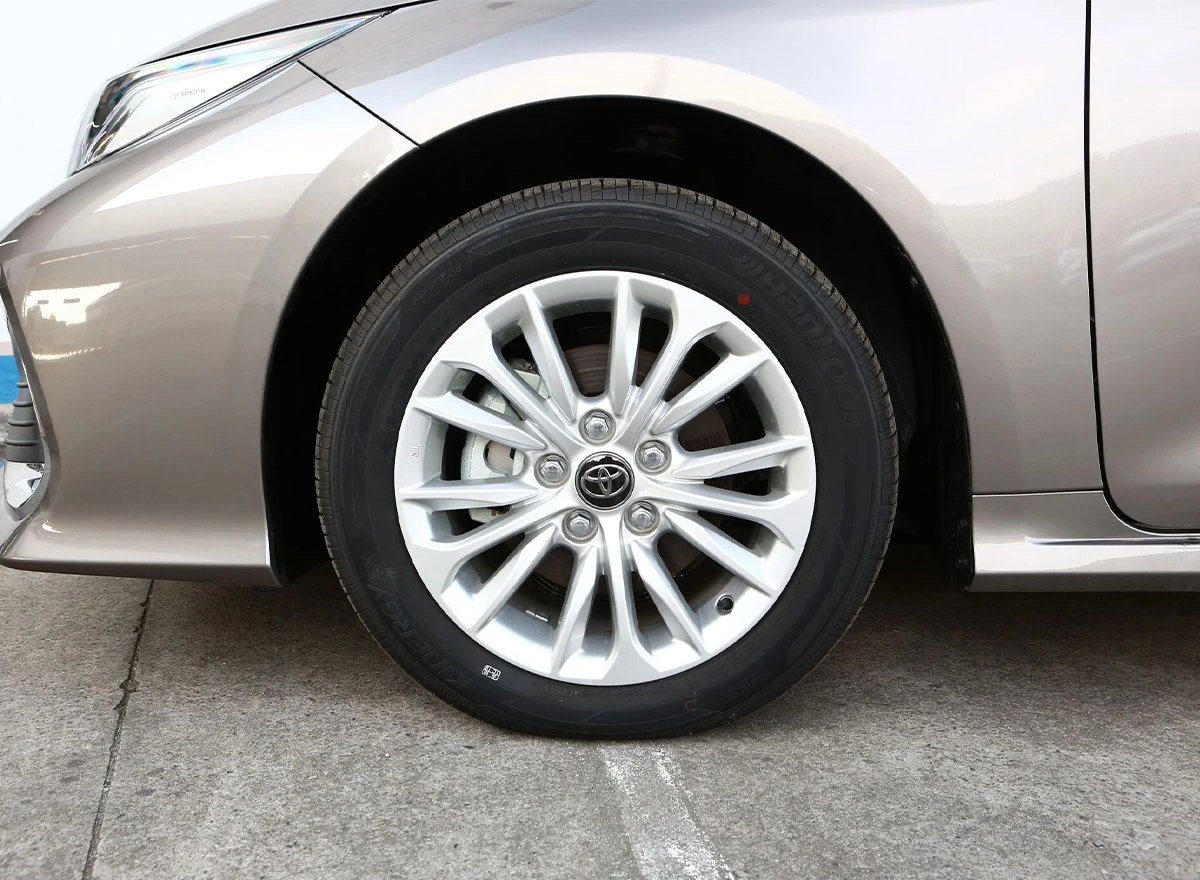

Wheel Specifications
Toyota Allion's wheels are of a standard multi-spoke design, not particularly eye-catching. Depending on the configuration, 17-inch and 18-inch wheel specifications are available.

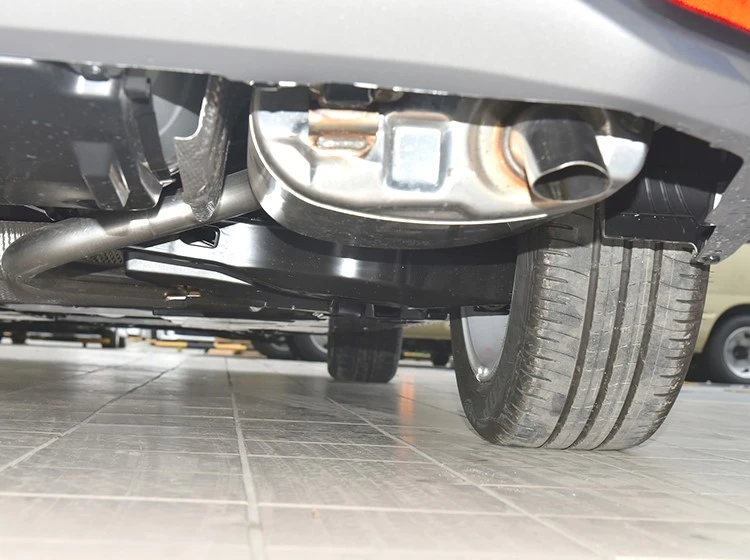

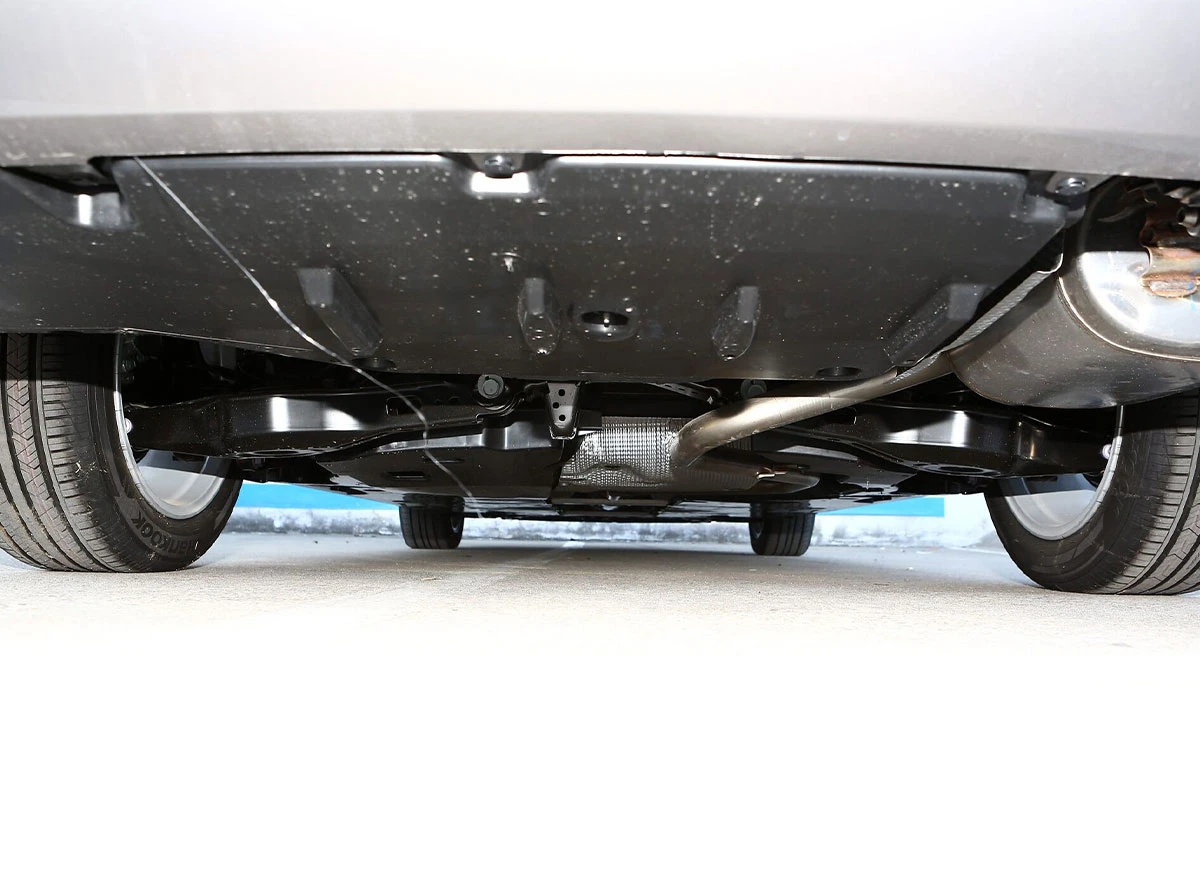

Chassis Suspension
Toyota Allion's front suspension is a McPherson independent suspension. The rear suspension is an E-type multi-link independent suspension, which can effectively reduce the bumps and vibrations of the vehicle body, thereby improving the vehicle's riding comfort. It can adapt to different road conditions and vehicle model requirements.
Product Details
| ● Standard configuration ○ Optional -- None |
Allion 2023 2.0L Pioneer Edition | Allion 2023 2.0L Elite Edition | Allion 2023 Dual Engine 2.0L Premium Edition | Allion 2023 Dual Engine 2.0L Ultimate Edition |
| Basic Parameters | ||||
| Manufacturer | FAW Toyota | FAW Toyota | FAW Toyota | FAW Toyota |
| Level | Compact car | Compact car | Compact car | Compact car |
| Energy type | Gasoline | Gasoline | Oil-electric hybrid | Oil-electric hybrid |
| Environmental protection standards | National VI | National VI | Country VI | National VI |
| Time to market | 2023.05 | 2023.05 | 2023.09 | 2023.09 |
| Maximum power(kw) | 126 | 126 | 144 | 144 |
| Maximum torque(N-m) | 205 | 205 | -- | -- |
| Engine | 2.0L 171 horsepower L4 | 2.0L 171 horsepower L4 | 2.0L 152 horsepower L4 | 2.0L 152 horsepower L4 |
| Gearbox | CVT continuously variable speed (analog 10 gears) | CVT continuously variable speed (analog 10 gears) | E-CVT stepless speed change | E-CVT stepless speed change |
| Length*Width*Height (mm) | 4720*1780*1435 | 4720*1780*1435 | 4720*1780*1435 | 4720*1780*1435 |
| Body structure | 4-door 5-seater sedan | 4-door 5-seater sedan | 4-door 5-seater sedan | 4-door 5-seater sedan |
| Maximum speed (km/h) | 180 | 180 | 180 | 180 |
| WLTC comprehensive fuel consumption (L/100km) | 5.59 | 5.59 | 4.3 | 4.41 |
| Vehicle warranty | Three years or 100,000 kilometers | Three years or 100,000 kilometers | Three years or 100,000 kilometers | Three years or 100,000 kilometers |
| Car Body | ||||
| Wheelbase(mm) | 2750 | 2750 | 2750 | 2750 |
| Front wheelbase (mm) | 1531 | 1531 | 1531 | 1531 |
| Rear wheelbase (mm) | 1535 | 1535 | 1535 | 1535 |
| Body structure | Sedan | Sedan | Sedan | Sedan |
| Car door opening method | Swing door | Swing door | Swing door | Swing door |
| Fuel tank volume (L) | 50 | 50 | 43 | 43 |
| Curb weight (kg) | 1380 | 1390 | 1445 | 1465 |
| Engine | ||||
| Engine model | M20E | M20E | -- | -- |
| Displacement (mL) | 1987 | 1987 | 1987 | 1987 |
| Displacement(L) | 2.0 | 2.0 | 2.0 | 2.0 |
| Intake form | Inhale naturally | Inhale naturally | Inhale naturally | Inhale naturally |
| Engine layout | Horizontal | Horizontal | Horizontal | Horizontal |
| Cylinder arrangement | L | L | L | L |
| Number of cylinders | 4 | 4 | 4 | 4 |
| Air Supply | DOHC | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 171 | 171 | 152 | 152 |
| Maximum power(kW) | 126 | 126 | 112 | 112 |
| Maximum torque(N-m) | 205 | 205 | 188 | 188 |
| Maximum torque speed (rpm) | 4600-5000 | 4600-5000 | 4400-5200 | 4400-5200 |
| Maximum net power (kW) | 126 | 126 | 112 | 112 |
| Fuel grade | 92# | 92# | 92# | 92# |
| Chassis/Wheels | ||||
| Drive mode | Front front drive | Front front drive | Front front drive | Front front drive |
| Front suspension type | Macpherson independent suspension | Macpherson independent suspension | Macpherson independent suspension | Macpherson independent suspension |
| Rear suspension type | E-type multi-link independent suspension | E-type multi-link independent suspension | E-type multi-link independent suspension | E-type multi-link independent suspension |
| Parking brake type | Electronic parking | Electronic parking | Electronic parking | Electronic parking |
| Front tire specifications | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/40 R18 |
| Rear tire specifications | 205/55 R16 | 205/55 R16 | 225/45 R17 | 225/40 R18 |
| Spare tire specifications | Not full size | Not full size | Not full size | Not full size |
| Active/Passive safety | ||||
| Main/passenger seat airbag | ●Main ●deputy |
●Main ●deputy |
●Main ●deputy |
●Main ●deputy |
| Front/rear side airbags | ●Front --rear |
●Front --rear |
●Front --rear |
●Front --rear |
| Front/rear head airbags (curtain airbags) | ●Front ●rear |
●Front ●rear |
●Front ●rear |
●Front ●rear |
| Tire pressure monitoring function | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display |
| Seat belt not fastened reminder | ●Whole car | ●Whole car | ●Whole car | ●Whole car |
| ABS anti-lock | ● | ● | ● | ● |
| Lane Departure Warning System | ● | ● | ● | ● |
| Active braking/active safety system | ● | ● | ● | ● |
| Control Configuration | ||||
| Driving mode switch | ●Exercise | ●Exercise | ●Exercise | ●Exercise |
| Shift pattern | ●Mechanical gear shift | ●Mechanical gear shift | ●Mechanical gear shift | ●Mechanical gear shift |
| automatic parking | ● | ● | ● | ● |
| Auxiliary/Intelligent Driving | ||||
| cruise system | ●Full speed adaptive cruise | ●Full speed adaptive cruise | ●Full speed adaptive cruise | ●Full speed adaptive cruise |
| Assisted driving level | ●L2 | ●L2 | ●L2 | ●L2 |
| Road traffic sign recognition | ● | ● | ● | ● |
| Front/rear parking radar | ●Front ●rear |
●Front ●rear |
●Front ●rear |
●Front ●rear |
| Appearance Configuration | ||||
| Skylight type | -- | ●Electric sunroof | ●Electric sunroof | ●Electric sunroof |
| Key type | ●Remote control key | ●Remote control key | ●Remote control key | ●Remote control key |
| Keyless start system | ● | ● | ● | ● |
| Internal Configuration | ||||
| Full LCD instrument panel | ●Color | ●Color | ●Color | ●Color |
| LCD instrument size | ●7 inches | ●7 inches | ●7 inches | ●12.3 inches |
| Steering wheel material | ●Plastic | ●Plastic | ●Plastic | ●Genuine leather |
| Steering wheel position adjustment | ●Manual up and down + front and rear adjustment | ●Manual up and down + front and rear adjustment | ●Manual up and down + front and rear adjustment | ●Manual up and down + front and rear adjustment |
| Multifunction steering wheel | ● | ● | ● | ● |
| Seat Configuration | ||||
| Seat material | ●Fabric | ●Fabric | ●Imitation leather | ●Leather/fur material mix and match |
| Main/passenger seat electric adjustment | --Main --deputy |
--Main --deputy |
●Main --deputy |
●Main ●deputy |
| Rear seats fold down | ●Proportional inverted | ●Proportional inverted | ●Proportional inverted | ●Proportional inverted |
| Front/rear center armrest | ●Front ●rear |
●Front ●rear |
●Front ●rear |
●Front ●rear |
| Lighting Configuration | ||||
| Low beam light source | ●LED | ●LED | ●LED | ●LED |
| high beam light source | ●LED | ●LED | ●LED | ●LED |
| Adaptive high and low beam | ● | ● | ● | ● |
| Headlight height adjustable | ● | ● | ● | ● |
| Glass/Rear View Mirror | ||||

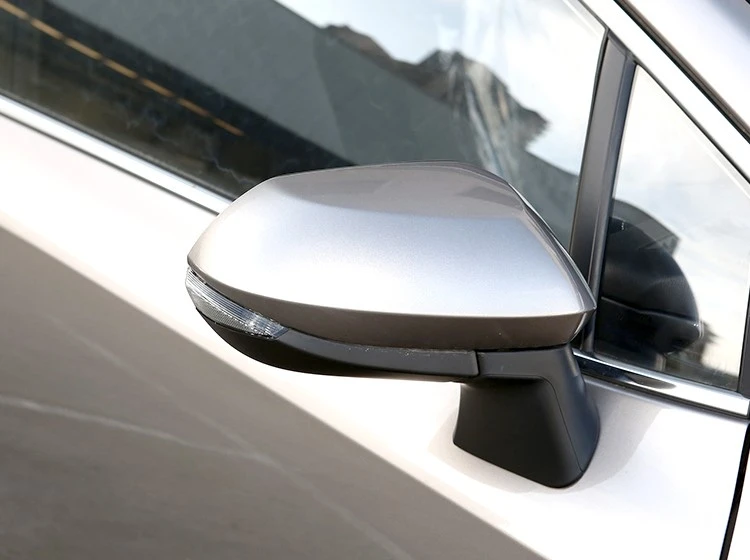

| Exterior rearview mirror function | ●Rearview mirror heating ●Electric adjustment |
●Rearview mirror heating ●Electric adjustment |
●Rearview mirror heating ●Electric adjustment |
●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Electric adjustment |
| Front/rear electric windows | ●Front ●rear |
●Front ●rear |
●Front ●rear |
●Front ●rear |
| One-touch window lifting function | ●Whole car | ●Whole car | ●Whole car | ●Whole car |
| Window anti-pinch function | ||||
| Car vanity mirror | ●Main driver ●Co-pilot |
●Main driver ●Co-pilot |
●Main driver ●Co-pilot |
●Main driver ●Co-pilot |
| Interior rearview mirror function | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare | ●Manual anti-glare |
| Intelligent Internet | ||||
| Central control color LCD screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen |
| Central control screen size | ●10.25 inches | ●10.25 inches | ●10.25 inches | ●10.25 inches |
| Navigation traffic information display | -- | ● | ● | ● |
| GPS navigation system | ● | ● | ● | ● |
| roadside assistance call | ● | ● | ● | ● |
| Bluetooth/car phone | ● | ● | ● | ● |
| Mobile phone interconnection/mapping | ●Support CarPlay ●Support CarLife ●Support HiCar |
●Support CarPlay ●Support CarLife ●Support HiCar |
●Support CarPlay ●Support CarLife ●Support HiCar |
●Support CarPlay ●Support CarLife ●Support HiCar |
| Voice recognition control system | -- | ●Multimedia system ●Navigation ●Phone ●Skylight |
●Multimedia system ●Navigation ●Phone ●Skylight |
●Multimedia system ●Navigation ●Phone ●Skylight |
| APP Remote Control | ●Door control ●Headlight control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search |
●Door control ●Headlight control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search |
●Door control ●Headlight control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search |
●Door control ●Headlight control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search |
| Media Entertainment | ||||
| Multimedia/charging interface | ●USB | ●USB | ●USB | ●USB |
| Number of USB/Type-C interfaces | ●1 front row | ●1 front row | ●1 front row/2 rear row | ●1 front row/2 rear row |
| Mobile phone wireless charging function | -- | -- | ●Front row | ●Front row |
| Number of speakers | ●4 speakers | ●4 speakers | ●6 speakers | ●6 speakers |
