The ET5 car is driven by dual motors, with a combined maximum power of 360kW. In terms of battery, it currently offers two versions of 75kWh and 100kWh, with a maximum cruising range of up to 710km and supports battery swapping.
NIO ET5 adopts a dual-motor layout with front induction asynchronous and rear permanent magnet synchronous. The maximum power of the front motor is 150kW and the maximum power of the rear motor is 210kW.
It is equipped with 4 NVIDIA Orin chips, with a total computing power of 1016TOPS, and 29 perception hardware in the whole vehicle. It comes standard with L2 level driving assistance, and optional L3 level driving assistance.

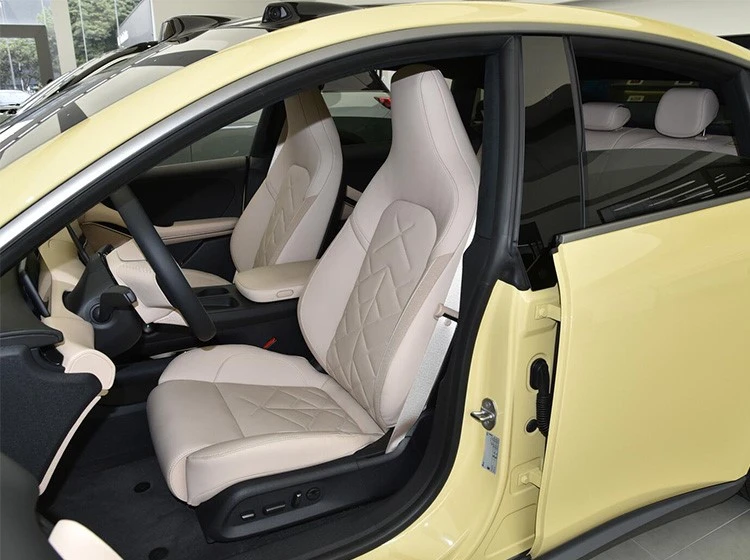

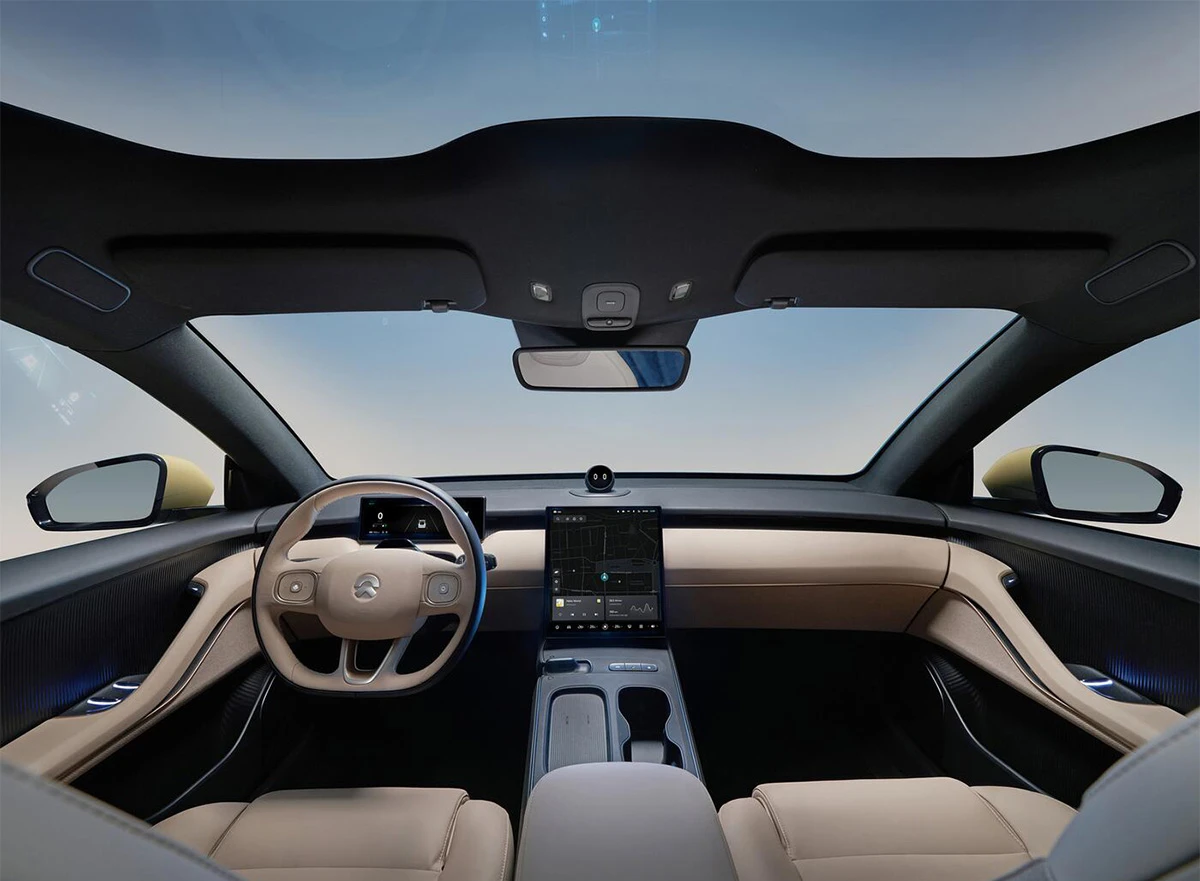

The front row of ET5 car adopts integrated sports-style seats, which has a more sporty feel. Seat heating is standard, and ventilation and massage functions are optional to improve riding comfort.

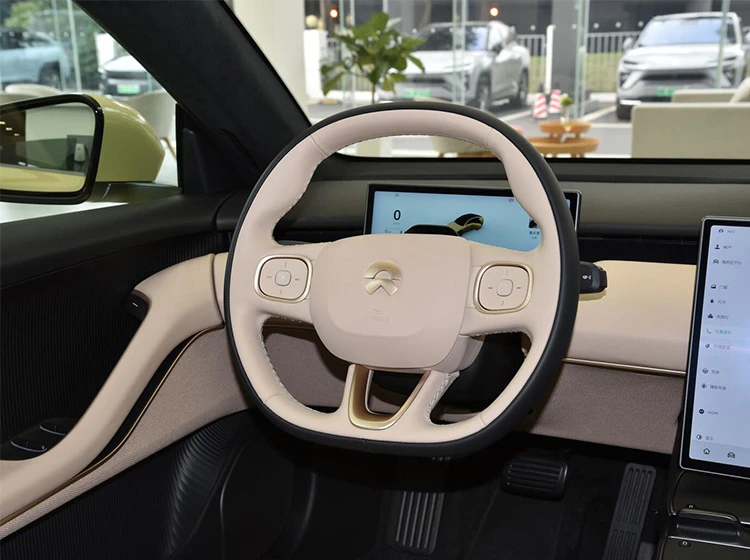

Dual Color Matching Steering Wheel
The ET5 car uses a dual-color steering wheel, which is wrapped in genuine leather. The shape design takes into account the hand-holding experience and practicality.

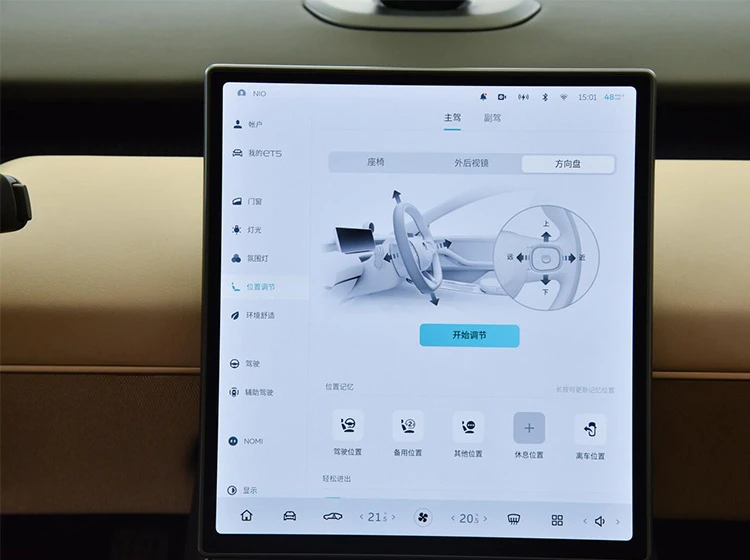

12.8-inch Central Control Screen
12.8-inch OLED screen with delicate display. Equipped with NOMI in-vehicle intelligent system, it integrates vehicle settings and entertainment functions for smooth operation.

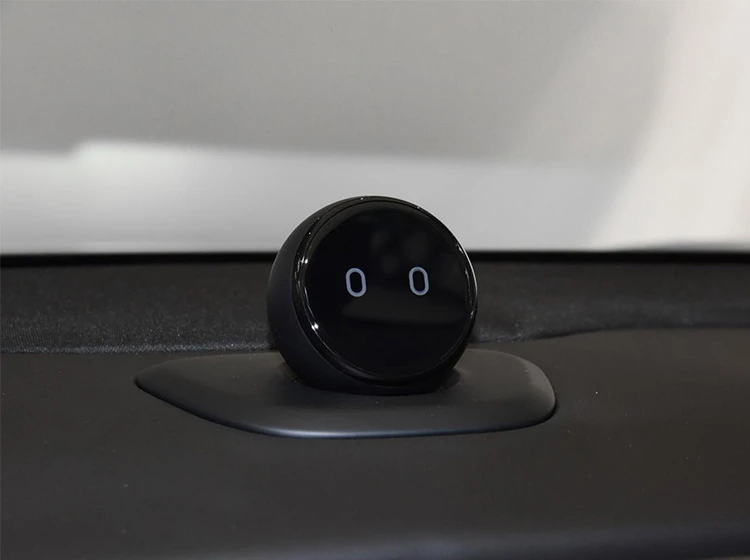

NOMI
It supports a variety of expressions, can change the direction according to the position of the sound source, and can also be awakened by eye gaze.

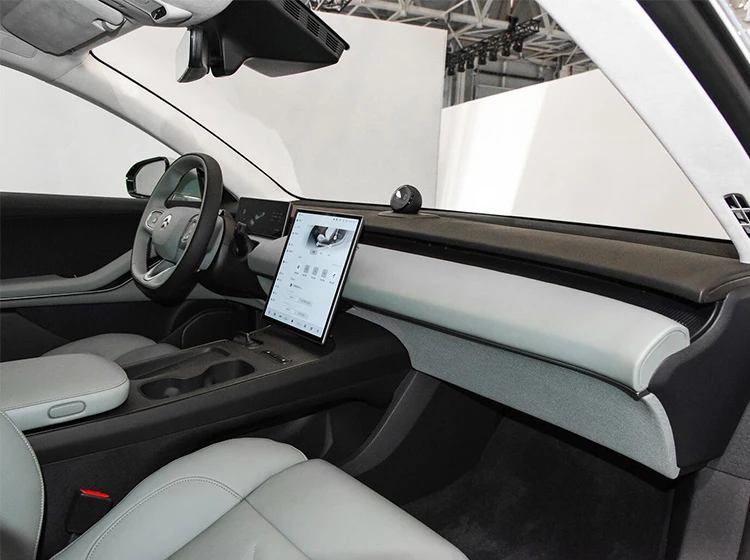

Hidden Air Outlet
The NIO ET5 center console uses hidden air outlets. The center console is simple and clean, and has stronger integrity.

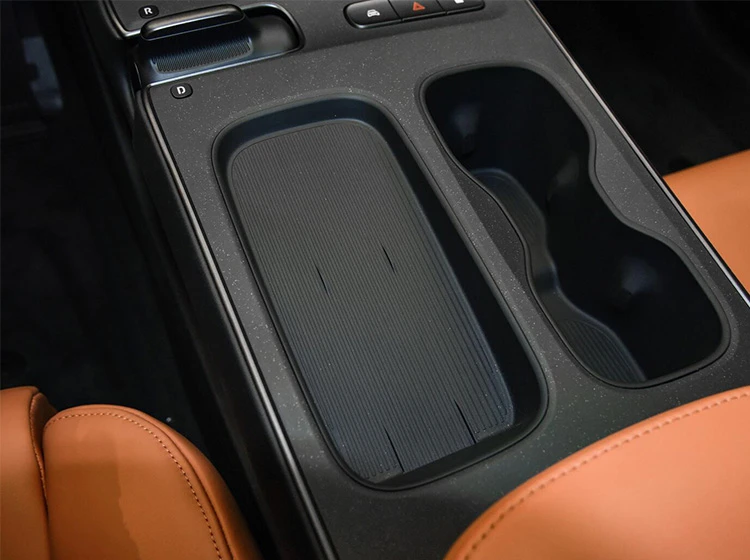

Wireless Charging
The front row of ET5 car is equipped with a wireless charging pad, which is reasonably positioned for easy access to mobile phones.

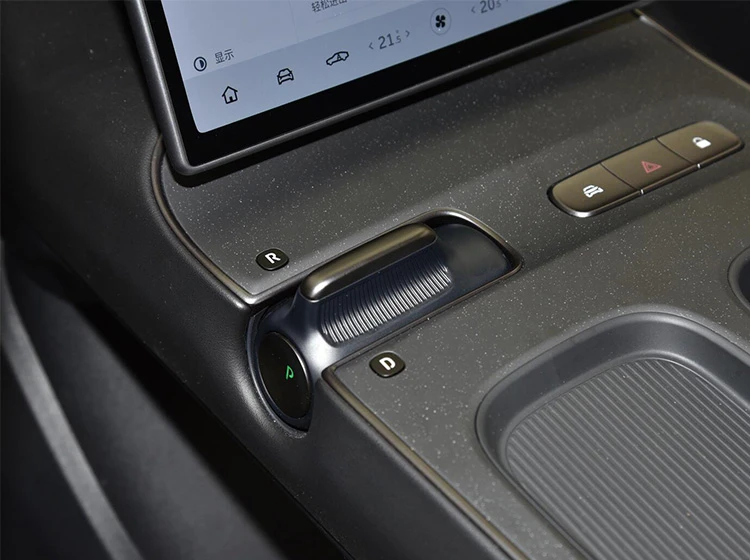

Shift Lever
NIO ET5 does not use pocket gears, but still designs the gear handle on the center console, and toggle it forward and backward to shift gears.

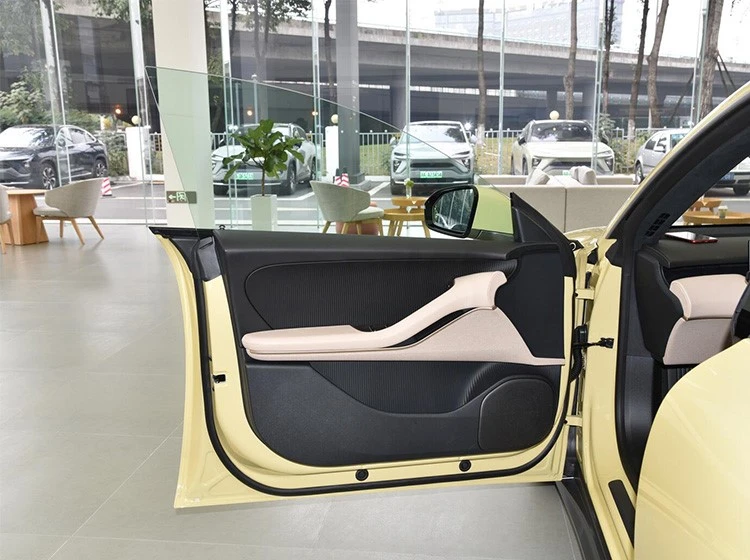

Mix And Match Door Panels
The ET5 car door panels are made of leather, fabric, plastic and other materials. The door adopts a frameless glass design, but it is a pity that it is not equipped with double-layer laminated glass.
Perforated Leather Seats
The seat material is imitation leather as standard, and genuine leather is optional for a better touch.

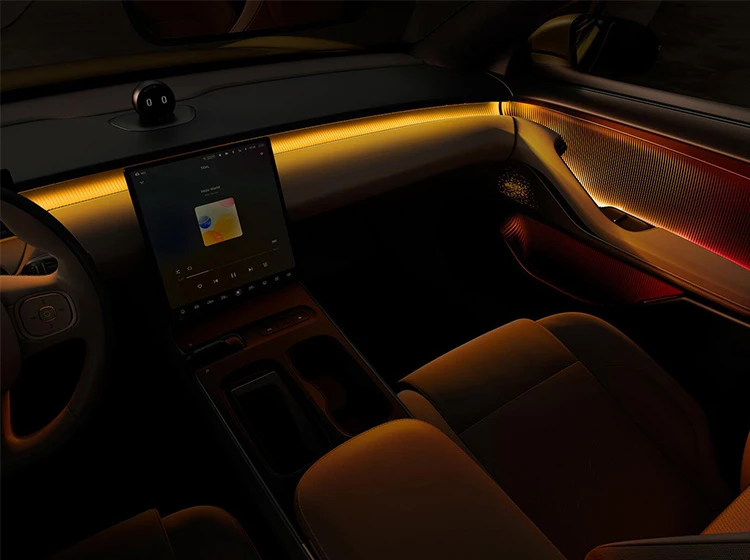

256 Colors Ambient Light
The center console, door panels and other places are equipped with ambient light strips, which bring an immersive light and shadow atmosphere when turned on, supporting contrasting color matching and music rhythm functions.

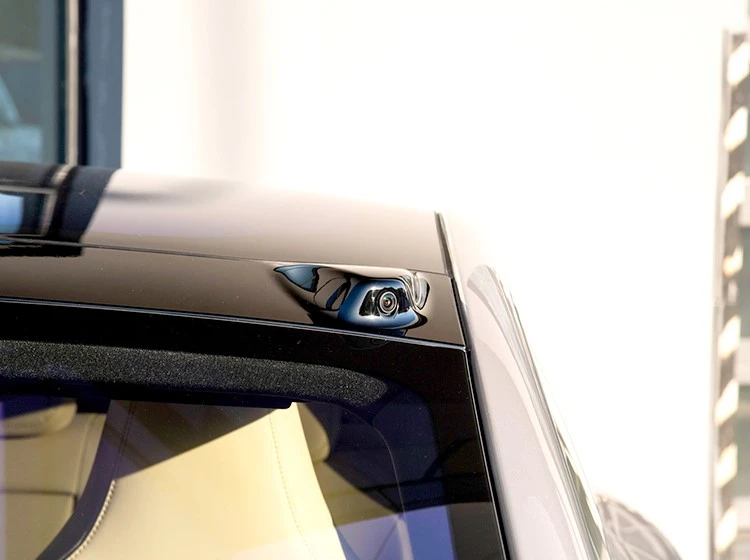

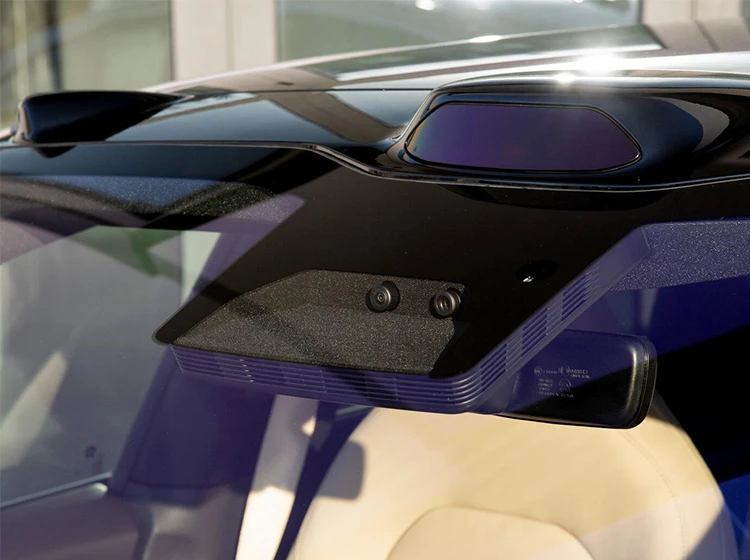

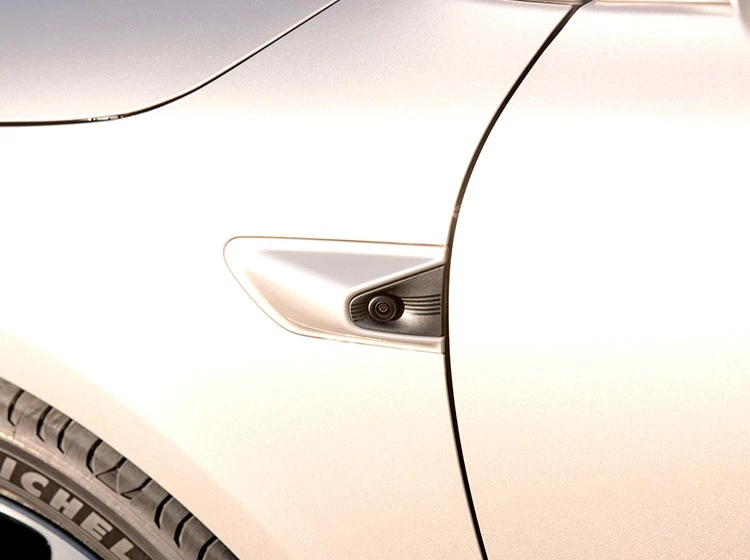

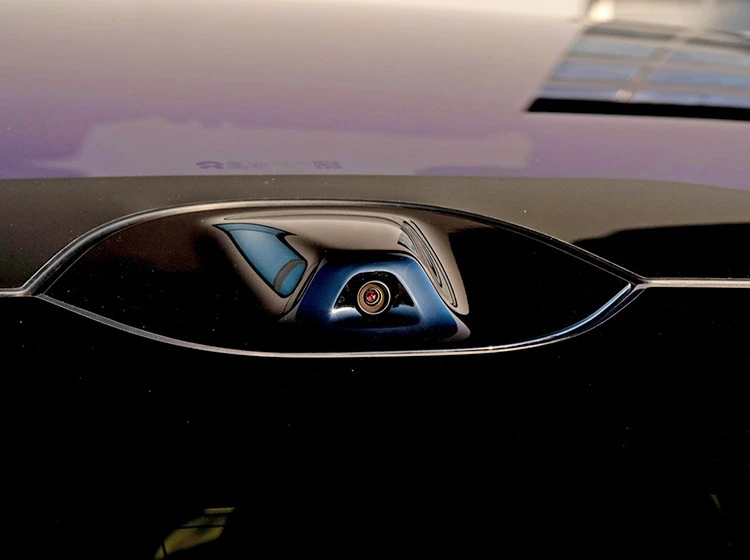

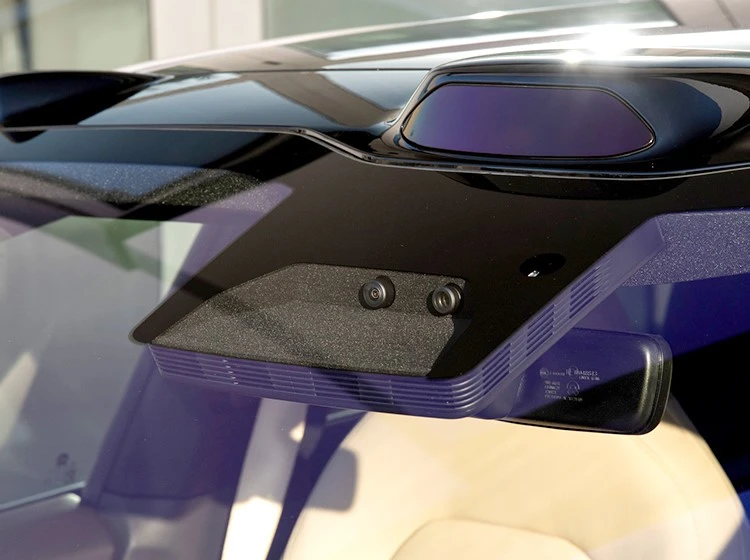

29 Sensing Hardware
The entire vehicle is equipped with 11 cameras, 12 ultrasonic radars, 5 millimeter wave radars, and 1 ultrasonic radar.

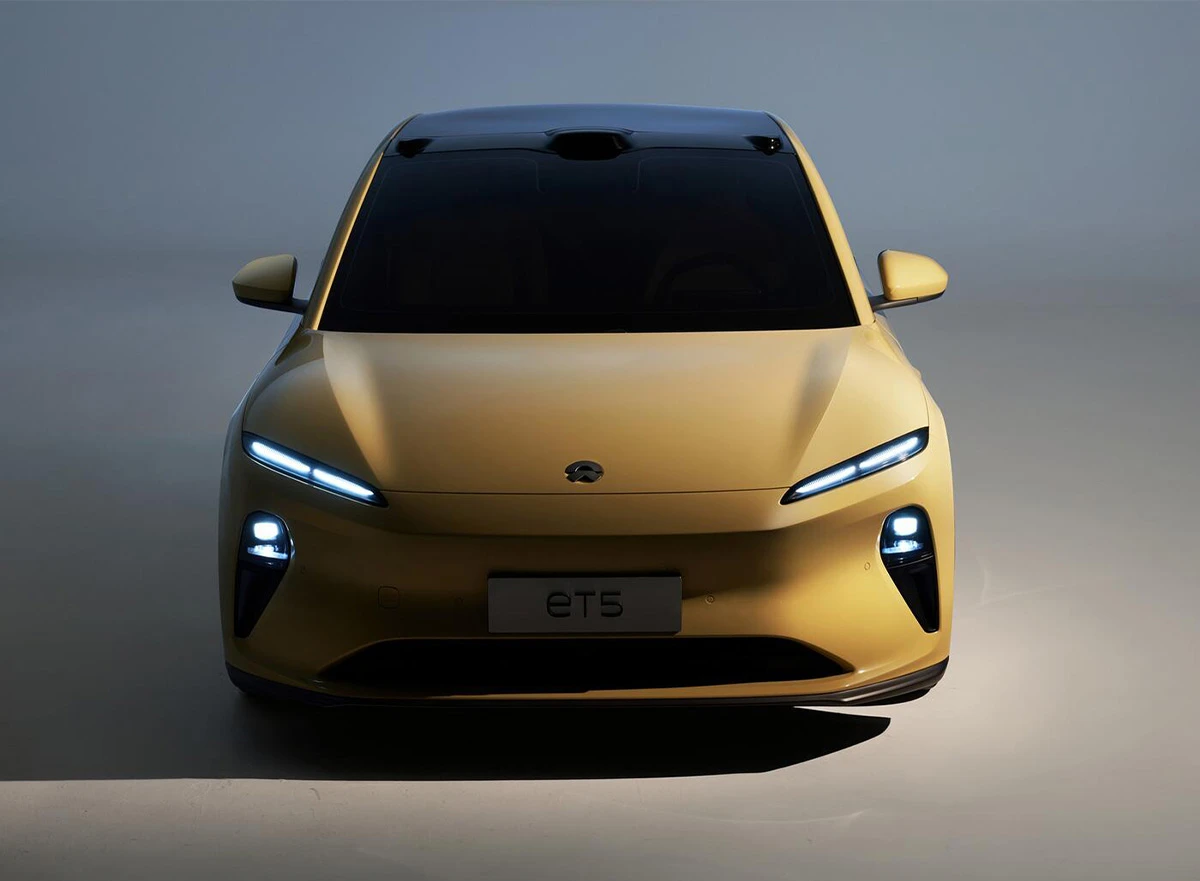

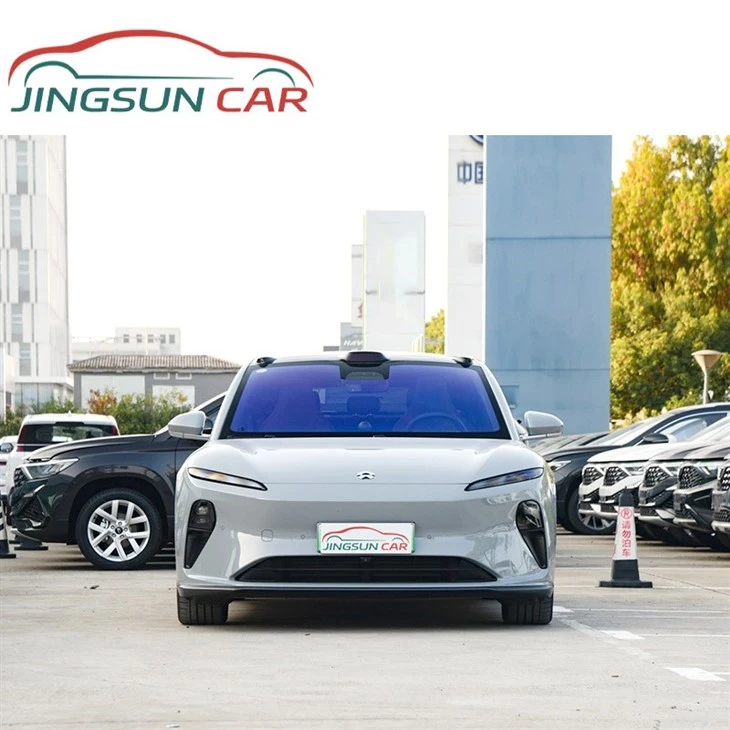

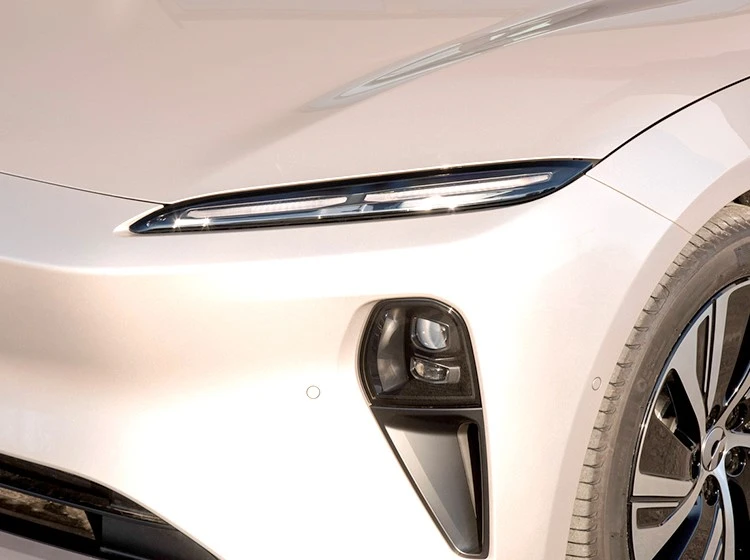

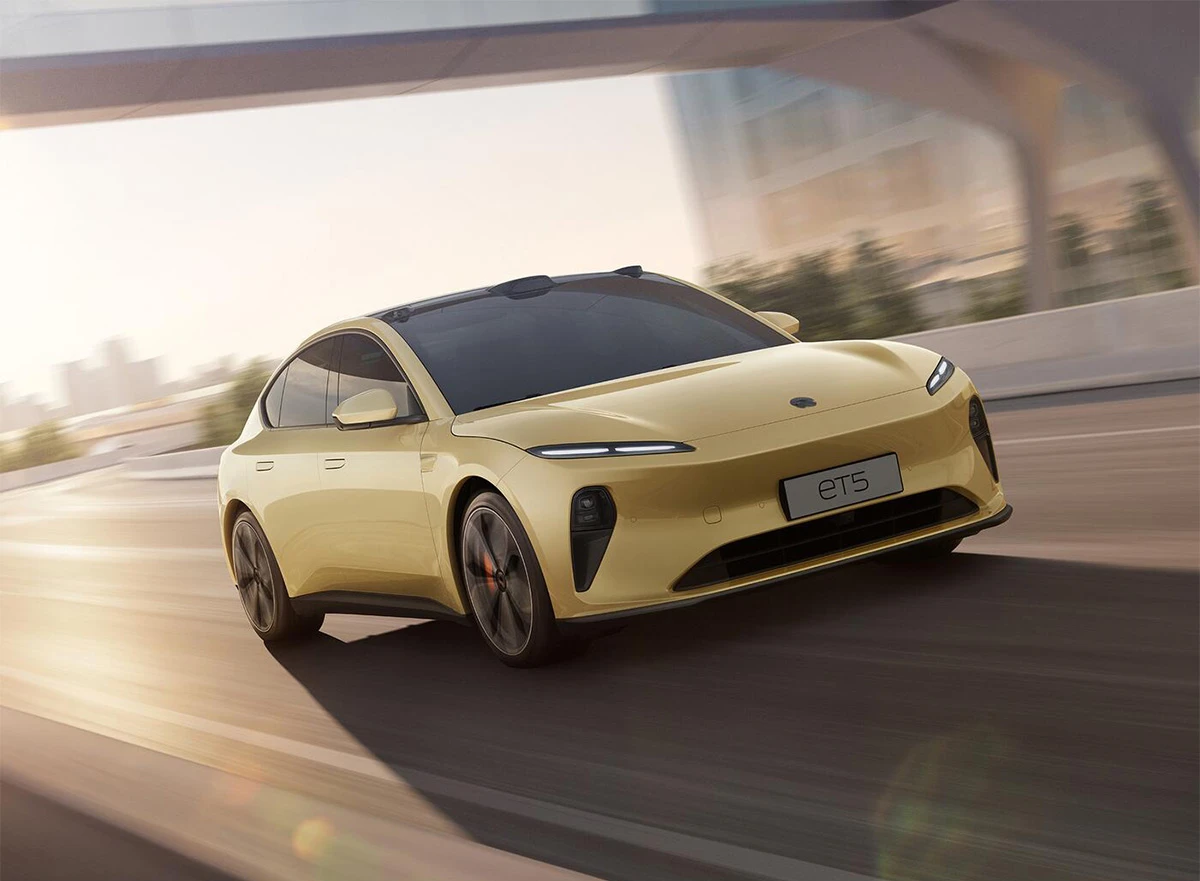

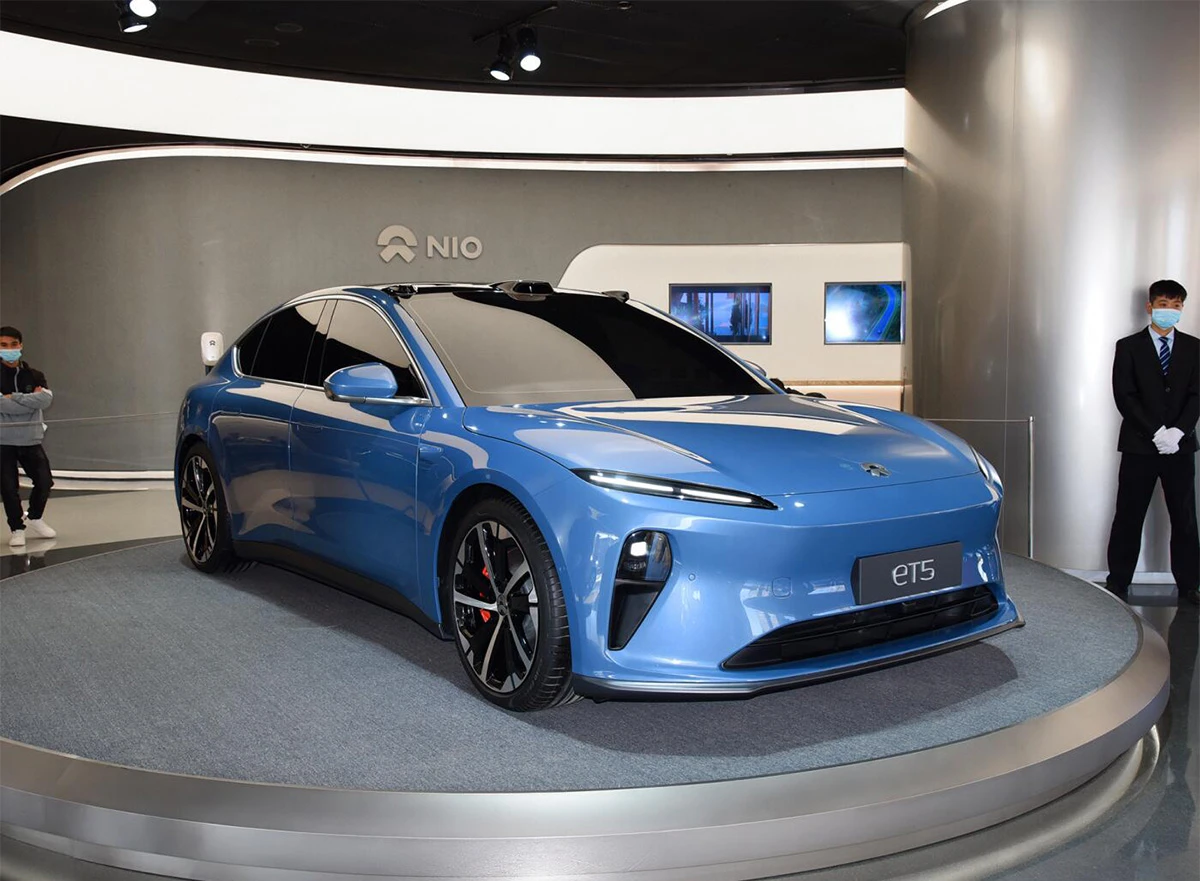

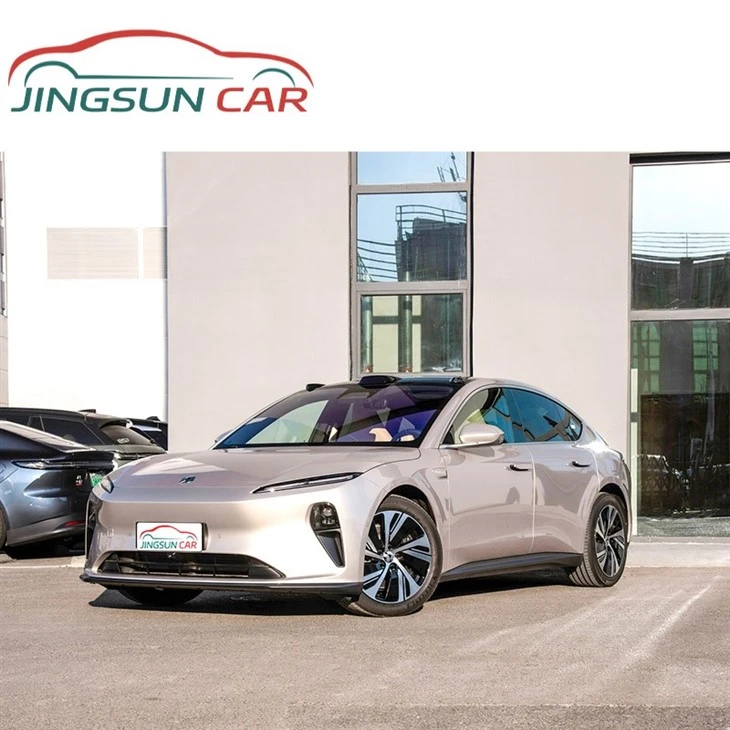

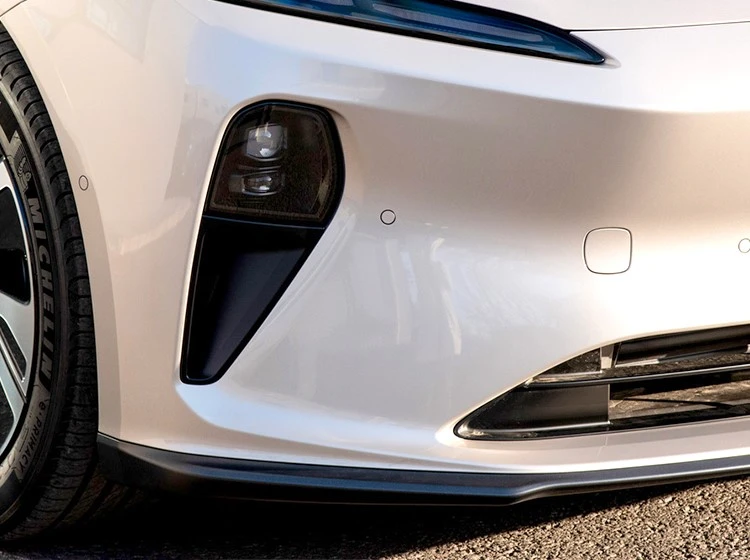

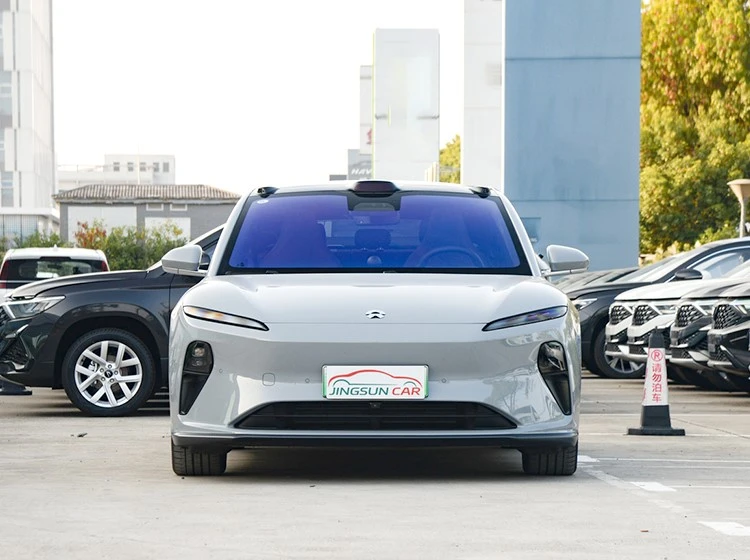

The front face of NIO ET5 is the latest family-style design. The X-Bar style front profile is retained, and the closed grille looks very futuristic.

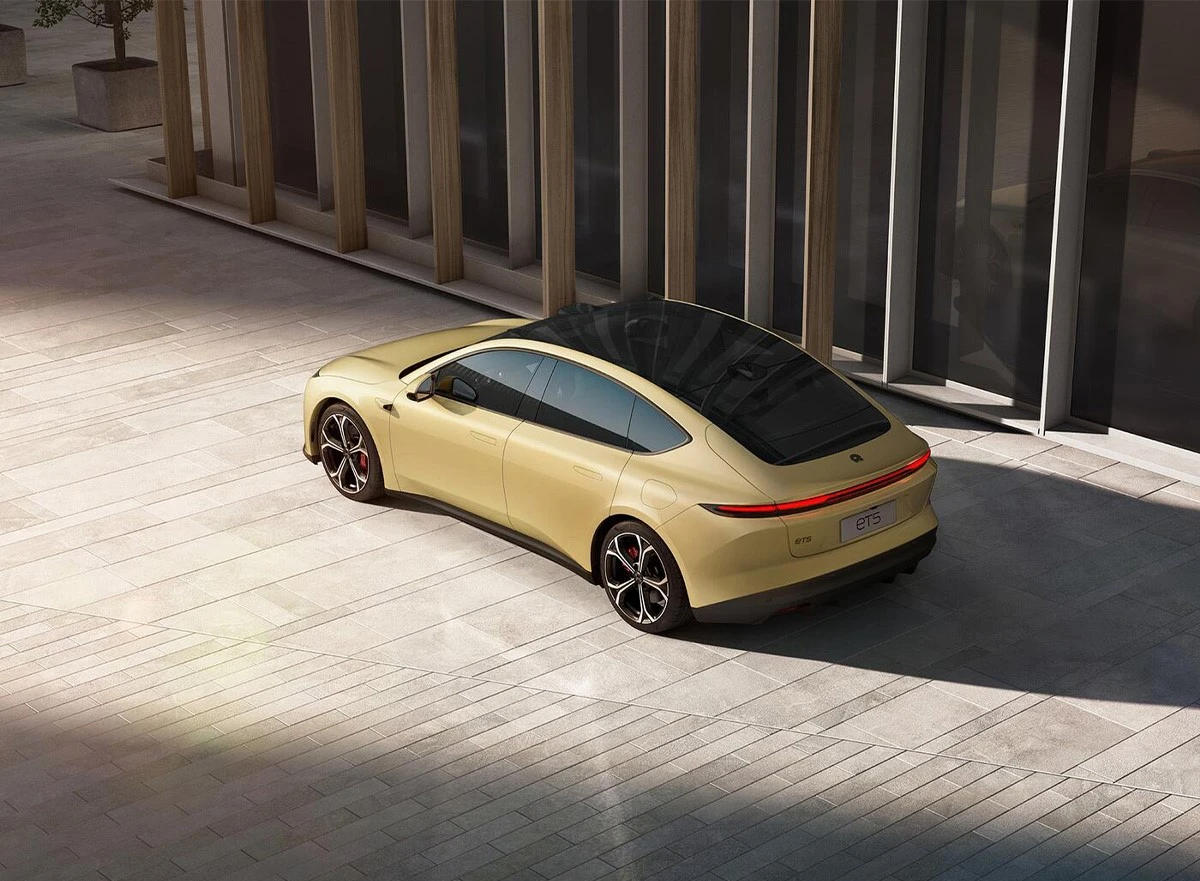

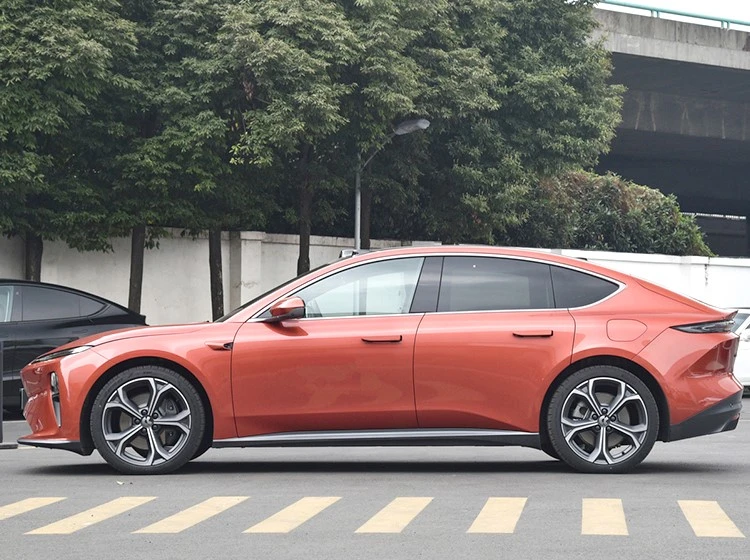

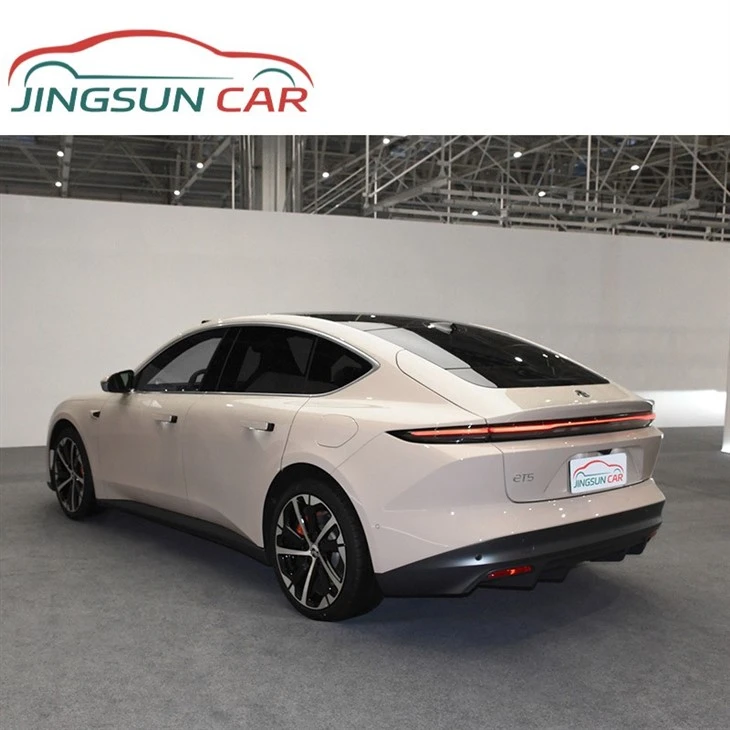

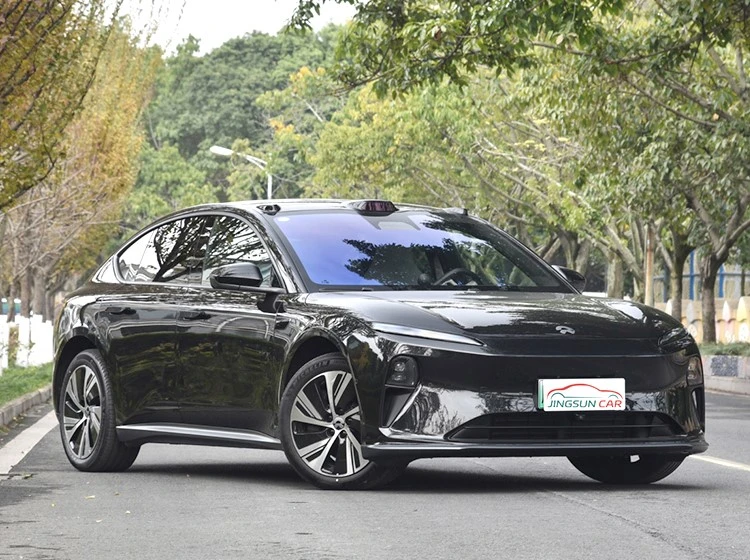

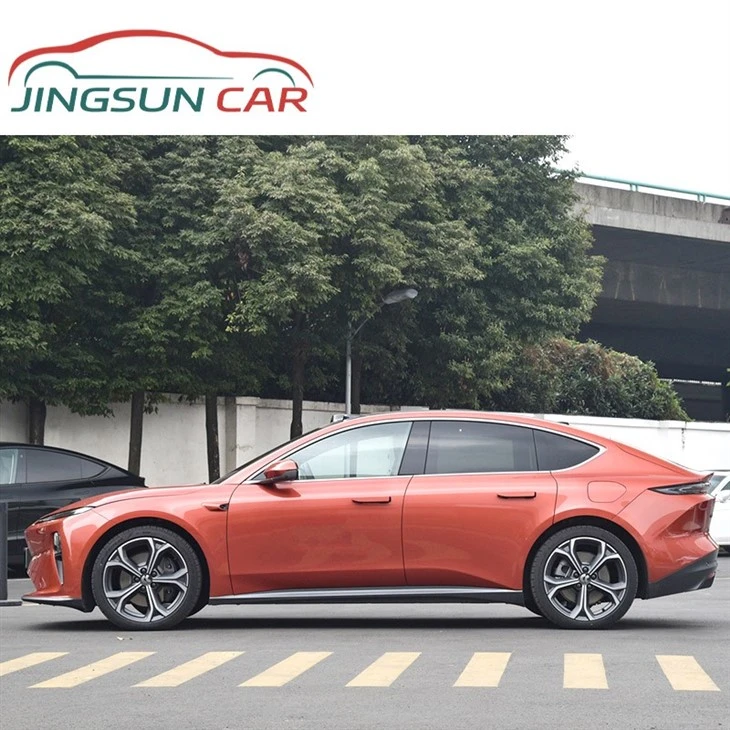

Viewed from the rear 45°, this car feels like a hatchback coupe, and its rounded and smooth lines look very graceful and harmonious.

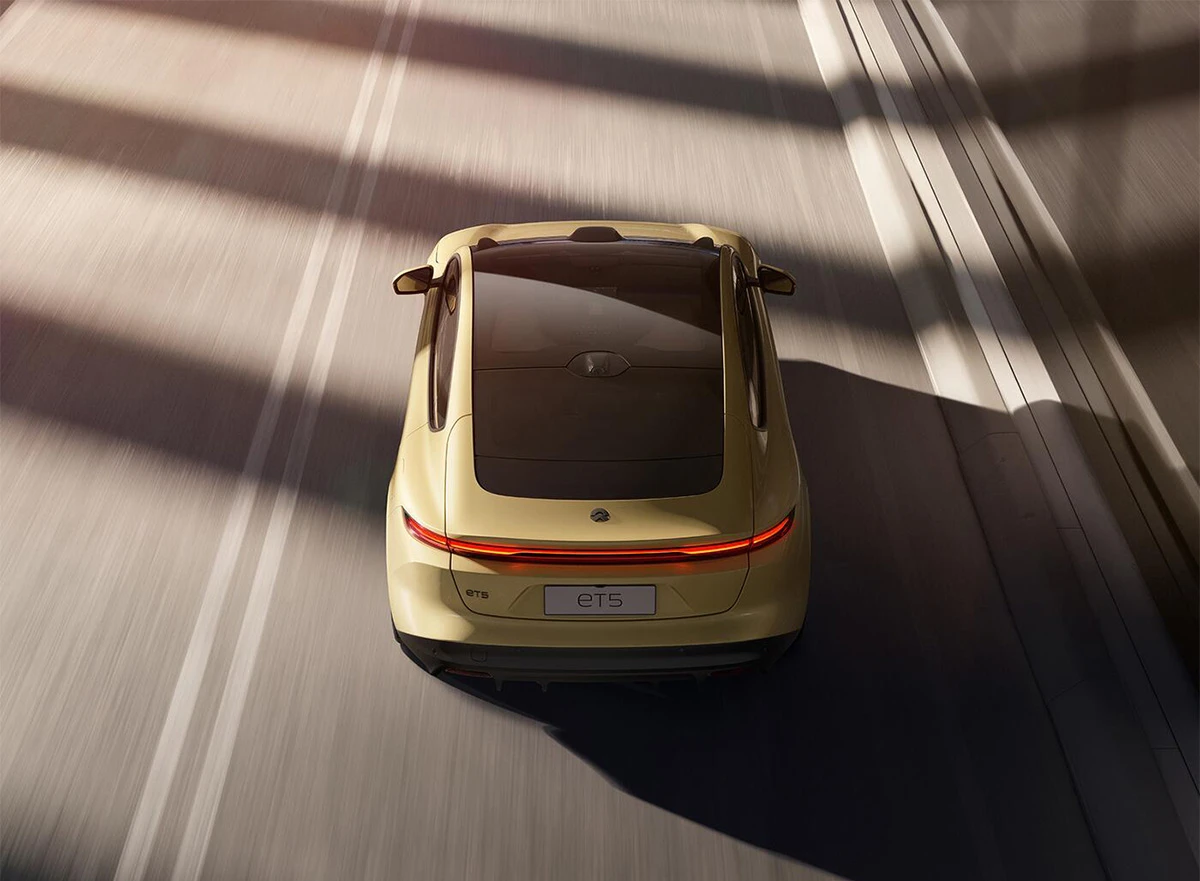

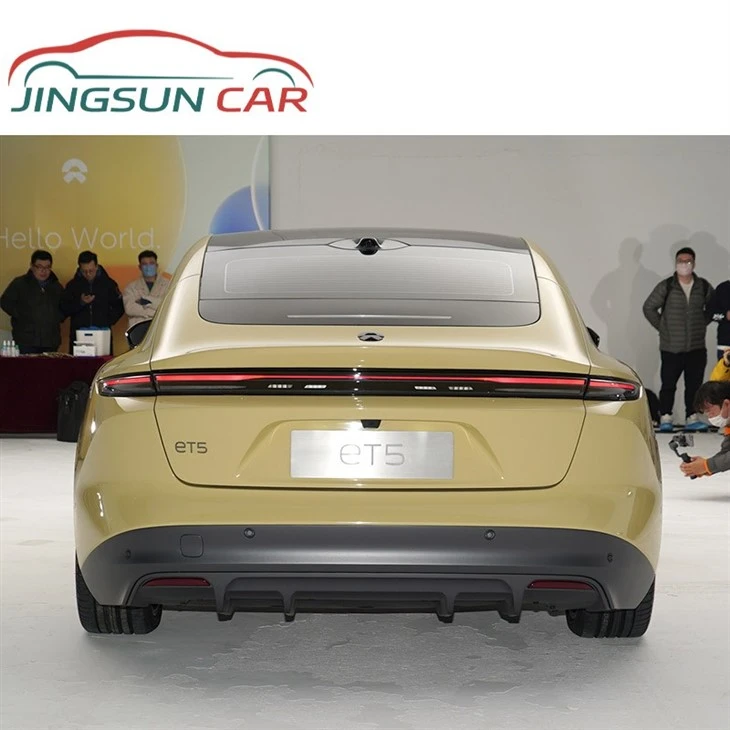

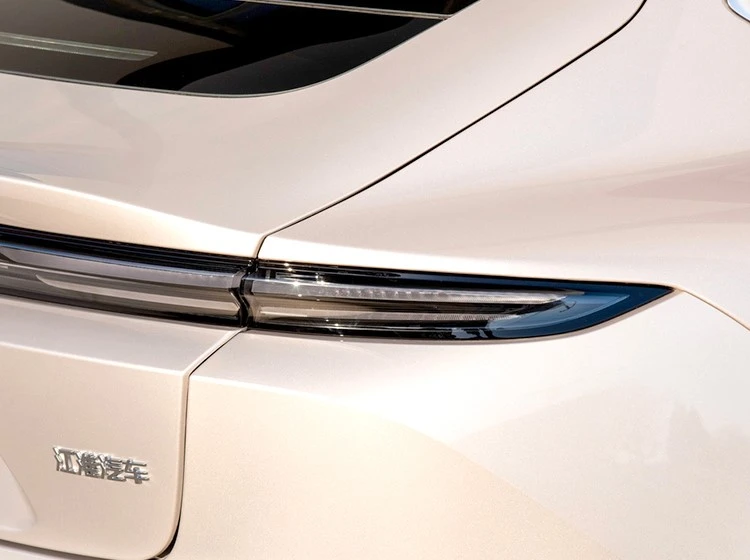

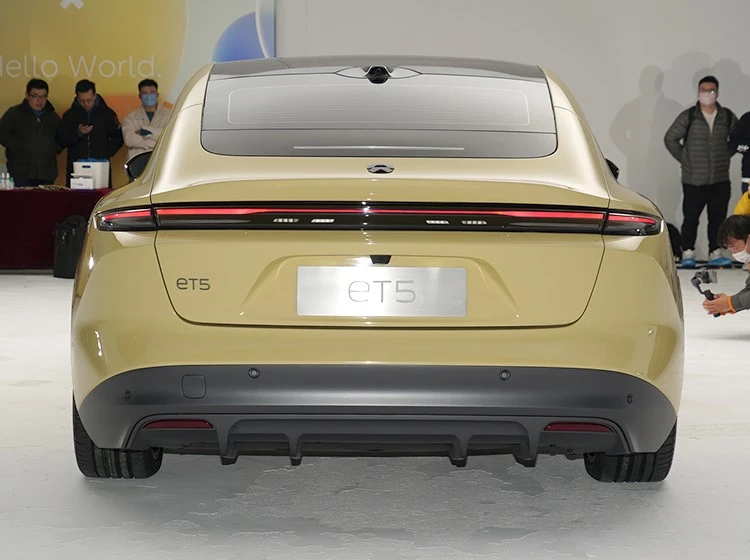

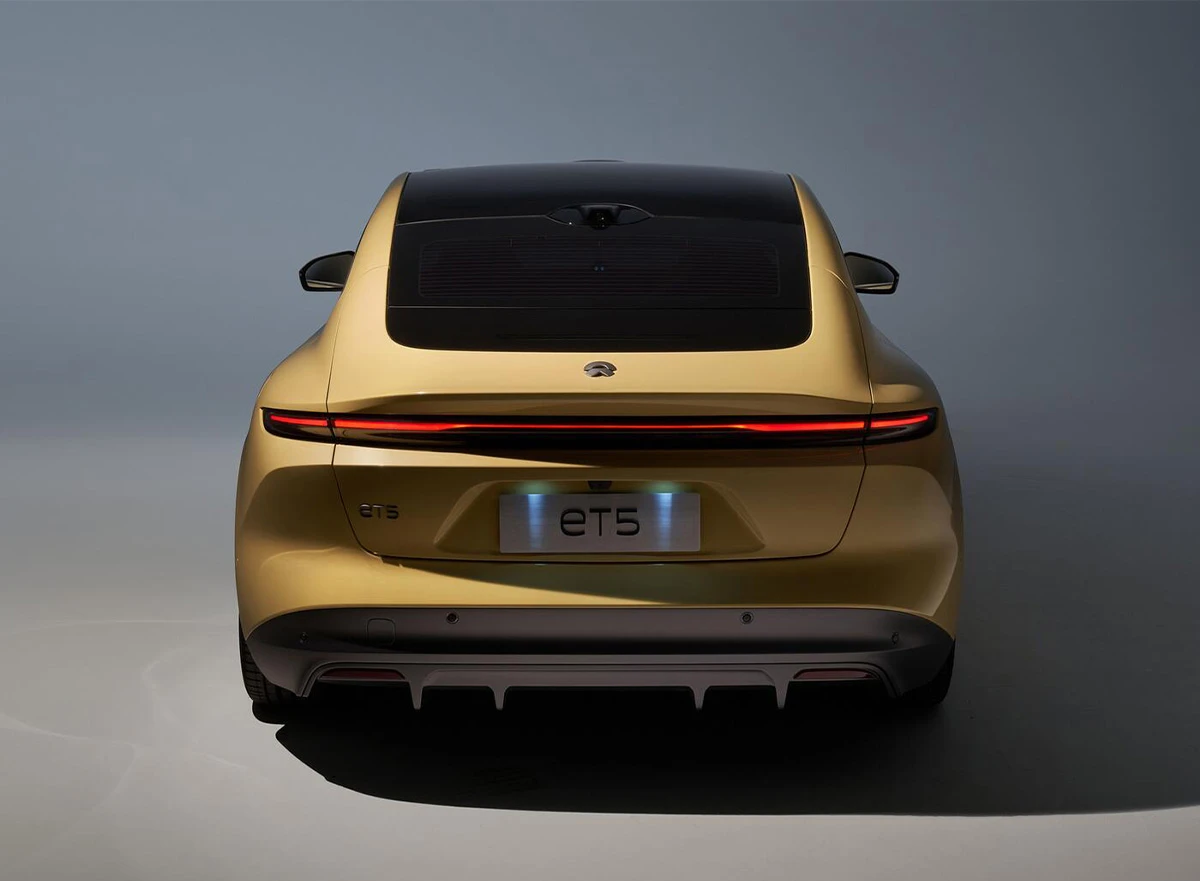

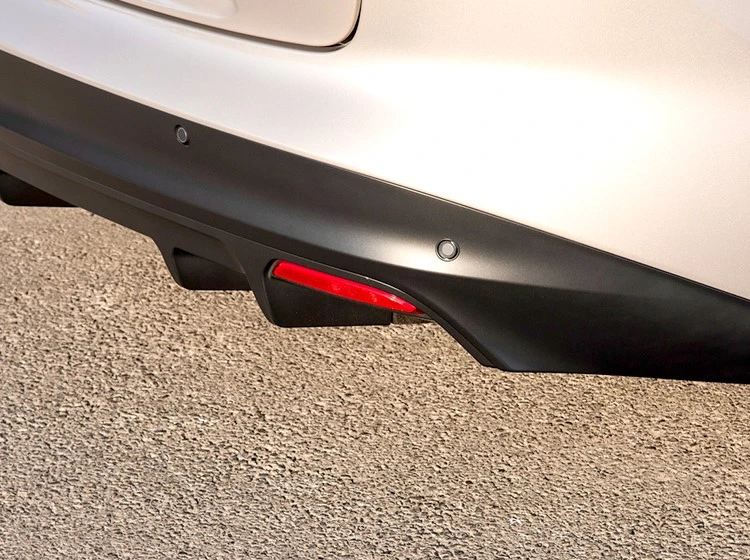

The design of the rear of the car has the feel of a performance car. The wide and raised fenders match the diffuser below, and there are even some shadows of the Porsche Taycan.

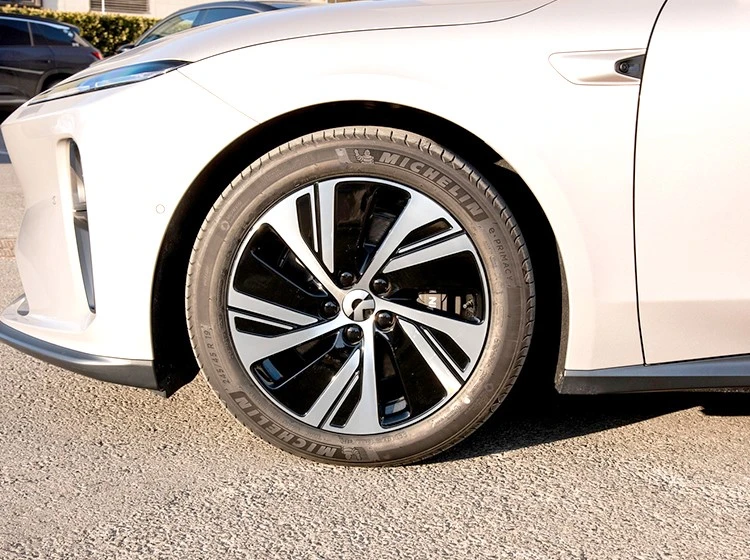

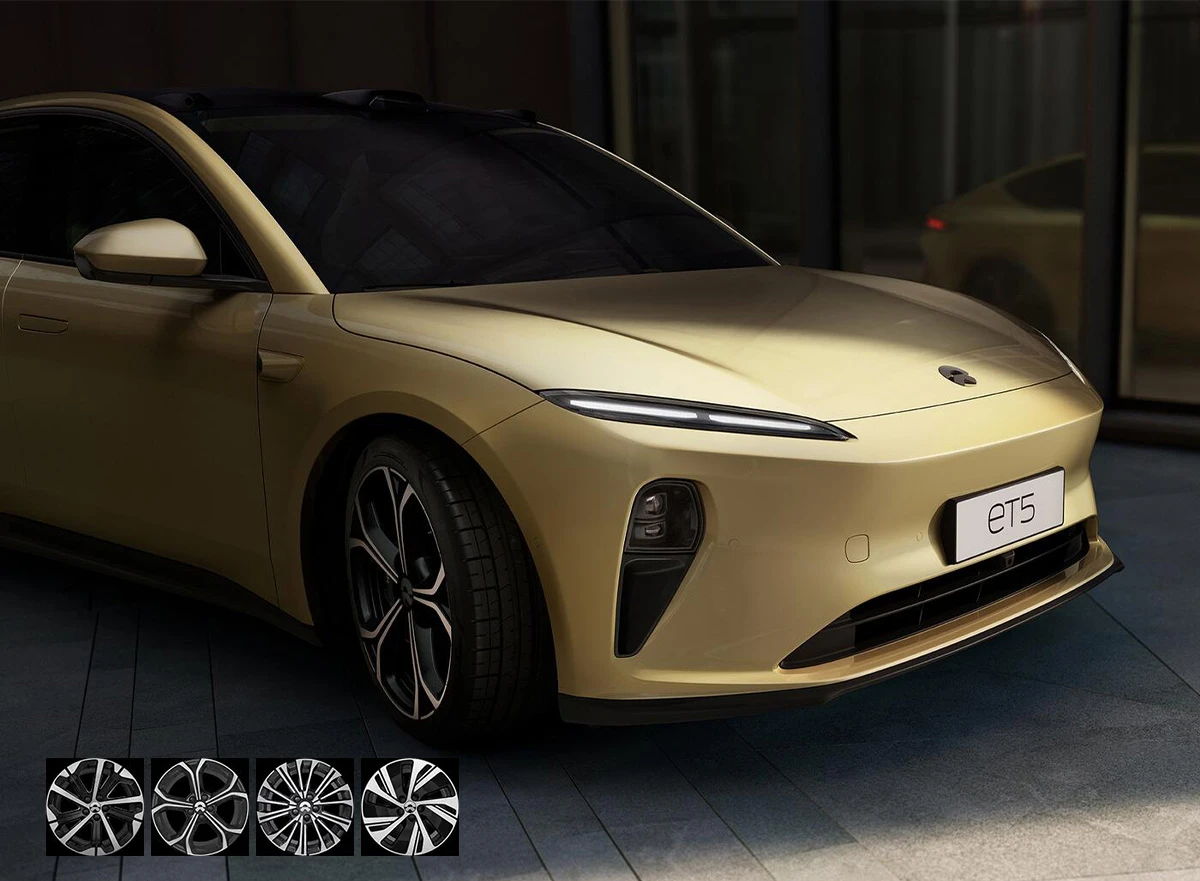

NIO ET5 has 9 exterior colors to choose from, including 2 annual colors and 2 exclusive colors, as well as 6 classic colors. The rims are available in 2 sizes and 4 styles. Some colors and rims are available as optional extras.
Product Details
| ● Standard configuration ○ Optional -- None |
NIO ET5 2022 model 75kWh | NIO ET5 2022 model 100kWh |
| Basic Parameters | ||
| Manufacturer | NIO SEDAN | NIO SEDAN |
| Level | Mid-size car | Mid-size car |
| Energy type | Pure electric | Pure electric |
| Environmental protection standards | -- | -- |
| Time to market | 2021.12 | 2021.12 |
| NEDC pure electric cruising range (km) | 560 | 710 |
| Fast charging time (h) | -- | -- |
| Slow charging time (h) | -- | -- |
| Fast charging percentage | 80 | 80 |
| Maximum power(kw) | 360 | 360 |
| Maximum torque(N-m) | 700 | 700 |
| Motor(Ps) | 490 | 490 |
| Gearbox | Electric vehicle single-speed gearbox | Electric vehicle single-speed gearbox |
| Length*Width*Height (mm) | 4790*1960*1499 | 4790*1960*1499 |
| Body structure | 4-door 5-seater sedan | 4-door 5-seater sedan |
| Maximum speed (km/h) | 200 | 200 |
| Official 0-100km/h acceleration (s) | 4 | 4 |
| Vehicle warranty | 3 years or 120,000 kilometers | 3 years or 120,000 kilometers |
| Car Body | ||
| Wheelbase(mm) | 2888 | 2888 |
| Front wheelbase (mm) | 1685 | 1685 |
| Rear wheelbase (mm) | 1685 | 1685 |
| Body structure | Sedan | Sedan |
| Car door opening method | Swing door | Swing door |
| Fuel tank volume (L) | -- | -- |
| Trunk volume (L) | -- | -- |
| Curb weight (kg) | 2165 | 2165 |
| Electric Motor | ||
| Motor type | Front induction/asynchronous rear permanent magnet/synchronous | Front induction/asynchronous rear permanent magnet/synchronous |
| Total motor power (kW) | 360 | 360 |
| Total torque of motor (N·m) | 700 | 700 |
| System comprehensive power (kW) | -- | -- |
| System comprehensive power (Ps) | -- | -- |
| System comprehensive torque (N·m) | -- | -- |
| Number of drive motors | Dual motor | Dual motor |
| Motor layout | Front + rear | Front + rear |
| Battery Type | -- | -- |
| Battery brand | -- | -- |
| Battery cooling method | -- | -- |
| NEDC pure electric cruising range (km) | -- | -- |
| WLTC pure electric cruising range (km) | -- | -- |
| Battery energy (kWh) | -- | -- |
| Electricity consumption per 100 kilometers (kWh/100km) | 15.3 | 15.3 |
| Chassis/Wheels | ||
| Drive mode | Dual motor four-wheel drive | Dual motor four-wheel drive |
| Four-wheel drive | Electric four-wheel drive | Electric four-wheel drive |
| Front suspension type | Five-link independent suspension | Five-link independent suspension |
| Rear suspension type | Five-link independent suspension | Five-link independent suspension |
| Parking brake type | Electronic parking | Electronic parking |
| Front tire specifications | 245/45 R19 | 245/45 R19 |
| Rear tire specifications | 245/45 R19 | 245/45 R19 |
| Spare tire specifications | Tire repair tool | Tire repair tool |
| Active/Passive safety | ||
| Main/passenger seat airbag | Main●/deputy● | Main●/deputy● |
| Front/rear side airbags | Front●/rear-- | Front●/rear-- |
| Front/rear head airbags (curtain airbags) | Front●/rear● | Front●/rear● |
| Tire pressure monitoring function | ●Tire pressure display | ●Tire pressure display |
| Seat belt not fastened reminder | ●Whole car | ●Whole car |
| ABS anti-lock | ● | ● |
| Lane Departure Warning System | ● | ● |
| Lane centering | ● | ● |
| Road traffic sign recognition | ● | ● |
| Active braking/active safety system | ● | ● |
| Auxiliary/Control Configuration | ||
| Front/rear parking radar | Front●/rear● | Front●/rear● |
| Driving assistance images | ●360-degree panoramic image | ●360-degree panoramic image |
| Reverse side warning system | ● | ● |
| cruise system | ●Full speed adaptive cruise | ●Full speed adaptive cruise |
| Driving mode switch | ●Exercise ●Economy ●Standard/comfortable ●Snow |
●Exercise ●Economy ●Standard/comfortable ●Snow |
| Automatic parking | ● | ● |
| Appearance/Anti-Theft | ||
| Rim material | ●Aluminum alloy | ●Aluminum alloy |
| Electric trunk | ● | ● |
| Engine electronic anti-theft | -- | -- |
| Key type | ●UWB digital key ●Bluetooth key ●NFC/RFID key ●Remote control key |
●UWB digital key ●Bluetooth key ●NFC/RFID key ●Remote control key |
| Keyless start system | ● | ● |
| Remote start function | ● | ● |
| APP remote control | ●Digital key ●Vehicle monitoring ●Remote control ●Charging management ●Service reservation ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search |
●Digital key ●Vehicle monitoring ●Remote control ●Charging management ●Service reservation ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search |
| Internal Configuration | ||
| Steering wheel material | ●Genuine leather | ●Genuine leather |
| Steering wheel position adjustment | ●Electric up and down + front and rear adjustment | ●Electric up and down + front and rear adjustment |
| Multifunction steering wheel | ● | ● |
| steering wheel gear shift | -- | -- |
| Steering wheel heating | ○ | ○ |
| steering wheel memory | ● | ● |
| Full LCD instrument panel | ● | ● |
| LCD instrument size | ●10.2 inches | ●10.2 inches |
| Seat Configuration | ||
| Seat material | ○Genuine leather ●Imitation leather |
○Genuine leather ●Imitation leather |
| Main/passenger seat electric adjustment | Main●/deputy● | Main●/deputy● |
| Front seat functions | ○massage ○Ventilation ●Heating |
○massage ○Ventilation ●Heating |
| Power seat memory function | ●Co-pilot position ●Driver's seat |
●Co-pilot position ●Driver's seat |
| Second row seat adjustment | -- | -- |
| Front/rear center armrest | Front●/rear● | Front●/rear● |
| Multimedia Configuration | ||
| Central control color screen | ●Touch OLED screen | ●Touch OLED screen |
| Central control screen size | ●12.8 inches | ●12.8 inches |
| GPS navigation system | ● | ● |
| Navigation traffic information display | ● | ● |
| roadside assistance call | ● | ● |
| Bluetooth/car phone | ● | ● |
| Mobile phone interconnection/mapping | ●Original interconnection/mapping | ●Original interconnection/mapping |
| Voice recognition control system | ●Multimedia system ●Navigation ●Phone ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Air conditioner |
| Multimedia/charging interface | ●Type-C ●USB |
●Type-C ●USB |
| Number of USB/Type-C interfaces | ●Front row 2/rear row 1 | ●Front row 2/rear row 1 |
| Luggage compartment 12V power interface | ● | ● |
| Speaker brand name | -- | -- |
| Lighting Configuration | ||
| Low beam light source | ●LED | ●LED |
| high beam light source | ●LED | ●LED |
| Delayed turn off of headlights | ● | ● |
| Car interior ambient lighting | ●256 colors | ●256 colors |
| Glass/Rear View Mirror | ||
| Front/rear electric windows | Front●/rear● | Front●/rear● |
| One-touch window lifting function | ●Whole car | ●Whole car |
| Window anti-pinch function | ● | ● |

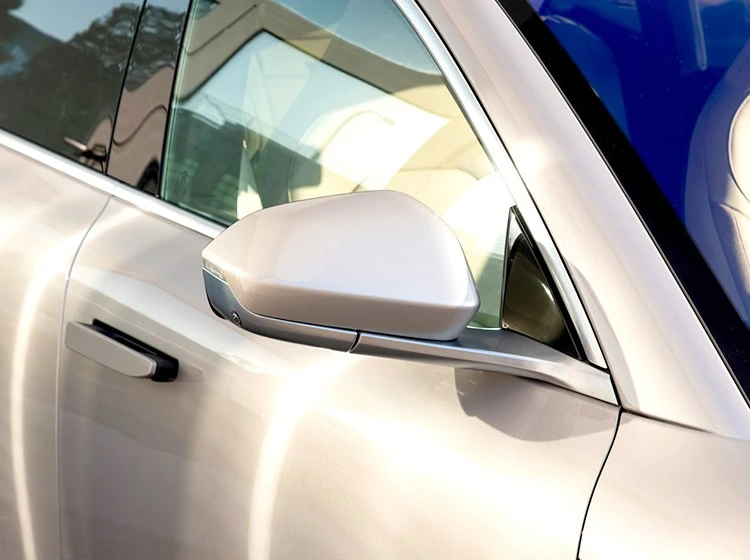

| Exterior rearview mirror function | ●Rearview mirror memory ●Automatic anti-glare ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
●Rearview mirror memory ●Automatic anti-glare ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
| Car vanity mirror | ●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
