New Generation ES8 NIO
The new generation ES8 is developed based on the NT2.0 platform. In the design of the chassis, NIO also applied the concept of "Design for AD", which is designed for autonomous driving.

Stunning Crossover SUV
ES8 NIO is a fantastic example of what a luxury crossover SUV should be. It boasts an unparalleled combination of style, comfort, and cutting-edge technology that truly sets it apart from the competition.

Comfortable Space
NIO ES8 is equipped with leather seats with perforated surfaces and simple design. All front seats are equipped with ventilation, heating, and massage as standard, and both the main and front passenger seats support seat memory.


Queen's Co-Pilot
The NIO ES8 passenger seat supports 22-way electric adjustment, is equipped with ventilation, heating and massage functions, and is equipped with a one-button comfort mode, which puts the seat into a zero-gravity posture.
Second Row Seats
The second row of NIO ES8 uses independent seats, supports 12-way electric adjustment, has leg rests, and is equipped with ventilation, heating, and massage. Except for the lowest configuration, the middle position is equipped with an executive island.


Three Rows Of Seats
NIO ES8 adopts a 2-2-2 seat layout. The third row is equipped with two seats, supports electric adjustment, and is equipped with seat heating function. In addition, the third row of seats can be folded down separately to increase cargo capacity.
Administrative Island
The second row of NIO ES8 is equipped with an executive island. The upper level is retractable. There is a wireless charging pad inside that can charge multiple mobile phones. There is a hidden cup holder in the front. There is a car refrigerator at the bottom that supports automatic opening.


Third Row In And Out
The second row of NIO ES8 is equipped with a one-button entry and exit function for easy access to the third row. There are two Type-C charging ports behind the executive island to facilitate charging for passengers in the three rows; there are cup holders and one-touch entry and exit buttons on each side of the third row.
Panoramic Skylight
NIO ES8 comes standard with a panoramic sunroof that can be opened, with a lighting area of 1, and is equipped with electric sunshades.


Rear Control Screen
The second row of NIO ES8 is equipped with a 6.6-inch control screen, which can control seat functions, air conditioning, music, seat adjustment, etc., and is located behind the front center armrest.
Mix And Match Door Panels
The door panel of NIO ES8 is wrapped in a large area of leather, with a two-color splicing design. The upper part is decorated with renewable rattan wood panels and is equipped with an electric door opening button.

Smart Cockpit
The center console of NIO ES8 adopts a family-style design and is equipped with NIO's iconic NOMI. There is an OLED screen in the middle, renewable rattan wood runs through the center console, and there is a hidden air outlet above.


Dash Board
In front of the driver is a 10.2-inch full LCD instrument with a simple interface design. The left side displays speed, battery life and other information, and the right side can switch to display vehicle information, music, navigation, etc.
Central Control Screen
In the middle of the center console is a 12.8-inch OLED screen, equipped with Qualcomm Snapdragon 8155 chip, supporting 5G network, running Banyan system, built-in music, video and other entertainment software, and integrated vehicle settings.


NOMI
The top of the center console of NIO ES8 is equipped with NOM, which can automatically turn to the position of the sound source according to the voice wake-up, and display different expressions according to different instructions.
Leather Steering Wheel
NIO ES8 comes standard with a leather steering wheel, which adopts a two-spoke design and comes standard with steering wheel heating and electric adjustment. The left button controls assisted driving, etc., and the right button controls the vehicle engine, etc.


Electronic Gear Lever
NIO ES8 is equipped with an electronic gear lever, which is located above the center console and adopts an inline design. The top is decorated with chrome trim, and the P gear button is located on the left side.
Wireless Charging
NIO ES8 is equipped with a wireless charging pad located behind the gear handle with a maximum charging power of 40W.

Vehicle Performance
NIO ES8 is available in 75kWh and 100kWh versions. The CLTC pure electric cruising range is 465km and 605km respectively. It supports battery swapping and is equipped with a motor with a total power of 480kW. The official 0-100km/h acceleration is 4.1 seconds.


480kw Electric Motor
NIO ES8 is equipped with a four-wheel drive motor with a total motor power of 480kW and a total torque of 850N·m. It can accelerate from 0 to 100km/h in 4.1 seconds and has a top speed of 200km/h.

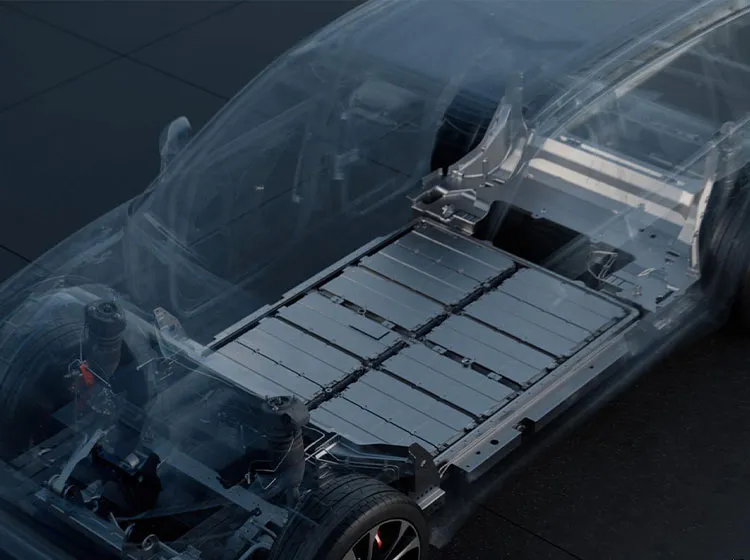

Two Kinds Of Batteries
NIO ES8 has two batteries, 75kWh and 100kWh, which are ternary lithium + lithium iron phosphate and ternary lithium batteries respectively. Both use liquid cooling and support battery swapping. The CLTC pure electric cruising range is 465km and 605km respectively. The battery pack warranty extends to the first owner for ten years with no mileage limit.


180KW Fast Charging
NIO ES8 comes standard with 180kW fast charging. The fast charging port is located on the right front of the vehicle. It takes 30 minutes to charge to 80% for the 75kWh version and 36 minutes for the 100kWh version.
Aware Hardware
The NIO ES8 is equipped with 29 perception hardware, including 11 cameras, 12 ultrasonic radars, 5 millimeter wave radars and 1 lidar.

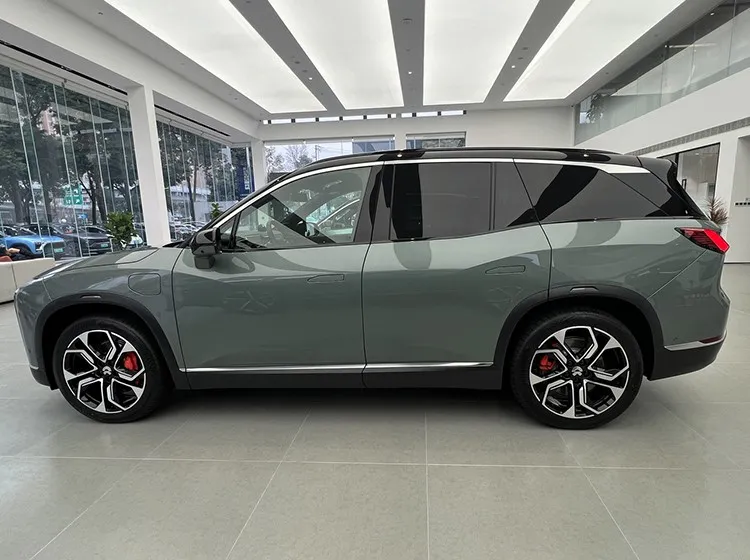

Appearance Design
NIO ES8 adopts the latest family-style design, with a round, full and distinct front end, a slender body, and simple design elements. It is equipped with a closed grille and split headlights, and the lidar is located in the middle of the roof.

Product Details




















|
● Standard configuration ○ Optional -- None |
Nio ES8 2023 100kWh Signature Edition | Nio ES8 2023 75kWh Executive Edition | Nio ES8 2022 75kWh pilot version six-seater | Nio ES8 2022 100kWh pilot version six-seater |
| Basic Parameters | ||||
| Manufacturer | NIO | NIO | NIO | NIO |
| Level | Medium and large SUV | Medium and large SUV | Medium and large SUV | Medium and large SUV |
| Energy type | Pure electric | Pure electric | Pure electric | Pure electric |
| Time to market | 2023.07 | 2022.12 | 2022.06 | 2022.06 |
| Fast charging time (h) | 0.6 | 0.5 | 0.6 | 0.8 |
| Slow charging time (h) | 14 | 11.5 | 11.5 | 14 |
| Fast charging percentage | 80 | 80 | 80 | 80 |
| Maximum power(kw) | 480 | 480 | 400 | 400 |
| Maximum torque(N-m) | 850 | 850 | 725 | 725 |
| Motor(Ps) | 653 | 653 | 544 | 544 |
| Gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Length*Width*Height (mm) | 5099*1989*1750 | 5099*1989*1750 | 5022*1962*1756 | 5022*1962*1756 |
| Body structure | 5-door, 6-seater SUV | 5-door, 6-seater SUV | 5-door, 6-seater SUV | 5-door, 6-seater SUV |
| Maximum speed (km/h) | 200 | 200 | 200 | 200 |
| Official 0-100km/h acceleration (s) | 4.1 | 4.1 | 4.9 | 4.9 |
| Vehicle warranty | Three years or 120,000 kilometers | Three years or 120,000 kilometers | Three years or 120,000 kilometers | Three years or 120,000 kilometers |
| Car Body | ||||
| Wheelbase(mm) | 3070 | 3070 | 3010 | 3010 |
| Front wheelbase (mm) | 1692 | 1692 | 1668 | 1668 |
| Rear wheelbase (mm) | 1702 | 1702 | 1672 | 1672 |
| Body structure | SUV | SUV | SUV | SUV |
| Car door opening method | Swing door | Swing door | Swing door | Swing door |
| Trunk volume (L) | 235-552 | 235-552 | 310-1901 | 310-1901 |
| Curb weight (kg) | -- | -- | 2425 | 2445 |
| Electric Motor | ||||
| Motor type | Front permanent magnet/synchronous rear AC/asynchronous | Front permanent magnet/synchronous rear AC/asynchronous | Front permanent magnet/synchronous rear AC/asynchronous | Front permanent magnet/synchronous rear AC/asynchronous |
| Total motor power (kW) | 480 | 480 | 400 | 400 |
| Total torque of motor (N·m) | 850 | 850 | 725 | 725 |
| Number of drive motors | Dual motor | Dual motor | Dual motor | Dual motor |
| Motor layout | Front + rear | Front + rear | Front + rear | Front + rear |
| Electricity consumption per 100 kilometers (kWh/100km) | -- | -- | 17.7 | 17.7 |
| Chassis/Wheels | ||||
| Drive mode | Dual motor four-wheel drive | Dual motor four-wheel drive | Dual motor four-wheel drive | Dual motor four-wheel drive |
| Four-wheel drive | Electric four-wheel drive | Electric four-wheel drive | Electric four-wheel drive | Electric four-wheel drive |
| Front suspension type | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension | Double wishbone independent suspension |
| Rear suspension type | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
| Parking brake type | Electronic parking | Electronic parking | Electronic parking | Electronic parking |

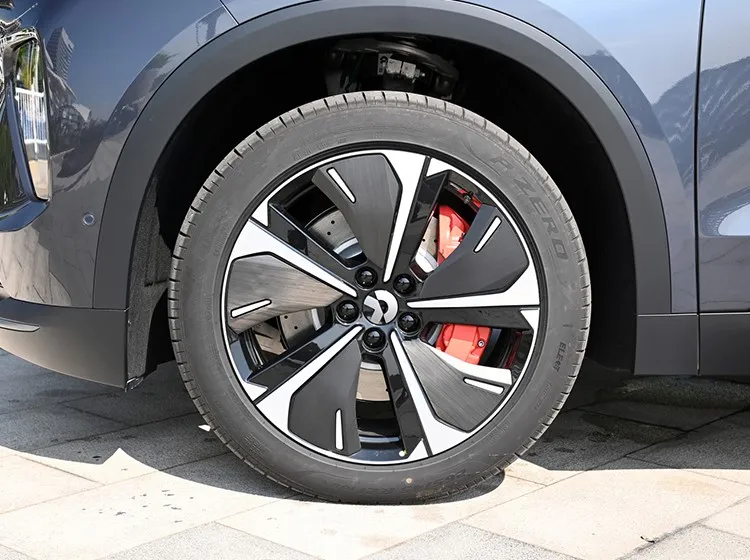

| Front tire specifications | 265/45 R21 | 255/50 R20 | 265/45 R21 | 265/45 R21 |
| Rear tire specifications | 265/45 R21 | 255/50 R20 | 265/45 R21 | 265/45 R21 |
| Spare tire specifications | Tire repair tool | Tire repair tool | Tire repair tool | Tire repair tool |
| Active/Passive safety | ||||
| Main/passenger seat airbag | Main●/deputy● | Main●/deputy● | Main●/deputy● | Main●/deputy● |
| Front/rear side airbags | Front●/rear- | Front●/rear- | Front●/rear- | Front●/rear- |
| Front/rear head airbags (curtain airbags) | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| Tire pressure monitoring function | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display |
| Seat belt not fastened reminder | ●Second row ●Front row | ●Second row ●Front row | ●Second row ●Front row | ●Second row ●Front row |
| ABS anti-lock | ● | ● | ● | ● |
| Lane Departure Warning System | ● | ● | ● | ● |
| Lane centering | ● | ● | ● | ● |
| Road traffic sign recognition | ● | ● | ● | ● |
| Active braking/active safety system | ● | ● | ● | ● |
| Auxiliary/Control Configuration | ||||
| Front/rear parking radar | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| Reverse side warning system | ● | ● | ● | ● |
| Driving assistance images | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image | ●360-degree panoramic image |
| cruise system | ●Full speed adaptive cruise | ●Full speed adaptive cruise | ●Full speed adaptive cruise | ●Full speed adaptive cruise |
| Driving mode switch | ●Exercise ●Economy ●Standard/comfortable ●Off-road ●Snow ●Customization/personalization |
●Exercise ●Economy ●Standard/comfortable ●Off-road ●Snow ●Customization/personalization |
●Exercise ●Economy ●Standard/comfortable ●Snow ●Customization/personalization |
●Exercise ●Economy ●Standard/comfortable ●Snow ●Customization/personalization |
| Automatic parking | ● | ● | ● | ● |
| Appearance/Anti-Theft | ||||
| Rim material | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy |
| Electric trunk | ● | ● | ● | ● |
| Roof rack | ○ | ○ | ● | ● |
| Key type | ●UWB digital key ●Bluetooth key ●NFC/RFID key ●Remote control key |
●UWB digital key ●Bluetooth key ●NFC/RFID key ●Remote control key |
●Bluetooth key ●NFC/RFID key ●Remote control key |
●Bluetooth key ●NFC/RFID key ●Remote control key |
| Keyless start system | ● | ● | ● | ● |
| Remote start function | ● | ● | ● | ● |
| APP remote control | ●Charging management ●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Vehicle start ●Car owner service (find charging piles, gas stations, parking lots, etc.) |
●Charging management ●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Vehicle start ●Car owner service (find charging piles, gas stations, parking lots, etc.) |
●Charging management ●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Vehicle start ●Car owner service (find charging piles, gas stations, parking lots, etc.) |
●Charging management ●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Vehicle start ●Car owner service (find charging piles, gas stations, parking lots, etc.) |
| Internal Configuration | ||||
| Steering wheel material | ●Genuine leather | ●Genuine leather | ●Genuine leather | ●Genuine leather |
| Steering wheel position adjustment | ●Electric up and down + front and rear adjustment | ●Electric up and down + front and rear adjustment | ●Electric up and down + front and rear adjustment | ●Electric up and down + front and rear adjustment |
| Multifunction steering wheel | ● | ● | ● | ● |
| Steering wheel heating | ● | ● | ● | ● |
| steering wheel memory | ● | ● | ● | ● |
| Full LCD instrument panel | ● | ● | ● | ● |
| LCD instrument size | ●10.2 inches | ●10.2 inches | ●9.8 inches | ●9.8 inches |
| Seat Configuration | ||||
| Seat material | ●Genuine leather | ●Genuine leather | ●Genuine leather | ●Genuine leather |
| Main/passenger seat electric adjustment | Main●/deputy● | Main●/deputy● | Main●/deputy● | Main●/deputy● |
| Front seat functions | ●Massage ●Ventilation ●Heating |
●Massage ●Ventilation ●Heating |
●Massage ●Ventilation ●Heating |
●Massage ●Ventilation ●Heating |
| Power seat memory function | ●Rear row ●Co-pilot position ●Driver's seat |
●Rear row ●Co-pilot position ●Driver's seat |
●Co-pilot position ●Driver's seat |
●Co-pilot position ●Driver's seat |
| Second row seat adjustment | ●Leg rest adjustment ●Waist adjustment ●Backrest adjustment ●Front and rear adjustment |
●Leg rest adjustment ●Waist adjustment ●Backrest adjustment ●Front and rear adjustment |
●Backrest adjustment ●Front and rear adjustment |
●Backrest adjustment ●Front and rear adjustment |
| Front/rear center armrest | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| Multimedia Configuration | ||||
| Central control color screen | ●Touch OLED screen | ●Touch OLED screen | ●Touch OLED screen | ●Touch OLED screen |
| Central control screen size | ● 12.8 inches | ● 12.8 inches | 11.3 inches | 11.3 inches |
| GPS navigation system | ● | ● | ● | ● |
| Navigation traffic information display | ● | ● | ● | ● |
| roadside assistance call | ● | ● | ● | ● |
| Bluetooth/car phone | ● | ● | ● | ● |
| Voice recognition control system | ●Multimedia system ●Navigation ●Phone ●Skylight ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Skylight ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Skylight ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Skylight ●Air conditioner |
| Multimedia/charging interface | ●Type-C ●USB |
●Type-C ●USB |
●USB | ●USB |
| Number of USB/Type-C interfaces | ●4 in the front row/4 in the rear row | ●4 in the front row/4 in the rear row | ●2 in the front row/4 in the rear row | ●2 in the front row/4 in the rear row |
| Luggage compartment 12V power interface | ● | ● | ● | ● |
| Lighting Configuration | ||||
| Low beam light source | ●LED | ●LED | ●LED | ●LED |
| high beam light source | ●LED | ●LED | ●LED | ●LED |
| Delayed turn off of headlights | ● | ● | ● | ● |
| Car interior ambient lighting | ●256 colors | ●256 colors | ●10 colors | ●10 colors |
| Glass/Rear View Mirror | ||||
| Front/rear electric windows | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| One-touch window lifting function | ●Whole car | ●Whole car | ●Whole car | ●Whole car |
| Window anti-pinch function | ● | ● | ● | ● |
| Exterior rearview mirror function | ●Rearview mirror memory ●Automatic anti-glare ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
●Rearview mirror memory ●Automatic anti-glare ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
●Rearview mirror memory ●Automatic anti-glare ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
●Rearview mirror memory ●Automatic anti-glare ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Reverse and automatically turn down ●Electric adjustment |
| Car vanity mirror | ●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
