Frigate 07

Frigate 07

Energy Type: Plug-in hybrid
Model Level: Mid-size SUV
Electric Motor Horsepower: 197Ps/401Ps
Pure Electric Range: 82 km/170km
Fuel Engine: 1.5T 139Ps
Send Inquiry
Description
Technical Parameters
Vehicle Performance




Frigate 07 uses plug-in hybrid power, with an official 0-100km/h acceleration of 4.7s, a WLTC pure electric range of 150km, and supports fast charging, which takes 20 minutes to charge from 30% to 80%.

Frigate 07 is equipped with a 1.5T engine with a maximum power of 139Ps. It has a front-wheel drive DM-i version and a four-wheel drive DM-p version, with a total motor power of 145kW and 295kW respectively.



product-1200-835



Dual-Motor Four-Wheel Drive




The total power of the electric motor of the dual-motor four-wheel drive version is 401Ps, the total torque is 656N·m, the official 0-100km/h acceleration is 4.7s, and the WLTC comprehensive fuel consumption is 1.62L/100km. Frigate 07 has two types of batteries, 18.3kWh and 36.8kWh, both of which are lithium iron phosphate batteries, using liquid cooling for heat dissipation. The battery pack warranty is unlimited for the first owner for years/mileage.



product-1200-835



Smart Cockpit




The center console of Frigate 07 adopts the family design language, with a variety of materials spliced together to create a strong sense of hierarchy. The black high-gloss trim runs through the center console, connecting the air outlets on both sides, and there is a large rotatable screen in the middle.



product-1200-835



product-750-560

Instrument Screen



In front of the driver is an 8.8-inch full LCD instrument. The left circle shows the driving mode, the middle can show the map, vehicle information, etc., the right side shows the speed, and the bottom shows the endurance information.Some models of the Frigate 07 are equipped with HUD, which can display information such as speed, navigation, and assisted driving.

Central Control Screen



In the middle of the center console is a 15.6-inch rotatable screen that runs the DiLink system, supports 5G network and OTA upgrades, has a simple and easy-to-use interface, and has a built-in app store for downloading APPs.

product-750-560
product-750-560

Functional Steering Wheel



Frigate 07 comes standard with a leather steering wheel, which adopts a three-spoke design. The left button controls functions such as cruise control, and the right button controls the car computer, media, etc.

Wireless Charging



The front row of the Corvette 07 is equipped with a wireless charging plate, located in front of the gear lever, and the surface is covered with non-slip material.

product-750-560
product-750-560

Gearshift Lever



Frigate 07 is equipped with an electronic gearshift lever, located on the center console, with a high-gloss black trim on the surface and a silver trim around the edge.

Front Seats



Frigate 07 is equipped with leather seats. The front seats adopt an integrated design. The headrests are not adjustable. Except for the lowest-equipped model, the front seats are equipped with heating, ventilation and driver's seat memory functions.

product-750-560
product-750-560

Seat Adjustment



In addition to the physical buttons on both sides of the seat, the Frigate 07 can also adjust the front and back of the seat, backrest angle, etc. through the central control screen, and the driver can memorize the position.

Panoramic Sunroof



The panoramic sunroof is 120cm long and 70cm wide, with a calculated lighting area of ​​0.84m², which is quite impressive. It also helps to enhance the sense of transparency inside the cabin.

product-750-560
product-750-560

Rear Seats



The rear seats are relatively wide, and the fabric is consistent with the front seats. The seat padding is thicker, so the ride comfort is naturally better. In addition, the backrest of the rear seat has 11 levels of adjustment, and the maximum adjustable angle is 20 degrees, which can give you a more comfortable ride.

Audio Configuration



The Dynaudio audio system on the Frigate 07 has 12 speakers, including tweeters, midrange, bass, subwoofers and surround sound, with a power of 775 watts. Four modes, original sound, dynamic, soft and speech, can be set through the Pad. It also provides five sound field focusing modes: whole car, driver, co-driver, rear seat and surround.

product-750-560

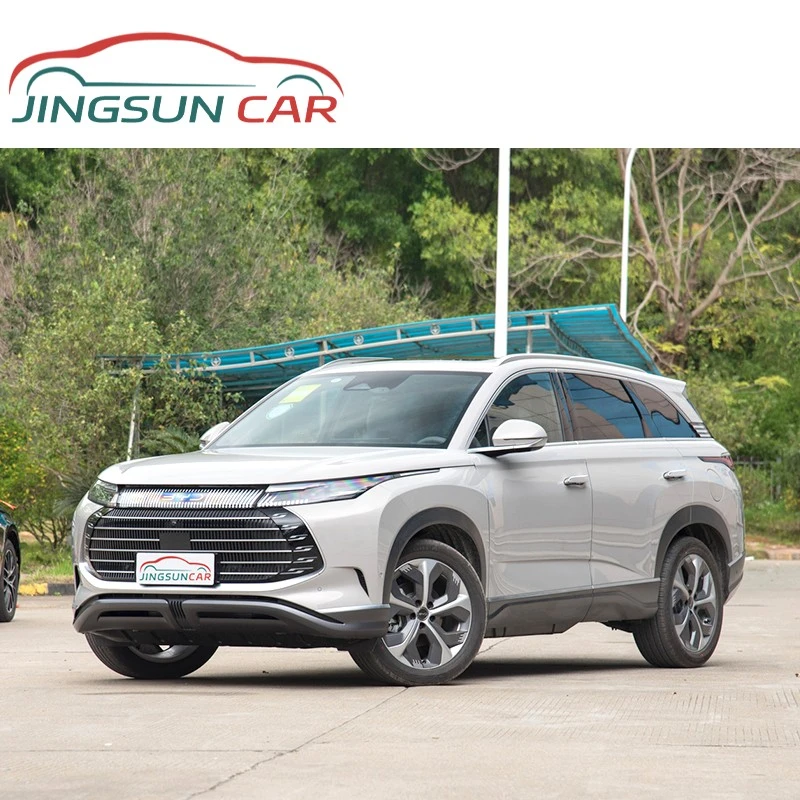

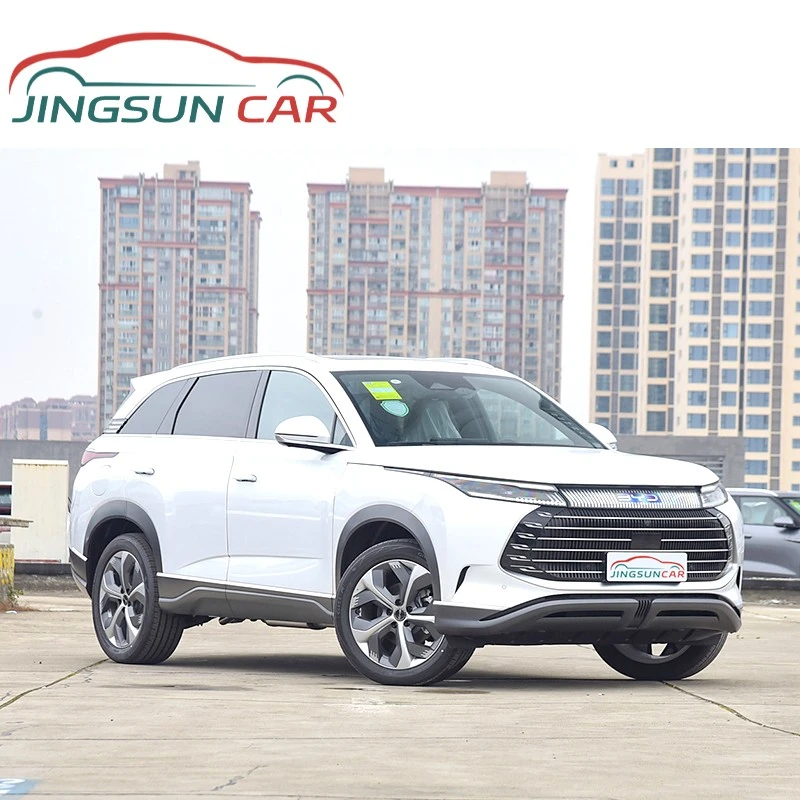

Front Face Design




The front face of BYD Frigate 07 is built based on the design concept of "ocean aesthetics", and the design inspiration comes from the ripples of the waves, so it is officially called the "wave rhythm front face". Its large-sized polygonal grille and the combination of the headlight group, front surround and other details not only bring a strong visual impact, but also have a very avant-garde and recognizable feel.



product-1200-835

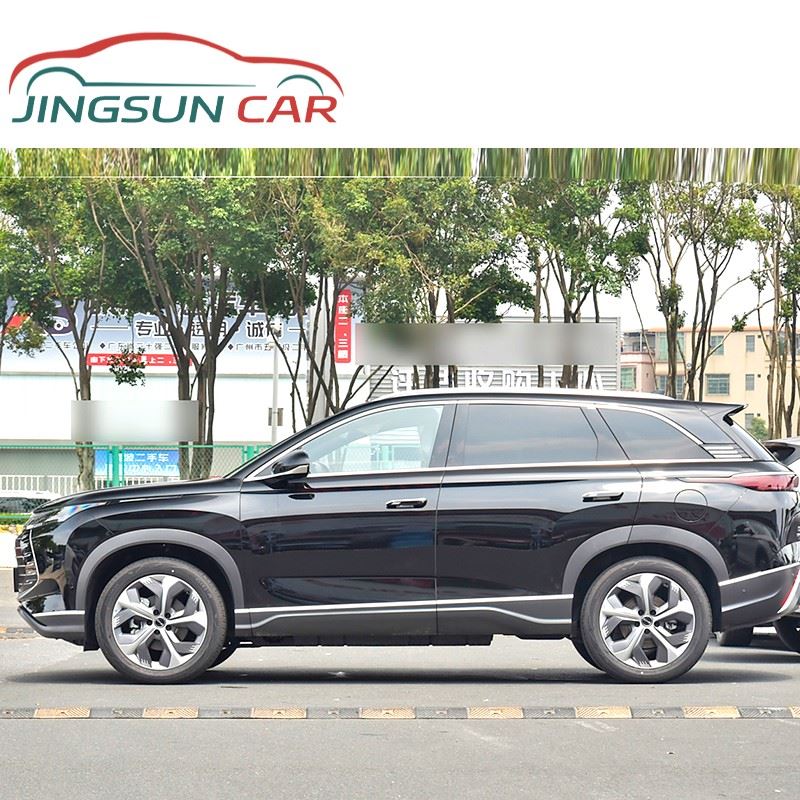

Body Side




The length, width and height of the Frigate 07 are 4820×1920×1750mm, and the wheelbase is 2820mm, which is a standard mid-size SUV. Thanks to the use of more smooth lines to outline the shape of the body, the most intuitive feeling I get from the actual car is that it has a strong sense of volume and a distinct "big car feel".



product-1200-835

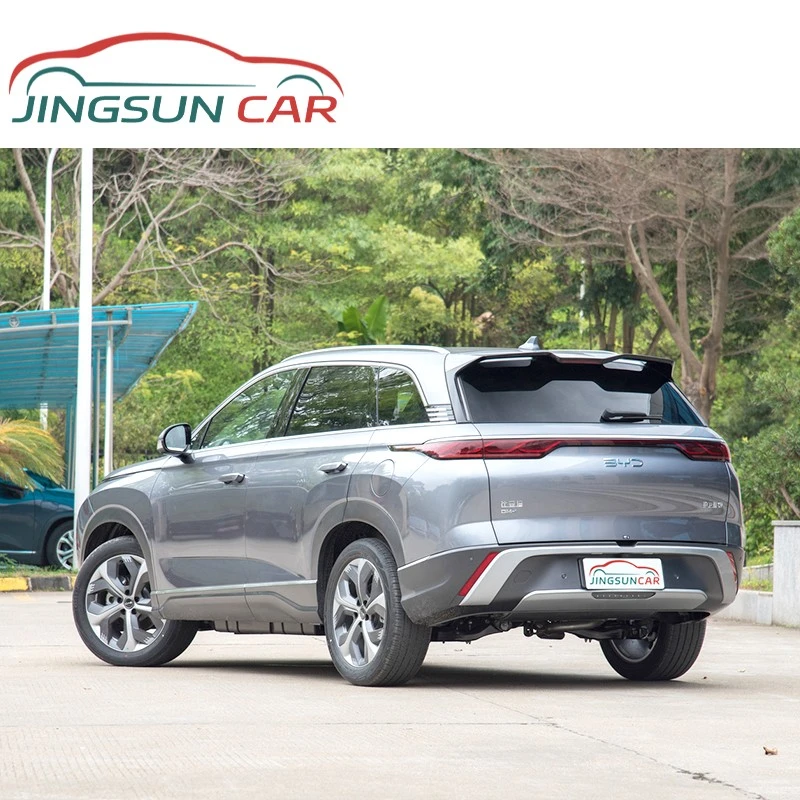

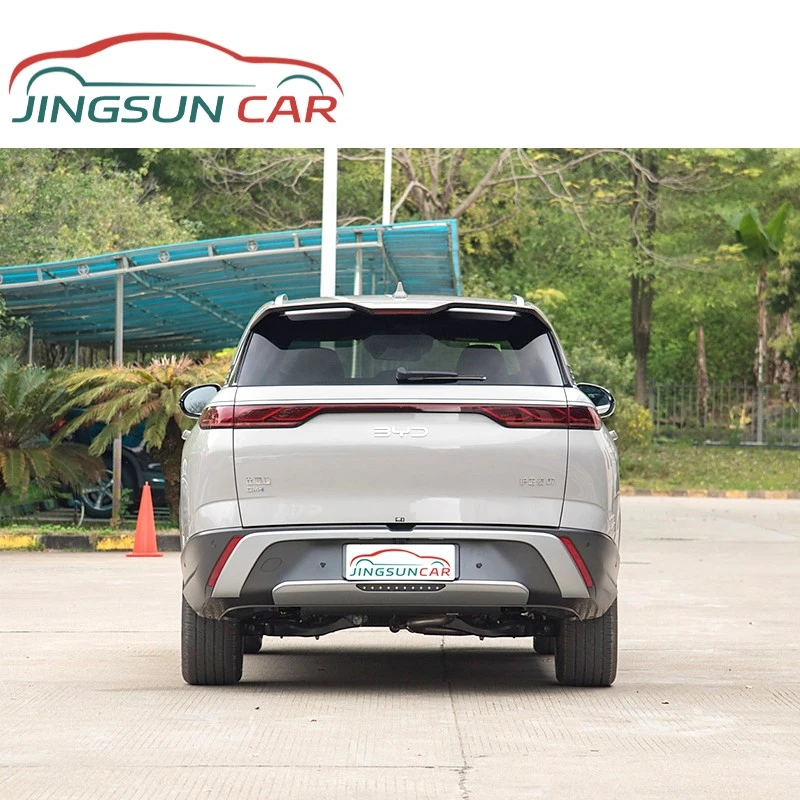

Tail Design




The soft curves outline the rounded and full tail shape of the Frigate 07, which gives me a stylish and generous feeling. The detailed design of the tail is full of youthful and fashionable atmosphere. Compared with the front face, the rear design is relatively less avant-garde, but obviously more friendly. The design of the rear surround is quite low-key, but coordinated and pleasing to the eye. The silver decorative panel helps to enhance the layering of the rear surround and even the entire rear of the car. In addition, there are 6 parking radar probes on the rear surround, plus 6 on the front of the car, a total of 12 radar probes.



product-1200-835



Abundant Power




BYD Frigate 07 has a very abundant power reserve, but the power output is not simple and rough, but calm and unhurried. The dense, delicate, linear and majestic power performance makes every time you step on the accelerator pedal deeply become a kind of enjoyment. Of course, the innate characteristics of the electric motor are also the key to such an effect. To be fair, I think its power level is completely worry-free. It can handle severely congested urban roads with ease, and it is even more enjoyable to run on highways. It is natural to get the pleasure of acceleration from it.



product-1200-835




Product Details

product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560

Hot Tags: frigate 07, China frigate 07 suppliers, dongfeng lantu dreamer, Haval Xiaolong MAX ev, li auto l9 suv, Jiaji Geely, ix3 bmw, byd han ev 2023

● Standard configuration
○ Optional
-- None
Frigate 07 2024 Glory Edition DM-i 100KM Elite Frigate 07 2024 Glory Edition DM-i 100KM Premium Frigate 07 2024 Glory Edition DM-i 205KM Flagship Frigate 07 2024 Glory Edition DM-p 175KM 4WD Flagship
Basic Parameters
Manufacturer BYD BYD BYD BYD
Level Medium SUV Medium SUV Medium SUV Medium SUV
Energy type Plug-in hybrid Plug-in hybrid Plug-in hybrid Plug-in hybrid
Environmental protection standards National VI National VI National VI National VI
Time to market 2024.03 2024.03 2024.03 2024.03
Fast charging time (h) 0.37 0.37 0.33 0.33
Engine 1.5T 139 horsepower L4 1.5T 139 horsepower L4 1.5T 139 horsepower L4 1.5T 139 horsepower L4
Motor(Ps) 197 197 197 197
Gearbox E-CVT stepless speed change E-CVT stepless speed change E-CVT stepless speed change E-CVT stepless speed change
Length*Width*Height (mm) 4820*1920*1750 4820*1920*1750 4820*1920*1750 4820*1920*1750
Body structure 5-door 5-seater SUV 5-door 5-seater SUV 5-door 5-seater SUV 5-door 5-seater SUV
Maximum speed (km/h) 180 180 180 180
Official 0-100km/h acceleration (s) 8.5 8.5 8.9 4.7
WLTC comprehensive fuel consumption (L/100km) 2.1 2.1 1.42 1.62
Vehicle warranty Six years or 150,000 kilometers Six years or 150,000 kilometers Six years or 150,000 kilometers Six years or 150,000 kilometers
Car Body
Wheelbase(mm) 2820 2820 2820 2820
Front wheelbase (mm) 1640 1640 1640 1640
Rear wheelbase (mm) 1640 1640 1640 1640
Body structure SUV SUV SUV SUV
Car door opening method Swing door Swing door Swing door Swing door
Fuel tank volume (L) 60 60 60 60
Curb weight (kg) 2047 2047 2140 2270
Engine
Engine model BYD476ZQC BYD476ZQC BYD476ZQC BYD476ZQC
Displacement (mL) 1497 1497 1497 1497
Displacement(L) 1.5 1.5 1.5 1.5
Intake form Turbocharged Turbocharged Turbocharged Turbocharged
Engine layout Horizontal Horizontal Horizontal Horizontal
Cylinder arrangement L L L L
Number of cylinders 4 4 4 4
Air Supply DOHC DOHC DOHC DOHC
Maximum horsepower (Ps) 139 139 139 139
Maximum power(kW) 102 102 102 102
Maximum torque(N-m) 231 231 231 231
Maximum torque speed (rpm) 1350-4000 1350-4000 1350-4000 1350-4000
Maximum net power (kW) 96 96 96 96
Electric Motor
Motor type Permanent magnet/synchronous Permanent magnet/synchronous Permanent magnet/synchronous Permanent magnet/synchronous
Total motor power (kW) 145 145 145 295
Total torque of motor (N·m) 316 316 316 656
Number of drive motors Single motor Single motor Single motor Dual motor
Motor layout Front Front Front Front + rear
Battery Type Lithium iron phosphate battery Lithium iron phosphate battery Lithium iron phosphate battery Lithium iron phosphate battery
Battery brand Xi'an Zhongdi Xi'an Zhongdi Xi'an Zhongdi Xi'an Zhongdi
Battery cooling method Liquid cooling Liquid cooling Liquid cooling Liquid cooling
NEDC pure electric cruising range (km) 100 100 205 175
WLTC pure electric cruising range (km) 82 82 170 150
Battery energy (kWh) 18.3 18.3 36.8 36.8
Electricity consumption per 100 kilometers (kWh/100km) 21.5 21.5 22.1 22.8
Chassis/Wheels
Drive mode Front front drive Front front drive Front front drive Front four-wheel drive
Four-wheel drive -- -- -- Electric four-wheel drive
Front suspension type Macpherson independent suspension Macpherson independent suspension Macpherson independent suspension Macpherson independent suspension
Rear suspension type Multi-link independent suspension Multi-link independent suspension Multi-link independent suspension Multi-link independent suspension
Parking brake type Electronic parking Electronic parking Electronic parking Electronic parking
Rim material ●Aluminum alloy ●Aluminum alloy ●Aluminum alloy ●Aluminum alloy
Front tire specifications 235/55 R19 245/50 R20 245/50 R20 245/50 R20
Rear tire specifications 235/55 R19 245/50 R20 245/50 R20 245/50 R20
Spare tire specifications Tire repair tool Tire repair tool Tire repair tool Tire repair tool
Active/Passive safety
Main/passenger seat airbag Main●/deputy● Main●/deputy● Main●/deputy● Main●/deputy●
Front/rear side airbags Front●/rear-- Front●/rear-- Front●/rear-- Front●/rear--
Front/rear head airbags (curtain airbags) Front●/rear● Front●/rear● Front●/rear● Front●/rear●
Tire pressure monitoring function ●Tire pressure display ●Tire pressure display ●Tire pressure display ●Tire pressure display
Seat belt not fastened reminder ●Whole car ●Whole car ●Whole car ●Whole car
ABS anti-lock
Lane Departure Warning System --
Active braking/active safety system --
Control Configuration
Driving mode switch ●Sports
●Economy
●Standard/comfortable
●Off-road
●Snow
●Sports
●Economy
●Standard/comfortable
●Off-road
●Snow
●Sports
●Economy
●Standard/comfortable
●Off-road
●Snow
●Sports
●Economy
●Standard/comfortable
●Off-road
●Snow
Shift pattern ●Electronic gear shift ●Electronic gear shift ●Electronic gear shift ●Electronic gear shift
automatic parking
Variable suspension function ●Suspension soft and hard adjustment ●Suspension soft and hard adjustment ●Suspension soft and hard adjustment ●Suspension soft and hard adjustment
Auxiliary/Intelligent Driving
cruise system ●Fixed speed cruise ●Full speed adaptive cruise ●Full speed adaptive cruise ●Full speed adaptive cruise
Assisted driving level ●L2 ●L2 ●L2
Road traffic sign recognition --
Automatic parking --
Driving assistance images ●360-degree panoramic image ●360-degree panoramic image ●360-degree panoramic image ●360-degree panoramic image
Front/rear parking radar Front●/rear● Front●/rear● Front●/rear● Front●/rear●
Ultrasonic radar quantity ●6 pcs ●12 pcs ●12 pcs ●12 pcs
Appearance Configuration
Skylight type ●Panoramic sunroof can be opened ●Panoramic sunroof can be opened ●Panoramic sunroof can be opened ●Panoramic sunroof can be opened
Roof rack
Hidden electric door handle
Key type ●Bluetooth key
●NFC/RFID key
●Remote control key
●Bluetooth key
●NFC/RFID key
●Remote control key
●Bluetooth key
●NFC/RFID key
●Remote control key
●Bluetooth key
●NFC/RFID key
●Remote control key
Keyless start system
Electric trunk
Internal Configuration
HUD heads up digital display --
Full LCD instrument panel
LCD instrument size ●10.25 inches ●10.25 inches ●10.25 inches ●10.25 inches
Steering wheel material ●Leather ●Leather ●Leather ●Leather
Steering wheel position adjustment ●Manual up and down + front and rear adjustment ●Manual up and down + front and rear adjustment ●Manual up and down + front and rear adjustment ●Manual up and down + front and rear adjustment
Multifunction steering wheel
Seat Configuration
Seat material ●Imitation leather ●Imitation leather ●Imitation leather ●Imitation leather
Main/passenger seat electric adjustment Main●/deputy● Main●/deputy● Main●/deputy● Main●/deputy●
Front seat functions -- ●Ventilation
●Heating
●Ventilation
●Heating
●Ventilation
●Heating
Power seat memory function -- ●Driver's seat ●Driver's seat ●Driver's seat
Second row seat adjustment ●Backrest adjustment ●Backrest adjustment ●Backrest adjustment ●Backrest adjustment
Rear seats fold down ●Proportional inverted ●Proportional inverted ●Proportional inverted ●Proportional inverted
Front/rear center armrest Front●/rear● Front●/rear● Front●/rear● Front●/rear●
Lighting Configuration
Low beam light source ●LED ●LED ●LED ●LED
high beam light source ●LED ●LED ●LED ●LED
Adaptive high and low beam --
Headlight height adjustable
Delayed turn off of headlights
Car interior ambient lighting ●Monochrome ●Multicolor ●Multicolor ●Multicolor
Glass/Rear View Mirror
Exterior rearview mirror function ●Lock the car and fold automatically
●Electric folding
●Rearview mirror heating
●Electric adjustment
●Rearview mirror memory
●Lock the car and fold automatically
●Electric folding
●Rearview mirror heating
●Reverse and automatically turn down
●Electric adjustment
●Rearview mirror memory
●Lock the car and fold automatically
●Electric folding
●Rearview mirror heating
●Reverse and automatically turn down
●Electric adjustment
●Rearview mirror memory
●Lock the car and fold automatically
●Electric folding
●Rearview mirror heating
●Reverse and automatically turn down
●Electric adjustment
Sensing wiper function -- ●Rain sensor type ●Rain sensor type ●Rain sensor type
Front/rear electric windows Front●/rear● Front●/rear● Front●/rear● Front●/rear●
One-touch window lifting function ●Whole car ●Whole car ●Whole car ●Whole car
Window anti-pinch function
Car vanity mirror ●Main driver + lighting
●Co-pilot + lighting
●Main driver + lighting
●Co-pilot + lighting
●Main driver + lighting
●Co-pilot + lighting
●Main driver + lighting
●Co-pilot + lighting
Interior rearview mirror function ●Manual anti-glare ●Automatic anti-glare ●Automatic anti-glare ●Automatic anti-glare
Intelligent Internet
Central control color LCD screen ●Touch LCD screen ●Touch LCD screen ●Touch LCD screen ●Touch LCD screen
Central control screen size ●15.6 inches ●15.6 inches ●15.6 inches ●15.6 inches
Vehicle intelligent system ●DiLink ●DiLink ●DiLink ●DiLink
Voice assistant wake word ●Hello, Xiao Di ●Hello, Xiao Di ●Hello, Xiao Di ●Hello, Xiao Di
Navigation traffic information display
GPS navigation system
roadside assistance call
Bluetooth/car phone
Voice recognition control system ●Car window
●Multimedia system
●Navigation
●Phone
●Skylight
●Air conditioner
●Car window
●Multimedia system
●Navigation
●Phone
●Skylight
●Air conditioner
●Car window
●Multimedia system
●Navigation
●Phone
●Skylight
●Air conditioner
●Car window
●Multimedia system
●Navigation
●Phone
●Skylight
●Air conditioner
APP Remote Control ●Door control
●Air conditioning control
●Vehicle condition inquiry/diagnosis
●Vehicle positioning/car search
●Vehicle start
●Car owner service (find charging piles, gas stations, parking lots, etc.)
●Make an appointment for maintenance/repair
●Charging management
●Door control
●Air conditioning control
●Vehicle condition inquiry/diagnosis
●Vehicle positioning/car search
●Vehicle start
●Car owner service (find charging piles, gas stations, parking lots, etc.)
●Make an appointment for maintenance/repair
●Charging management
●Door control
●Air conditioning control
●Vehicle condition inquiry/diagnosis
●Vehicle positioning/car search
●Vehicle start
●Car owner service (find charging piles, gas stations, parking lots, etc.)
●Make an appointment for maintenance/repair
●Charging management
●Door control
●Air conditioning control
●Vehicle condition inquiry/diagnosis
●Vehicle positioning/car search
●Vehicle start
●Car owner service (find charging piles, gas stations, parking lots, etc.)
●Make an appointment for maintenance/repair
●Charging management
Media Entertainment
Multimedia/charging interface ●Type-C
●SD
●USB
●Type-C
●SD
●USB
●Type-C
●SD
●USB
●Type-C
●SD
●USB
Number of USB/Type-C interfaces ●2 in the front row/2 in the rear row ●2 in the front row/2 in the rear row ●2 in the front row/2 in the rear row ●2 in the front row/2 in the rear row
Mobile phone wireless charging function ●Front row ●Front row ●Front row ●Front row
Speaker brand name -- ●Dynaudio ●Dynaudio ●Dynaudio
Number of speakers ●8 speakers ●12 speakers ●12 speakers ●12 speakers
