Performance
Yuan PLUS is equipped with a 150kW electric motor, with a 0-100km/h acceleration of 7.05s and a 100-0km/h braking of 37.33m. The 510km version has a range of 335km and supports up to 80kW fast charging, meeting daily use needs.
Battery Configuration
Yuan PLUS has two versions with a range of 430km and 510km. The battery energy of the 430km model is 49.92kWh, and the battery energy of the 510km model is 60.48kWh. Both use lithium iron phosphate batteries with an energy consumption of 12.2kWh/100km. The fast charging function is standard, and the fast and slow charging ports are on the same side. The fast charging power of the 430km model is up to 70kW, and the fast charging power of the 510km model is up to 80kW. It takes 30 minutes to charge from 30% to 80%.

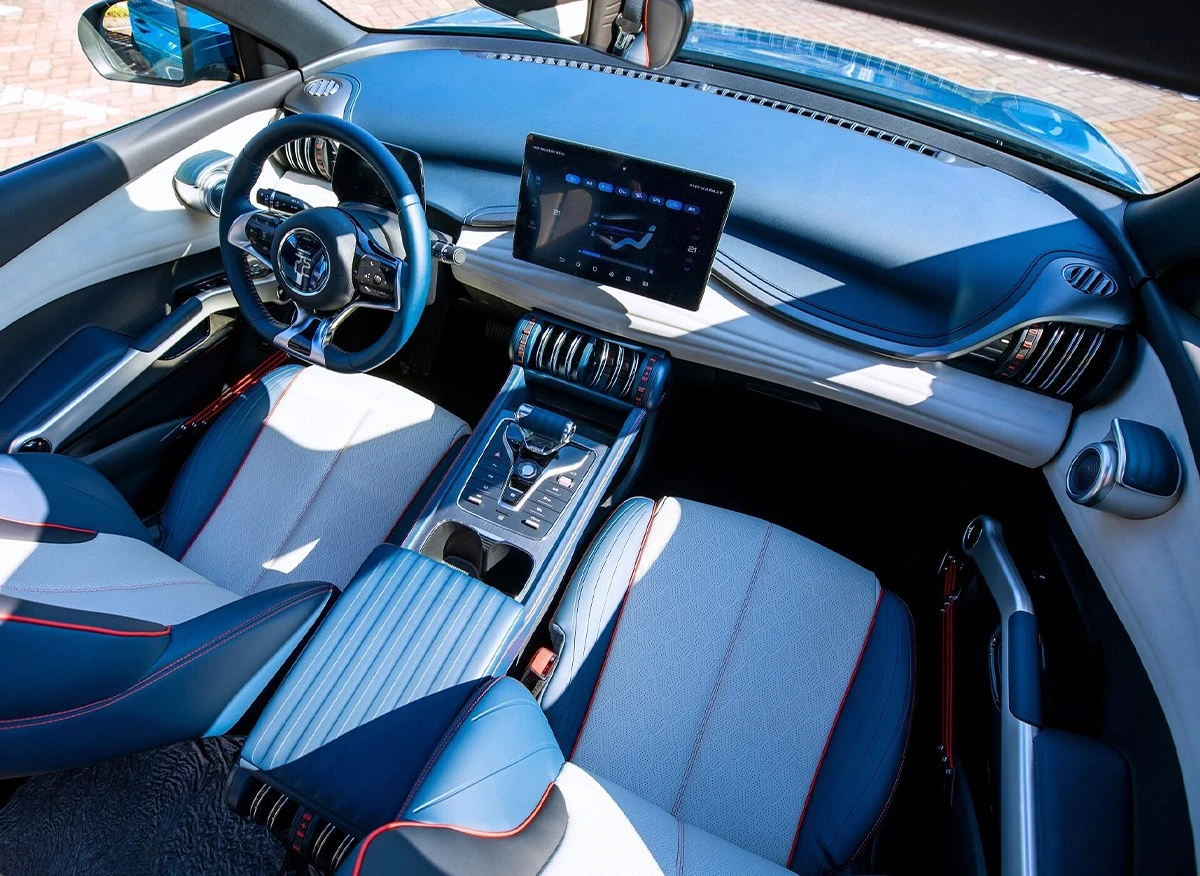

Streamlined Center Console
The center console of Yuan PLUS uses a lot of curve design, similar to muscle fibers, with rich decorative elements and full of personality. It is equipped with full LCD instrument and a rotatable center console large screen.

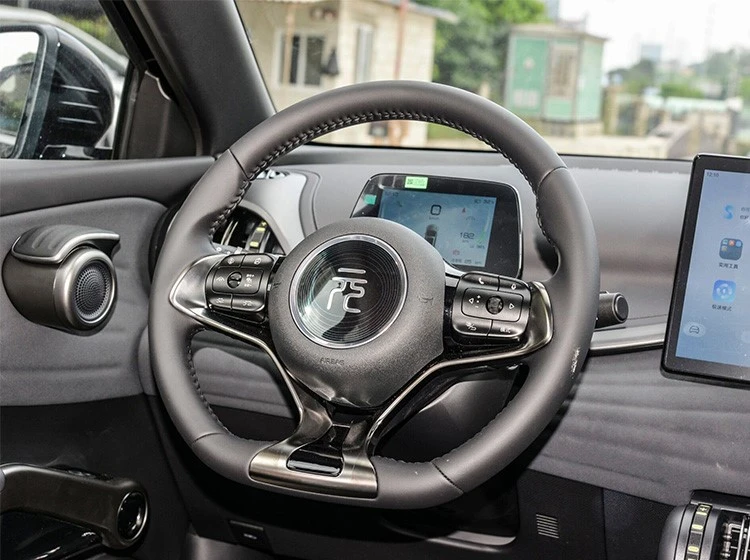

Three-spoke Steering Wheel
Yuan PLUS comes standard with a leather steering wheel, which adopts a three-spoke design and can be manually adjusted up and down, front and back. The buttons on the left side of the steering wheel control driving assistance, and the buttons on the right side control multimedia

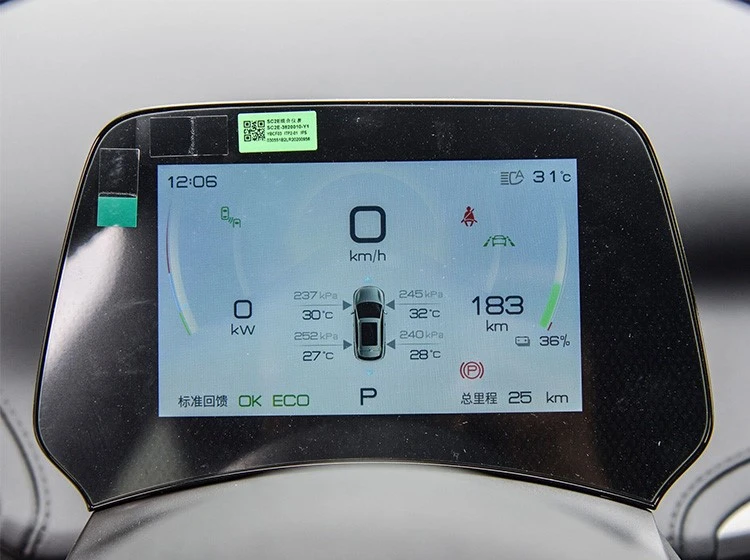

Instrument Screen
Yuan PLUS is equipped with a 5-inch LCD instrument. It is small in size but rich in information. It can display basic information such as battery life and speed. It also displays information such as driving mode and kinetic energy recovery.

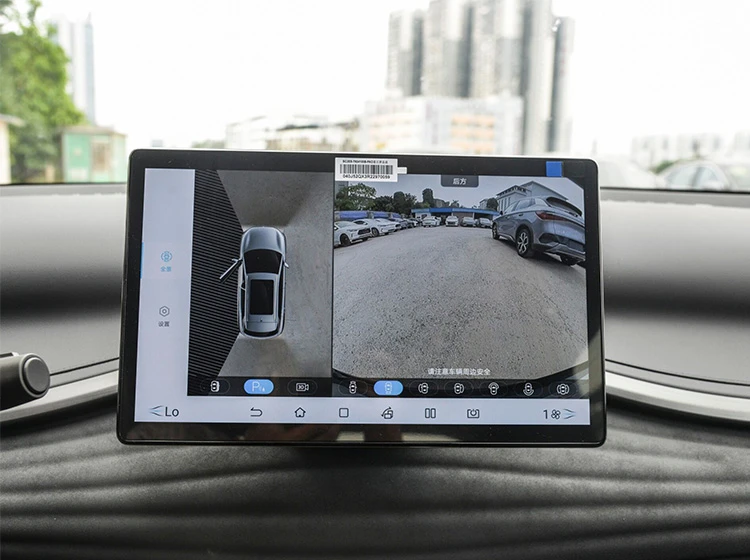

Central Control Screen
Yuan PLUS is equipped with a 12.8-inch rotatable central control screen, running the DiLink car system, supporting 4G network, built-in app store, and a high degree of system openness.

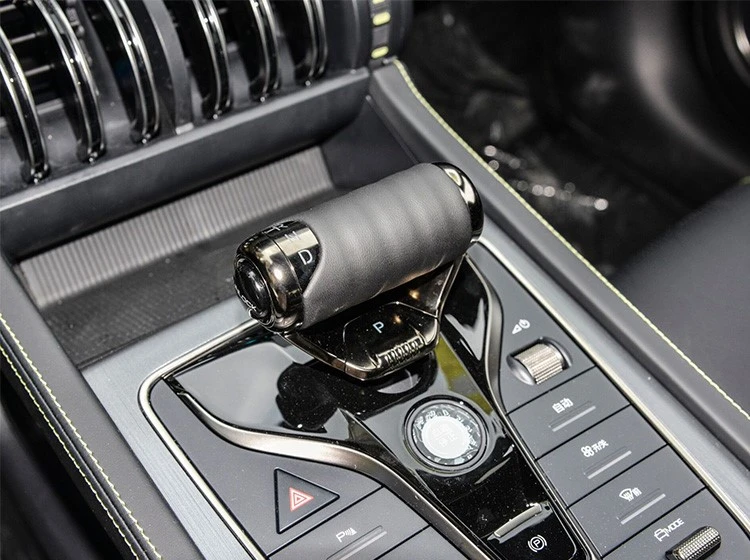

Thrust-type Electronic Gear Lever
Yuan PLUS uses electronic gear lever shifting, inspired by the mechanical thrust lever, which is full of fun. There are shortcut buttons behind the gear lever to control air conditioning, kinetic energy recovery, etc.

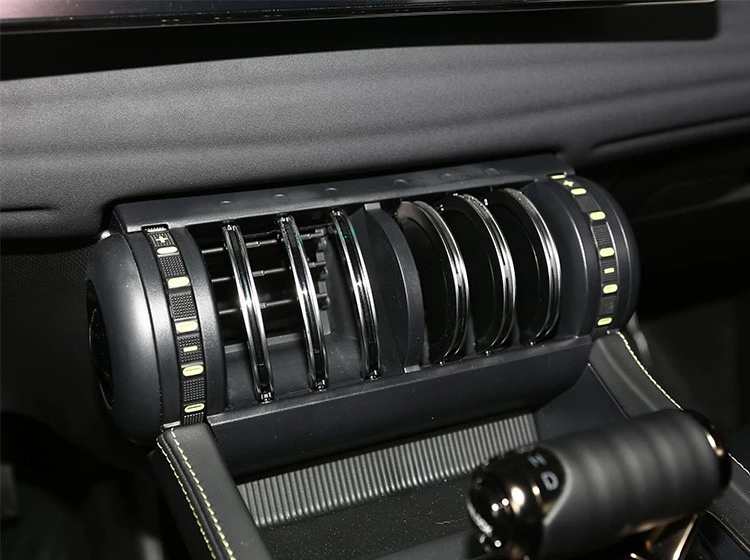

Air Conditioning Outlet
The air outlet of Yuan PLUS adopts dumbbell design, and the silver chrome decoration is very textured. The whole series is equipped with automatic air conditioning and rear seat air outlet as standard, but it does not support temperature zone adjustment.

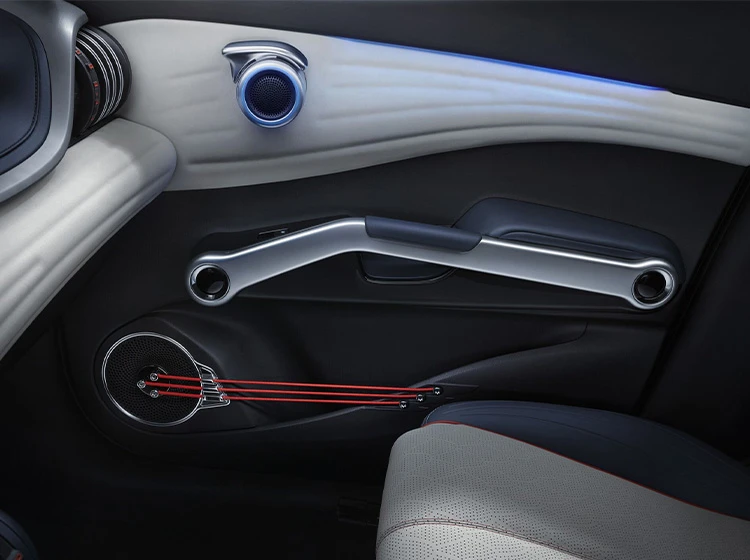

Door Panel Design
The design of the door handle is derived from the gripper. The door opening action is ergonomically designed, and it also integrates audio and ambient lighting, which is full of personality. The door panel design elements are rich, with a variety of materials such as leather, plastic and chrome plating. The door panel storage space adopts a unique string-like design, which can produce different sounds when plucked.

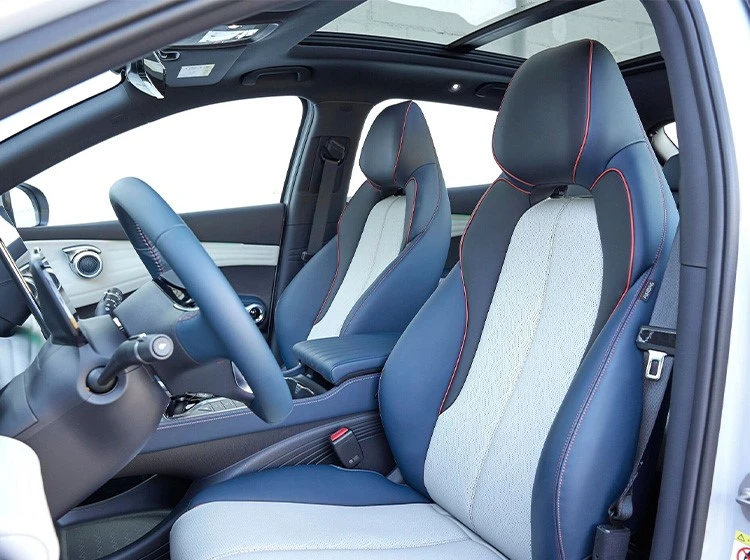

Comfortable Space
The interior of Yuan PLUS is very unique, with a gym theme and a trendy and avant-garde design. The front seats are sporty, made of imitation leather, with thick padding and good support. The main driver's seat is equipped with electric adjustment as standard.

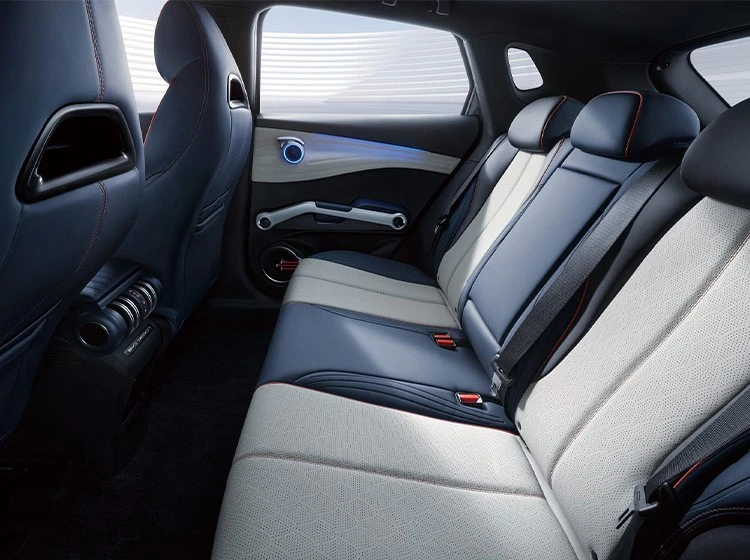

Rear Space
The Yuan PLUS is positioned as a compact SUV with a wheelbase of 2720mm. The rear space performance is normal, the floor is flat, and the foot space is spacious. All models are equipped with imitation leather seats as standard, with gray, blue, and red colors, and the dragon scale-shaped perforated design is more refined and beautiful.

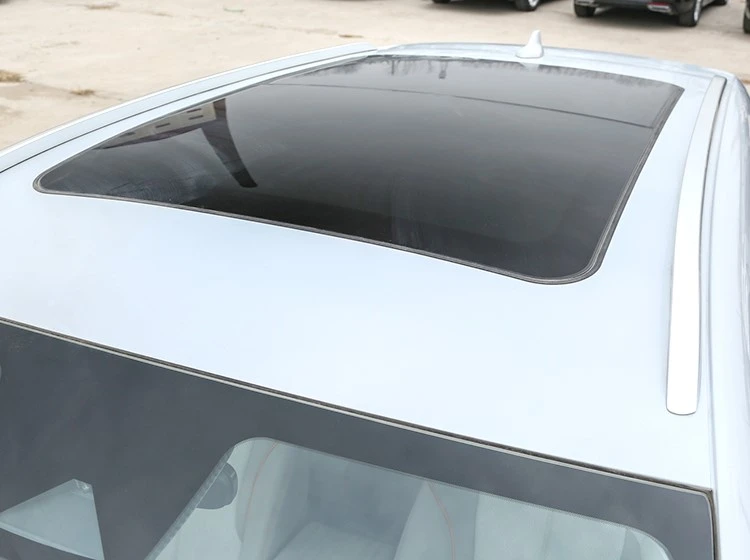

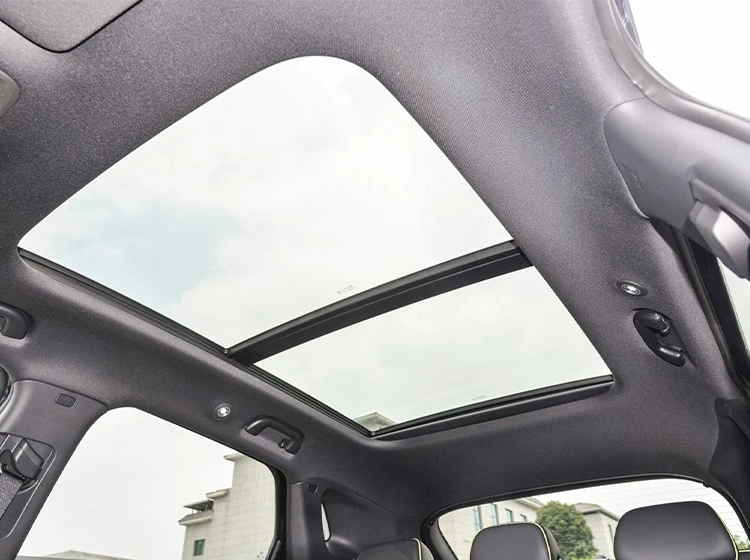

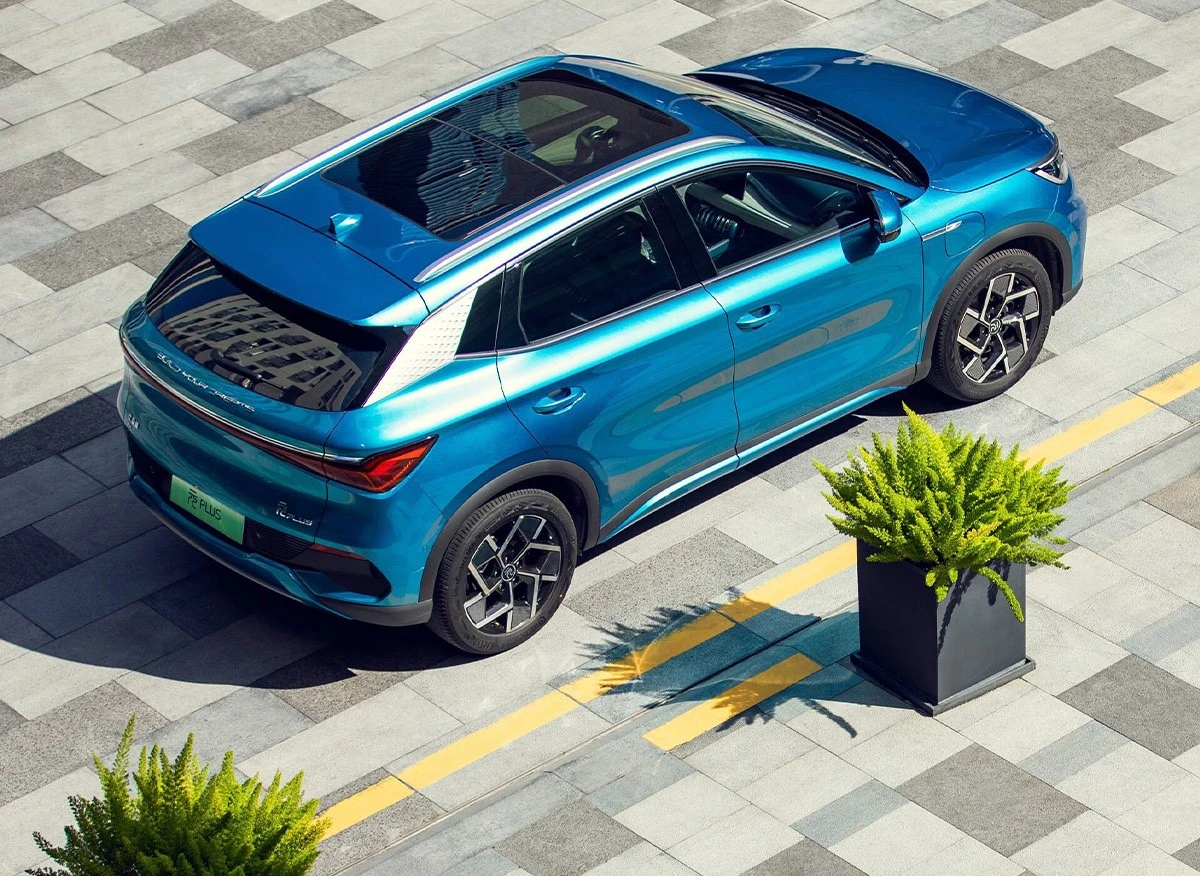

Openable Panoramic Sunroof
Yuan PLUS is equipped with an openable panoramic sunroof with electric sunshade, which is large in area and provides passengers with a wide field of vision.

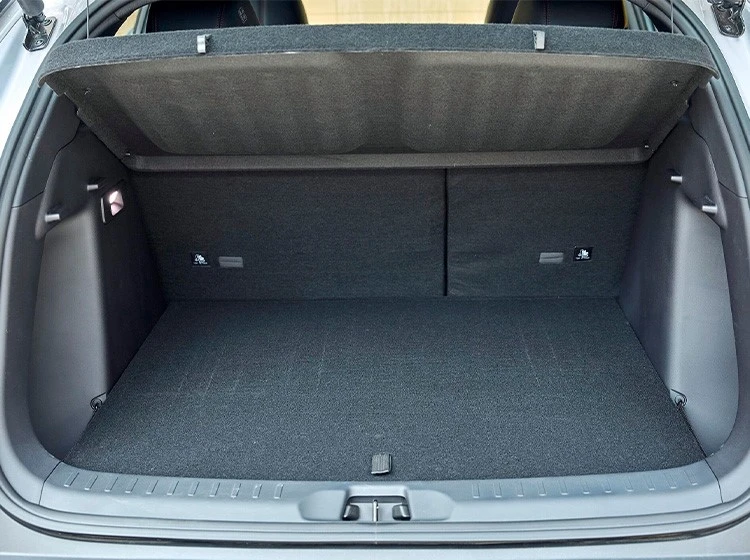

Trunk
The trunk is not big, but the interior space is neat and convenient to use. The electric tailgate is a pleasant configuration, but it is only available on the top model.

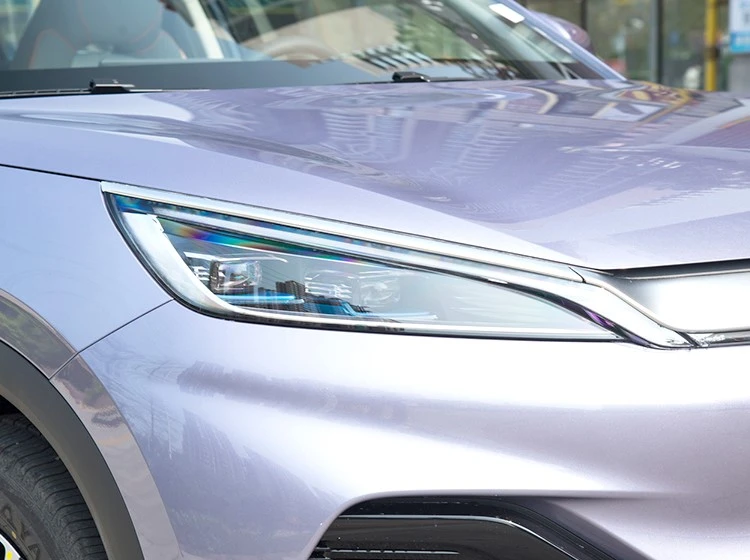

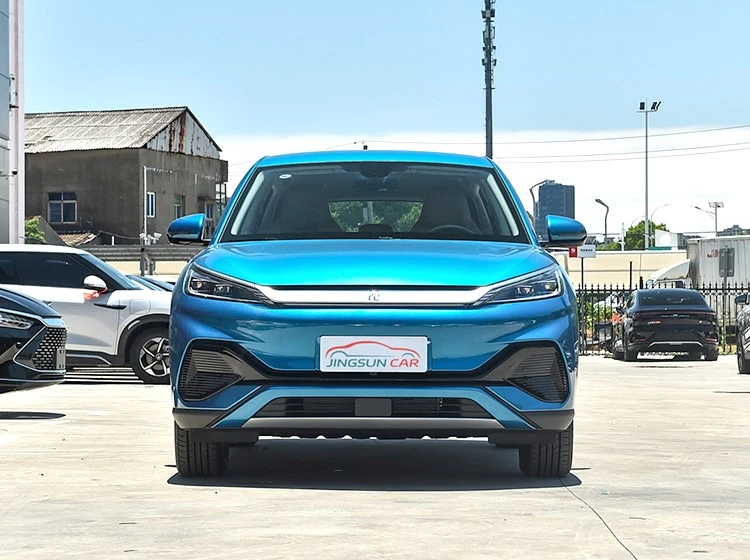

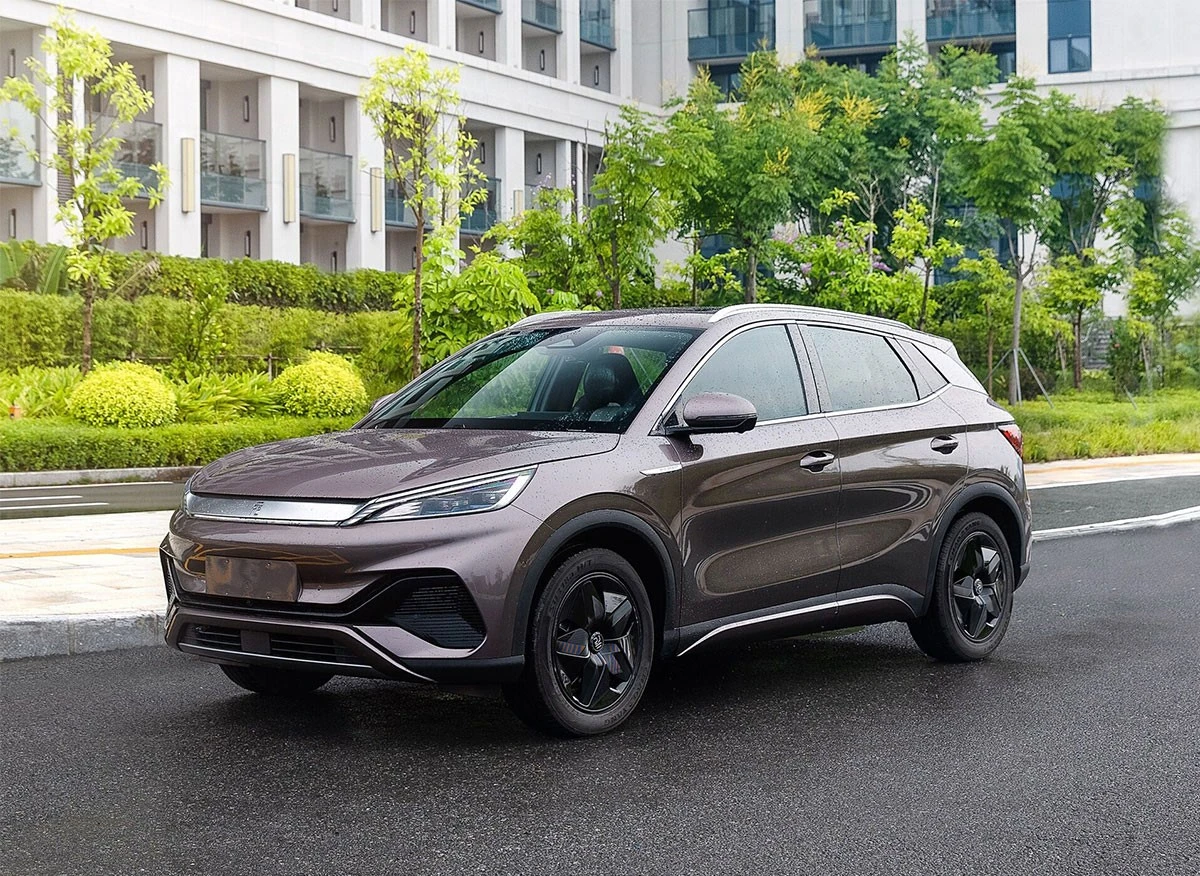

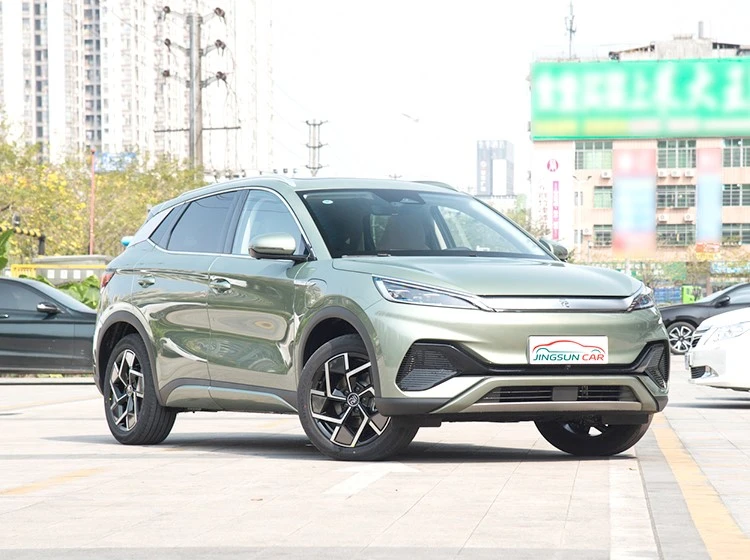

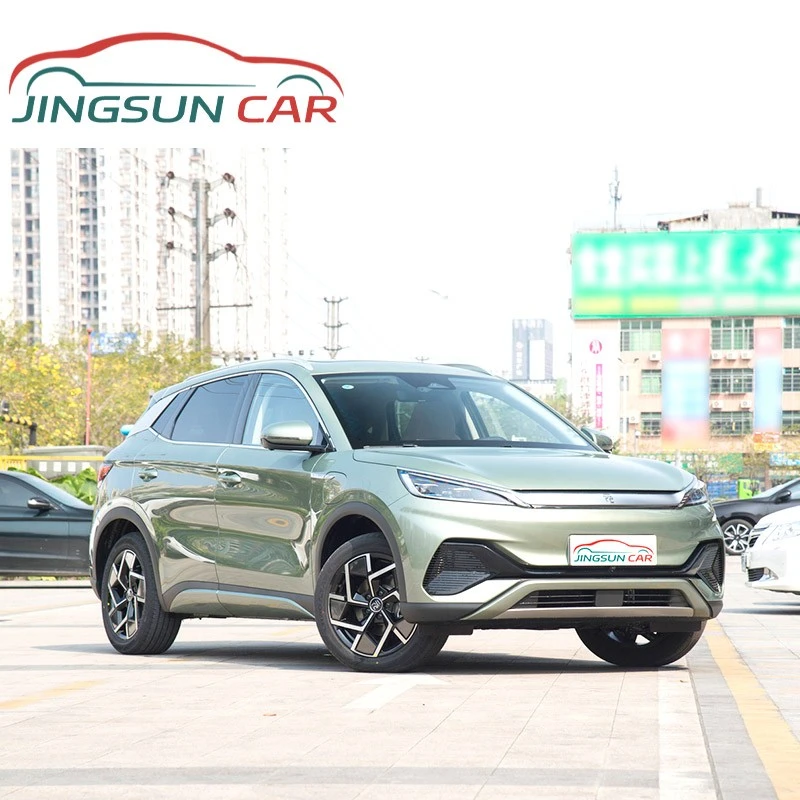

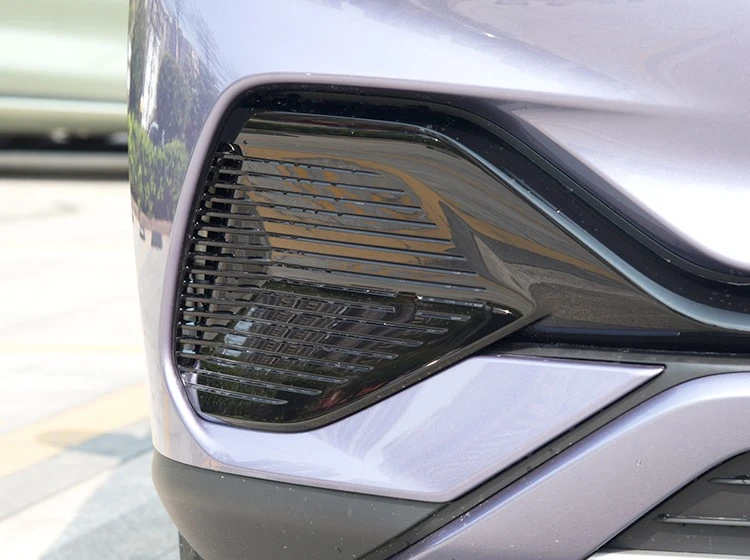

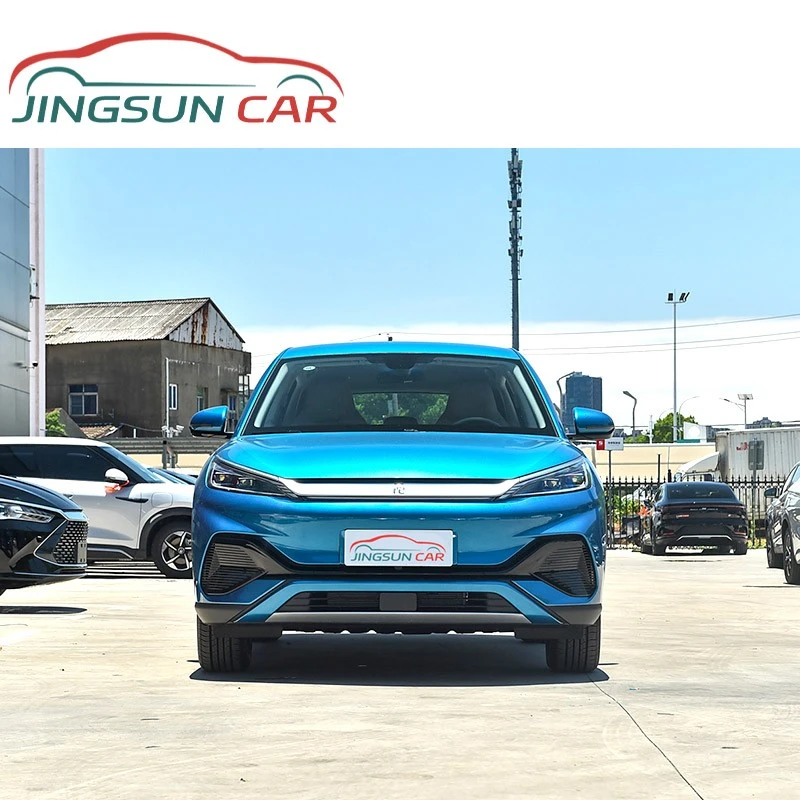

Dragon Face 3.0
The front face of Yuan PLUS adopts the Dragon Face 3.0 design language, with a rounded and full shape, complex lines with a sense of hierarchy, and three horizontal gaps connected to the wing-shaped daytime running lights. The headlight design is inspired by wings, with LED light source and automatic headlights as standard. Except for the lowest configuration, some models are equipped with adaptive high and low beam function.

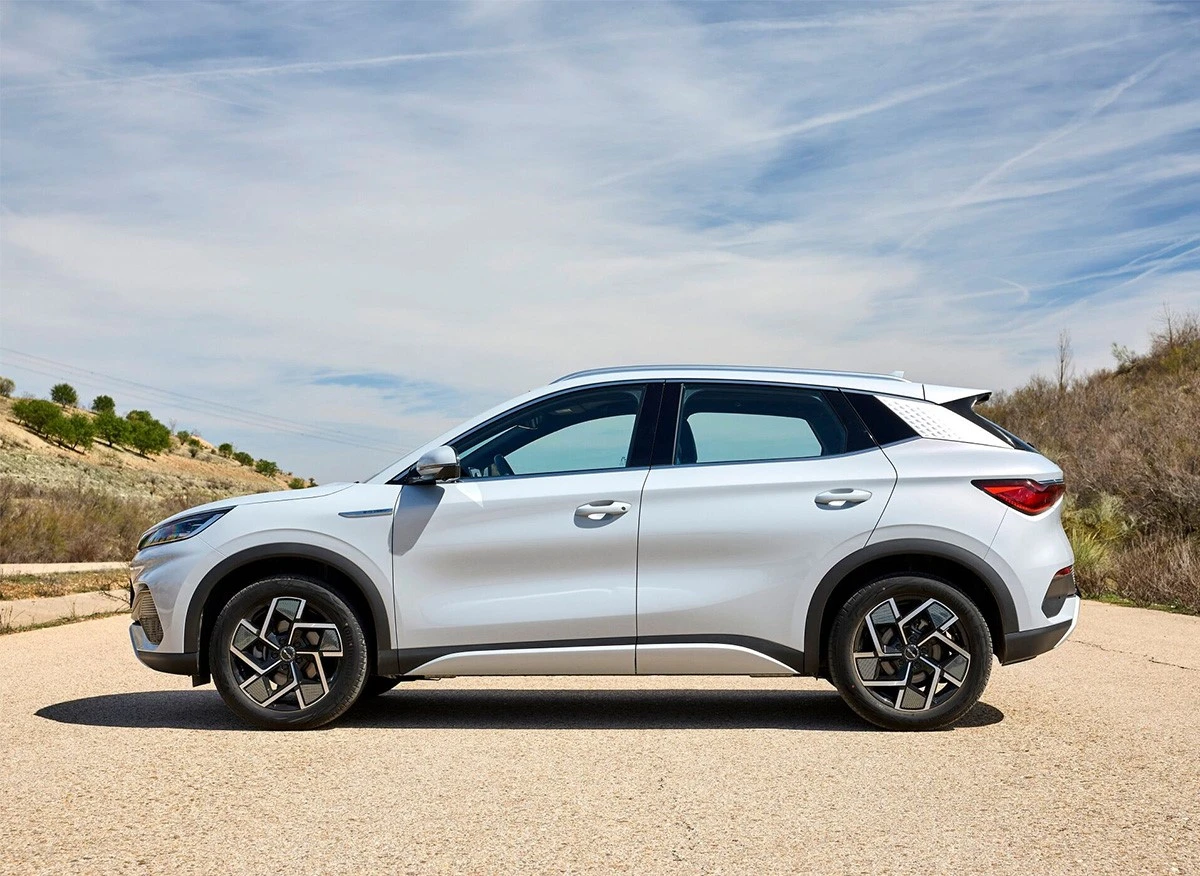

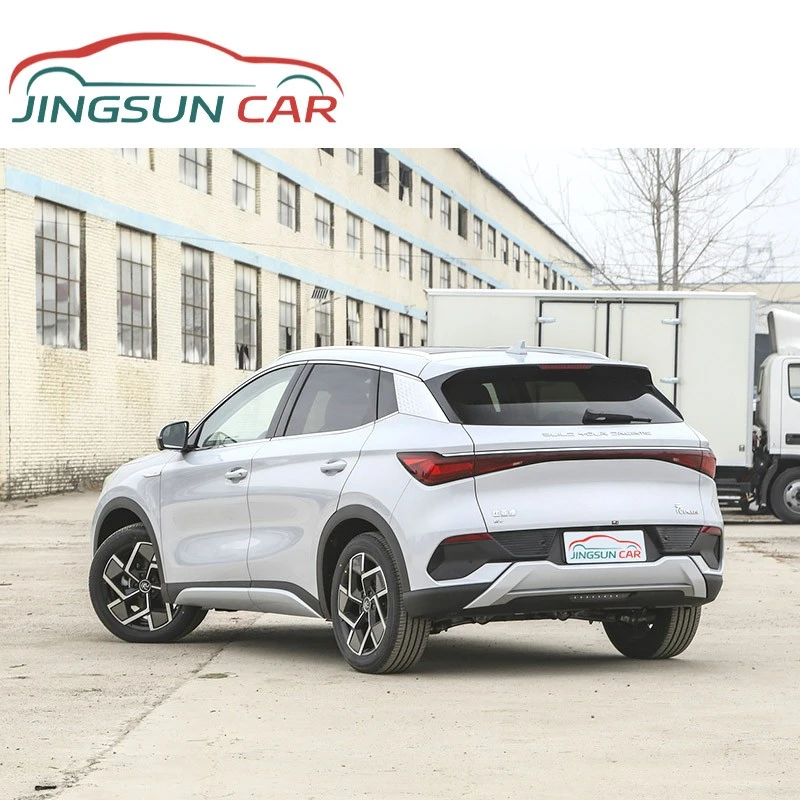

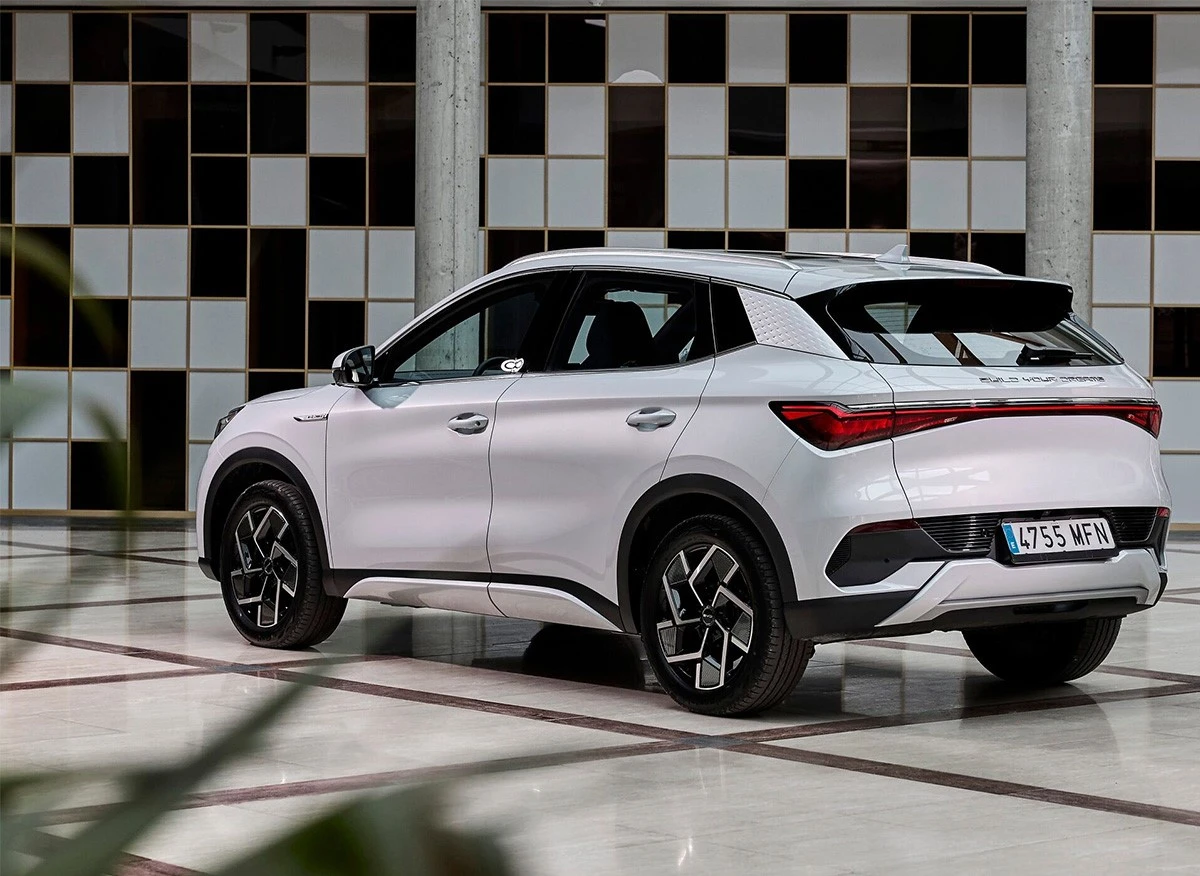

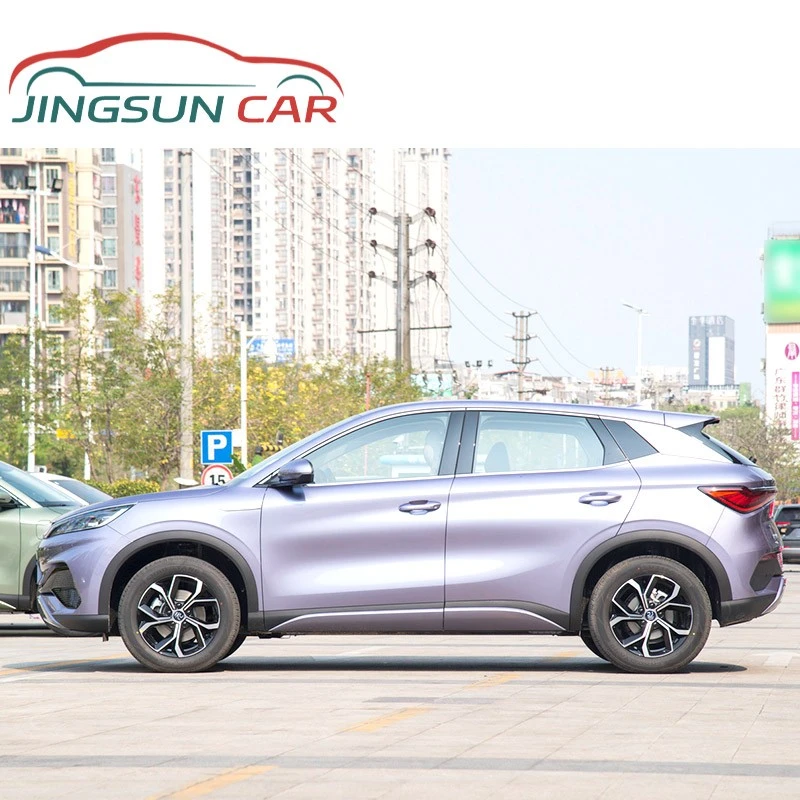

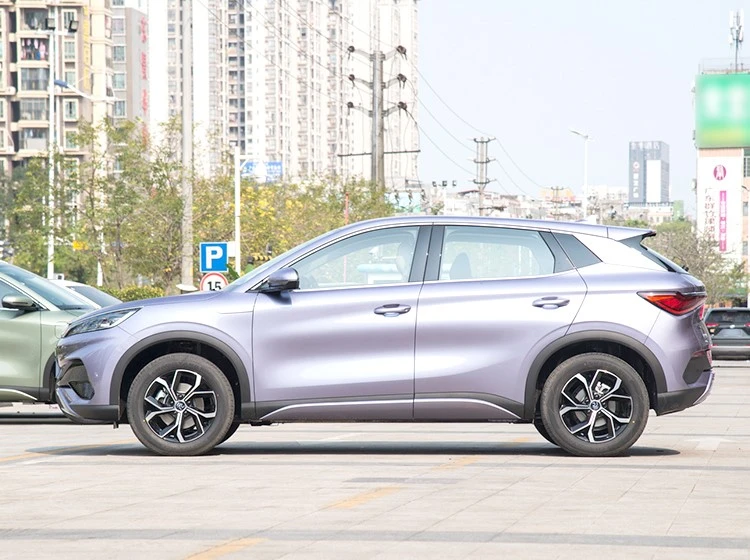

Body Side
The side lines of Yuan PLUS are sharp and three-dimensional. The waistline extends from the fender logo to the taillights, forming a diving posture. The D-pillar is decorated with a large area of chrome trim, the texture is similar to dragon scales, and it changes from dark to light, which is very textured.

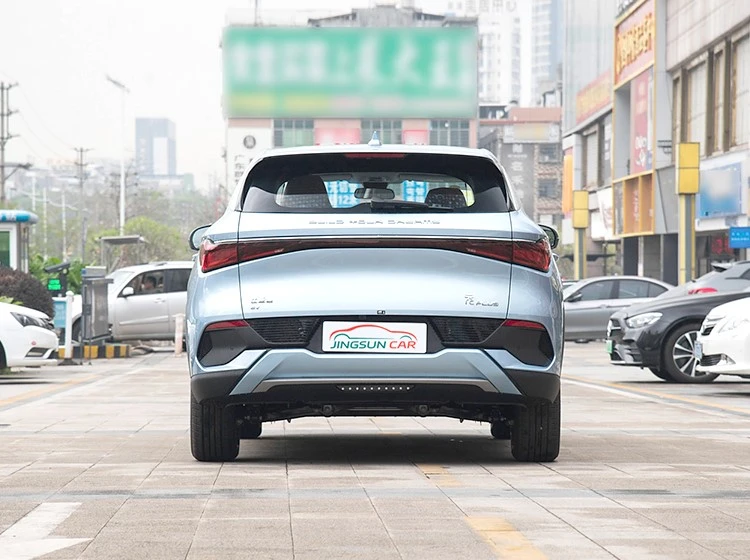

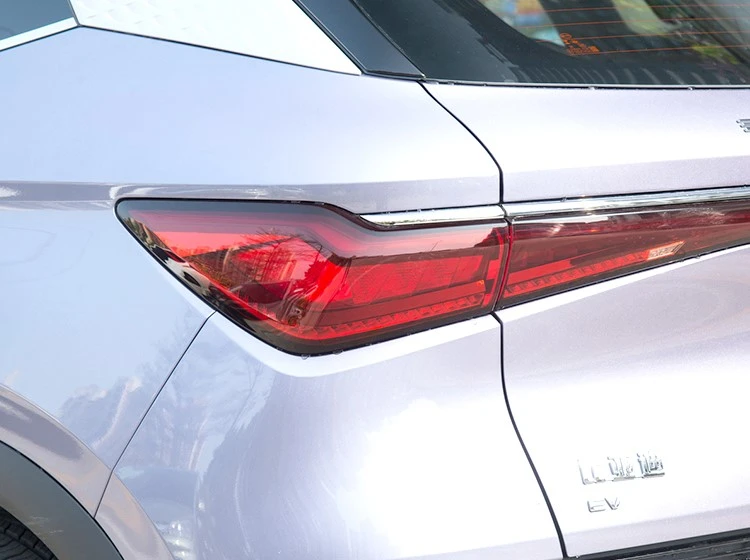

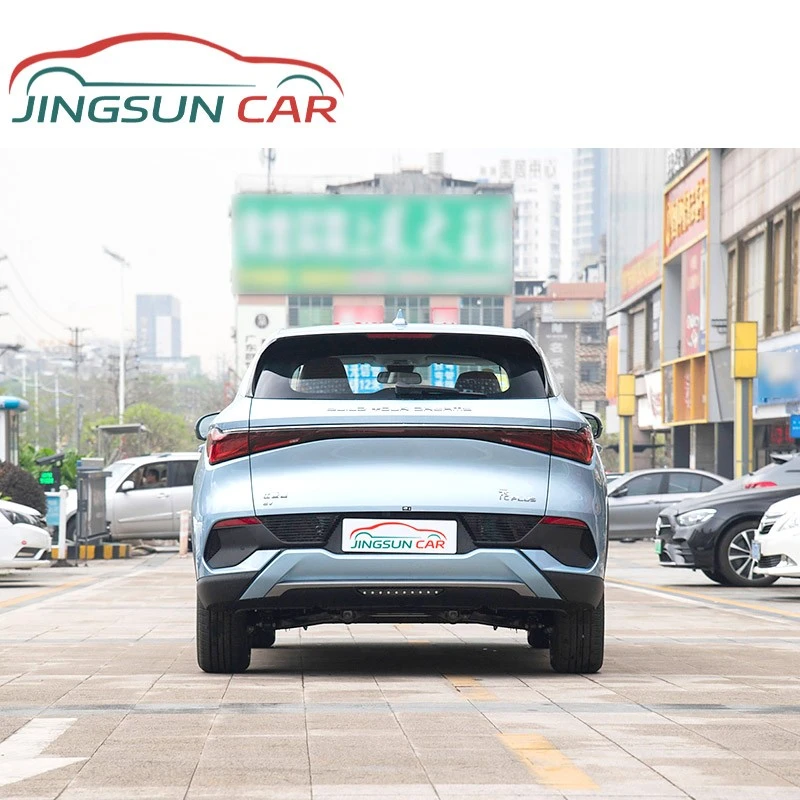

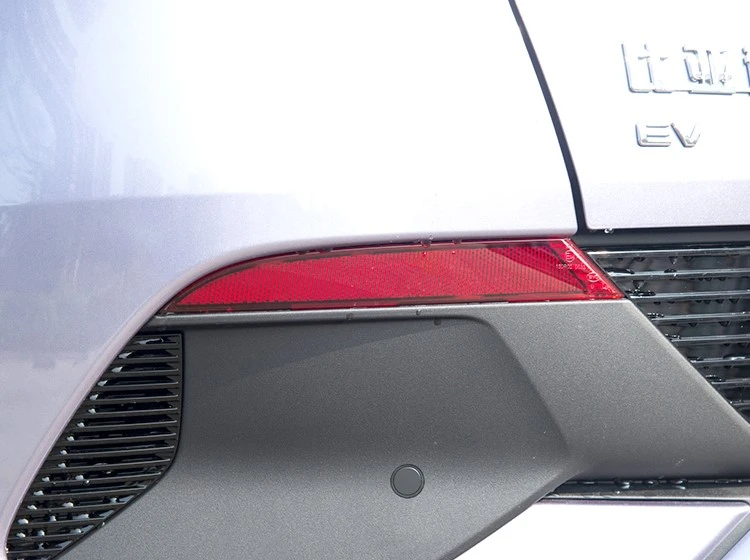

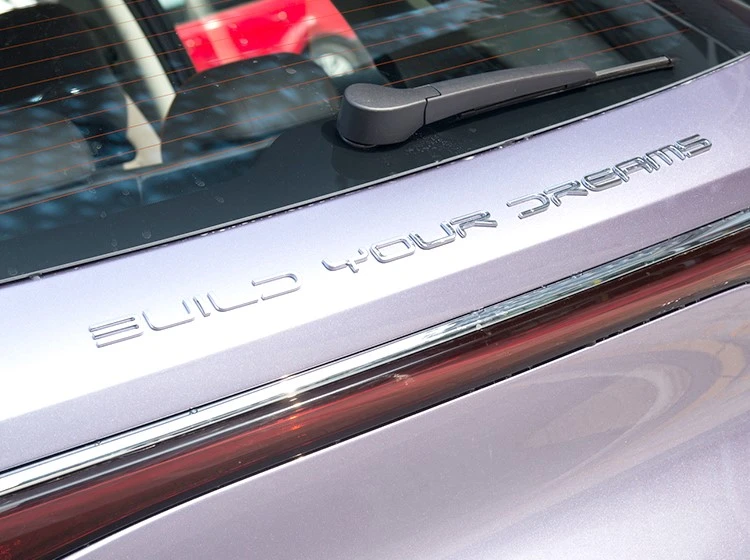

Tail Design
The rear of the Yuan PLUS adopts a fastback design with a small angle. By optimizing the tail wing angle and taillight curve, the drag coefficient of the whole vehicle is 0.29Cd, close to the level of sedans. The taillight adopts a through-type design, which is also inspired by wings and echoes the headlights. The narrow frame design makes the minimum luminous surface width only 5mm.

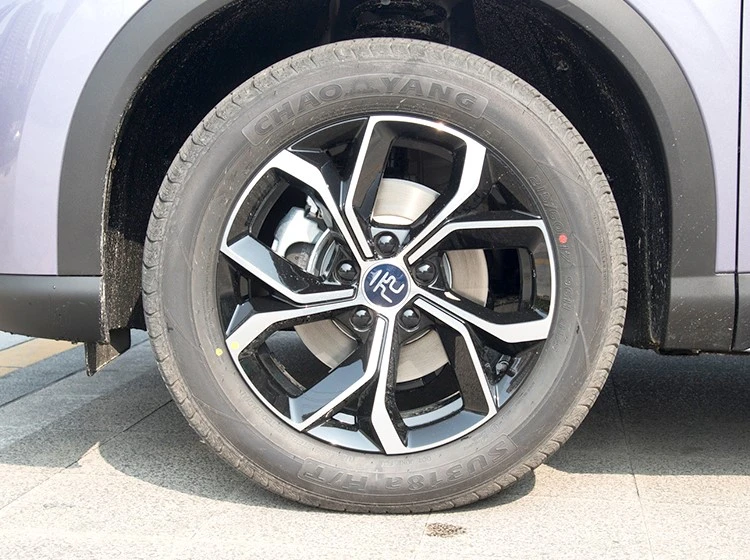

5 Colors, 2 Rims
Yuan PLUS offers 5 exterior colors and two different rims. The top and second top configurations are equipped with 18-inch Wind Wing sports rims, and the rest of the configurations are not optional.
Product Details
| ● Standard configuration ○ Optional -- None |
Yuan PLUS 2024 Honor Edition 430KM Leading Edition | Yuan PLUS 2024 Honor Edition 430KM Beyond Edition | Yuan PLUS 2024 Honor Edition 510KM Leading Edition | Yuan PLUS 2024 Honor Edition 510KM Beyond Edition |
| Basic Parameters | ||||
| Manufacturer | BYD | BYD | BYD | BYD |
| Level | Compact SUV | Compact SUV | Compact SUV | Compact SUV |
| Energy type | Pure electric | Pure electric | Pure electric | Pure electric |
| Time to market | 2024.03 | 2024.03 | 2024.03 | 2024.03 |
| Fast charging time (h) | 0.5 | 0.5 | 0.5 | 0.5 |
| Slow charging time (h) | 7.13 | 7.13 | 8.64 | 8.64 |
| Maximum power(kw) | 150 | 150 | 150 | 150 |
| Maximum torque(N-m) | 310 | 310 | 310 | 310 |
| Gearbox | Electric vehicle single-speed gearbox | Electric vehicle single-speed gearbox | Electric vehicle single-speed gearbox | Electric vehicle single-speed gearbox |
| Length*Width*Height (mm) | 4455*1875*1615 | 4455*1875*1615 | 4455*1875*1615 | 4455*1875*1615 |
| Body structure | 5-door 5-seater SUV | 5-door 5-seater SUV | 5-door 5-seater SUV | 5-door 5-seater SUV |
| Maximum speed (km/h) | 160 | 160 | 160 | 160 |
| Official 0-100km/h acceleration (s) | 7.3 | 7.3 | 7.3 | 7.3 |
| Vehicle warranty | Six years or 150,000 kilometers | Six years or 150,000 kilometers | Six years or 150,000 kilometers | Six years or 150,000 kilometers |
| Car Body | ||||
| Wheelbase(mm) | 2720 | 2720 | 2720 | 2720 |
| Front wheelbase (mm) | 1575 | 1575 | 1575 | 1575 |
| Rear wheelbase (mm) | 1580 | 1580 | 1580 | 1580 |
| Body structure | SUV | SUV | SUV | SUV |
| Car door opening method | Swing door | Swing door | Swing door | Swing door |
| Curb weight (kg) | 1625 | 1625 | 1690 | 1690 |
| Electric Motor | ||||
| Motor type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 150 | 150 | 150 | 150 |
| Total torque of motor (N·m) | 310 | 310 | 310 | 310 |
| Number of drive motors | Single motor | Single motor | Single motor | Single motor |
| Motor layout | Front | Front | Front | Front |
| Battery Type | Lithium iron phosphate battery | Lithium iron phosphate battery | Lithium iron phosphate battery | Lithium iron phosphate battery |
| Battery brand | Freddy | Freddy | Freddy | Freddy |
| Battery cooling method | Direct cooling | Direct cooling | Direct cooling | Direct cooling |
| Battery energy (kWh) | 49.92 | 49.92 | 60.48 | 60.48 |
| Electricity consumption per 100 kilometers (kWh/100km) | 12.2 | 12.2 | 12.5 | 12.5 |
| Chassis/Wheels | ||||
| Drive mode | Front front drive | Front front drive | Front front drive | Front front drive |
| Front suspension type | Macpherson independent suspension | Macpherson independent suspension | Macpherson independent suspension | Macpherson independent suspension |
| Rear suspension type | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension | Multi-link independent suspension |
| Parking brake type | Electronic parking | Electronic parking | Electronic parking | Electronic parking |
| Rim material | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy | ●Aluminum alloy |
| Front tire specifications | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/55 R18 |
| Rear tire specifications | 215/60 R17 | 215/60 R17 | 215/60 R17 | 215/55 R18 |
| Spare tire specifications | Tire repair tool | Tire repair tool | Tire repair tool | Tire repair tool |
| Active/Passive safety | ||||
| Main/passenger seat airbag | Main●/deputy● | Main●/deputy● | Main●/deputy● | Main●/deputy● |
| Front/rear side airbags | Front●/rear-- | Front●/rear-- | Front●/rear-- | Front●/rear-- |
| Front/rear head airbags (curtain airbags) | Front--/rear-- | Front●/rear● | Front--/rear-- | Front●/rear● |
| Tire pressure monitoring function | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display | ●Tire pressure display |
| Seat belt not fastened reminder | ●Front row | ●Front row | ●Front row | ●Whole car |
| ABS anti-lock | ● | ● | ● | ● |
| Lane Departure Warning System | -- | ● | -- | ● |
| Active braking/active safety system | -- | ● | -- | ● |
| Reverse side warning system | -- | -- | -- | ● |
| Control Configuration | ||||
| Driving mode switch | ●Sports ●Economy ●Standard/comfortable ●Snow |
●Sports ●Economy ●Standard/comfortable ●Snow |
●Sports ●Economy ●Standard/comfortable ●Snow |
●Sports ●Economy ●Standard/comfortable ●Snow |
| Shift pattern | ●Electronic gear shift | ●Electronic gear shift | ●Electronic gear shift | ●Electronic gear shift |
| automatic parking | ● | ● | ● | ● |
| Auxiliary/Intelligent Driving | ||||
| cruise system | ●Fixed speed cruise | ●Full speed adaptive cruise | ●Fixed speed cruise | ●Full speed adaptive cruise |
| Assisted driving level | -- | ●L2 | -- | ●L2 |
| Lane centering | -- | ● | -- | ● |
| Road traffic sign recognition | -- | ● | -- | ● |
| Driving assistance images | ●Reversing image | ●360-degree panoramic image | ●Reversing image | ●360-degree panoramic image |
| Front/rear parking radar | Front--/rear● | Front●/rear● | Front--/rear● | Front●/rear● |
| Ultrasonic radar quantity | ●4 pcs | ●6 pcs | ●4 pcs | ●6 pcs |
| Appearance Configuration | ||||
| Skylight type | -- | ●Panoramic sunroof can be opened | -- | ●Panoramic sunroof can be opened |
| Roof rack | -- | ● | -- | ● |
| Key type | ●Bluetooth key ●NFC/RFID key ●Remote control key |
●Bluetooth key ●NFC/RFID key ●Remote control key |
●Bluetooth key ●NFC/RFID key ●Remote control key |
●Bluetooth key ●NFC/RFID key ●Remote control key |
| Keyless start system | ● | ● | ● | ● |
| Internal Configuration | ||||
| Full LCD instrument panel | ● | ● | ● | ● |
| LCD instrument size | ●5 inches | ●5 inches | ●5 inches | ●5 inches |
| Steering wheel material | ●Leather | ●Leather | ●Leather | ●Leather |
| Steering wheel position adjustment | ●Manual up and down + front and rear adjustment | ●Manual up and down + front and rear adjustment | ●Manual up and down + front and rear adjustment | ●Manual up and down + front and rear adjustment |
| Multifunction steering wheel | ● | ● | ● | ● |
| Seat Configuration | ||||
| Seat material | ●Imitation leather | ●Imitation leather | ●Imitation leather | ●Imitation leather |
| Main/passenger seat electric adjustment | Main●/deputy-- | Main●/deputy● | Main●/deputy-- | Main●/deputy● |
| Rear seats fold down | ●Proportional inverted | ●Proportional inverted | ●Proportional inverted | ●Proportional inverted |
| Front/rear center armrest | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| Lighting Configuration | ||||
| Low beam light source | ●LED | ●LED | ●LED | ●LED |
| high beam light source | ●LED | ●LED | ●LED | ●LED |
| Adaptive high and low beam | -- | ● | -- | ● |
| Headlight height adjustable | ● | ● | ● | ● |
| Delayed turn off of headlights | ● | ● | ● | ● |
| Car interior ambient lighting | ●Multicolor | ●Multicolor | ●Multicolor | ●Multicolor |
| Glass/Rear View Mirror | ||||

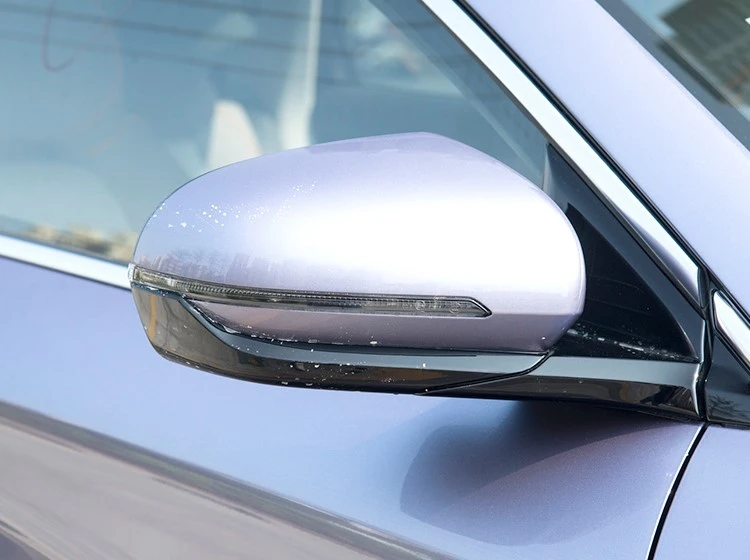

| Exterior rearview mirror function | ●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Electric adjustment |
●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Electric adjustment |
●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Electric adjustment |
●Lock the car and fold automatically ●Electric folding ●Rearview mirror heating ●Electric adjustment |
| Sensing wiper function | ● | ● | ● | ● |
| Front/rear electric windows | Front●/rear● | Front●/rear● | Front●/rear● | Front●/rear● |
| One-touch window lifting function | ●Whole car | ●Whole car | ●Whole car | ●Whole car |
| Window anti-pinch function | ● | ● | ● | ● |
| Car vanity mirror | ●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
●Main driver + lighting ●Co-pilot + lighting |
| Interior rearview mirror function | ●Manual anti-glare | ●Automatic anti-glare | ●Manual anti-glare | ●Automatic anti-glare |
| Intelligent Internet | ||||
| Central control color LCD screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen | ●Touch LCD screen |
| Central control screen size | ●12.8 inches | ●12.8 inches | ●12.8 inches | ●12.8 inches |
| Vehicle intelligent system | ●DiLink | ●DiLink | ●DiLink | ●DiLink |
| Voice assistant wake word | ●Hello, Xiao Di | ●Hello, Xiao Di | ●Hello, Xiao Di | ●Hello, Xiao Di |
| Navigation traffic information display | ● | ● | ● | ● |
| GPS navigation system | ● | ● | ● | ● |
| Bluetooth/car phone | ● | ● | ● | ● |
| Voice recognition control system | ●Multimedia system ●Navigation ●Phone ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Skylight ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Air conditioner |
●Multimedia system ●Navigation ●Phone ●Skylight ●Air conditioner |
| APP Remote Control | ●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Vehicle start ●Car owner service (find charging piles, gas stations, parking lots, etc.) ●Make an appointment for maintenance/repair ●Charging management |
●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Vehicle start ●Car owner service (find charging piles, gas stations, parking lots, etc.) ●Make an appointment for maintenance/repair ●Charging management |
●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Vehicle start ●Car owner service (find charging piles, gas stations, parking lots, etc.) ●Make an appointment for maintenance/repair ●Charging management |
●Door control ●Air conditioning control ●Vehicle condition inquiry/diagnosis ●Vehicle positioning/car search ●Vehicle start ●Car owner service (find charging piles, gas stations, parking lots, etc.) ●Make an appointment for maintenance/repair ●Charging management |
| Media Entertainment | ||||
| Multimedia/charging interface | ●USB | ●USB | ●USB | ●USB |
| Number of USB/Type-C interfaces | ●2 in the front row/2 in the rear row | ●2 in the front row/2 in the rear row | ●2 in the front row/2 in the rear row | ●2 in the front row/2 in the rear row |
| Mobile phone wireless charging function | ●Front row | ●Front row | ●Front row | ●Front row |
| Number of speakers | ●8 speakers | ●8 speakers | ●8 speakers | ●8 speakers |
