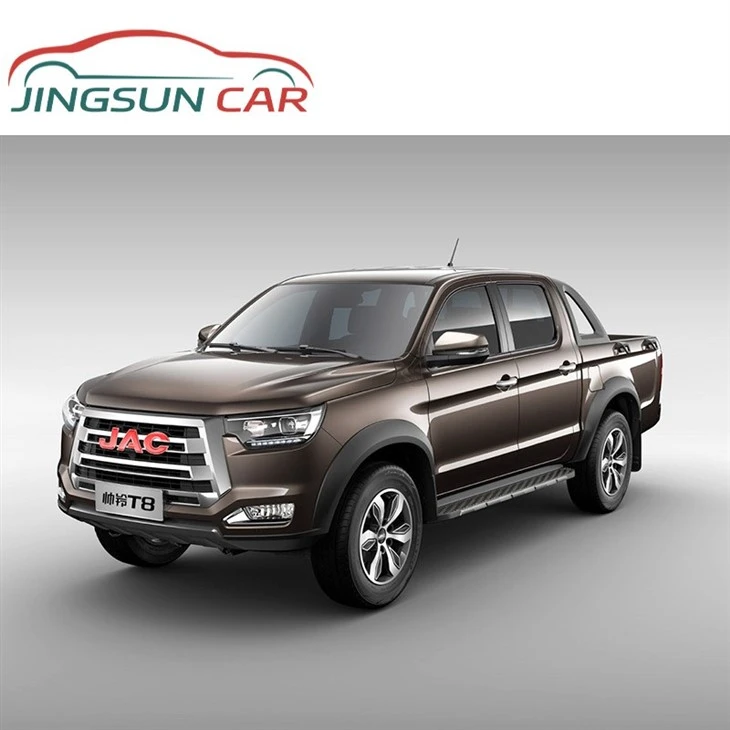

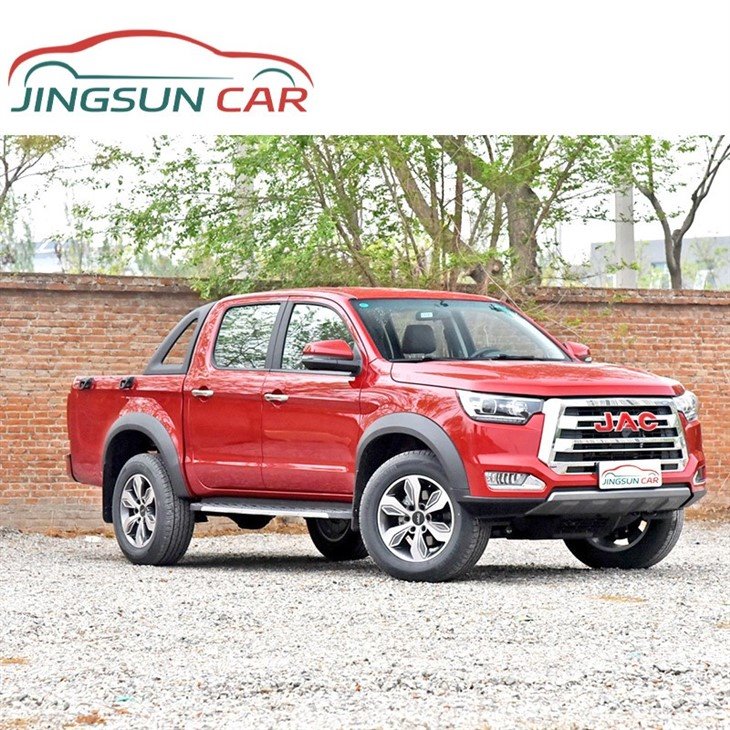

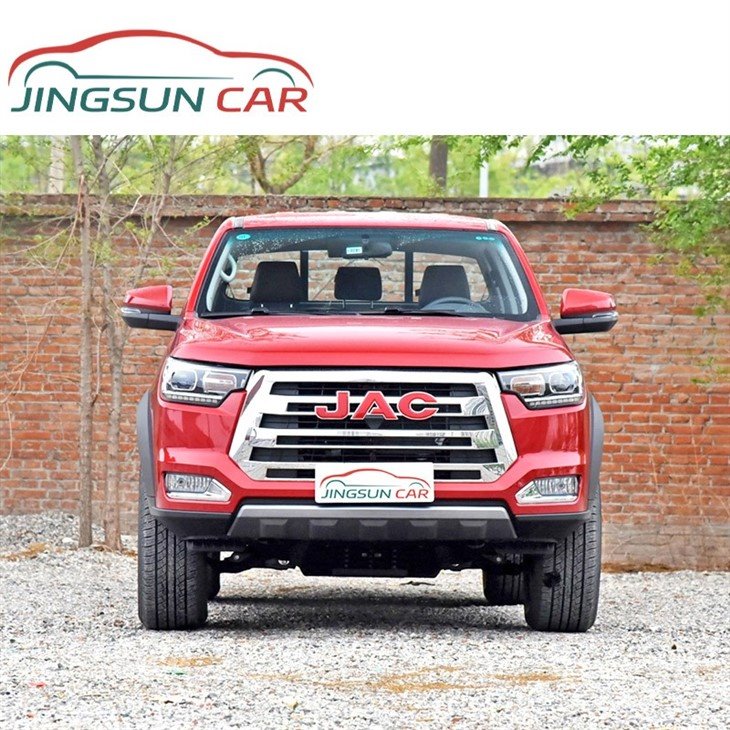

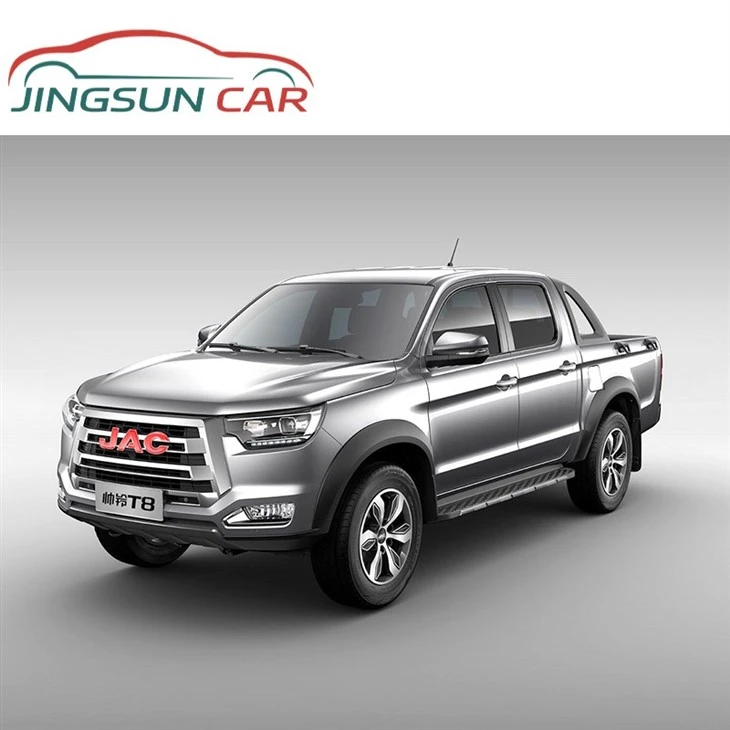

JAC T8

JAC T8

Energy Type: Petrol/Diesel
Vehicle Type: Pickup truck
Horsepower: 150/170/211Ps
Displacement: 2.0T
Send Inquiry
Description
Technical Parameters
Product Highlights

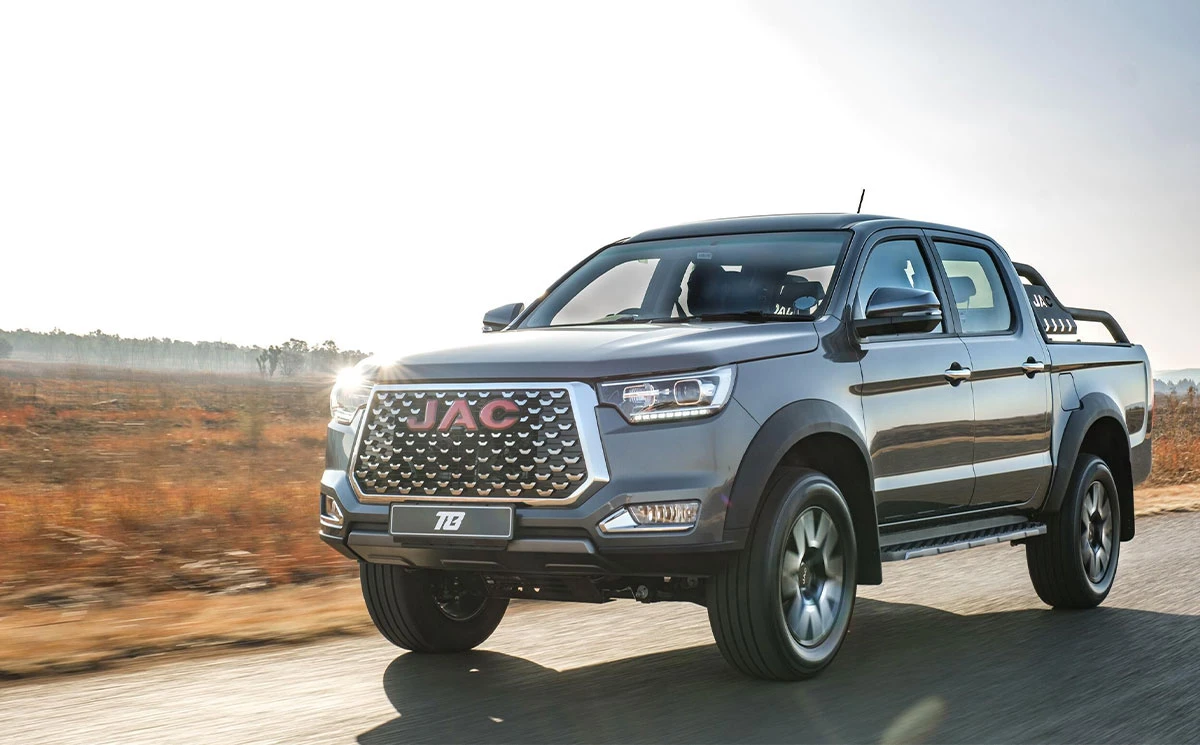

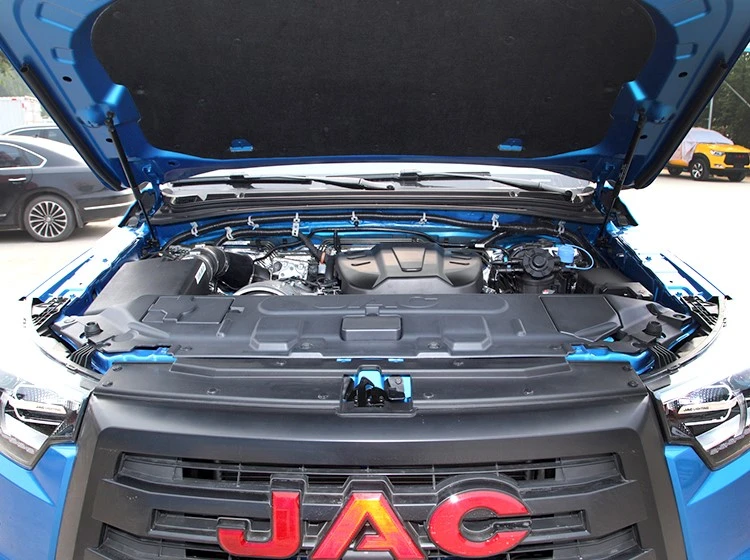

During daily road driving, this pickup T8 2.0T engine has a good burst of power in the middle and rear sections, pushing this car of about 2 tons to still have a good sense of acceleration.



JAC-T8-1

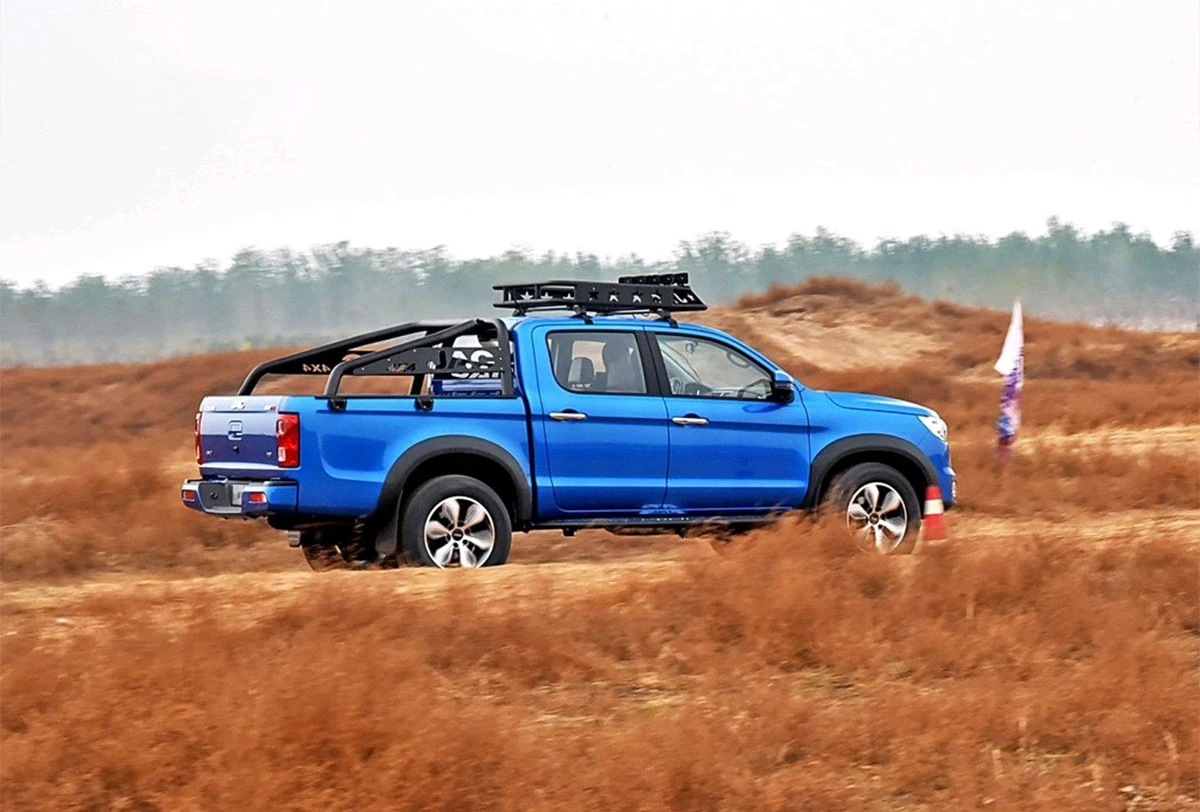

Off-Road Capability




Its approach angle is 29.2°, departure angle is 26.2°, longitudinal breakover angle is 26.4°, and minimum ground clearance is 220mm. These are its hard indicators for off-road use.



JAC-T8-2

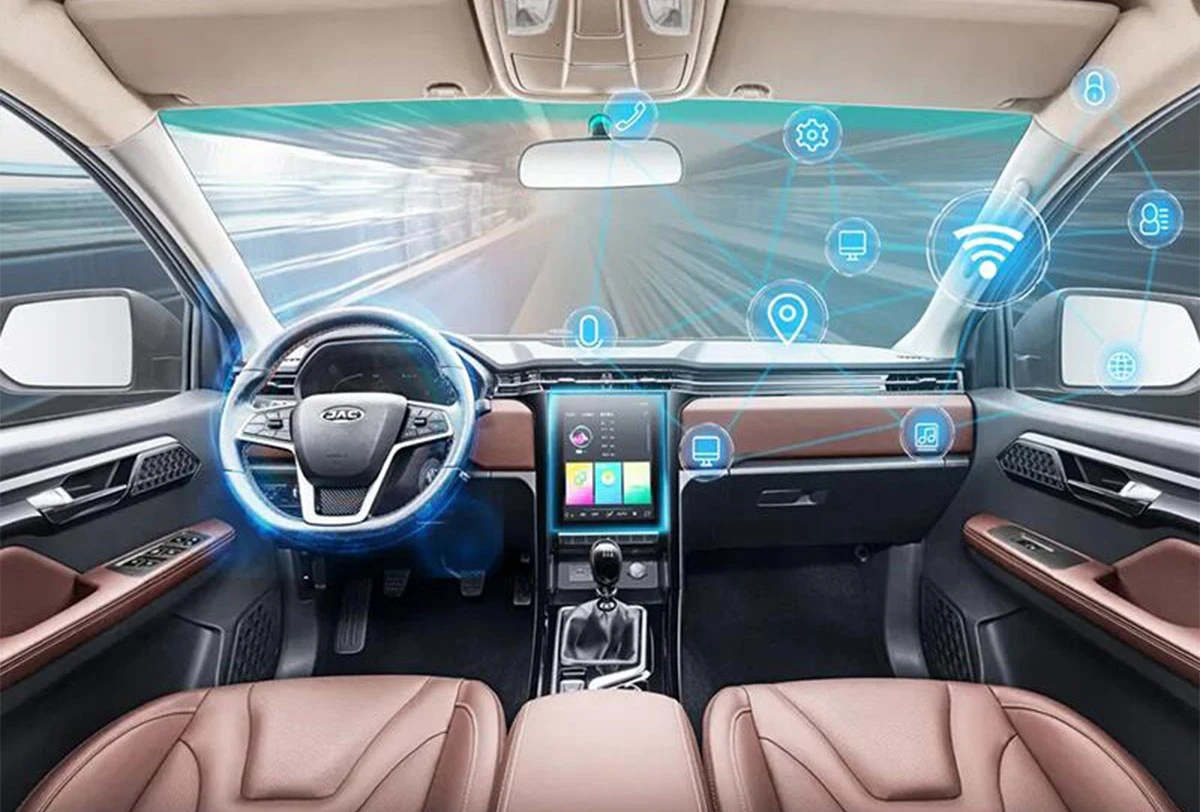

Interior Style




The interior design style is more passenger-oriented, and the materials are also covered with leather materials to further enhance the sense of class inside the car.



JAC-T8-3



1

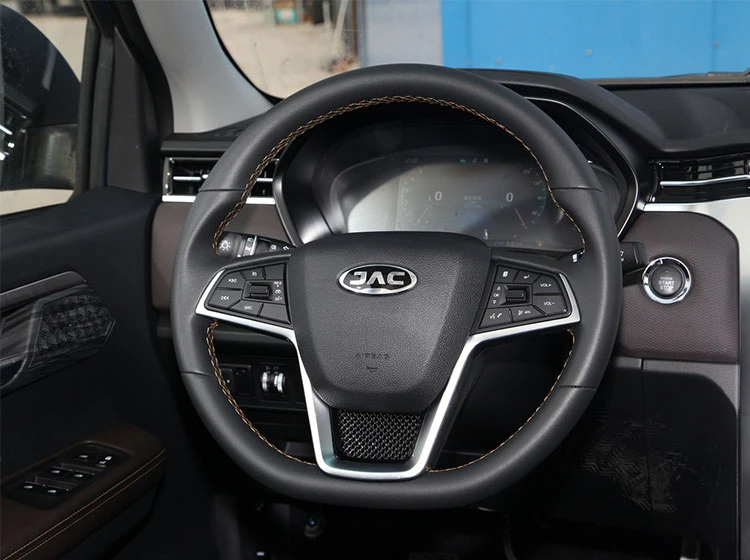

Multifunction Steering Wheel



The shape of the steering wheel adopts the family-style design of JAC Motors, and the leather material and multi-function buttons are standard equipment for the entire series. Multi-function buttons can control the multimedia system, Bluetooth phone and cruise control.

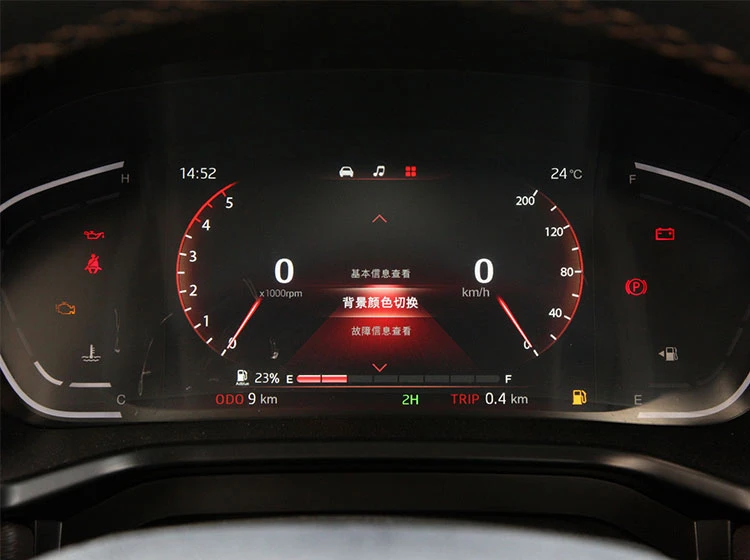

Instrument Screen



The instrument screen of Pickup T8 is very eye-catching, changing from the previous barrel-type instrument panel, and its background color is adjustable.

2

3

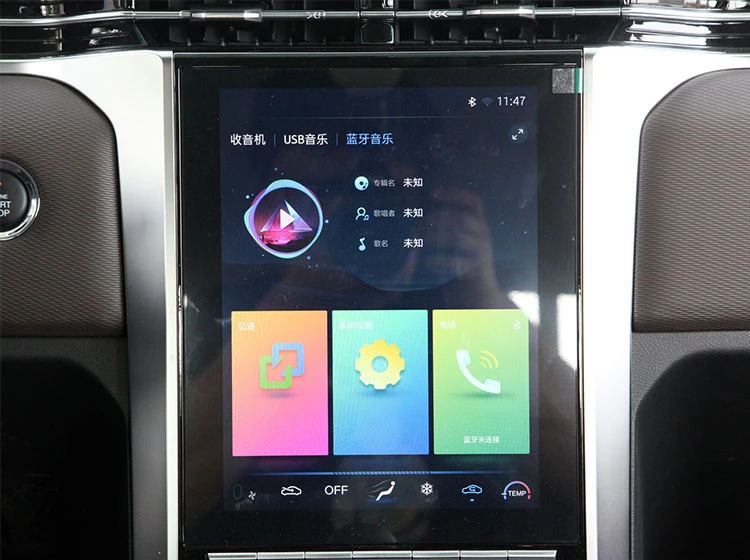

Central Control Screen



The central control area is equipped with a touch screen, which has complete functions. The display clarity and touch sensitivity are acceptable, but there are some reflections.

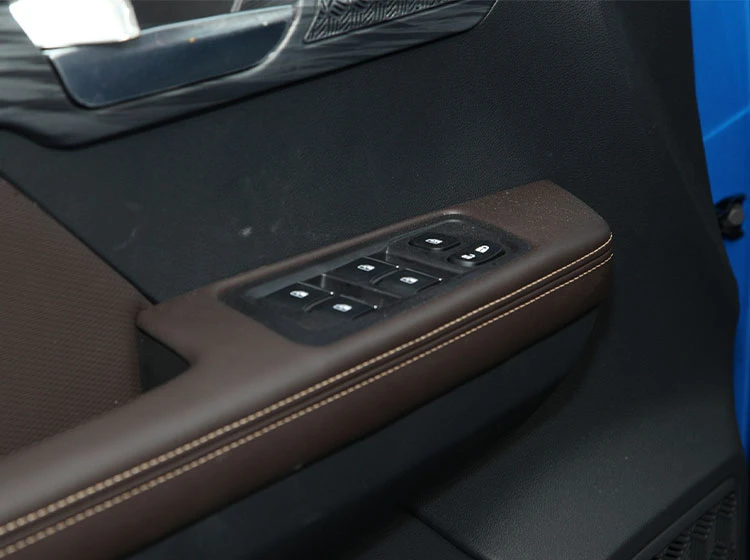

Front Door Inner Panel



The front door lining is made of a large area of black hard plastic, with silver trim and brown leather added to some areas. Four-door electric windows (all support one-button lifting) and central locking control keys are also integrated here.

5

6

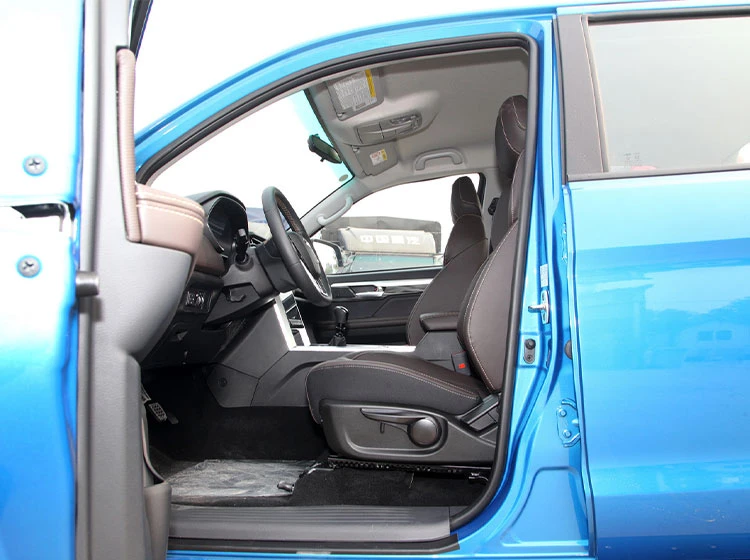

Front Seats



Leather seats also appear on premium and smart-connected models. The main driver's seat supports six-way manual adjustment. The seats are fully padded and soft, and the ride comfort is good.

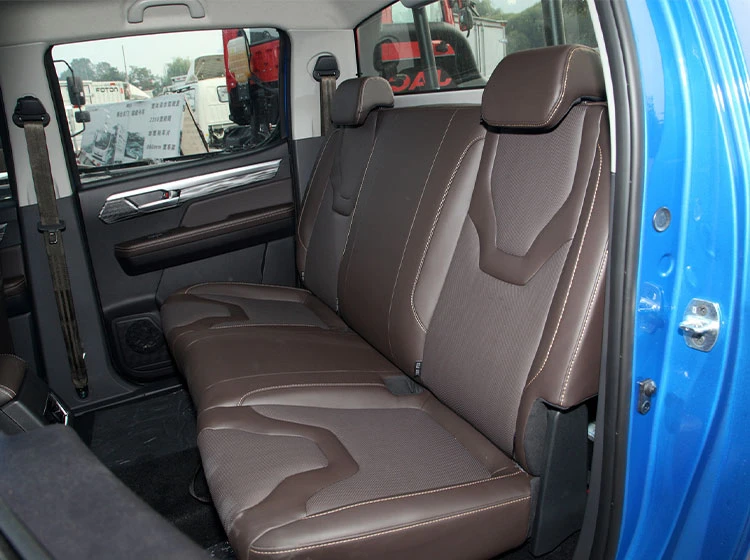

Rear Seats



The backrests on both sides of the JAC T8's second-row seats adopt a concave design. The angle is still somewhat straight, and the comfort is average. The three headrests and seat belts are fully equipped to fully ensure the safety of passengers.

7

8

Roll Cage



The rugged roll cage is also made of black matte material. The spare tire is also set here, and the overall style is hard-core and wild.

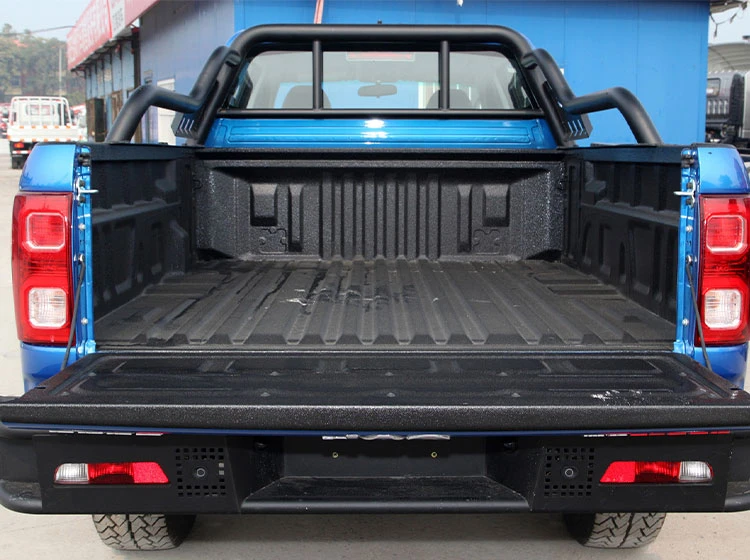

Cargo Box



Cargo compartment dimensions are: 1520×1520×470mm. The cargo compartment is sprayed with cargo compartment treasure, which can prevent corrosion of the cargo compartment steel plate.

9

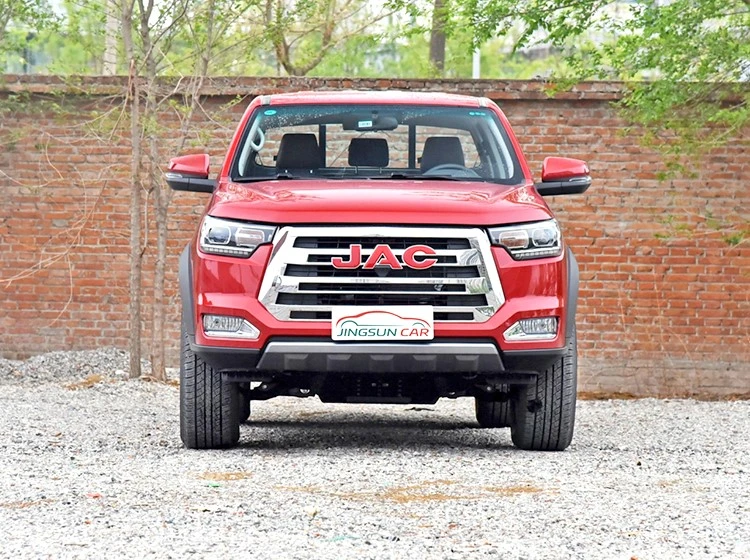

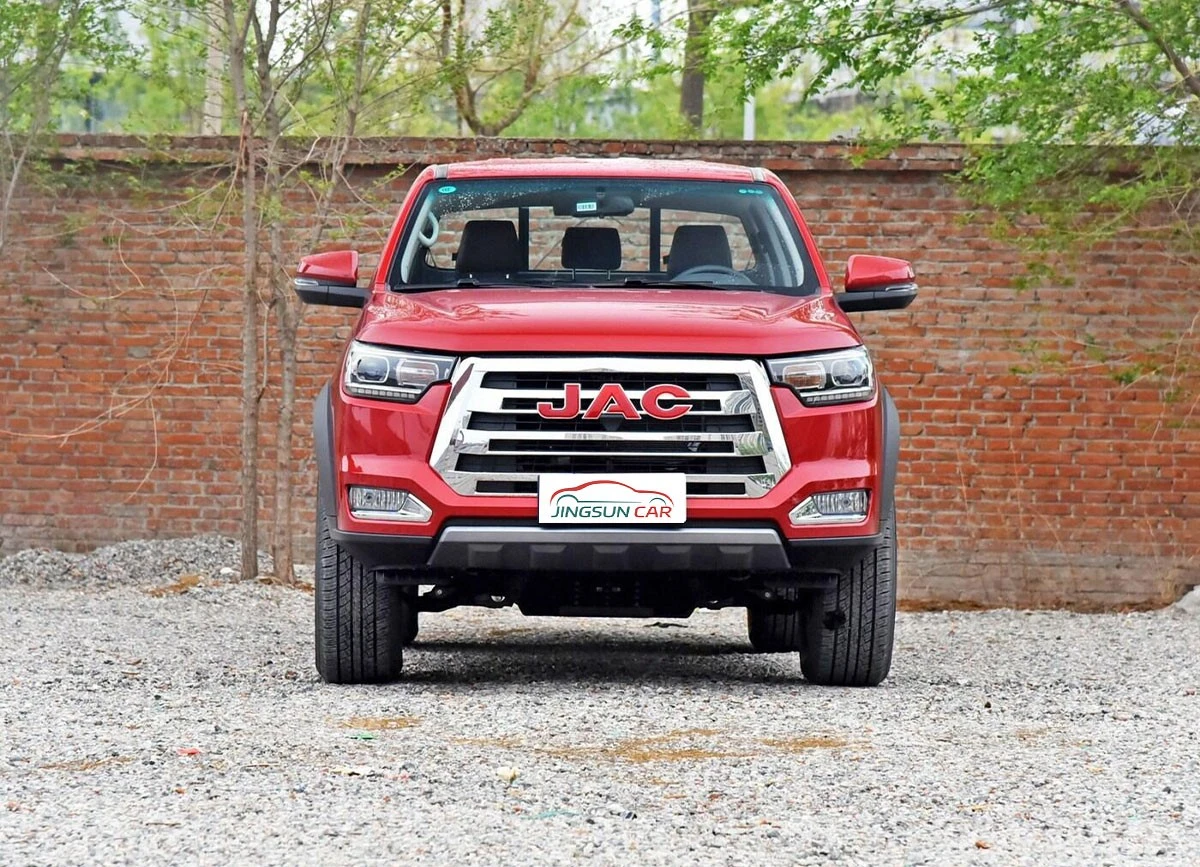

JAC T8 Front Face Design




The front face adopts a family-like design style, but it has undergone a tough transformation overall. The thick chrome-plated grille is very powerful. In addition, it is also equipped with four front parking radar sensors and a front camera with panoramic images, which is very practical for a tall pickup truck.



JAC-T8-4

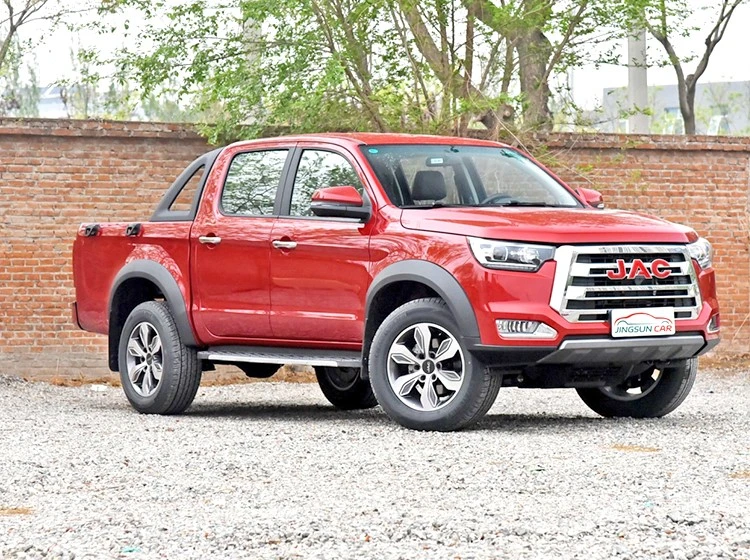

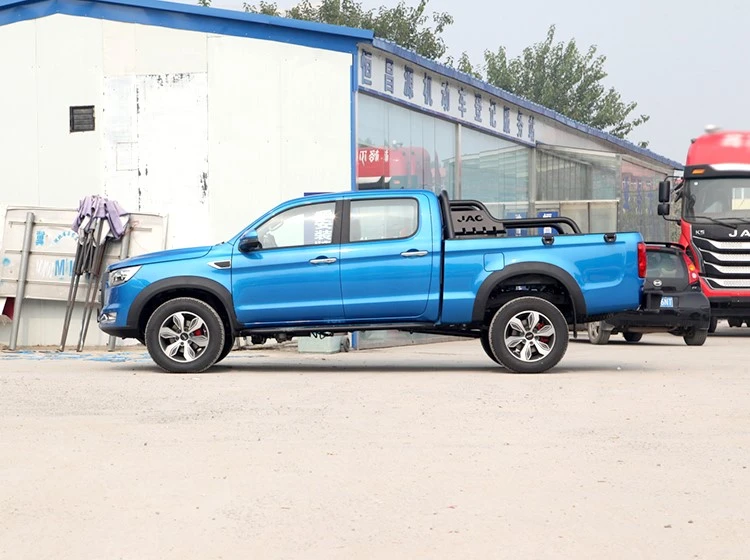

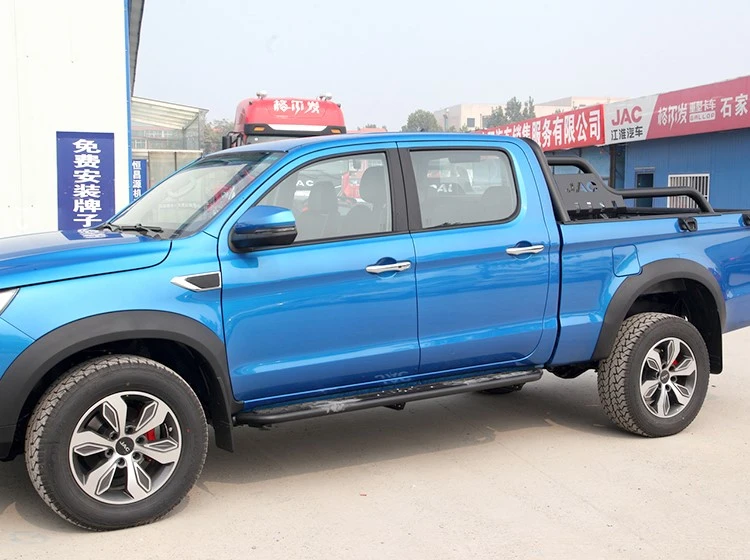

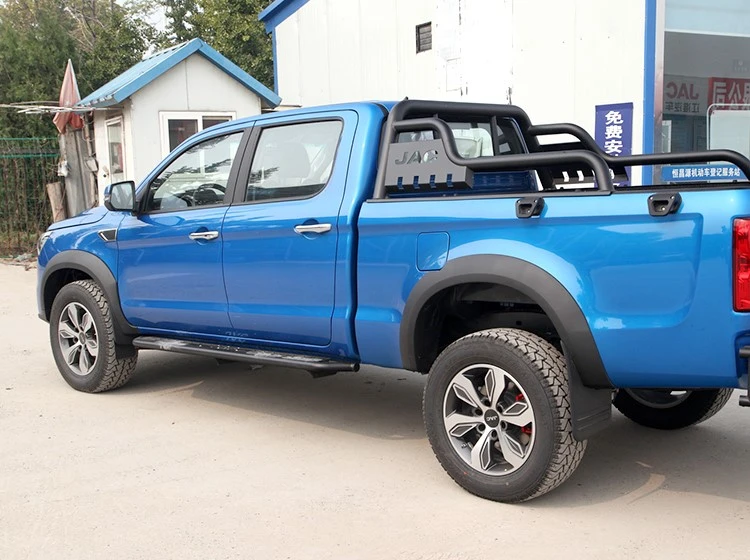

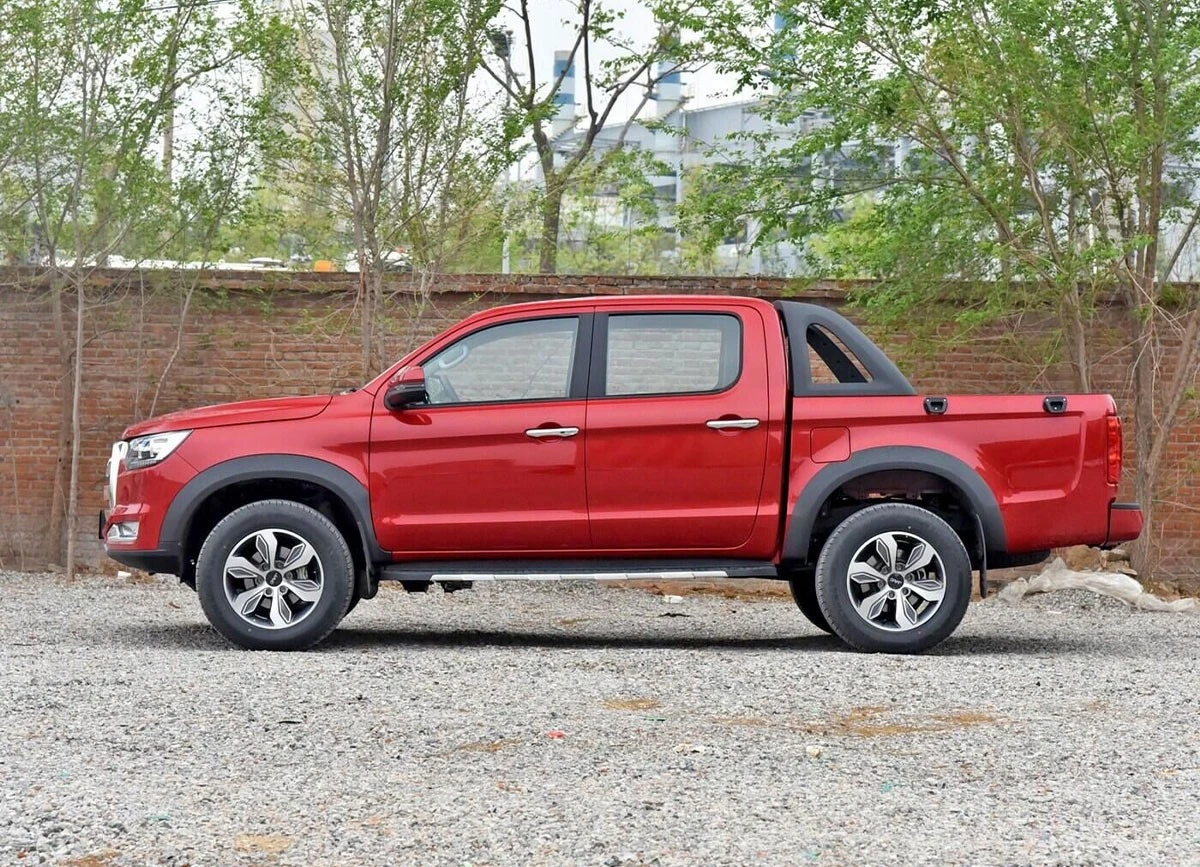

Pickup T8 Body Side

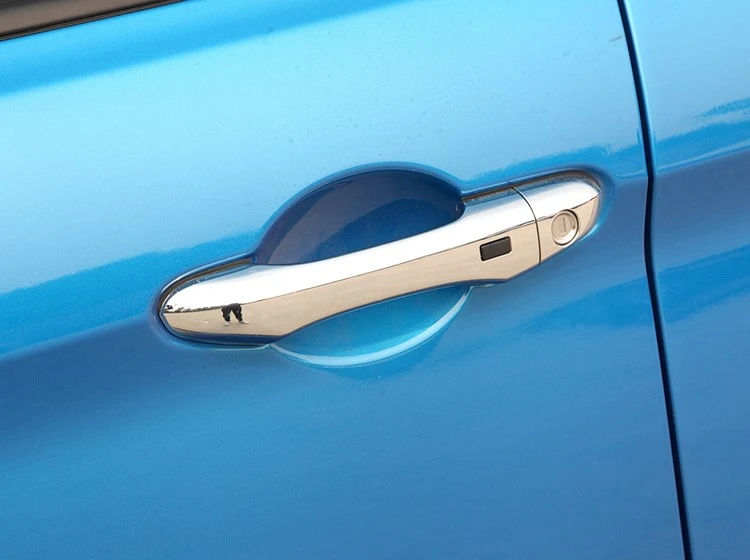

The lines on the side of the body are straight and natural, the chrome door handles are a good embellishment, and the wheel eyebrows are also equipped with black decorative covers.



JAC-T8-5

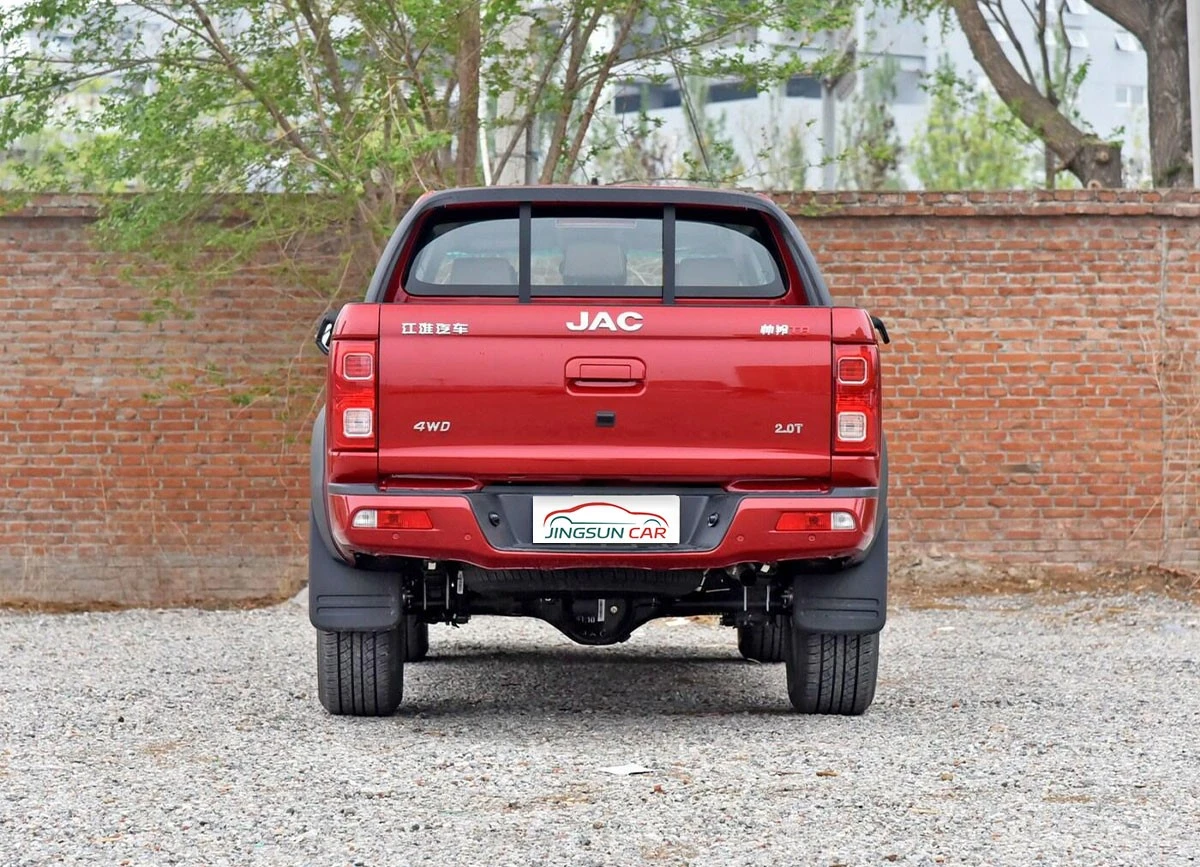

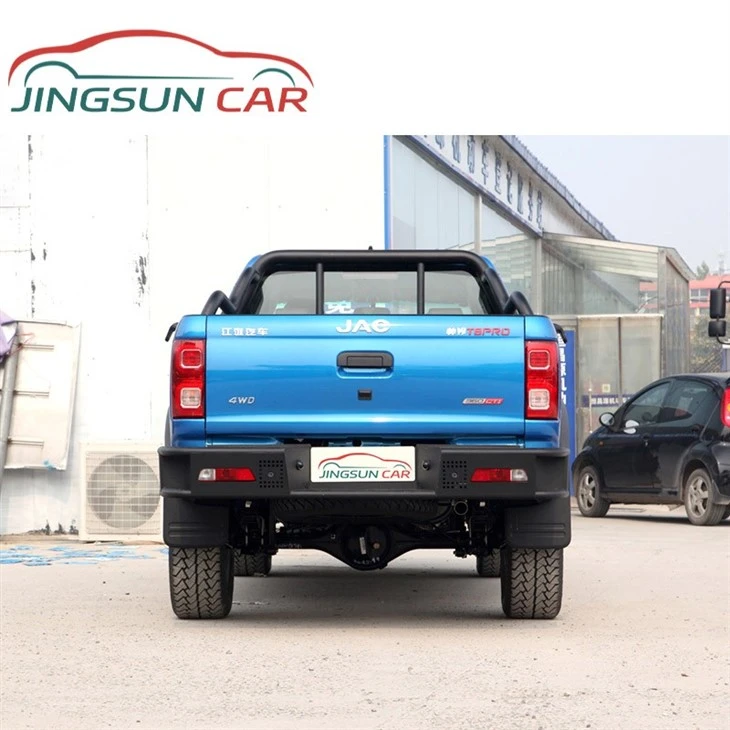

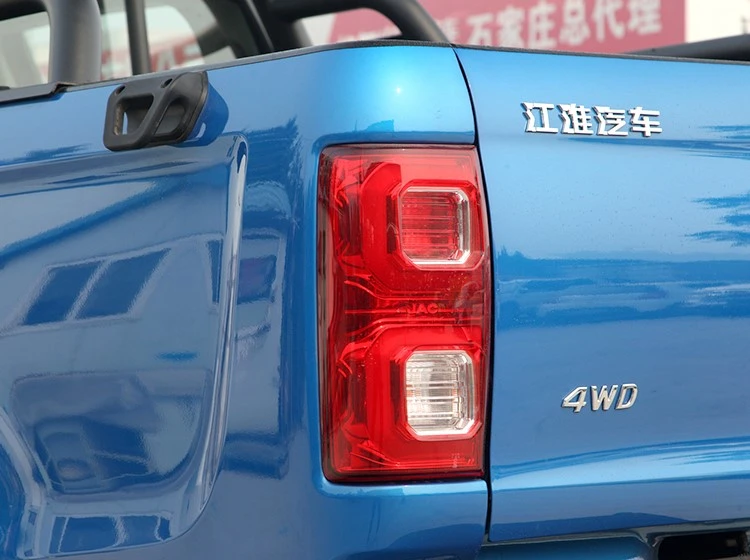

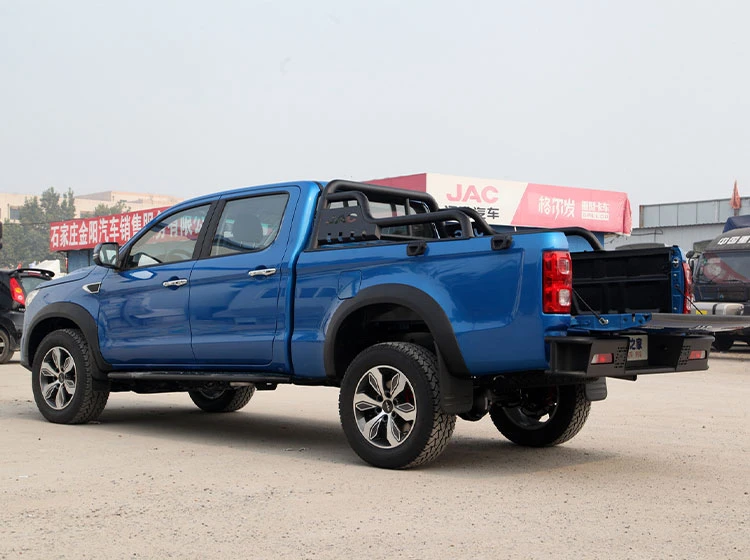

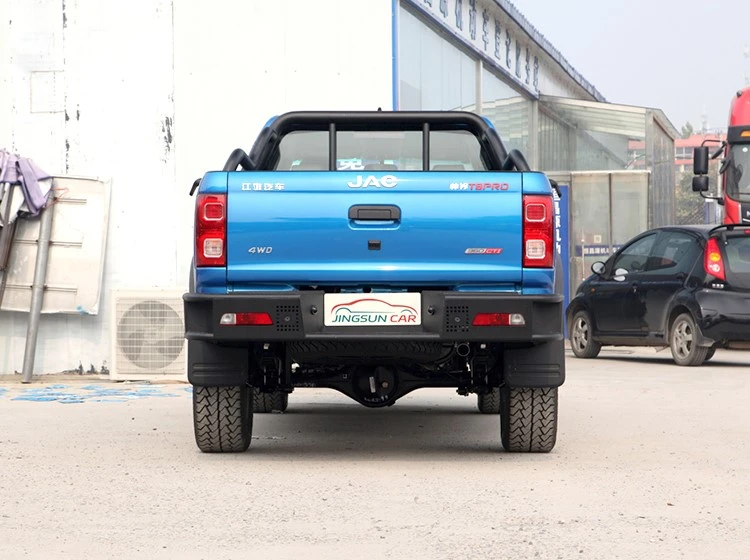

Car Rear Design

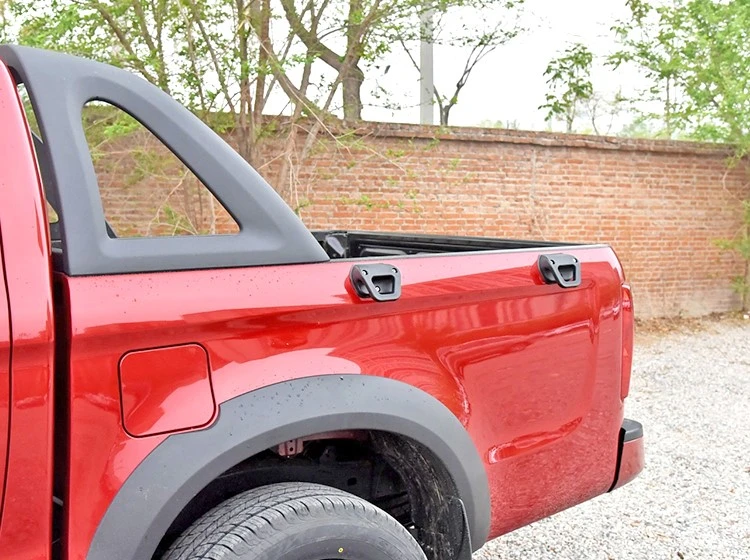

The shape of the rear of the car is relatively square, and there are anchor points for tying ropes on the outside of the cargo compartment panel to facilitate tying items.



JAC-T8-6

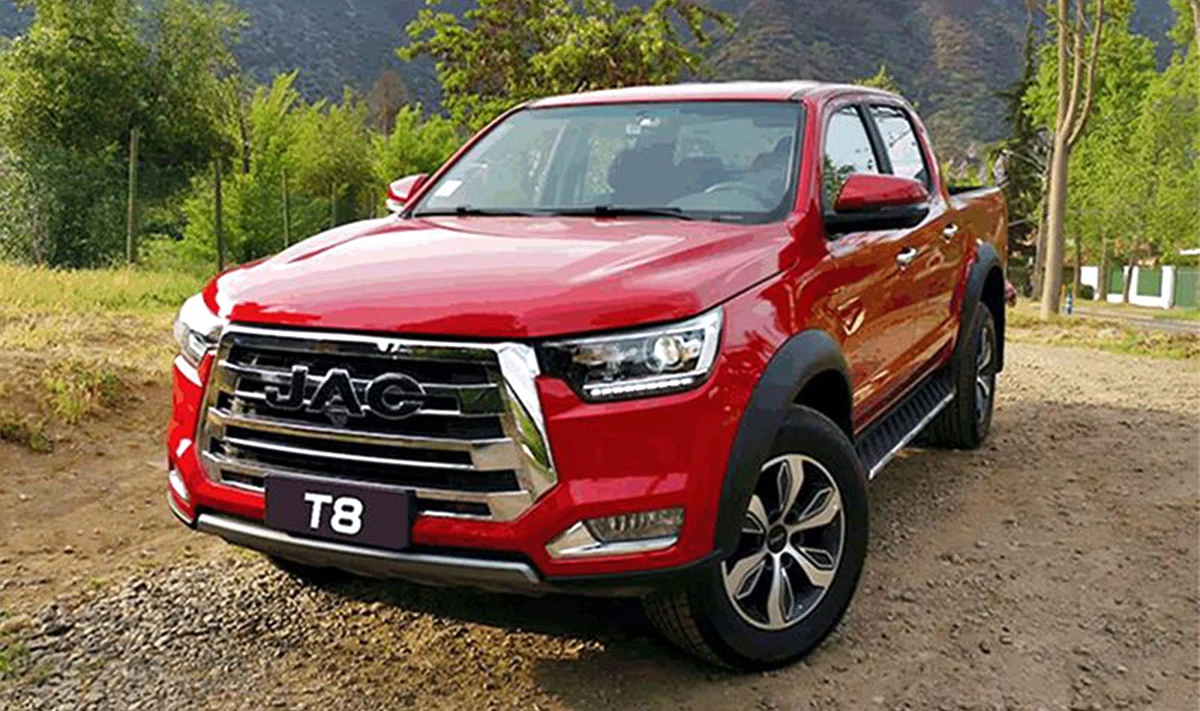

Overall Rating




The appearance of Pickup T8 is majestic and tough, especially the wide chrome trim on the front of the car is very powerful. The combination of front/rear parking radar and panoramic images also makes parking more convenient. There is not much novelty in the interior, and it still adheres to the family-like design style. In terms of configuration, it has functions such as one-button start, central touch screen, multi-function steering wheel, cruise control and ESP. Overall, its performance is good.



JAC-T8v-7



Product Details




1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

● Standard configuration
○ Optional
-- None
JAC T8 2023 2.0T PRO automatic diesel two-wheel drive sharp version standard dual JAC T8 2023 2.0T PRO automatic diesel four-wheel drive Ruishang version big double JAC T8 2021 2.4T PRO gasoline two-wheel drive sharp version standard dual JAC T8 2021 2.4T PRO gasoline four-wheel drive Ruishang version standard dual
Basic Parameters
Manufacturer Jianghuai Automobile Jianghuai Automobile Jianghuai Automobile Jianghuai Automobile
Level Pickup Pickup Pickup Pickup
Energy type Diesel Diesel Gasoline Gasoline
Environmental protection standards National VI National VI National VI National VI
Time to market 2023.05 2023.05 2020.10 2020.10
Maximum power(kw) 125 125 155 155
Maximum torque(N-m) 410 410 320 320
Engine 2.0T 170 horsepower L4 2.0T 170 horsepower L4 2.4T 211 horsepower L4 2.4T 211 horsepower L4
Gearbox 8-speed manual 8-speed manual 6-speed manual 6-speed manual
Length*Width*Height (mm) 5325*1880*1830 5615*1880*1830 5325*1880*1830 5325*1880*1830
Body structure 4-door 5-seater pickup 4-door 5-seater pickup 4-door 5-seater pickup 4-door 5-seater pickup
Maximum speed (km/h) 150 150 150 150
Car Body
Wheelbase(mm) 3090 3380 3090 3090
Body structure Pickup Pickup Pickup Pickup
Fuel tank volume (L) 76 76 75 75
Engine
Engine model HFC4DB2-2E1 HFC4DB2-2E1 4K22D4T 4K22D4T
Displacement (mL) 1999 1999 2378 2378
Displacement(L) 2.0 2.0 2.4 2.4
Intake form Turbocharged Turbocharged Turbocharged Turbocharged
Cylinder arrangement L L L L
Number of cylinders 4 4 4 4
Air Supply DOHC DOHC DOHC DOHC
Maximum horsepower (Ps) 170 170 211 211
Maximum power(kW) 125 125 155 155
Maximum torque(N-m) 410 410 320 320
Maximum torque speed (rpm) 1500-2500 1500-2500 2000-4000 2000-4000
Fuel grade 0# 0# 92# 92#
Chassis/Wheels
Drive mode Front and rear drive Front and rear drive Front and rear drive Front and rear drive
Front suspension type Double wishbone independent suspension Double wishbone independent suspension Double wishbone independent suspension Double wishbone independent suspension
Rear suspension type Leaf spring non-independent suspension Leaf spring non-independent suspension Leaf spring non-independent suspension Leaf spring non-independent suspension
Front tire specifications 265/60 R18 265/60 R18 265/60 R18 265/60 R18
Rear tire specifications 265/60 R18 265/60 R18 265/60 R18 265/60 R18
Active/Passive safety
Main/passenger seat airbag Main●/deputy● Main●/deputy● Main●/deputy● Main●/deputy●
Tire pressure monitoring function ●Tire pressure display ●Tire pressure display -- ●Tire pressure display
Seat belt not fastened reminder ●Main driver's seat ●Main driver's seat ●Main driver's seat ●Main driver's seat
ABS anti-lock
Auxiliary/Control Configuration
Front/rear parking radar Front--/rear● Front●/rear● Front--/rear● Front--/rear●
Driving assistance images ●Reversing image ●360-degree panoramic image -- ●Reversing image
cruise system ●Fixed speed cruise ●Fixed speed cruise ●Fixed speed cruise ●Fixed speed cruise
Appearance/Anti-Theft
Rim material ●Aluminum alloy ●Aluminum alloy ●Aluminum alloy ●Aluminum alloy
Key type ●Remote control key ●Remote control key ●Remote control key ●Remote control key
Keyless start system --
Internal Configuration
Steering wheel material ●Plastic ●Leather ●Plastic ●Genuine leather
Steering wheel position adjustment ●Manual up and down adjustment ●Manual up and down adjustment ●Manual up and down adjustment ●Manual up and down adjustment
Seat Configuration
Seat material ●Imitation leather ●Imitation leather ●Fabric ●Imitation leather
Main/passenger seat electric adjustment Main--/deputy-- Main●/deputy-- Main--/deputy-- Main--/deputy--
Front/rear center armrest Front●/rear-- Front●/rear● Front●/rear-- Front●/rear--
Multimedia Configuration
Central control color screen ●Touch LCD screen ●Touch LCD screen ●Touch LCD screen ●Touch LCD screen
GPS navigation system -- --
Bluetooth/car phone
Multimedia/charging interface ●USB ●USB ●USB ●USB
Lighting Configuration
Low beam light source ●LED ●LED ●LED ●LED
high beam light source ●LED ●LED ●LED ●LED
Glass/Rear View Mirror
Front/rear electric windows Front●/rear● Front●/rear● Front●/rear● Front●/rear●
Window anti-pinch function --

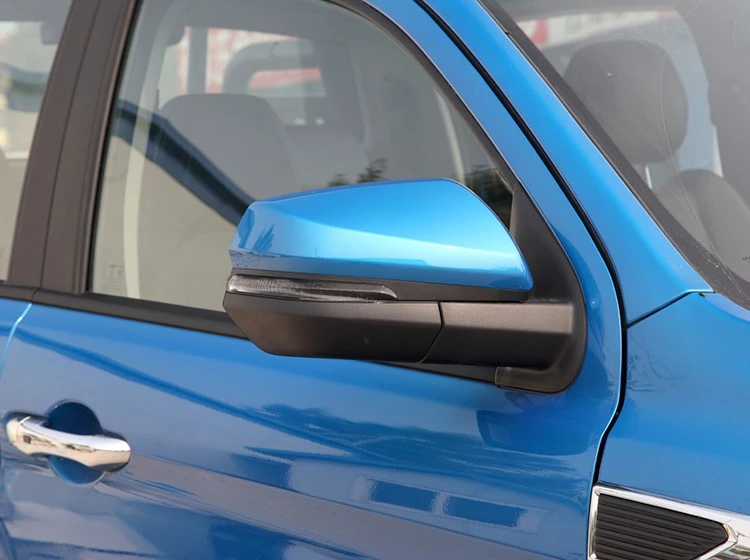

Exterior rearview mirror function ●Electric adjustment ●Electric folding
●Rearview mirror heating
●Electric adjustment
●Electric adjustment ●Electric adjustment
Car vanity mirror ●Co-pilot ●Co-pilot ●Co-pilot ●Co-pilot
