Xpeng MONA M03

Xpeng MONA M03

Power Type: Pure Electric
Vehicle Level: Compact Car
Electric Motor Horsepower: 190Ps/218Ps
Maximum Power: 140/160kW
Maximum Torque: 225/250N·m
Send Inquiry
Description
Technical Parameters

Appearance Design





Xpeng MONA M03 is jointly created by Didi and Xpeng. It has a simple appearance design, a flat front face, an active closed air intake grille at the bottom, and a drag coefficient of 0.194Cd.



product-1200-831



Body Design

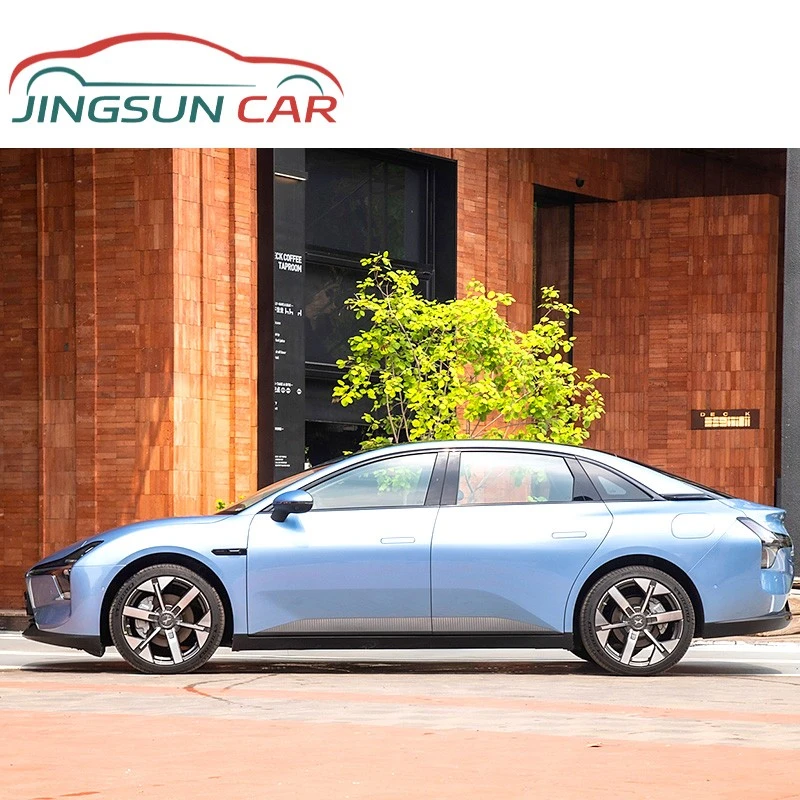

Xpeng MONA M03 is positioned as a compact car, with a body size of 4780/1896/1445mm and a wheelbase of 2815mm. The side design is simple, with smooth and sporty lines; the rear is a small ducktail design and is equipped with a black lower surround.



product-1200-831



Wraparound Cockpit





Xpeng M03's interior decoration style is very simple and looks very refreshing. The center console surface uses a lot of soft wrapping, which feels good to the touch. The transition between the center console and the main and co-driver door panels is very smooth, forming an wraparound cockpit.



product-1200-831



product-750-560

Flat-bottom Steering Wheel



The Xpeng MONA M03 steering wheel is just right in terms of size and feel. It adopts a two-spoke flat-bottom design. The original car is not equipped with a dashboard, but it can be purchased at an additional cost.

Wrist-type Gearshift



MONA M03 also adopts the wrist-type gearshift for extreme simplicity. Although the lack of a grip gearshift lever provides a better driving experience, it also reduces the difficulty of driving a lot.

product-750-560
product-750-560

Central Control Screen



All models are equipped with a 15.6-inch color touch LCD screen as standard, and the in-vehicle system processor is Qualcomm Snapdragon 8155P. The interface design is simple, the car machine responds smoothly, and it is not difficult to use.

Wireless Charging



There are two cup holders below the air-conditioning outlet. Placing them in this position will not affect driving. The wireless charging base is tilted at the rear to prevent the phone from rushing forward while driving.

product-750-560
product-750-560

Built-in Charging



There is also a USB and a Type-C charging port inside the front center armrest, plus wireless charging, which is enough for the front row.

Front Seats



The front seats of Xpeng MONA M03 all support electric adjustment, and all except the lowest-equipped models have seat heating and ventilation functions. They are wrapped in leather, and the headrests are more wrapping, which is very practical when parking and resting.

product-750-560
product-750-560

Rear Air Outlet



The rear air-conditioning outlet is not big, but it is enough. There are two Type-C charging ports on the top. It is extremely simple but practical. The design is very thoughtful.

Panoramic Sunroof



The standard panoramic sunroof for all models cannot be opened. It covers almost the entire roof and has speakers arranged around it. The standard configuration for the whole car is 7 speakers, and 18 speakers can be added at an additional cost.

product-750-560
product-750-560

Rear Seats



The rear space is also very good among cars of the same class. The rear seats are very wide, well padded, and come standard with a central armrest and headrest. All three seats are very comfortable.

Electric Trunk



The trunk supports electric memory function, and the internal space is flat and can accommodate two foldable bicycles without any pressure. The rear seats also support proportional folding, which can further expand the cargo space.

product-750-560



Vehicle Performance





Xpeng MONA M03 offers two electric motors, 140kW and 160kw, with front-wheel drive, equipped with lithium iron phosphate batteries, and a range of 515km and 620km.



product-1200-831



Endurance Performance





Xpeng MONA M03 is equipped with a motor with a maximum power of 160kW, and an acceleration time of 7.4 seconds per 100 kilometers, with excellent performance. At the same time, MO3 is also equipped with a 62.2kWh lithium iron phosphate battery pack, and the pure electric range under CLTC conditions can reach 620 kilometers.



product-1200-831




Product Details

product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560
product-750-560

Hot Tags: xpeng mona m03, China xpeng mona m03 suppliers, BENZ SUV, hiphi auto, hong qi h9, 2022 toyota corolla, leapmotors t03, hongguang plus

● Standard configuration
○ Optional
-- None
Xpeng MONA M03 2024 model 515 long battery life Xpeng MONA M03 2024 Model 580 Super Long Range Max Xpeng MONA M03 2024 model 620 ultra-long battery life
Basic Parameters
Manufacturer Xiaopeng Motors Xiaopeng Motors Xiaopeng Motors
Level Compact car Compact car Compact car
Energy type Pure electric Pure electric Pure electric
Time to market 2024.08 2024.08 2024.08
Fast charging time (h) 0.43 0.43 0.43
Maximum power(kw) 140 160 160
Maximum torque(N-m) 225 250 250
Gearbox Electric vehicle single-speed gearbox Electric vehicle single-speed gearbox Electric vehicle single-speed gearbox
Length*Width*Height (mm) 4780*1896*1445 4780*1896*1445 4780*1896*1445
Body structure 5-door 5-seater hatchback 5-door 5-seater hatchback 5-door 5-seater hatchback
Maximum speed (km/h) 155 155 155
Official 0-100km/h acceleration (s) 7.8 7.4 7.4
Vehicle warranty Five years or 120,000 kilometers Five years or 120,000 kilometers Five years or 120,000 kilometers
Car Body
Wheelbase(mm) 2815 2815 2815
Front wheelbase (mm) 1628 1628 1628
Rear wheelbase (mm) 1628 1628 1628
Body structure Hatchback Hatchback Hatchback
Car door opening method Swing door Swing door Swing door
Trunk volume (L) 621-1603 621-1603 621-1603
Curb weight (kg) 1661 1739 1739
Electric Motor
Motor type Permanent magnet/synchronous Permanent magnet/synchronous Permanent magnet/synchronous
Total motor power (kW) 140 160 160
Total torque of motor (N·m) 225 250 250
Number of drive motors Single motor Single motor Single motor
Motor layout Front Front Front
Battery Type Lithium iron phosphate battery Lithium iron phosphate battery Lithium iron phosphate battery
Battery brand Freddy Freddy Freddy
Battery cooling method Liquid cooling Liquid cooling Liquid cooling
Battery energy (kWh) 51.8 62.2 62.2
Electricity consumption per 100 kilometers (kWh/100km) 11.5 11.5 11.5
Chassis/Wheels
Drive mode Front front drive Front front drive Front front drive
Front suspension type Macpherson independent suspension Macpherson independent suspension Macpherson independent suspension
Rear suspension type Torsion beam type non-independent suspension Torsion beam type non-independent suspension Torsion beam type non-independent suspension
Parking brake type Electronic parking Electronic parking Electronic parking
Rim material ●Aluminum alloy ●Aluminum alloy ●Aluminum alloy
Front tire specifications 215/50 R18 215/50 R18 215/50 R18
Rear tire specifications 215/50 R18 215/50 R18 215/50 R18
Active/Passive safety
Main/passenger seat airbag Main●/deputy● Main●/deputy● Main●/deputy●
Front/rear side airbags Front●/rear-- Front●/rear-- Front●/rear--
Front/rear head airbags (curtain airbags) Front●/rear● Front●/rear● Front●/rear●
Tire pressure monitoring function ●Tire pressure display ●Tire pressure display ●Tire pressure display
Seat belt not fastened reminder ●Whole car ●Whole car ●Whole car
ABS anti-lock
Lane Departure Warning System
Active braking/active safety system
Reverse side warning system
Control Configuration
Driving mode switch ●Sports
●Economy
●Standard/comfortable
●Sports
●Economy
●Standard/comfortable
●Sports
●Economy
●Standard/comfortable
Shift pattern ●Electronic gear shift ●Electronic gear shift ●Electronic gear shift
automatic parking
Auxiliary/Intelligent Driving
cruise system ●Full speed adaptive cruise ●Full speed adaptive cruise ●Full speed adaptive cruise
Assisted driving level ●L2 ●L2 ●L2
Lane centering
Road traffic sign recognition -- --
Automatic parking
Driving assistance images ●360-degree panoramic image ●360-degree panoramic image ●360-degree panoramic image
Front/rear parking radar Front●/rear● Front●/rear● Front●/rear●
Ultrasonic radar quantity ●12 pcs ●12 pcs ●12 pcs
Appearance Configuration
Skylight type ●Panoramic sunroof cannot be opened ●Panoramic sunroof cannot be opened ●Panoramic sunroof cannot be opened
Hidden electric door handle
Key type ●Bluetooth key
●NFC/RFID key
●Bluetooth key
●NFC/RFID key
●Bluetooth key
●NFC/RFID key
Keyless start system
Electric trunk
Internal Configuration
Steering wheel material ●Leather ●Leather ●Leather
Steering wheel position adjustment ●Manual up and down + front and rear adjustment ●Manual up and down + front and rear adjustment ●Manual up and down + front and rear adjustment
Multifunction steering wheel
Seat Configuration
Seat material ●Imitation leather ●Imitation leather ●Imitation leather
Main/passenger seat electric adjustment Main●/deputy● Main●/deputy● Main●/deputy●
Front seat functions -- ●Ventilation
●Heating
●Ventilation
●Heating
Power seat memory function ●Driver's seat ●Driver's seat ●Driver's seat
Rear seats fold down ●Proportional inverted ●Proportional inverted ●Proportional inverted
Front/rear center armrest Front●/rear● Front●/rear● Front●/rear●
Lighting Configuration
Low beam light source ●LED ●LED ●LED
high beam light source ●LED ●LED ●LED
Adaptive high and low beam
Headlight height adjustable
Delayed turn off of headlights
Car interior ambient lighting -- ●256 colors ●256 colors
Glass/Rear View Mirror
Exterior rearview mirror function ●Rearview mirror memory
●Lock the car and fold automatically
●Electric folding
●Rearview mirror heating
●Reverse and automatically turn down
●Electric adjustment
●Rearview mirror memory
●Lock the car and fold automatically
●Electric folding
●Rearview mirror heating
●Reverse and automatically turn down
●Electric adjustment
●Rearview mirror memory
●Lock the car and fold automatically
●Electric folding
●Rearview mirror heating
●Reverse and automatically turn down
●Electric adjustment
Sensing wiper function ●Rain sensor type ●Rain sensor type ●Rain sensor type
Front/rear electric windows Front●/rear● Front●/rear● Front●/rear●
One-touch window lifting function ●Whole car ●Whole car ●Whole car
Window anti-pinch function
Car vanity mirror ●Main driver + lighting
●Co-pilot + lighting
●Main driver + lighting
●Co-pilot + lighting
●Main driver + lighting
●Co-pilot + lighting
Interior rearview mirror function ●Manual anti-glare ●Manual anti-glare ●Manual anti-glare
Intelligent Internet
Central control color LCD screen ●Touch LCD screen ●Touch LCD screen ●Touch LCD screen
Central control screen size ●15.6 inches ●15.6 inches ●15.6 inches
Voice assistant wake word ●Hello, little P ●Hello, little P ●Hello, little P
Navigation traffic information display
GPS navigation system
Bluetooth/car phone
Voice recognition control system ●Car window
●Multimedia system
●Navigation
●Phone
●Air conditioner
●Seat heating
●Car window
●Seat ventilation
●Multimedia system
●Navigation
●Phone
●Air conditioner
●Seat heating
●Car window
●Seat ventilation
●Multimedia system
●Navigation
●Phone
●Air conditioner
APP Remote Control ●Door control
●Headlight control
●Air conditioning control
●Vehicle condition inquiry/diagnosis
●Vehicle positioning/car search
●Window control
●Car owner service (find charging piles, gas stations, parking lots, etc.)
●Make an appointment for maintenance/repair
●Charging management
●Door control
●Headlight control
●Air conditioning control
●Vehicle condition inquiry/diagnosis
●Vehicle positioning/car search
●Window control
●Car owner service (find charging piles, gas stations, parking lots, etc.)
●Make an appointment for maintenance/repair
●Charging management
●Door control
●Headlight control
●Air conditioning control
●Vehicle condition inquiry/diagnosis
●Vehicle positioning/car search
●Window control
●Car owner service (find charging piles, gas stations, parking lots, etc.)
●Make an appointment for maintenance/repair
●Charging management
Media Entertainment
Multimedia/charging interface ●Type-C
●USB
●Type-C
●USB
●Type-C
●USB
Number of USB/Type-C interfaces ●3 front rows/2 rear rows ●3 front rows/2 rear rows ●3 front rows/2 rear rows
Mobile phone wireless charging function ●3 front rows/2 rear rows ●3 front rows/2 rear rows ●3 front rows/2 rear rows
Number of speakers ●7 speakers
○18 speakers
●7 speakers
○18 speakers
●7 speakers
○18 speakers
